1. Introduction & System composition diagram
zIntroduction
-IDRO900F2 is the Fixed type UHF RFID that is designed for long distance,
wide range application using the RS-232 interface. It provides features
such as Compact size, low cost, high performance to customer.
ISO 18000-6C(EPC C1G2) and ISO 18000-6B protocol is supported.
Read range of Reader reaches up to 10 meters(depends on tags)
-Target Application
Parking management system
Factory conveyor system
Bagging management system
Other application
zSystem composition diagram

IDRO900F2 User’s Manual
Company Date Version
IDRO Co.,Ltd 2012-05-24 V2.5.24
5
Identification with Radio and Optical
2. Composition parts
RFID Reader
Antenna(6dBi)
(option)
Antenna cable
(option)
DC12V/3A Adaptor
RS-232 cable
Reader Software &
User Document CD-ROM

IDRO900F2 User’s Manual
Company Date Version
IDRO Co.,Ltd 2012-05-24 V2.5.24
6
Identification with Radio and Optical
3. Reader Description
Interface
ANT Port
SERIAL(RS232) : It can be locally connected to the
host PC and Use to information transfer or
firmware u
p
date.
DC : RFID Reader power supply port, recommend
DC 12V/3A Adaptor.
ANT1/ANT2 : Use a 50ohm coaxial cable to connect the
reader with the patch antenna. It is possible to connection
up to four antennas.

IDRO900F2 User’s Manual
Company Date Version
IDRO Co.,Ltd 2012-05-24 V2.5.24
7
Identification with Radio and Optical
Status LED
Status LED
GREEN(DATA) zIt will twinkle when the reader is receiving data from a tag
RED(POWER) zIt is turned on when the reader is powered
LED : It is comprised of Red Led(POWER) and Green Led(DATA)
that appear status of the reader.

IDRO900F2 User’s Manual
Company Date Version
IDRO Co.,Ltd 2012-05-24 V2.5.24
8
Identification with Radio and Optical
4. Reader Specification
zReader Performance
Description Value
MODEL IDRO900F2
Architecture UHF RFID Reader
Protocol EPC Gen2(ISO 18000-6C),
ISO 18000-6B
Frequency 917.3MHz to 920.3MHz(Korea)
860MHz to 960MHz (Customizable)
Max Tx Power 30dBm±1dBm (1W)
Power control 12dBm to 30dBm (1dB step)
Hopping Channels 6 (Korea), 50(USA), 4(EUROPE)
Channel Spacing 600KHz (Korea, EUROPE), 500KHz (USA)
Channel Dwell time < 0.4 seconds
Modulation Method DSB-ASK, PR-ASK
Supply voltage 12V±1V
Max Current (max power) < 2A
Tag Read Distance(Max.) <10m
Operating Temperature -20℃ to +50℃
LED Indicators Data , Power
Signaling RS-232 : Baud rate(9600bps, 115200bps),
zInterface
Host connector RS-232 : DB-9F
ANT Connector SMA Female R/A
zPhysical Dimension
SIZE 89mm × 86.4mm × 25.5mm
Weight ? g

IDRO900F2 User’s Manual
Company Date Version
IDRO Co.,Ltd 2012-05-24 V2.5.24
9
Identification with Radio and Optical
zPower control level table
Power control level Power(dBm)
0 30
1 29
2 28
3 27
4 26
5 25
6 24
7 23
8 22
9 21
10 20
12 19
13 18
14 17
15 16
16 15
17 14
18 13
19 12

IDRO900F2 User’s Manual
Company Date Version
IDRO Co.,Ltd 2012-05-24 V2.5.24
10
Identification with Radio and Optical

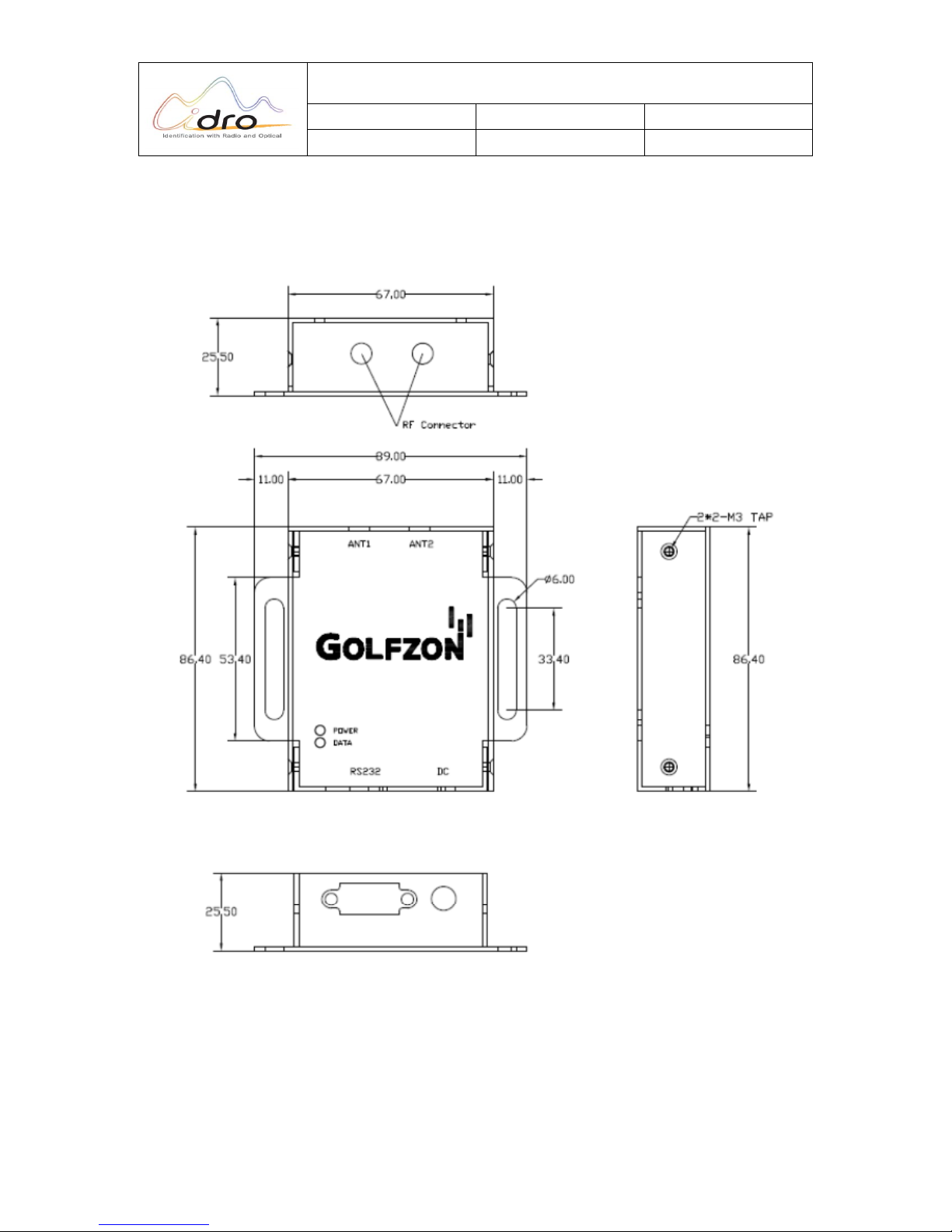

zMechanical Dimension

IDRO900F2 User’s Manual
Company Date Version
IDRO Co.,Ltd 2012-05-24 V2.5.24
11
Identification with Radio and Optical
5. Operation method
①. Run [email protected] with window XP
②. Connect serial data cable between PC and Reader.
③. First, check “Fixed 4 Channel-IDRO900F4, Serial, COM1”
(The COM1 can change port number as environment of PC and reader)
④. Supply power to reader. Waiting until the buzzer is sounded “beep”.
⑤. Click “Reader@Controller”
Æ If connection is completed, then “Inventory@Multiple” appears as follows.
⑥. Click “Inventory@Multiple” Æ Reader executes to read tag
⑦. Please refer to the “Reader@Express User’s manual” for more information
