Instructions for Use
Istruzioni d’uso
Gebrauchsanweisung
Mode d’emploi
Instrucciones de uso
Instruções de uso
Gebruiksaanwijzing
Brugsanvisning
Mode Käyttöohjeet
Bruksanvisning
Bruksanvisning
Instrukcja obsługi
Návod k použití
Návod na použitie
Instrucțiuni de utilizare
Инструкция по применению
Kullanim talımatlari
1
17
33
49
65
81
97
113
129
145
161
177
193
209
225
241
257
273
GB
IT
DE
FR
ES
PT
NL
DA
FI
NO
SV
PL
CZ
SK
RO
RU
TR
AR
†
+
TOUCH
TOUCH
+
ULTRA
+
ULTRA
CLICK
+
CLICK
STICK
ARCUS
BRUSH
DUETTO
HOME
DAY
HOME
NIGHT
LIPS
ARCUS
HOME
HOME
CARE
CARE
DUETTO
ACTIVE
PATIENT
KIT
DUETTO
CARE
LED Bleaching lamp
MOBILE
GB
I. Unit description and functions............................2
II. .....................................2
III. Packaging / components....................................3
IV. Safety precautions .............................................3
V. Installation..........................................................8
VI. Preparation for operation .................................10
VII. Daily care and maintenance ............................11
VIII. Preparation for work with patients....................12
IX. Positions of bleaching head .............................13
against patient’s teeth
X. Determination of distance ...............................14
to patient’s teeth
XI. Problems and solutions ...................................15
XII. Warranty ..........................................................16
XIII. Symbols ........................................................289
XIV. Service data ..................................................289
XV. Declaration of conformity ...............................290
XVI. Led bleaching unit data .................................291
Caution!
Before installing and operating
with the unit,
carefully read this manual.
I. UNIT DESCRIPTION AND FUNCTIONS
BLANCONE
®
ARCUS
+
LED bleaching device is a medical device designed to whiten the solid tooth tissue
by photoactivation of a whitening gel used in dentistry (6-39% hydrogen peroxide or equivalent).
The device consists of a Bleaching Head, Stand and a Power Adapter.
BLANCONE
®
ARCUS
+
is manufactured in conformity with the requirements
of standards ISO 9001:2015, ISO 13485:2016 and Medical Devices Directive 93/42/EEC.
II. TECHNICAL SPECIFICATIONS
1.
Operating voltage to the power adapter - 100-240V / 50-60Hz, to the whitening head - 24VDC.
2.
Current consumption - 0.4-0.2 A
3.
Dimensions:
- Bleaching head
length - 220 mm
width - 155 mm
height - 95 mm
- Stand
length (assembled) - 1300 mm
4.
Weight:
- Bleaching head - 640 g
- Stand - 8500 g
5.
Irradiance - HI mode (100%), LO mode (50%) measured at the output window
6.
Operation time - 10 sec. - 30 min / ± 5% /
7.
Emitted light - blue 430 - 490 nm.
8.
Light source - 10 LED modules x 5W = 50W
9.
Fan air cooling.
10.
Ability to start and stop the Bleaching Head at any time.
11.
Maximum continuous operation time 99 min – every 99 minutes
of continuous operation should have at least 10 minutes rest.
The manufacturer of this device will provide upon request the necessary
additional technical documentation / information necessary for the technical staff
as subject to repair.
TOUCH
LIPS
CUBE
ULTRA CLICK
STICK
DUETTO
DUETTO
ARCUS
HOME
DAY
ACTIVE
HOME
NIGHT
HOME
ARCUS
CARE
BRUSH
SEAL
DUETTO
CARE
HOME
FAST
HOME
MILD
HOME
FAST
HOME
MILD
LED Bleaching Lamp - MOBILE
2
GB
3
2
4
8
5
11 9
10
B
D
A C
7
12
16
12
13
6
1

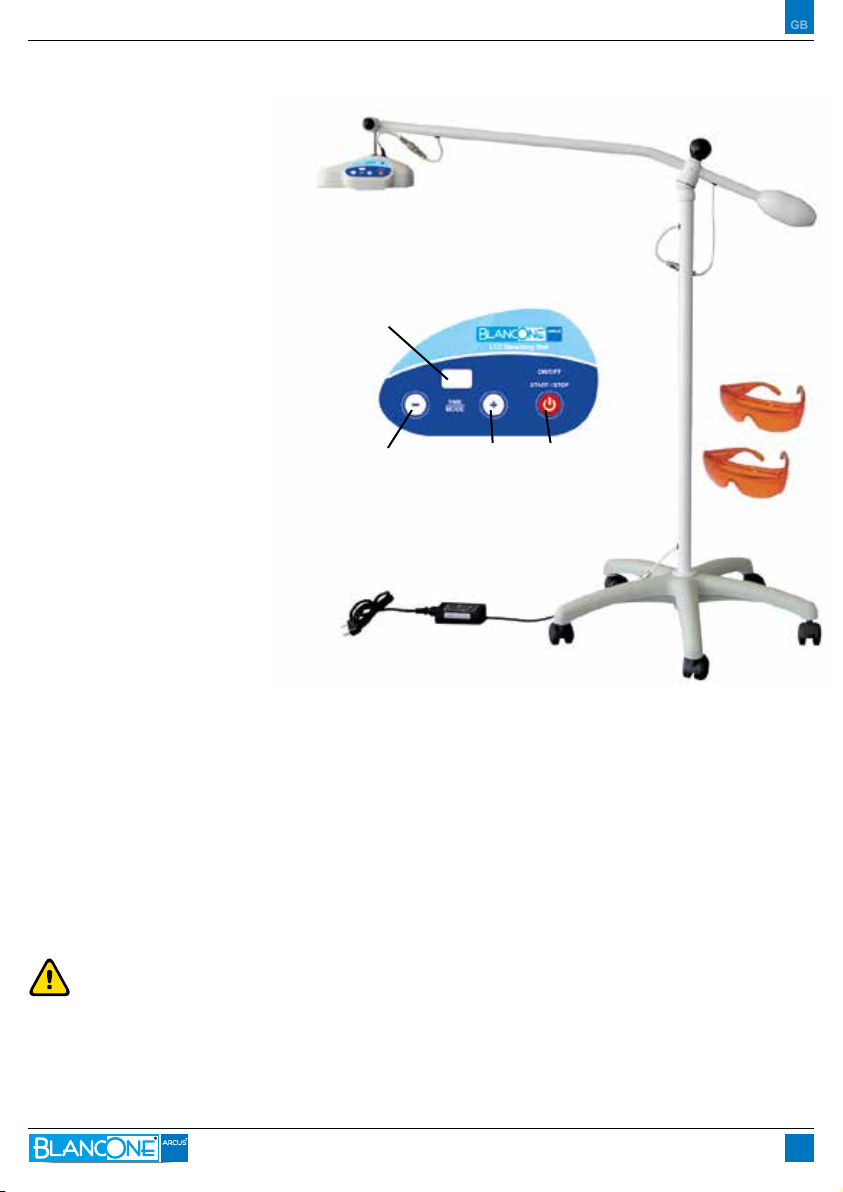

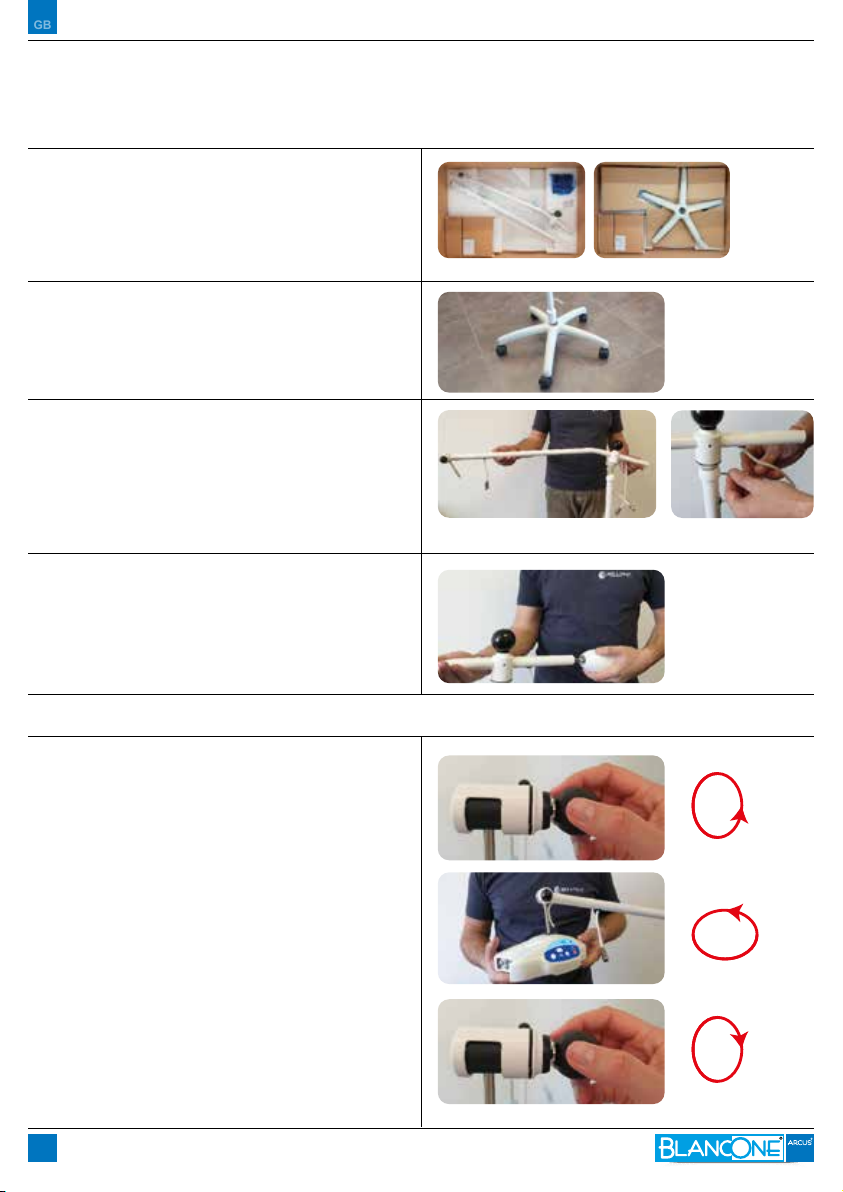

III. PACKAGING / COMPONENTS
1. Power cord
2. Power Adapter
100-240VAC / 24VDC
3. Horizontal arm
4.
mechanism
5.
6. Base with 5 wheels
7. Vertical arm
8. Bleaching head
9. Counterweight
10. Control panel
10A. “+” Timer or “Pause” button
10B. “-” Timer or “Pause” button
10C. Start / Stop button
10D. Display
11. Emitting window
of bleaching head
12. Cables and connectors
13. Safety glasses - 2 pcs.
The device should only be moved when all 5 wheels are attached to the Base (6). Each wheel has a locking
mechanism.
Fine positioning is done by turning the Bleaching head so that the light is perpendicular to the patient’s teeth
and centered on them.
IV. SAFETY PRECAUTIONS
GENERAL WARNINGS:
BLANCONE
®
ARCUS
+
is a Class IIa medical device and it meets the strict requirements of the Medical
Devices Directive 93/42/EEC and the Medical Devices Regulation - MDR (EU) 2017/745. In order to be
used safely for staff and patients, the following rules must be observed:
TOUCH
LIPS
CUBE
ULTRA CLICK
STICK
DUETTO
DUETTO
ARCUS
HOME
DAY
ACTIVE
HOME
NIGHT
HOME
ARCUS
CARE
BRUSH
SEAL
DUETTO
CARE
HOME
FAST
HOME
MILD
HOME
FAST
HOME
MILD
LED Bleaching Lamp - MOBILE
3
GB
- Do not allow unauthorized and untrained personnel to use the device to avoid risks.
- Disconnect the device from the mains after completing the procedures.
- Do not use or store the device in a dusty environment.
- Do not expose the device to direct sunlight.
- Do not spray disinfectant directly into the device - only rubbing with a swab drained of disinfectant is
acceptable.
- Do not get wet or drop liquid on the device, cables, adapter to avoid electric shock or damage to the
device.
- Store the device in a dry place, moisture can cause electric shock and damage.
- In case of a problem, disconnect the device from the mains, do not to make attempts to repair, take the
device to a service center.
- The device must not be used if any of its parameters are not normal (timer, light intensity, heat radia-
tion).
- The bleaching head must not be covered, the cooling openings must not be closed so as not to cause
the device to overheat and ignite.
their source cannot be determined, change the location of the device and plug it into another socket or
other room, even in another building.
- Opening and repairing the appliance may only be carried out by authorized service technicians from the
manufacturer.
- Only original BLANCONE
®
ARCUS
+
parts must be used when replacing defective parts. The warranty
of the device does not cover the damage caused by the use of non-original spare parts. The device or
any of its parts must not be disassembled while it is connected to the mains!
- Before each patient, the emitting window must be disinfected (with a disinfectant).
- Before the patient undergoes whitening, he/she must sign an Informed Consent, which describes in
great detail the possible side effects of the process. Sample text can be found at www.blancone.eu/pro
> documents
- Fragile! Use caution when transporting, using and storing the device! When transported in an
assembled condition, two persons are required to keep the moving parts. With any unevenness on the
- According to Directive 2012/19/EEC, this symbol indicates that the product should not be dis-
posed as a general waste at the end of its lifespan. The product must be taken to a specialized center
for the separate collection of electrical and electronic equipment according to local regulations. Proper
disposal of equipment that is no longer used prevents negative consequences for the environment and
human health!
- In accordance with the requirements of MDR 2017/745, user and / or the patient must report any serious
accident that have occurred during us of the device to the manufacturer and the competent authority of
the Member State in which the user/patient is established.
- All packaging materials of the product must be kept away from children to avoid risks of injury / suffo-
cation.
TOUCH
LIPS
CUBE
ULTRA CLICK
STICK
DUETTO
DUETTO
ARCUS
HOME
DAY
ACTIVE
HOME
NIGHT
HOME
ARCUS
CARE
BRUSH
SEAL
DUETTO
CARE
HOME
FAST
HOME
MILD
HOME
FAST
HOME
MILD
LED Bleaching Lamp - MOBILE
4
GB
SAFETY MEASURES AND RISKS
The device must be used in strict accordance with the Operating Instructions Manual.
1. Electrical safety
Before starting the appliance, make sure that the voltage and the type of plug correspond to the mains
supply in the country. Electrical safety is ensured by class II protection against electric shock according
to EN 60601-1.
BLANCONE
®
ARCUS
+
must only be operated indoors, under the following conditions:
- temperature from + 10 ° to + 40 ° C;
- relative humidity 30 - 75%;
- lack of dust in the room;
- atmospheric pressure 700 - 1060 hPa;
- no part of the device should be wetted or immersed in water;
- the device or any of its parts must not be disassembled while it is connected to the mains!
Protect the cables of the appliance from insulation damage and breakage from sharp objects, strong
pulling, rodents, chemicals. If such damage is noticed on the electrical cables, it is necessary to take the
device immediately to the company service. The device must not be used with damaged cables.
In case of thunderstorms, the procedures must be stopped and the plug must be disconnected from the
mains.
Risk: Failure to comply with these instructions may result in electric shock to users of the device.
2. Light radiation
BLANCONE
®
ARCUS
+
is a source of extremely intense light in the blue range, to which the human eye
has a high sensitivity. This results in serious measures to be taken for patients, medical staff and acciden-
tally nearby people, animals and plants.
As such, use protection goggles for the operator, and for the patient goggles, mask and high-factor sun-
screen.
Irradiation of the eyes and skin with intense light carries a risk of damage from light and heat.
The light should never be directed at the eyes! Irradiation should be limited to the workplace area. The
special safety goggles from the set that meet the requirements must be used:
- to cover the eyes and temples tightly, even if the person is wearing optical glasses.
- be made of volumetric colored impact-resistant plastic.
- do not transmit light with a wavelength of 380 - 600 nm.
- reduce the intensity of the blue spectrum by more than 100 times.
- have a stable mechanical structure, no scratches, cracks and damage to its surface.
The device can be used only after a doctor’s consultation on or by persons suffering from photo-biological
reactions; persons taking photosensitive drugs; persons undergoing cataract surgery, persons with retinal
diseases, etc.
impairment in direct radiation, to loss of vision.
TOUCH
LIPS
CUBE
ULTRA CLICK
STICK
DUETTO
DUETTO
ARCUS
HOME
DAY
ACTIVE
HOME
NIGHT
HOME
ARCUS
CARE
BRUSH
SEAL
DUETTO
CARE
HOME
FAST
HOME
MILD
HOME
FAST
HOME
MILD
LED Bleaching Lamp - MOBILE
5
GB
3. Fire safety
- Do not expose to direct sunlight.
cause potentially dangerous damage.
- If the product emits an odor or smoke – disconnect from the mains, do not attempt to repair it, take it to
a service center.
4. Danger of mechanical moving parts
- Assemble the mechanical parts, position them, lock them slowly with care.
- The device must not be used for transporting or moving people or objects.
- The counterweight must be fully screwed in order to avoid falling and injuring people and objects.
- Fix the emitting head well - at an appropriate height and distance to be stable in front of the patient’s
teeth during the procedure.
- Do not turn the horizontal arm by force to avoid mechanical shocks with the counterweight or the
bleaching head. In the event of a mechanical shock, if the whitening head is damaged, the use of the
device must not be continued. It must be taken immediately to the company service center.
- To take measures against damage to the human body by mechanical parts (movable and immovable),
pinching, inertial reinforcement of the counterweight, manipulations with the device to be performed
carefully to avoid injury.
locking mechanism. The wheel stoppers, if any, must be released before moving the bleaching unit.
Risk of mechanical damage to the operator and the patient.
5. Who should not be bleached because of prohibitions and risk of burns
and complications:
- The device should not be used by: pregnant and breastfeeding mothers; patients with severe periodontal
pathology, with recessions, dental hyperesthesias and under 17 years of age; patients with allergies,
wounds and infections, fresh scars on the face, skin infections, recently placed dental implants or sur-
alcohol or narcotics.
- The device can be used only after medical consultation on or by: persons with implanted cardiac pace-
maker; persons suffering from photobiological reactions; persons taking photosensitive drugs; persons
undergoing cataract surgery; persons with retinal diseases; people with allergies; people who have
recently undergone cosmetic surgery on the face or lips, including injections of hyaluronic acid or botox,
people with very sensitive skin or dermatitis, etc. If you are taking photosensitizers or medicines, check
-
gic reactions, or if you are required to avoid sun exposure after taking this medicine.
Failure to follow the whitening protocol may result in pain, hypersensitivity, enamel damage, and soft
tissue burns.
TOUCH
LIPS
CUBE
ULTRA CLICK
STICK
DUETTO
DUETTO
ARCUS
HOME
DAY
ACTIVE
HOME
NIGHT
HOME
ARCUS
CARE
BRUSH
SEAL
DUETTO
CARE
HOME
FAST
HOME
MILD
HOME
FAST
HOME
MILD
LED Bleaching Lamp - MOBILE
6
GB
6. What to do before bleaching:
- Talk to the patient to clarify the patient’s status and explain the prohibitions and risks and to answer any
questions.
- Familiarization of the patient with the content of the “Informed Consent” and its mandatory signing by
the patient.
- Isolation of soft tissues with a mask to avoid burns and skin reactions.
- Mandatory use of the safety goggles provided by the manufacturer for the operator and the patient. Do
not use other types of glasses that may be dangerous to the eyes.
- Check the patient’s sensitivity to light intensity. The device has 2 levels of intensity and with the distance
to the teeth the optimal conditions are selected.
Testing begins with a high level of intensity “Hi” (High) and a distance of 5-6 cm and if the heat sensation
after 1-2 minutes is very strong, the distance should be increased to achieve an acceptable thermal
sensation.
If the heat sensation is very strong at 10-15 cm, then it is better to switch to low intensity - “Lo” (Low)
and less distance to the teeth.
If the patient has no sensitivity or cannot judge the distance – it is advisable to work at a greater dis-
tance and mode “Lo”.
- After selecting the appropriate intensity (HI or LO) and the distance between the device and the pa-
tient’s lips between 5 and 15 cm, dentist must monitor how the patient reacts to this intensity - for
example after a few minutes of irradiation. Distance should be adjusted according to the patient heat
response to avoid danger of side effects - burns. The heat effect is as strong as the light effect. For
example, in the summer or at high temperatures in the room, it is mandatory to increase the distance to
the patient by 1-2 cm.
- To have constant control over the procedure to ensure that the distance has not changed. The patient
should not be left unattended during the procedure.
- It is desirable to have a picture before and after the procedure of the teeth and soft tissues and to mon-
itor whether there is redness or other reaction. The photo should be stored long enough to monitor the
effect of whitening and possibly the soft tissue reaction.
7. What to do after bleaching:
- Examination of the patient after the procedure for redness and changes in the mucosa, if any, to give
him a prescription for appropriate treatment and to keep in touch with him in the coming days until the
disappearance of any problem. It is desirable for the dentist to keep in touch with a dermatologist and
to be able to offer a consultation with one in case of problems with the patient.
- The patient should be warned to observe the necessary hygiene and not to undertake self-medication,
which may deepen the reaction and to maintain contact with the dentist if necessary.
- The clinic (dentist) takes full responsibility for quickly and effectively solving any problems in order to
ultimately obtain the desired aesthetic result without unwanted complications and consequences.
TOUCH
LIPS
CUBE
ULTRA CLICK
STICK
DUETTO
DUETTO
ARCUS
HOME
DAY
ACTIVE
HOME
NIGHT
HOME
ARCUS
CARE
BRUSH
SEAL
DUETTO
CARE
HOME
FAST
HOME
MILD
HOME
FAST
HOME
MILD
LED Bleaching Lamp - MOBILE
7
GB
V. INSTALLATION
BLANCONE
®
ARCUS
+
is intended for use as an autonomous appliance. Use the device indoors and only
on a horizontal surface.
1. Unpack the transport boxes,
remove the components and initially
assemble the base with the 5 wheels.
2. Mount the vertical arm to the center of the
base.
3.
it with the side stop screw using a 3 mm Allen
key (included in the package).
Fixing of side stop screw.
4.
Place the counterweight at the rear of the hori-
zontal arm by rotating it clockwise.
It is important to mount the counterweight se-
curely on the arm!
5. Mount the bleaching head at the front of the horizontal arm in the following order:
- The bleaching head is wound on the metal
stick until it stops completely.
bleaching head.
TOUCH
LIPS
CUBE
ULTRA CLICK
STICK
DUETTO
DUETTO
ARCUS
HOME
DAY
ACTIVE
HOME
NIGHT
HOME
ARCUS
CARE
BRUSH
SEAL
DUETTO
CARE
HOME
FAST
HOME
MILD
HOME
FAST
HOME
MILD
LED Bleaching Lamp - MOBILE
8
GB

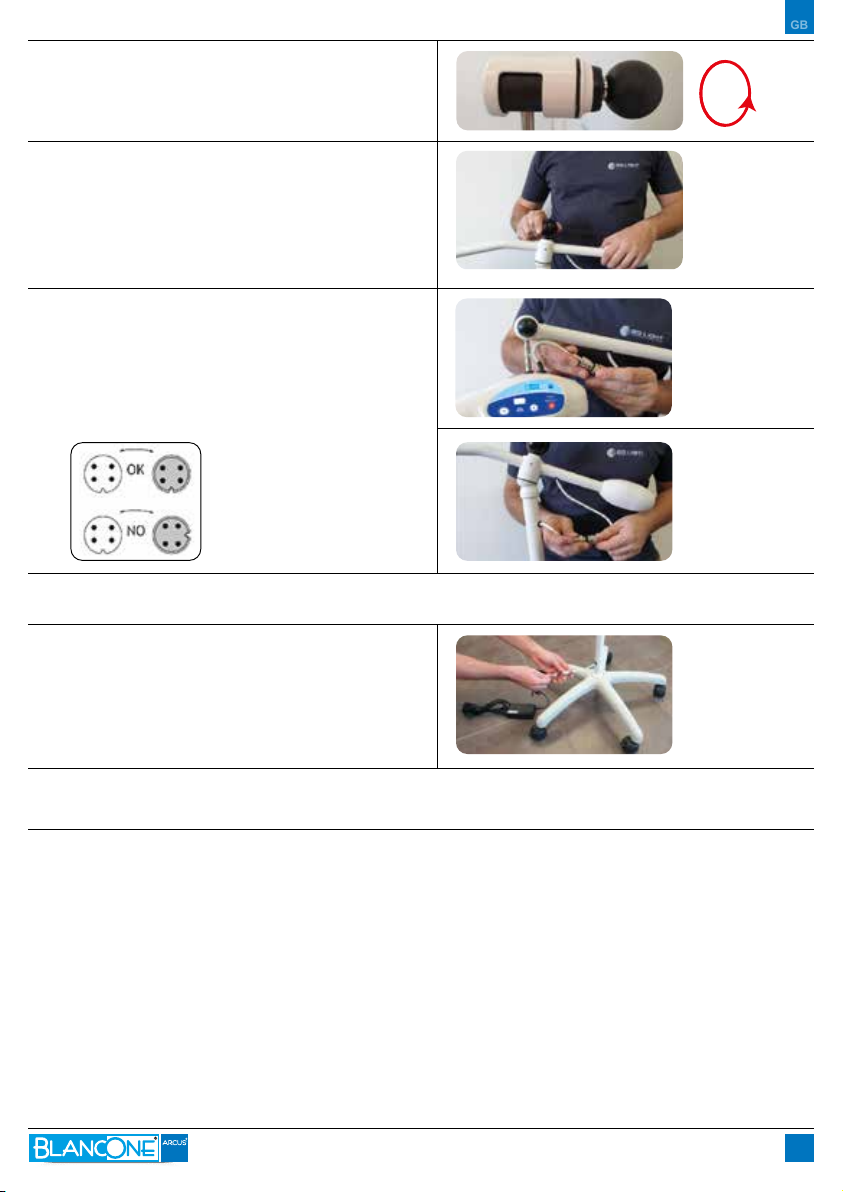

- After adjusting the position of the bleaching
ball.
6. The horizontal arm allows movement in verti-
cal direction.
arm and the bleaching head into a suitable
position.
7. Connect the cables using the connectors
The device will not work if the cable connec-
tors are incorrectly coupled.
8. All moving parts are inspected, for omissions.
9. Plug the power cord into the adapter.
10. Plug the power cord into the power network, SHUKO socket.
TOUCH
LIPS
CUBE
ULTRA CLICK
STICK
DUETTO
DUETTO
ARCUS
HOME
DAY
ACTIVE
HOME
NIGHT
HOME
ARCUS
CARE
BRUSH
SEAL
DUETTO
CARE
HOME
FAST
HOME
MILD
HOME
FAST
HOME
MILD
LED Bleaching Lamp - MOBILE
9
GB
VI. PREPARATION FOR OPERATION
1. The BLANCONE
®
ARCUS
+
bleaching device should be placed in a suitable position around the pa-
tient and the dental unit. See the positioning examples (Section IX).
The bleaching head must be in the same vertical plane and parallel with the arc of the teeth with a
distance between 5-15 cm. See the positioning examples (Section IX).
2. Plug the power adapter into the power network. Only one point/dot on the display
lights up. Press START / STOP button and then the “Hi” (High) or “Lo” (Low) inten-
sity indication appears.
3. The display shows “HI” - a high intensity level. If you want to switch to the “Lo” (Low)
intensity mode, press the TIMER / MODE (+ / -) button once. Then the display will
show “Lo”. Every time before setting the required time, you will be able to select the
Hi or Lo intensity level.
4. Press the START / STOP button once again and set time option will be displayed.
Note that the device will save the time frame used in the latest bleaching procedure.
Required timeframe for operation is set by pressing TIMER + (increasing time) and
TIMER- (reducing time):
The display on the bleaching head will indicate timeframes between 10 sec. and 9
min. and 50 sec. with a dot between the two digits.
Examples:
Display indicates: 13. This means the timeframe is set to 13 min.
Display indicates: 0.1. This means the timeframe is set to 10 sec.
Display indicates: 9.5. This means the timeframe is set to 9 min. and 50 sec.
The display on the bleaching head will indicate timeframes between 10 min. and 30 min. without a
dot between the two digits.
5.
will indicate that the device is working properly.
6. If either of the TIMER / MODE (+ / -) buttons is pressed
during operation, the unit switches to Pause mode. A
blinking display with the remaining time will indicate that
the device is paused. Operation is resumed by pressing
any TIMER / MODE (+ / -) button again.
LED Bleaching Unit
ARCUS
ON/OFF
TIME
MODE
LED Bleaching Unit
ARCUS
ON/OFF
TIME
MODE
TOUCH
LIPS
CUBE
ULTRA CLICK
STICK
DUETTO
DUETTO
ARCUS
HOME
DAY
ACTIVE
HOME
NIGHT
HOME
ARCUS
CARE
BRUSH
SEAL
DUETTO
CARE
HOME
FAST
HOME
MILD
HOME
FAST
HOME
MILD
LED Bleaching Lamp - MOBILE
10
GB
7. To Stop the bleaching device at any time press the START / STOP button. If the device is not man-
ually stopped it will stop after the selected time has elapsed. Note that the fan will continue to work
for some time in order to cool down the unit.
8. At the end of the day turn off the device by holding down
the Start / Stop button for 3-4 seconds or by disconnecting it
from the power network.
9. In case of overheating the thermal protection is triggered and the
device will cease to emit light. The display will indicate “Oh” and
the fans will turn on for 1 minute. After cooling, the device will con-
tinue its normal operation, but stays in Pause mode. Overheating
can only happen in an emergency situation or by accidental clog-
ging of the cooling vents. For this reason the cooling vents located
on the bottom of the bleaching head must always be unobstructed
in order to allow air circulation.
VII. DAILY CARE AND MAINTENANCE
1. Disinfection of the PVC window of the bleaching head
For each patient, the emitting window is cleaned
with a cotton swab soaked in an alcohol solution.
2. Cleaning the device:
To disinfect the device and its parts, spray disinfectant on a piece
of soft cloth or cotton and clean.
Do not use abrasives or solvents, as this may damage parts of the device!
TOUCH
LIPS
CUBE
ULTRA CLICK
STICK
DUETTO
DUETTO
ARCUS
HOME
DAY
ACTIVE
HOME
NIGHT
HOME
ARCUS
CARE
BRUSH
SEAL
DUETTO
CARE
HOME
FAST
HOME
MILD
HOME
FAST
HOME
MILD
LED Bleaching Lamp - MOBILE
11
GB
VIII. PREPARATION FOR WORK WITH PATIENTS
1. Before starting work with the bleaching device, insulate the patient’s
apply protective UV cream and put on protective glasses. Bleaching
gel is applied to the teeth surface according to the directions for use
outlined by the gel manufacturer.
The patient should be under constant supervision by the dentist during
the bleaching process in order to avoid discomfort and to ensure all
safety and technological procedures are applied.
2. It is desirable to check the individual sensitivity of the patient. The device has two levels of intensity
(high HI and low LO) and the optimal conditions are selected by adjusting the distance of the device
to the patient’s teeth.
Testing starts with a high intensity “Hi” and a distance of 5 cm and if the heat sensation is very strong,
the distance is increased to achieve an acceptable thermal sensation.
If the acceptable distance is more than 10 cm, it is better to switch to a mode with low intensity - “Lo”
(Low) and put the bleaching head closer to the teeth to obtain optimal distance.
TOUCH
LIPS
CUBE
ULTRA CLICK
STICK
DUETTO
DUETTO
ARCUS
HOME
DAY
ACTIVE
HOME
NIGHT
HOME
ARCUS
CARE
BRUSH
SEAL
DUETTO
CARE
HOME
FAST
HOME
MILD
HOME
FAST
HOME
MILD
LED Bleaching Lamp - MOBILE
12
GB
IX. POSITIONS OF BLEACHING HEAD AGAINST PATIENT’S TEETH
CORRECT INCORRECT
5-15 cm distance
TOUCH
LIPS
CUBE
ULTRA CLICK
STICK
DUETTO
DUETTO
ARCUS
HOME
DAY
ACTIVE
HOME
NIGHT
HOME
ARCUS
CARE
BRUSH
SEAL
DUETTO
CARE
HOME
FAST
HOME
MILD
HOME
FAST
HOME
MILD
LED Bleaching Lamp - MOBILE
13
GB
X. DETERMINATION OF DISTANCE TO PATIENT’S TEETH
5 cm distance
5 cm distance
9 cm distance
9 cm distance
15 cm distance
15 cm distance
HIGH intensity
LOW intensity
Hot AccetableWarm Weak
TOUCH
LIPS
CUBE
ULTRA CLICK
STICK
DUETTO
DUETTO
ARCUS
HOME
DAY
ACTIVE
HOME
NIGHT
HOME
ARCUS
CARE
BRUSH
SEAL
DUETTO
CARE
HOME
FAST
HOME
MILD
HOME
FAST
HOME
MILD
LED Bleaching Lamp - MOBILE
14
GB
XI. PROBLEMS AND SOLUTIONS
The device does not work.
Check if the power cord from the adapter is plugged into the power network and all cable connectors are
correctly coupled.
Damaged power cord.
Do not use the device! Switch it off and replace the cable with new one or take the device to the service
facility.
Unpleasant or irritating thermal sensation by the patient.
Increase the distance of the device to the patient’s teeth to 10-15 cm. If the thermal sensation is still un-
pleasant at this distance switch to low intensity- “Lo” (Low) and shorten the distance to the teeth.
The display is blinking and no light is emitted.
The device is in PAUSE mode. To resume operation, press either (+) or (–) TIMER button.
The display only shows “Oh”.
The device has protection against overheating, and is activated if the temperature in the emitting head
rises. Then the light stops, the display shows “Oh” - Overheating - and the fans work for 1 minute. After
cooling, the device returns to normal operation. Overheating can only occur in an emergency or when
the cooling openings are blocked. Therefore, the cooling openings in the lower part of the radiating head
must always be free for air circulation.
For all other questions regarding installation and operation of the BLANCONE
®
ARCUS
+
, contact the
manufacturer or your local dealer.
TOUCH
LIPS
CUBE
ULTRA CLICK
STICK
DUETTO
DUETTO
ARCUS
HOME
DAY
ACTIVE
HOME
NIGHT
HOME
ARCUS
CARE
BRUSH
SEAL
DUETTO
CARE
HOME
FAST
HOME
MILD
HOME
FAST
HOME
MILD
LED Bleaching Lamp - MOBILE
15
GB
XII. WARRANTY
1. The warranty period of the BLANCONE
®
ARCUS+bleaching device is 24 (twenty-four) months from the date of
2. During the warranty period, the replacement of the defective elements is carried out free of charge by the manu-
facturer. Note - LED modules have a 6-month warranty.
3. The device and its components must only be used as intended by the manufacturer purpose outlined in this
Operating instruction. Any other use will void the warranty and the manufacturer is not liable for any damages or
damages caused by it.
4. If during the warranty period the device fails due to improper operation (mechanical, chemical, thermal, electrical),
non-intended use, inappropriate storage etc.., warranty will be void and the repair cost will be at the expense of
the user.
The device should not be used with damaged cables. If any such damages are noticed switch off the device and
immediately take it to the service facility.
device with them, insects or rodents enter the device, the device must be taken immediately to the service facility.
Damages from the above will void the warranty.
No claims shall be accepted for damages arising from electrical shocks, thunderstorms, non-compliance with elec-
from light radiation.
or malfunctioned, no matter what the reason.
Claims for damages and claims due to of non-compliance with the bleaching procedure are not accepted. Includ-
ing but not limited to: shorter or longer time period use of the device with the bleaching material set by the gel man-
intended for another wavelength and/or with unsuitable concentration bleaching material.
and attention for protection during transport, unpacking, moving, handling and storage of the device.
In the event of disputes arising out of the application and interpretation of this Operating Instructions Manual, those
will be settled by the courts in the city of Plovdiv, under the current Bulgarian legislation.
5.
outside of the manufacturer’s service facilities and/or non-original spare parts are used.
6. The manufacturer recommends that customers should check whether the device parameters are within the per-
-
er’s service facilities or by an authorized representative.
7. Sending for repair to the company service must be done in the original packaging of the product.
8. All repairs must be done at the manufacturer’s service facilities with the following address:
See section XIV. SERVICE DATA
at the end of the booklet
TOUCH
LIPS
CUBE
ULTRA CLICK
STICK
DUETTO
DUETTO
ARCUS
HOME
DAY
ACTIVE
HOME
NIGHT
HOME
ARCUS
CARE
BRUSH
SEAL
DUETTO
CARE
HOME
FAST
HOME
MILD
HOME
FAST
HOME
MILD
LED Bleaching Lamp - MOBILE
16
GB
+
TOUCH
TOUCH
+
ULTRA
+
ULTRA
CLICK
+
CLICK
STICK
ARCUS
BRUSH
DUETTO
HOME
DAY
HOME
NIGHT
LIPS
ARCUS
HOME
HOME
CARE
CARE
DUETTO
ACTIVE
PATIENT
KIT
DUETTO
CARE
Lampada sbiancante a LED
MOBILE
IT
I. Descrizione e funzioni della lampada ..............18
II. ..........................................18
III. Imballaggio / Componenti ................................19
IV. Indicazioni di sicurezza ....................................19
V. Installazione .....................................................24
VI. Preparazione all’uso ........................................26
VII. Cura quotidiana e manutenzione ....................27
VIII. Preparazione all’uso con i pazienti ..................28
IX. Posizioni della testa sbiancante.......................29
rispetto ai denti
X. Determinazione della distanza ........................30
rispetto ai denti
XI. Problemi e soluzioni.........................................31
XII. Garanzia .........................................................32
XIII. Simboli ..........................................................289
XIV. Dati di servizio ...............................................289
XV. Dichiarazione di conformità............................290
XVI. Dati relativi alla lampada ...............................291
sbiancante a led
Attenzione!
Prima dell’installazione
ed utilizzo della lampada,
leggere attentamente il presente manuale.
I. DESCRIZIONE E FUNZIONI DELLA LAMPADA
La lampada sbiancante a LED BLANCONE
®
ARCUS+è progettata per lo sbiancamento dei tessuti duri dentali
tramite la fotoattivazione di un gel sbiancante usato nella pratica odontoiatrica.
Il dispositivo consiste di testa sbiancante, stativo ed adattatore di alimentazione.
La lampada BLANCONE®ARCUS+è prodotta in conformità a quanto previsto dagli standard ISO 9001:2015,
ISO 13485:2016 e dalla Direttiva 93/42/CEE sui dispositivi medici.
II. SPECIFICHE TECNICHE
1.
Tensione d’esercizio all’adattatore - 100-240V / 50-60Hz, alla testa sbiancante - 24VDC.
2.
Consumo energetico - 0.4-0.2 A
3
. Dimensioni:
- Testa sbiancante
lunghezza - 220 mm
larghezza - 155 mm
altezza - 95 mm
- Stativo
lunghezza (una volta assemblato) - 1300 mm
4.
Peso:
- Testa sbiancante - 640 g
- Stativo - 8500 g
5.
6.
Tempo di funzionamento - 10 sec. - 30 min / ± 5% /
7.
Luce emessa - blu 430 - 490 nm.
8.
Fonte luminosa – 10 moduli LED da 5W = 50W
9.
Raffreddamento ad aria forzata.
10.
Possibilità di avvio ed arresto della testa sbiancante in qualsiasi momento.
11.
Tempo massimo di funzionamento continuo 99 min – dopo 99 minuti
di funzionamento continuo lasciare raffreddare la lampada per almeno 10 minuti.
Su richiesta, il produttore di questo dispositivo fornirà eventuale documentazione tecnica e/o informazioni aggiuntive necessarie al per-
sonale tecnico dell’utilizzatore per procedere alla riparazione di quelle parti del dispositivo che il produttore ha indicato come soggette
ad eventuale riparazione.
TOUCH
LIPS
CUBE
ULTRA CLICK
STICK
DUETTO
DUETTO
ARCUS
HOME
DAY
ACTIVE
HOME
NIGHT
HOME
ARCUS
CARE
BRUSH
SEAL
DUETTO
CARE
HOME
FAST
HOME
MILD
HOME
FAST
HOME
MILD
Lampada sbiancante a LED - MOBILE
18
IT
Other manuals for BlancOne Arcus
1
Table of contents
Languages:
Popular Outdoor Light manuals by other brands
BEGA
BEGA 88 309 Installation and technical information
Gama Sonic
Gama Sonic GS-101 instruction manual
XD COLLECTION
XD COLLECTION Pure Glow P513.28 Series manual
Vaxcel
Vaxcel T0694 Assembly and installation instructions
Milwaukee
Milwaukee IPL-LED Original instructions
shada
shada LED's light Outdoor Series Installation and operating manual
