iFire eFiRE40 User manual

INSTRUCTIONS FOR USE
INSTALLATION INSTRUCTIONS
INSTRUCTIONS FOR USE
INSTALLATION INSTRUCTIONS
eFiRE Range
eFiRE40 eFiRE80 eFiRE100 eFiRE150
These instructions must be kept for future use and reference.

INSTRUCTIONS FOR USE
INSTALLATION INSTRUCTIONS
INSTRUCTIONS FOR USE
INSTALLATION INSTRUCTIONS
CONTENTS
1. Introduction
2. Safety Warnings
3. Using the Appliance
4. Installation and positioning of your appliance
5. Maintenance
6. Guarantee
7. Dimensions
8. Technical Data
9. Disposal Information

INSTRUCTIONS FOR USE
INSTALLATION INSTRUCTIONS
INSTRUCTIONS FOR USE
INSTALLATION INSTRUCTIONS
1. INTRODUCTION
Congratulations on your purchase of this modern eFiRE appliance. This
quality product will provide you with many years of enjoyment due to the
flame effect and warmth that it provides. Please read the instructions for
use carefully before using the appliance for the first time.
Keep this booklet in a safe place.

INSTRUCTIONS FOR USE
INSTALLATION INSTRUCTIONS
INSTRUCTIONS FOR USE
INSTALLATION INSTRUCTIONS
2. SAFETY WARNINGS
Before switching the appliance ON, please read the operating and
installation instructions carefully. They contain important information on
how to install, operate and maintain your new appliance. Please keep this
manual for future use.
Warning:
•This appliance must not be used in a bathroom.
•Do not use this heater in the immediate surroundings of a bath, a
shower or a swimming pool.
•Do not use the heater with a programmer and / or
timer or any device that switches the heater on
automatically, since a fire risk exists if the heater is
covered or positioned incorrectly.
•Do not cover this appliance.
•Keep naked flames and/or flammable ignition sources away from
the appliance.
•This appliance has been designed for indoor usage only
•This appliance has a heating element situated inside the TOP of
the appliance which vents in front of the glass window. DO NOT
under any circumstances block this OUTLET.
•This appliance has been designed to operate while hanging on a
wall. DO NOT attempt to run the appliance in any other situation.
•Once installed, DO NOT leave the remote handset on the top of
the appliance.
Warning:
While the appliance is running DO NOT disconnect the power at the
mains. To turn off the appliance use the functions on the remote
provided. Before you disconnect the mains supply be sure the appliance is
OFF and the isolation switch I/O has been moved to the OFF position.

INSTRUCTIONS FOR USE
INSTALLATION INSTRUCTIONS
INSTRUCTIONS FOR USE
INSTALLATION INSTRUCTIONS
3. USING THE APPLIANCE
Move the isolation switch (marked O/I) to ON position (I). The switch is
located on the right hand side next to the power inlet. Power is now
supplied to the internal circuitry and the remote control hand set can
now operate the appliance. For periods of non-use, it is recommended
that the isolation switch is set to the OFF (O) position.
Pressing button A switches on the flame effect. Please note with every
press of any button on the key pad, the red LED will light to confirm each
setting. To switch the appliance to standby mode use button E, this will
shut down the heater and flame effect display.
To restart the appliance, again use button A, providing the rear isolation
switch has not been set to the off position.
To switch on the heating element, press button B, the 1kW heat setting is
now functioning. To increase the heat setting to 2kW, press button D. To
decrease the heat setting back to 1kW, again press button D.
Pressing button D allows the user to toggle between the two heat
settings. Again, if no heat is required, press button B.
The Variable Flame Effect
This appliance is equipped with a variable flame effect. This enables you
to control the brightness and appearance of the flame effect display.
When the appliance is first switched on (button A) the brightness is
automatically set to the factory default setting of 70% brightness. By
pressing button C, the flame effect begins to cycle from light to dark in
appearance. This will continue on a loop until the same button is pressed
again. By pressing this button (C) at any time within the loop, a user
setting for brightness can be established.
Please note that the heat settings will only work with the flame effect in
operation.
The flame effect can be used without the need of the heater operation.

INSTRUCTIONS FOR USE
INSTALLATION INSTRUCTIONS
INSTRUCTIONS FOR USE
INSTALLATION INSTRUCTIONS
4. INSTALLATION AND POSITIONING OF YOUR APPLIANCE
4.1 Installation of your Appliance
Carefully unpack your appliance, taking care not to damage the surfaces
of the heater. Care should be taken when lifting the appliance. Obtain
assistance if required and always follow safe manual handling techniques.
Important:
•The installation of this wall heater can require a reasonable level
of 'Do It Yourself' skills.
•If any doubts exist on the installation of this appliance please
contact a qualified person.
•The positioning of the heater should ideally be fitted onto a flat
wall of block/brick construction or an internal wooden frame
plasterboard wall.
•The fittings provided are for use on BRICK WALLS ONLY
•Ensure that curtains and furniture are not positioned close to the
chosen position, as this would create a potential fire hazard or
block the heater outlet ducts.
Warning:
The appliance heating feature supplies heat from an outlet situated on
the top of the appliance. The vent needs space to circulate the heat
around the room. With this is mind, DO NOT place the appliance closer
than 40cm from the ceiling.
Connecting current:
•Check whether the 'group' can accommodate the additional load of
1000W or 2000W
•Connect the appliance to an earthed socket
•Do not clamp the electrical lead
4.2 Wall Mounting
If you wish to install your appliance on any other wall type than brick,
please ensure suitable fixings are used.

INSTRUCTIONS FOR USE
INSTALLATION INSTRUCTIONS
INSTRUCTIONS FOR USE
INSTALLATION INSTRUCTIONS

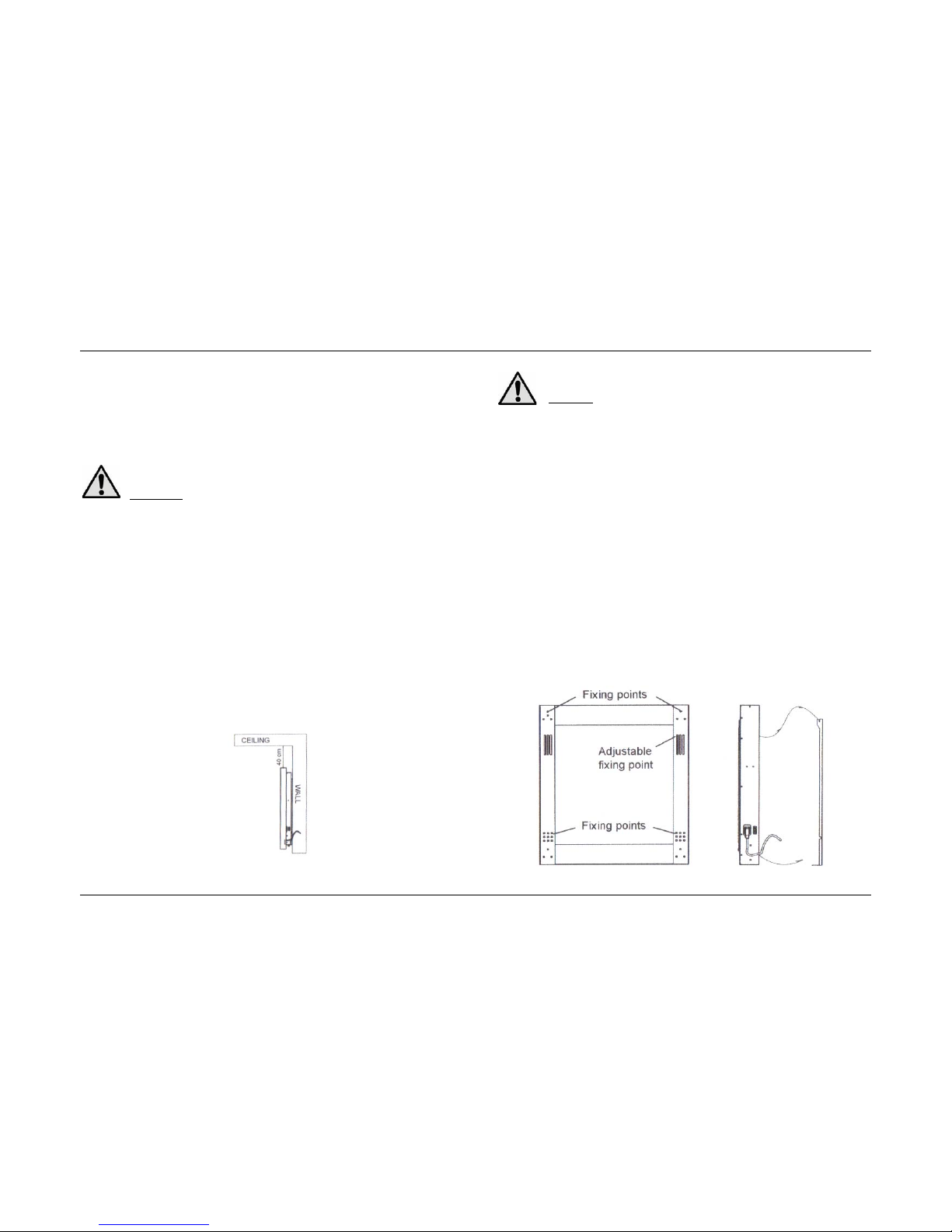

Fit the appliance as follows:
•Once the decision has been made where to position the
appliance, remove the wall mounting plate from the rest of the
appliance by unscrewing the two thumb screws located on the
underside of the appliance.
•Position the wall bracket on the wall and mark the fixing points,
taking care to level the bracket using a spirit level.
•Fix the plate to the wall securely at 4 points minimum.
•Lift the appliance onto the hanging bracket, locating the wall
bracket hook into the slot on the rear of your appliance.
•With the appliance securely hanging on the wall, connect the
power cable to the appliance, making sure to leave the isolation
switch in the OFF position (O).
4.3 Frame Attachment
Remove your chosen frame from its packaging with care.
•Lift the frame and hook into slots located on the top of your
appliance. For larger appliances seek assistance to lift and hang
the frame.
•Once attached and positioned, swing the bottom of the frame
into place.
•Screw the two frame fixings provided through both the frame
foot and the wall mount into the base of the appliance.

INSTRUCTIONS FOR USE
INSTALLATION INSTRUCTIONS
INSTRUCTIONS FOR USE
INSTALLATION INSTRUCTIONS
5. Maintenance
Warning:
Before undertaking any maintenance or cleaning,
disconnect from the mains power supply.
5.1 Cleaning
Do not use water, detergents, abrasive cleaning powders or polish of any
kind on the body of the appliance. Lightly dust using a dry duster or a
medium soft brush. To clean the screen use alcohol based screen cleaning
wipes (also used for computer monitor cleaning).
5.2 Dust Filtration System
Your electrical appliance is fitted with a dust filtration system to protect
the internal components from excessively dusty environments.
If your appliance is situated in such an environment cleaning the filter
may be beneficial. Check the filter regularly.
Warning:
Before any cleaning is carried out, DISCONNECT your appliance from the
mains power supply.
To access the filter, remove the frame from the appliance as described in
section 4.3, in reverse order.
With the frame removed remove the filter is visible on the bottom of the
appliance.
The foam filter is clamped in a metal cassette.
To remove the cassette, unscrew the two mounting screws located on
each side of the cassette.
Clean the foam filter while still in the cassette using a vacuum cleaner.
Replace the cassette and the fixing screws. Replace the frame as
described in section 4.3.
5.3 Battery Replacement
The remote control handset uses a battery for power operation, this will
need replacement over a period of time. For replacement, please follow:
On the rear of the handset, open the battery compartment cover.

INSTRUCTIONS FOR USE
INSTALLATION INSTRUCTIONS
INSTRUCTIONS FOR USE
INSTALLATION INSTRUCTIONS
Remove the faulty battery and replace with a new battery observing the
correct polarity (+ & -) as marked upon the battery and handset remote
control.
Replace the handset cover.
5.4 Spare Parts
For replacement or spare part enquiries, please contact your dealer.
6. GUARANTEE
Your eFiRE carries a guarantee against defects of manufacture and faulty
workmanship for a period of ONE year from the date of purchase. This
does not apply to the batteries, whose lifespan we cannot predict.
All guarantee periods commence on the date of purchase and are non-
transferable.
Our guarantee is offered as an addition to your statutory rights.
This guarantee is applicable to the original purchaser only and is non-
transferable.
Use of spare parts other than those supplied by the manufacturer will
invalidate the appliance warranty and must only be fitted by an
authorised service engineer.
When you contact the above, you will need to have the following
information to hand:
•Name, address & telephone number
•Date of purchase and supplier details.
•Appliance serial and model numbers, located on the rear for the
fire.
•Details of the fault.

INSTRUCTIONS FOR USE
INSTALLATION INSTRUCTIONS
INSTRUCTIONS FOR USE
INSTALLATION INSTRUCTIONS
7. DIMENSIONS
7.1 eFiRE40
7.2 eFiRE80
7.3 eFiRE100
7.4 eFiRE150

INSTRUCTIONS FOR USE
INSTALLATION INSTRUCTIONS
INSTRUCTIONS FOR USE
INSTALLATION INSTRUCTIONS
8. TECHNICAL DATA
eFiRE40
Dimensions:
(w x h x d) 368 x 872 x 115 mm
Weight:
12kg
Voltage:
220/240V 50Hz
Battery Hand-transmitter:
12V MN 21/23
Heating Element:
1000 Watt
Supply cord:
BS1363 UK13A
eFiRE80
Dimensions:
(w x h x d) 789 x 789 x 115mm
Weight:
22 kg
Voltage:
220/240V / 50Hz
Battery Hand-transmitter:
12V MN 21/23
Heating Element:
2000 Watt
Supply cord:
BS1363 UK13A
eFiRE100
Dimensions:
(w x h x d) 990 x 540 x 115mm
Weight:
21kg
Voltage:
220/240V / 50Hz
Battery Hand-transmitter:
12V MN 21/23
Heating Element:
2000 Watt
Supply cord:
BS1363 UK13A
eFiRE150
Dimensions:
(w x h x d) 1480 x 528 x 115mm
Weight:
27kg
Voltage:
220/240V / 50Hz
Battery Hand-transmitter:
12V MN 21/23
Heating Element:
2000 Watt
Supply cord:
BS1363 UK13A
9. DISPOSAL INFORMATION
The packaging protects your appliance from damage during transit.
All packaging materials are environmentally friendly and are recyclable.
Please contribute to a better environment by disposing of all the
packaging materials in an environmentally friendly manner.
Please ask your local authority about the current means of disposal.
9.1 Disposal of Your Old Appliance
Once your appliance has reached the end of its useful operating life, it
must be disposed of in an environmentally friendly manner. Valuable raw
materials can be reclaimed by recycling the old appliance.
Please contact your local authority for means of disposal concerning
electrical and electronic items.

INSTRUCTIONS FOR USE
INSTALLATION INSTRUCTIONS
INSTRUCTIONS FOR USE
INSTALLATION INSTRUCTIONS
