Igel UD3 Series User manual

RoHS
compliant
Recycled
Paper Compliance
CE, FCC, UL, CUL, TÜV/GS, WEEE, RoHS
Features
Excellent price performance.z
VESA mountable.z
Dual video.z
Integrated Smartcard reader (optional).z
Connectivity foot (optional).z
Benefits
Can run any Digital Service in any Pack at a competive price.z
Mountable on the back of a monitor with the optional VESAz
bracket. Ideal for space constrained environments.
The DVI-I port offers the possibility to connect one digital and one
z
analog monitor via the optional Y-Cable.
Excellent for highly secure two factor authentication, shared
z
desktops or roaming users wanting sub-10 second application
start using Citrix Hot Desktop.
The unit can be enhanced with wireless network connectivity and/
z
or an additional serial port for legacy peripherals.

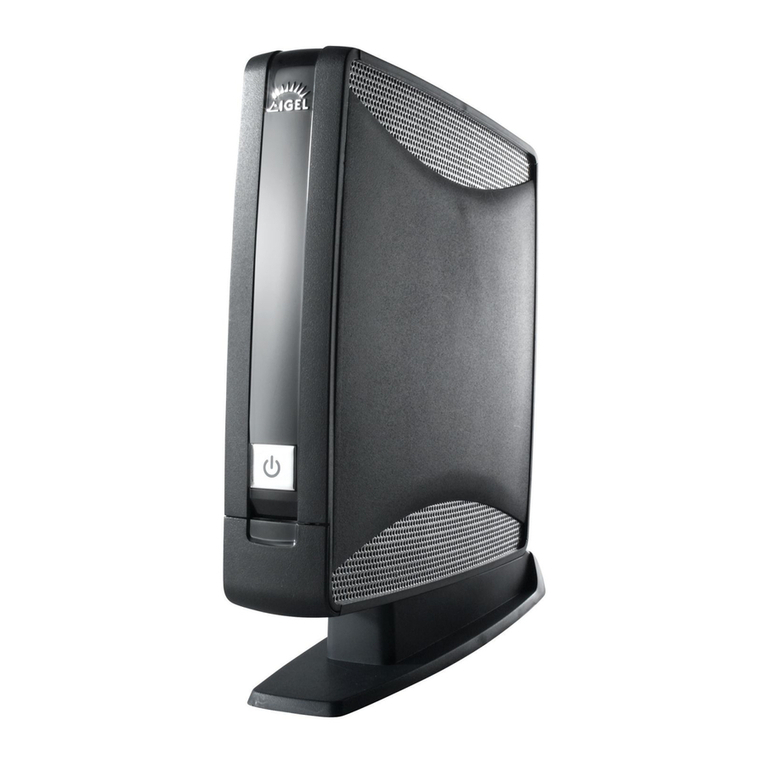

UD3 Series
Profile
An affordable, compact, versatile mid-range
hardware platform that can power all digital
service levels, from the Entry to the Advanced
Digital Service Packs.

www.igel.com
Standard 2 year guarantee. If you register online within 90 days after the date of purchase, the guarantee will be extended to 3 years.
IGEL is a registered trademark of IGEL Technology GmbH. All hardware and software names are registered trademarks of the respective
manufacturers. Errors and omissions excepted. Subject to change without notice.
©2009 IGEL Technology A member of the Melchers group. [email protected]
UD3 82-US-11-2
Germany (HQ)
IGEL Technology GmbH
Schlachte 39/40
D-28195 Bremen
Germany
Tel [phone]
Fax [phone]
United Kingdom
IGEL Technology Ltd
1210 Parkview
Arlington Business Park
Theale · Reading · Berkshire
RG7 4TY · UK
Tel [phone]
Fax [phone]
United States
IGEL Technology Inc.
5353 NW 35th Avenue
Fort Lauderdale
FL 33309 · USA
Tel [phone]
Fax [phone]
Toll Free (US only):
+1 877 GET IGEL
Singapore
IGEL Technology
Care of: C. Melchers GmbH & Co.
Singapore Branch
101 · Thomson Road
# 24-01/05 United Square
Singapore 307591
Tel [phone]
Fax [phone]
Hong Kong
IGEL Technology
Care of: Melchers (H.K.) Ltd.
1210 Shun Tak Centre
West Tower
168-200 Connaught Road C.
Hong Kong
Tel [phone]
Fax [phone]
System
Available Operating Systems IGEL Linux
Microsoft® Windows® Embedded Standard 2009
Microsoft® Windows® Embedded CE 6.0
Management IGEL Universal Management Suite included
Form Factor Standard
Processor VIA Eden 800 MHz
Chipset VIA CN700
Memory
RAM IGEL Linux: 512 MB
Windows CE: 512 MB
Windows Embedded Standard: 1 GB
Flash Memory IGEL Linux: 1 GB
Windows CE: 512 MB
Windows Embedded Standard: 2 GB
Graphics
Chipset VIA Unichrome Pro
Video Memory 16-64 MB shared memory
Ports 1x DVI-I (DVI-to-VGA adapter included)
Supported Resolutions 1920 x 1200 (LX & ES) / 1280 x 1024 (CE)
Network
Ethernet 10/100 Base-T
WiFi Optional, via Connectivity Foot
Audio
Chipset AC97 compatible
Ports Front: 1x line-out, 1x mic-in
Speakers 1x internal
Peripheral interfaces
PS/2 1x keyboard
Serial 1x
USB 2.0 1x front, 4x back
Dimensions
Device (DxWxH) 231 x 82 x 227 mm
Packaging 391 x 369 x 89 mm
Weight 1.44 kg
Environment
Cooling Fanless convection
Operation Noise 0 db
Operating Temperature Vertical: 0 to 40 °C
Horizontal: 0 to 35 °C (optional)
Operating Humidity 10% – 80%, non-condensing
Power
Input Auto sensing 100~240 VAC / 50~60 Hz
Power Supply External
Power Consumption: Idle / Sleep Mode 12W / 2W
Options
VESA Mount For mounting on the back of a monitor.
Rubber Feet For horizontal placement of the device.
Connectivity Foot Option 1: 1x serial. Option 2: 1x serial plus 802.11b/g WLAN.
Built-in Smartcard Reader For secure Smartcard-based authentication.
DualView Y-Cable For DVI-I to DVI-D + VGA. Connect two monitors.
USB-to-Serial Adapter For connecting peripherals that require a serial port.
USB-to-Parallel Adapter For connecting printers that require a parallel port.
UD3 – Specifications
Front: 1x USB 2.0, line-out and mic-in.
Connectivity options
PS/2 Keyboard
RJ45 Ethernet
USB 2.0
DVI-I Monitor
Serial port
Power
Connectivity Foot
Optional connectivity for wireless
networking and Serial I/O.
Product color options
White Dark Blue Black
