Dell™Inspiron™300/400ServiceManual
Notes, Cautions, and Warnings
Information in this document is subject to change without notice.
©2009DellInc.Allrightsreserved.
Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell, the DELL logo, and Inspiron are trademarks of Dell Inc.; Microsoft, Windows, Windows Vista, and Windows Vista start button logo are either
trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any
proprietary interest in trademarks and trade names other than its own.
RegulatoryModelD02UseriesRegulatoryTypeD02U001andD02U002
September2009Rev.A00
Technical Overview
Before You Begin
Top Cover
Bottom Cover
Top Bracket
I/O Bezel
Optical Drive
Drive Bay
Power-Button Bracket
Coin-Cell Battery
Hard Drive
Wireless Mini-Card (Inspiron 400 Only)
Memory Module(s)
Processor Heat Sink (Inspiron 400 Only)
Processor (Inspiron 400 Only)
Chassis Fan
I/O Bracket
Graphics-Card Heat Sink (Inspiron 400 Only)
Graphics Card (Inspiron 400 Only)
Graphics-Card Fan (Inspiron 400 Only)
System Board
System Setup Utility
NOTE: A NOTE indicates important information that helps you make better use of your computer.
CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.
WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

Back to Contents Page
Before You Begin
Dell™Inspiron™300/400ServiceManual
Recommended Tools
Turning Off Your Computer
Safety Instructions
This manual provides procedures for removing and installing the components in your computer. Unless otherwise noted, each procedure assumes that the
following conditions exist:
lYou have performed the steps in Turning Off Your Computer and Safety Instructions.
lYou have read the safety information that shipped with your computer.
lA component can be replaced or—if purchased separately—installed by performing the removal procedure in reverse order.
Recommended Tools
The procedures in this document may require the following tools:
lSmall Phillips screwdriver
lHex nut driver
lFlash BIOS executable update program at support.dell.com
Turning Off Your Computer


1. Save and close all open files and exit all open programs.

2. Shut down the operating system:
Windows®XP:
Click Start®ShutDown®Shut down.
Windows Vista®:
Click the Start button , click the arrow , and then click Shut Down.
Windows 7:
Click the Start button and then click Shut Down.

3. Ensure that the computer is turned off. If your computer did not automatically turn off when you shut down your operating system, press and hold the
power button until the computer turns off.
Safety Instructions
Use the following safety guidelines to help protect your computer from potential damage and to help to ensure your own personal safety.



CAUTION: To avoid losing data, save and close all open files and exit all open programs before you turn off your computer.
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
WARNING: Disconnect all power sources before opening the enclosure to replace, remove, or install accessories. After the installation is
completed, the enclosure must be replaced and all fasteners installed before connecting to the power source.
CAUTION: Only a certified service technician is authorized to remove the computer cover and access any of the components inside the computer.
See the safety instructions for complete information about safety precautions, working inside your computer, and protecting against electrostatic
discharge.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal
surface (such as a connector on your computer).



1. Ensure that the work surface is flat and clean to prevent the computer cover from being scratched.

2. Turn off your computer (see Turning Off Your Computer) and all attached devices.


3. Disconnect all telephone or network cables from the computer.

4. Disconnect your computer and all attached devices from their electrical outlets.

5. Disconnect all attached devices from your computer.

6. Press and hold the power button while the system is unplugged to ground the system board.
Back to Contents Page

CAUTION: When you disconnect a cable, pull on its connector or on its pull-tab, not on the cable itself. As you pull connectors apart, keep them
evenly aligned to avoid bending any connector pins. Also, before you connect a cable, ensure that both connectors are correctly oriented and
aligned.
CAUTION: To avoid damaging the computer, perform the following steps before you begin working inside the computer.
CAUTION: To disconnect a network cable, first unplug the cable from your computer and then unplug the cable from the network device.

Back to Contents Page
Bottom Cover
Dell™Inspiron™300/400ServiceManual
Removing the Bottom Cover
Replacing the Bottom Cover


Removing the Bottom Cover

1. Follow the procedures in Before You Begin.

2. Turn the computer over.

3. Loosen the two captive screws that secure the bottom cover to the chassis.

4. Lift the bottom cover off the computer base.
Replacing the Bottom Cover

1. Follow the procedures in Before You Begin.

2. Align the screw holes on the bottom cover with the screw holes on the chassis.

3. Tighten the two captive screws that secure the bottom cover to the chassis.


4. Connect your computer and all attached devices to electrical outlets, and turn them on.
Back to Contents Page

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
CAUTION: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™
is not covered by your warranty.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal
surface (such as a connector on your computer).
1
captive screws (2)
2
bottom cover
CAUTION: Before turning on the computer, replace all screws and ensure that no stray screws remain inside the computer. Failure to do so may
result in damage to the computer.

Back to Contents Page
Wireless Mini-Card (Inspiron 400 Only)
Dell™Inspiron™300/400ServiceManual
Removing the Mini-Card
Replacing the Mini-Card


If you ordered a wireless Mini-Card with your computer, the card is already installed.
Your computer supports one half Mini-Card slot for Wireless Local Area Network (WLAN).
Removing the Mini-Card

1. Follow the procedures in Before You Begin.

2. Remove the top cover (see Removing the Top Cover).

3. Remove the top bracket (see Removing the Top Bracket).

4. Remove the optical drive (see Removing the Optical Drive).

5. Remove the drive bay (see Removing the Drive Bay).

6. Disconnect the antenna cables from the Mini-Card.

7. Remove the screw that secures the Mini-Card to the system-board connector.

8. Lift the Mini-Card away from the system-board connector.

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
CAUTION: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™
is not covered by your warranty.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal
surface (such as a connector on your computer).
NOTE: Dell does not guarantee compatibility or provide support for Mini-Cards from sources other than Dell.
CAUTION: When the Mini-Card is not in the computer, store it in protective antistatic packaging (see "Protecting Against Electrostatic Discharge"
in the safety instructions that shipped with your computer).
1
antenna cables (2)
2
Mini-Card
3
system-board connector


1
Mini-Card
2
screw

Replacing the Mini-Card



1. Follow the procedures in Before You Begin.

2. Align the notch on the Mini-Card with the tab in the system-board connector.

3. Insert the Mini-Card at a 45-degree angle into the system-board connector.

4. Press the other end of the Mini-Card down. Replace the screw that secures the Mini-Card to the system-board connector.

5. Connect the appropriate antenna cables to the Mini-Card you are installing. The following table provides the antenna cable color scheme for the Mini-
Card supported by your computer.

6. Replace the drive bay (see Replacing the Drive Bay).

7. Replace the optical drive (see Replacing the Optical Drive).

8. Replace the top bracket (see Replacing the Top Bracket).

9. Replace the top cover (see Replacing the Top Cover).


10. Connect your computer and all attached devices to electrical outlets, and turn them on.
Back to Contents Page

CAUTION: The connectors are keyed to ensure correct insertion. Use of excessive force may damage the connectors.
CAUTION: To avoid damage to the Mini-Card, ensure that there are no cables or antenna cables under the Mini-Card.
Connectors on the Mini-Card
Antenna Cable Color Scheme
WLAN (2 antenna cables)
Main WLAN (white triangle)
Auxiliary WLAN (black triangle)

white
black
CAUTION: Before turning on the computer, replace all screws and ensure that no stray screws remain inside the computer. Failure to do so may
result in damage to the computer.

Back to Contents Page

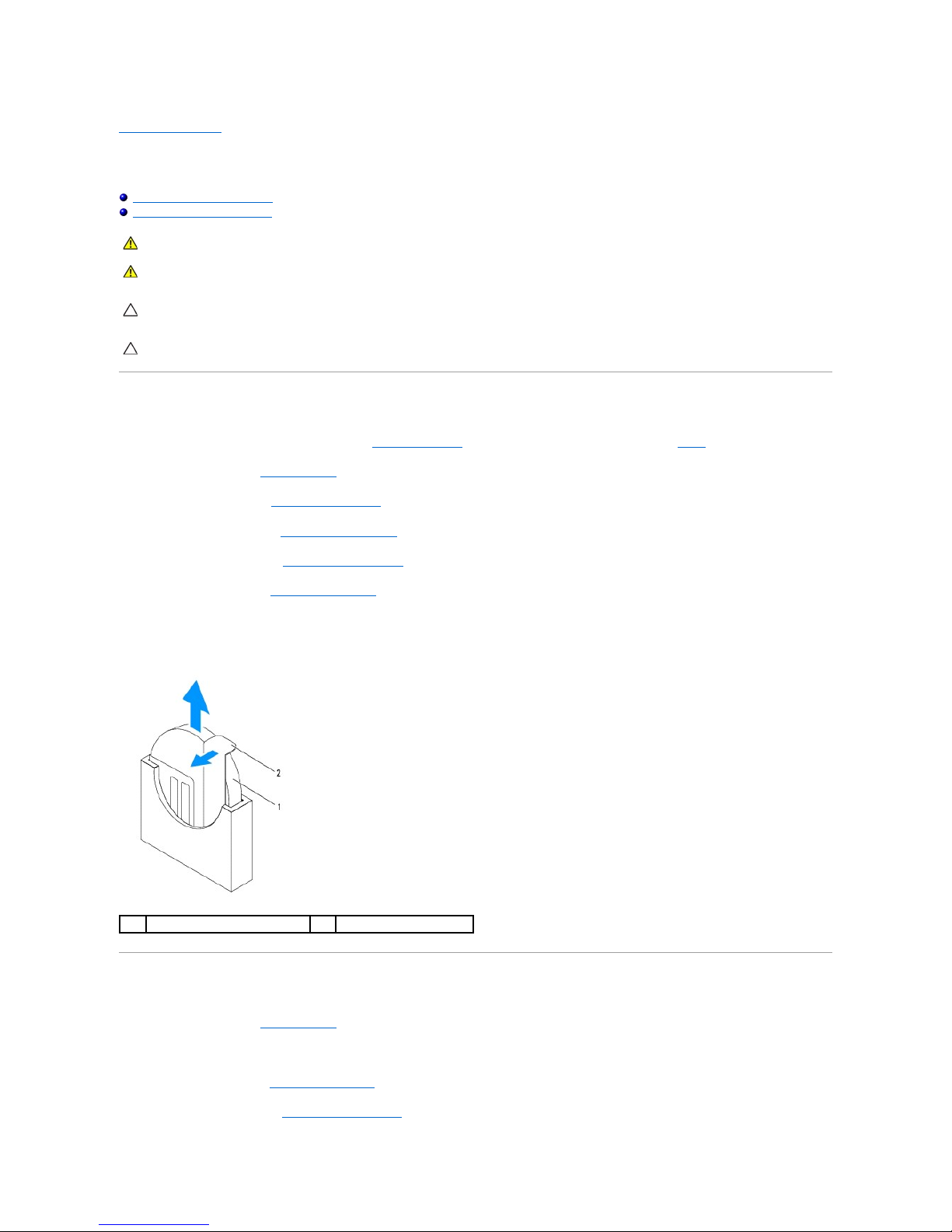

Coin-Cell Battery
Dell™Inspiron™300/400ServiceManual
Removing the Coin-Cell Battery
Replacing the Coin-Cell Battery


Removing the Coin-Cell Battery

1. Record all the screens in system setup utility (see System Setup Utility) so that you can restore the correct settings in step 8.

2. Follow the procedures in Before You Begin.

3. Remove the top cover (see Removing the Top Cover).

4. Remove the top bracket (see Removing the Top Bracket).

5. Remove the optical drive (see Removing the Optical Drive).

6. Remove the drive bay (see Removing the Drive Bay).

7. Place the computer with the coin-cell battery facing towards you.

8. Carefully pull the release lever away from the coin-cell battery and lift the coin-cell battery out of the socket.
Replacing the Coin-Cell Battery

1. Follow the procedures in Before You Begin.

2. Insert the new coin-cell battery into the socket with the side labeled "+" facing left.

3. Replace the drive bay (see Replacing the Drive Bay).

4. Replace the optical drive (see Replacing the Optical Drive).
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
WARNING: A new battery can explode if it is incorrectly installed. Replace the battery only with the same or equivalent type recommended by the
manufacturer. Discard used batteries according to the manufacturer's instructions.
CAUTION: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™
is not covered by your warranty.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal
surface (such as a connector on your computer).
1
coin-cell battery
2
release lever


5. Replace the top bracket (see Replacing the Top Bracket).

6. Replace the top cover (see Replacing the Top Cover).


7. Connect your computer and devices to electrical outlets, and then turn them on.

8. Enter the system setup utility (see System Setup Utility) and restore the settings you recorded in step 1.
Back to Contents Page

CAUTION: Before turning on the computer, replace all screws and ensure that no stray screws remain inside the computer. Failure to do so may
result in damage to the computer.

Back to Contents Page

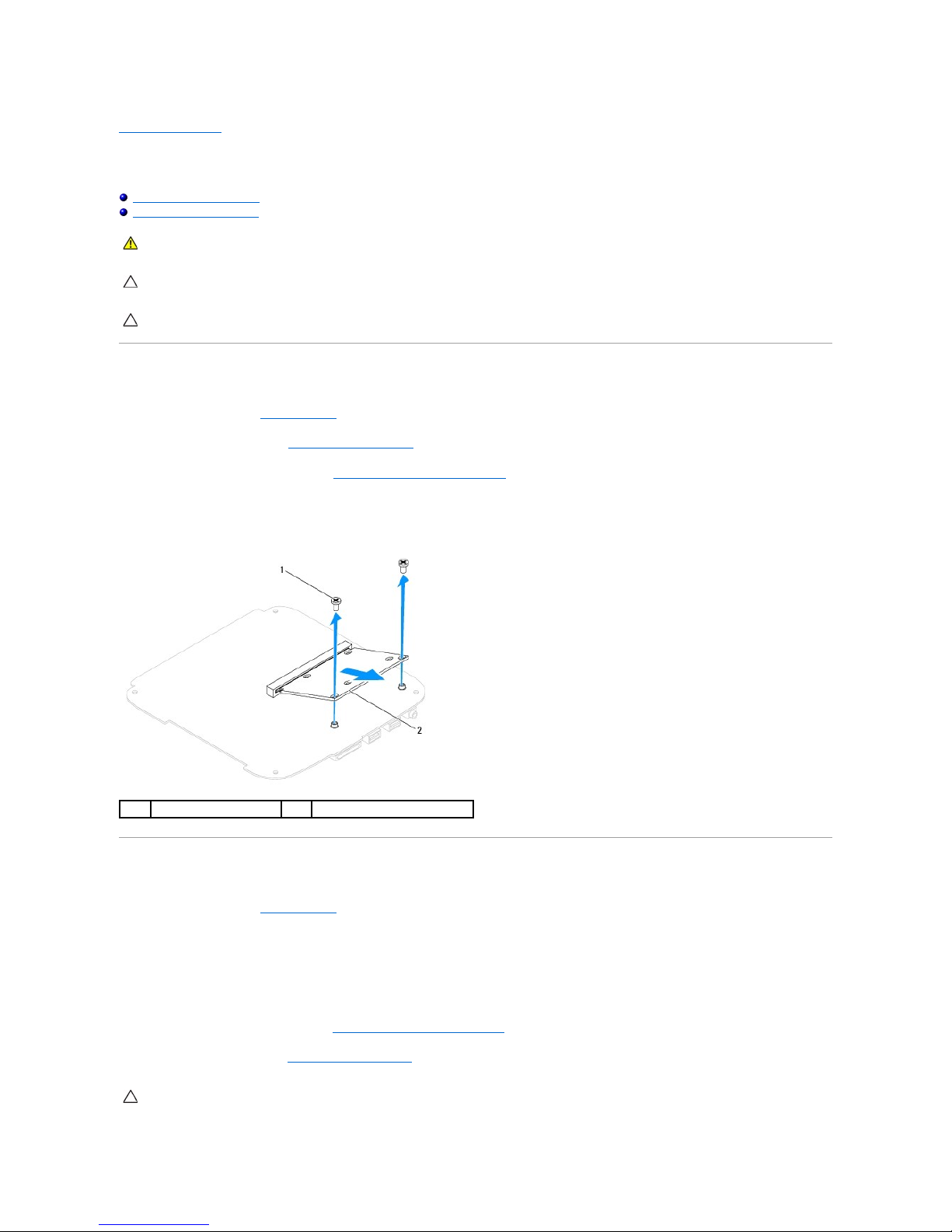

Graphics Card (Inspiron 400 Only)
Dell™Inspiron™300/400ServiceManual
Removing the Graphics Card
Replacing the Graphics Card


Removing the Graphics Card

1. Follow the procedures in Before You Begin.

2. Remove the bottom cover (see Removing the Bottom Cover).

3. Remove the graphics-card heat sink (see Removing the Graphics-Card Heat Sink).

4. Remove the two screws that secure the graphics card to the system board.

5. Remove the graphics card from the graphics card connector.
Replacing the Graphics Card

1. Follow the procedures in Before You Begin.

2. Align the notch on the graphics card with the tab in the system-board connector.

3. Insert the graphics card at a 45-degree angle into the system board connector.

4. Press the other end of the graphics card down. Replace the two screws that secure the graphics card to the system-board connector.

5. Replace the graphics-card heat sink (see Replacing the Graphics-Card Heat Sink).

6. Replace the bottom cover (see Replacing the Bottom Cover).

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
CAUTION: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™
is not covered by your warranty.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal
surface (such as a connector on your computer).
1
screws (2)
2
graphics card
CAUTION: Before turning on the computer, replace all screws and ensure that no stray screws remain inside the computer. Failure to do so may
result in damage to the computer.


7. Connect your computer and all attached devices to electrical outlets, and turn them on.
Back to Contents Page


Back to Contents Page
Graphics-Card Fan (Inspiron 400 Only)
Dell™Inspiron™300/400ServiceManual
Removing the Graphics-Card Fan
Replacing the Graphics-Card Fan


Removing the Graphics-Card Fan

1. Follow the procedures in Before You Begin.

2. Remove the bottom cover (see Removing the Bottom Cover).

3. Remove the graphics-card heat sink (see Removing the Graphics-Card Heat Sink).

4. Remove the two screws that secure the graphics-card fan to the system board.

5. Lift the graphics-card fan out of the computer.
Replacing the Graphics-Card Fan

1. Follow the procedures in Before You Begin.

2. Align the screw holes on the graphics-card fan with the screw holes on the system board. Replace the two screws that secure the graphics-card fan to
the system board.

3. Replace the graphics-card heat sink (see Replacing the Graphics-Card Heat Sink).

4. Replace the bottom cover (see Replacing the Bottom Cover).


5. Connect your computer and all attached devices to electrical outlets, and turn them on.
Back to Contents Page
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
CAUTION: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™
is not covered by your warranty.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal
surface (such as a connector on your computer).
1
screws (2)
2
graphics-card fan
CAUTION: Before turning on the computer, replace all screws and ensure that no stray screws remain inside the computer. Failure to do so may
result in damage to the computer.



Back to Contents Page

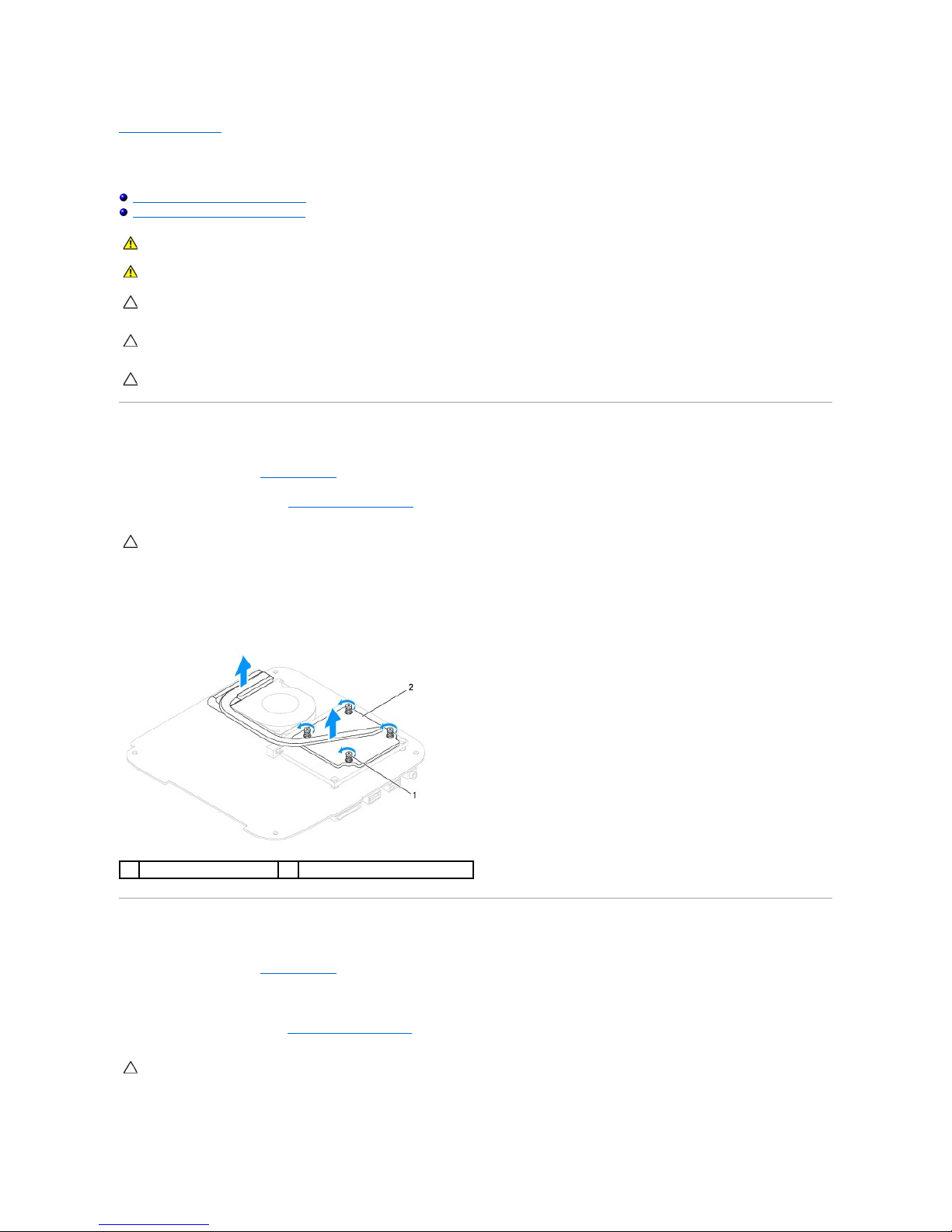

Graphics-Card Heat Sink (Inspiron 400 Only)
Dell™Inspiron™300/400ServiceManual
Removing the Graphics-Card Heat Sink
Replacing the Graphics-Card Heat Sink



Removing the Graphics-Card Heat Sink

1. Follow the procedures in Before You Begin.

2. Remove the bottom cover (see Removing the Bottom Cover).


3. In sequential order (indicated on the graphics-card heat sink), loosen the four captive screws in descending order that secure the graphics-card heat
sink to the system board.

4. Lift the graphics-card heat sink away from the computer.
Replacing the Graphics-Card Heat Sink

1. Follow the procedures in Before You Begin.

2. Align the four captive screws on the graphics-card heat sink with the screw holes on the system board and tighten the screws in ascending order.

3. Replace the bottom cover (see Replacing the Bottom Cover).


4. Connect your computer and all attached devices to electrical outlets, and turn them on.
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
WARNING: The heat sink may be very hot during normal operation. Be sure that it has had sufficient time to cool before you touch it.
CAUTION: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™
is not covered by your warranty.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal
surface (such as a connector on your computer).
CAUTION: Do not perform the following steps unless you are familiar with hardware removal and replacement. Performing these steps
incorrectly could damage your system board. For technical service information, see the Setup Guide.
CAUTION: To ensure maximum cooling for the graphics processor, do not touch the heat transfer areas on the graphics-card heat sink. The oils in
your skin can reduce the heat transfer capability of the thermal grease.
1
captive screws (4)
2
graphics-card heat sink
CAUTION: Before turning on the computer, replace all screws and ensure that no stray screws remain inside the computer. Failure to do so may
result in damage to the computer.

Back to Contents Page


Back to Contents Page

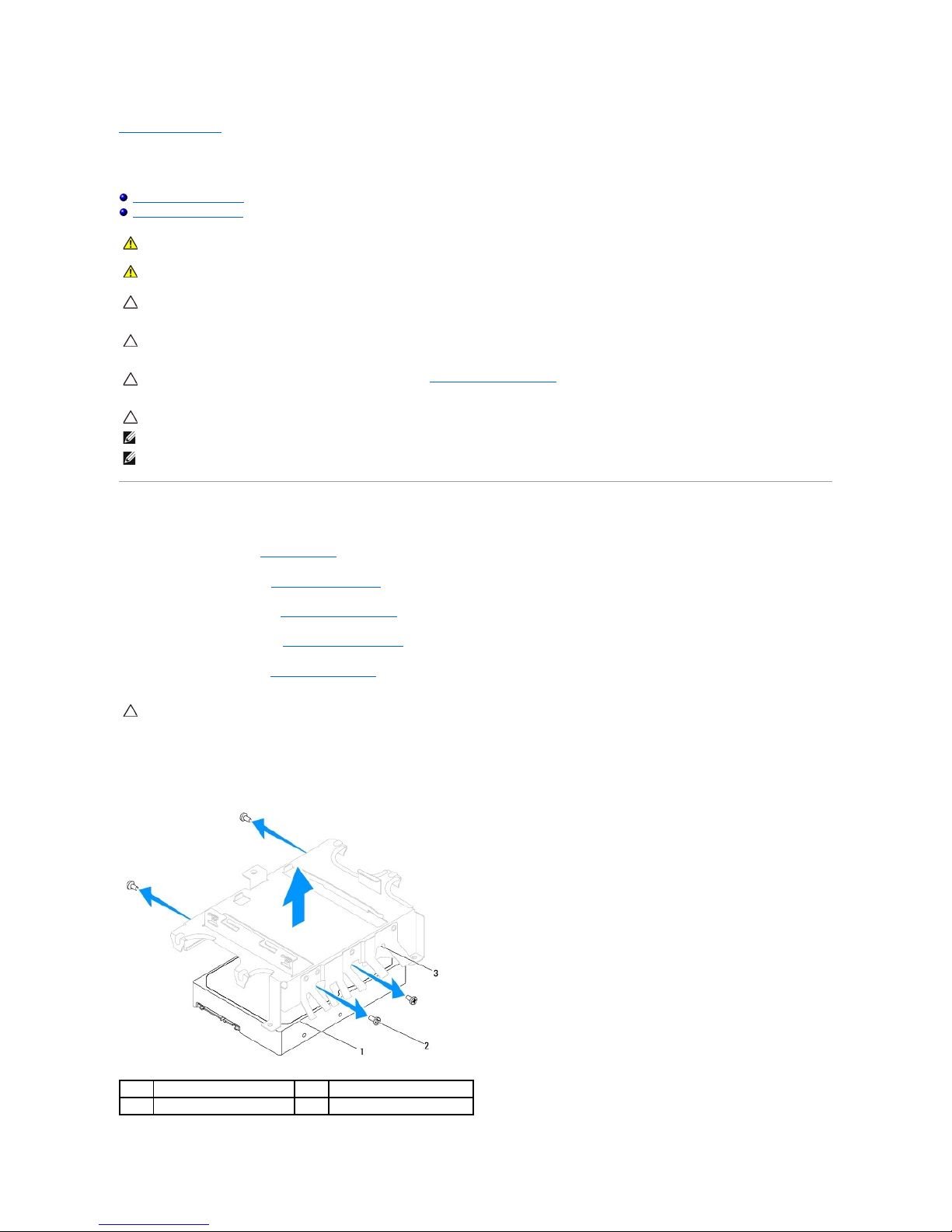

Hard Drive
Dell™Inspiron™300/400ServiceManual
Removing the Hard Drive
Replacing the Hard Drive




Removing the Hard Drive

1. Follow the procedures in Before You Begin.

2. Remove the top cover (see Removing the Top Cover).

3. Remove the top bracket (see Removing the Top Bracket).

4. Remove the optical drive (see Removing the Optical Drive).

5. Remove the drive bay (see Removing the Drive Bay).


6. Remove the four screws that secure the hard drive to the drive bay.

7. Lift the drive bay off the hard drive.
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
WARNING: If you remove the hard drive from the computer when the drive is hot, do not touch the metal housing of the hard drive.
CAUTION: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™
is not covered by your warranty.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal
surface (such as a connector on your computer).
CAUTION: To prevent data loss, turn off your computer (see Turning Off Your Computer) before removing the hard drive. Do not remove the hard
drive while the computer is On or in Sleep state.
CAUTION: Hard drives are extremely fragile. Exercise care when handling the hard drive.
NOTE: Dell does not guarantee compatibility or provide support for hard drives from sources other than Dell.
NOTE: If you are installing a hard drive from a source other than Dell, you need to install an operating system, drivers, and utilities on the new hard
drive (see the Dell Technology Guide).
CAUTION: When the hard drive is not in the computer, store it in protective antistatic packaging (see "Protecting Against Electrostatic Discharge"
in the safety instructions that shipped with your computer).
1
hard drive
2
screws (4)
3
drive bay



Replacing the Hard Drive

1. Follow the procedures in Before You Begin.

2. Remove the new hard drive from its packaging.
Save the original packaging for storing or shipping the hard drive.

3. Align the screw holes on the drive bay with the screw holes on the hard drive.

4. Replace the four screws that secure the hard drive to the drive bay.

5. Replace the drive bay (see Replacing the Drive Bay).

6. Replace the optical drive (see Replacing the Optical Drive).

7. Replace the top bracket (see Replacing the Top Bracket).

8. Replace the top cover (see Replacing the Top Cover).


9. Connect your computer and all attached devices to electrical outlets, and turn them on.

10. Install the operating system for your computer, as needed. See "Restoring Your Operating System" in the Setup Guide.

11. Install the drivers and utilities for your computer, as needed. For more information, see the Dell Technology Guide.
Back to Contents Page

CAUTION: Before turning on the computer, replace all screws and ensure that no stray screws remain inside the computer. Failure to do so may
result in damage to the computer.

Back to Contents Page
Drive Bay
Dell™Inspiron™300/400ServiceManual
Removing the Drive Bay
Replacing the Drive Bay


Removing the Drive Bay

1. Follow the procedures in Before You Begin.

2. Remove the top cover (see Removing the Top Cover).

3. Remove the top bracket (see Removing the Top Bracket).

4. Remove the optical drive (see Removing the Optical Drive).

5. Remove the screw that secures the power-button bracket to the drive bay (see Removing the Power-Button Bracket).

6. Remove the two screws that secure the drive bay to the system board.

7. Slide the drive bay to the back and lift the drive bay to access the hard-drive cable.

8. Disconnect the hard-drive cable from the connector on the hard drive.

9. Carefully lift the drive bay away from the computer.
Replacing the Drive Bay

1. Follow the procedures in Before You Begin.

2. Connect the hard-drive cable to the connector on the hard drive.

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
CAUTION: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™
is not covered by your warranty.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal
surface (such as a connector on your computer).
1
screws (2)
2
drive bay
3
tabs (4)
4
hard-drive cable connector

3. Align the tabs on the drive bay with the slots on the chassis. Slide the drive bay to align the screw holes on the drive bay with the screws holes on the
system board.

4. Replace the two screws that secure the drive bay to the system board.

5. Replace the screw that secures the power-button bracket to the drive bay (see Replacing the Power-Button Bracket).

6. Replace the optical drive (see Replacing the Optical Drive).

7. Replace the top bracket (see Replacing the Top Bracket).

8. Replace the top cover (see Replacing the Top Cover).


9. Connect your computer and all attached devices to electrical outlets, and turn them on.
Back to Contents Page

CAUTION: Before turning on the computer, replace all screws and ensure that no stray screws remain inside the computer. Failure to do so may
result in damage to the computer.

Back to Contents Page

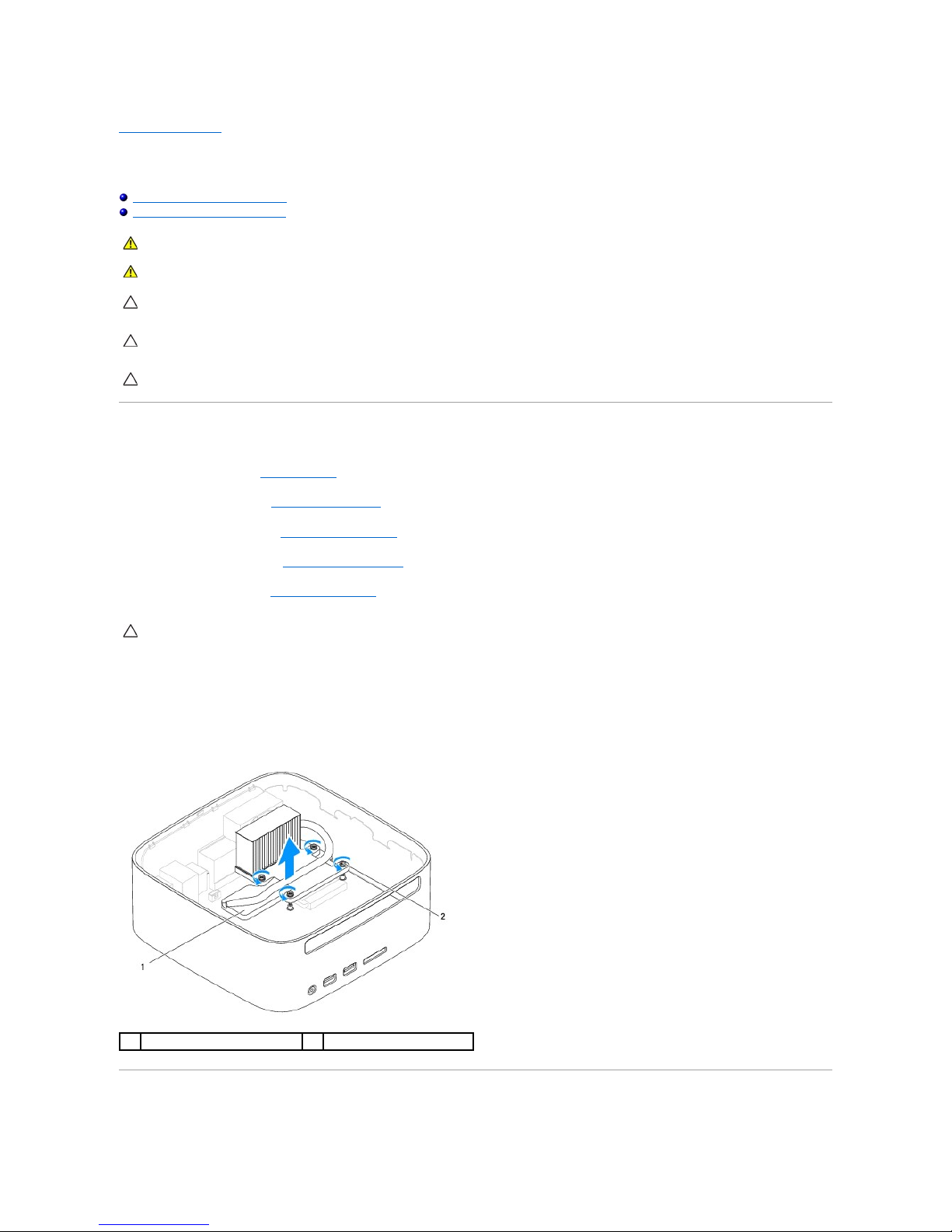

Processor Heat Sink (Inspiron 400 Only)
Dell™Inspiron™300/400ServiceManual
Removing the Processor Heat Sink
Replacing the Processor Heat Sink



Removing the Processor Heat Sink

1. Follow the procedures in Before You Begin.

2. Remove the top cover (see Removing the Top Cover).

3. Remove the top bracket (see Removing the Top Bracket).

4. Remove the optical drive (see Removing the Optical Drive).

5. Remove the drive bay (see Removing the Drive Bay).


6. In sequential order (indicated on the processor heat sink), loosen the four captive screws in descending order that secure the processor heat sink to
the system board.

7. Carefully lift the processor heat sink away from the computer.

8. Lay the processor heat sink down on its top, with the thermal grease facing upward.
Replacing the Processor Heat Sink
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
WARNING: The heat sink may be very hot during normal operation. Be sure that it has had sufficient time to cool before you touch it.
CAUTION: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™
is not covered by your warranty.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal
surface (such as a connector on your computer).
CAUTION: Do not perform the following steps unless you are familiar with hardware removal and replacement. Performing these steps
incorrectly could damage your system board. For technical service information, see the Setup Guide.
CAUTION: To ensure maximum cooling for the processor, do not touch the heat transfer areas on the processor heat sink. The oils in your skin
can reduce the heat transfer capability of the thermal grease.
1
processor heat sink
2
captive screws (4)
