IGS Mega Play User manual

1
Table of Contents
1. Hardware....................................................................................2
Hardware Connection .......................................................................................2
Connecting Touch Panel (Optional) .................................................................. 3
Connection Diagram .........................................................................................4
DIP Switch Settings...........................................................................................5
36 & 10 PIN Button Layout................................................................................5
Solving Ticket SSR Error...................................................................................6
Reset.................................................................................................................7
2. Bookkeeping & Adjustment....................................................10
Access Flow Chart ..........................................................................................10
System Settings ...............................................................................................11
Chance Settings..............................................................................................12
Touch Screen Calibration................................................................................12
3. Introduction .............................................................................13
Common Features ..........................................................................................13
Lobby...............................................................................................................13
Jackpot............................................................................................................13
4. (Game 1) Robin Hood..............................................................14
Main Game......................................................................................................14
Feature............................................................................................................15
Win Rules........................................................................................................17
5. (Game 2) HalloWin...................................................................18
Main Game......................................................................................................18
Feature............................................................................................................19
Win Rules........................................................................................................20
6. (Game 3) Wild Rider ................................................................21
Main Game......................................................................................................21
Feature............................................................................................................22
Win Rules........................................................................................................24

2
1.Hardware
Hardware Connection
36-
Pin Connector
Audio Jack
SD Card Slot
10-
Pin Connector
A RS
-
232
Connects to optional Citizen printer/ticket dispenser.
* Use Belkin #F2L044 (serialprinter cable/null modem) for Citizen printer.
B RS-232
Connects to Micro Touch
compatible touch screen
+5V
+5V Power output
DIP Sw 1
DIP Sw 2
VGA port
Connects to screen

3

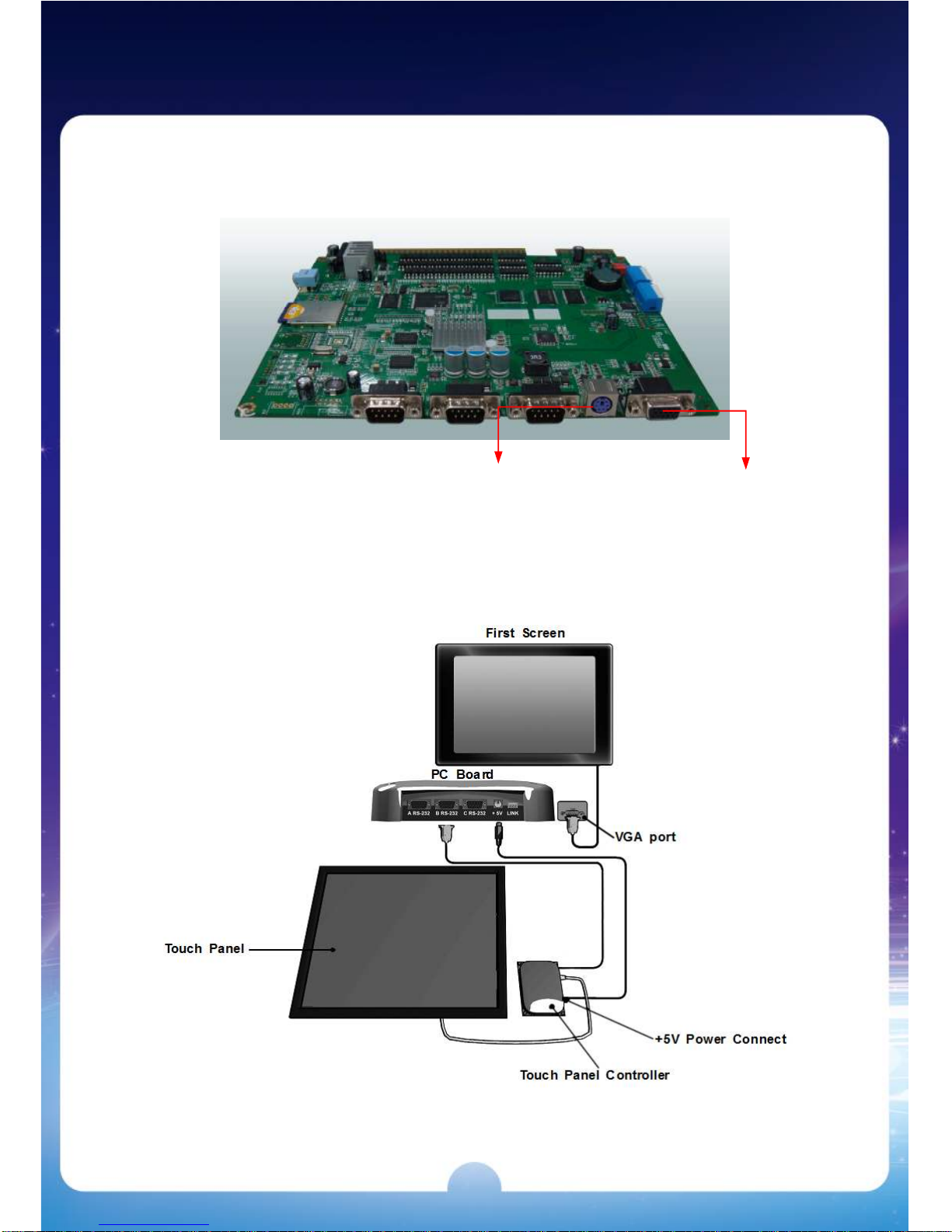

Connecting Touch Panel (Optional)
Type A
Refer to the diagram below to connect the touch screen.
After the connection, remember to adjust the Pin 1 of DIP SW1 to ON to enable
touch mode.
Power +5V Connector
(Female) Monitor Connector
(15PIN Female)

4
Connection Diagram
36 Pins (6 buttons)
10 Pins (6 buttons)
PARTS SIDE SOLDER SIDE
PARTS SIDE
SOLDER SIDE
1
GND 1
GND
SPEAKER_R 2
GND 2
GND
SPEAKER_L 3
GND
+5V 3
+5V
4
+5V 4
+5V
5
+12V 5
+12V
6
HOP-VCC 6
TICKET OUT 7
TICKET SWITCH 8
TICKET SSR
7
START / ALL STOP 9
8
HELP / STOP4 10
GND 9
GND
PLAY / STOP5 11
GND 10
GND
TAKE / MENU / STOP1 12
SELECT LINE / STOP 3 13
14
15
STOP 2 16
17
COIN A 18
KEY IN
19
COIN C
RECORD 20
TEST
21
KEY OUT / PRINTER OUT
22
COIN A METER 23
KEY IN METER 24
25
COIN C METER 26
27
OUT METER 28
LAMP: START/ ALL STOP
29
LAMP: HELP / STOP 4 30
LAMP: PLAY / STOP 5 31
LAMP : COUNT
LAMP: TAKE / STOP 1 32
LAMP: SELECT LINE / STOP3
33
LAMP: STOP 2 34
35
GND 36
GND

5
DIP Switch Settings
DIP SWITCH 1 1 2 3 4 5 6 7 8
OFF OFF
TOUCH ON ON
36 & 10 PIN Button Layout
6 Buttons
STOP1
TAKE
ME N U
STOP 2 STOP3
SELECT LINE
STOP 4
HE L P
STO P 5
P LAY
S TART
ALL STOP
TAKE

6
Solving Ticket SSR Error
After powering on the machine, if the hopper keeps working and can’t be stopped,
it could be that the Ticket SSR’s jump setting is incorrect.
How to solve:
1. Locate the Ticket SSR jump (JP12) on the PC board. Then identify current
TICKET SSR is at HIGH ACTIVE or LOW ACTIVE.
2. Change to use the alternative JP12 setting.
Low Active
3 2 1
Short pins 1-2
JP12 High Active (Default)
3 2 1
Short pins 2-3

7
Reset
1. Power off the machine and then power on.
2. Press and hold the【TEST】button until the game enters the CHECKING
SYSTEM page.
3. Enter the「TEST」page.

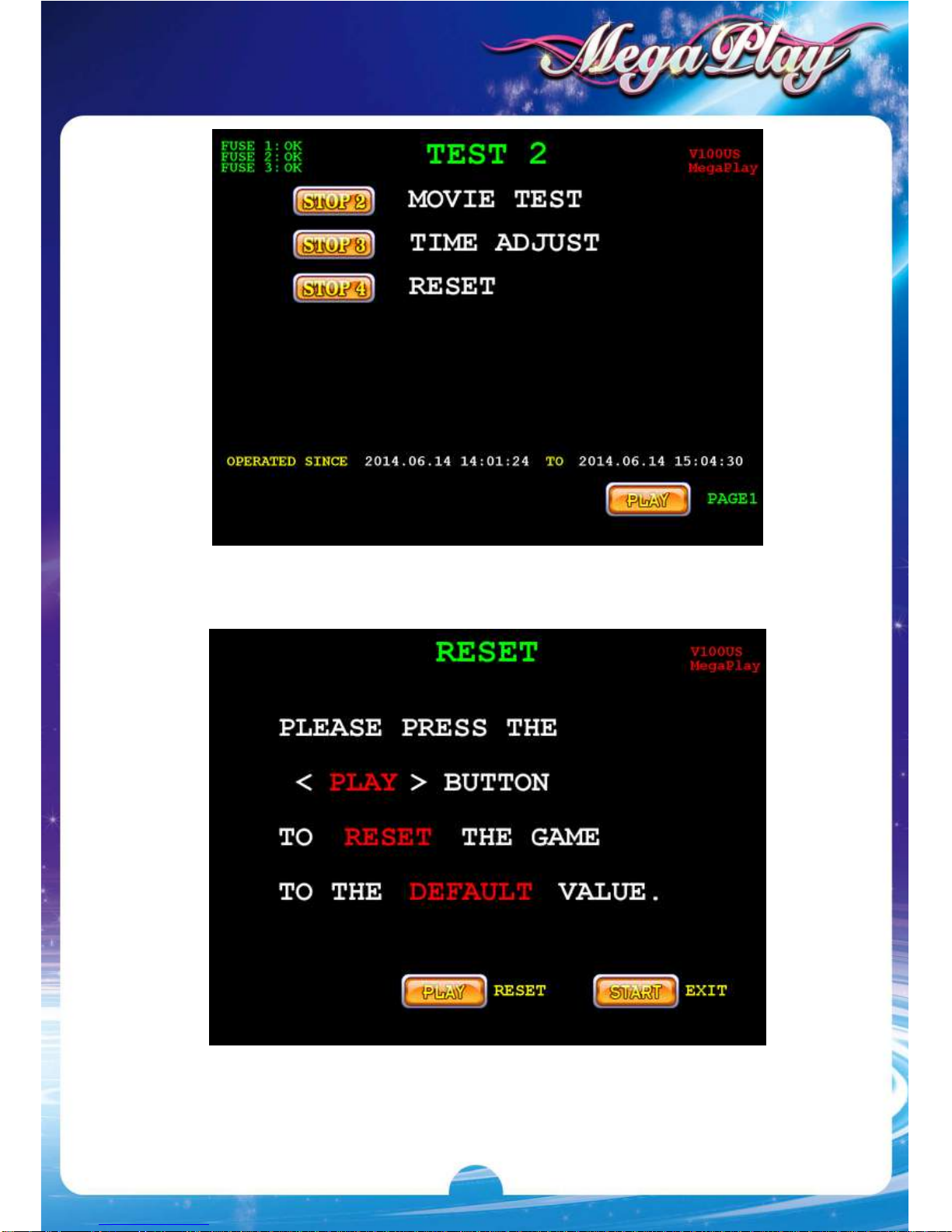

4. Press the【PLAY】button to enter the「TEST 2」PAGE (PAGE 2).

8
5. Press the【STOP4】button to enter the「RESET」page.
6. Press the【PLAY】button to RESET the game to default value.

9

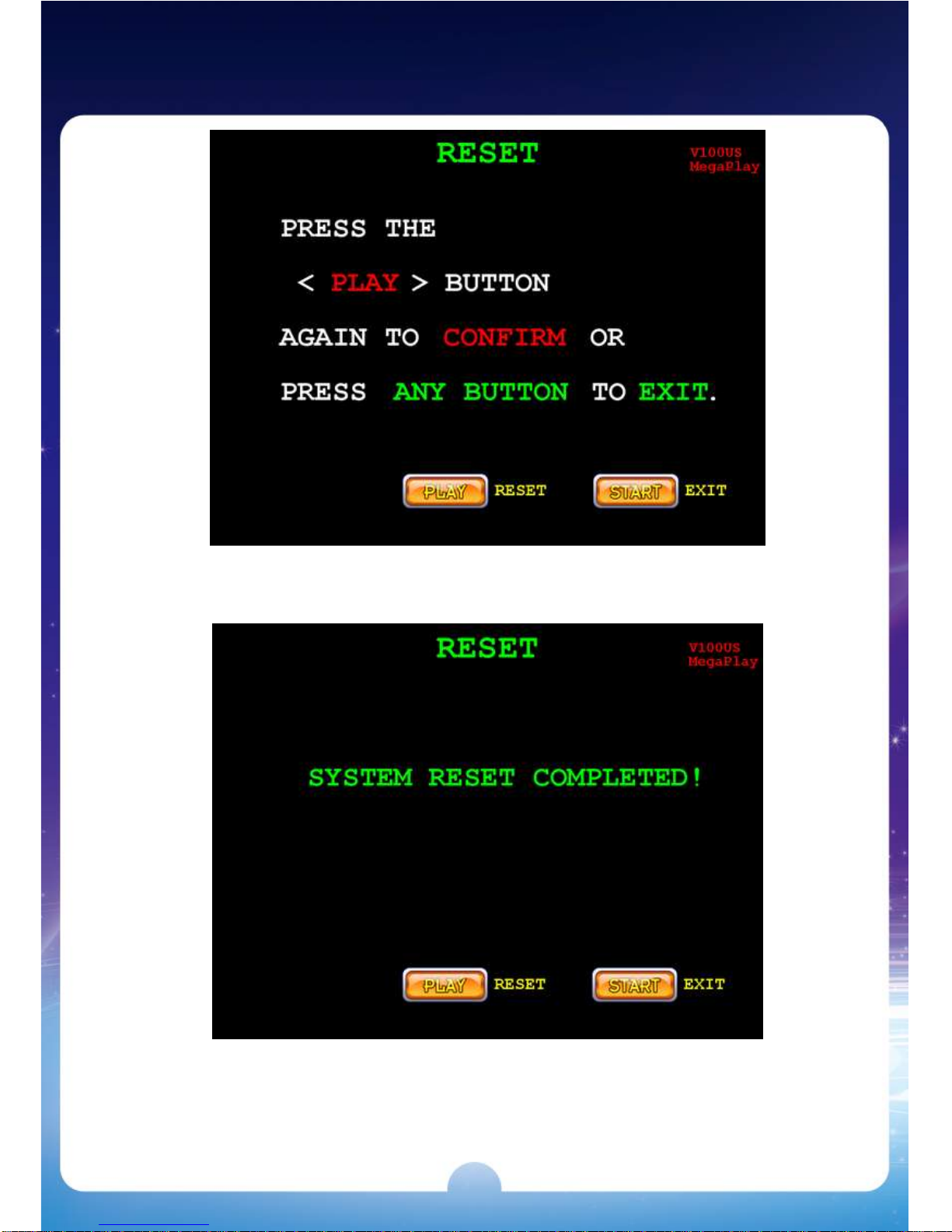

7. Press the【PLAY】button again to confirm RESET or press ANY button to
EXIT.
8. After RESET is completed, it displays SYSTEM RESET COMPLETED on
the screen.
9. Power off the machine and then power on to complete the Reset procedure.

10
2. Bookkeeping & Adjustment
Access Flow Chart
[STOP2]
LAST HAND
Enter
Password
[RECORD]
[STOP3]
SHORT-TERM
Default password:
Press [START] 8 times
[STOP4]
SYSTEM
CURRENT
DATA LAST
DATA
[STOP2]
ROBIN HOOD
[STOP3]
HALLOWIN [STOP4]
WILD RIDER
[STOP2]
MAIN GAME [STOP3]
ADJUSTMENT
[STOP4]
INTERFACE
[STOP1]
TOTAL
[STOP2]
ROBINHOOD
[STOP3]
HALLOWIN
[STOP4]
WILDRIDER
[STOP2]
SYSTEM
[STOP3]
CHANCE
[
STOP4]
TIME
[STOP1]
VOLUME
[STOP2]
PRINTER [STOP3] TOUCH
[STOP2]
TOUCH CALIBRATE
[STOP3]
TOUCH REVERSE

11
System Settings
ITEMS SETTING SELECTION DEFAULT
MIN. PLAY / TOTAL 1, 1 x MAX LINE, 2 x MAX LINE, 3 x MAX LINE
,
4 x MAX LINE, 5 x MAX LINE, 6 x MAX LINE
1 x MAX LINE
MAX. PLAY / TOTAL 100,200,300,400,500 200
MIN. PLAY FOR JACKPOT
40,60 40
COIN RATE 25
KEY IN RATE 100
KEY OUT RATE 1
TICKET RATE
1,5,10,20,25,50,100,200,500,1000
500
GAME TICKET 1,2,3,4,5,8,10,CONTINUES CONTINUES
INTERFACE DISPENSER , PRINTER ,ATTENDANT PRINTER
PRINTER COMMAND
CBM1 , ESC/POS , ESC/POS2 , STAR CBM1
DISPLAY CREDIT, 1C, 5C, 10C, 20C, 25C, 50C, $1 CREDIT
SYSTEM LIMIT NO,YES NO
DEMO MUSIC NO,YES YES
NON-STOP NO,YES NO
PASSWORD NO,YES NO
ODDS TABLE NO,YES YES
AUTO PLAY NO,YES YES

12
Chance Settings
ITEMS SETTING SELECTION DEFAULT
MAIN GAME LEVEL LEVEL1(Easiest), LEVEL2,LEVEL3,
LEVEL4,LEVEL5,LEVEL6(Hardest) LEVEL 6

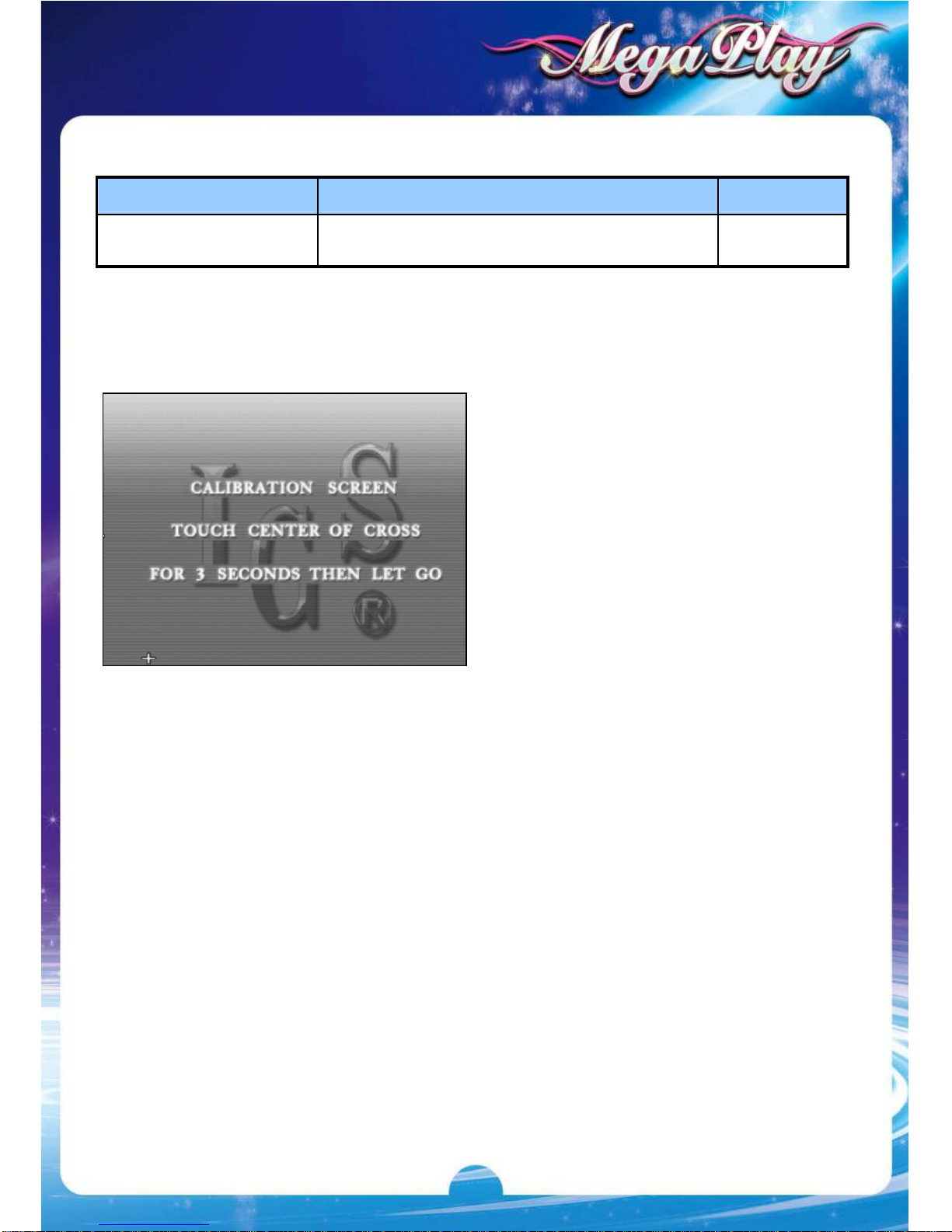

Touch Screen Calibration
1. If a touch screen is connected,
press [RECORD]>
[SYSTEM]>[INTERFACE]>
[TOUCH] and follow the on-screen
prompts to enter the calibration
screen.
2. Touch center of the cross on the
screen for 3 seconds.
3. Follow the cross when it moves till
the calibration is completed.

13
3. Introduction
Common Features
Max. Win up to 500,000.
When collecting 3 Jackpot Symbols in the main game reel, players win the
Jackpot.
Touch screen / Auto play support.

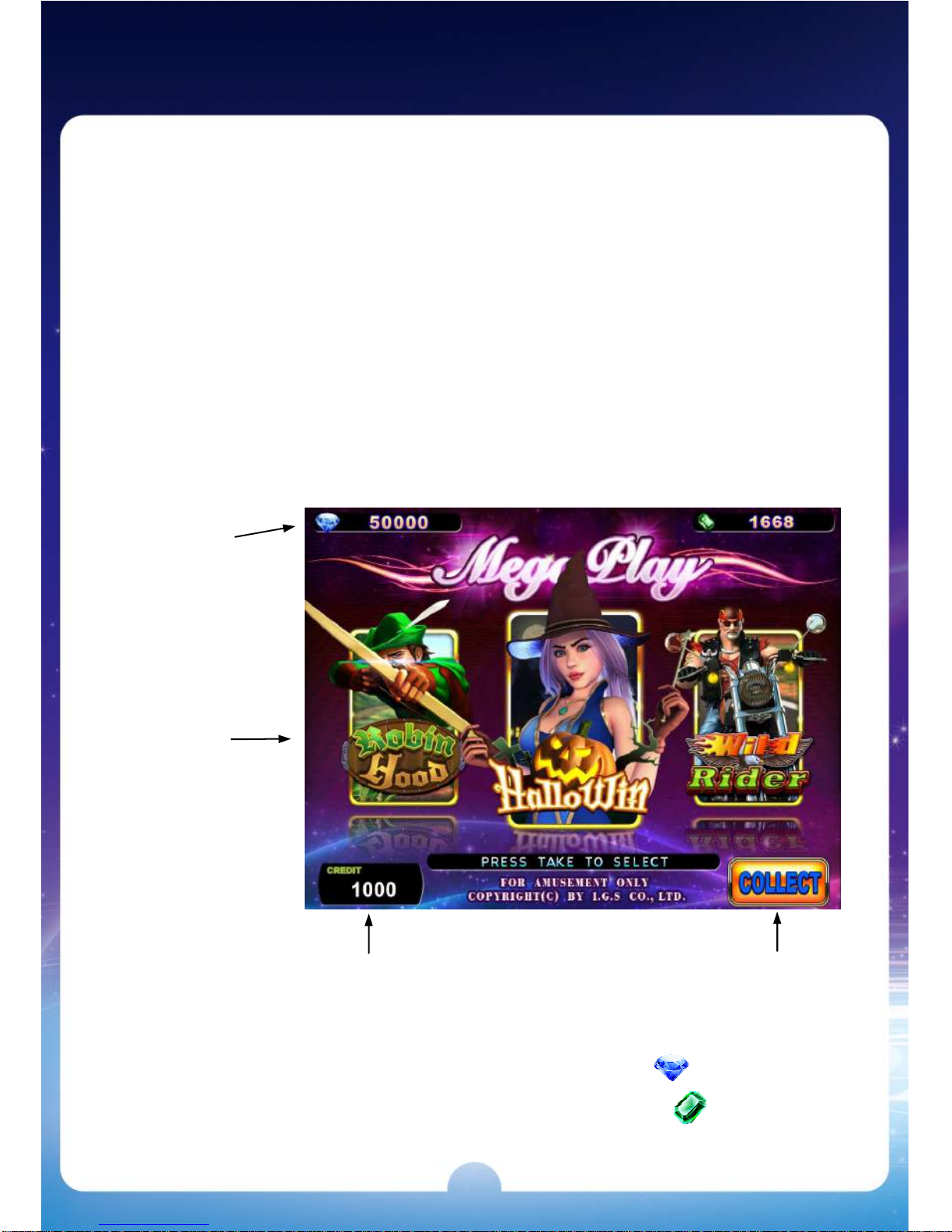

Lobby
MegaPlay is a 3 in 1 multigame .
Jackpot
The Diamond Jackpot is the fixed value triggered by 3 in the game.
The Emerald Jackpot is the random value triggered by 3 in the game.
2 sets of
Jackpots
Games
Pay Out ButtonCredit

14
4. (Game 1) Robin Hood
Main Game
Robin Hood is a 5 Reels & 25 Liners game.
After collecting winning values, the winning symbols will be cleared with new
symbols dropped above to fill all empty spaces, and then re-collect again if
there is a win. A game repeats this feature until there is no winning
combination.

15
Feature
Golden Arrow
When the Golden Arrow appears
on the 5th reel, the symbols shot by
Robin Hood will be replaced with
WILD symbols to increase the
winning possibility.

16
Free Game
The first winning time will turn the Robin Hood symbols in a game into WILD
symbols.
3 consecutive winning times will turn the Little John symbols in a game into
WILD symbols.
6 consecutive winning times will turn the Friar Tuck symbols in a game into
WILD symbols.
3 SCATTER symbols appear in
a game to trigger Free Game
and 10 free games will be
awarded.
The winning times will be
accumulated in each free game.
When the accumulated times
reach the following terms, the
designated symbols will become
WILD symbols in a game to
increase the winning possibility.

17
Win Rules
Odds Table
Line Chart

18
5. (Game 2) HalloWin
Main Game
HalloWin is a 5 Reels & 20 Liners game.
only appears in the Main Game and substitutes for all symbols.
