1.Hardware

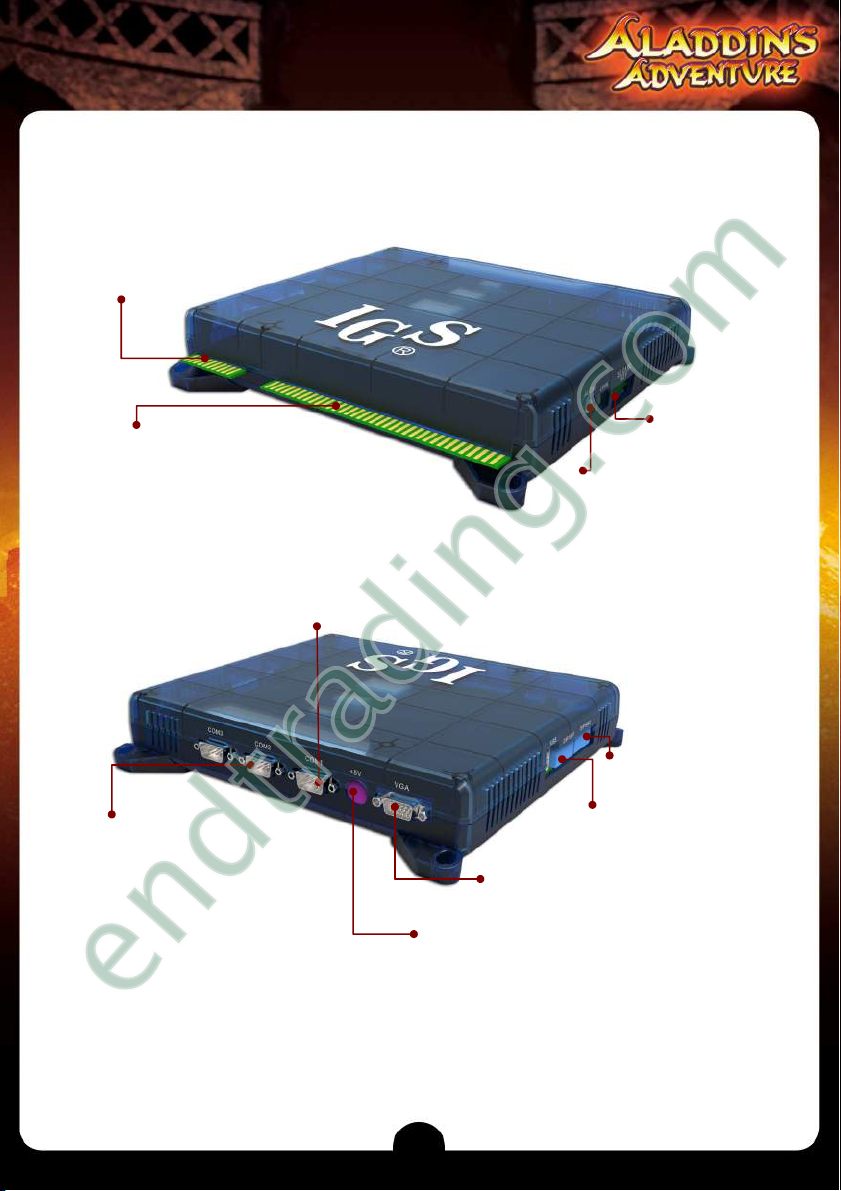

Hardware Connection
36-
Pin Connector
Audio Jack
SD Card Slot
10-
Pin Connector
A
.
RS
-
232
Connects to optional Citizen printer/ticket dispenser.
* Use Belkin #F2L044 (serial printer cable/null modem) for Citizen printer.
B. RS-232
Connects to Micro Touch
compatible touch screen
+5V
+5V Power output
DIP Sw 1
DIP Sw 2
VGA port
Connects to screen
endtrading.com

3
Connecting Touch Panel (Optional)
Type A

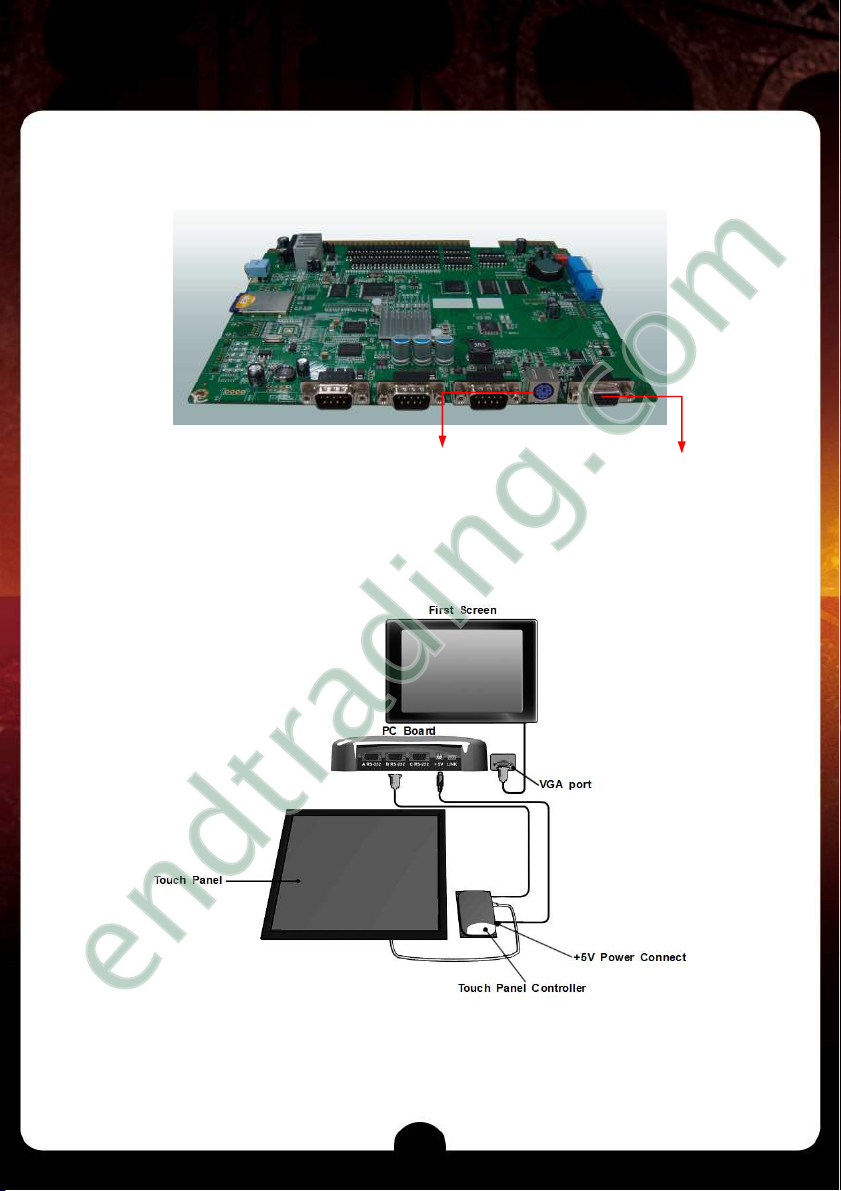

!Refer to the diagram below to connect the touch screen.
!After the connection, remember to adjust the Pin 1of DIP SW2 to ON to enable
touch mode.
Power +5V Connector
(Female)
Monitor Connector
(15PIN Female)
endtrading.com

4
Connection Diagram
36 Pins (6 Buttons) 10 Pins (6 Buttons)
PARTS SIDE SOLDERSIDE
PARTS SIDE SOLDER SIDE
1 GND 1 GND
SPEAKER_R 2 GND 2 GND
SPEAKER_L 3 GND +5V 3 +5V
4 +5V 4 +5V
5 +12V 5 +12V
6 HOP-VCC 6
TICKET OUT 7
TICKET SWITCH 8
TICKET SSR 7
START / ALL STOP 9 8
STOP4/SMALL/HELP 10 GND 9 GND
STOP5/PLAY 11 GND 10 GND
STOP1/TAKE 12
STOP3/DOUBLE/SELECT LINE 13
14
15
STOP2/BIG/HOLD PAIR 16
17
COIN A 18 KEY IN
19 COIN C
RECORD 20 TEST
21 KEY OUT/PRINTER OUT
22
COIN A METER 23
KEY IN METER 24
25
COIN C METER 26
27
OUT METER
28
LAMP: START/ALL STOP
29
LAMP: STOP4/SMALL/HELP 30
LAMP: STOP5/PLAY 31 LAMP: COUNT
LAMP: STOP1/TAKE 32
LAMP: STOP3/DOUBLE/SELECT
LINE 33
LAMP: STOP2/BIG/HOLD PAIR
34
35
GND 36 GND
endtrading.com

5
DIP Switch Settings
DIP SWITCH 1 1 2 3 4 5 6 7 8
1 OFF OFF OFF OFF OFF
2 ON OFF OFF OFF OFF
3 OFF ON OFF OFF OFF
4 ON ON OFF OFF OFF
5 OFF OFF ON OFF OFF
6 ON OFF ON OFF OFF
7 OFF ON ON OFF OFF
8 ON ON ON OFF OFF
9 OFF OFF OFF ON OFF
10 ON OFF OFF ON OFF
11 OFF ON OFF ON OFF
12 ON ON OFF ON OFF
13 OFF OFF ON ON OFF
14 ON OFF ON ON OFF
15 OFF ON ON ON OFF
16 ON ON ON ON OFF
17 OFF OFF OFF OFF ON
18 ON OFF OFF OFF ON
19 OFF ON OFF OFF ON
20 ON ON OFF OFF ON
21 OFF OFF ON OFF ON
22 ON OFF ON OFF ON
23 OFF ON ON OFF ON
ON ON ON OFF ON
OFF OFF OFF ON ON
ON OFF OFF ON ON
OFF ON OFF ON ON
ON ON OFF ON ON
OFF OFF ON ON ON
ON OFF ON ON ON
OFF ON ON ON ON
SLAVE ID
24
ON ON ON ON ON
SINGLE OFF LINK
MODE LINK
ON
endtrading.com

6
DIP SWITCH 2 1 2 3 4 5 6 7 8
NO OFF
TOUCH YES ON
36 & 10 PIN Button Layout
6 Buttons
TAK E
STOP1
BIG
STOP 2
(H OL D )
DOUBLE
STOP 3
(SELECT
LIN E )
SMALL
STOP 4
(H E L P )
START
ALL STOP
TAKE
PLAY
STO P 5
Solving Ticket SSR Error
After powering on the machine, if the hopper keeps working and can’t be stopped,
it could be that the Ticket SSR’s jump setting is incorrect.
How to solve:
1. Locate the Ticket SSR jump (JP12) on the PC board. Then identify current
TICKET SSR is at HIGH ACTIVE or LOW ACTIVE.
2. Change to use the alternative JP12 setting.
Low Active
3 2 1
Short pins 1-2
JP12
High Active (Default)
3 2 1
Short pins 2-3
endtrading.com

7
Reset
1. Power off the machine and then power on.

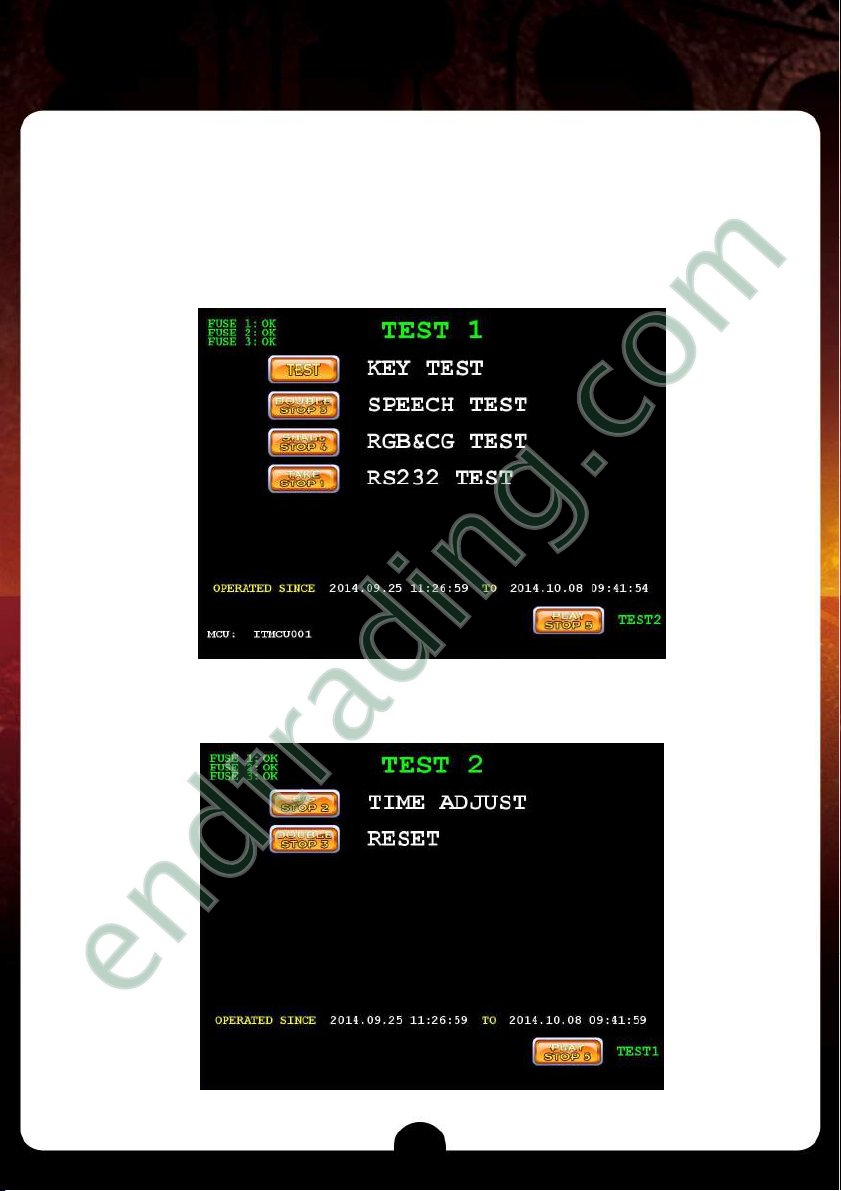

2. Press and hold the【TEST】button until the game enters the CHECKING
SYSTEM page.
3. Enter the「TEST」page.
4. Press the【PLAY】button to enter the「TEST 2」PAGE (PAGE 2).
endtrading.com

8

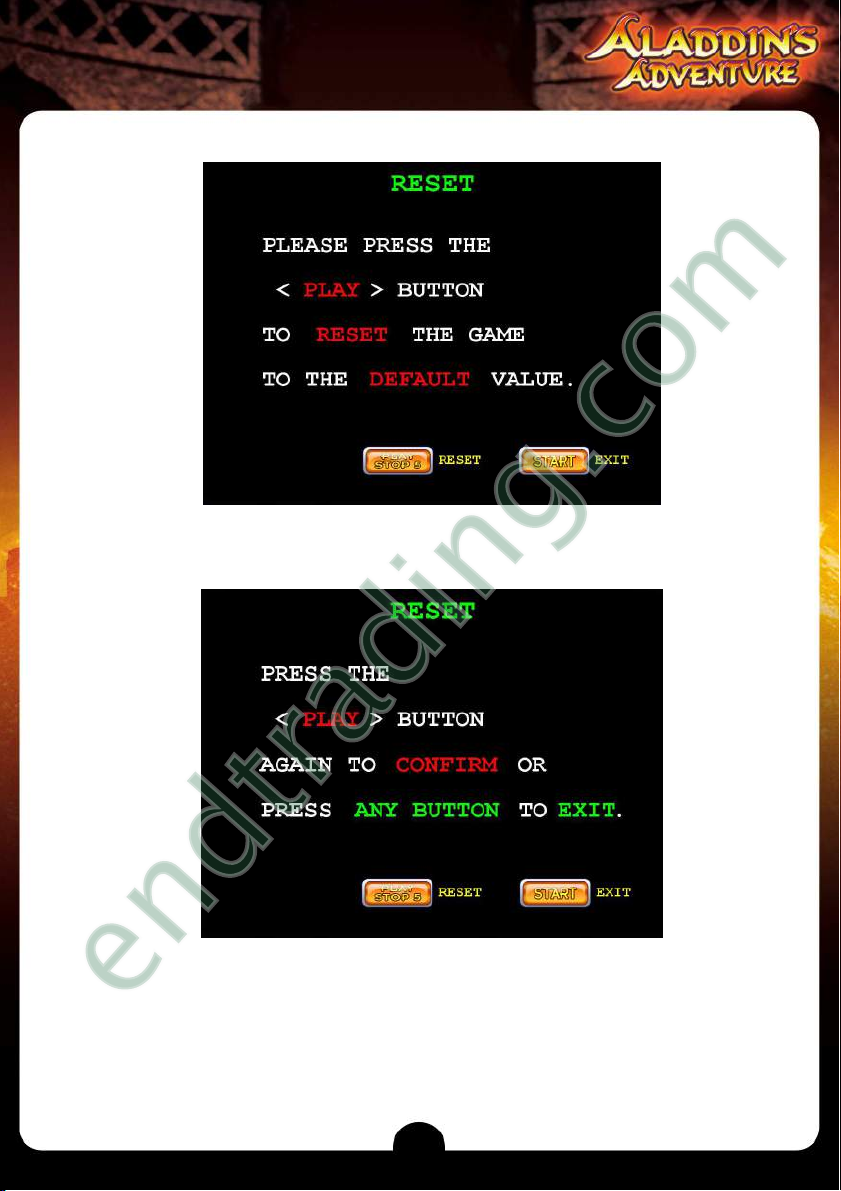

5. Press the【STOP3】button to enter the「RESET」page.
6. Press the【PLAY】button to RESET the game to default value.
endtrading.com

9
7. Press the【PLAY】button again to confirm RESET or press ANY button to
EXIT.

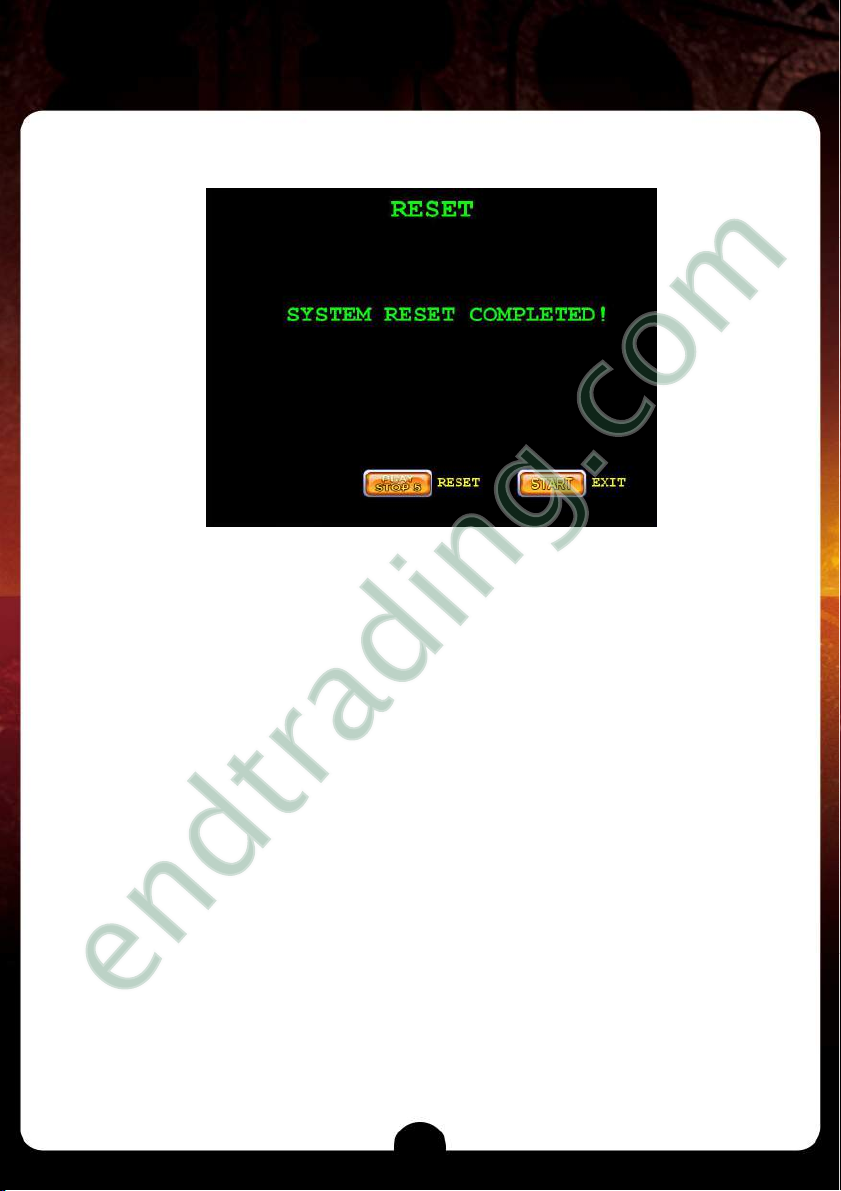

8. After RESET is completed, it displays SYSTEM RESET COMPLETED on
the screen.
9. Power off the machine and then power on to complete the Reset procedure.
endtrading.com

10
2.Bookkeeping & Adjustment
Access Flow Chart
[STOP2]
LAST HAND
Enter
Password
[RECORD]
[STOP3]
SHORT-TERM
Default password:
Press [START] 8 times
[STOP4]
SYSTEM
CURRENT
DATA
LAST
DATA
[STOP2]
MAIN GAME
[STOP3]
DOUBLE GAME
[STOP2]
MAIN GAME
[STOP4]
ADJUSTMENT
[STOP1]
INTERFACE
[STOP2 ]
SYSTEM
[STOP3 ]
CHANCE
[STOP4]
TIME
[STOP1 ]
VOLUME
[STOP2]
PRINTER
[STOP3]
TOUCH
[STOP2]
TOUCH CALIBRATE
[STOP3]
TOUC H REVERSE
[STOP3]
DOUBLE GAME
endtrading.com

11
System Settings
ITEMS SETTING SELECTION DEFAULT
MAX. LINE PLAY 2, 4, 8, 10, 15, 20 20
MIN. PLAY(TOTAL) 1, 5, 10, 15, 25, 50, 75, 100, 125, 150 25
MIN. PLAY FOR
JACKPOT 1, 5, 10, 15, 25 25
JACKPOT MAX 15000, 20000, 50000, 70000, 100000, 150000,
200000 50000
COIN RATE 25
KEY IN RATE 100
KEY OUT RATE 100
TICKET RATE
1,5,10,20,25,50,75,100,200,500,1000
500
GAME TICKET 1,2,3,4,5,8,10,CONTINUES CONTINUES
INTERFACE DISPENSER , PRINTER ,ATTENDANT PRINTER
PRINTER COMMAND CBM1 , ESC/POS , ESC/POS2 , STAR CBM1
DISPLAY CREDIT, 1C, 5C, 10C, 20C, 25C, 50C, $1 CREDIT
SYSTEM LIMIT NO, YES NO
AUTO TICKET NO, YES NO
DEMO MUSIC NO, YES YES
NON-STOP NO, YES NO
PASSWORD NO, YES NO
ODDS TABLE NO, YES YES
SCORE BOX NO, YES, 10X NO
PLAY SCORE NO, YES YES
HAND COUNT NO, YES NO
HOLD PLAY NO, YES YES
AUTO PLAY NO, YES YES
DOUBLE GAME NO, YES YES
JACKPOT MODE PROGRESSIVE, RANDOM PROGRESSIVE
endtrading.com

12
Chance Settings
ITEMS SETTING SELECTION DEFAULT
MAIN GAME LEVEL LEVEL1(Easiest), LEVEL2,LEVEL3,
LEVEL4,LEVEL5,LEVEL6(Hardest) LEVEL 6
DOUBLE GAME LEVEL 85%, 90%, 95% 95%
Touch Screen Calibration
1. If a touch screen is connected,
press [RECORD]>
[SYSTEM]>[INTERFACE]>
[TOUCH] and follow the on-screen
prompts to enter the calibration
screen.
2. Touch center of the cross on the
screen for 3 seconds.
3. Follow the cross when it moves till
the calibration is completed.
endtrading.com

13
3.Game Introduction
Features
!25 Lines.
!Max. Win Up to 600,000.
!When 5/4/3 Jackpot symbols appear in a game, players win the Jackpot
1/2/3.
!Hold Pair Feature: Select the desired Hold Symbol and Re-spin the symbols
you don’t want. Press Hold-Pair button to swap the Symbols.
!Touch screen / Auto play support.
!2 Main Game Features / 1 Free Game / 1 Bonus Game
Main Game

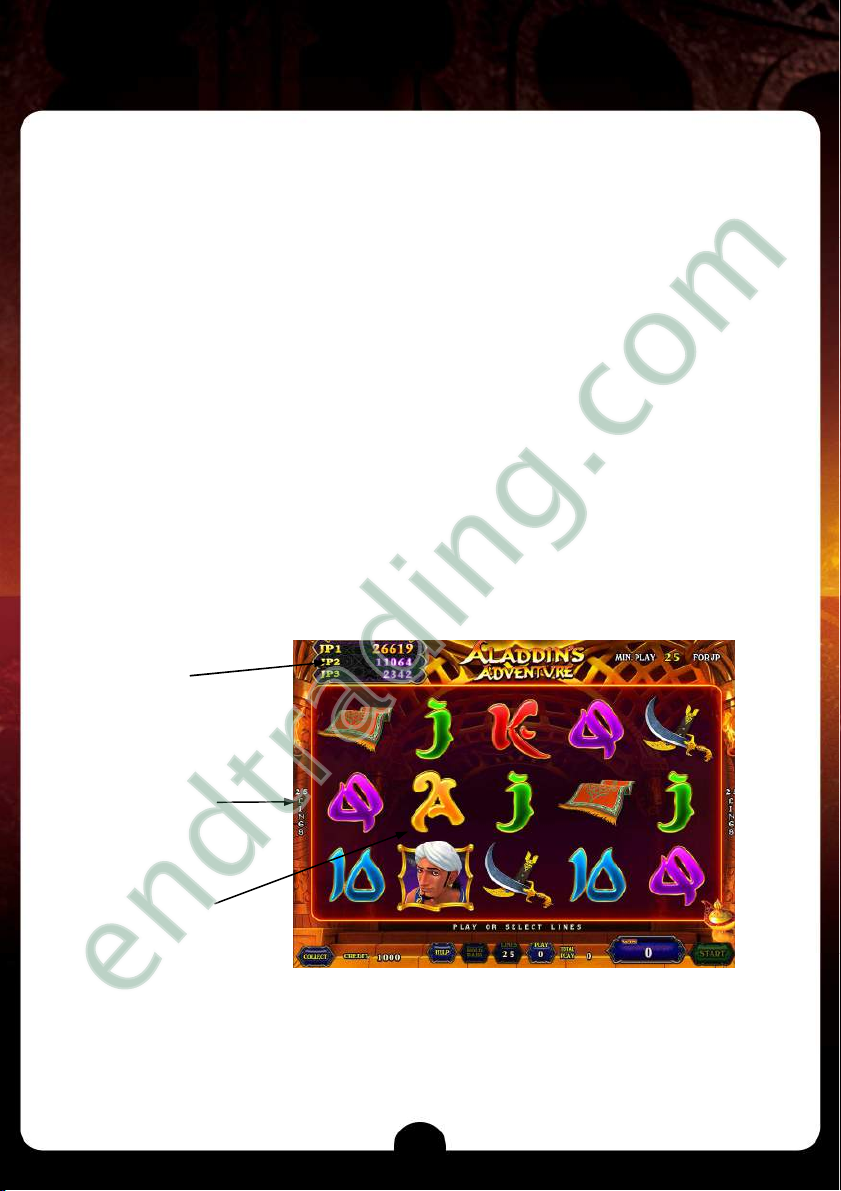

ALADDIN’S ADVENTURE is a 5 reels & 25 lines game.
3 sets of
Jackpots
25 Lines
Symbol
Zone
endtrading.com

14
Jackpot
!With 5 symbolsonthescreen,playerswintheJACKPOT1.
!With 4 symbolsonthescreen,playerswintheJACKPOT2.
!With 3 symbolsonthescreen,playerswintheJACKPOT3.
Main Game Features
Lamp Genie Feature :
!Lamp Genie will appear during the
main game and randomly hit
symbols. The hit symbols will
become Wild and substitute all
symbols except
and .
endtrading.com

15
Aladdin Feature :
!Aladdin will appear randomly in the
main game and gives players a
surprise.
Scatter Game
!Lamp Scatter Game will be activated
when 3 or more symbols
appear in a game.
!In the Lamp Scatter Game, players
may have a chance to win prizes
directly, or enter the Aladdin’s Gold
Bonus Game or Lamp Genie Free
Game.
endtrading.com

16
Aladdin’s Gold Bonus Game:
!The First Stage：players can pick
golden Jars and win prizes until “Exit
”
has been picked. Get “UP” or “
TAKE
ALL” to enter to the Second Stage.
!The Second Stage：players
can pick
the golden chests for bigger prizes
until “Exit” or “TAKE ALL” has been
picked.
endtrading.com

17

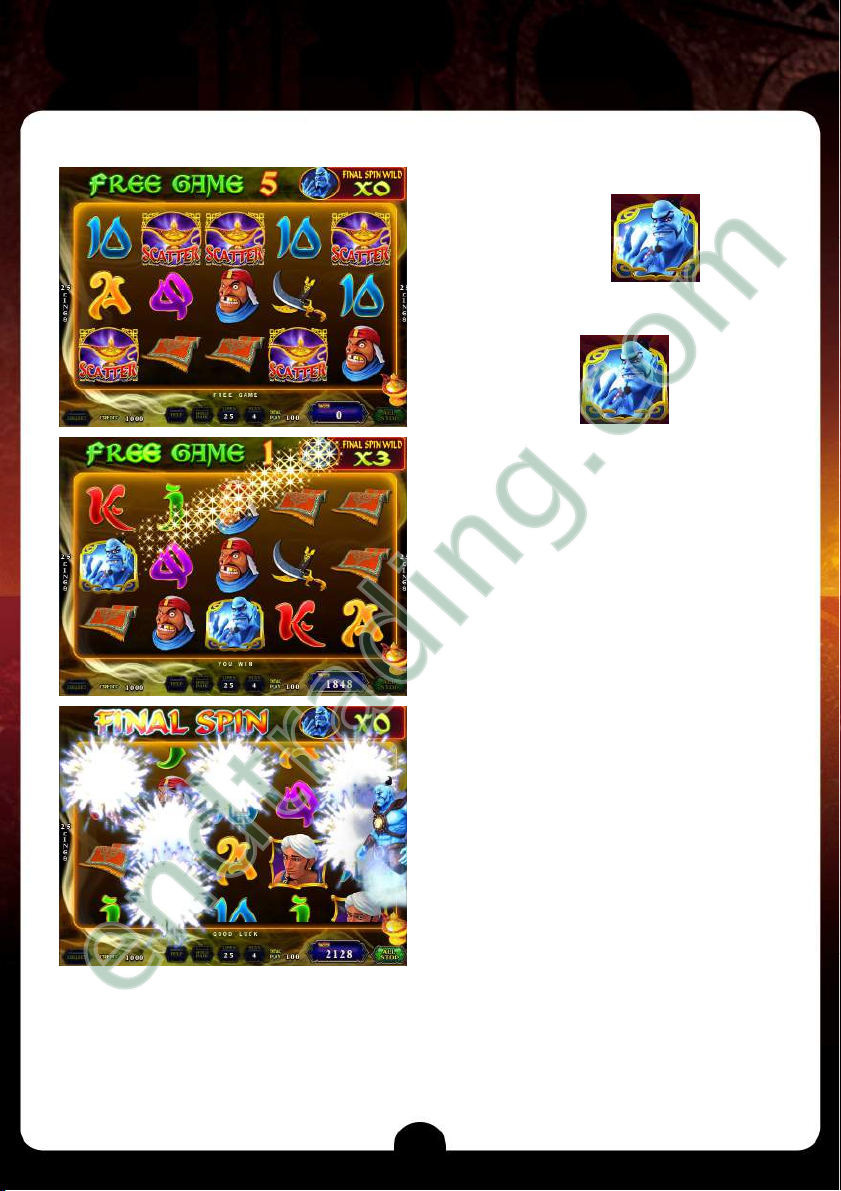

Lamp Genie Free Game :
!During the Lamp Genie Free Game,
all the appeared willbe
collected in the right upper corner.
!When the free game is finished, all
the collected willbecome
Wild symbols and
return randomly to
the reels for one more last spin.
endtrading.com

18

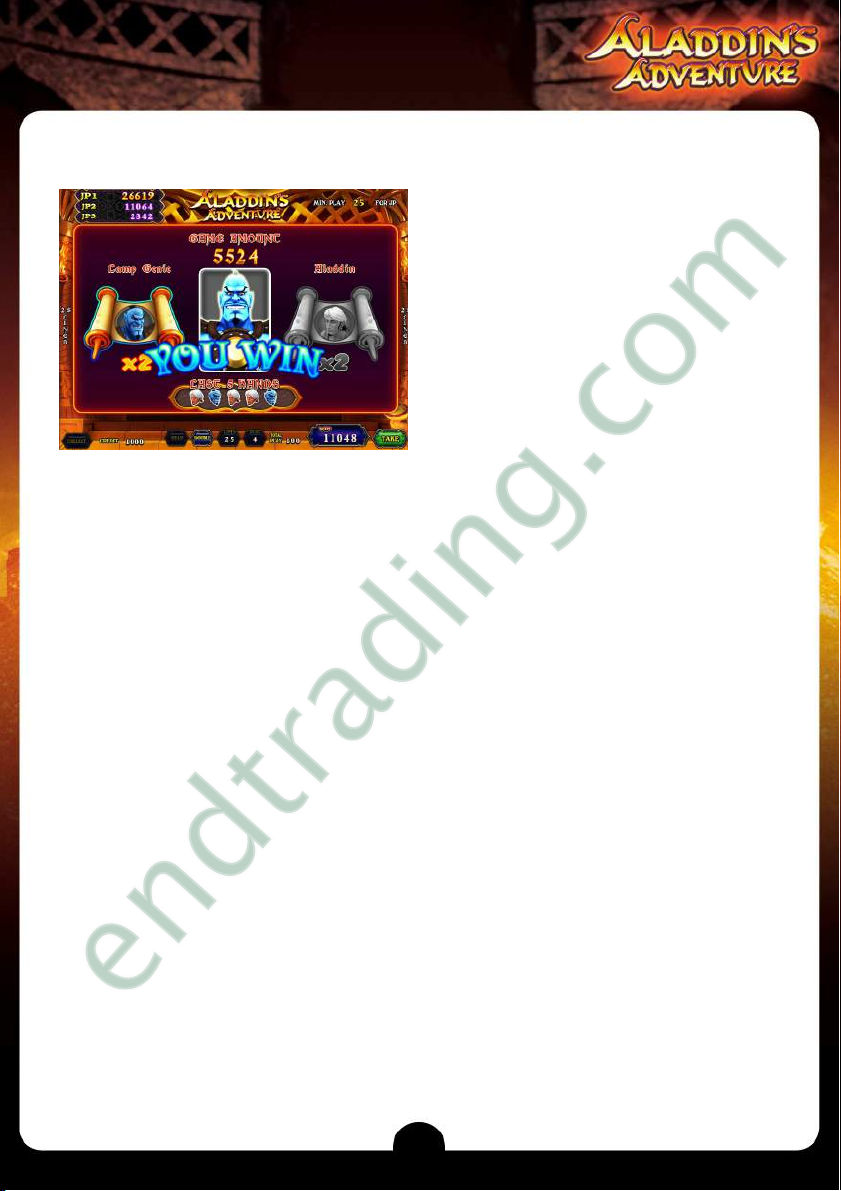

Double Game
!Choose Lamp Genie or Aladdin to
double the winning.
