iHome iH8 User manual

i Homer
Model iH8
The Home System
For Your iPod®
NOTE: THIS UNIT WILL NOT CONTROL OR CHARGE 3G iPod
Questions? Visit www.ihomeaudio.com

Table of Contents
Quick Start.1
Controls and Indicators / iH8 Display.2
Using the iH8.3-4
Replacing iH8 Backup Batteries.4
Install/Replace Backup Battery
Batteries information
Using the Remote Control Unit.5
A Consumer Guide to Product Safety.6
Troubleshooting.7-8
Solucionando problemas.9-10
Warranty Information.11
A Consumer Guide to Product Safety
This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this
device does not cause harmful interference.
This equipment complies with the limits for a Class B digital device as specified in Part 15 of FCC Rules. These limits
provide reasonable protection against radio and TV interference in a residential area.
However, your equipment might cause TV or radio interference even when it is operating properly. To eliminate interference
you can try one or more of the following corrective measures:
• Reorient or relocate the receiving antenna.
• Increase the distance between the equipment and the radio or TV.
• Use outlets on different electrical circuits for the equipment and the radio or TV.
Consult your dealer or an experienced radio/television technician if the problem still exists.
Modifying or tampering with your system’s internal components can cause a malfunction and might invalidate the system’s
warranty and void your FCC authorization to operate it.
Maintenance
• Place the unit on a level surface away from sources of direct sunlight or excessive heat.
• Protect your furniture when placing your unit on a natural wood and lacquered finish. A cloth or other protective material should
be placed between it and the furniture.
• Clean your unit with a soft cloth moistened only with mild soap and water. Stronger cleaning agents, such as Benzine, thinner
or similar materials can damage the surface of the unit.

quick start
Attach AC adaptor cable to
jack on back of the iH8 and
plug the other end into a
wall socket.
NOTE: If you do not have an insert for
your iPod, please visit an Apple store,
www.ihomeaudio.com, or call iHome
toll free at 800-288-2792 to purchase one.
Snap AM antenna into provided
stand, then plug antenna cable
into socket on back of iH8.
Move antenna 12"away.
Select the dock insert for your
iPod® model from the table
below and place insert in dock.
Never dock an iPod without
an insert in place.
r iPod nano iPod with video (30 GB) iPod with video (60,80 GB)
Insert 8 Insert 9 Insert 10
iPod 1G and 2G nano
k.
thin (30 GB) iPod with video thick (60,80 GB) iPod with video
A
4:time
in.no
nj* * u j
I c >\ I
l l I \l
• Press & hold the Time Zone
button on back until the
display flashes
•Turn the Set Wheel to select
your time zone
• Press the Time Zone
button again.
• Move the DST switch on back
of unit to+1 or-1 (adds or
subtracts an hour)
Insert an iPod® into the dock with
proper insert (iPod must not be in
a skin or case).The iPod will charge
while docked. Press the iPod
Button on the iH8 to play your iPod.
1
Press the Radio button and
press again to select AM/FM
band.Turn the Set Wheel to
tune in a station. Press and hold
a preset button (1,2,3 or 4) to
save the station as a preset.

Controls and Indicators

Using the iH8
Connect iH8 to Power Source
a) Plug the AC adaptor cable into the © AC Adaptor Jack and the other end into a standard 120 VAC wall socket. Adaptor must
be plugged in to operate. The iH8 does not operate on batteries.
b) If desired, plug the optional Extension Speaker (sold separately) into the external speaker jack on the rear of the unit and move
power switch on the extension speaker to the ON position.
Setting the Clock
a) Press and hold the © Time Zone Button until the display flashes.
b) Turn the Set Wheel to select your time zone.
c) Press the Time Zone Button again. The clock will display the current time in your time zone.
d) To adjust the time for Daylight Saving Time, slide the © DST switch to +1 to advance the time 1 hour.
Slide to -1 to turn the clock back 1 hour.
To Set Clock Manually
a) Press and hold the © Clock Adjust Button. The clock display will flash.
b) Turn the © Set Wheel until the current time is displayed (a PM indicator appears when time is set to PM; there is no AM indicator).
c) Press the Clock Adjust Button to accept the time. The year display will flash.
d) Turn the Set Wheel to adjust the year and press the Clock Adjust Button. The date display will flash.
e) Turn the Set Wheel to adjust the date and press the Clock Adjust Button. Two beeps will indicate clock setting is complete. Use
DST switch to adjust for Daylight Saving Time.
Using the Alarms
Setting the Alarms
a) Press and hold the ©Alarm 1 Button until the alarm time flashes to wake to iPod (buzzer alarm sounds if no iPod is detected)
or the © Alarm 2 Button to wake to the current radio station at a separate alarm time.
b) Turn the Set Wheel to set the alarm time (a PM indicator appears when time is set to PM; there is no AM indicator).
c) Press the Alarm 1 Button again (or the Alarm2 Button if you are setting second alarm). Alarm is now armed, indicated by the
numbered alarm clock icon (alarm 1 iPod or alarm 2 radio).
Arming and Disarming Alarm (Turn Alarm Function ON and OFF)
a) Press the © Alarm On/Off Button to arm or disarm alarm functions. When armed, the related alarm icon appears in display.
Resetting the Alarm to Come on the Next Day
a) When the alarm is sounding, press the © Alarm Reset/Power Off Button to stop alarm and reset it to come on the following day.
Snooze
a) Press the © Snooze/Dimmer Button after the alarm sounds. The alarm will be silenced and come on again 9 minutes later. Snooze
can be pressed several times during the 1 hour alarm cycle.
Sure Alarm
The iH8 has a sure alarm feature so the buzzer alarm will still sound in the event of power failure, if backup batteries are installed.
iPod
Playing and charging your iPod
a) Place proper insert for your iPod (see insert table under Quick Start) in © Dock, then gently dock iPod. When docked, your iPod
will charge until fully charged. Unit will not overcharge iPod. Note: The iH8 will not control or charge 3G iPod models.
b) Press the © iPod Button to play iPod, and again to pause.
c) Turn © Volume Wheel to adjust iH8 volume up or down
d) Press the EQ Button to select Treble, Bass or Balance. Turn the Set Wheel to adjust settings. EQ settings for iPod and radio
mode are independent.
e) Press © Alarm Reset/Power Off Button to turn iH8 and iPod off.
Note: If you dock an iPod with a drained battery, it may take up to 6 minutes of charging before the iPod will respond.
3

Using the iH8
Radio
Setting up Antennas
a) Snap AM loop antenna into provided stand, then plug AM antenna cable into © AM Loop Antenna socket on back of unit.
Move antenna 12” away from unit for best reception.
b) Extend © FM Antenna (on back of unit) fully for best reception. Do not strip, alter or attach to other antennas.
Tuning and Playing the Radio
a) Press the Q Radio Button to select radio play mode. Press as needed to select AM, FM1 or FM2 radio band.
b) Turn the Set Wheel to tune radio to a desired station.
c) To memorize the current station as a preset, press and hold Q Preset Button 1,2,3 or 4. Repeat steps a,b,and c to preset up to
12 stations (4 AM, 8 FM). To listen to a preset station at any time, simply press the desired preset button.
d) Turn the Q Volume Wheel to adjust iH8 volume up or down.
e) Press the EQ Button to select Treble, Bass or Balance. Turn the Set Wheel to adjust settings. EQ settings for iPod and radio
mode are independent.
f) Press © Alarm Reset/Power Off Button to turn iH8 and iPod off.
Using the Line-in and Line-out Jacks
a) An audio patch cord comes with the iH8. Use it to play nondocking iPods or other audio devices through the iH8 © Line-in Jack
(one end in the device's line out or headphones jack, the other in the iH8 line in jack). Make sure there is no iPod docked in the
iH8 when using the line-in jack. Press the iPod Button.
b) Use the © Line Out Jack to connect the iH8 to the line-in jack of other audio devices such as a tape recorder or amplifier.
The Volume Wheel of the iH8 does not control line-out volume (adjust on attached device instead). The Line Out Jack is not
recommended for headphones.
Using Sleep Mode
Sleep mode lets you sleep to your iPod or the radio, gradually lowering the volume until the unit shuts off at the selected time.
a) Press the © Sleep Button to select an amount of time before the iH8 will turn off: 120, 90, 60, 30 or 15 minutes.
b) Turn the Volume Wheel to set the sleep volume (this volume setting is separate from your standard volume setting).
Using the Dimmer
a) Press the O Snooze/Dimmer Button during normal operation to adjust brightness of LCD display.
Using the optional Extension Speaker (sold separately)
a) An optional extension speaker is available for the iH8 (sold separately). Use it to expand the stereo field. Plug the Extension
Speaker into the Ext. Speaker Jack located on the back of the iH8. Place the speaker as far as possible from the unit for best
stereo sound. Press the Power Button on the Extension Speaker. This will disable the right speaker on the main unit and send
the signal to the extension speaker. You’re now ready to enjoy expanded stereo sound
Replacing iH8 Backup Batteries
Install/Replace Backup Battery
The iH8 uses a backup battery system to provide continuous alarm operation and clock settings
in the event of a power failure. If the Battery Low Icon located on the left of the display is flashing,
it is time to replace the backup batteries. Please make sure the AC adaptor is connected, otherwise
all settings may be lost during battery replacement.
Open the battery compartment cover located on the bottom of the unit. Insert 2 “AA” batteries
as indicated. We recommend the use of alkaline batteries for longer life.
Batteries information:
• Do not mix old and new batteries.
• Do not mix alkaline, standard (carbon -zinc) or rechargeable (nickel-cadmium) batteries.
4

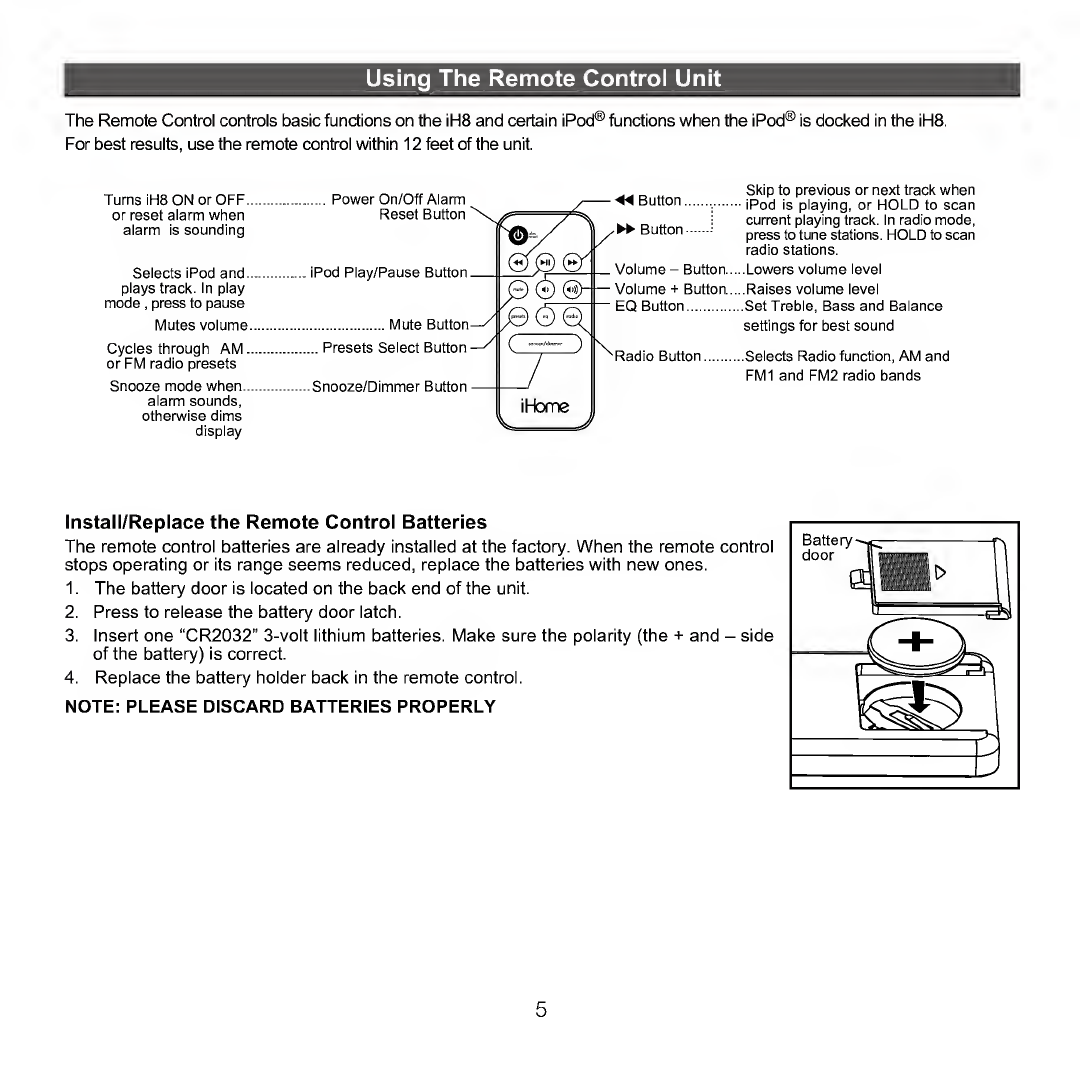

Using The Remote Control Unit
The Remote Control controls basic functions on the iH8 and certain iPod® functions when the iPod® is docked in the iH8.
For best results, use the remote control within 12 feet of the unit.
Turns iH8 ON or OFF
or reset alarm when
alarm is sounding
Selects iPod and.
plays track. In play
mode , press to pause
Mutes volume
Cycles through AM.
or FM radio presets
Snooze mode when.,
alarm sounds,
otherwise dims
display
Power On/Off Alarm
Reset Button
iPod Play/Pause Button
.Mute Button
.. Presets Select Button
Snooze/Dimmer Button
Skip to previous or next track when
iPod is playing, or HOLD to scan
current playing track. In radio mode,
press to tune stations. HOLD to scan
radio stations.
.Lowers volume level
.Raises volume level
.Set Treble, Bass and Balance
settings for best sound
.Selects Radio function, AM and
FM1 and FM2 radio bands
Install/Replace the Remote Control Batteries
The remote control batteries are already installed at the factory. When the remote control
stops operating or its range seems reduced, replace the batteries with new ones.
1. The battery door is located on the back end of the unit.
2. Press to release the battery door latch.
3. Insert one “CR2032” 3-volt lithium batteries. Make sure the polarity (the + and - side
of the battery) is correct.
4. Replace the battery holder back in the remote control.
NOTE: PLEASE DISCARD BATTERIES PROPERLY
5

A Consumer Guide to Product Safety
IMPORTANT SAFETY INSTRUCTIONS
When used in the directed manner, this unit has been designed and manufactured to ensure your personal safety.
However, improper use can result in potential electrical shock or fire hazards. Please read all safety and operating
instructions carefully before installation and use, and keep these instructions handy for future reference. Take special
note of all warnings listed in these instructions and on the unit.
1. Water and Moisture - The unit should not be used near water. For example: near a bathtub, washbowl, kitchen sink,
laundry tub, swimming pool or in a wet basement.
2. Ventilation - The unit should be situated so that its location or position does not interfere with its proper ventilation.
For example, it should not be situated on a bed, sofa, rug or similar surface that may block ventilation openings.
Also, it should not be placed in a built-in installation, such as a bookcase or cabinet, which may impede the flow of
air through the ventilation openings.
3. Heat - The unit should be situated away from heat sources such as radiators, heat registers, stoves or other appliances
(including amplifiers) that produce heat.
4. Power Sources - The unit should be connected to a power supply only of the type described in the operating
instructions or as marked on the appliance.
5. Power-Cable Protection - Power supply cables should be routed so that they are not likely to be walked on or
pinched by items placed upon or against them. It is always best to have a clear area from where the cable exits the
unit to where it is plugged into an AC socket.
6. Cleaning - The unit should be cleaned only as recommended. See the Maintenance section of this manual for
cleaning instructions.
7. Objects and Liquid Entry - Care should be taken so that objects do not fall and liquids are not spilled into any
openings or vents located on the product.
8. Attachments - Do not use attachments not recommended by the product manufacturer.
9. Lightning and Power Surge Protection - Unplug the unit from the wall socket and disconnect the antenna or
cable system during a lightning storm or when it is left unattended and unused for long periods of time. This will
prevent damage to the product due to lightning and power-line surges.
10. Overloading - Do not overload wall sockets, extension cords, or integral convenience receptacles as this can result
in a risk of fire or electric shock.
11. Damage Requiring Service - The unit should be serviced by qualified service personnel when:
A. the power supply cable or plug has been damaged.
B. objects have fallen into or liquid has been spilled into the enclosure.
C. the unit has been exposed to rain.
D. the unit has been dropped or the enclosure damaged.
E. the unit exhibits a marked change in performance or does not operate normally.
12. Antenna - Do not connect an external antenna to the unit (other than that provided).
13. Periods of Nonuse - If the unit is to be left unused for an extended period of time, such as a month or longer, the
power cable should be unplugged from the unit to prevent damage or corrosion.
14. Servicing - The user should not attempt to service the unit beyond those methods described in the user’s operating
instructions. Service methods not covered in the operating instructions should be referred to qualified service
personnel.
Questions? Visit www.ihomeaudio.com
6

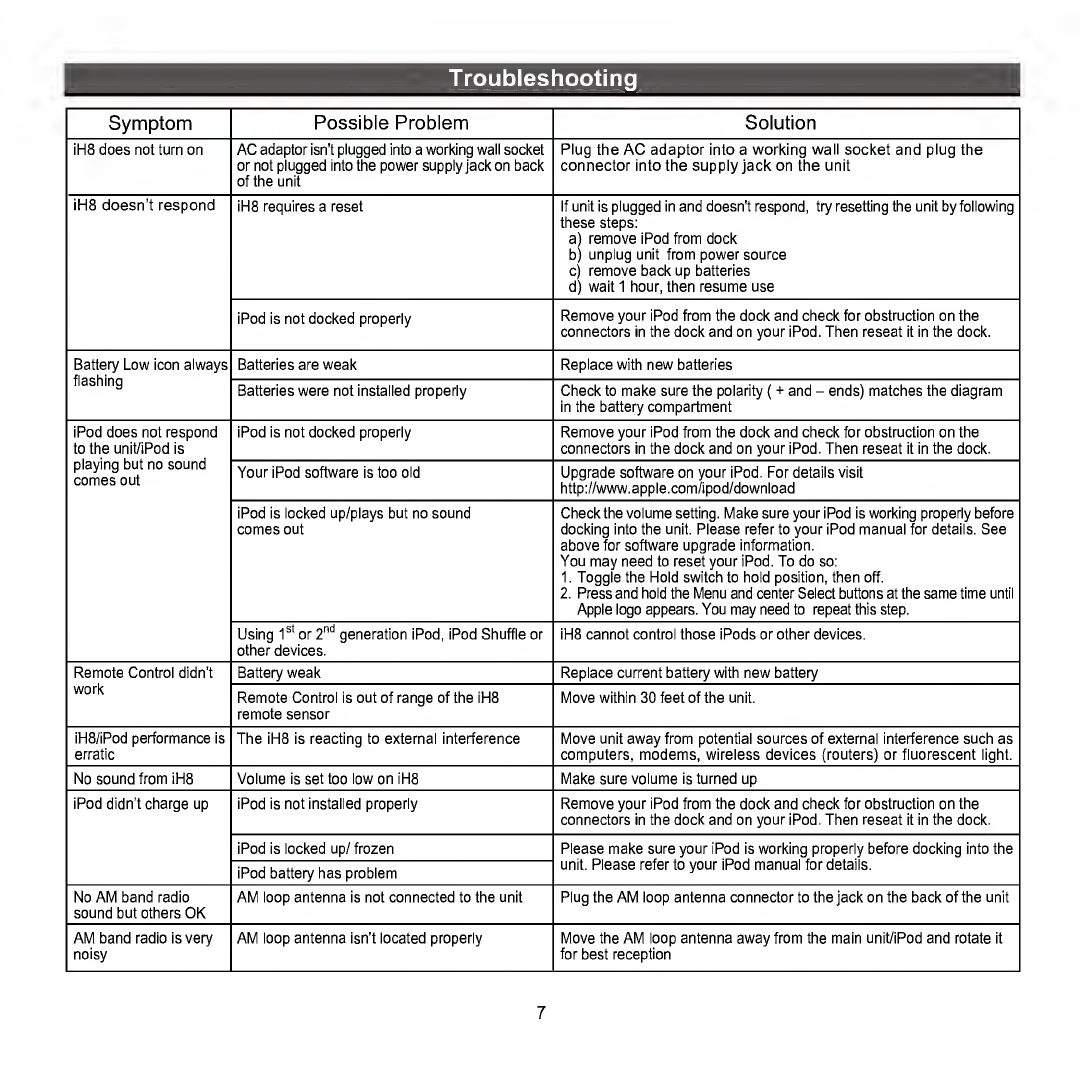

Troubleshooting
Symptom
Possible Problem Solution
iH8 does not turn on
AC adaptor isn't plugged into a working wall socket
or not plugged into the power supply jack on back
of the unit
Plug the AC adaptor into a working wall socket and plug the
connector into the supply jack on the unit
iH8 doesn’t respond
iH8 requires a reset If unit is plugged in and doesn't respond, try resetting the unit by following
these steps:
a) remove iPod from dock
b) unplug unit from power source
c) remove back up batteries
d) wait 1 hour, then resume use
iPod is not docked properly
Remove your iPod from the dock and check for obstruction on the
connectors in the dock and on your iPod. Then reseat it in the dock.
Battery Low icon always
flashing
Batteries are weak Replace with new batteries
Batteries were not installed properly Check to make sure the polarity ( + and - ends) matches the diagram
in the battery compartment
iPod does not respond
to the unit/iPod is
playing but no sound
comes out
iPod is not docked properly Remove your iPod from the dock and check for obstruction on the
connectors in the dock and on your iPod. Then reseat it in the dock.
Your iPod software is too old Upgrade software on your iPod. For details visit
http://www.apple.com/ipod/download
iPod is locked up/plays but no sound
comes out
Check the volume setting. Make sure your iPod is working properly before
docking into the unit. Please refer to your iPod manual for details. See
above for software upgrade information.
You may need to reset your iPod. To do so:
1. Toggle the Hold switch to hold position, then off.
2. Press and hold the Menu and center Select buttons at the same time until
Apple logo appears. You may need to repeat this step.
Using 1 s t or 2 nd generation iPod, iPod Shuffle or
other devices.
iH8 cannot control those iPods or other devices.
Remote Control didn’t
work
Battery weak Replace current battery with new battery
Remote Control is out of range of the iH8
remote sensor
Move within 30 feet of the unit.
iH8/iPod performance is
erratic
The iH8 is reacting to external interference Move unit away from potential sources of external interference such as
computers, modems, wireless devices (routers) or fluorescent light.
No sound from iH8 Volume is set too low on iH8 Make sure volume is turned up
iPod didn’t charge up iPod is not installed properly Remove your iPod from the dock and check for obstruction on the
connectors in the dock and on your iPod. Then reseat it in the dock.
iPod is locked up/ frozen Please make sure your iPod is working properly before docking into the
unit. Please refer to your iPod manual for details.
iPod battery has problem
No AM band radio
sound but others OK
AM loop antenna is not connected to the unit Plug the AM loop antenna connector to the jack on the back of the unit
AM band radio is very
noisy
AM loop antenna isn’t located properly Move the AM loop antenna away from the main unit/iPod and rotate it
for best reception
7

Troubleshooting
Symptom Possible Problem
Solution
Sound is distorted
Volume level is set too high Decrease the volume
Sound source is distorted If the iPod original sound source (MP3) is old or of poor quality, distortion
and noise are easily noticed with high-power speakers. Try a different
audio source such as a music CD.
If you are using an external sound source like older generation of iPod
or iPod Shuffle, try reducing the output volume on the device itself. Also
try turning bass boost OFF.
Unit/adaptor gets warm
after extended play at
high volume
This is normal
Turn unit off for awhile or lower volume
Can't hear
headphones/speakers
attached to line out jack
Line out jack is not meant for headphones.
Speakers need a power source
The signal from the line out jack needs amplification. Use powered
speakers/monitors or other amplified audio device.
8

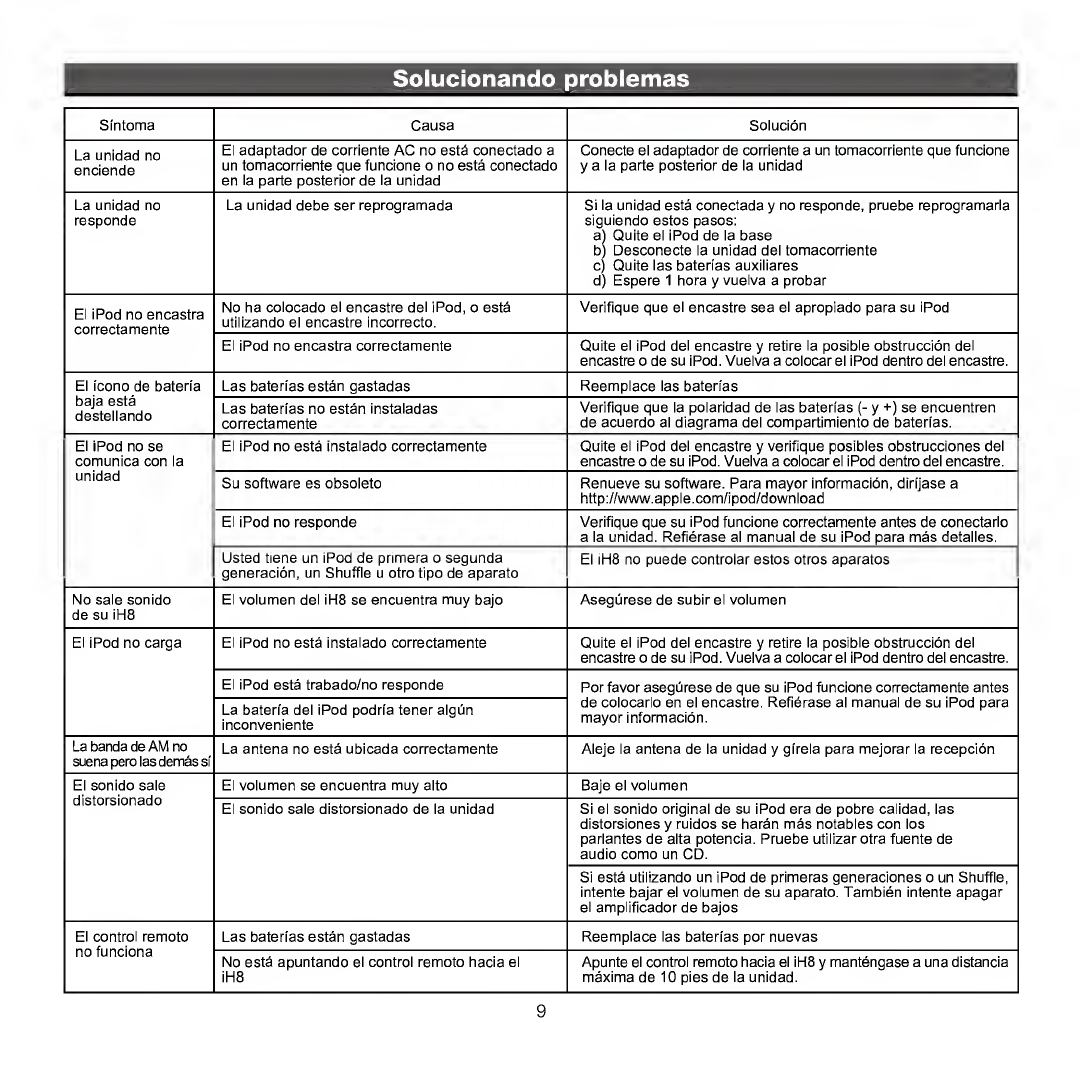

Solucionando problemas
Sinloma Causa Solucion
La unidad no
enciende
El adaptador de corriente AC no esta conectado a
un tomacorriente que funcione o no esta conectado
en la parte posterior de la unidad
Conecte el adaptador de corriente a un tomacorriente que funcione
y a la parte posterior de la unidad
La unidad no
responde
La unidad debe ser reprogramada Si la unidad esta conectada y no responde, pruebe reprogramarla
siguiendo estos pasos:
a) Quite el iPod de la base
b) Desconecte la unidad del tomacorriente
c) Quite las baterias auxiliares
d) Espere 1 hora y vuelva a probar
El iPod no encastra
correctamente
No ha colocado el encastre del iPod, o esta
utilizando el encastre incorrecto.
Verifique que el encastre sea el apropiado para su iPod
El iPod no encastra correctamente Quite el iPod del encastre y retire la posible obstruccion del
encastre o de su iPod. Vuelva a colocar el iPod dentro del encastre.
El icono de bateria
baja esta
destellando
Las baterlas estan gastadas Reemplace las baterias
Las baterlas no estan instaladas
correctamente
Verifique que la polaridad de las baterias (- y +) se encuentren
de acuerdo al diagrama del compartimiento de baterias.
El iPod no se
comunica con la
unidad
El iPod no esta instalado correctamente Quite el iPod del encastre y verifique posibles obstrucciones del
encastre o de su iPod. Vuelva a colocar el iPod dentro del encastre.
Su software es obsoleto Renueve su software. Para mayor informacion, dirijase a
http://www.apple.com/ipod/download
El iPod no responde Verifique que su iPod funcione correctamente antes de conectarlo
a la unidad. Refierase al manual de su iPod para mas detalles.
Listed tiene un iPod de primera o segunda
generacion, un Shuffle u otro tipo de aparato
El iH8 no puede controlar estos otros aparatos
No sale sonido
de su iH8
El volumen del iH8 se encuentra muy bajo Asegurese de subir el volumen
El iPod no carga El iPod no esta instalado correctamente Quite el iPod del encastre y retire la posible obstruccion del
encastre o de su iPod. Vuelva a colocar el iPod dentro del encastre.
El iPod esta trabado/no responde
Por favor asegurese de que su iPod funcione correctamente antes
de colocarlo en el encastre. Refierase al manual de su iPod para
mayor informacion.
La bateria del iPod podria tener algun
inconveniente
La banda de AM no
suena pero las demas si
La antena no esta ubicada correctamente Aleje la antena de la unidad y girela para mejorar la recepcion
El sonido sale
distorsionado
El volumen se encuentra muy alto Baje el volumen
El sonido sale distorsionado de la unidad Si el sonido original de su iPod era de pobre calidad, las
distorsiones y ruidos se haran mas notables con los
parlantes de alta potencia. Pruebe utilizar otra fuente de
audio como un CD.
Si esta utilizando un iPod de primeras generaciones o un Shuffle,
intente bajar el volumen de su aparato. Tambien intente apagar
el amplificador de bajos
El control remoto
no funciona
Las baterias estan gastadas
Reemplace las baterlas por nuevas
No esta apuntando el control remoto hacia el
iH8
Apunte el control remoto hacia el iH8 y mantengase a una distancia
maxima de 10 pies de la unidad.
9

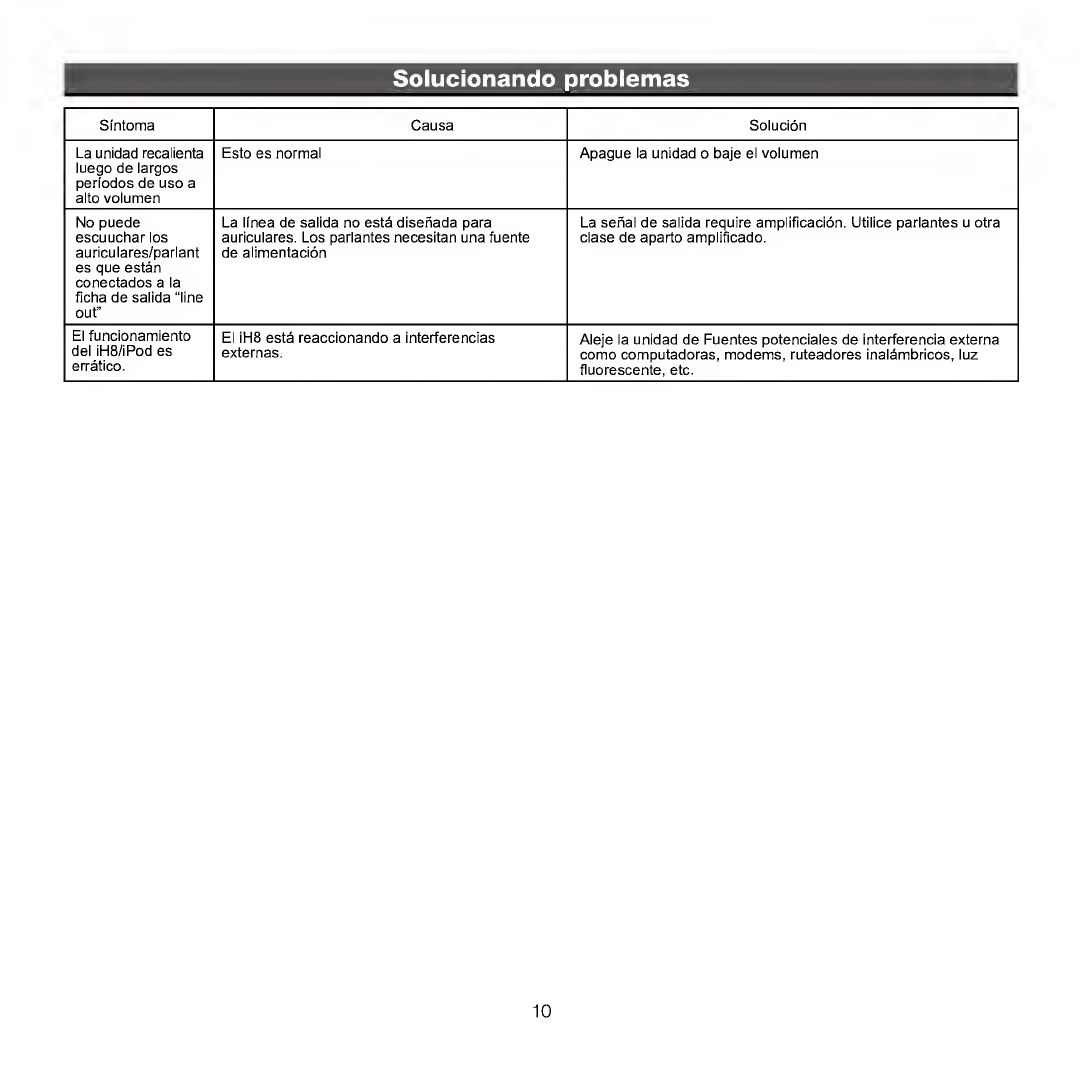

Solucionando problemas
Sintoma Causa Solucion
La unidad recalienta
luego de largos
periodos de uso a
alto volumen
Esto es normal Apague la unidad o baje el volumen
No puede
escuuchar los
auriculares/parlant
es que estan
conectados a la
ficha de salida “line
out”
La h'nea de salida no esta disenada para
auriculares. Los parlantes necesitan una fuente
de alimentacion
La serial de salida require amplificacion. Utilice parlantes u otra
clase de aparto amplificado.
El funcionamiento
del iH8/iPod es
erratico.
El iH8 esta reaccionando a interferencias
externas.
Aleje la unidad de Fuentes potenciales de interferencia externa
como computadoras, modems, ruteadores inalambricos, luz
fluorescente, etc.
10

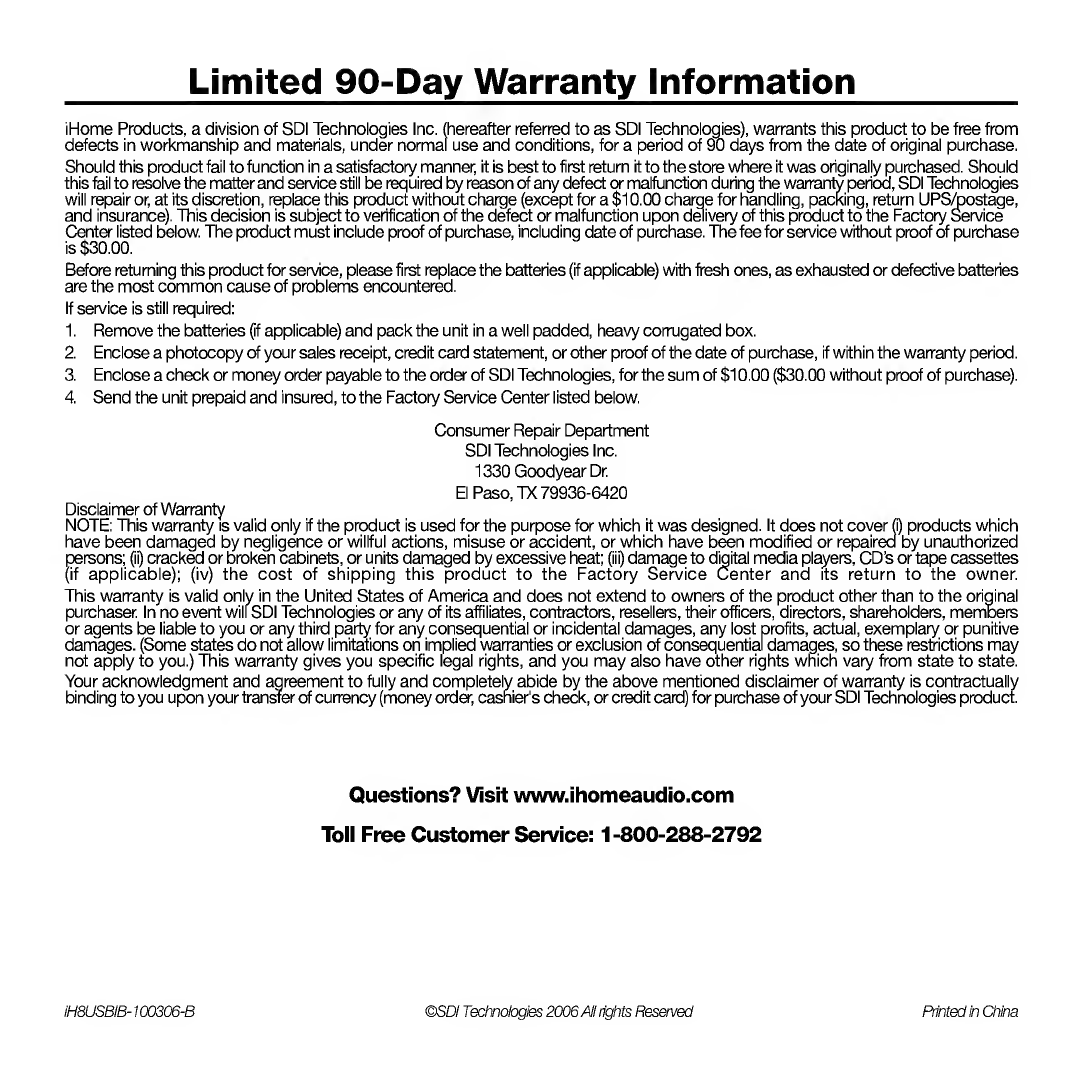

Limited 90-Day Warranty Information
iHome Products, a division of SDI Technologies Inc. (hereafter referred to as SDI Technologies), warrants this product to be free from
defects in workmanship and materials, under normal use and conditions, for a period of 90 days from the date of original purchase.
Should this product fail to function in a satisfactory manner, it is best to first return it to the store where it was originally purchased. Should
this fail to resolve the matter and service still be required by reason of any defect or malfunction during the warranty period, SDI Technologies
will repair or, at its discretion, replace this product without charge (except for a $10.00 charge for handling, packing, return UPS/postage,
and insurance). This decision is subject to verification of the defect or malfunction upon delivery of this product to the Factory Service
Center listed below. The product must include proof of purchase, including date of purchase. The fee for service without proof of purchase
is $30.00.
Before returning this product for service, please first replace the batteries (if applicable) with fresh ones, as exhausted or defective batteries
are the most common cause of problems encountered.
If service is still required:
1. Remove the batteries (if applicable) and pack the unit in a well padded, heavy corrugated box.
2. Enclose a photocopy of your sales receipt, credit card statement, or other proof of the date of purchase, if within the warranty period.
3. Enclose a check or money order payable to the order of SDI Technologies, for the sum of $10.00 ($30.00 without proof of purchase).
4. Send the unit prepaid and insured, to the Factory Service Center listed below.
Consumer Repair Department
SDI Technologies Inc.
1330 Goodyear Dr.
El Paso, TX 79936-6420
Disclaimer of Warranty
NOTE: This warranty is valid only if the product is used for the purpose for which it was designed. It does not cover (i) products which
have been damaged by negligence or willful actions, misuse or accident, or which have been modified or repaired by unauthorized
persons; (ii) cracked or broken cabinets, or units damaged by excessive heat; (iii) damage to digital media players, CD’s or tape cassettes
(if applicable); (iv) the cost of shipping this product to the Factory Service Center and its return to the owner.
This warranty is valid only in the United States of America and does not extend to owners of the product other than to the original
purchaser. In no event will SDI Technologies or any of its affiliates, contractors, resellers, their officers, directors, shareholders, members
or agents be liable to you or any third party for any consequential or incidental damages, any lost profits, actual, exemplary or punitive
damages. (Some states do not allow limitations on implied warranties or exclusion of consequential damages, so these restrictions may
not apply to you.) This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Your acknowledgment and agreement to fully and completely abide by the above mentioned disclaimer of warranty is contractually
binding to you upon your transfer of currency (money order, cashier's check, or credit card) for purchase of your SDI Technologies product.
Questions? Visit www.ihomeaudio.com
Toll Free Customer Service: 1-800-288-2792
iH8USBIB-100306-B ©SDI Technologies 2006All rights Reserved Printed in China
