Ihse KVM-TEC MAXflex KT-6014L Operator's manual

Misprints, errors and technical changes reserved
kvm-tec

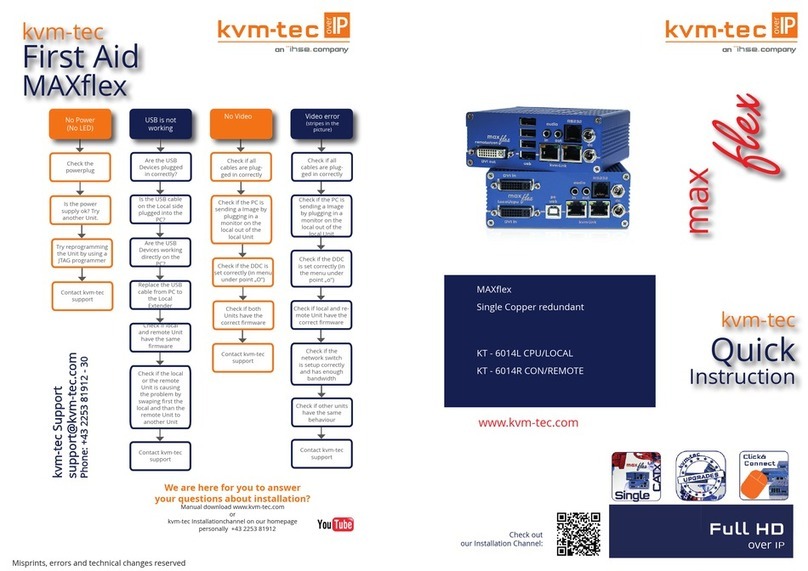

First Aid
M A X  e x
Video error
(stripes in the
picture)
USB is not
working
No Power
(No LED)
Check the
powerplug
Is the power
supply ok? Try
another Unit.
Contact kvm-tec
support
Are the USB
Devices plugged
in correctly?
Is the USB cable
on the Local side
plugged into the
PC?
Are the USB
Devices working
directly on the
PC?
Check if local
and remote Unit
have the same
 r m w a r e
Replace the USB
cable from PC to
the Local
Extender
Check if the local
or the remote
Unit is causing
the problem by
swaping rst the
local and than the
remote Unit to
another Unit
Contact kvm-tec
support
Check if all
cables are plug-
ged in correctly
Check if the PC is
sending a Image by
plugging in a
monitor on the
local out of the
local Unit
Check if the DDC is
set correctly (in menu
under point„O“)
Check if both
Units have the
correct rmware
No Video
Contact kvm-tec
support
Check if all
cables are plug-
ged in correctly
Check if the PC is
sending a Image
by plugging in a
monitor on the
local out of the
local Unit
Check if local and re-
mote Unit have the
correct rmware
Check if the DDC
is set correctly (in
the menu under
point„o“)
Check if the
network switch
is setup correctly
and has enough
bandwidth
Contact kvm-tec
support
Check if other units
have the same
behaviour
We are here for you to answer
your questions about installation?
Manual download www.kvm-tec.com
or
kvm-tec Installationchannel on our homepage
personally [phone]
kvm-tec Support
kvm-tec Support
suppor[email protected]
suppor[email protected]
Phone: [phone] - 30
Phone: [phone] - 30
Check out
our Installation Channel:
www.kvm-tec.com
flex
max
kvm-tec
Quick
Instruction
MAXex
Single Copper redundant
KT - 6014L CPU/LOCAL
KT - 6014R CON/REMOTE

Misprints, errors and technical changes reserved
Misprints, errors and technical changes reserved
Power plug 12V 1A
Power plug
12V 1A
USB to PC
DVI in from PC
DVI to Monitor
USB from Keyboard and mouse
Network cable CAT5e/6/7/ up to 150m/492ft (redundant)
DVI out to Monitor
Network cable CAT5e6/7/ up to 150m/492ft - main link
Audio from PC
Audio to PC
Audio to speaker
Audio from microphone
RS232 plug
RS232 plug
Power plug 12V 1A (redundant)
Power plug
12V 1A (redundant)
Delivery Content
Delivery Content
LOCAL/CPU Unit
LOCAL/CPU Unit
1 x MA local (CPU)
1 x MA local (CPU)
1 x wall power supplyl 12V 1A (INT or EU-plug)
1 x wall power supplyl 12V 1A (INT or EU-plug)
1 x DVI - DVI cable 1,8m/5.9ft
1 x DVI - DVI cable 1,8m/5.9ft
1 x USB cable 1,8m/5.9ft
1 x USB cable 1,8m/5.9ft
4 x rubber feet
4 x rubber feet
REMOTE/CON Unit
REMOTE/CON Unit
1 x MA remote (CON)
1 x MA remote (CON)
1 x wall power supplyl 12V 1A (INT orEU-plug)
1 x wall power supplyl 12V 1A (INT orEU-plug)
4 x rubber feet
4 x rubber feet

Misprints, errors and technical changes reserved
Quick Installation Maxex Single local / CPU – remote / CON
1. Connect the CON / Remote and the CPU / Local Unit to the included 12V 2A power supply.
2. Now connect the USB cable to a USB port on your PC and connect the other end of the USB cable to the CPU / Local Unit.
Connect keyboard and mouse to the CON / Remote Unit.
3. Connect the CPU / Local and the CON / Remote Unit with a network cable.
4. Now connect the DVI cable to the DVI socket of the PC and the other end to the DVI socket of the CPU / Local Unit (PC-in).
5. Almost done! Connect the audio cable local audio/out to the PC audio/in and remote audio/out with audio cable to the
microphone
6. Using a switch: Connect all endpoints to the switch. Ensure that all connections have a bandwith of 1Gbit/sec. For video
sharing the network has to support IGMP snooping.
HAVE FUN - your kvm-tec Extender is now in use for many years (MTBF approx 10 years)
Open OSD menuOpen OSD menu
The OSD main menu is opened with the standard shortcut: 5 xThe OSD main menu is opened with the standard shortcut: 5 x
ALT GrALT Gr
(Attention: the rst 20 seconds 5 x Scroll always works, in case(Attention: the rst 20 seconds 5 x Scroll always works, in case
the shortcut was forgotten.)the shortcut was forgotten.)
Switching listSwitching list : CTRL+ALT+PRINT: CTRL+ALT+PRINT
Changing the shortcutsChanging the shortcuts in the OSD menuin the OSD menu
Go to the Remote Settings and then navigate to Keyboard Short-Go to the Remote Settings and then navigate to Keyboard Short-
cut.cut.

Misprints, errors and technical changes reserved Misprints, errors and technical changes reserved
USING THE ON SCREEN MENU
Use the monitor and keyboard to use the main menu.
To access the main menu:
1. Make sure the extenders, the monitors and the computer are switched on.
2. Press the ALT+GR key on your keyboard quickly ve times.
The main menu appears with an overview of the sub-menus.
3 To open a sub-menu press the applicable key.
Main Menu
Main meu Short Cuts :
S Status Overview Menu Status /current status
U Update Flash FW Firmware Updates
F Features Overview Settings Features
D DDC Option DDC Option Fix settings 1020 x 1080
L Local Settings Settings Local
R Remote Settings Settings Remote
A About Overview Overview Upgrades Upgrades
Q Exit Exit
SYSTEM STATUS
Single
Dual
In the status overview menu the current status of the extender connection is displayed. It
provides information on the connection itself as well as resolution of the video channel, and USB-
status.
The enabled options and the current rmware-version is displayed in the left top corner.
Link status shows whether there is a physical connection available. Connected indicates if kvm
data is currently able to be transmitted.
Video and USB show if data is currently being transmitted.

Misprints, errors and technical changes reserved
VIEWING THE FIRMWARE VERSION
Under„A“ - About the currently installed rmware version of the remote (CON) and local
(CPU) Extender is displayed (e.g.‚4267‘)
FEATURES MENÜ
Features Menu
P Point to Point Mode Enabled/Disabled
(Point to Point Point to Point excludes itself
with Matrix mode
M Matrix Switching Mode Disabled/Enabled
D Freeze last Image (Disabled)Disabled/Enabled
E USB Emulation Mode (Disabled ) Disabled/Enabled
S USB Save Feature (mass storage usable) Disabled/Enabled
O Power Redundance Alert Alert System
C Diagnosis Diagnosis menu
U Unlock Features Unlock Features
L Link redundancy redundant Link for local Units
I IP Management IP Management
POINT TO POINT
You can switch the Point to Point mode on and off by pressing the„P“ key
ATTENTION - if the point to point mode is activated, the switching mode cannot be activated
MATRIX SWITCHING MODE
By pressing the„M“ button you can switch the Matrix Switching Mode off and on
