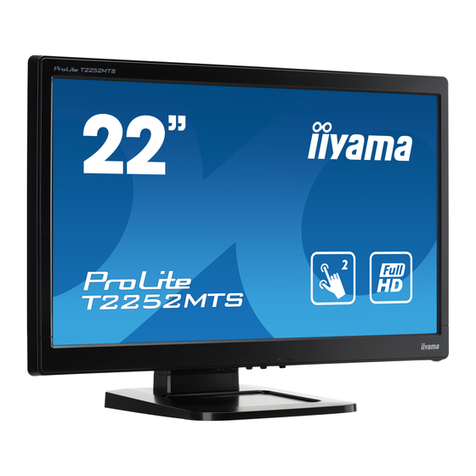

ProLite T2252MTS
The ProLite T2252MTS is a 22" two-point multi-touch monitor based
on the latest Optical Touch Screen Technology with a 1920 x 1080
High Definition LCD Screen.
It has outstanding features i.e. 1000:1 contrast ratio, 260 cd/m2 brightness
and 2 msec response time. Moreover, the T2252MTS is Windows® 7
Compatible and ready for the emerging business and consumer software
packages. The multi touch function is supported only under Windows® 7.
The monitor lets you browse the web, email and draw while working on
multiple screens, docking or typing on the on-screen keyboard. You can
scroll and rotate pictures, draw, zoom in and out using certain tap, flick,
grab and pincer gestures. The multi-touch is not only fast but also fun to
work with. HDMI, DVI and Analogue inputs are available for flexible
connectivity, along with USB for the Touch Interface. And last but not
least, the glossy design with a foldable stand creates an eye-catching
finish.
DISPLAY CHARACTERISTICS
 Diagonal  21.5"
 Touchtechnology  optical, multitouch (2 compatible touch points
- HID, supported only under Windows® 7),
activated by finger or stylus
 Panel  TN LED-backlit
 Glass hardness  7H minimum
 Display area h x w  268.11 x 476.64 mm; 10.6" x 18.8"
 Response time  2 ms
 Contrast  1000 : 1 typical
 Contrast  5 000 000 : 1 ACR
 Brightness  220 cd/m² typical
 Viewing zone  horizontal/vertical: 170°/ 160°; right/left:
85°/ 85°; up/down: 80°/ 80°
 Display colour  16.7 million
 Pixel pitch h x v  0.248 x 0.248 mm
 Native resolution  Full HD 1080p, 1920 x 1080 ( 2.1 megapixel)
 Horizontal sync  24 - 80 KHz
 Vertical sync  55 - 75 Hz
 Synchronization  Separate Sync
 Aspect ratio  16 : 9
 Light transmittance  88%
POWER MANAGEMENT
 Power supply  AC 100 - 240 V, 50 / 60 Hz
 Power Supply Unit  internal
 Power usage  20 W typical; max. 0.5 W in Power
management mode
 Power management  VESA DPMS, ENERGY STAR®
DIMENSIONS & WEIGHT 
 Dimensions w x h x d  516.5 x 382 x 130.5 mm
 Weight  4.5 kg
INTERFACES CONNECTORS
 Analog input connector  VGA (D-Sub)
 Digital input connector  DVI-D, HDMI
 HDCP  yes
 Headphone connector  Yes
 Output connector  headphone connector
 Inputs  USB (for touch connectivity)
  D-Sub, DVI-D, HDMI
SPECIAL FEATURES
 Plug & Play  VESA DDC2B™
 Controls  On-Screen-Display in 8 languages (EN, FR,
DE, NL, PL, RU, JP, Chinese) and 5 front
controls (Power, Select/ Input Select, Scroll
up/ Audio, Scroll down/ i-Style Colour, Menu)
 User controls  auto adjust, picture adjust (contrast,
brightness, ACR, ECO, OD), input select,
audio adjust (volume, mute, HDMI audio),
colour adjust, information, manual image
adjust (clock, H/V position, phase, sharpness,
video mode adjust), setup menu (language,
OSD position, OSD time out, OSD
background, opening logo, LED), memory
recall
 Speakers  2 x 1 W (Stereo)
 Anti-theft-device  Kensington-lock™ prepared
 Safety  CE, TÜV/Bauart, CU
 Tilt angle  37° up; 5° down
 VESA mounting  100 x 100 mm
 Colour  Black
ACCESSORIES
 Driver  single-touch: XP, Vista, multi-touch:
Windows®7 (HID)
 Included accessories  power cable, VGA (D-Sub) cable, DVI-D
cable, audio cable, USB cable, touch pen,
quick start guide, safety guide
