Iiyama ProLite T2454MSC-B1AG User manual

ENGLISH
Thank you very much for choosing the iiyama
LCD monitor.
We recommend that you take a few minutes
to read this comprehensive manual carefully
before installing and switching on the monitor.
Please keep this manual in a safe place for
your future reference.
USER MANUAL
Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per iiyama ProLite
T2454MSC-B1AG o cerca il tuo prodotto tra le migliori offerte di Monitor

ENGLISH

ENGLISH
 Wereservetherighttochangespecicationswithoutnotice.
All trademarks used in this user manual are the property of their respective owners.
We recommend recycling of used product. Please contact your dealer or iiyama
service center. Recycle information is obtained via the Internet, using the
address: http://www.iiyama.com
YoucanaccesstheWebpageofdi󰀨erentcountriesfromthere.
CE MARKING DECLARATION OF CONFORMITY
This LCD monitor complies with the requirements of the EC/EU Directive 2014/30/EU “EMC
Directive”, 2014/35/EU “Low Voltage Directive”, 2009/125/EC “ErP Directive” and 2011/65/EU
“RoHS Directive”.
The electro-magnetic susceptibility has been chosen at a level that gives correct operation in
residential areas, business and light industrial premises and small-scale enterprises, inside as
well as outside of the buildings. All places of operation are characterised by their connection to
the public low voltage power supply system.
IIYAMA CORPORATION: Wijkermeerstraat 8, 2131 HA Hoofddorp, The Netherlands
Model No. : PLT2454M

ENGLISH
TABLE OF CONTENTS
FOR YOUR SAFETY............................................................................1
SAFETY PRECAUTIONS................................................................1
SPECIAL NOTES ON LCD MONITORS.........................................3
CUSTOMER SERVICE ...................................................................3
CLEANING ......................................................................................3
BEFORE YOU OPERATE THE MONITOR ..........................................4
FEATURES......................................................................................4
CHECKING THE CONTENTS OF THE PACKAGE ........................4
WALL MOUNTING ..........................................................................5
CONTROLS AND CONNECTORS..................................................6
CONNECTING YOUR MONITOR...................................................7
COMPUTER SETTING ...................................................................8
ADJUSTING THE VIEWING ANGLE .............................................9
OPERATING THE MONITOR.............................................................10
ADJUSTMENT MENU CONTENTS.............................................. 11
SCREEN ADJUSTMENTS ............................................................17
POWER MANAGEMENT FEATURE.............................................20
TROUBLE SHOOTING ......................................................................21
RECYCLING INFORMATION.............................................................22
APPENDIX ........................................................................................23
SPECIFICATIONS.........................................................................23
DIMENSIONS................................................................................24
COMPLIANT TIMING....................................................................24

ENGLISH
FOR YOUR SAFETY 1
FOR YOUR SAFETY
WARNING
STOP OPERATING THE MONITOR WHEN YOU SENSE TROUBLE
If you notice any abnormal phenomena such as smoke, strange sounds or fumes, unplug the
monitor and contact your dealer or iiyama service center immediately. Further use may be
dangerousandcancausereorelectricshock.
NEVER REMOVE THE CABINET
High voltage circuits are inside the monitor. Removing the cabinet may expose you to the danger of
reorelectricshock.
DO NOT PUT ANY OBJECT INTO THE MONITOR
Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug
your monitor immediately and contact your dealer or iiyama service center. Using the monitor with
anyobjectinsidemaycausere,electricshockordamage.
INSTALL THE MONITOR ON A FLAT, STABLE SURFACE
The monitor may cause an injury if it falls or is dropped.
DO NOT USE THE MONITOR NEAR WATER
Donotusewherewatermaybesplashedorspiltontothemonitorasitmaycausereorelectric
shock.
OPERATE UNDER THE SPECIFIED POWER SUPPLY
Besuretooperatethemonitoronlywiththespeciedpowersupply.Useofanincorrectvoltagewill
causemalfunctionandmaycausereorelectricshock.
PROTECT THE CABLES
Do not pull or bend the power cable and signal cable. Do not place the monitor or any other heavy
objectsonthecables.Ifdamaged,thecablesmaycausereorelectricshock.
ADVERSE WEATHER CONDITIONS
It is advisable not to operate the monitor during a heavy thunder storm as the continual breaks in
power may cause malfunction. It is also advised not to touch the plug in these circumstances as it
may cause electric shock.
SAFETY PRECAUTIONS

ENGLISH
2 FOR YOUR SAFETY
CAUTION
INSTALLATION LOCATION
Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or
smokyareasasitmaycausere,electricshockordamage.Youshouldalsoavoidareaswherethe
sun shines directly on the monitor.
DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION
The monitor may topple and cause injury if not suitably located. Please also ensure that you do not
place any heavy objects on the monitor, and that all cables are routed such that children may not
pull the cables and possibly cause injury.
MAINTAIN GOOD VENTILATION
Ventilation slots are provided to keep the monitor from overheating. Covering the slots may cause
re.Toallowadequateaircirculation,placethemonitoratleast10cm(or4inches)fromanywalls.
Do not remove the tilt stand when operating the monitor. Ventilation slots on the back of the
cabinetwillbeblockedandthemonitormayoverheatifthestandisremoved.Thismaycausere
or damage. Operating the monitor on its back, side, upside down or on a carpet or any other soft
material may also cause damage.
DISCONNECT THE CABLES WHEN YOU MOVE THE MONITOR
Whenyoumovethe monitor,turno󰀨thepowerswitch, unplugthemonitor andbesurethesignal
cableisdisconnected.Ifyoudonotdisconnectthem,itmaycausereorelectricshock.
UNPLUG THE MONITOR
If the monitor is not in use for a long period of time it is recommended that it is left unplugged to
avoid accidents.
HOLD THE PLUG WHEN DISCONNECTING
To disconnect the power cable or signal cable, always pull it by the plug. Never pull on the cable
itselfasthismaycausereorelectricshock.
DO NOT TOUCH THE PLUG WITH WET HANDS
Pulling or inserting the plug with wet hands may cause electric shock.
WHEN YOU INSTALL THE MONITOR ON YOUR COMPUTER
Be sure the computer is strong enough to hold the weight of the monitor, otherwise, you may
damage your computer.
REMARK FOR 24/7 USAGE
Thisproductisnotspecicallydesignedfor24/7usageinallenvironments.
ERGONOMIC RECOMMENDATIONS
To eliminate eye fatigue, do not operate the monitor against a bright background or in a dark room.
Foroptimalviewingcomfort,themonitorshouldbejustbeloweyeleveland40-60cm(16-24inches)
away from your eyes. When using the monitor over a prolonged time, a ten minute break every hour
is recommended as looking at the screen continuously can cause eye strain.
OTHERS

ENGLISH
FOR YOUR SAFETY 3
The following symptoms are normal with LCD monitors and do not indicate a problem.
NOTE 
When you first turn on the LCD monitor, the picture may not fit in the display area
because of the type of computer that is used. In this case, adjust the picture position to
the correct position.

Youmayndslightlyunevenbrightnessonthescreendependingonthedesktoppattern
you use.

Due to the nature of the LCD screen, an afterimage of the previous screen may remain
after switching the image, when the same image is displayed for hours. In this case, the
screencanberecoveredslowlybychangingtheimageorturningo󰀨thePowerSwitch
for some hours.
SPECIAL NOTES ON LCD MONITORS

If you have to return your unit for service and the original packaging has been
discarded, please contact your dealer or iiyama service center for advice or replacement
packaging.
WARNING 
If you drop any materials or liquids such as water into the monitor when cleaning,
unplug the power cable immediately and contact your dealer or iiyama service center.
CAUTION 
For safety reasons, turn o󰀨 the power switch and unplug the monitor before you
clean it.

To protect the LCD panel, do not scratch or rub the screen with a hard object.

Never use any of the following strong solvents. These will damage the cabinet and
the LCD screen.

Touching the cabinet with any product made from rubber or plastic for a long time
may cause degeneration or loss of paint on the cabinet.
Thinner
Benzine
Abrasive cleaner
Spray-type cleaner
Wax
Acid or Alkaline solvent
CABINET Stains can be removed with a cloth lightly moistened with a mild detergent solvent.
Then wipe the cabinet with a soft dry cloth.
LCD
SCREEN
Periodic cleaning with a soft dry cloth is recommended.
Don't use tissue paper etc. because these will damage the LCD screen.
CUSTOMER SERVICE
CLEANING
NOTE
NOTE

ENGLISH
4 BEFORE YOU OPERATE THE MONITOR
The following accessories are included in your package. Check to see if they are enclosed with
the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional
iiyamao󰀩ce.
*The rating of the Power Cable enclosed in 120V area is 10A/125V. If you are using
a power supply higher than this rating, then a power cable with a rating of 10A/
250V must be used.However, all guarantees and warranties are void for any
problems or damage caused by a power cable not supplied by iiyama.
An approved power cord greater or equal to H05VVF, 3G, 0.75mm2must be
used.
Power Cable*1
HDMI Cable USB Cable
Safety Guide Quick Start Guide
BEFORE YOU OPERATE THE MONITOR
CHECKING THE CONTENTS OF THE PACKAGE
CAUTION
FEATURES
Supports Resolutions up to 1920 × 1080
High Contrast 1000:1 (Typical: with Touch panel) / Brightness 250cd/m2(Typical)
Digital Character Smoothing
Automatic Set-up
Stereo Speakers
2 × 2W Stereo Speakers

Plug & Play VESA DDC2B Compliant
Windows®7/8.1/10 Compliant
Power Management (VESA DPMS Compliant)
VESA Mounting Standard (100mm×100mm) Compliant
Keyhole for Security Lock
10point Touch

ENGLISH
BEFORE YOU OPERATE THE MONITOR 5

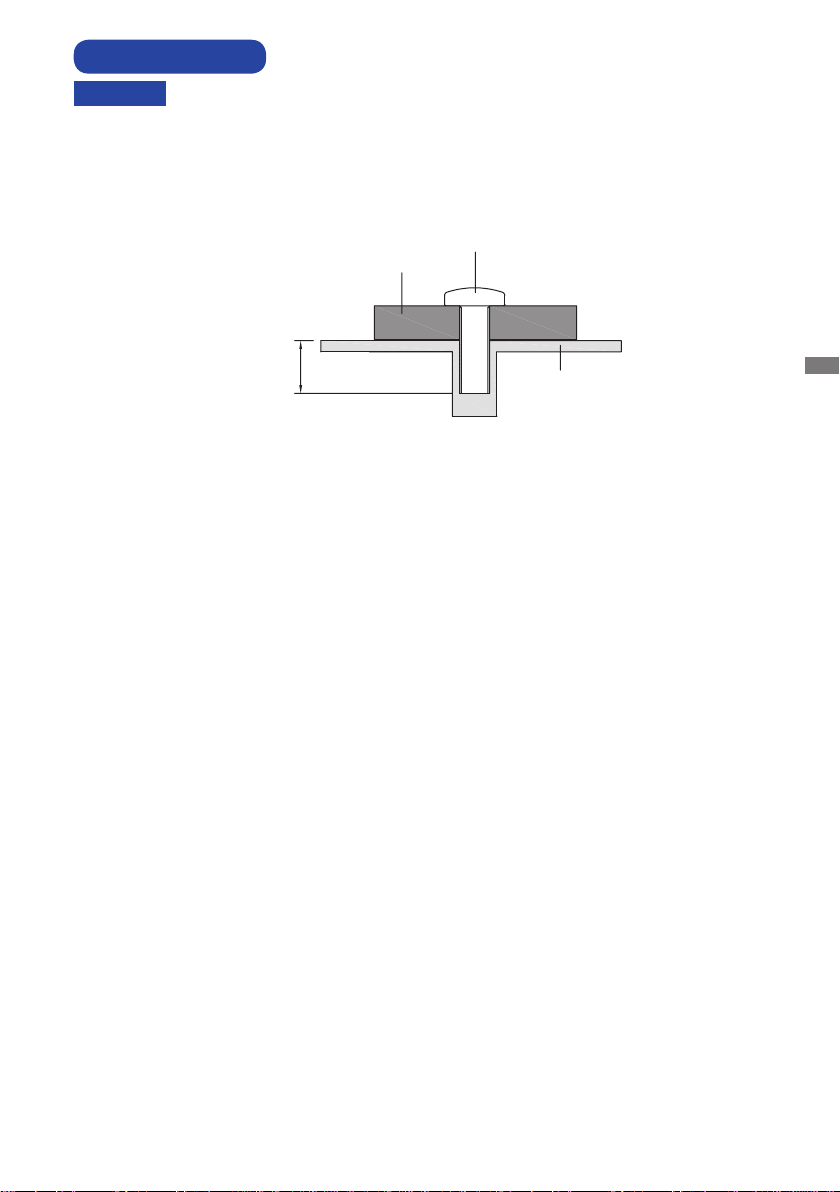

When you use with the wall mounting, in consideration of thickness of the mounting
stage, tighten the M4 Screw with washer which “L” length is 7mm to fasten the
monitor. Using the screw longer than this may cause electric shock or damage
because it may contact with the electrical parts inside the monitor.
WALL MOUNTING
WARNING
Screw
Chassis
Mounting Stage
L

ENGLISH
6 BEFORE YOU OPERATE THE MONITOR

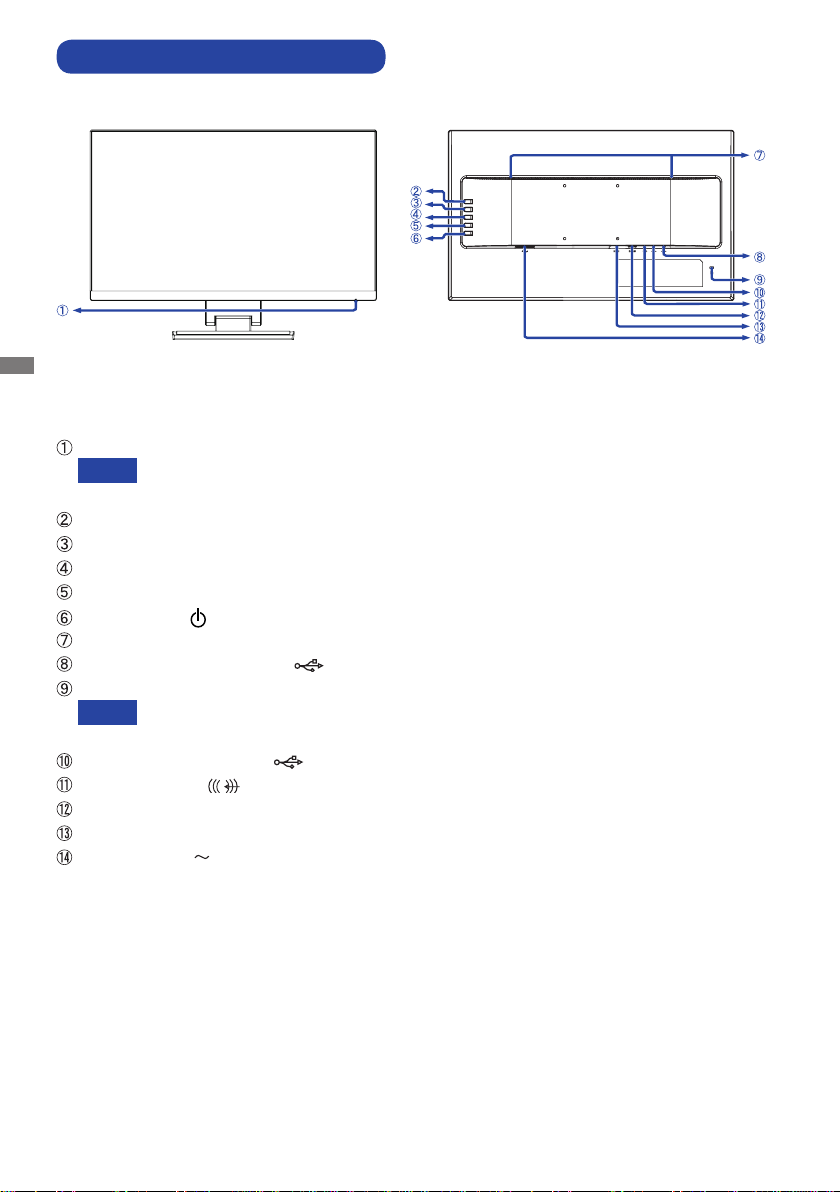

CONTROLS AND CONNECTORS
<Front> <Back>
Power Indicator
Blue: Normal operation
Orange: Power Management
AutoButton(AUTO)
+Button(+)
-Button(-)
MenuButton(MENU)
PowerSwitch( )
Speakers
USBDownstreamConnector( )
Keyhole for Security Lock
You can fasten a security lock and cable to prevent the monitor from being removed
without your permission.
USBUpstreamConnector( )
AudioConnector( )
VGAConnector(VGA)
HDMIConnector(HDMI)
ACConnectorr( :Alternatingcurrent)(ACPOWERIN)
NOTE
NOTE

ENGLISH
BEFORE YOU OPERATE THE MONITOR 7

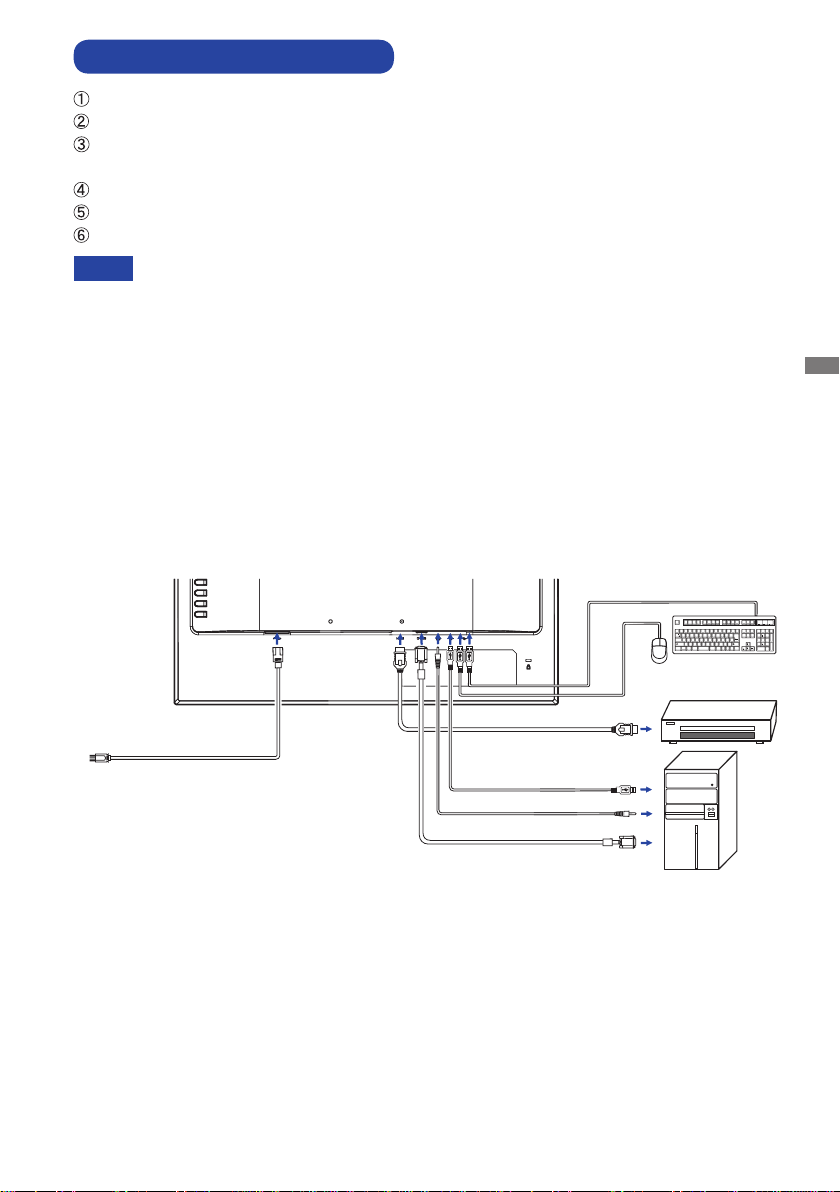

CONNECTING YOUR MONITOR
Ensurethatboththecomputerandthemonitorareswitchedo󰀨.
Connect the computer to the monitor with the signal cable.
Connect the monitor to the audio equipment with the Audio Cable for computer when using the
audio features.
Connect the computer to the monitor with the USB Cable.
ConnectthePowerCabletothemonitorrstandthentothepowersupply.
Turn on your monitor and computer.
The signal cables used for connecting the computer and monitor may vary with the
type of computer used. An incorrect connection may cause serious damage to both
the monitor and the computer. The cable supplied with the monitor is for a standard
connector. If a special cable is required please contact your local iiyama dealer or
regionaliiyamao󰀩ce.
For connection to Macintosh computers, contact your local iiyama dealer or regional
iiyamao󰀩ceforasuitableadaptor.
MakesureyoutightenthengerscrewsateachendoftheSignalCable.
The Class I pluggable equipment Type A must be connected to protective earth.
The socket-outlet shall be installed near the equipment and shall be easily accessible.
[Example of Connection]
<Back>
NOTE
Audio Cable (Not Included)
Computer
VGA Cable ( Not Included )*
HDMI Cable
(Accessory)
AV Equipment
USB Cable (Accessory)
Mouse Keyboard
Power Cable
(Accessory)
* VGA cable is not supplied with the monitor. If you use low quality VGA cable, it may cause a result
of electro-magnetic interference. Please contact the iiyama Support Centre in your country if you
wish to connect the monitor via the VGA input.

ENGLISH
8 BEFORE YOU OPERATE THE MONITOR
Signal Timing
Change to the desired signal timing listed on page 24: COMPLIANT TIMING.
COMPUTER SETTING

TOUCH support operation system
Mouse Digitizer Gestures*1
Windows8/8.1/10
Windows7
Windows Vista
Windows XP
Mac OS/OS X
Linux
Android
Functions
Click
Drag
Double-Click
Mouse function
Right-Click
Flick
Visual feedback
Mouse & Digitizer functions
Press & Tap, Rotate, Zoom-in/out
The other OS Versions not listed are not supported.
: Supported : Not supported
*1Gestures can be supported by application programs.

ENGLISH
BEFORE YOU OPERATE THE MONITOR 9
ADJUSTING THE VIEWING ANGLE
NOTE Do not touch the Touch screen when you change the angle. It may cause damage or
break the Touch screen and LCD screen.

Carefulattentionisrequirednottocatchyourngersorhandswhenyouchangetheangle.
For optimal viewing it is recommended to look at the full face of the monitor.

You are able to adjust the monitor's height up to 388mm - 128mm, angle up to 90 degrees upward
and 5 degrees downward.
Hold the stand so that the monitor does not topple when you change the monitor’s angle.
 Placethemonitoronaatsurface.
Hold the panel so the monitor does not topple.
We recommend that you adjust the stand to its lowest position when using the monitor in the
90 degree upward tilt position.
5°
90°
128mm
Upward

ENGLISH
10 OPERATING THE MONITOR
OPERATING THE MONITOR
To create the best picture, your iiyama LCD monitor has been preset at the factory with the
COMPLIANT TIMING shown on page 24. You are also able to adjust the picture by following
the button operation shown below. For more detailed adjustments, see page 17 for SCREEN
ADJUSTMENTS.
Press the MENU Button to start the On Screen Display feature. There are additional
Menu items which can be switched by using the + / - Buttons.
Select the Menu item which contains the adjustment icon relating to the adjustment
you want to make. Press the MENU Button. Then, use the + / - Buttons to highlight
the desired adjustment icon.
Press the MENU Button again. Use the + / - Buttons to make the appropriate
adjustment or setting.
Press the AUTO Button to leave the menu, and the settings you just made would be
automatically saved.

When button operations are aborted during adjustment, On-Screen Display disappears when the
time set for the Timeout has passed. Also, the AUTO button can be used to return previous menu
andturno󰀨theOn-ScreenDisplay.

Any changes are automatically saved in the memory when the On Screen Display
disappears.
Turningo󰀨thepowershouldbeavoidedwhileusingtheMenu.

Adjustments for Horizontal / Vertical Position, Pixel Clock and Phase are saved for each signal
timing. Except for these adjustments, all other adjustments have only one setting which applies to
all signal timings.
NOTE
For example, to correct for vertical position, select Menu item of Geometry and then press the
MENU Button. Then, select Vertical Position by using the + / - Buttons.
An adjustment page appears after you press the MENU Button. Then, use the + / - Buttons
to change the vertical position settings. The vertical position of the overall display should be
changing accordingly while you are doing this.
Press the AUTO Button lastly, it ends, all changes are saved in the memory.
PICTURE ADJUST
GEOMETRY
COLOR SETTINGS
OSD
EXTRA
ProLite T2454MSC
GEOMETRY
PIXEL CLOCK
PHASE
HORIZONTAL POSITION
VERTICAL POSITION
ASPECT FULL

ENGLISH
OPERATING THE MONITOR 11

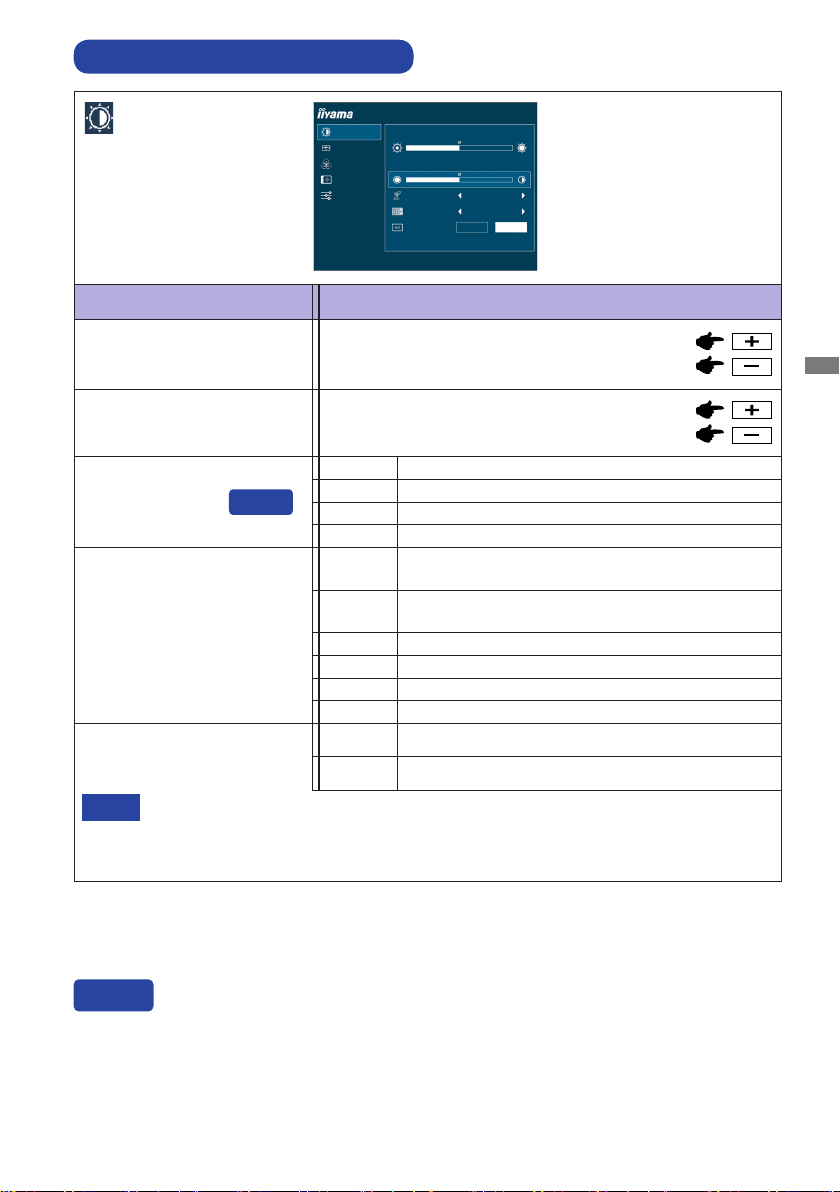

ADJUSTMENT MENU CONTENTS
Adjustment Item Problem / Option Button to Press
Picture Adjust
Too dark
Too bright
Brightness *1
Contrast Too dull
Too intense
Mode1 Brightness of back-light is reduced.
Mode2 Brightness of back-light is reduced more than Mode1.
O󰀨 Normal
Eco
Mode3 Brightness of back-light is reduced more than Mode2.
i-Style Color *2
Standard For general windows environment and monitor
default setting.
Text For text editing and viewing in a word processing
environment.
Internet For internet environment.
Game For PC game environment.
Movie For movie and video environment.
Sport For sport environment.
Adv. Contrast Increased Contrast Ratio
On
O󰀨 Typical Contrast Ratio
Adv. Contrast adjusts brightness according to the image, and improve the contrast ratio
during move playing.
Contrast, Brightness, Color Settings, Eco and i-Style Color cannot be adjusted and
selected while Adv. Contrast is active.
NOTE
Direct
*1 Adjust the Brightness when you are using the monitor in a dark room and feel the screen is too
bright.
*2i-Style Color is disabled when Blue Light Reducer is activated.
You can skip the Menu items and display an adjustment scale directly by using the following button
operations.

Eco: Press the - Button when the Menu is not displayed.
Direct
PICTURE ADJUST
GEOMETRY
COLOR SETTINGS
OSD
EXTRA
CONTRAST
BRIGHTNESS
I-STYLE COLOR
MODE1
ON OFF
STANDARD
ADV. CONTRAST
ECO
ProLite T2454MSC

ENGLISH
12 OPERATING THE MONITOR

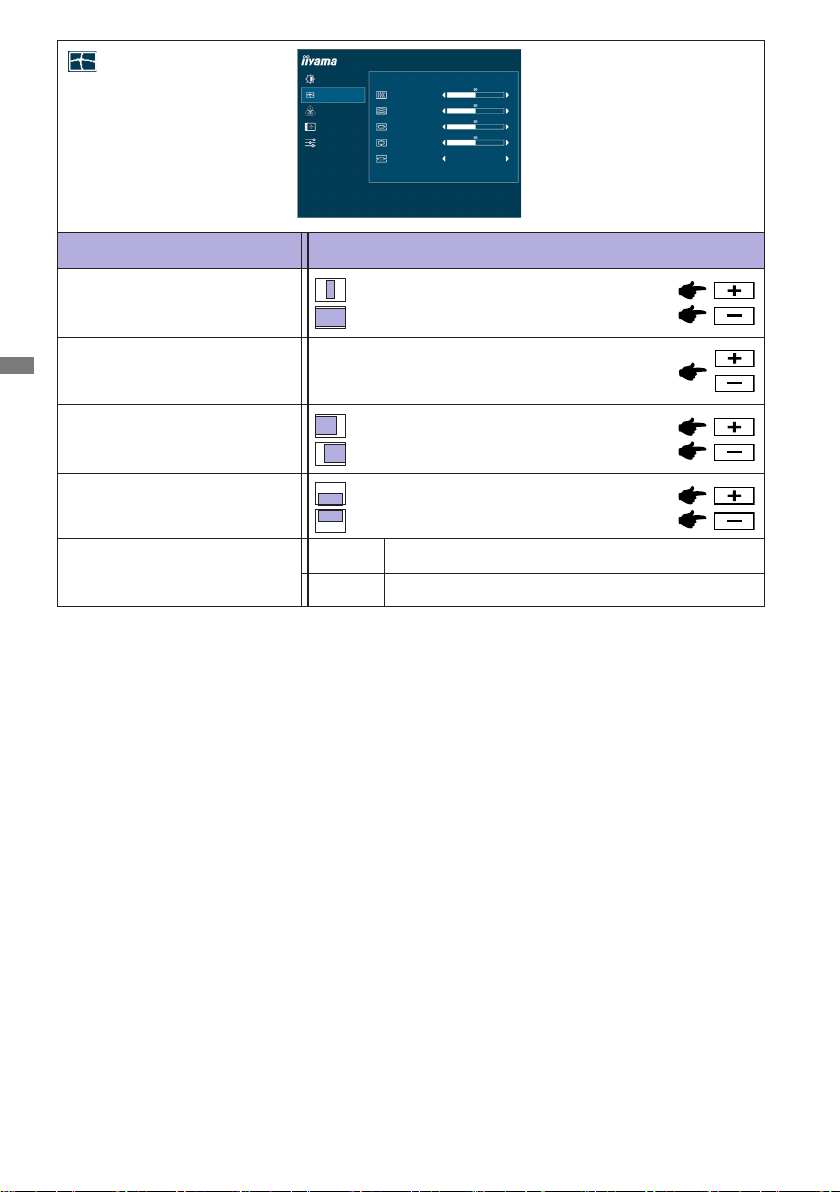

Adjustment Item Problem / Option Button to Press
Geometry
Phase*1,2
Pixel Clock*1,2
Too left
Too right
Too low
Too high
Horizontal Position*2
Vertical Position*2
Too narrow
Too wide
Tocorrectickeringtextorlines
*1See page 17 for SCREEN ADJUSTMENTS.
*2Only Analog Input.
Expansion displayFull
Aspect Expansion display of Aspect
Aspect
PICTURE ADJUST
GEOMETRY
COLOR SETTINGS
OSD
EXTRA
ProLite T2454MSC
GEOMETRY
PIXEL CLOCK
PHASE
HORIZONTAL POSITION
VERTICAL POSITION
ASPECT FULL

ENGLISH
OPERATING THE MONITOR 13

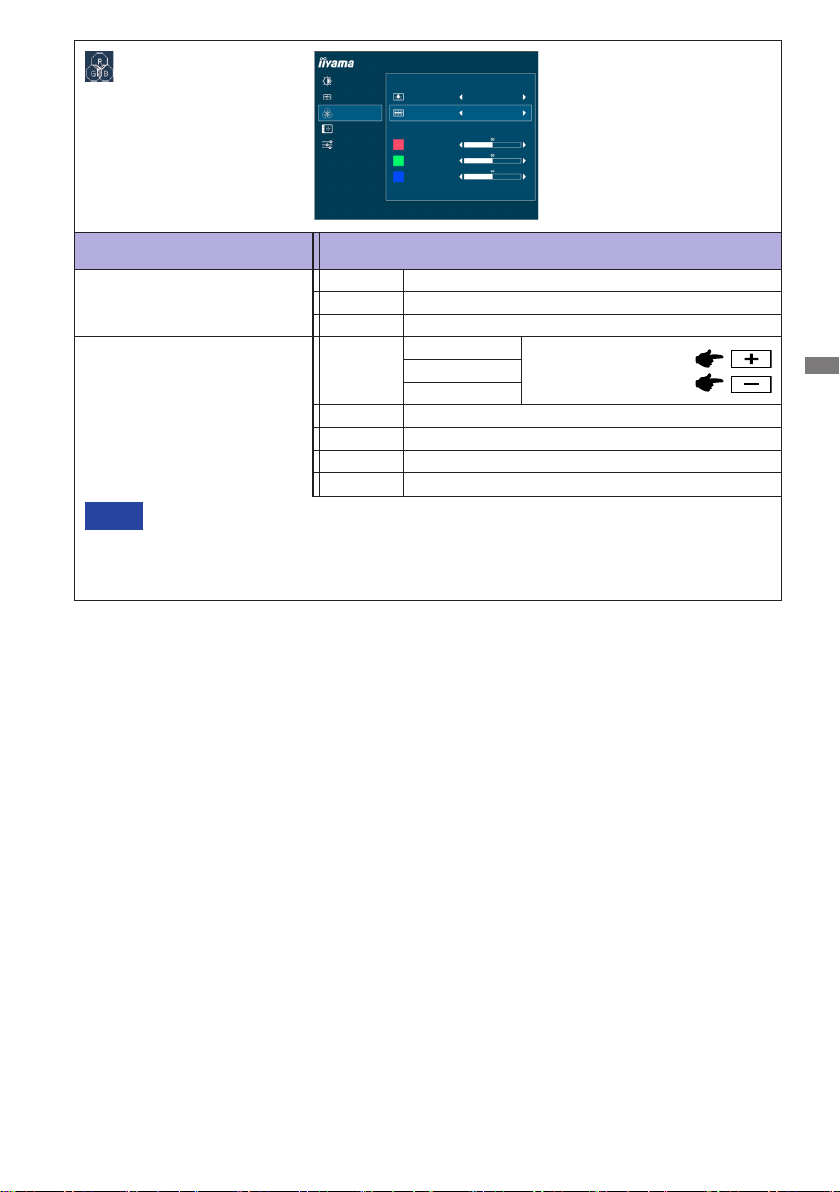

Adjustment Item Problem / Option Button to Press
Color Settings*
Yellowish white
Bluish white
Green
Red
Blue
Too weak
Too strong
User
Greenish white
NormalMode1
Mode2
Dark
High contrast
Mode3
Gamma
Color Temp
Normal
Warm
Cool
sRGB
sRGB
NOTE 
sRGB is an international standard which denes and unies the di󰀨erence of color
appearance between equipment.
You can not adjust the Brightness, Contrast, Gamma and Eco during sRGB mode
because those settings are locked.
*Color Settings adjustments is disabled when Blue Light Reducer is activated.
PICTURE ADJUST
GEOMETRY
COLOR SETTINGS
OSD
EXTRA
ProLite T2454MSC
COLOR SETTINGS
USER PRESET
GAMMA
COLOR TEMP
MODE1
USER
RED
GREEN
BLUE

ENGLISH
14 OPERATING THE MONITOR
Language
English
Deutsch
English
German
Français French
Japanese
Portuguese
Italiano Italian Russian
Español Spanish
Portuguese
OSD Time
OSD Horizontal Position OSD is too left
OSD is too right
OSD is too low
OSD is too high
You can set the OSD display duration time
between 5 and 60 seconds.
Adjustment Item Problem / Option Button to Press
OSD
OSD Vertical Position
PICTURE ADJUST
GEOMETRY
COLOR SETTINGS
OSD
EXTRA
ProLite T2454MSC
ON SCREEN DISPLAY SETTINGS
OSD HORIZONTAL POSITION
OSD VERTICAL POSITION
OSD TIME
LANGUAGE ENGLISH
Auto Power Off Off
Touch Wake Up Off
Themonitorwillturno󰀨automaticallyafter3
hours without any key operation.
On
O󰀨 AutoPowerO󰀨isturnedo󰀨.
Touch and USB hub still functional during the
display stand by.
On
O󰀨 Touch Wake Up isturnedo󰀨.
AutoPowerO󰀨
Touch Wake Up
Polski Polish
Nederlands Dutch

ENGLISH
OPERATING THE MONITOR 15
See your graphic card user guide for more information
about changing the resolution and refresh.
NOTE
Displays information regarding the current input signal coming
from the graphic card in your computer.
Information
Adjustment Item Problem / Option Button to Press
Extra
Reset Factory-preset data is restored.
No Return to Menu.
Yes
Signal Select
At selected the AUTO, it will automatically be selected when just one source is available.
If there are more input sources available and you select one of them, the AUTO option is
not available.
If multiple inputs are connected, the monitor may not recover the last one used after
turningito󰀨andonagain.
Itisonlypossiblewhenyousetaspecicsource.
NOTE
Select the Analog input.
VGA
Auto Select the signal input automatically.
You can skip the Menu items and display an adjustment scale directly by using the following button
operations.
Signal Select: Press the AUTO button when the Menu is not displayed, it shows following Menu.
Signal select is switched by pressing the AUTO button successively.
Direct
Direct
SelecttheDigital(HDMI)input.HDMI
Select the HDMI input.
LINE IN Select the LINE IN input.
HDMI
Audio Input*1
*1Suitable for HDMI input only.
*2When Overdrive is activated, some level of image retention will be caused.
Overdrive*2
O󰀨/-2/-1/0/+1/+2
It will improve the gray level response time of the
LCD panel.
A higher level results in a faster response time.
PICTURE ADJUST
GEOMETRY
COLOR SETTINGS
OSD
EXTRA
ProLite T2454MSC
EXTRA
RESET
SIGNAL SELECT
OVERDRIVE
AUDIO INPUT
INFORMATION
YES NO
HDMI
HDMI
ON
OFF
OFF
OFF
OPENING LOGO
LED
SELECT INPUT SOURCE
AUTO VGA HDMI
iiyama Logo displayed when the monitor is turned on.
On
O󰀨 iiyama Logo does not display when the monitor is
turned on.
Opening Logo
LED The Power Indicator is turned On.
O󰀨 ThePowerIndicatoristurnedO󰀨.
On
TurnO󰀨thePower Indicator when you are bothered by the light.
NOTE

ENGLISH
16 OPERATING THE MONITOR
Adjustment Item Problem / Option Button to Press
Volume Too soft
Too loud
Adjustment Item Problem / Option Button to Press
Auto Adjust *
You can skip the Menu items and display an adjustment scale directly by using the following button
operations.
Direct
Adjust Horizontal / Vertical Position, Pixel Clock and Phase
automatically.
* For best results, use the Auto Adjust in conjunction with the adjustment pattern. See page 21 for
SCREEN ADJUSTMENTS.
Only Analog Input

Auto Adjust: Press and hold the Auto Button for 3-4 seconds when the Menu is not displayed.

Volume: Press the + Button when the Menu is not displayed.

Lock Mode:
<OSD>
HoldtheMENUbuttonandturnonthemonitorwhenthemonitorispower-o󰀨,itwilllock/unlockthe
OSD Key Lock function.
<Power/OSD>
Pressing and holding the MENU button for 10 seconds when Menu is not displayed, will lock/unlock
the Power/OSD Key Lock function.

Blue Light Reducer * : Pressing and holding of the + Button for 3-4 seconds when the Menu
is not displayed.
   O󰀨:Normal
Mode1 : Blue light is reduced.
Mode2 : Blue light is reduced more than Mode1.
Mode3 : Blue light is reduced more than Mode2.
* Blue Light Reducer cannot be enabled if i-Style Color, Adv.Contrast or Color Settings colour are
enabled.
