Ikan VXF7 User manual

What’s Included
QUICKSTART GUIDE
1 x VXF7 Monitor
1 x AC Adapter
1 x Camera Shoe Mount (SM-201)
1 x Screen Cleaning Wipe
1 x Screen Protector
1 x Sunhood
1 x Canon E6 Battery Plate
1 x Sony L Series Battery Plate
1 x USB Drive
1 x Mini to Standard USB Adapter
VXF7
7" 4K Full HD HDMI/3G-SDI On-Camera Monitor
[email protected] © 2016 ikan Corporation. All rights Reserved
www.ikancorp.com 713.272.8822
CHECKED BY

Getting Started
Front
www.ikancorp.com 713-272-8822
DV BATTERY PLATES
 VX7c-1: Canon 900, Sony L,
Panasonic D54 Battery Plates
 VX7c-2: Canon E6, Nikon EL15, Panasonic
G6 Battery Plates
VX7c
7” 3G -SDI Monitor w/ Signal Conversion QUICKSTART GUIDE
12 3 4 5 6 7810 11 12 13 14
9
VX7c
F2
F3
F4
F1
Input
ASPECT/
EXIT
MENU
BRIGHT CONTRAST CHROMA SHARPNESS
RGBTINT
1
2
3
4
5
6
7
8
12
11
10
9
13
14
15
User programmable function buttons. For quick access, the user may
program the F1 through F4 buttons to enable frequently accessed
monitor features.
Power Switch
Power ON / OFF
Power Indicator Light
When the power is ON, the LED green lights up
F1 / Button
Function key actions are selected in the menu
F4 / Button
Function key actions are selected in the menu
F2 / Button
Function key actions are selected in the menu
F3/ Button
Function key actions are selected in the menu
Input & Aspect/Exit Buttons
Aspect: 16:9, 4:3, Full
In MENU, it is to exit the menu
Button
Toggle left in MENU setting mode
and Buttons
Toggle up and down in MENU setting mode
/ MENU Button
Toggle right in MENU setting mode
In MENU, push button to select menu setting
BRIGHT/R Knob
Adjust brightness 0 - 100 (50)
Adjust red channel
CONTRAST/G Knob
Adjust contrast 0 - 100 (50)
Adjust green channel
CHROMA/B Knob
Adjust chroma 0 - 100 (50)
Adjust blue channel
TINT/SHARPNESS Knob
Adjust tint 0 - 100 (50)
Adjust sharpness 0 - 100 (10)
TALLY Indicator Lights

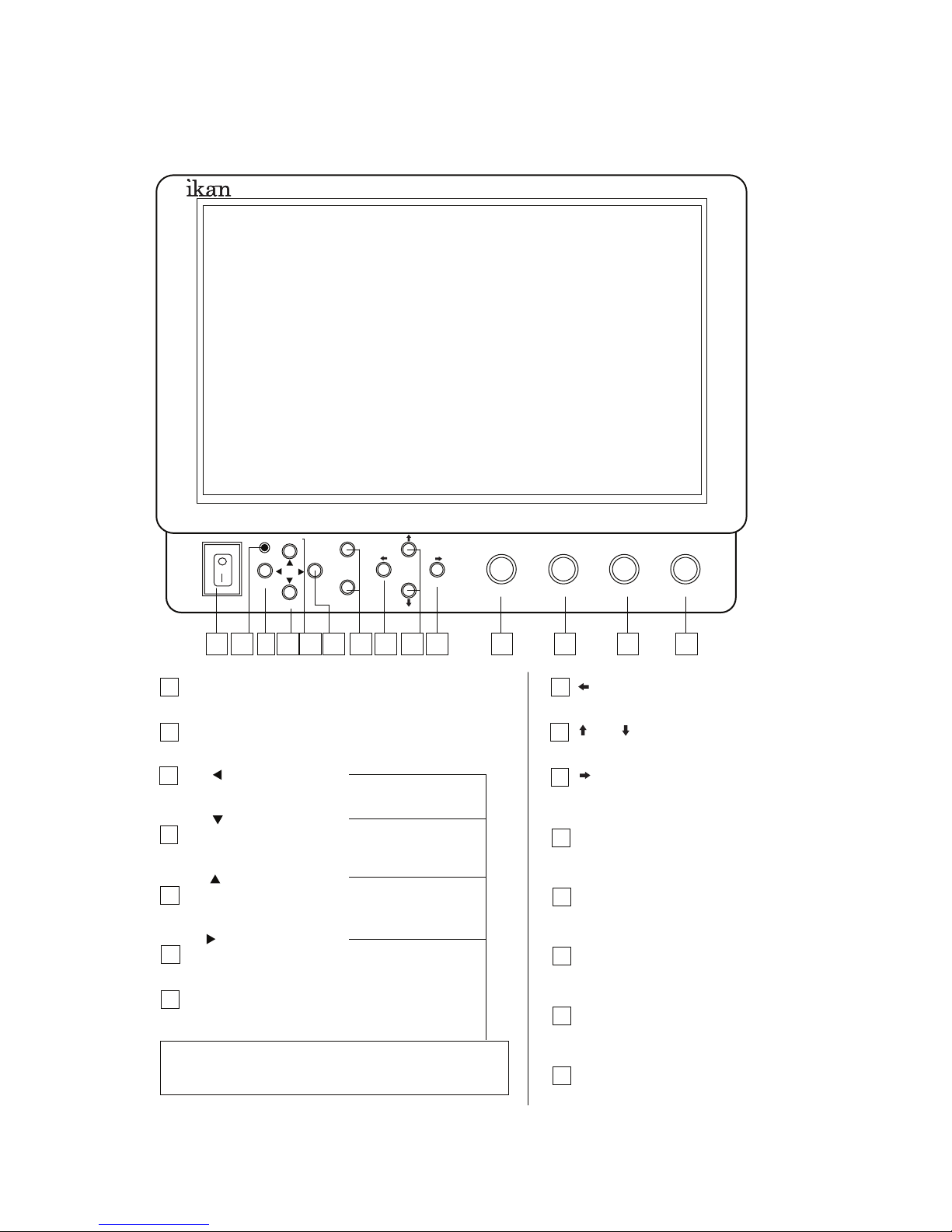

Front view
VXF7

Back
Getting Started
www.ikancorp.com 713-272-8822
VX7c
7” 3G -SDI Monitor w/ Signal Conversion QUICKSTART GUIDE

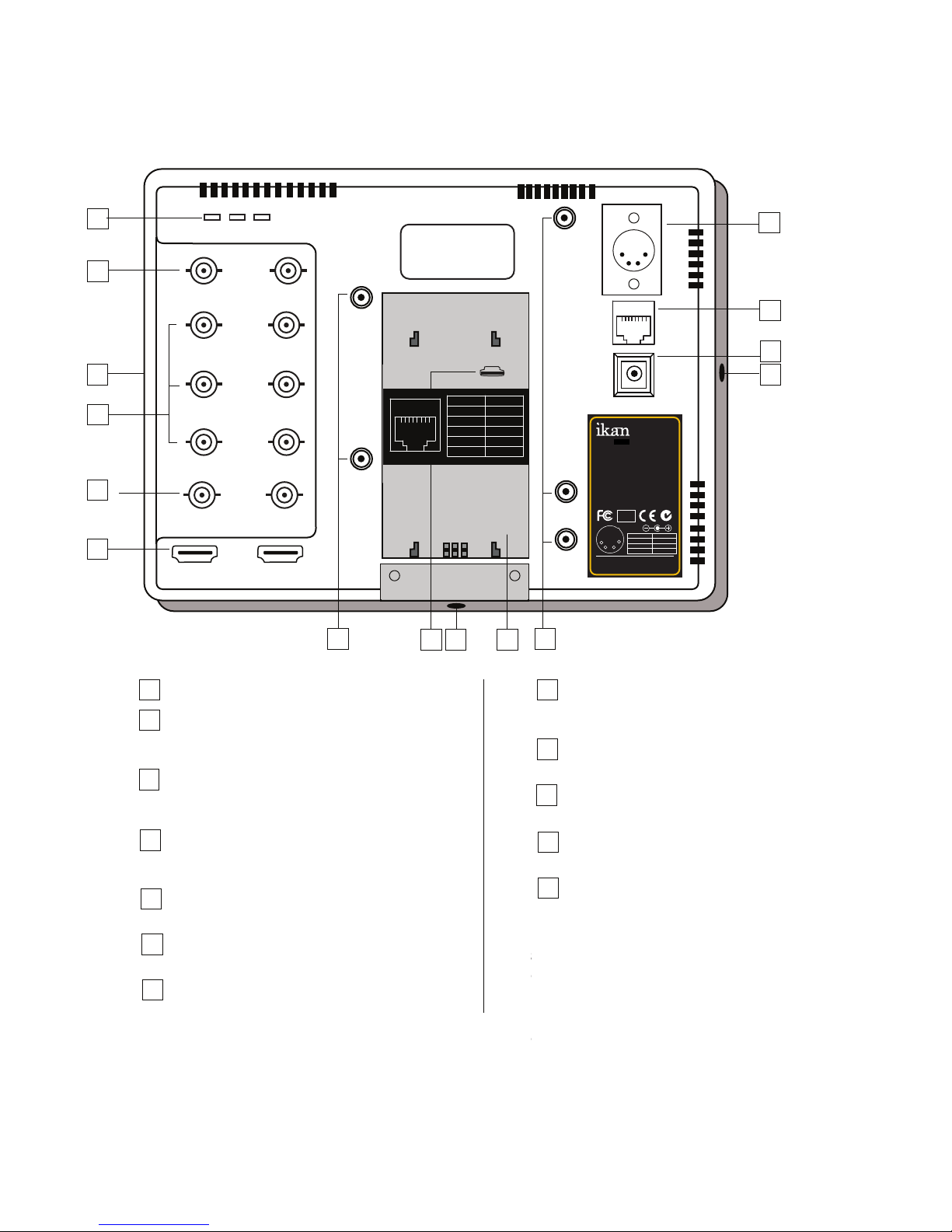

Rear view
+
+
Switch
1
2
3
4
5
On
50p
30p
25p
24p
24psf
720p
1080p
CAUTION: TURN OFF POWER
BEFORE ADJUSTING
SWITCHES
ON
123 4 5
OFF
VIDEO
Y/C
Y
Pb
Pr
SDI
IN
DC 12V
DC 12V - 20V
OUT
HDMI
+ +
1
TALLY Indicator Lights
VIDEO terminal (BNC)
IN : Composite signal input terminal
OUT : Input signal through-out terminal
YPbPr terminal (BNC)
IN : Component signal input terminal
OUT: : Input signal through-out terminal
HDMI terminal
IN : HDMI input terminal
OUT: : Input signal through-out terminal
DC 12V-24V power terminal
XLR DC Connection
TALLY Input Connector
RJ45 Connection
DC 7-24V power terminal
Standard DC Connection
Pro Battery Plate Mount Holes
Threaded for M3x.07 screws. Use to attach pro battery
plate adapter.
USB terminal
For factory service use only
¼-20 Threaded insert (on three sides of monitor)
Mounting Monitor
DV Battery Plate Slot
Mounting ikan DV battery plate
3G-SDI
2
3
4
5
6
8
7
9
11
12
10
+
+ +
+
VIDEO
IN
TALLY
OUT
HDMI
OUT IN
Y
Pb
Pr
3G-SDI
1
2
3
4
12
6
1010
5
7
10
8911 8
1 2 3 4 5 6 7 8
1
PIN Number Signal
Yellow
Red
Green
GND
NC
2
3
8
4 5 6 7
HIGH DEFINITION
3G-SDI LCD MONITOR
1
2 3
4Pin number Signal
1
2,3
4
GND
+12V
_
ikancorp.com MADE IN CHINA
RoHS
COMPLIANT
Model: VX7c
Picture Size: 7 inch
Resolution: 1280 x 800
Aspect Ratio: 16:9 / 4:3
Color System: NTSC / PAL
Operating Volts: DC 7.4 ~ 24V
Signal Input:
480i/p 576i/p 720p 1080i/p
*
*
*NOTE*
3G-SDI: Inputs automatically output via the 3G-SDI
output as well as the HDMI output.
HDMI: Inputs automatically output via the HDMI
output as well as the 3GI-SDI output.
Input can be converted to HDMI.
Enable this feature in the menu.
For future software updates
VXF7

Configuration of Setting Menus
Function Set Up on following page.
Guides Toggle between the following: 80%, 90%, 15:9, 4:3, 1.5:1, 2:1, 2.35:1
Crosshair Activates Crosshair on center of screen.
Grids Activates grids on the screen to assist with framing.
Video Config Brightness: 0-100
Contrast: 0-100
Chroma: 0-100
Sharpness: 0-100
Tint: 0-100
Color Temperature 5600K, 6500K, 9300K, Manual
Backlight Allows user to fine tune the intensity of the LCD Panel’s backlight.
Aspect Allows user to change the aspect ratio of the image.
System Config OSD - Language: Choose between English & Chinese for OSD.
OSD - Duration: Choose how long the menu stays active without activity.
OSD - Transparency: Choose from low, medium, high, or off.
MENU Setup - Allows 5 users to save menu settings.
System Reset - Reset Settings to factory defaults.
HDMI Out Option This option allows the user to enable SDI to HDMI conversion.
The user can choose between SDI to HDMI or HDMI to HDMI.

Displays a crosshair on the center of the screen.
The DH5e is equipped with Monochrome Peaking features, which highlight
the desired focus area in a bright, red outline. The operator adjusts the focus
control until the red indicator outlines on the desired area are razor sharp,
indicating optimal focus. For best results, be sure object is properly exposed.
The DSLR Scaling function will allow users to extend their DSLR camera’s
HDMI Video Output any option of four; Normal 3:2, 16:9, or Full Screen.
Convenience Made simple.
The 1:1 pixel-to-pixel mapping allows you to emphasize on individual
chosen elements in the shot. This feature is essential for ensuring that you
are in focus.
This feature allows you to enlarge the image up to 3x.
Toggles between the Blue only, Red only, Green only, & Mono Modes.
This is to help calibrate the image.
This function displays the blanking portion of the incoming signal.
Activates grid on screen to assist with framing.
This feature utilizes a full spectrum of assigned color indicators, ensuring
flawless shot exposure. Under/Over luminance warnings enable the user to
get the desired quality every time.
Displays Audio Stereo Levels.
The DH5e offers adjustable upper Clip Guide levels to accurately display
overexposed images in any shooting condition. The operator simply assigns
the upper IRE to their preference and any exposure over the set IRE limit will
flash in a vivid purple, indicating only the over exposed area.
A graphical representation of the pixels exposed in your image. The left side
of the graph represents the blacks or shadows, the right side represents the
highlights or bright areas and the middle section is mid-tones. How high the
peaks reach represent the number of pixels in that particular tone. This tool
helps you get proper exposure.
When using a 5D Mark II this mode improves the time it takes for the image to
appear when going into record mode from live view.
Displays currently installed firmware.
Used to update firmware when a USB containing update file is inserted.
Function Set Up 1-4
Guides
Crosshair
Peaking
Underscan
DSLR Scaling
Zooming
Pixel-to-Pixel
Check Field
HV Delay
Grids
False Color
Audio Wave
Clip Guides
Histogram
5DII Rec.
Firmware Version
Information
Update (USB)
NOTE:
To see further options
for an active function,
hold the function key
for 2 seconds until
option mode appears.
Function Set Up

Specifications
Supported Video Signals
Aspect Ratio 16:10
Backlight LED
Brightness 300 cd/m2
Build Material Heavy Duty Plastic
Color Depth 16.7 Million
Color System PAL / NTSC / SECAM (Auto-Detected)
Contrast Ratio 800:1
Dimensions 7.36 x 5.6 x 1.3 In.
Display Technology IPS
Input Voltage DC 6V-24V
3G-SDI 1920x1080p @ 50, 59.94, 60 Hz
HD-SDI
1280x720p @ 50, 59.94, 60 Hz
1920x1080i @ 50, 59.94, 60 Hz
1920x1080psf @ 23.98, 24, 25, 29.97, 30 Hz
1920x1080p @ 23.97, 24, 25, 29.97, 30 Hz
SD-SDI 720x480i @ 60Hz
720x576i @ 50Hz
HDMI
720x480i & 720x480p @ 59.94, 60 Hz
720x576i & 720x576p @ 50 Hz
1280x720p @ 50, 59.94, 60 Hz
1920x1080i @ 50, 59.94, 60 Hz
1920x1080psf @ 24, 25, 29.97, 30 Hz
1920x1080p @ 23.97, 24, 25, 29.97, 30, 50, 59.94, 60 Hz
3840x2160p @ 24, 25, 30 Hz
4096x2160p @ 24 Hz
Component
720x480i @ 60 Hz
720x576i @ 50 Hz
1280x720p @ 23.97, 24, 25, 29.97, 30, 50, 59.94, 60 Hz
1920x1080i @ 50, 59.94, 60 Hz
1920x1080psf @ 24, 25, 29.97, 30 Hz
Composite
NTSC-M, NTSC-J, NTSC 4.43
PAL B/G H I D, PAL M, PAL N
SECAM
Inputs 3G-SDI, HDMI, Component, Composite
Outputs 3G-SDI, HDMI, Component, Composite
Pixel Pitch 0.07875 x 0.07875mm
Power Consumption 11W
Resolution 1920 x 1200
Response Time 20ms
Viewing Angle 178 (H) 178(V)
Shipping Dimensions 14.75 x 7.75 x 3 In.
Shipping Weight 3 lbs
Optional Accessories
MA207
MA211
MA211-R
MOUNTS BATTERY PLATES
BP5-C
BP5-E6
BP5-P
BP5-S
BP5-N
BP5-PG6
BP5-SU
7 In. Articulating Arm
11 In. Articulating Arm
11 In. Articulating Arm w/ Single
Rod Mount
Canon 900 Battery Plate
Canon LP-E6+ Battery Plate
Panasonic D54 Battery
Sony L Series Battery Plate
Nikon EN-EL15 Battery Plate
Panasonic G6 Battery Plate
Sony BP-U Series Battery Plate

Learn More
More dynamic information at official website: www.ikancorp.com
Support
Contact email: [email protected]
CONDITIONS OF WARRANTY SERVICE
• Free service for one year from the day of purchase if the problem is caused by manufacturing errors.
• The components and maintenance service fee will be charged if the warranty period is expired.
Free Service will not be Provided in the Following Situations:(*Even if the product is still within the warranty period.)
• Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company.
• Damage caused by natural disaster, abnormal voltage, and environmental factors, etc.
