Ikan MS21-V2 User manual

www.ikancorp.com
1.713.272.8822
[email protected]
© 2020 Ikan International All right reserved
MS21-V2
21.5" 3G-SDI Studio Monitor USER GUIDE

Contents
Safety Instructions................................................................................................3
Front......................................................................................................................4
Rear.......................................................................................................................6
MENU Description................................................................................................7
VIDEO....................................................................................................................9
DIS LAY 1...........................................................................................................10
DIS LAY 2...........................................................................................................12
COLOR.................................................................................................................14
MARKER..............................................................................................................15
OSD......................................................................................................................17
AUDIO..................................................................................................................19
G I.......................................................................................................................21
SYSTEM..............................................................................................................23
USB Firmware Update........................................................................................25
External Remote Control....................................................................................26
List of Compatible Video Formats (HDMI/Composite)......................................28
List of Compatible Video Formats (SDI)............................................................29
Specifications......................................................................................................31
Dimensions..........................................................................................................32
Troubleshooting..................................................................................................33
Warranty Information..........................................................................................35
Modification of roduct.......................................................................................35
Caution on Menu Operation................................................................................35
Caution for Monitor lacement...........................................................................35
2

Safety Instructions
•To help avoid damaging your monitor, connect only one power (AC or DC) in
operation.
•Rough handling of product may cause physical damage or malfunction.
•Never insert anything metallic into the monitor openings. Doing so may create
the danger of electric shock.
•To avoid electric shock, never touch the inside of the monitor. Only a qualified
should open the monitor’s case.
•Openings in the monitor cabinet are provided for ventilation. To prevent
overheating, these openings should not be blocked or covered.
•ut your monitor in a location with low humidity and a minimum of dust. Avoid
places like damp basement or dusty hallways.
•lace the monitor on a solid surface and treat it carefully. The screen is made of
glass and can be damaged if dropped or sharply hit.
•Do not attempt to remove the back cover, as you will be exposed to a shock
hazard. The back cover should only be removed by qualified service personnel.
•Unplug the monitor power before you connect external devices to the monitor.
•If your monitor does not operate normally, or if there are any unusual sounds or
smells coning from it, unplug it immediately and contact us.
•lease do not disassemble the monitor. No service will be provided in that case.
•Displaying fixed picture for a long time may cause an afterimage or dead spots.
To recover LCD pixels, display whole white picture on screen for a n hour or
two and pixels will be recovered.
•No service will be provided for user’s own color calibration.
3

Front
Standby (Power)
In ut Switcher (SDI 1, SDI 2, HDMI/DVI)
Analog
Switch analog input in the order of CVBS1 -> CVBS2 -> CVBS3 -> SVIDEO ->
Y b r -> RGB -> VGA.
WF/VS
Waveform / Vectorscope display selection button.
Marker On/Off
Frame line generation button.
Scan
Switch scan mode among Zero Scan, Under Scan, Over Scan, ixel to ixel in HD
resolution. Zero Scan, Under Scan, Over Scan, ixel to ixel in SD resolution.
H/V Delay
Displays ancillary data by moving screen position.
R/G/B Gray
Switch for Red/Green/Blue/Gray only.
As ect
Adjust aspect ratio in the order of 4:3, 16:9, Fill, Native.
Function Keys
User-assigned function keys.
4

Menu
Enter
Knob for Adjustment or Enter
Knob used to adjust Brightness / Contrast / Chroma / hase or Enter button.
Head hone Jack
5

Rear
AC In ut
lease check ower Cord, ower Voltage, Supply power for power input are
suitable for the standard before use.
lease do not mix AC power and DC power as it may cause the defects or fire.
DC In ut
For DC power supply. Check the DC Input voltage. In case of using the Battery
power, DC 11 ~ 27V is usable.
U date Port
The Serial communication terminal that for changing the operating
program(Firmware) of the body or controlling the monitor.
Remote Ethernet Port
External control via C is able with this port by using 'Wall Control rogram'.
Firmware is also updatable through this port.
6

USB Port
USB Firmware Update ort.
MENU Descri tion
General Cautions for OSD menu or Dis lay
The menu may not be displayed even when user pressed Menu button if there's No
Signal, or in unclear signal status.
The menu selection may be saved for each input signal mode, so sometimes user
should do menu selection again.
7

VIDEO
Brightness, Contrast, Chroma, Phase, Shar ness
Adjust color representation values.
SDI Switching
Normal : Use Normal in general condition but the screen might be blinking on
screen change when you use Matrix or Routing Switcher.
Fast : Use Fast to minimize blinking on screen change.
NTSC Setu
Select IRE among 0 or 7.5 (Default)
HDMI UV Swa
Sometimes color might be swapped on some HDMI input such as C RGB. Turn
this mode on to return to correct color.
Fast Mode
Use this mode to minimize afterimage on very fast video.
Dithering
Turn this mode on to view motion pictures smoothely when the source has low
quality.
ADC Calibration
On CVBS input, turn this mode on when the color value is upside down. Normally it
is not needed to be turned on.
8

DISPLAY 1
As ect
Set the aspect ratio of the screen. 16:9, 4:3, Native(Original) are selectable. This
selection is ignored on 1080i, 1080p, 720p.
1:1 Scan
On SD signals(Not HD), Set this on to display picture in 1:1 pixel mapping.
AFD
Turn this mode on to adjust aspect ratio with the ratio value in the source signal.
Waveform Dis lay
Select waveform display mode. Choose Normal to analyze whole screen, choose
Line Select to analyze a specific line of the screen.
Waveform Line Select
Select the line when you select Line Select mode for Waveform display.
Waveform Select
Select waveform line to display among Y, Cb, Cr.
Waveform Color Mode
Select waveform color mode among Single or Mix.
9

Waveform Intensity
Adjust waveform intensity.
Waveform & Vector Size
Adjust size of Waveform & Vector.
Waveform & Vector Blend
Adjust transparency value of Waveform & Vector.
False Color
Turn False Color mode on to check exposure levels of the picture.
10

DISPLAY 2
Ex osure Range Check (Video Range Check)
Checks Y, C level and displays over-exposed or under-exposed area on screen.
The base value can be Y, Cb, or Cr.
Y Range Max / Min
Set Y range value for range check.
C Range Max / Min
Set C range value for range check.
Blink Color
The filled area color by range check can be either Black, Blue, Green or Red.
Blink Time
Set blinking time of the area between 1 to 5 seconds.
Focus Assist Dis lay
Turns on Focus Assist mode. This mode can be set also by pressing Focus Assist
button in front.
Focus Assist Level
The sensitivity of the focus assist function can be set between 0 to 48.
11

Focus Assist Color
Set brush color of focus assist mode among Blue, Green, and Red.
12

COLOR
Color Tem erature
Select color temperature among 3200K, 5400K, 6500K, 9300K or USER. (Gain and
Offset menu are displayed on USER temperature only)
Red/Green/Blue Gain (USER mode only)
R,G,B gains are adjustable on User mode.
Red/Green/Blue Offset (USER mode only)
R,G,B offsets are adjustable on User mode.
13

MARKER
Marker Ratio
Select one of preset markers or user marker. To display marker, press Marker
button in front of the monitor.
Center Marker
Set preference to display center marker or not.
Safety Area 16:9
Adjust size of the safety area when marker displayed on 16:9 screen.
Safety Area 4:3
Adjust size of the safety area when marker displayed on 4:3 screen.
Marker Color
Select marker’s color among White, Red, Green, Blue, Gray and Black.
Marker Mat
Set how to display outside of the safety area. Normal, Half(Gray), Black are
selectable.
Marker Thickness
Set marker thickness between 1 to 10.
14

User Marker H1 / User Marker H2 / User Marker V1 / User Marker V2
Set user marker’s position. H1 for left, H2 for right, V1 for top, V2 for bottom. The
positions are saved as the selected marker name such as USER1.
15

OSD
Timecode Dis lay On/Off
Timecode Position
Set the position of timecode.
OSD Dis lay Time
Set menu display time (seconds)
MENU Position
Set menu position among Left Top, Right Top, Left Bottom, Right Bottom and
Center.
V-Chi
SD-SDI, Composite signal might contain V-Chip data. Turn this mode on to display
V-Chip information on screen.
Closed Ca tion
Select one of 608 Line 21, 608 VANC, 608 Transcoded, 708 to display Closed
Captions. In special condition such as menu display status, captions are not
displayed.
CC708 Service
Select one of CC service as your preference.
16

Service 1: general captions.
Service 2: translated captions.
Service 3,4: not assigned.
CC608 StartLine
Display line of captions are selectable by user. (e.g. 13)
Internal Pattern
Show internal test pattern such as color bars. Turn this mode off to display general
pictures from input port.
UMD Dis lay
Display UMD status. The screen aspect ratio will turn to 16:9 on this mode.
UMD Color
Set UMD color.
UMD Edit
Edit UMD text.
17

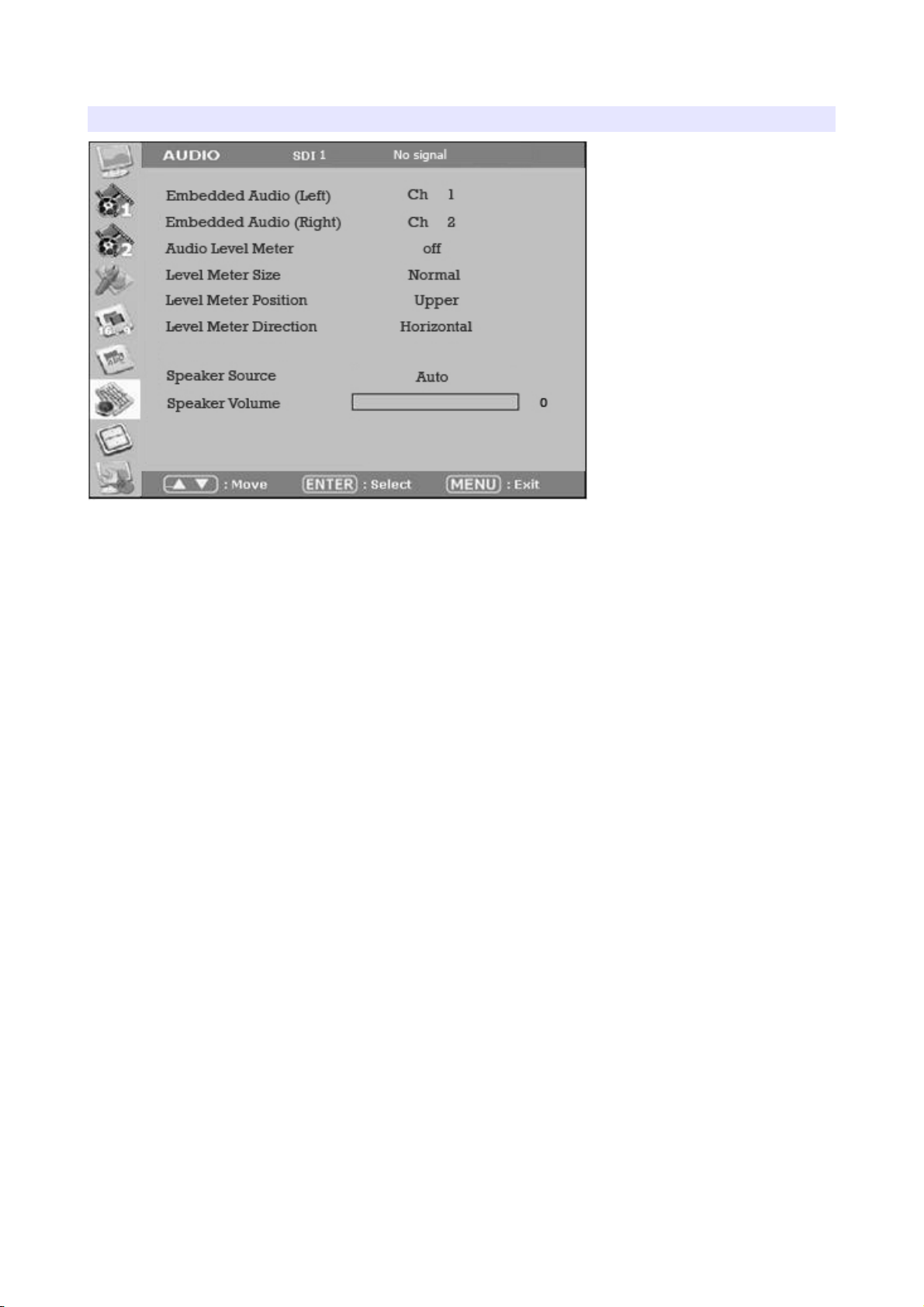

AUDIO
Embedded Audio Left
Select audio channel for left (Ch 1 ~ 15)
Embedded Audio Right
Select audio channel for right (Ch 2 ~ 16)
Audio Level Meter
Turns on/off audio level meters.
Level Meter Size
Select the size of the meters : Small or Large.
Level Meter Position
Select the position of the meters : Upper or Lower.
Level Meter Direction
Select Level Meter orientation among Horizontal or Vertical.
S eaker Source
Select the speaker output among Auto / SDI / Line In. For HDMI, use Auto mode.
S eaker Volume
Set volume of speaker.
18

GPI
GPI Control
Turns on/off external monitor control function.
GPI Port 1,2,3,4,5,6
Assigns each G I port’s function. (e.g. SDI 1 input, HDMI input, Tally Red) See
EXTERNAL REMOTE CONTROLLING section for details.
Remote ID Number
Assigns the ID for the monitor to control through serial port. 0 to 99 can be
assigned.
Serial Remote
Turns serial remote function on. All front buttons are locked on this mode. To exit
from this mode, press and hold Menu button for 3 seconds.
19

SYSTEM
Function 1,2,3,4
Assigns a function to each function button. See FRONT section for detail.
Backlight
Set the backlight intensity from 0 to 40. An LCD panel requires more than 30
minutes to be settled to a new backlight value.
Front Button LED
Set front LEDs on/off status.
Font Button Lock
Locks front buttons not to work. ress and hold Menu button for 3 seconds to exit
from this mode.
U date Firmware
Turns update mode on. Select Serial or USB port for update. After firmware
update, the monitor should be turned off/turned on, and Factory Default should be
loaded before use.
Setu Load
Load monitor settings from Factory Default, User 1/2/3/4.
Setu Save
Save current monitor setting to use later. 4 settings can be saved.
20
