ENGLISH 4
Your safety and that of others are
very important.
This manual and the appliance
itself provide important safety
warnings, to be read and
observed at all times.
This is the danger symbol,
pertaining to safety, which
alerts users to potential risks to
themselves and others.
All safety warnings are preceded
by the danger symbol and the
following terms:
DANGER! Indicates a
hazardous situation which, if
not avoided, will cause serious
injury.
WARNING! Indicates a
hazardous situation which, if
not avoided, could cause serious
injury. All safety warnings give
specic details of the potential risk
present and indicate how to
reduce risk of injury, damage and
electric shock resulting from
improper use of the appliance.
Carefully observe the following
instructions:
- Use protective gloves to
perform all unpacking and
installation operations.
- The appliance must be
disconnected from the power
supply before carrying out any
installation work.
- Electrical installation and
maintenance must be carried
out by a qualied technician,
in compliance with the
manufacturer’s instructions and
local safety regulations. Do not
repair or replace any part of
the appliance unless specically
stated in the user manual.
- Power cable replacement
must be carried out by
qualied electician. Contact an
authorizes service centre.
- Regulations require that the
appliance is earthed.
- The power cable must be long
enough for connecting the
appliance, once tted in its
housing, to the power supply
socket.
- When the appliance is
installed, provide a multi-
pole circuit breaker with a
Safety Information 4
Product description 7
Control panel 9
List of functions 9
Description of display 10
Daily use 13
Cooking tables 16
Cleaning and maintenance 21
What to do if ... 23
Technical data 24
Installation 25
Recommended use and tips 27
Electrical connection 29
Environmental concerns 29
Safety Information
Table of contents

ENGLISH 5
contact separation (at least 3
mm) in all poles that provide
full disconnection under
overvoltage category III and
must be incorporated in the
xed wiring in accordance with
the national wiring rules.
- Do not use multiple plug
adapters or extension leads.
- Do not pull the power supply
cable in order to unplug the
appliance.
- The electrical components must
not be accessible to the user
after installation.
- If the surface of the induction
plate is cracked, do not use it
and switch off the appliance to
avoid the possibility of electric
shock (only for models with
induction function).
- Do not touch the appliance
with any wet part of the body
and do not operate it when
barefoot.
- This appliance is designed
solely for use as a domestic
appliance for cooking food. No
other type of use is permitted
(e.g.: heating rooms). The
Manufacturer declines all
responsibility for inappropriate
use or incorrect setting of the
controls.
- This appliance can be used
by children aged from 8 years
and above and persons with
reduced physical, sensory or
mental capabilities or lack of
experience and knowledge
if they have been given
supervision or instruction
concerning use of the appliance
in a safe way and understand
hazards involved. Children shall
not play with the appliance.
Cleaning and user maintenance
shall not be made by children
without supervision.
- The accessible parts of the
appliance may become very
hot during use. Young children
should be kept away from the
appliance and supervised to
ensure that they do not play
with it.
- The appliance and its
accessible parts become hot
during use. Care should be
taken to avoid touching heating
elements. Children less than 8
years old shall be kept away,
unless continuosly supervised.
- During and after use, do not
touch the heating elements
or interior surfaces of the
appliance - risk of burns. Do not
allow the appliance to come
into contact with cloths or other
ammable materials until all
the components have cooled
sufciently.
- At the end of cooking, exercise
caution when opening the
appliance door, letting the hot
air or steam exit gradually
before accessing the oven.
When the appliance door is
shut, hot air is vented from the
aperture above the control
panel. Do not obstruct the vent
apertures.

ENGLISH 6
- Use oven gloves to remove
pans and accessories, taking
care not to touch the heating
elements.
- Do not place ammable
materials in or near the
appliance: a re may break out
if the appliance is inadvertently
switched on.
- Do not heat or cook sealed jars
or containers in the appliance.
The pressure that builds up
inside might cause the jar
to explode, damaging the
appliance.
- Do not use containers made of
synthetic materials.
- Overheated oils and fats catch
re easily. Always remain
vigilant when cooking foods
rich in fat and oil.
- Never leave the appliance
unattended during food drying.
- If alcoholic beverages are used
when cooking foods (e.g. rum,
cognac, wine), remember that
alcohol evaporates at high
temperatures. As a result, there
is a risk that vapours released
by the alcohol may catch re
upon coming into contact with
the electrical heating element.
- Never use steam cleaning
equipment.
- Do not touch the oven during
the pyrolysys cycle. Keep
children away from the oven
during the pyrolysis cycle.(only
for ovens with Pyrolisis function).
- During and after the Pyrolytic
cleaning, every pets (especially
birds) have to be kept away
from the area of the appliance
location.
- Only use the temperature
probe recommended for this
oven.
- Do not use harsh abrasive
cleaners or sharp metal
scrapers to clean the oven door
glass since they can scratch the
surface, which may result in
shattering of the glass.
- Ensure that the appliance is
switched off before replacing
the lamp to avoid the possibility
of electric shock.
Scrapping of household
appliances
- This appliance is manufactured
with recyclable or reusable
materials. Dispose of it in
accordance with local waste
disposal regulations. Before
scrapping, cut off the power
supply cable.
- For further information on
the treatment, recovery and
recycling of household electrical
appliances, contact your
competent local authority, the
collection service for household
waste or the store where you
purchased the appliance.

ENGLISH 7
Product description
1Control panel
2Cooling fan
1)
(hidden)
3Upper heating element/Grill
4Rear oven lamp
5Oven fan
6Bottom heating element (not visible)
7Oven door
8Lateral Grids
1) The cooling fan may continue running even after the
oven is switched off. During the pyro-clean cycle the
fan runs faster than during normal cooking functions.
1
2
4
8
3
5
6
7
Accessories
Wire Shelf
1x
Baking tray
1x
Drip tray
1x
Telescopic Runners
2x

ENGLISH 8
Inserting wire shelves and other accessories
in the oven
1. Insert the wire shelf horizontally, with the
raised part “A” upwards (Fig. 1).
A
Fig. 1
2. Other accessories, such as the drip tray
and baking tray, are inserted in the same
way as the wire shelf (Fig. 2).
Fig. 2
Remove the blue lm as shown in the image
How you align the tray with the telescopic
runners.
Place the drip tray on the telescopic runners
xing it between the rear and front fastener.
Fig. 2
Fig. 3

ENGLISH 9
Control panel
AFunction selector knob
BBrowse knob
Note: the control knobs are retractable. Press
the knobs in the middle and they pop up.
C Selection/Conrmation button
A BC
Turn the “Functions” knob to any position and
the oven switches on: the display shows the
functions or the associated submenus.
The submenus are available and selectable
by turning the knob to the functions GRILL,
SPECIALS, SETTINGS, BREAD/PIZZA.
N.B.: for the list and description of functions,
see the specic table.
List of functions

ENGLISH 10
Description of display
1Display of heating elements activated
during the various cooking functions
2Time management symbols: timer, cooking
time, end of cooking time, time
3Information regarding selected functions
4Automatic BREAD/PIZZA function selected
5Indication of door locked during automatic
cleaning cycle (not available on this
model)
6Internal oven temperature
7Pyrolisis function (not available on this
model)
8Browning
9Special functions: defrosting, keep warm,
rising
1
2 3 4
5
6789
Setting the time
2413
At the rst switch on of the oven, the two hour
digits ash on the display
1. Turn the “Browse” knob Bto display the
correct hour.
2. Press the button C to conrm; the two
minute digits ash on the display.
3. Turn the “Browse” knob Bto display the
correct minutes.
4. Press button C to conrm.
To change the time, for example following
a power cut, see the next paragraph
(SETTINGS).

ENGLISH 11
Oven functions table
The oven has 4 cooking levels. Count up from the lower level.
Function Description of function
0OFF To stop cooking and switch off the oven.
FORCED AIR To cook a variety of food requiring the same cooking temperature
on two shelves at the same time (e.g: sh, vegetables, cakes). This
function can be used to cook different foods without odours being
transferred from one food to another. Use the 2nd shelf to cook on
one shelf only.
To cook on two shelves, use the 1st and 3rd shelves after
preheating the oven.
CONVENTIONAL To cook any kind of dish on one shelf only. Use the 2nd shelf.
Preheat the oven before placing food inside.
CONVECTION
BAKE
To cook meat and pies with liquid lling (savoury or sweet) on a
single shelf. Use the 2nd shelf. Preheat the oven before cooking.
MAXI COOKING To cook large joints of meat (above 2.5 kg). Use the 1st or 2nd shelf,
depending on the size of the joint. The oven does not have to be
preheated. It is advisable to turn the meat over during cooking for
more even browning. It is best to baste the meat every now and
again to avoid it drying out.
GRILL To grill steak, kebabs and sausages; to cook vegetables au gratin
and toast bread. Place food on the 4th shelf. When grilling meat,
use the drip tray to collect the cooking juices. Position it on the 3rd
shelf, adding approx. half a litre of water. The oven does not have
to be preheated. During cooking the oven door must remain closed.
TURBOGRILL To roast large joints of meat (legs, roast beef, chickens). Position the
food on the middle shelves.
Use the drip tray to collect the cooking juices. Position it on the
1st/2nd shelf, adding approx. half a litre of water. The oven does
not have to be preheated. During cooking the oven door must
remain closed.
BREAD/PIZZA To bake different types and sizes of pizza and bread. This function
contains two programmes with predened settings. Simply indicate
the values required (temperature and time) and the oven will
manage the cooking cycle automatically. Place the dough on the
2nd shelf after preheating the oven.

ENGLISH 12
Function Description of function
SPECIAL
FUNCTIONS
DEFROST
To speed up defrosting of food. Place food on the middle shelf.
Leave food in its packaging in order to prevent it from drying out on
the outside.
WARM KEEPING
For keeping just-cooked food hot and crisp (e.g: meat, fried food or
ans). Place food on the middle shelf. The function will not activate
if the temperature in the oven is above 65°.
RISING
For optimal rising of sweet or savoury dough. To safeguard the
quality of proving, the function will not activate if the temperature in
the oven is above 40°C. Place the dough on the 2nd shelf. The oven
does not have to be preheated.
ECO FORCED AIR
To cook stuffed roasts and meat in pieces on one shelf. This
function uses discontinuous, delicate fan assistance, which prevents
excessive drying of foods. In this ECO function the light remains
off during cooking and can be temporarily switched on again by
pressing the conrm button. In order to maximize energy efciency,
it is advisable not to open the door during cooking. It is advisable
to use 3rd level. The oven does not have to be preheated.
FAST
PREHEATING
To preheat the oven rapidly.
SETTINGS To set the display (language, time, brightness, buzzer volume,
energy saving).
LAMP To switch the oven interior light on/off.

ENGLISH 13

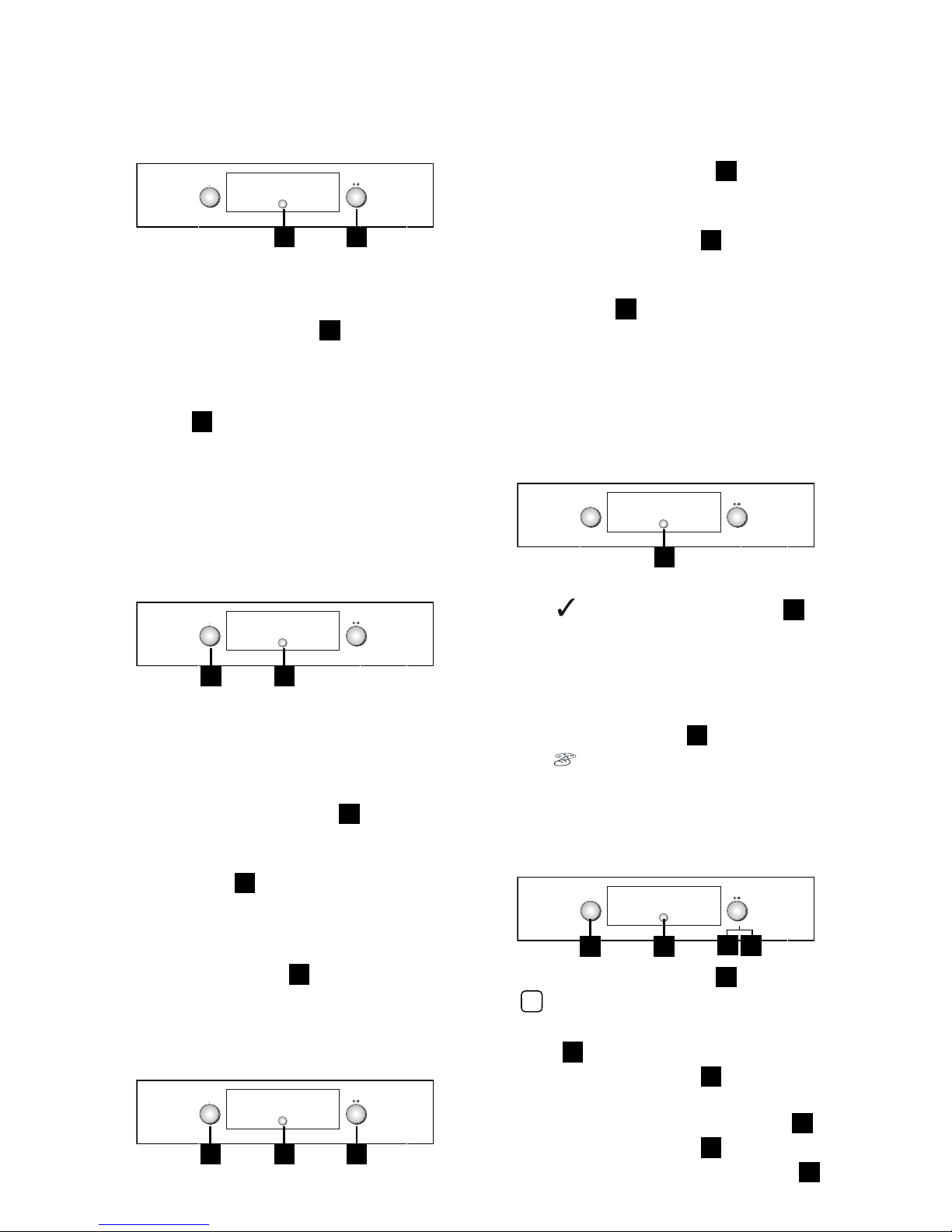

Daily use
Selecting cooking functions
12
1. Turn the “Functions” knob Ato the
desired function: the cooking settings are
shown on the display.
2. If the values shown are those desired,
press C. To change them, proceed as
indicated below.
Setting the temperature/output of the grill
To change the temperature or output of the
grill, proceed as follows:
12
1. Turn the “Browse” knob Bto display the
desired value.
2. Press button C to conrm.
Fast preheating
23 14
Don’t insert food in the oven until the fast
preheating cycle are completed.
1. Turn the “Functions” knob Ato the
symbol to select the fast preheating
function.
2. Conrm by pressing C: the settings are
shown on the display.
3. If the proposed temperature is that
desired, press button C. To change the
temperature, proceeed ad described
in the previous paragraph “Setting the
temperature/output of the grill”. The
message PRE appears on the display.
When the set temperature is reached, the
corresponding value (e.g. 200°) and an
acoustic signal will sound. At the end of
preheating, the oven automatically selects
the conventional function . At this
point food can be placed in the oven for
cooking.
4. If you wish to set a different cooking
function, turn the “Functions” knob Aand
select the desired function.
Setting cooking time
This function can be used to cook food for a
set length of time, from a minimum of 1 minute
to the maximum time allowed by the selected
function, after which the oven switches off
automatically.
123
1. Once the temperature is conrmed, the
symbol ashes.
2. Turn the adjustment knob Bto display
the desired cooking time.
3. To conrm the cooking time, press button
C.
Setting end of cooking time /start delayed
IMPORTANT: the start delayed setting is not
available for the following functions: FAST
PREHEATING, BREAD/PIZZA.
N.B.: with this setting, the selected
temperature is reached in a more gradual
way, so cooking times will be slightly longer
than stated in the cooking table.
The end of cooking time can be set, delaying
the start of cooking by up to a maximum of 23
hours and 59 minutes. This can only be done
once cooking time has been set.
After setting cooking time, the display shows
the end of cooking time (for example 15:45)
and the symbol ashes.

ENGLISH 14
12
To delay the end of cooking time, and thus
also the cooking start time, proceed as
follows:
1. Turn the “Browse” knob Bto display the
time you wish cooking to end (for example
16:00).
2. Conrm the selected value by pressing
button C: the two dots of end of cooking
time ash, indicating that the setting has
been made correctly.
3. The oven will automatically delay the start
of cooking so as to nish cooking at the set
time.
Timer
1 2
This function can be used only with the oven
switched off and is useful, for example, for
monitoring the cooking time of pasta.
The maximum time which can be set is 23
hours and 59 minutes.
1. With the “Functions” knob Aat zero, turn
the “Browse” knob to display the desired
time.
2. Press button Cto start the countdown.
When the set time has elapsed, the
display will show “END” and an acoustic
signal will sound. To mute the acoustic
signal, press button C(the time of day
appears on the display).
Selecting special functions
123
1. Turn the “Functions” knob Atill the
display shows “ DEFROST” along with this
function’s corresponding symbol.
2. Turn the “Browse” knob Bto scroll the
list of functions: DEFROST, KEEP WARM,
RISING, ECO FORCED AIR.
3. Press button Cto conrm.
Browning
At the end of cooking, with certain functions,
the display indicates the possibility of extra
browning. This function can only be used
when cooking time has been set.
1
At the end of cooking time, the display shows:
“PRESS TO BROWN”. Press button C,
and the oven starts a 5 minute browning cycle.
This function can be selected consecutively a
maximum of twice.
Bread/pizza function selection
Turn the “Functions” knob Aindicator to the
symbol to access a submenu containing
two automatic cooking functions for “bread”
and “pizza”.
Bread
34
12
1. Turn the “Functions” knob Ato symbol
: the display shows “BREAD” and
AUTO at the side.
2. Press Cto select the function.
3. Turn the “Browse” knob Bto set the
required temperature (between 180°C
and 220°C) and conrm with button C.
4. Turn the “Browse” knob Bto set the
required cooking duration and press Cto

ENGLISH 15
start cooking.
Pizza
13 24 5
1. Turn the Functions knob Ato symbol
the display shows “BREAD”. To select the
“PIZZA” function, proceed as follows:
2. Turn the “Browse” knob B: “PIZZA”
appears on the display.
3. Press Cto select the function.
4. Turn the “Browse” knob Bto set the
required temperature (between 220°C
and 250°C) and conrm with button C.
5. Turn the “Browse” knob Bto set the
required cooking duration and press Cto
start cooking.
Settings
Turn the “Functions” knob Aindicator to the
symbol to access a submenu containing
ve display settings which can be changed.
Clock
Turn the “Browse” knob Bto display CLOCK.
To change the time, see the previous section
(SETTING THE CURRENT TIME).
Eco
With the ECO mode selected (ON), the display
reduces the brightness, showing the clock
when the oven is on standby position from 3
minutes. Also, the oven light is switched off
during cooking. To view information on the
display and switch the light on again, just
press the button Cor turn one of the knobs.
1. Turn the “Browse” knob Bto display
“ECO.
2. Press Cto access the setting (ON/OFF).
3. Turn the “Browse” knob Bto select the
desired setting and conrm by pressing
button C.
4. During a cooking function, if the Eco
Mode is activated, the cavity lamp will be
switched off after 1 minute of cooking and
reactivated for each user interaction.
Acoustic signal
To activate or deactivate the acoustic signal,
proceed as follows:
1. Turn the “Browse” knob Bto display
“SOUND.
2. Press Cto access the setting (ON/OFF).
3. Turn the “Browse” knob Bto select the
desired setting and conrm by pressing
button C.
Brightness
To change the display brightness, proceed as
follows:
1. Turn the “Browse” knob Bto display
“BRIGHTNESS.
2. Press button Cnumber 1 appears on the
display.
3. Turn the “Browse” knob Bto increase
or decrease brightness and conrm by
pressing C.

ENGLISH 16
Cooking tables
Type of food Function Preheating Level
(from the
bottom)
Temperature
(°C)
Cooking
time
(min)
Accessories
Leavened
cakes
X 2 160-180 30-90 Cake tin on wire
shelf
X1-3 160-180 30-90 Shelf 3: cake tin
on wire shelf
Shelf 1: cake tin
on wire shelf
Filled pies
(cheesecake,
strudel, apple
pie)
– 2 160-200 30-85 Drip tray/
baking tray or
cake tin
on wire shelf
X1-3 160-200 35-90 Shelf 3: cake tin
on wire shelf
Shelf 1: cake tin
on wire shelf
Biscuits/tartlets X 2 170 -180 15-45 Drip tray/
baking tray
X1-3 150 -170 20-45 Shelf 3: baking
tray
Shelf 1: drip
tray
Choux buns X 2 180-200 30-40 Drip tray/
baking tray
X1-3 180-190 35-45 Shelf 3: baking
tray
Shelf 1: drip
tray
Meringues X 2 90 110 -15 0 Drip tray/
baking tray
X1-3 90 130 -150 Shelf 3: baking
tray
Shelf 1: drip
tray

ENGLISH 17
Type of food Function Preheating Level
(from the
bottom)
Temperature
(°C)
Cooking
time
(min)
Accessories
Bread/pizza/
focaccia
X 2 190-250 15-50 Drip tray/
baking tray
X1-3 190-250 25-50 Shelf 3: baking
tray
Shelf 1: drip
tray
Bread X 2 180-220 30-50 Drip-tray /
baking tray or
rack
Pizza X 2 220-250 15-30 Drip-tray /
baking tray
Frozen pizza X 2 250 10 -15 Shelf 2: drip
tray / baking
tray or wire
shelf
X1-3 250 10-20 Shelf 3: baking
tray
Shelf 1: drip
tray
Savoury pies
(vegetable pie,
quiche)
X 2 180-190 35-45 Cake tin on wire
shelf
X1-3 180-190 45-60 Shelf 3: cake tin
on wire shelf
Shelf 2: cake tin
on wire shelf
Vols-au-vent
/Puff pastry
crackers
X 2 190-200 20-30 Drip tray/
baking tray
X1-3 180-190 20-40 Shelf 3: baking
tray
Shelf 1: drip
tray
Lasagne,
baked pasta,
cannelloni,
ans
X 2 190-200 30-60 Drip tray or
oven tray on
wire shelf
Lamb / Veal /
Beef / Pork
1 Kg
X 2 190-200 70-100 Drip tray or
oven tray on
wire shelf
Chicken /
Rabbit / Duck
1 Kg
X 2 200-230 50-100 Drip tray or
oven tray on
wire shelf

ENGLISH 18
Type of food Function Preheating Level
(from the
bottom)
Temperature
(°C)
Cooking
time
(min)
Accessories
Turkey / Goose
3 Kg
X1-2 190-200 80 -130 Drip tray or
oven tray on
wire shelf
Baked sh / en
papillote (llet,
whole)
X 2 180-200 40-60 Drip tray or
oven tray on
wire shelf
Stuffed
vegetables
(tomatoes,
courgettes,
aubergines)
X 2 170 -19 0 30-60 Oven tray on
wire shelf
Toast – 4 3 (high) 2-5 Wire shelf
Fish llets /
steaks
– 4 2 (medium) 20-35 Shelf 4: wire
shelf (turn food
halfway through
cooking)
Shelf 3: drip
tray with water
Sausages /
Kebabs /
Spare ribs /
Hamburgers
– 4 2-3 (medium-
high)
15-40 Shelf 4: wire
shelf (turn food
halfway through
cooking)
Shelf 3: drip
tray with water
Roast chicken
1-1.3 Kg
X 2 2 (medium) 50-65 Shelf 2: wire
tray (turn food
two
thirds of the
way through
cooking)
Shelf 1: drip
tray with water
3 (high) 60-80 Shelf 2:
rotisserie
Shelf 1: drip
tray with water

ENGLISH 19
Type of food Function Preheating Level
(from the
bottom)
Temperature
(°C)
Cooking
time
(min)
Accessories
Roast Beef rare
1 Kg
– 2 2 (medium) 35-50 Oven tray on
wire shelf (turn
food two thirds
of the way
through cooking
if necessary)
Leg of lamb /
Shanks
– 2 2 (medium) 60-90 Drip tray or
oven tray on
wire shelf (turn
food two thirds
of the way
through cooking
if necessary)
Roast potatoes – 2 2 (medium) 35-50 Drip-tray /
baking tray
(if necessary,
turn food two
thirds of the
way through
cooking)
Vegetable
gratin
– 2 3 (high) 10-15 Oven tray on
wire shelf
Lasagna &
Meat
X1-3 200 50-100* Shelf 3: oven
tray on wire
shelf
Shelf 1: drip
tray or oven
tray on wire
shelf
Meat &
Potatoes
X1-3 200 45-100* Shelf 3: oven
tray on wire
shelf
Shelf 1: drip
tray or oven
tray on wire
shelf

ENGLISH 20
Type of food Function Preheating Level
(from the
bottom)
Temperature
(°C)
Cooking
time
(min)
Accessories
Fish &
Vegetables
X1-3 180 30-50* Shelf 3: oven
tray on wire
shelf
Shelf 1: drip
tray or oven
tray on wire
shelf
Stuffed roasts – 3 200 80-120* Drip tray or
oven tray on
wire shelf
Meat pieces
(rabbit, chicken,
lamb)
– 3 200 50-100* Drip tray or
oven tray on
wire shelf
* Cooking time is approximate. Food can be removed from the oven at different times depending
on personal preference.
