IKEA REALISTISK TJANLIG User manual

REALISTISK
TJÄNLIG
AU

ENGLISH 4

ENGLISH 4
Your safety and that of others
are very important.
This manual and the appliance
itself provide important safety
warnings, to be read and
observed at all times.
This is the danger symbol,
pertaining to safety, which
alerts users to potential risks to
themselves and others.
All safety warnings are preceded
by the danger symbol and the
following terms:
DANGER! Indicates a
hazardous situation which, if
not avoided, will cause serious
injury.
WARNING! Indicates a
hazardous situation which, if
not avoided, could cause serious
injury. All safety warnings give
specic details of the potential
risk present and indicate how to
reduce risk of injury, damage
and electric shock resulting from
improper use of the appliance.
Carefully observe the following
instructions:
- Use protective gloves to
perform all unpacking and
installation operations.
- The appliance must be
disconnected from the power
supply before carrying out
any installation work.
- Electrical installation and
maintenance must be carried
out by a qualied technician,
in compliance with the
manufacturer’s instructions
and local safety regulations.
Do not repair or replace any
part of the appliance unless
specically stated in the user
manual.
- Power cable replacement
must be carried out by
qualied electician. Contact
an authorizes service centre.
- Regulations require that the
appliance is earthed.
- The power cable must be long
enough for connecting the
appliance, once tted in its
housing, to the power supply
socket.
- When the appliance is
installed, provide a multi-
pole circuit breaker with a
contact separation (at least 3
mm) in all poles that provide
full disconnection under
Safetyinformation 4
Productdescription 7
Controlpanel 9
Dailyuse 9
Cookingtables 11
Cleaningandmaintenance 13
Whattodoif... 15
Technicaldata 16
Installation 17
Electricalconnection 19
ElectricalconnectionforAustralia 19
Environmentalconcerns 20
IKEAGUARANTEE 21
SafetyInformation
Tableofcontents

ENGLISH 5
overvoltage category III and
must be incorporated in the
xed wiring in accordance
with the national wiring rules.
- Do not use multiple plug
adapters or extension leads.
- Do not pull the power supply
cable in order to unplug the
appliance.
- The electrical components
must not be accessible to the
user after installation.
- If the surface of the induction
plate is cracked, do not use it
and switch off the appliance
to avoid the possibility of
electric shock (only for models
with induction function).
- Do not touch the appliance
with any wet part of the body
and do not operate it when
barefoot.
- This appliance is designed
solely for use as a domestic
appliance for cooking
food. No other type of use
is permitted (e.g.: heating
rooms). The Manufacturer
declines all responsibility for
inappropriate use or incorrect
setting of the controls.
- This appliance can be used
by children aged from 8 years
and above and persons with
reduced physical, sensory or
mental capabilities or lack of
experience and knowledge
if they have been given
supervision or instruction
concerning use of the
appliance in a safe way and
understand hazards involved.
Children shall not play with
the appliance. Cleaning and
user maintenance shall not
be made by children without
supervision.
- The accessible parts of the
appliance may become very
hot during use. Young children
should be kept away from the
appliance and supervised to
ensure that they do not play
with it.
- The appliance and its
accessible parts become
hot during use. Care should
be taken to avoid touching
heating elements. Children
less than 8 years old shall be
kept away, unless continuosly
supervised.
- During and after use, do not
touch the heating elements
or interior surfaces of the
appliance - risk of burns. Do
not allow the appliance to
come into contact with cloths
or other ammable materials
until all the components have
cooled sufciently.
- At the end of cooking, exercise
caution when opening the
appliance door, letting the hot
air or steam exit gradually
before accessing the oven.
When the appliance door is
shut, hot air is vented from the
aperture above the control
panel. Do not obstruct the

ENGLISH 6
vent apertures.
- Use oven gloves to remove
pans and accessories, taking
care not to touch the heating
elements.
- Do not place ammable
materials in or near the
appliance: a re may break
out if the appliance is
inadvertently switched on.
- Do not heat or cook sealed
jars or containers in the
appliance. The pressure that
builds up inside might cause
the jar to explode, damaging
the appliance.
- Do not use containers made of
synthetic materials.
- Overheated oils and fats
catch re easily. Always
remain vigilant when cooking
foods rich in fat and oil.
- Never leave the appliance
unattended during food
drying.
- If alcoholic beverages are
used when cooking foods (e.g.
rum, cognac, wine), remember
that alcohol evaporates at
high temperatures. As a result,
there is a risk that vapours
released by the alcohol may
catch re upon coming into
contact with the electrical
heating element.
- Never use steam cleaning
equipment.
- Do not touch the oven during
the pyrolysys cycle. Keep
children away from the oven
during the pyrolysis cycle.
(only for ovens with Pyrolisis
function).
- During and after the
Pyrolytic cleaning, every pets
(especially birds) have to be
kept away from the area of
the appliance location.
- Only use the temperature
probe recommended for this
oven.
- Do not use harsh abrasive
cleaners or sharp metal
scrapers to clean the oven
door glass since they can
scratch the surface, which
may result in shattering of the
glass.
- Ensure that the appliance is
switched off before replacing
the lamp to avoid the
possibility of electric shock.
Scrappingofhousehold
appliances
- This appliance is
manufactured with recyclable
or reusable materials. Dispose
of it in accordance with local
waste disposal regulations.
Before scrapping, cut off the
power supply cable.
- For further information on
the treatment, recovery
and recycling of household
electrical appliances,
contact your competent
local authority, the collection
service for household waste
or the store where you
purchased the appliance.

ENGLISH 7

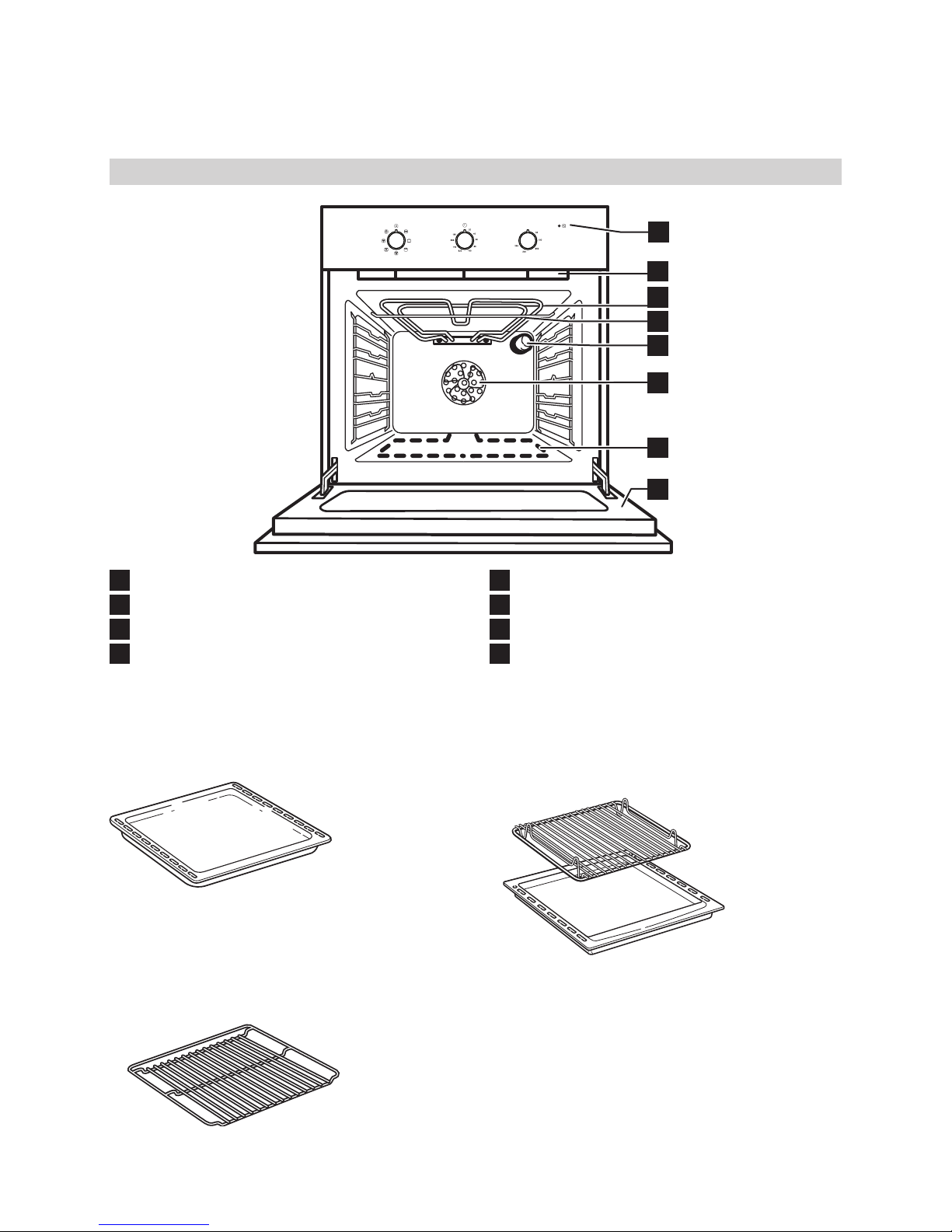

Productdescription
1 Control panel
2 Cooling fan (not visible)
3 Upper heating element
4 Grill element
5 Rear oven lamp
6 Oven fan
7 Lower heating element (hidden)
8 Oven door
Accessories
Baking tray
1x
Wire Shelf
1x
Grill Pan Set / Drip tray
1x
1
2
3
4
5
6
8
7
If you want to buy an accessory, call the Authorized Service Centre.

ENGLISH 8

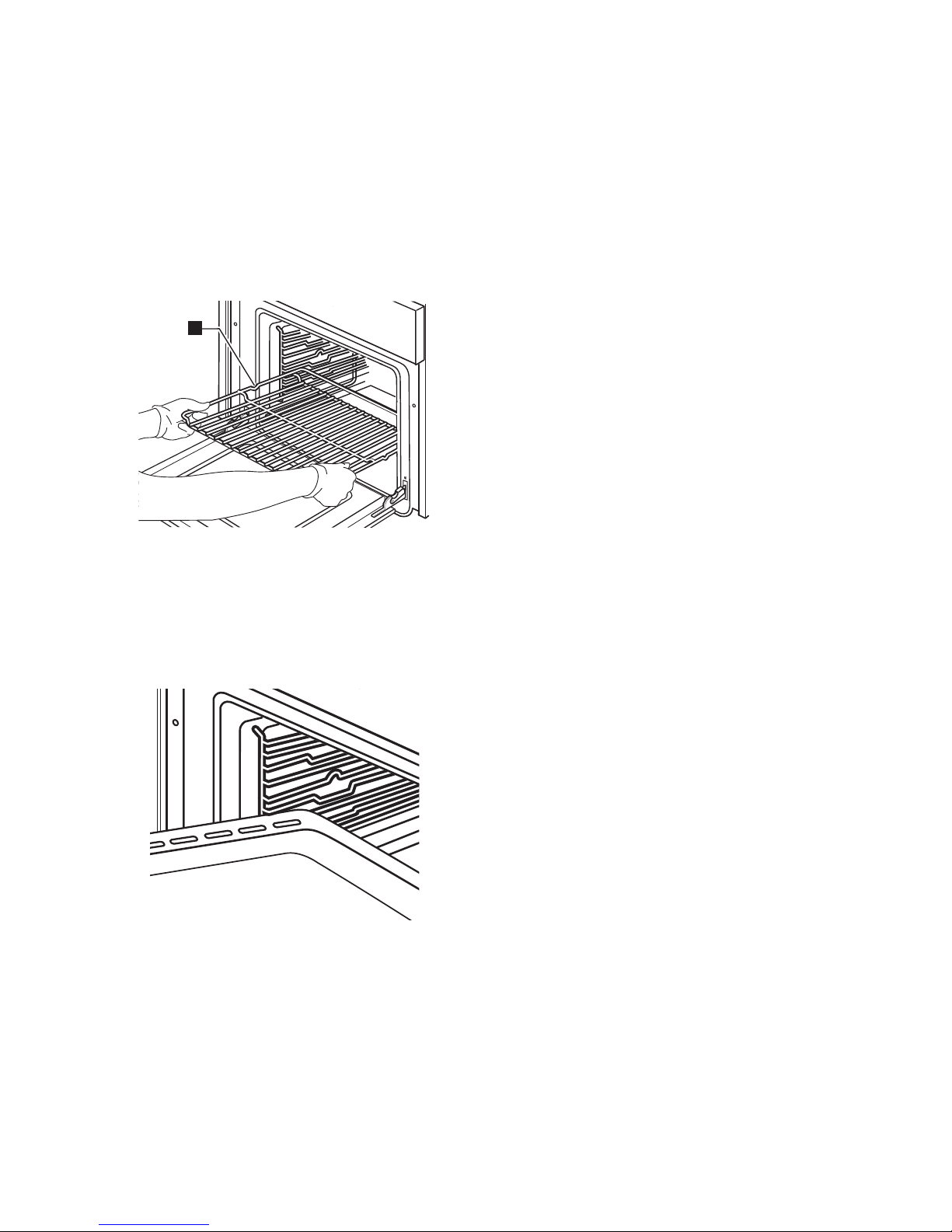

Insertingwireshelvesandother
accessoriesintheoven
1. Insert the wire shelf horizontally, with the
raised part “A” upwards (Fig. 1).
A
Fig. 1
2. Other accessories, such as the drip tray
and baking tray, are inserted in the
same way as the wire shelf (Fig. 2).
Fig. 2

ENGLISH 9

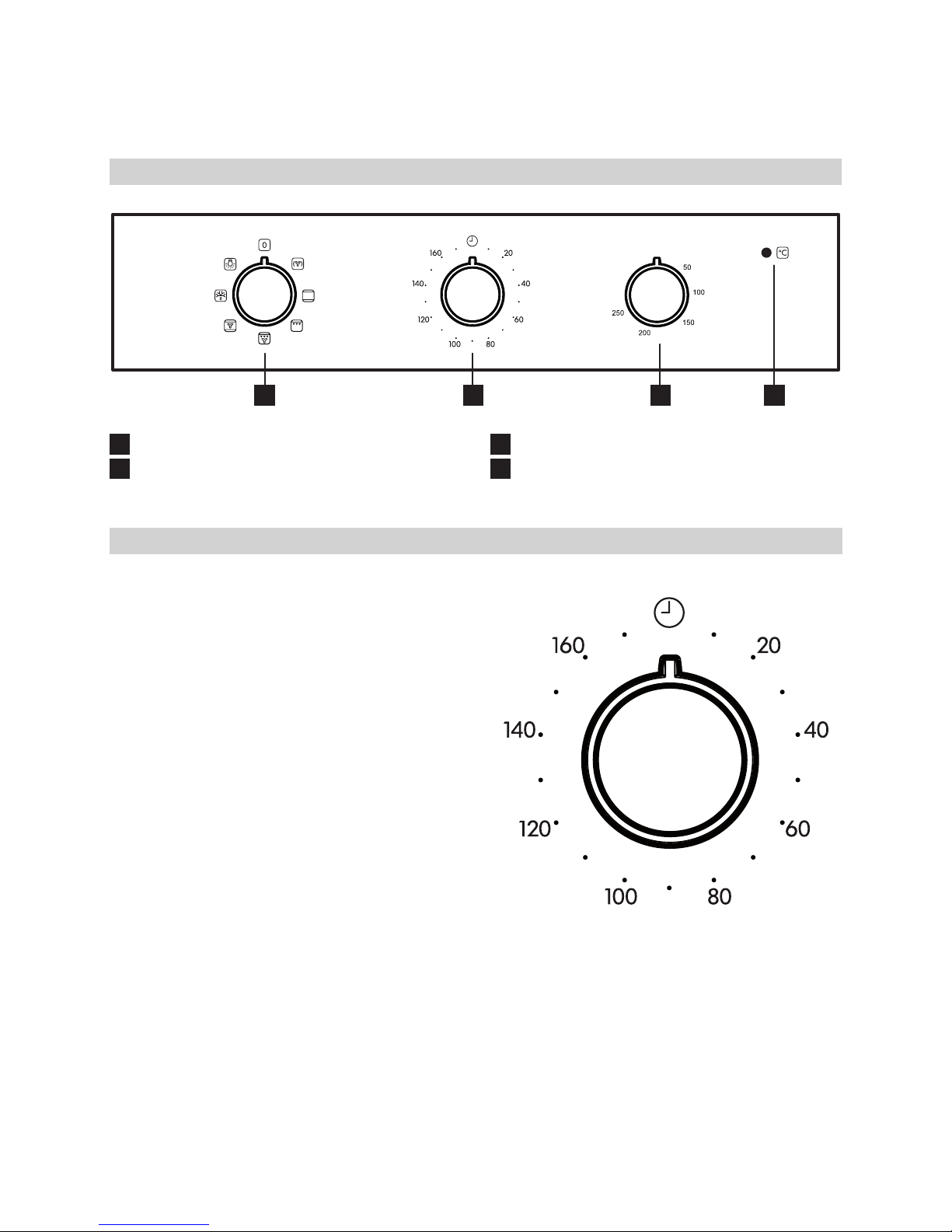

A Function selector knob
B Cooking time selector
C Thermostat knob
D Thermostat indicator light (red)
Controlpanel
A B C D
Switchingontheoven
Turn the selector knob to the required
function. The oven light switches on.
Turn the thermostat knob clockwise to the
required temperature. The red thermostat
led lights up, switching off again
when the oven reaches the selected
temperature. At the end of cooking, turn the
knobs to “0”.
Cookingtimeselector
To start the timer time rotate the knob 360°
and then position to the requested timing.
This selector can be used to set a cooking
time of between 1 and 180 minutes.
To set cooking time, after selecting the
required cooking function, turn the knob
right round in a clockwise direction and then
turn it back in the opposite direction to the
desired cooking duration.
Dailyuse

ENGLISH 10
Ovenfunctionstable
The oven has 4 cooking levels. Count up from the lower level.
Function Descriptionoffunction
0OVENOFF -
FORCEDAIR To cook a variety of food requiring the same cooking
temperature on a maximum of two shelves at the same time
(e.g.: sh, vegetables, cakes). This function can be used to cook
different foods without odours being transferred from one food
to another. Use the 2rd level to cook on one shelf only. To cook
on two shelves, use the 1st and 3rd levels. Preheat the oven to
the required temperature and place the food in it when the set
temperature is reached.
CONVENTIONAL
(TopandBottom
Heat)
Function suitable for cooking any type of dish on one level.
Preheat the oven to the required temperature and place the
food in it when the set temperature is reached. It is advisable to
use the second level for cooking.
DUALGRILL To grill steak, kebabs and sausages, to cook vegetables au
gratin and to toast bread. Preheat the oven for 3 - 5 min. It is
advisable to use the 4th level for cooking. During cooking the
oven door must remain closed. When cooking meat, pour a
little water into the drip tray (on the 3rd level) to reduce smoke
and fat spatters. The oven door must be kept closed during the
cooking cycle.
GRILLING
WITHFAN
To grill large joints of meat (roast beef and other roast meats).
The oven door must be kept closed during the cooking cycle.
When cooking meat, it is advisable to pour water in the drip
tray placed on the rst/second level. This will reduce smoke and
spattering of fat. Turn the meat during grilling. The door must be
kept closed during this cooking cycle.
CONVECTION
BAKE
For baking cakes with liquid lling (sweet or savoury), on one
level. If necessary, change the positions of the dishes on the shelf
to cook food more evenly.
DEFROST This function can be used to speed up the thawing of food at
room temperature. The food should be placed in the oven in its
wrapping to prevent it from drying out. It is advisable to use the
central level for cooking.
LIGHT To switch on the oven light.

ENGLISH 11
Cookingtables
Typeoffood Function Preheating Level(fromthe
bottom)
Temperature
(°C)
Cookingtime
(min)
SWEETS, PASTRY, ETC
Leavened cakes X 2 160-180 30-90
X 1-3 160-180 30-90
Filled pies
(cheesecake,
strudel, fruit pie)
X 2 160-200 30-85
X 1-3 160-200 35-90
Biscuits/tartlets X 2 170-180 15-45
X 1-3 160-170 20-45
Choux buns X 2 180-200 30-40
X 1-3 180-190 35-45
Meringues X 2 90 110-150
X 1-3 90 130-150
Bread/pizza/
focaccia
X 2 190-250 15-50
X 1-3 190-250 25-50
Frozen pizza X 1-3 250 10-15
X 2 250 10-20
Savoury pies
(vegetable pie,
quiche)
X 2 180-190 35-45
X 1-3 180-190 45-60
Vols-au-vent /Puff
pastry crackers
X 2 190-200 20-30
X 1-3 180-190 20-40
Lasagne, baked
pasta, cannelloni,
ans
X 2 190-200 45-55
Lasagna & Meat X 1-3 200 45-100
Meat & Potatoes X 1-3 200 45-100
Fish & Vegetables X 1-3 180 30-50

ENGLISH 12
Typeoffood Function Preheating Level(fromthe
bottom)
Temperature
(°C)
Cookingtime
(min)
MEAT
Lamb/Veal/Beef/
Pork 1Kg
X 2 190-200 70-100
Chicken/Rabbit/
Duck 1Kg
X 2 200-230 50-100
Turkey/Goose
3Kg
X 1/2 190-200 80-130
FISH
Baked sh/en
papillote (llet,
whole)
X 2 180-200 40-60
VEGETABLES
Stuffed vegetables
(tomatoes,
courgettes,
aubergines)
X 2 180-200 50-60
CookingtablewithGRILLfunction
Typeoffood Function Preheating Level(fromthe
bottom)
Temperature
(°C)
Cookingtime
(min)
Toast – 4 200 2-5
Fish llets /
steaks
– 4 200 20-35
Sausages/
kebabs/
spare ribs/
hamburgers
– 4 200 15-40
Roast chicken
1-1.3 Kg
– 2 200 50-65
Roast beef
rare 1 Kg
– 2 200 35-45
Leg of lamb/
knuckle
– 2 200 60-90
Roast
potatoes
– 2 200 45-55
Vegetable
gratin
– 2 200 10-20
Note: cooking temperatures and times are for guidance only.

ENGLISH 13
Cleaningandmaintenance
CLEANING
WARNING!
- Never use steam cleaning equipment.
- Only clean the oven when it is cool to
the touch.
- Disconnect the appliance from the
power supply.
Ovenexterior
i
IMPORTANT: do not use corrosive or
abrasive detergents. If any of these
products accidentally comes into contact
with the appliance, clean immediately with
a damp cloth.
• Clean the surfaces with a damp cloth.
If it is very dirty, add a few drops of
washing up detergent to the water.
Finish off with a dry cloth.
Oveninterior
i
IMPORTANT: do not use abrasive
sponges or metallic scrapers or scourers.
Over time, these can ruin enamelled surfaces
and the oven door glass.
• After every use, allow the oven to cool
then clean it preferably while it is still
warm in order to remove built-up dirt
and stains caused by food residues (e.g.
food with a high sugar content).
• Use proper oven detergents and follow the
manufacturer’s instructions to the letter.
• Clean the door glass with a suitable
liquid detergent. The oven door can
be removed to facilitate cleaning (see
MAINTENANCE). Inner glass is smooth
to facilitate cleaning.
NOTE: during prolonged cooking of foods
with a high water content (e.g. pizza,
vegetables, etc.) condensation may form on
the inside of the door and around the seal.
When the oven is cold, dry the inside of the
door with a cloth or sponge.
Accessories
• Soak the accessories in water with
washing up detergent immediately after
use, handling them with oven gloves if
still hot.
• Food residues can be easily removed
using a brush or sponge.

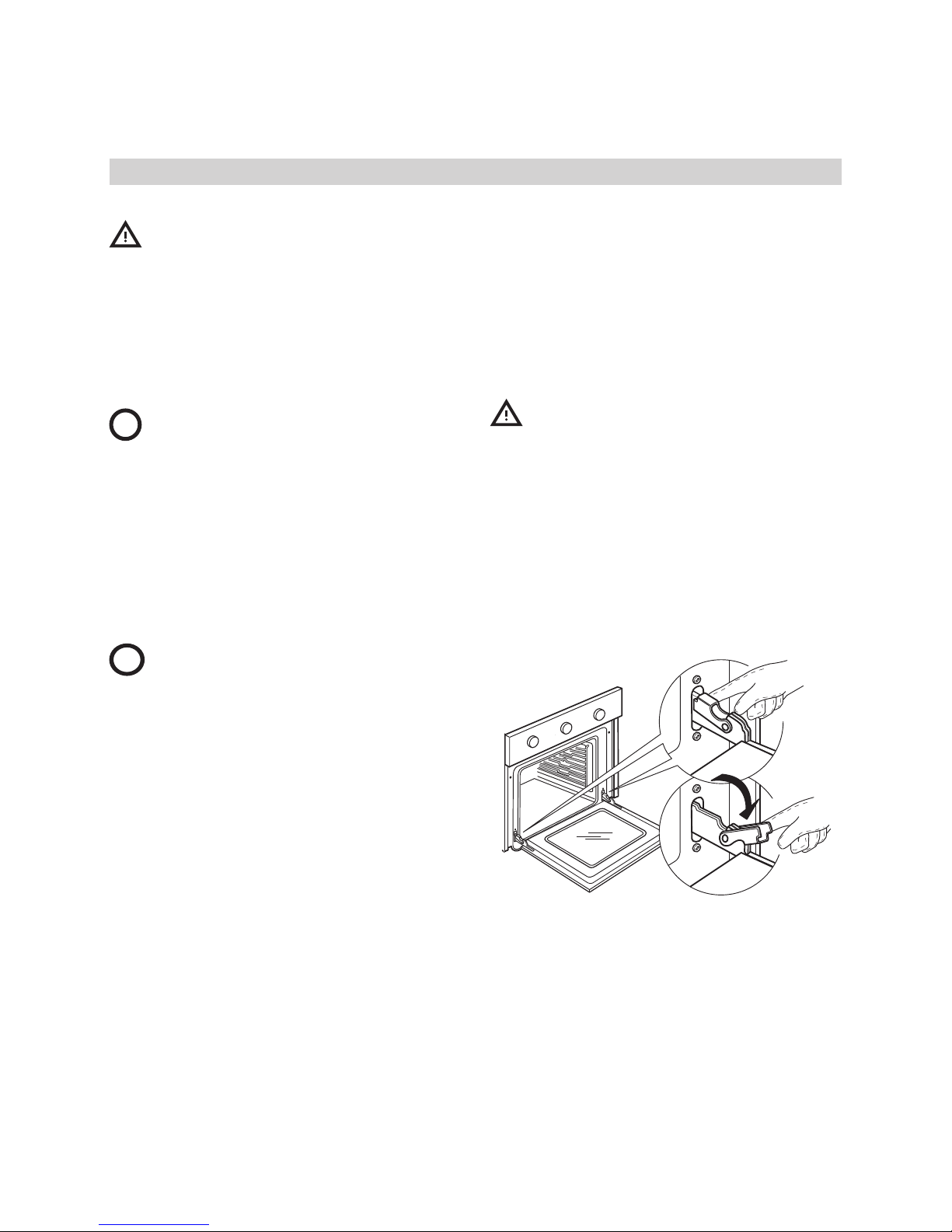

MAINTENANCE
WARNING!
- Use safety gloves.
- Ensure the oven is cold before carrying
out the following operations.
- Disconnect the oven from the power supply.
Toremovethedoor
1. Open the door fully.
2. Lift the catches and push them forwards
as far as they will go (Fig. 1).
Fig. 1

ENGLISH 14

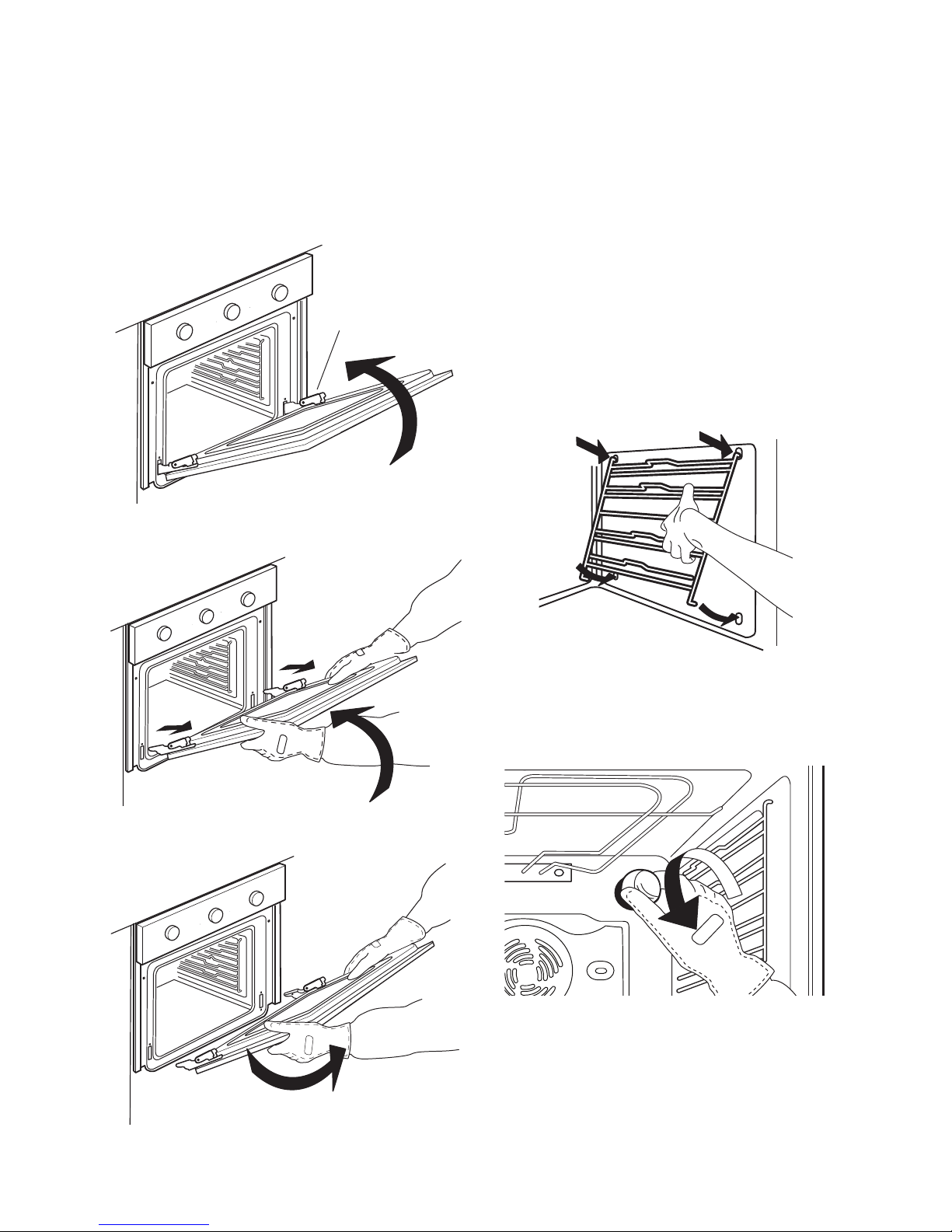

3. Close the door as far as it will go (A), lift
it up (B) and turn it (C) until it is released
(D) (Fig. 2, 3, 4).
A
Fig. 2
B
B
C
Fig. 3
D
Fig. 4
Toretthedoor
1. Insert the hinges in their seats.
2. Open the door fully.
3. Lower the two catches.
4. Close the door
Toremovelateralgrids
Move the lateral grid upwards until the two
lower terminals are released, then rotate the
grid towards the center of the compartment.
To re-position the grid, perform the above
operations in reverse.
1
2
Toreplacetherearlamp
1. Disconnect the oven from the power
supply.
Fig. 5
2. Unscrew the lamp cover (Fig. 5), replace
the lamp (see note for lamp type) and
screw the lamp cover back on.
3. Reconnect the oven to the power supply.

ENGLISH 15
Problem Possiblecause Solution
The oven does not work. No presence of mains
electrical power.
Verify the presence of mains
electrical power.
The oven is not
connected to the
electrical supply.
Connect the oven to the
power supply.
‘The oven selector is
turned to “0”.
Turn the oven selector and
select a cooking function.
The oven selector is
turned to “ ”.
Turn the oven selector and
select a cooking function.
Whattodoif...
BeforecallingtheAuthorizedService
Centre:
1. See if you can solve the problem
yourself with the help of the suggestions
given in the “What to do if ...” table.
2. Switch the appliance off and back on
again it to see if the fault persists.
If after the above checks the fault still occurs,
contact IKEA Authorized Service Centre.
Always specify:
• a brief description of the fault;
• the type and exact model of the oven;
• the service number (number after the
word Service on the rating plate),
located on the right hand edge of the
oven cavity (visible when the oven door
is open);
• your full address;
• your telephone number.
If any repairs are required, please contact
IKEA Authorized Service Centre (to
guarantee that original spare parts will be
used and repairs carried out correctly).
NOTE:
- Only use 40W/230 V type G9, T300°C
halogen lamps.
- The lamp used in the appliance is
specically designed for electrical
appliances and it is not suitable
for household room illumination
(Commission Regulation (EC) No
244/2009).
- Lamps are available from IKEA
Authorized Service Centre.

ENGLISH 16
Technicaldata
Type of product: Built-in Electrical Oven
Model identication:
REALISTISK 40322046, TJÄNLIG 70322059, TJÄNLIG 50322060
Number of cavities 1
Heat source Electrical
Number of functions 6
Usable volume. Measured with any side grids and catalytic panels removed l 65
Area of the largest baking sheet cm21200
Energy Efciency Class (Lowest Consumption) A
Energy Efciency Index 106,9
Energy consumption
Conventional function (with a standard load and top + bottom heating)
kWh/cycle
0,87
Energy consumption
Fan Forced function (with a standard load and forced air heating)
kWh/cycle
0,87
Top heating element W 1400
Bottom heating element W 1150
Grill heating element W 1400
Fan heating element W 2000
Cooling fan W 12-21
Oven lamp W 40
Oven Fan Wattage W 12-21
Total rating W 2600
Dimensions
Width mm 595
Height mm 595
Depth mm 564
According to EU 66/2014.

ENGLISH 17
After unpacking the oven, make sure that
it has not been damaged during transport
and that the oven door closes properly. In
the event of problems, contact the dealer or
your nearest Authorized Service Centre. To
prevent any damage, only remove the oven
from its polystyrene foam base at the time
of installation.
Preparingthehousingunit
• Kitchen units in contact with the oven
must be heat resistant (min 90°C).
• Carry out all cabinet cutting work before
tting the oven in the housing and
remove all wood chips and sawdust.
• After installation, the bottom of the oven
must no longer be accessible.
• For correct appliance operation, do
not obstruct the minimum gap between
the worktop and the upper edge of the
oven.
Generalrecommendations
Beforeuse
- Remove cardboard protection pieces,
protective lm and adhesive labels from
accessories.
- Do not remove the rating plate situated
on the right side of the door frame.
- Remove the accessories from the oven
and heat it at 200° for about an hour
to eliminate the smell and fumes from
the insulating materials and protective
grease.
Duringuse
- Do not place heavy objects on the door
as they could damage it.
- Do not cling to the door or hang
anything from the handle.
- Do not cover the inside of the oven with
aluminium foil.
- Never pour water into the inside of a
hot oven; this could damage the enamel
coating.
- Never drag pots or pans across the
bottom of the oven as this could damage
the enamel coating.
- Make sure that the electrical cables of
other appliances do not touch hot parts
of the oven or become trapped in the
door.
- Do not expose the oven to atmospheric
agents.
Installation
Technicaldata
The technical informations are situated in
the rating plate inside the appliance.

ENGLISH 18

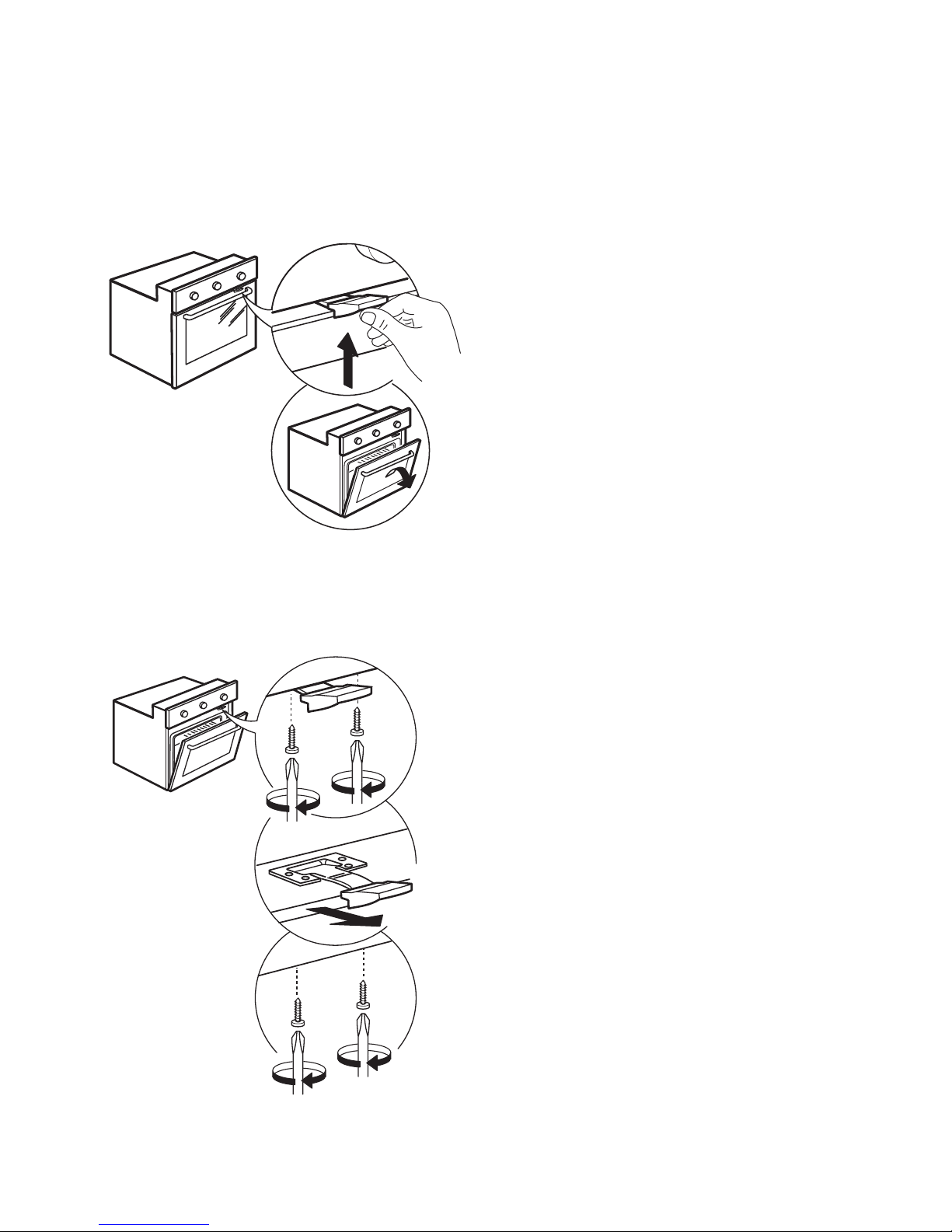

Doorlockdevice
To open the door with the door lock device
see Fig 1.
Fig. 1
The door safety device can be removed
by following the sequence of images (see
Fig. 2).
Fig. 2

ENGLISH 19

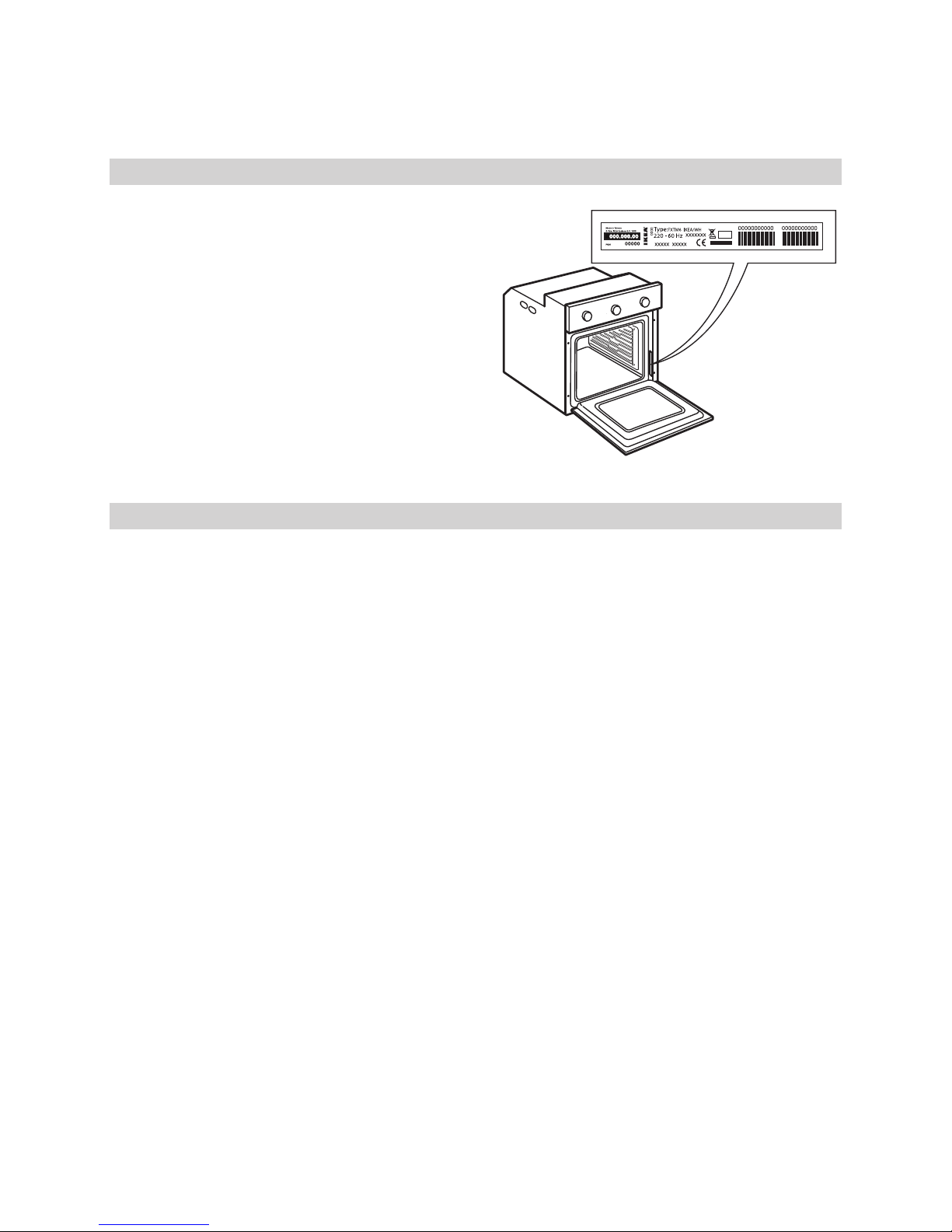

Make sure the power voltage specied on
the appliance rating plate is the same as
the mains voltage. The rating plate is on
the front edge of the oven (visible when the
door is open).
Power cable replacement (type H05 RR-F 3
x 1,5 mm2) must be carried out by a qualied
electrician. Contact IKEA Authorized Service
Centre.

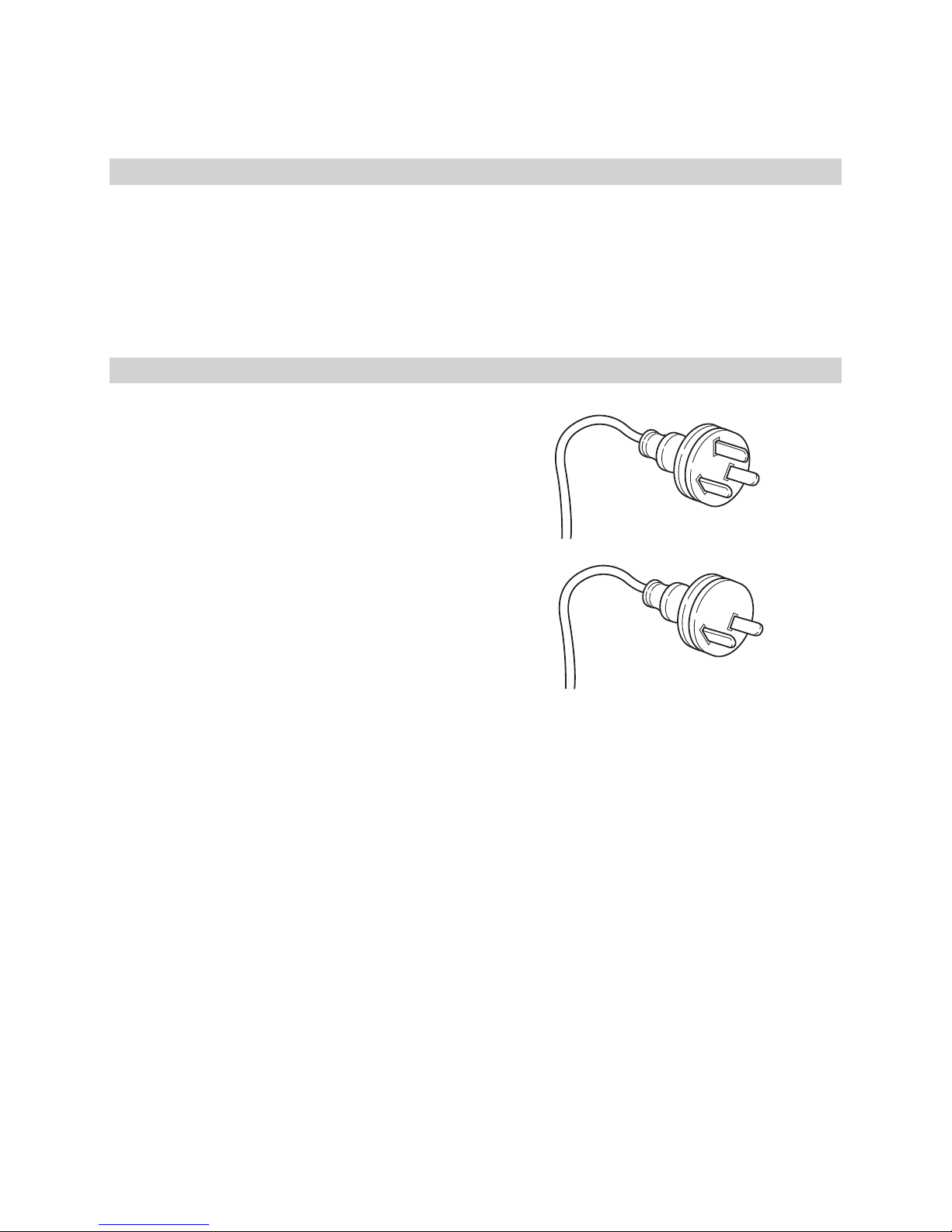

Electricalconnection
ElectricalconnectionforAustralia
Power Cord and Plug: Declared Article –
Mandatory Approval Applies:
Current Australian Approval Certicates will
need to be forwarded, showing compliance
with applicable Australian Standards, as
noted below. Plug to have insulated pins.
Plug and Cord to have approval marking,
as required by the relevant Approval
Certicate
· AS/NZS 3112: 2004 with Amendment 1, for
Plug
· AS 3191: 2008, for Cord, or;
· ‘HAR’ Certication, for Cord

ENGLISH 20
Disposalofpackingmaterial
- The packing material is 100% recyclable
and is marked with the recycle
symbol ( ). The various parts of the
packing must therefore be disposed of
responsibly and in full compliance with
local authority regulations governing
waste disposal.
Scrappingtheproduct
- This appliance is marked in compliance
with European Directive 2012/19/
EU, Waste Electrical and Electronic
Equipment (WEEE).
- By ensuring this product is disposed
of correctly, you will help prevent
potential negative consequences for
the environment and human health,
which could otherwise be caused by
inappropriate waste handling of this
product.
- The symbol on the product or
on the accompanying documentation
indicates that it should not be treated
as domestic waste but must be taken
to an appropriate collection centre for
the recycling of electrical and electronic
equipment.
Energysavingtips
- Only pre-heat the oven if specied in
the cooking table or your recipe.
- Use dark lacquered or enamelled
baking moulds as they absorb heat far
better.
- Switch the oven off 10/15 minutes before
the set cooking time. Food requiring
prolonged cooking will continue to cook
even once the oven is switched off.
Declarationofconformity
- This oven, which is intended to come
into contact with foodstuffs, complies
with European Regulation ( )
n. 1935/2004 and has been designed,
manufactured and sold in conformity
with the safety requirements of the
“Low Voltage” directive 2006/95/
CE (which replaces 73/23/CEE and
subsequent amendments), the protection
requirements of “EMC” 2004/108/CE.
- This appliance meets the eco design
requirements of european regulations n.
65/2014 and 66/2014 in conformity to
the european standard EN 60350-1.
Environmentalconcerns
