IKEA GENOMKYLD User manual

GENOMKYLD
HC-705WEN

ENGLISH 4

CONTENTS
SAFETY INFORMATION 5
SAFETY INSTRUCTIONS 6
INSTALLATION 7
PRODUCT DESCRIPTION 8
OPERATION 10
FIRST USE 11
DAILY USE 12
HINTS AND TIPS 15
CARE AND CLEANING 16
TROUBLESHOOTING 17
TECHNICAL INFORMATION 18
ENVIRONMENTAL CONCERNS 18
IKEA GUARANTEE 18
ENGLISH

5
SAFETY INFORMATION
Before the installation and use of the
appliance, carefully read the supplied
instructions. The manufacturer is not
responsible if an incorrect installation and
use causes injuries and damages. Always
keep the instructions with the appliance for
future reference.
Children and vulnerable people safety
• This appliance can be used by children
aged from 8 years and above and
persons with reduced physical, sensory
or mental capabilities or lack of
experience and knowledge if they have
been given supervision or instruction
concerning use of the appliance in a
safe way and understand the hazards
involved.
• Do not let children play with the
appliance.
• Cleaning and user maintenance shall not
be made by children without supervision.
• Keep all packaging away from children.
General safety
• This appliance is intended to be used in
household and similar applications such
as:
─Farm houses; staff kitchen areas
in shops, ofces and other working
environments.
─By clients in hotels, motels, bed and
breakfast and other residential type
environments.
─Catering and similar non-retail
applications.
• This type of refrigerator is widely used
in places such as hotels, ofces, student
dormitories and houses. It is mostly
suitable for refrigerating and preserving
foods such as fruits and beverage.
• Keep ventilation openings, in the
appliance enclosure or in the built-in
structure, clear of obstruction.
• Do not use mechanical devices or other
means to accelerate the defrosting
process, other than those recommended
by the manufacturer.
• Do not damage the refrigerant circuit.
• Do not use electrical appliances inside
the food storage compartments of the
appliance, unless they are of the type
recommended by the manufacturer.
• Do not use water spray and steam to
clean the appliance.
• Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do
not use abrasive products, abrasive
cleaning pads, solvents or metal objects.
• Do not store explosive substances
such as aerosol cans with a ammable
propellant in this appliance.
• If the supply cord is damaged, it must
be replaced by the manufacturer, its
Authorised Service Centre or similarly
qualied persons in order to avoid a
hazard.

6
SAFETY INSTRUCTION
Installation
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Obey the installation instruction supplied
with the appliance.
• Always be careful when you move the
appliance because it is heavy. Always
wear safety gloves.
• Make sure the air can circulate around
the appliance.
• Wait at least 4 hours before connecting
the appliance to the power supply.
This is to allow the oil to ow back in
the compressor. This is needed also
when performing door reversibility and
appliance is lying down.
• Do not install the appliance close to
radiators or cookers, oven or hobs.
• The rear of the appliance must stand
against the wall.
• Do not install the appliance where there
is direct sunlight.
• Do not install this appliance in areas that
are too humid or too colds, such as the
construction appendices, garages or wine
cellars.
• When you move the appliance, lift it by
the front edge to avoid scratching the
oor.
Electrical connection
Warning! Risk of re and electrical shock.
• The appliance must be earthed.
• All electrical connections should be made
by a qualied electrician.
• Make sure that the electrical information
on the rating plate agrees with the power
supply. If not, contact an electrician.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to the
electrical components (e.g. mains plug,
mains cable, compressor). Contact
the Authorised Service Centre or an
electrician to change the electrical
components.
Use
Warning! Risk of injury, burns, electrical
shock or re.
• The surface of the compressor becomes
hot: The surface of the compressor may
become hot under normal operation. Do
not touch it with hands.
• Do not change the specication of this
appliance.
• Do not put electrical appliances (e.g.
ice cream makers) in the appliance
unless they are stated applicable by the
manufacturer.
• Be careful not to cause damage to the
refrigerant circuit. It contains isobutane
(R600a), a natural gas with a high level
of environmental compatibility. This gas
is ammable.
• If damage occurs to the refrigerant
circuit, make sure that there are no
ames and sources of ignition in the
room. Ventilate the room.
• Do not let hot items to touch the plastic
parts of the appliance.
• Do not put soft drinks in the freezer
compartment. This will create pressure
on the drink container.
• Do not store ammable gas and liquid in
the appliance.
• Do not put ammable products or items
that are wet with ammable products in,
near or on the appliance.
• Do not touch the compressor or the
condenser. They are hot.
• Do not remove or touch items from the
freezer compartment if your hands are
wet or damp.
• Do not freeze again food that has been
thawed.
• Obey the storage instructions on the
packaging of frozen food.

7
Care and cleaning
Warning! Risk of injury or damage to the
appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains plug
from the mains socket.
• This appliance contains hydrocarbons
in the cooling unit. Only a qualied
person must do the maintenance and the
recharging of the unit.
• Regularly examine the drain of the
appliance and if necessary, clean it. If
the drain is blocked, defrosted water
collects in the bottom of the appliance.
Disposal
Warning! Risk of injury or suffocation.
• Disconnect the appliance from the mains
supply.
• Cut off the mains cable and discard it.
• Remove the door to prevent children and
pets to be closed inside of the appliance.
• The refrigerant circuit and the insulation
materials of this appliance are
ozonefriendly.
• The insulation foam contains ammable
gas. Contact your municipal authority
for information on how to discard the
appliance correctly.
• Do not cause damage to the part of
the cooling unit that is near the heat
exchanger.
INSTALLATION
Warning! Refer to Safety chapters.
Positioning
• Do not install it in high temperature
of humidity. Place so as to avoid being
damaged, fampened and rusted.
• This appliance should be installed in a
dry, well ventilated indoor where the
ambient temperature corresponds to
the climate class indicated on the rating
plate of the appliance:
Climate class Ambient temperature
SN +10°C to + 32°C
N +16°C to + 32°C
ST +16°C to + 38°C
T +18°C to + 43°C
Note: Some functional problems might occur
for some types of models when operating
outside of that range. The correct operation
can only be guaranteed within the specied
temperature range. If you have any doubts
regarding where to install the appliance,
please turn to the vendor.
Location
To ensure best performance, install the
appliance well away from sources of heat
such as radiators, boilers, direct sunlight
etc. Make sure that air can circulate freely
around the back of the cabinet.
Warning! There shall be a space not less
than 30cm from the top of your refrigerator
and not less than 10cm from both sides or
the back of the refrigerator to the adjacent
walls respectively. This requirement is good
for open and close of the door and also for
heat emission.
Electrical connection
Before plugging in, ensure that the voltage
and frequency shown on the rating plate
correspond to your domestic power supply.
Do not use extension cords. The appliance
must be earthed. The power supply cable
plug is provided with a contact for this
purpose. If the domestic power supply

8
socket is not earthed, connect the appliance
to a separate earth in compliance with
current regulations, consulting a quali ed
electrician.
The manufacture declines all responsibility
if the above safety precautions are not
observed. This appliance complies with the
E.E.C. Directives.
PRODUCT DESCRIPTION
Carefully read the operating instructions
before using the appliance.
1
5
2
4
3
7
6
8
10
9
11
13
12
1. Display
2. Left door for refrigerator compartment
3. Upper door for freezer compartment
4. Lower door for freezer compartment
5. Door handle right for refrigerator
compartment
6. Right door for refrigerator compartment
7. Drawer handle
8. Manual ice maker
9. Ice scoop
10. Partition plate for lower freezer drawer
11. Partition plate for upper freezer drawer
12. Upper freezer drawer
13. Lower freezer drawer

9
7
8
9
6
5
1
10
2
3
4
11
12
13
14
15
16
17
18
19
20
21
22
1. Left door for refrigerator compartment
2. Cantilever rack
3. Turnover beam
4. Sliding cantilever rack
5. Fruit and vegetable drawer
6. Small drawer
7. Big drawer
8. Drawer handle
9. Leveling leg
10. Switch for refrigerator compartment
lamp
11. Top lamp for refrigerator compartment
12. Right door for refrigerator compartment
13. Butter box
14. Air duct cover plate
15. Folded cantilever rack
16. Side lamp for refrigerator compartment
17. Gallon bottle rack (with Egg bracket)
18. Special-shaped bottle rack
19. Top lamp for freezer compartment
20. Upper door for freezer compartment
21. Lower door for freezer compartment
22. Decorative cover for bottom beam

10
OPERATION
Control buttons
1
3
5
7 17 15 8 9
2
4
6
14 13 12 16 11 10
1. Temperature control
2. "Λ"
3. Super cool mode
4. "V"
5. Energy saving mode
6. Child lock
7. Refrigerator compartment icon
8. Fast-cooling icon
9. Fast-freezing icon
Initial power-on status
11, 12, 14, 15 and 16 turn on at initial
power-up. 8, 9, 10, 13 and 17 do not turn
on.
Locking and unlocking
In the unlock state (icon 11 does not turns
on), push the key 6 to enter the lock state
and icon 11 turns on. In the lock state, push
and hold the key 6 for 3 seconds, icon 11
turns off and the lock is cancelled. In the
unlock state, in case of no other input of any
pushing after 25 seconds, it enters the lock
state automatically.
10. Energy-saving icon
11. Locked icon
12. Refrigerator indicate
13. Freezer indicate
14. Freezer compartment icon
15. Refrigerator temperature
16. Freezer temperature
17. Off icon: means refrigerator shut down
The below functions can be performed while
in the "Unlocked" status:
Energy saving mode
Entry: push the key 5, the icon 10 turns on.
Choose the energy-saving mode to operate
the refrigeratory, and the mode operated
before will be cancelled. Exit: enter
other modes push the key 2 or 4 to the
set temperature push the key 5. When
each condition mentioned above occurs,
the refrigeratory exits the energy-saving
mode.

11
Fast-cooling mode
Entry: push the key 3, the icon 8 turns
on. Choose the quick cooling mode to
operate the refrigerator. If the refrigerator
is operating in the energy saving mode, the
energy saving mode exits.
Exit: enter the energy saving mode
push the key 2 or 4 to the set temperature
push the key 3. When each condition
mentioned above occurs, the refrigeratory
exits the quick cooling mode.
Fast-freezing mode
Entry: push and hold the key 3 for 3
seconds, the icon 9 turns on. Choose the
quick-freeze mode to operate the freezer. If
the freezer is operating in the energy-saving
mode, the energy-saving mode exits. Exit:
enter the energy-saving mode push the
key 2 or 4 push and hold the key 3 for 3
seconds. When each condition mentioned
above occurs, the quick-freeze mode exits.
To set the temperature of the
refrigerator compartment
Push the key 1until the display changes to
refrigerator temperature setting. The icon
124 turns on. Push the key 2 or 4 once, and
the refrigerator setting temperature changes
1°C according to the regulation of "(8)- (2)
-(8)".
To set the temperature of the freezer
compartment
Push the key 1 until the display changes to
the freezer temperature setting. The icon
turns on. Push the key 2 or 4 once, and the
freezer setting temperature changes 1°C
according to the regulation of "(-15)- (-24)-
(-15)".
Backlight action
When the refrigerator/ freezer door is open
or any button is pressed,the Function Display
Screen will become illuminated.If no button
is pressed and the refrigerator/freezer door
has remained open for 30 seconds,the
Function Display will turn off.
FIRST USE
Cleaning the interior
Before using the appliance for the  rst time,
wash the interior and all internal accessories
with lukewarm water and same neutral soap
so as to remove the typical smell of a brand-
new product, then dry thoroughly.
Connecting Your refrigerator to the
power supply
Your refrigerator will enter the ex-factory
default state after connecting to the power
supply and it will display target temperature
for the refrigerator compartment and freezer
compartment.
Work modes of Your refrigerator
You can set your refrigerator in either of the
following two ways:
Auto mode
We suggest you choosing this mode if
you have no special requirements. Your
refrigerator will work automatically after you
chose this mode.
Manual mode
You can set the temperature by pressing
the temperature adjustment key. Please see
previous chapter.
Important! Do not use detergents or
abrasive powders, as these will damage the
nish.
You ought to get a good knowledge of all
safety precautions and make sure that your
refrigerator has been placed properly in its
nal position before using.
Refrigerator compartment
Though the temperature-adjustable
device could keep most of the refrigerator
compartment at an average temperature
around 2~8°C, it fails to preserve the
freshness of food for long. As a result, the
refrigerator compartment can be used only
for shortterm storage.

12
DAILY USE
Use of turnover beam
Please keep strictly to the warnings on the
label of the turnover beam. It is a normal
phenomenon that the surface of the turnover
beam is hot. Dews on the surface are also
normal in summer or when the surrounding
environment is wet. What you need to do is
to clean them away with cloth.
Tips: The interior temperature may require a
certain period of time to reach balance if the
setting temperature is changed or other food
is put into the refrigerator. Such a period of
time depends on the change to the setting
temperature, the surrounding temperature,
opening frequency, the amount of the stored
food and etc.
Big drawer
Pull out and install the big drawer:
A
1. Pull out the big drawer.
2. Find the hook at the left and right sides
at the drawer bottom (shown in the
gure).
3. Hold the hook at two sides with a nose
pliers or tweezers and push it up and out
of the groove of sliding rail (A), and take
out the hook at the other side with the
same method.
4. Take out the drawer.
5. Install the drawer by putting the hook
into the right place.
Note: The big drawer has a maximum load
of 10kg.
Cantilever rack
The cantilever rack could be adjusted to the
proper height as required by food. Please
adjust the cantilever rack by following the
arrows as shown in the diagram. Raise it
upward rst and then take it out by tilting it
upward. During installation, put the upper
end of the xed leg into one of the upper
slots on the supporting iron rst and then
put the lower end of the xed leg into the
third slot on the lower part of the supporting
iron.
Door-mounted bottle rack
Remove the door-mounted bottle rack by
rst lifting it straight up:

13
Lower freezer drawer
Removal of the lower freezer drawer:
1. Pull out the lower freezer drawer rst.
2. Take out the two xed screws from
the partition plate of the lower freezer
drawer with screw driver and then take
off the partition plate (Fig.1).
3. Take off the rear stopper for the lower
drawer as shown by Fig.2.
4. Take out the lower drawer body with
force as directed by the arrows in Fig.3.
5. The installation of the lower drawer body
is conducted in the reverse order. You
should install the lower drawer body
rst and then install the rear stopper
for the lower drawer (reverse to Fig.2).
Finally, both sides of the drawer shall be
connected to the position shown by the
arrows respectively.
6. The partition plate is installed into the
corresponding slots and then is xed
with screws. The position of the partition
plate for the lower drawer could be
adjusted according to your preference.
Note: Do not remove the lower freezer
drawer if not necessary.

14
Extendable Shelves
This fridge is equipped with one extendable
shelf to lower left shelf as default, and rest
3 shelves with xed screws. If the screws in
the bottom of the xed shelves are removed,
the other shelves are also slideable and
extendable:
2x
Ice maker & Water Cup
This fridge is equipped with twist ice maker,
which is located inside of the top freezer.
1. Use the water cup to pour water from
the 2 entrances until the water tray is
full of water.
2. Wait at least 6 hours then the water will
be frozen. Pull out the freezer drawer,
and press the key downwards on the
icemaker to twist the ice tray.
The ice cube will fall into the storage box
below.
3. Remove the ice maker from storage box,
and use the ice shovel to take out the ice
cubes.
4. If you want more ice, pour water once
again from the entrances.
6h

15

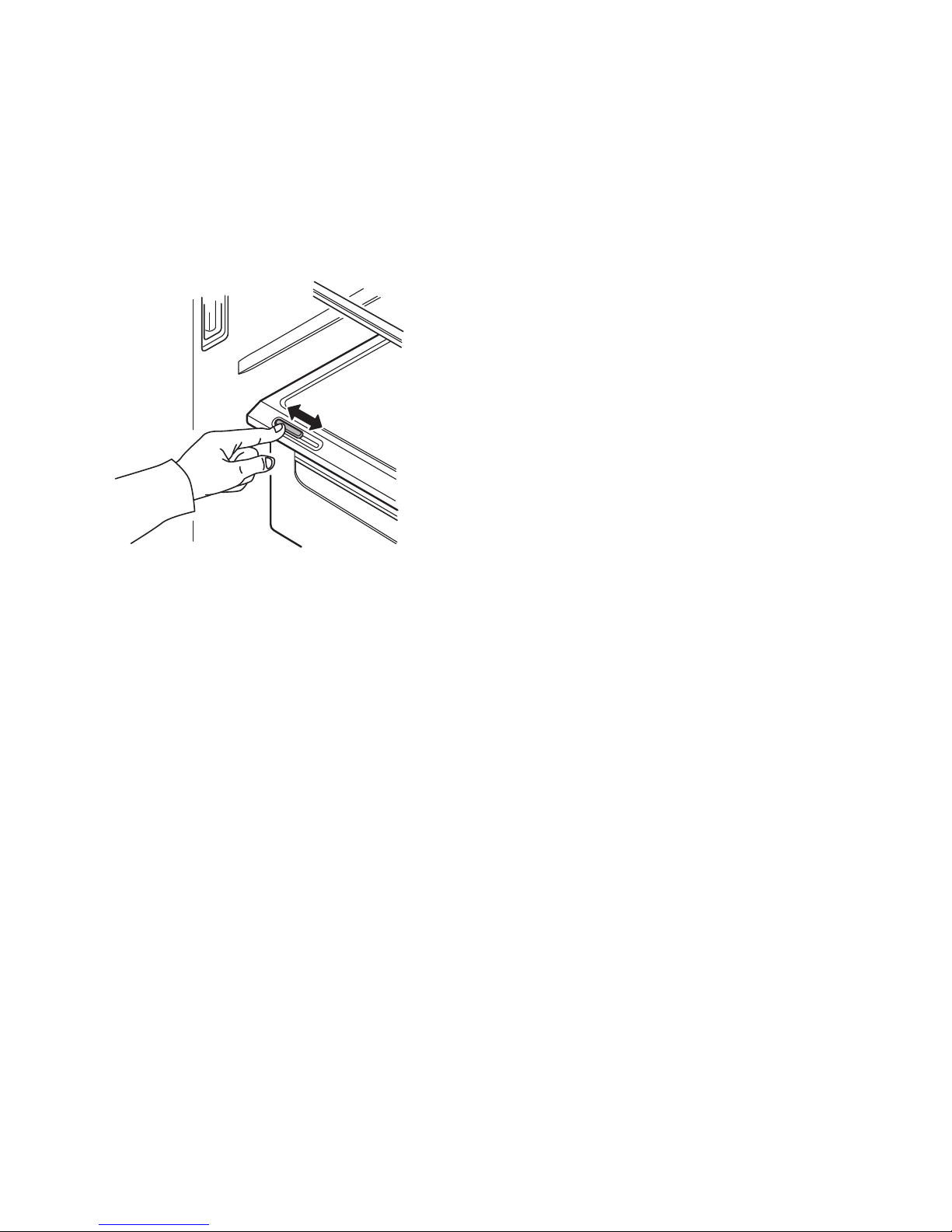

Humidity Control Drawer
The air ow in the drawer can be reduced
and increased by using the levers on the
Drawer frame. These settings simply open
or close a window in the drawer. For the low
humidity setting (high airow), the window
is completely open; for the high humidity
setting (low airow), it is completely closed.
HINTS AND TIPS
Normal operating sounds
The following sounds are normal during
operation:
• A faint gurgling and bubbling sound from
coils sound when refrigerant is pumped.
• A whirring and pulsating sound from the
compressor when refrigerant is pumped.
• A sudden cracking noise from inside
appliance caused by thermic dilatation
(a natural and not dangerous physical
phenomenon).
• A faint click noise from the temperature
regulator when the compressor switches
on or off.
Hints for energy saving
• Do not open the door frequently or leave
it open longer than absolutely necessary.
• If the ambient temperature is high and
the Temperature Regulator is set to
low temperature and the appliance is
fully loaded, the compressor may run
continuously, causing frost or ice on
the evaporator. If this happens, set
the Temperature Regulator toward
warmer settings to allow automatic
defrosting and so a saving in electricity
consumption.
Hints for fresh food refrigeration
To obtain the best performance:
• Do not store warm food or evaporating
liquids in the refrigerator.
• Do cover or wrap the food, particularly if
it has a strong avour.
• Position food so that air can circulate
freely around it.
Hints for refrigeration
Useful hints:
• Meat (all types): wrap in polythene bags
and place on the glass shelf above the
vegetable drawer.
• For safety, store in this way only one or
two days at the most.
• Cooked foods, cold dishes, etc..: these
should be covered and may be placed on
any shelf.
• Fruit and vegetables: these should be
thoroughly cleaned and placed in the
special drawer(s) provided.
• Butter and cheese: these should be
placed in special airtight containers or
wrapped in aluminium foil or polythene
bags to exclude as much air as possible.
• Bottles: these need a cap and should
be stored on the door bottle shelf, or (if
equipped) on the bottle rack.
• Bananas, potatoes, onions and garlic,
if not packed, must not be kept in the
refrigerator.
Cautions for Use
• The more foods tuff put in or the
more and the longer for once the
door is opened, the more it needs
electric consumption, which even leads
malfunction.
• Better not to place the objects which are
too heavy ,pointed or corrosion on table
board.
• Re-plugging in the power plug at the
interval of over ten minutes.
• Do not store bottled drink in the freezer,
so as to prevent from being broken and
damaging the refrigerator.
• Open the door as less as possible during
power-cut.
• When defrosting, never use any sharp or
metallic objects to remove the frost on
the surface of the evaporator as it will
damage the evaporator.
• Do not touch foods and containers in
the freezing compartment with your
wet hands so as to prevent from being
frostbitten.

16
CARE AND CLEANING
Warning! Refer to Safety chapters.
General warnings
Caution! Unplug the appliance before
carrying out any services.
This appliance contains hydrocarbons in its
cooling unit; maintenance and recharging
must therefore only be carried out by
authorized technicians.
The accessories and parts of the appliance
are not suitable for washing in a dishwasher.
Cleaning the interior
Before using the appliance for the rst time,
the interior and all internal accessories
should be washed with lukewarm water and
some neutral soap to remove the typical
smell of a brand-new product, then dried
thoroughly.
Caution! Do not use detergents or abrasive
powders, as these will damage the nish.
Initial power on
Caution! Before inserting the power plug in
to the outlet and switching on the cabinet for
the rst time, leave the appliance standing
upright for at least 4 hours. This will assure
a sufcient amount of time for the oil to
return to the compressor. Otherwise the
compressor or electronic components may
sustain damage.
Periodic cleaning
Caution! Do not pull, move or damage any
pipes and/or cables inside the cabinet.
Caution! Take care of not to damage the
cooling system.
Caution! When moving the cabinet, lift it by
the front edge to avoid scratching the oor.
The equipment has to be cleaned regularly:
1. Clean the inside and accessories with
lukewarm water and some neutral soap.
2. Regularly check the door seals and wipe
clean to ensure they are clean and free
from debris.
3. Rinse and dry thoroughly.
4. If accessible, clean the condenser
and thecompressor at the back of the
appliance with a brush. This operation
will improve the performance of
the appliance and save electricity
consumption.
This appliance contains hydrocarbons in its
cooling unit maintenance and recharging
must therefore only be carried out by
authorized technicians.

17
TROUBLE SHOOTING
Warning! Refer to Safety chapters.
What to do if...
Problem Possible cause Solution
The appliance does not
operate.
The mains plug is not
connected to the mains socket
correctly.
Switch on the appliance.
Connect the mains plug to
the mains socket correctly.
The mains plug is not
connected to the mains socket
correctly.
Connect a different
electrical appliance to the
mains socket. Contact a
qualied electrician.
The appliance is noisy. The appliance is not supported
properly.
Check if the appliance
stands stable.
The compressor operates
continually.
The room temperature is too
high.
Refer to climate class chart
on the rating plate.
Food products placed in the
appliance were too warm.
Allow food products to
cool to room temperature
before storing.
The temperature in the
appliance is too low/too
high.
The temperature regulator is
not set correctly.
Set a higher/lower
temperature.
The door is not closed
correctly.
Refer to "Closing the door".
The food products'
temperature is too high.
Let the food products
temperature decrease to
room temperature before
storage.
Many food products are stored
at the same time.
Store less food products at
the same time.
The thickness of the frost is
greater than 4-5 mm.
Defrost the appliance.
Open the door only if
necessary.
The door has been opened
often.
The lamp does not work. The lamp is defective. Contact the nearest IKEA
Call Centre or Store.
If your appliance still is not working properly
after making the above checks, contact the
nearest IKEA store.

18
Closing the door
1. Clean the door gaskets.
2. If necessary, adjust the door. Refer to
the assembly instructions.
Lights and replacement
The light is Built-In LED. The lamp unit must
be replaced by authorised Service.
TECHNICAL INFORMATION
Technical data
Product dimensions
Height 1775mm
Width 911 mm
Depth 729 mm
Net volume
Fridge / Freezer 422 / 120 l
Defrost system
Fridge Auto
Freezer Auto
Star rating, Freezer N/A
Noise level 45 dB (A)
Rising time N/A
Freezing capacity N/A
Energy Star rating
(MEPS)
2
Voltage 220 - 240 V
Frequency 50 Hz
Energy
Consupmtion
683 kWh / y
ENVIRONMENTAL CONCERNS
Recycle the materials with the symbol .
Put the packaging in applicable containers
to recycle it. Help protect the environment
and human health and to recycle waste of
electrical and electronic appliances. Do not
dispose appliances marked with the symbol
with the household waste. Return the
product to your local recycling facility or
contact your municipal ofce.
IKEA GUARANTEE
How long is the IKEA guarantee valid?
This guarantee is valid for two (2) years
from the original date of purchase of your
appliance at IKEA. The original sales
receipt is required as proof of purchase.
If service work is carried out under
guarantee, this will not extend the
guarantee period for the appliance.
Who will execute the service?
Contact nearest IKEA store.
What does this guarantee cover?
The guarantee covers faults of the
appliance, which have been caused by faulty
construction or material faults from the
date of purchase from IKEA. This guarantee
applies to domestic use only. The exceptions
are specied under the headline “What is not
covered under this guarantee?” Within the
guarantee period, the costs to remedy the
fault e.g. repairs, parts, labour and travel
will be covered, provided that the appliance
is accessible for repair without special
expenditure. Replaced parts become the
property of IKEA.
What will IKEA do to correct the
problem?
IKEA will examine the product and decide, at
its sole discretion, if it is covered under this
guarantee. If considered covered, IKEA will
then, at its sole discretion, either repair the
defective product or replace it with the same
or a comparable product.
What is not covered under this
guarantee?
• Normal wear and tear.
• Deliberate or negligent damage, damage
caused by failure to observe operating

19
instructions, incorrect installation or by
connection to the wrong voltage, damage
caused by chemical or electrochemical
reaction, rust, corrosion or water
damage including but not limited to
damage caused by excessive lime in
the water supply, damage caused by
abnormal environmental conditions.
• Consumable parts including batteries and
lamps.
• Non-functional and decorative parts
which do not affect normal use of the
appliance, including any scratches and
possible colour differences.
• Accidental damage caused by foreign
objects or substances and cleaning or
unblocking of lters, drainage systems or
soap drawers.
• Damage to the following parts: ceramic
glass, accessories, crockery and cutlery
baskets, feed and drainage pipes, seals,
lamps and lamp covers, screens, knobs,
casings and parts of casings. Unless such
damages can be proved to have been
caused by production faults.
• Repairs not carried out by our appointed
service providers and/or an authorized
service contractual partner or where
non-original parts have been used.
• Repairs caused by installation which is
faulty or not according to specication.
• The use of the appliance in a non-
domestic environment i.e. professional
use.
• Transportation damages. If a customer
transports the product to his home or
another address, IKEA is not liable for
any damage that may occur during
transport. However, if IKEA delivers
the product to the customer’s delivery
address, then damage to the product
that occurs during this delivery will be
covered by IKEA.
• Cost for carrying out the initial
installation of the IKEA appliance.
However, if an IKEA appointed Service
Provider or its authorized service
partner repairs or replaces the appliance
under the terms of this guarantee,
the appointed Service Provider or its
authorized service partner will reinstall
the repaired appliance or install the
replacement, if necessary.
How country law applies
The IKEA guarantee gives you specic legal
rights, which cover or exceed all the local
legal demands. However these conditions
do not limit in any way consumer rights
described in the local legislation.
Area of validity
This IKEA Guarantee applies only to products
purchased and installed in AUSTRALIA.
An obligation to carry out services in the
framework of the guarantee exists only if
the appliance complies and is installed in
accordance with:
• The technical specications of the
country in which the guarantee claim is
made.
• The Assembly Instructions and User
Manual Safety Information.
AFTER SALES for IKEA appliances
Please don’t hesitate to contact IKEA to:
• Make a service request under this
guarantee.
• Ask for clarication on functions of IKEA
appliances.
To ensure that we provide you with the
best assistance, please read carefully the
Assembly Instructions and/or the User
Manual before contacting us.
How to reach us if you need our service
The IKEA after sales customer service centre
will assist you on the phone with basic
trouble shooting for your appliance at the
time of service call request. Please see the
IKEA catalogue or visit www.ikea.com to nd
your local store phone number and opening
time.
In order to provide you a quicker service,
please also always refer to the IKEA article
number (8 digit code) placed on the rating
plate of your appliance.

© Inter IKEA Systems B.V. 2017 AA-2019867-4
SAVE THE SALES RECEIPT!
It is your proof of purchase and required
for the guarantee to apply. The sales
receipt also reports the IKEA name and
article number (8 digit code) for each of the
appliances you have purchased.
Do you need extra help?
For any additional questions not related
to After Sales of your appliances please
contact your nearest IKEA store call centre.
We recommend you read the appliance
documentation carefully before contacting
us.
