REFRIGERATORUSE& CARE GUIDE
MANUAL DE USO YCUIDADO DELREFRIGERADOR
GUIDE D'UTILISATIONETD'ENTRETIENDU
REFRIGERATEUR
Table of Contents /indice /Table des mati@res
REFRIGERATOR SAFETY ............................... 2
INSTALLATION INSTRUCTIONS ................... 3

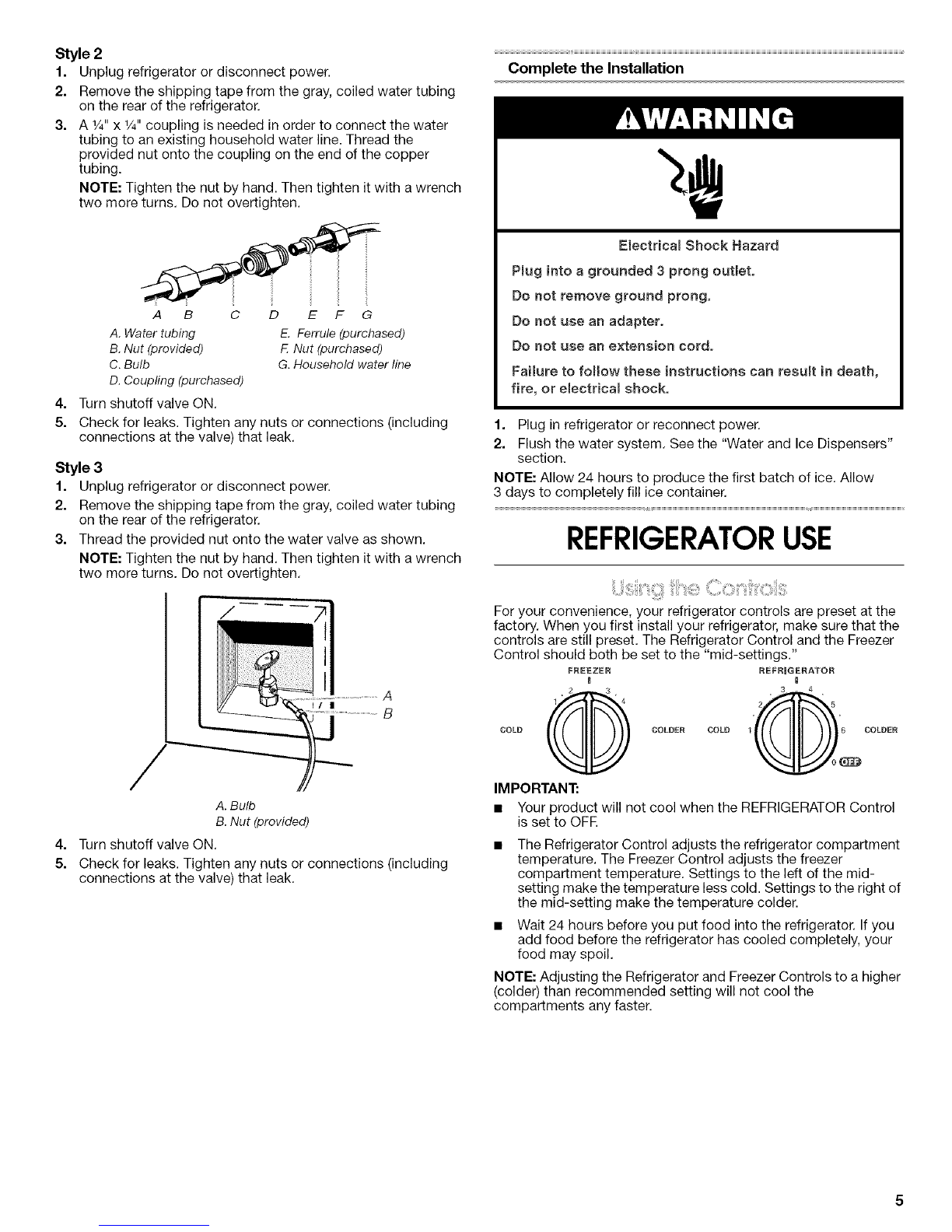

REFRIGERATOR USE ..................................... 5
REFRIGERATOR CARE ................................... 8

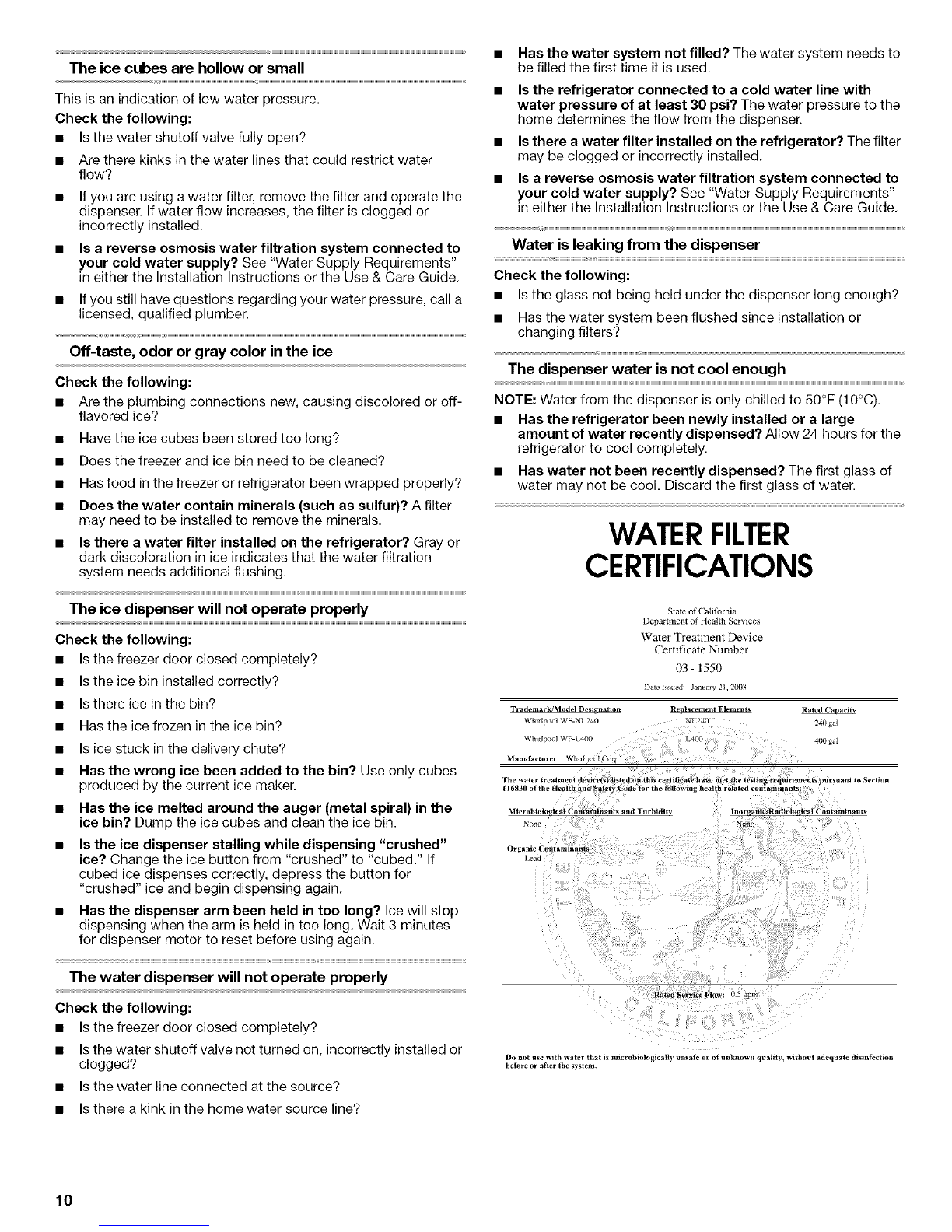

TROUBLESHOOTING ...................................... 9
WATER FILTER CERTIFICATIONS .............. 10

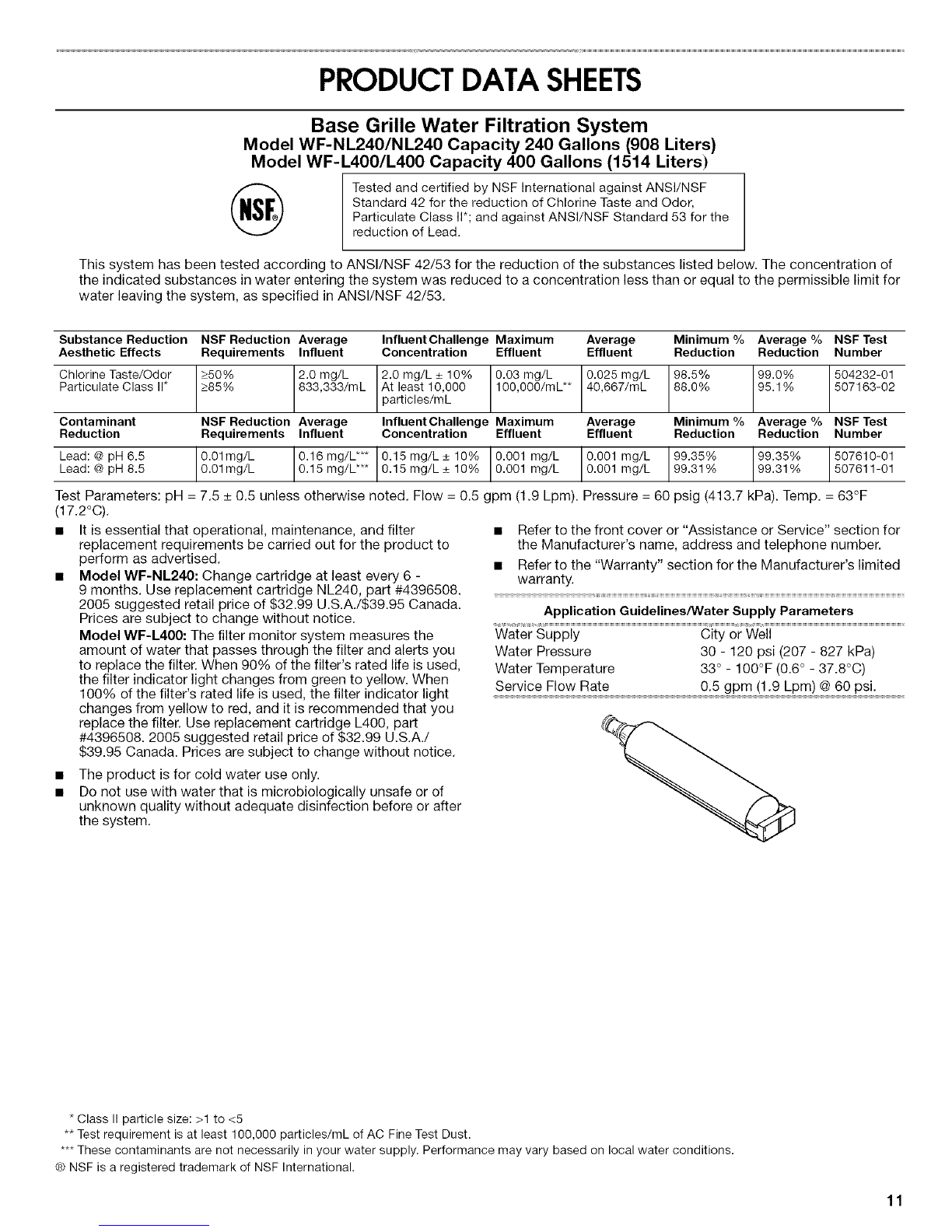

PRODUCT DATA SHEETS ............................ 11

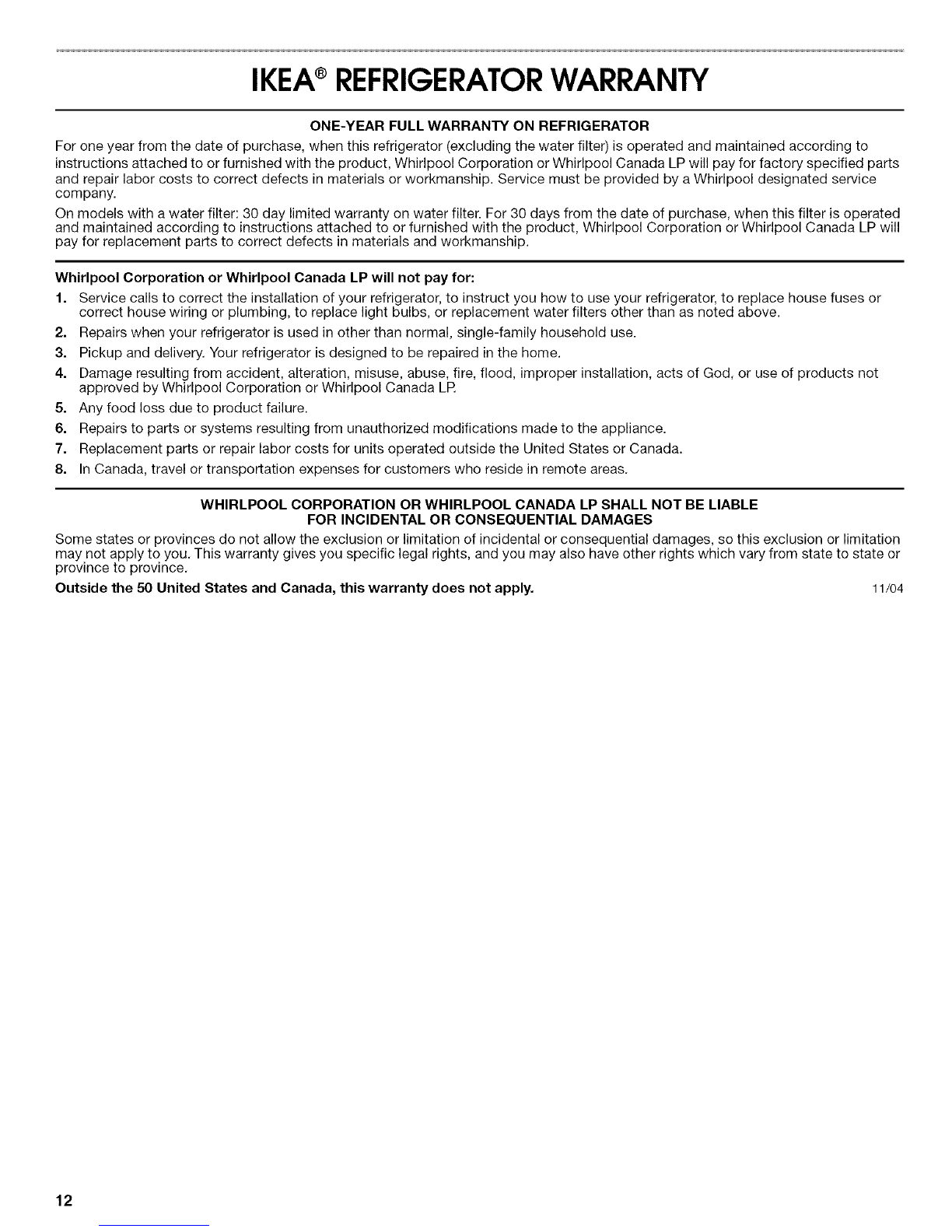

WARRANTY .................................................... 12
AYUDA O SERVICIO TleCNICO .................... 13
SEGURIDAD DEL REFRIGERADOR ............ 13

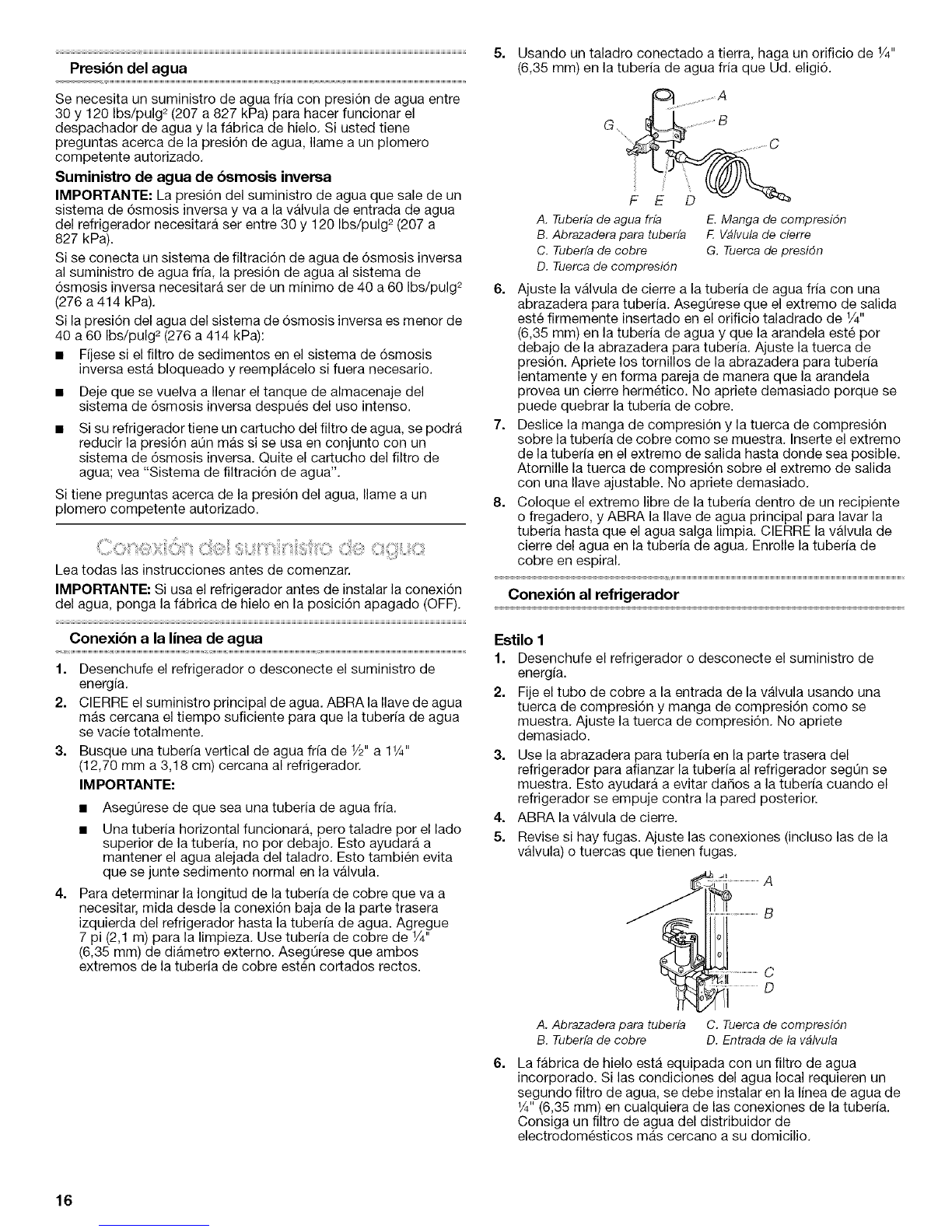

INSTRUCCIONES DE INSTALACI(_N .......... 14
USO DE SU REFRIGERADOR ...................... 17
CUIDADO DE SU REFRIGERADOR ............. 20
SOLUCION DE PROBLEMAS ....................... 21
HOJA DE DATOS DEL PRODUCTO ............ 23
GARANTIA ...................................................... 24
ASSISTANCE OU SERVICE .......................... 25
SleCURITle DU RleFRIGleRATEUR ................ 25
INSTRUCTIONS D'INSTALLATION .............. 26
UTILISATION DU RleFRIGleRATEUR ........... 2g
ENTRETIEN DU RleFRIGleRATEUR ............. 32
DlePANNAGE .................................................. 33
FEUILLES DE DONNleES
SUR LE PRODUlT .......................................... 35
GARANTIE ...................................................... 36
AssistanceorService
If you need assistance or service, first see the "Troubleshooting"
section. Additional help is available. Call us at 1-800-253-1301
from anywhere in the U.S.A., or write:
Whirlpool Corporation
Customer eXperience Center
553 Benson Road
Benton Harbor, MI 49022-2692
In Canada, for installation and service call, 1-800-807-6777.
For assistance call 1-800-461-5681 Monday to Friday 8:00 a.m. -
6:00 p.m. (EST), Saturday 8:30 - 4:30 p.m. (EST), or write:
Whirlpool Canada LP
Customer Interaction Centre
1901 Minnesota Court
Mississauga, Ontario L5N 3A7
Information may also be obtained by visiting our website at
www.ikea.com.
Please include a daytime phone number in your correspondence.
Keep this book and your sales slip together for future
reference. You must provide proof of purchase or installation
date for in-warranty service.
Write down the following information about your appliance to help
you obtain assistance or service if you ever need it. You will need
to know your complete model number and serial number. You can
find this information on the model and serial number label, located
on the inside wall of the refrigerator compartment.
Dealer name
Serial number
Address
Phone number
Model number
Purchase date
Toorder replacement filters, call 1-800-442-9991 and ask for the
part number listed below or contact your authorized Whirlpool
dealer. In Canada, call 1-800-461-5681.
Stainless Steel Cleaner and Polish: Order Part #4396095
Standard Base Filter Cartridge:
Order Part #4396508 (NL240/L400)
2308141

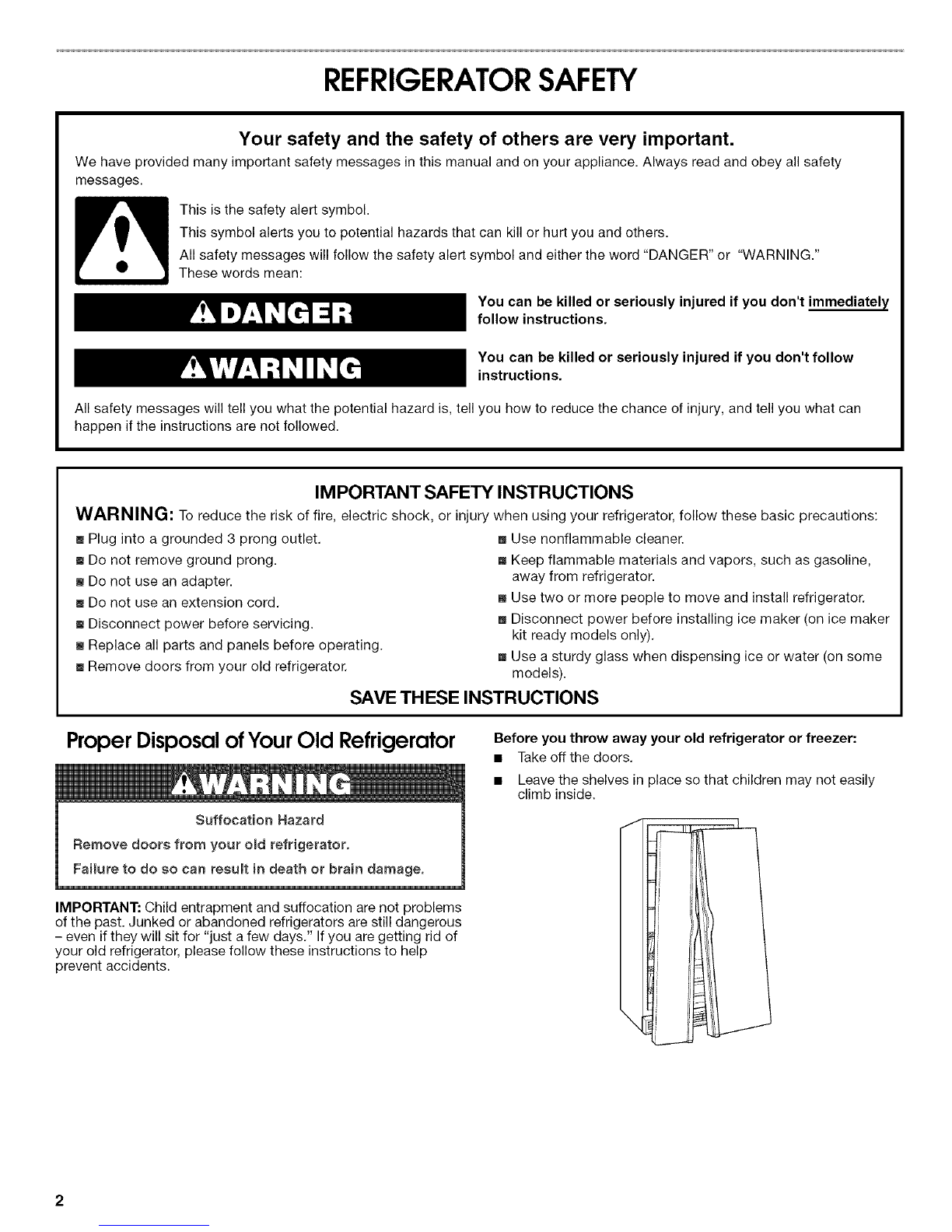

REFRIGERATORSAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."
These words mean:
You can be killed or seriously injured if you don't immediately
follow instructions.
You can be killed or seriously injured if you don't follow
instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
IMPORTANT SAFETY INSTRUCTIONS
WARNING: To reduce the risk of fire, electric shock, or injury when using your refrigerator, follow these basic precautions:
mPlug into a grounded 3 prong outlet.
mDo not remove ground prong.
mDo not use an adapter.
mDo not use an extension cord.
mDisconnect power before servicing.
mReplace all parts and panels before operating.
mRemove doors from your old refrigerator.
• Use nonflammable cleaner.
• Keep flammable materials and vapors, such as gasoline,
away from refrigerator.
• Use two or more people to move and install refrigerator.
• Disconnect power before installing ice maker (on ice maker
kit ready models only).
• Use a sturdy glass when dispensing ice or water (on some
models).
SAVE THESE INSTRUCTIONS
ProperDisposalofYourOld Refrigerator Before you throw away your old refrigerator or freezer:
•Take off the doors.
• Leave the shelves in place so that children may not easily
climb inside.
IMPORTANT: Child entrapment and suffocation are not problems
of the past. Junked or abandoned refrigerators are still dangerous
- even if they will sit for "just a few days." If you are getting rid of
your old refrigerator, please follow these instructions to help
prevent accidents.

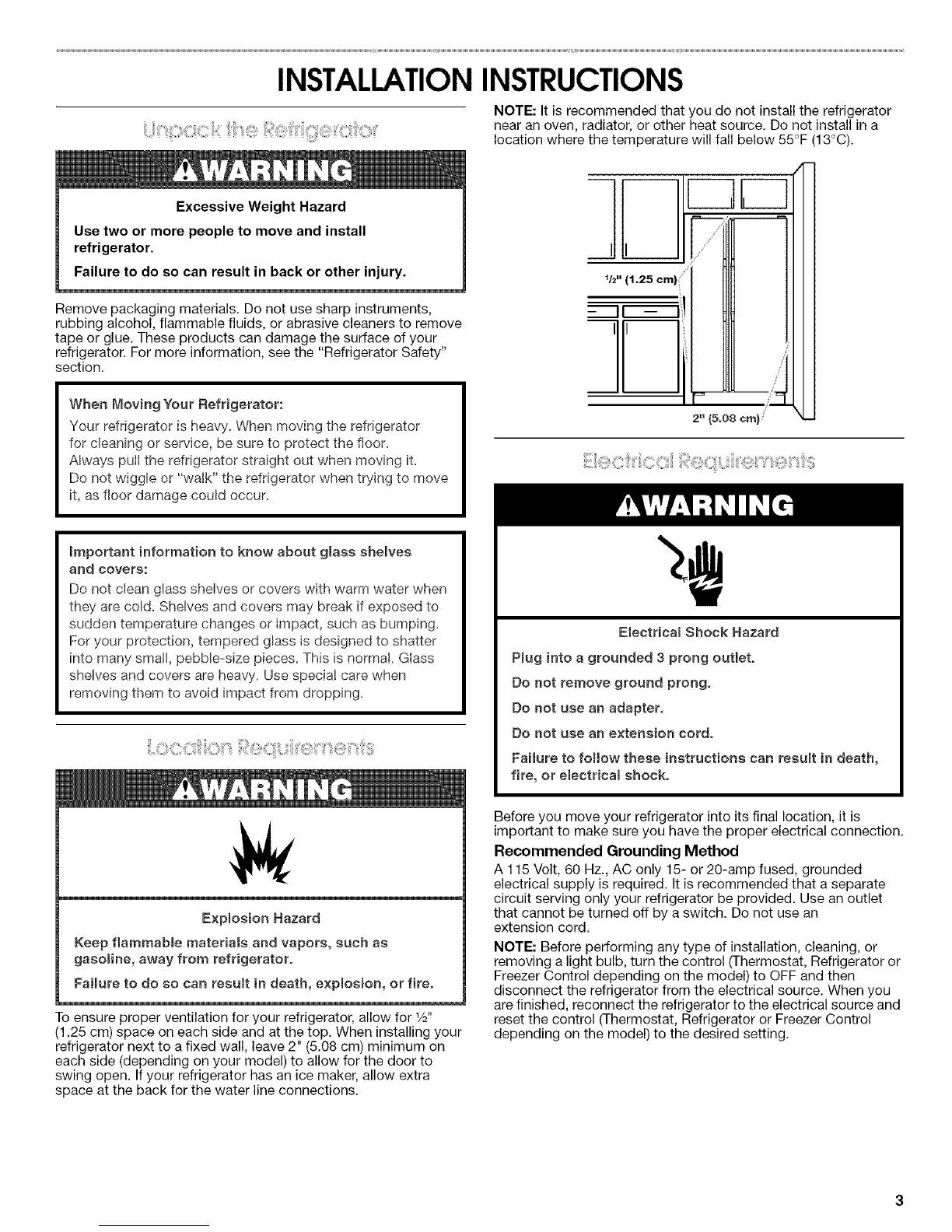

INSTALLATIONINSTRUCTIONS
NOTE: It is recommended that you do not install the refrigerator
near an oven, radiator, or other heat source. Do not install in a
location where the temperature will fall below 55°F (13°C).
Excessive Weight Hazard
Use two or more people to move and install
refrigerator.
Failure to do so can result in back or other injury.
Remove packaging materials. Do not use sharp instruments,
rubbing alcohol, flammable fluids, or abrasive cleaners to remove
tape or glue. These products can damage the surface of your
refrigerator. For more information, see the "Refrigerator Safety"
section.
When Moving Your Refrigerator:
Your refrigerator is heavy. When moving the refrigerator
for cleaning or service, be sure to protect the floor.
Always pull the refrigerator straight out when moving it.
Do not wiggle or "walk" the refrigerator when trying to move
it, as floor damage could occur.
_mportant information to know about glass shemves
and covers:
Do not clean glass shelves or covers with warm water when
they are cold. Shelves and covers may break if exposed to
sudden temperature changes or impact, such as bumping.
For your protection, tempered glass is designed to shatter
into many small, pebble-size pieces. This is normal. Glass
shelves and covers are heavy. Use special care when
removing them to avoid impact from dropping.
::::::::? ::
Explosion Hazard
Keep flammable matedais and vapors, such as
gasoJine, away from refrigerator.
Faimureto do so can resumt in death, expmosion, or fire.
To ensure proper ventilation for your refrigerator, allow for 1/2"
(1.25 cm) space on each side and at the top. When installing your
refrigerator next to a fixed wall, leave 2" (5.08 cm) minimum on
each side (depending on your model) to allow for the door to
swing open. If your refrigerator has an ice maker, allow extra
space at the back for the water line connections.
/
F ..... 2.
2" {5.08 era)
Electricam Shock Hazard
Pmug into a grounded 3prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can resumt in death,
fire, or eiectricam shock.
Before you move your refrigerator into its final location, it is
important to make sure you have the proper electrical connection.
Recommended Grounding Method
A 115 Volt, 60 Hz., AC only 15- or 20-amp fused, grounded
electrical supply is required. It is recommended that a separate
circuit serving only your refrigerator be provided. Use an outlet
that cannot be turned off by a switch. Do not use an
extension cord.
NOTE: Before performing any type of installation, cleaning, or
removing a light bulb, turn the control (Thermostat, Refrigerator or
Freezer Control depending on the model) to OFF and then
disconnect the refrigerator from the electrical source. When you
are finished, reconnect the refrigerator to the electrical source and
reset the control (Thermostat, Refrigerator or Freezer Control
depending on the model) to the desired setting.

'i_,i_ii,!':Cili_::::!!_,_i¸¸¸:i!i!!!!_i_,Li_!ii,,_,!_:iiiiii_!ii,i,_,_ii_:;_!_i!_::_:!i_:i_iiii_ii_i_:i_f_`_i?i_::_f_ii_:_!i_
Read all directions before you begin.
IMPORTANT:
• If you turn the refrigerator on before the water line is
connected, turn the ice maker OFE
• All installations must meet local plumbing code requirements.
• Use copper tubing and check for leaks. Install copper tubing
only in areas where the household temperatures will remain
above freezing.
TOOLS NEEDED: Flat-blade screwdriver, 7_6"and 1/2"open-end
wrenches or two adjustable wrenches, 1/4"nut driver and drill bit,
hand drill or electric drill (properly grounded).
NOTE: Your refrigerator dealer has a kit available with a 1/4"
(6.35 mm) saddle-type shutoff valve, a union, and copper tubing.
Before purchasing, make sure a saddle-type valve complies with
your local plumbing codes. Do not use a piercing-type or 3/16"
(4.76 mm) saddle valve which reduces water flow and clogs more
easily.
Water Pressure
A cold water supply with water pressure of between 30 and
120 psi (207 - 827 kPa) is required to operate the water dispenser
and ice maker. Ifyou have questions about your water pressure,
call a licensed, qualified plumber.
Reverse Osmosis Water Supply
IMPORTANT: The pressure of the water supply coming out of a
reverse osmosis system going to the water inlet valve of the
refrigerator needs to be between 30 and 120 psi (207 - 827 kPa).
If a reverse osmosis water filtration system is connected to your
cold water supply, the water pressure to the reverse osmosis
system needs to be a minimum of 40 to 60 psi (276 - 414 kPa).
If the water pressure to the reverse osmosis system is less than
40 to 60 psi (276 - 414 kPa):
• Check to see whether the sediment filter in the reverse
osmosis system is blocked. Replace the filter if necessary.
• Allow the storage tank on the reverse osmosis system to refill
after heavy usage.
• If your refrigerator has a water filter cartridge, it may further
reduce the water pressure when used in conjunction with a
reverse osmosis system. Remove the water filter cartridge.
See "Water Filtration System."
If you have questions about your water pressure, call a licensed,
qualified plumber.
Read all directions before you begin.
IMPORTANT: Ifyou turn the refrigerator on before the water line is
connected, turn the ice maker OFR
Connect to Water Line
1. Unplug refrigerator or disconnect power.
2. Turn OFF main water supply. Turn ON nearest faucet long
enough to clear line of water.
3. Locate a 1/2"(12.70 mm)to 11/4"(3.18 cm) vertical cold water
pipe near the refrigerator.
IMPORTANT:
• Make sure it is a cold water pipe.
• Horizontal pipe will work, but drill on the top side of the
pipe, not the bottom. This will help keep water away from
the drill and normal sediment from collecting in the valve.
5=
Determine the length of copper tubing you need. Measure
from the connection on the lower rear corner of refrigerator to
the water pipe. Add 7 ft (2.1 m) to allow for cleaning. Use 1/4"
(6.35 mm) O.D. (outside diameter) copper tubing. Be sure both
ends of copper tubing are cut square.
Using a grounded drill, drill a 1/4"(6.35 mm) hole in the cold
water pipe you have selected.
....................A
G............................B
............ C
A. Cold water pipe E.Compression sleeve
B.Pipe clamp F.Shutoff valve
C. Copper tubing G.Packing nut
D.Compression nut
6. Fasten the shutoff valve to the cold water pipe with the pipe
clamp. Be sure the outlet end is solidly in the 1/4"(6.35 mm)
drilled hole in the water pipe and that the washer is under the
pipe clamp. Tighten the packing nut. Tighten the pipe clamp
screws slowly and evenly so the washer makes a watertight
seal. Do not overtighten or you may crush the copper tubing.
7. Slip the compression sleeve and compression nut on the
copper tubing as shown. Insert the end of the tubing into the
outlet end squarely as far as it will go. Screw the compression
nut onto outlet end with adjustable wrench. Do not
overtighten.
8. Place the free end of the tubing in a container or sink, and turn
ON the main water supply. Flush the tubing until water is clear.
Turn OFF the shutoff valve on the water pipe. Coil the copper
tubing.
Connect to Refrigerator
Style 1
1. Unplug refrigerator or disconnect power.
2. Attach the copper tube to the valve inlet using a compression
nut and sleeve as shown. Tighten the compression nut. Do not
overtighten.
3. Use the tube clamp on the back of the refrigerator to secure
the tubing to the refrigerator as shown. This will help prevent
damage to the tubing when the refrigerator is pushed back
against the wall.
4. Turn shutoff valve ON.
5. Check for leaks. Tighten any connections (including
connections at the valve) or nuts that leak.
A
A. Tube clamp
B. Copper tubing C. Compression nut
D. Valve inlet
The ice maker is equipped with a built-in water strainer. If your
water conditions require a second water strainer, install it in
the 1/4"(6.35 mm) water line at either tube connection. Obtain
a water strainer from your nearest appliance dealer.

Style 2
1. Unplug refrigerator or disconnect power•
2. Remove the shipping tape from the gray, coiled water tubing
on the rear of the refrigerator•
3. A 1/4"x 1/4"coupling is needed in order to connect the water
tubing to an existing household water line. Thread the
provided nut onto the coupling on the end of the copper
tubing.
NOTE: Tighten the nut by hand. Then tighten it with a wrench
two more turns. Do not overtighten.
4.
5.
A B b o mF G
A. Watertubing E. Ferrule(purchased)
B.Nut (provided) F.Nut (purchased)
C. Bulb G.Household water line
D. Coupling (purchased)
Turn shutoff valve ON.
Check for leaks. Tighten any nuts or connections (including
connections at the valve) that leak.
Style 3
1. Unplug refrigerator or disconnect power•
2. Remove the shipping tape from the gray, coiled water tubing
on the rear of the refrigerator.
3. Thread the provided nut onto the water valve as shown.
NOTE: Tighten the nut by hand. Then tighten it with a wrench
two more turns. Do not overtighten.
A
Ill B
4.
5.
A.Bulb
B.Nut (provided)
Turn shutoff valve ON.
Check for leaks. Tighten any nuts or connections (including
connections at the valve) that leak.
Complete the Installation
Electrica_ Shock Hazard
PBug into a grounded 3prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can reeuBt in death,
fire, or eiectdca_ shock,
1. Plug in refrigerator or reconnect power•
2. Flush the water system. See the "Water and Ice Dispensers"
section.
NOTE: Allow 24 hours to produce the first batch of ice. Allow
3 days to completely fill ice container.
REFRIGERATORUSE
For your convenience, your refrigerator controls are preset at the
factory. When you first install your refrigerator, make sure that the
controls are still preset. The Refrigerator Control and the Freezer
Control should both be set to the "mid-settings."
FREEZER REFRIGERATOR
, 2 4
COLD COLDER
IMPORTANT:
•3
COLD 1 6 COLDER
Your product will not cool when the REFRIGERATOR Control
is set to OFF.
• The Refrigerator Control adjusts the refrigerator compartment
temperature. The Freezer Control adjusts the freezer
compartment temperature. Settings to the left of the mid-
setting make the temperature less cold. Settings to the right of
the mid-setting make the temperature colder•
• Wait 24 hours before you put food into the refrigerator. If you
add food before the refrigerator has cooled completely, your
food may spoil.
NOTE: Adjusting the Refrigerator and Freezer Controls to a higher
(colder) than recommended setting will not cool the
compartments any faster•

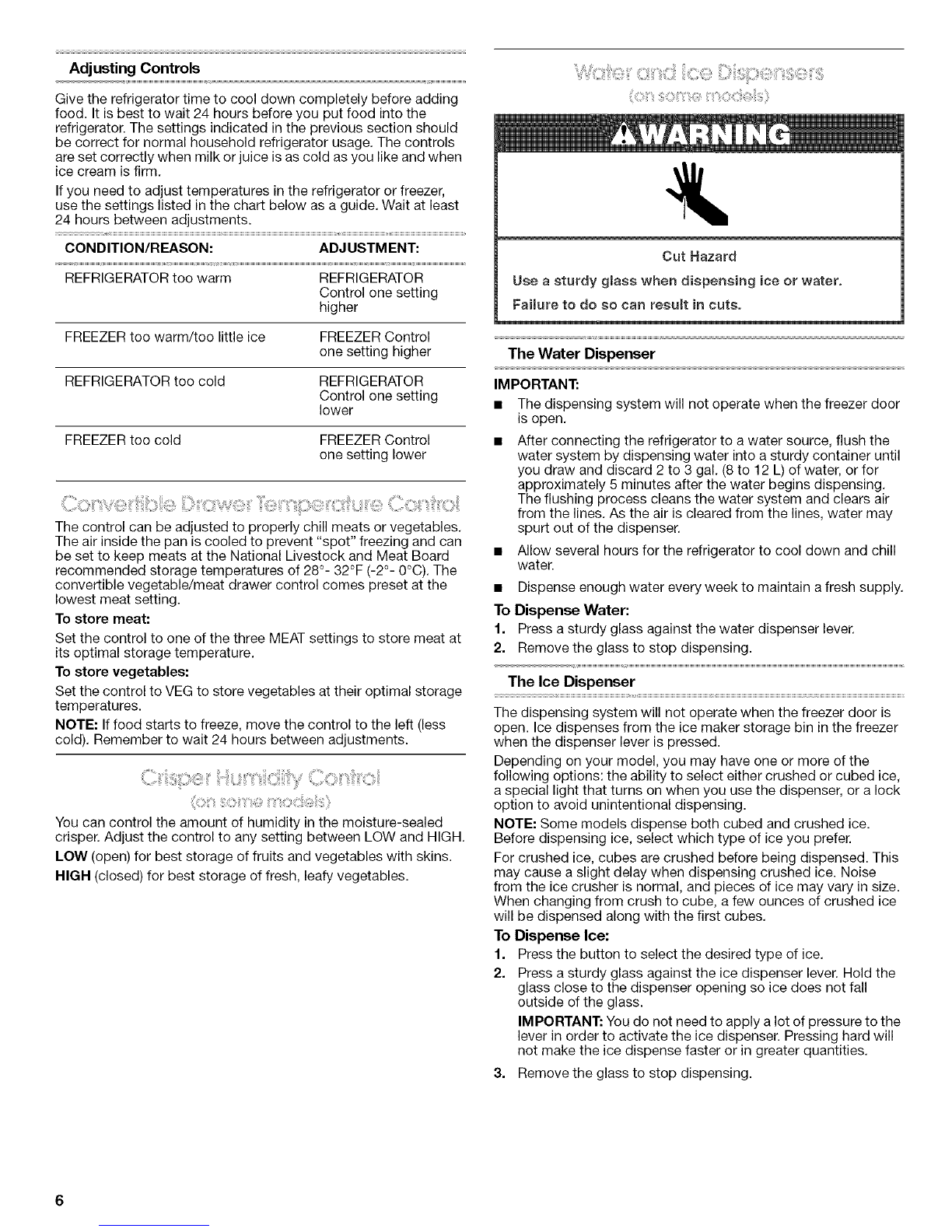

Adjusting Controls
Give the refrigerator time to cool down completely before adding
food. It is best to wait 24 hours before you put food into the
refrigerator. The settings indicated in the previous section should
be correct for normal household refrigerator usage. The controls
are set correctly when milk or juice is as cold as you like and when
ice cream is firm.
If you need to adjust temperatures in the refrigerator or freezer,
use the settings listed in the chart below as a guide. Wait at least
24 hours between adjustments.
CONDITION/REASON: ADJUSTMENT:
REFRIGERATOR too warm REFRIGERATOR
Control one setting
higher
FREEZER too warm/too little ice FREEZER Control
one setting higher
REFRIGERATOR too cold REFRIGERATOR
Control one setting
lower
FREEZER too cold FREEZER Control
one setting lower
The control can be adjusted to properly chill meats or vegetables.
The air inside the pan is cooled to prevent "spot" freezing and can
be set to keep meats at the National Livestock and Meat Board
recommended storage temperatures of 28°- 32°F (-2°- 0°C). The
convertible vegetable/meat drawer control comes preset at the
lowest meat setting.
To store meat:
Set the control to one of the three MEAT settings to store meat at
its optimal storage temperature.
To store vegetables:
Set the control to VEG to store vegetables at their optimal storage
temperatures.
NOTE: If food starts to freeze, move the control to the left (less
cold). Remember to wait 24 hours between adjustments.
You can control the amount of humidity in the moisture-sealed
crisper. Adjust the control to any setting between LOW and HIGH.
LOW (open) for best storage of fruits and vegetables with skins.
HIGH (closed) for best storage of fresh, leafy vegetables.
Cut Hazard
Use a sturdy glass when dispensing ice or water.
Failure to do so can result in cuts.
The Water Dispenser
IMPORTANT:
• The dispensing system will not operate when the freezer door
is open.
• After connecting the refrigerator to a water source, flush the
water system by dispensing water into a sturdy container until
you draw and discard 2 to 3 gal. (8 to 12 L) of water, or for
approximately 5 minutes after the water begins dispensing.
The flushing process cleans the water system and clears air
from the lines. As the air is cleared from the lines, water may
spurt out of the dispenser.
• Allow several hours for the refrigerator to cool down and chill
water.
• Dispense enough water every week to maintain afresh supply.
To Dispense Water:
1. Press a sturdy glass against the water dispenser lever.
2. Remove the glass to stop dispensing.
The Ice Dispenser
The dispensing system will not operate when the freezer door is
open. Ice dispenses from the ice maker storage bin in the freezer
when the dispenser lever is pressed.
Depending on your model, you may have one or more of the
following options: the ability to select either crushed or cubed ice,
a special light that turns on when you use the dispenser, or a lock
option to avoid unintentional dispensing.
NOTE: Some models dispense both cubed and crushed ice.
Before dispensing ice, select which type of ice you prefer.
For crushed ice, cubes are crushed before being dispensed. This
may cause a slight delay when dispensing crushed ice. Noise
from the ice crusher is normal, and pieces of ice may vary in size.
When changing from crush to cube, a few ounces of crushed ice
will be dispensed along with the first cubes.
To Dispense Ice:
1. Press the button to select the desired type of ice.
2. Press a sturdy glass against the ice dispenser lever. Hold the
glass close to the dispenser opening so ice does not fall
outside of the glass.
IMPORTANT: You do not need to apply a lot of pressure to the
lever in order to activate the ice dispenser. Pressing hard will
not make the ice dispense faster or in greater quantities.
3. Remove the glass to stop dispensing.

The Dispenser Light
Style 1: The dispenser light can be turned on by pressing the ON
button.
Style 2: When you use the dispenser, the lever will automatically
turn the light on. Ifyou want the light to be on continuously, you
may choose either ON or NIGHT LIGHT.
ON: Press the LIGHT button to turn the dispenser light on.
NIGHT LIGHT: Press the LIGHT button a second time to select
the Night Light. The dispenser light will automatically adjust to
become brighter as the room brightens, dimmer as the room
darkens.
OFF: Press the LIGHT button a third time to turn the dispenser
light off.
• Do not use anything sharp to break up the ice in the bin or
bucket. This can cause damage to the ice container and the
dispenser mechanism.
• Do not store anything on top of or in the ice maker or storage
bin.
Removing and Replacing Ice Storage Bin
1. Pull the covering panel out from the bottom and then slide it
back toward the rear.
2. Lift the wire shutoff arm so it clicks into the OFF (up) position.
Ice can still be dispensed, but no more can be made.
3. Lift up the front of the storage bin and pull it out.
The Dispenser Lock (on some models)
Your dispenser can be turned off for easy cleaning or to prevent
unintentional dispensing by small children and pets.
NOTE: The lock feature does not shut off power to the product, to
the ice maker, or to the dispenser light. It simply deactivates the
dispenser levers. The ice and water dispensers will not work.
Style 1: Press the LOCK button to lock the dispenser. Press the
UNLOCK button to unlock the dispenser.
Style 2: Press and hold the LOCK OUT button to lock the
dispenser. Press and hold the LOCK OUT button a second time to
unlock the dispenser.
Turning the Ice Maker On/Off
To turn the ice maker ON, simply lower the wire shutoff arm.
To manually turn the ice maker OFF, lift the wire shutoff arm to the
OFF (arm up) position and listen for the click.
NOTE: Your ice maker has an automatic shutoff. As ice is made,
the ice cubes will fill the ice storage bin, and the ice cubes will
raise the wire shutoff arm to the OFF (arm up) position. Do not
force the wire shutoff arm up or down.
REMEMBER:
• Allow 24 hours to produce the first batch of ice. Discard the
first three batches of ice produced.
• The quality of your ice will be only as good as the quality of the
water supplied to your ice maker. Avoid connecting the ice
maker to a softened water supply. Water softener chemicals
(such as salt) can damage parts of the ice maker and lead to
poor quality ice. If asoftened water supply cannot be avoided,
make sure the water softener is operating properly and is well
maintained.
Replace the bin by pushing it in all the way or the dispenser
will not work. Push the wire shutoff arm down to the ON
position to restart ice production. Make sure the door is
closed tightly.
NOTE: Do not use with water that is microbiologically unsafe
or of unknown quality without adequate disinfection before or
after the system.
Water Filter Status Light (on some models)
The water filter status light will help you know when to change
your water filter. The light will change from green to yellow. This
tells you that it is almost time to change the filter. It is
recommended that you replace the water filter when the status
light changes to red OR water flow to your water dispenser or ice
maker decreases noticeably.
After changing the water filter, reset the water filter status light.
The status light will change from red to green when the system is
reset.
Non-indicator Water Filter (on some models)
If your refrigerator does not have the status light, you should
change the water filter every 6 to 9 months depending upon your
usage. If the water flow to the water dispenser or ice maker
decreases noticeably before 6 months have passed, replace the
water filter more often.
Using the Dispenser Without the Water Filter
You can run the dispenser without a water filter. Your water will not
be filtered.
1. Remove the water filter.
2. Slide the cap off the end of the filter and replace the cap in the
base grille.
IMPORTANT: Do not discard the cap. It is part of your
refrigerator. Keep the cap to use with the replacement filter.
3. Rotate the cap until it is securely in position.

REFRIGERATORCARE
Explosion Hazard
Use nonflammabme cleaner.
Failure to do so can result in death, expmosion, or fire.
Both the refrigerator and freezer sections defrost automatically.
However, clean both sections about once a month to prevent
odors from building up. Wipe up spills immediately.
IMPORTANT: Because air circulates between both sections, any
odors formed in one section will transfer to the other. You must
thoroughly clean both sections to eliminate odors. To prevent
odor transfer and drying out of food, wrap or cover foods tightly.
To Clean Your Refrigerator:
NOTE: Do not use abrasive or harsh cleaners such as window
sprays, scouring cleansers, flammable fluids, cleaning waxes,
concentrated detergents, bleaches or cleansers containing
petroleum products on plastic parts, interior and door liners or
gaskets. Do not use paper towels, scouring pads, or other harsh
cleaning tools.
1. Unplug refrigerator or disconnect power.
2. Hand wash, rinse, and dry removable parts and interior
surfaces thoroughly. Use a clean sponge or soft cloth and a
mild detergent in warm water.
3. Wash stainless steel and painted metal exteriors with a clean
sponge or soft cloth and a mild detergent in warm water.
4. There is no need for routine condenser cleaning in normal
home operating environments. If the environment is
particularly greasy or dusty, or there is significant pet traffic in
the home, the condenser should be cleaned every 2 to
3 months to ensure maximum efficiency.
If you need to clean the condenser:
•Removethe base grille.
• Use a vacuum cleaner with a soft brush to clean the grille,
the open areas behind the grille and the front surface area
of the condenser.
5=
• Replace the base grille when finished.
Plug in refrigerator or reconnect power.
NOTE: Not all bulbs will fit your refrigerator. Be sure to replace the
bulb with one of the same size, shape and wattage. The dispenser
light requires a heavy duty 10-watt bulb. All other lights require a
40-watt bulb. Replacement bulbs are available from your dealer.
1. Unplug refrigerator or disconnect power.
2. Remove light shield when applicable.
NOTE: To clean the light shield, wash it with warm water and
liquid detergent. Rinse and dry the shield well.
3. Remove light bulb and replace with one of the same size,
shape and wattage.
4. Replace light shield when applicable.
5. Plug in refrigerator or reconnect power.

TROUBLESHOOTING
Trythe solutions suggested here first in order to avoid the cost of an unnecessary service call.
!!iii!!!_i:iii;!)__ii__)i!!iiiii_i_i_¸_ii:_::::::_iiiiO _0 !i::::?_,s:;iii_iii'ci_!ii¸¸¸ii0 ilii
The refrigerator will not operate
i_iiiii!_ii'iili)iiiil;_iii::_:_iiC:i_!i_Liii;i"_l!_,¸Ciii!hCi!i'_'_iiO)ii_!!i?;iiL_i_i_iii_iii!_,¸
Temperature is too warm
Check the following:
• Is the power cord unplugged?
• Has a household fuse blown or has a circuit breaker tripped?
• Are the temperature controls set at the mid-settings?
NOTE: The refrigerator may take several hours to cool initially.
Adjusting the controls to coldest setting will not cool either
compartment more quickly.
The motor seems to run too much
Your new refrigerator may run longer than your old one due to its
high-efficiency compressor and fans. The unit may run even
longer if the room is warm, a large food load is added, doors are
opened often, or if the doors have been left open.
The refrigerator is noisy
Refrigerator noise has been reduced over the years. Due to this
reduction, you may hear intermittent noises from your new
refrigerator that you did not notice from your old model. Below are
listed some normal sounds with an explanation.
• Buzzing - heard when the water valve opens to fill the ice
maker
Check the following:
• Are the air vents blocked in either compartment?
• Are the door(s) opened often?
• Has a large amount of food just been added to the refrigerator
or freezer?
• Are the controls set correctly for the surrounding conditions?
There is interior moisture buildup
NOTE: Some moisture is normal.
• Are the air vents blocked in the refrigerator?
• Are the door(s) opened often?
• Isthe room humid?
• Are the controls set correctly for the surrounding conditions?
• Was an automatic self-defrost cycle completed?
The ice maker is not producing ice or not enough ice
•Pulsating - fans/compressor adjusting to optimize
performance
• Rattling - flow of refrigerant, water line, or from items placed
on top of the refrigerator
• Sizzling/Gurgling - water dripping on the heater during
defrost cycle
• Popping - contraction/expansion of inside walls, especially
during initial cool-down
• Water running - may be heard when water melts during the
defrost cycle and runs into the drain pan
• Creaking/Cracking - occurs as ice is being ejected from the
ice maker mold.
The doors will not close completely
Check the following:
• Are food packages blocking the door open?
• Are all bins and shelves pushed back into the correct
positions?
The doors are difficult to open
•Are the gaskets dirty or sticky? Clean gaskets with mild
soap and warm water.
Is the ice maker wire shutoff arm or switch (depending on
models) in the OFF position?
Is the water line shutoff valve to the refrigerator turned
on?
Is the freezer temperature cold enough to produce ice?
Wait 24 hours after ice maker hookup for ice production.
Has the ice maker just been installed? Wait 72 hours for full
ice production to begin.
Does the ice maker mold have water in it or has no ice
been produced? Make sure your refrigerator has been
connected to a water supply and the supply shutoff valve is
turned on.
•Has a large amount of ice just been removed? Allow
24 hours for ice maker to produce more ice.
• Is there awater filter installed on the refrigerator? The filter
may be clogged or installed incorrectly.
• Is an ice cube jammed in the ice maker ejector arm?
For models with an interior ice bin, remove the ice from the
ejector arm with a plastic utensil.
• Is a reverse osmosis water filtration system connected to
your cold water supply? See "Water Supply Requirements"
in either the Installation Instruction booklet or the Use & Care
Guide.

The ice cubes are hollow or small
This is an indication of low water pressure.
Check the following:
•Is the water shutoff valve fully open?
• Are there kinks in the water lines that could restrict water
flow?
• If you are using a water filter, remove the filter and operate the
dispenser. Ifwater flow increases, the filter is clogged or
incorrectly installed.
•Is a reverse osmosis water filtration system connected to
your cold water supply? See "Water Supply Requirements"
in either the Installation Instructions or the Use & Care Guide.
• If you still have questions regarding your water pressure, call a
licensed, qualified plumber.
Off-taste, odor or gray color in the ice
Check the following:
• Are the plumbing connections new, causing discolored or off-
flavored ice?
• Have the ice cubes been stored too long?
• Does the freezer and ice bin need to be cleaned?
• Has food in the freezer or refrigerator been wrapped properly?
•Does the water contain minerals (such as sulfur)? A filter
may need to be installed to remove the minerals.
• Is there a water filter installed on the refrigerator? Gray or
dark discoloration in ice indicates that the water filtration
system needs additional flushing.
The ice dispenser will not operate properly
Check the following:
• Is the freezer door closed completely?
• Is the ice bin installed correctly?
• Is there ice in the bin?
• Has the ice frozen in the ice bin?
• Is ice stuck in the delivery chute?
•Has the wrong ice been added to the bin? Use only cubes
produced by the current ice maker.
•Has the ice melted around the auger (metal spiral} in the
ice bin? Dump the ice cubes and clean the ice bin.
•Is the ice dispenser stalling while dispensing "crushed"
ice? Change the ice button from "crushed" to "cubed." If
cubed ice dispenses correctly, depress the button for
"crushed" ice and begin dispensing again.
•Has the dispenser arm been held in too long? Ice will stop
dispensing when the arm is held in too long. Wait 3 minutes
for dispenser motor to reset before using again.
The water dispenser will not operate properly
Check the following:
• Is the freezer door closed completely?
• Is the water shutoff valve not turned on, incorrectly installed or
clogged?
• Is the water line connected at the source?
• Is there a kink in the home water source line?
Has the water system not filled? The water system needs to
be filled the first time it is used.
Is the refrigerator connected to a cold water line with
water pressure of at least 30 psi? The water pressure to the
home determines the flow from the dispenser.
Is there awater filter installed on the refrigerator? The filter
may be clogged or incorrectly installed.
Is a reverse osmosis water filtration system connected to
your cold water supply? See "Water Supply Requirements"
in either the Installation Instructions or the Use & Care Guide.
Water is leaking from the dispenser
Check the following:
• Is the glass not being held under the dispenser long enough?
• Has the water system been flushed since installation or
changing filters?
The dispenser water is not cool enough
NOTE: Water from the dispenser is only chilled to 50°F (10°C).
• Has the refrigerator been newly installed or a large
amount of water recently dispensed? Allow 24 hours for the
refrigerator to cool completely.
• Has water not been recently dispensed? The first glass of
water may not be cool. Discard the first glass of water.
WATERFILTER
CERTIFICATIONS
Stale of California
Del)ar{ment of Health Services
Water Treatment Device
Certificate Number
03- 1550
Dal_ Issll_'d: Jai/uary 21,2003
Tradomark/Modol Designali0n Replacement Elements Rated Caaa_
WhMpool Wk-NL2_ NL24£ 240 gal
_Ju gal
_anufacturer _" t_ol Corn
_e water treatmeat dewce s I s_ed on this certificate have met the test ng reqmremen_s pursuant to Section
116830 of the Health aRd Salary Code lhr the _llov*in_ llcalth rela_ed contaminants:
Microbiological Contaminants and Ta rbiditx In o r _ani_iRadiolo_i¢ al Contaminants
Non_ N_n_
Organic Cent arainanls
1ca_l
Rated Seryice Flow: )5 _pm
Do hilt use with water that is mierobiologieallT unsafe or of unknown quality_ without adequate disinfection
before or after the system.
10

PRODUCTDATA SHEETS
Base Grille Water Filtration System
Model WF-NL240/NL240 Capacity 240 Gallons (908 Liters)
Model WF-L400/L400 Capacity 400 Gallons (1514 Liters)
Tested and certified by NSF International against ANSI/NSF
Standard 42 for the reduction of Chlorine Taste and Odor,
Particulate Class II*; and against ANSl/NSF Standard 53 for the
reduction of Lead.
This system has been tested according to ANSl/NSF 42/53 for the reduction of the substances listed below. The concentration of
the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for
water leaving the system, as specified in ANSI/NSF 42/53.
Substance Reduction NSF Reduction Average InfluentChallenge Maximum Average Minimum %Average %NSF Test
Aesthetic Effects Requirements Influent Concentration Effluent Effluent Reduction Reduction Number
Chlorine Taste/Odor ->50% 2.0 mg/L 2.0 mg/L _+10% 0.03 mg/L 0.025 mg/L 98.5% 99.0% 504232-01
Particulate Class II* _>85% 833,333/mL Atparticles/mLleast10,000 100,000/mL** 40,667/mL 88.0% 95.1% 507163-02
Contaminant NSF Reduction Average InfluentChallenge Maximum Average Minimum %Average %NSF Test
Reduction Requirements Influent Concentration Effluent Effluent Reduction Reduction Number
Lead: @pH 6.5 0.01mg/L 0.16 mg/L*** 0.15 mg/L_+ 10% 0.001 mg/L 0.001 mg/L 99.35% 99.35% 507610-01
Lead: @pH 8.5 0.01mg/L 0.15 mg/L*** 0.15 mg/L _+10% 0.001 mg/L 0.001 mg/L 99.31% 99.31% 507611-01
Test Parameters: pH = 7.5 + 0.5 unless otherwise noted. Flow = 0.5 gpm (1.9 Lpm). Pressure = 60 psig (413.7 kPa). Temp. = 63°F
(17.2°C).
• It is essential that operational, maintenance, and filter
replacement requirements be carried out for the product to
perform as advertised.
•Model WF-NL240: Change cartridge at least every 6 -
9 months. Use replacement cartridge NL240, part #4396508.
2005 suggested retail price of $32.99 U.S.A./S39.95 Canada.
Prices are subject to change without notice.
Model WF-L400: The filter monitor system measures the
amount of water that passes through the filter and alerts you
to replace the filter. When 90% of the filter's rated life is used,
the filter indicator light changes from green to yellow. When
100% of the filter's rated life is used, the filter indicator light
changes from yellow to red, and it is recommended that you
replace the filter. Use replacement cartridge L400, part
#4396508. 2005 suggested retail price of $32.99 U.S.A./
$39.95 Canada. Prices are subject to change without notice.
• The product is for cold water use only.
• Do not use with water that is microbiologically unsafe or of
unknown quality without adequate disinfection before or after
the system.
• Refer to the front cover or "Assistance or Service" section for
the Manufacturer's name, address and telephone number.
• Refer to the "Warranty" section for the Manufacturer's limited
warranty. i
Application Guidelines/Water Supply Parameters
Water Supply City or Well
Water Pressure 30 - 120 psi (207 - 827 kPa)
Water Temperature 33 ° - 100°F (0.6° - 37.8°C)
Service Flow Rate 0.5 gpm (1.9 Lpm) @ 60 psi.
* Class II particle size: >1 to <5
** Test requirement is at least 100,000 particles/mL of AC Fine Test Dust.
*** These contaminants are not necessarily in your water supply. Performance may vary based on local water conditions.
® NSF is a registered trademark of NSF International.
11

IKEA®REFRIGERATORWARRANTY
ONE-YEAR FULL WARRANTY ON REFRIGERATOR
For one year from the date of purchase, when this refrigerator (excluding the water filter) is operated and maintained according to
instructions attached to or furnished with the product, Whirlpool Corporation or Whirlpool Canada LP will pay for factory specified parts
and repair labor costs to correct defects in materials or workmanship. Service must be provided by a Whirlpool designated service
company.
On models with a water filter: 30 day limited warranty on water filter. For 30 days from the date of purchase, when this filter is operated
and maintained according to instructions attached to or furnished with the product, Whirlpool Corporation or Whirlpool Canada LP will
pay for replacement parts to correct defects in materials and workmanship.
Whirlpool Corporation or Whirlpool Canada LP will not pay for:
1. Service calls to correct the installation of your refrigerator, to instruct you how to use your refrigerator, to replace house fuses or
correct house wiring or plumbing, to replace light bulbs, or replacement water filters other than as noted above.
2. Repairs when your refrigerator is used in other than normal, single-family household use.
3. Pickup and delivery. Your refrigerator is designed to be repaired in the home.
4. Damage resulting from accident, alteration, misuse, abuse, fire, flood, improper installation, acts of God, or use of products not
approved by Whirlpool Corporation or Whirlpool Canada LR
5. Any food loss due to product failure.
6. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
7. Replacement parts or repair labor costs for units operated outside the United States or Canada.
8. In Canada, travel or transportation expenses for customers who reside in remote areas.
WHIRLPOOL CORPORATION OR WHIRLPOOL CANADA LP SHALL NOT BE LIABLE
FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES
Some states or provinces do not allow the exclusion or limitation of incidental or consequential damages, so this exclusion or limitation
may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state or
province to province.
Outside the 50 United States and Canada, this warranty does not apply. 11/04
12

MANUAL DE USO Y CUIDADO DELREFRIGERADOR
Ayuda o ServicioT( cnico
Si necesita ayuda o servicio tecnico, vea primero la secciSn
"SoluciSn de Problemas". Puede obtener asistencia adicional.
Llamenso al 1-800-253-1301 desde cualquier lugar de los
EE.UU, o escriba a: Whirlpool Corporation
Customer eXperience Center
553 Benson Road
Benton Harbor, MI 49022-2692
En CanadA, para instalaci6n y servicio, Ilame al 1-800-807-6777.
Para recibir asistencia Ilame al 1-800-461-5681, de lunes a
viernes de 8:00 a.m. a 6:00 p.m. (hora estandar del este); sabados
de 8:30 a 4:30 p.m. (hora estandar del este), o escriba a:
Whirlpool Canada LP
Customer Interaction Centre
1901 Minnesota Court
Mississauga, Ontario L5N 3A7
Tambien puede obtener informaci6n visitando nuestro sitio web
en www.ikea.com.
Favor de incluir un n_mero telef6nico de dia en su
correspondencia.
Guarde este libro y su comprobante de compra juntos para
referencia futura. Usted debera proporcionar evidencia de la
compra o una fecha de instalacibn para obtener servicio bajo
la garantia.
Escriba la siguiente informaci6n acerca de su electrodomestico
para ayudarle a obtener asistencia o servicio tecnico si alguna vez
Ilegara a necesitarlo. Debera tenet a mano el nQmero completo
del modelo y de la serie. Puede encontrar esta informaci6n en la
etiqueta con el nQmero de modelo y de serie que esta ubicada en
la pared interior del compartimiento del refrigerador.
Nombre del distribuidor
Nt_mero de serie
Direccibn
Nt_mero de tel_fono
Nt_mero del modelo
Fecha de compra
Para pedir filtros de repuesto, Ilame al 1-800-442-9991 y solicite
el nQmero de pieza que se detalla a continuaci6n o p6ngase en
contacto con su distribuidor autorizado de Whirlpool. En CanadA,
Ilame al 1-800-461-5681.
Limpiador de Acero Inoxidable: Pida la pieza No. 4396095
Cartucho del filtro de la base estandar: Pida la pieza
No. 4396508 (NL240/L400)
SEGURIDAD DELREFRIGERADOR
Su seguridad y la seguridad de los demas es muy importante.
Hemos incluido muchos mensajes importantes de seguridad en este manual yen su electrodomestico. Lea y obedezca siempre
todos los mensaies de seguridad=
Este es el simbolo de advertencia de seguridad.
Este simbolo le llama la atenci6n sobre peligros potenciales que pueden ocasionar la muerte o una lesi6n a
usted y a los demas.
Todos los mensajes de seguridad iran a continuaci6n del simbolo de advertencia de seguridad y de la palabra
"PELIGRO" o "ADVERTENCIA". Estas palabras significan:
Si no sigue las instrucciones de inmediato, usted puede
morir o sufrir una lesion grave.
Si no sigue las instrucciones, usted puede morir o sufrir
una lesion grave.
Todos los mensajes de seguridad le diran el peligro potencial, le diran como reducir las posibilidades de sufrir una lesion y Io que
puede suceder si no se siguen las instrucciones.
13

mNSTRUCCmONES mMPORTANTES DE SEGURIDAD
ADVERTENCIA: Para reducir el riesgo de incendio, ehoque electrico, o lesiones personales al usar su refrigerador siga
estas precauciones basicas:
• No quite la terminal de conexi6n a tierra.
• No use un cable electdco de extensi6n.
• Desconecte el suministro de energfa antes de darle sewicio.
• Vuelva a colocar todos los componentes y paneles antes de
hacerio funcionar.
• Remueva las puertas de su refrigerador viejo.
• Use un Iimpiador no inflamable.
• No use un adaptador.
• Mantenga los matedales y vapores infiamables, tales como
gasolina, alejados det refrigerador.
• Use dos o mas personas para mover e instalar el
refrigerador.
• Desconecte el suministro de energfa antes de instaiar Ia
fabrica de hieio (en aquellos modelos que incluyen el juego
de instalaci6n de Ia fabrica de hielo).
• Use un vaso resistente para recibir hielo o agua del
despachador (en algunos modelos).
• Conecte a un contacto de pared de conexi6n a tierra de
3 terminales.
CONSERVAR ESTAS mNSTRUCCmONES
Cbmo deshacerse de surefrigerador
viejo Antes de tirar su viejo refrigerador o congelador:
• Saquelas puertas.
• Deje los estantes en su lugar para que los nitros no puedan
meterse con facilidad.
PeBigro de Asfi×ia
Remueva maspuertae de su refrigerador viejoo
No seguir esta instruccion puede ocasionar la muerte
o daSo amcerebroo
IMPORTANTE: El atrapamiento y asfixia de niSos no es un
problema del pasado. Los refrigeradores tirados y abandonados
son un peligro, ann si van a quedar ahi "por unos pocos dias". Si
Ud. esta por deshacerse de su refrigerador viejo, por favor siga
las instrucciones que se dan a continuaci6n para prevenir
accidentes.
INSTRUCCIONESDE INSTALACION
Para mas informaci6n, vea la secci6n "Seguridad del
refrigerador".
PeHgro de Peso E×cesivo
Use dos o mas personas para mover e instamar
el refrigeradoro
No seguir esta instrucci6n puede ocasionar una
mesi6n en maespalda u otro tipo de lesiones,
C6mo quitar los materiales de empaque. No use instrumentos
filosos, alcohol para fricciones, liquidos inflamables, o productos
de limpieza abrasivos para eliminar los restos de cinta o goma.
Estos productos pueden daSar la superficie de su refrigerador.
Come mover su refrigerador:
Su refrigerador es muy pesado. Cuando mueva su
refrigerador para Iimpiarlo o darIe servicio, proteia el piso.
At mover el refrigerador, siempre tire directamente hacia
afuera. No menee el refrigerador de Iado a lado ni Io haga
"caminar" cuando Io trate de mover ya que podria daSar
el piso.
_nformaci6n importante para saber acerca de los estantes
y tapas de vidrio:
No limpie Ios estantes y tapas de vidrio con agua caliente
mientras est&n fdos. Los estantes y tapas pueden romperse
sise exponen a cambios bruscos de temperatura o impacto,
como ser[a un golpe brusco. Para su protecci6n, et vidrio
templado se ha diseSado para hacerse aSicos. Esto es normal.
Los estantes y tapas de vidrio son muy pesados. Tenga
mucho cuidado aI sacarlos para evitar que se daSen aI caer.
14

PeHgre de E×pmosi6n
Mantenga Beematerialee y vaporee inflamabmee,
ta_es come gasoline, amejadoe deJ refrigerador.
No seguir esta ir_strucciSn puede ocasionar Ja muerte,
expmosi6n, oJncendio°
Para asegurar la adecuada ventilaci6n para su refrigerador, deje
un espacio de 1/2"(1,25 cm) a cada lade y per encima. Si Ud.
instala el refrigerador pr6ximo a una pared fija, deje come minimo
2" (5,08 cm) a cada lade (dependiendo del modelo) para permitir
que la puerta abra bien. Si su refrigerador tiene una fabrica de
hielo, asegQrese de que haya espacio adicional atras para la
conexi6n de la linea de agua.
NOTA: No se recomienda instalar el refrigerador cerca de un
homo, radiador u otra fuente de calor. No instale el refrigerador
cerca una ubicaci6n en la que la temperatura puede bajar de los
55°F (13°C).
I IL_
r*_ r-
,/
/
112'(1,25 cm)
II I_!
9
2" (5,08 ore)
PeHgro de Cheque E_6ctrico
Conecte a un contacto de pared de conexi6n a tierra de
3 terrninaJes.
No quite Jatermina_ de cone×ion a tierra.
No use an adaptador.
No use un cable el6ctrico de extensiono
No seguir estas instrucciones puede ocasionar
Jamuerte, incendio o cheque et6ctrico.
Antes de mover el refrigerador a su ubicaci6n final, es importante
asegurarse de que tiene la conexi6n electrica adecuada.
M6todo de conexibn a tierra recomendado
Se requiere una fuente de energia electrica de 115 Voltios, 60 Hz.,
CA solamente y con fusibles de 15 6 20 amperios, debidamente
conectada a tierra. Se recomienda que use un circuito separado
s61opara su refrigerador. Use un tomacorriente que no se pueda
apagar con un interrupter. No use un cable de extensi6n.
NOTA: Antes de realizar cualquier tipo de instalaci6n, limpieza o
de quitar un foco de luz, ponga el control (del termostato, del
refrigerador o del congelador dependiendo del modelo) en la
posici6n OFF (Apagado) y luego desconecte el refrigerador de la
fuente de energia. Cuando haya terminado, reconecte el
refrigerador a la fuente de energia electrica y vuelva a poner el
control (del termostato, del refrigerador o del congelador
dependiendo del modelo) en la posici6n deseada.
Lea todas las instrucciones antes de comenzar.
IMPORTANTE:
• Si usa el refrigerador antes de instalar la conexidn del agua,
ponga la fabrica de hielo en la posicidn OFF (apagado).
• Todas las instalaciones deben hacerse de acuerdo a los
requisites de los cddigos locales de plomeria.
• Use tuberias de cobre y revise si hay fugas. Instale tuberia de
cobre s610 en Areas donde la temperatura va a permanecer
per encima del punto de congelacidn.
I-IERRAMIENTAS REQUERIDAS: Destornillador de hoja plana,
Ilaves de boca de 7_6"y 1/2"o dos Ilaves ajustables, Ilave para
tuercas y broca de barrena de 1/4",taladro manual o electrico
(debidamente conectado a tierra).
NOTA: El distribuidor de su refrigerador tiene un juego disponible
con una valvula de cierre tipo montura de 1/4"(6,35 mm), una
unidn y tuberia de cobre. Antes de comprar, asegQrese que la
valvula tipo montura cumpla con los c6digos de plomeria de su
Iocalidad. No use una valvula perforadora 0 una valvula de
montura de 3/16"(4,76 mm) que reduce el flujo de agua y se
obstruye con mas facilidad.
15

Presibn del agua
Se necesita un suministro de agua fria con presi6n de agua entre
30 y 120 Ibs/pulg _(207 a 827 kPa) para hacer funcionar el
despachador de agua y la fabrica de hielo. Si usted tiene
preguntas acerca de la presi6n de agua, Ilame a un plomero
competente autorizado.
Suministro de agua de bsmosis inversa
IMPORTANTE: La presi6n del suministro de agua que sale de un
sistema de 6smosis inversa y va a la valvula de entrada de agua
del refrigerador necesitara set entre 30 y 120 Ibs/pulg 2(207 a
827 kPa).
Si se conecta un sistema de filtraci6n de agua de 6smosis inversa
al suministro de agua fria, la presi6n de agua al sistema de
6smosis inversa necesitara set de un minimo de 40 a 60 Ibs/pulg _
(276 a 414 kPa).
Si la presi6n del agua del sistema de 6smosis inversa es menor de
40 a 60 Ibs/pulg 2(276 a 414 kPa):
• F[jese si el filtro de sedimentos en el sistema de 6smosis
inversa esta bloqueado y reemplacelo si fuera necesario.
• Deje que se vuelva a Ilenar el tanque de almacenaje del
sistema de 6smosis inversa despues del uso intense.
• Si su refrigerador tiene un cartucho del filtro de agua, se podra
reducir la presi6n aQn mas si se usa en conjunto con un
sistema de 6smosis inversa. Quite el cartucho del filtro de
agua; vea "Sistema de filtraci6n de agua".
Si tiene preguntas acerca de la presi6n del agua, Ilame a un
plomero competente autorizado.
C O!_'__i:::i_¸¸:;_ii_',_ii!!i;__'_iC!,ibI _i!!ii_;ii,j iii'_'ii'_!iiiii'iiii_!i_¸,!i_¸;_O_Cii,_i!::i_Ci!!:iiiiiiiL_ii__iiii:;_
Lea todas las instrucciones antes de comenzar.
IMPORTANTE: Si usa el refrigerador antes de instalar la conexi6n
del agua, ponga la fabrica de hielo en la posici6n apagado (OFF).
Conexibn a la linea de agua
1. Desenchufe el refrigerador o desconecte el suministro de
energia.
2. CIERRE el suministro principal de agua. ABRA la Ilave de agua
mas cercana el tiempo suficiente para que la tuber[a de agua
se vacie totalmente.
3. Busque una tuberia vertical de agua fr[a de 1/2"a 1W'
(12,70 mm a 3,18 cm) cercana al refrigerador.
IMPORTANTE:
4.
• AsegQrese de que sea una tuberia de agua fr[a.
• Una tuberia horizontal funcionar& pete taladre per el lade
superior de la tuberia, no por debajo. Esto ayudara a
mantener el agua alejada del taladro. Esto tambien evita
que se junte sedimento normal en la valvula.
Para determinar la Iongitud de la tuber[a de cobre que va a
necesitar, mida desde la conexi6n baja de la parte trasera
izquierda del refrigerador hasta la tuberia de agua. Agregue
7 pi (2,1 m) para la limpieza. Use tuberia de cobre de 1/4"
(6,35 mm) de diametro externo. AsegOrese que ambos
extremes de la tuberia de cobre esten cortados rectos.
5. Usando un taladro conectado a tierra, haga un orificio de 1/4"
(6,35 mm) en la tuberia de agua fria que Ud. eligi6.
A. Tubedade agua frfa E.Manga de compresidn
B. Abrazaderapara tuberfa F. V#lvulade cierre
C. Tuberfade cobre G. Tuercadepresidn
D. Tuercade compresidn
6. Ajuste la valvula de cierre a la tuberia de agua fria con una
abrazadera para tuberia. AsegQrese que el extremo de salida
este firmemente insertado en el orificio taladrado de 1/4"
(6,35 mm) en la tuberia de agua y que la arandela este per
debajo de la abrazadera para tuberia. Ajuste la tuerca de
presidn. Apriete los tornillos de la abrazadera para tuber[a
lentamente yen forma pareja de manera que la arandela
provea un cierre hermetico. No apriete demasiado porque se
puede quebrar la tuberia de cobre.
7. Deslice la manga de compresi6n y la tuerca de compresi6n
sobre la tuber[a de cobre come se muestra. Inserte el extremo
de la tuberia en el extremo de salida hasta donde sea posible.
Atornille la tuerca de compresidn sobre el extreme de salida
con una Ilave ajustable. No apriete demasiado.
8. Coloque el extremo libre de la tuberia dentro de un recipiente
o fregadero, y ABRA la Ilave de agua principal para lavar la
tuberia hasta que el agua salga limpia. CIERRE la valvula de
cierre del agua en la tuberia de agua. Enrolle la tuber[a de
cobre en espiral.
Conexibn al refrigerador
Estilo 1
1. Desenchufe el refrigerador o desconecte el suministro de
energia.
2. Fije el tubo de cobre a la entrada de la valvula usando una
tuerca de compresi6n y manga de compresidn como se
muestra. Ajuste la tuerca de compresi6n. No apriete
demasiado.
3. Use la abrazadera para tuber[a en la parte trasera del
refrigerador para afianzar la tuberia al refrigerador segQn se
muestra. Esto ayudara a evitar da_os a la tuberia cuando el
refrigerador se empuje contra la pared posterior.
4. ABRA la valvula de cierre.
5. Revise si hay fugas. Ajuste las conexiones (incluso las de la
valvula) o tuercas que tienen fugas.
6=
C
D
A. Abrazadera para tuberfa C. Tuerca de compresidn
B. Tuberfa de cobre D. Entrada de la vblvula
La fabrica de hielo esta equipada con un filtro de agua
incorporado. Si las condiciones del agua local requieren un
segundo filtro de agua, se debe instalar en la linea de agua de
1/4"(6,35 mm) en cualquiera de las conexiones de la tuber[a.
Consiga un filtro de agua del distribuidor de
electrodomesticos mas cercano a su domicilio.
16

Estilo 2
1. Desenchufe el refrigerador o desconecte el suministro de
energia.
2. Quite la cinta de empaque de la tuberia gris enrollada en la
parte trasera del refrigerador.
3. Enrosque la tuerca provista sobre el acoplamiento en el
extreme de la tuberfa de cobre. Apriete la tuerca a mano.
Luego aprietela dos vueltas con una Ilave de tuercas. No
apriete demasiado.
4.
5.
A B c
A. Tuberfaal refrigerador
B. Tuerca(provista)
C. Bulbo
D.Acoplamiento (adquirido)
ABRA la valvula de cierre.
Revise si hay fugas. Apriete aquellas tuercas o conexiones
que tengan fugas (incluidas las conexiones en la valvula).
D E F G
E. F_rula (adquirida)
F. Tuerca (adquirida)
G. Lfnea de agua de la casa
Estilo 3
1. Desenchufe el refrigerador o desconecte el suministro de
energia.
2. Quite la cinta de empaque de la tuberia gris enrollada en la
parte trasera del refrigerador.
3. Enrosque la tuerca provista sobre la valvula de agua come se
muestra.
A
J/ IB
4.
5.
A. Bulbo
B. Tuerca(provista)
NOTA: Apriete la tuerca a mane, Luego aprietela dos vueltas
con una Ilave de tuercas. No apriete demasiado.
ABRA la valvula de cierre.
Revise si hay fugas. Apriete aquellas tuercas o conexiones
que tengan fugas (incluidas las conexiones en la valvula).
Cbmo terminar la instalacibn
Pe_igro de Choqae Electrico
Conecte a un contacto de pared de cone×i6n a tierra de
3terminates.
No quite la termina_ de conexi6n a tierra,
No use un adaptador,
No use an cable electrico de extensi6n,
No seguir estas inetrucciones puede ocasionar
la muerte, incendio o choque e_ectrico,
1. Enchufe el refrigerador o reconecte el suministro de energfa.
2. Enjuague el sistema de agua. Vea "Despachadores de agua y
hielo".
NOTA: Deje transcurrir 24 horas para la producci6n de la primera
tanda de hielo. Deje pasar 3 dias para que se Ilene
completamente el recipiente para hielo.
USO DESUREFRIGERADOR
Para su comodidad, los controles de su refrigerador han sido
programados en la fabrica. Cuando instale su refrigerador por
primera vez asegQrese que los controles tengan la programaci6n
original. El control del refrigerador y el control del congelador
deberian estar en la "posici6n intermedia".
COLD
FREEZER
COLDER COLD
REFRIGERATOR
I
34
1"_ 5 6 COLDER
IMPORTANTE:
• Su unidad no enfria cuando el control del REFRIGERADOR
esta en la posici6n OFE
• El control del refrigerador ajusta la temperatura del
compartimiento del refrigerador. El control del congelador
ajusta la temperatura del compartimiento del congelador. Los
ajustes hacia la izquierda de la posici6n intermedia hacen que
la temperatura sea menos frfa. Los ajustes hacia la derecha de
la posici6n intermedia hacen que la temperatura sea mas fria.
• Espere 24 horas antes de guardar alimentos en el refrigerador.
Si usted introduce alimentos antes de que el refrigerador se
haya enfriado completamente, los alimentos pueden
descomponerse.
NOTA: Poner los controles del refrigerador y del congelador en un
ajuste mas alto (mas fifo) que el recomendado no enfriara mas
rapido los compartimientos.
17

Ajuste de los controles
Permita que el refrigerador se enfrie completamente antes de
introducir los alimentos. Lo mejor es esperar 24 horas antes de
guardar alimentos en el refrigerador. Los ajustes indicados en la
secci6n anterior deberian ser los correctos para el use normal del
refrigerador en una casa. Los controles estan ajustados
correctamente cuando la leche o los jugos estan tan fries como
Ud. desea y cuando el helado tiene consistencia firme.
Si necesita regular las temperaturas en el refrigerador o en el
congelador, utilice como gufa los ajustes que se enumeran en la
tabla siguiente. Espere pot Io menos 24 horas entre ajustes.
CONDICION/MOTIVO: AJUSTE:
REFRIGERADOR demasiado caliente Control del
REFRIGERADOR un
ajuste mas alto
CONGELADOR demasiado caliente/ Control del
muy poco hielo CONGELADOR un
ajuste mas alto
REFRIGERADOR demasiado frio Control del
REFRIGERADOR un
ajuste mas bajo
CONGELADOR demasiado frio Control del
CONGELADOR un
ajuste mas bajo
Puede ajustarse el control para que enfrie de manera apropiada
las carnes o los vegetales. El aire dentro de la charola se enfrfa
para prevenir que pares de los alimentos se congelen y puede
ajustarse para mantener la came alas temperaturas de
almacenaje recomendadas per el National Livestock and Meat
Board (Consejo Nacional de Ganado y Carnes): 28 ° a 32°F (-2° a
0°C). El control del cajdn convertible para verduras/carne viene
ajustado de fabrica en la posicidn menos frfa para carnes.
Para guardar la carne:
Fije el control en uno de los tres ajustes para MEAT (Came), para
guardar la carne en su temperatura ideal de almacenaje.
Para guardar verduras:
Fije el control en VEG (Verduras) para guardar las verduras ensus
temperaturas 6ptimas de almacenaje.
NOTA: Si los alimentos se empiezan a congelar, mueva el control
hacia la izquierda (menos frfo). Recuerde que debe esperar
24 horas entre ajustes.
:::::::, ::
Usted puede controlar el nivel de humedad en el caj6n hermetico
para verduras. Regule el control a cualquier ajuste entre Bajo
(LOW) y Alto (HIGH).
LOW (bajo-posicidn abierta) para el mejor almacenamiento de
frutas y verduras con cascaras.
HIGH (Alto - posici6n cerrada) para el mejor almacenamiento de
vegetales de hoja frescos.
Peligro de Cortaduras
Use un vaeo reeietente para recibir hie_o o agua det
deepachador.
No seguir esta inetruccion puede ocasionar
cortadurae.
El despachador de agua
IMPORTANTE:
• El sistema de distribuci6n no funcionara cuando la puerta del
congelador este abierta.
• Despues de haber conectado el refrigerador a un suministro
de agua, enjuague el sistema de agua dispensando agua en
un recipiente resistente hasta que haya enjuagado y
descartado de 2 a 3 galones (de 8 a 12 L) de agua, o por
aproximadamente de 5 minutos despues de que el agua
comience a salir. El agua que usted saca y descarta limpia el
sistema y ayuda a despejar el aire de las lineas. A medida
que sale aire de las Ifneas, es posible que salgan chorros de
agua repentinos del despachador.
• Deje que pasen varias horas para que el refrigerador se enfrie
y pueda enfriar el agua.
• Haga salir suficiente agua cada semana para mantener un
suministro fresco.
Para despachar agua:
1. Oprima un vase contra la barra del despachador de agua.
2. Retire el vase para detener la salida del agua.
El despachador de hielo
El sistema de distribuci6n no funcionara cuando la puerta del
congelador este abierta. El hielo se distribuye del recipiente de
almacenamiento de la fabrica de hielo en el congelador cuando se
presione la barra del despachador.
Dependiendo de su modelo, usted puede tenet una o mas de las
opciones siguientes: la posibilidad de seleccionar hielo picado o
en cubos, una luz especial que se enciende cuando usted utiliza
el despachador o una opci6n de cierre para evitar que salga hielo
involuntario.
NOTA: Algunos modelos despachan hielo en cubes y hielo
picado. Antes de sacar hielo, seleccione el tipo de hielo que
desea.
Para obtener hielo picado, el hielo es triturado antes de set
despachado. Esto puede retrasar un poco la distribuci6n del hielo
picado. El ruido proveniente del triturador de hielo es normal y los
trozos de hielo pueden variar en tamale. Cuando cambia de la
posici6n de hielo picado a la posici6n de hielo en cubes, caen
unas onzas de hielo picado junto con los primeros cubes.
18

Para despachar hielo:
1. Oprima el bot6n del tipo de hielo que desee.
2. Oprima con un vaso resistente la barra del despachador de
hielo. Sostenga el vaso junto al orificio del despachador para
que el hielo no caiga fuera del vaso.
IMPORTANTE: No necesita aplicar mucha presi6n a la barra
para activar el despachador de hielo. Oprimir mucho no hara
que el despachador funcione con mas rapidez o produzca
mayor cantidad de hielo.
3. Retire el vase para detener la salida del hielo.
La luz del despachador
Estilo 1: La luz del despachador puede encenderse oprimiendo el
bot6n de ON.
Estilo 2: Cuando use el despachador, la palanca encendera
automaticamente la luz. Si usted quiere que la luz este encendida
continuamente, puede elegir ON (Encendida) o NIGHT LIGHT
(Automatica).
ON (Encendida): Presione el bot6n de luz (LIGHT) para encender
la luz del despachador.
NIGHT LIGHT (Luz Noctuma): Presione el bot6n de luz (LIGHT)
per segunda vez para seleccionar el mode de luz nocturna. La luz
del despachador se ajustara automaticamente para ponerse mas
brillante a medida que la habitaci6n se ilumine mas y mas tenue a
medida que la habitaci6n se oscurezca.
OFF (Apagada): Presione el bot6n de luz (LIGHT) por tercera vez
para apagar la luz del despachador.
El cierre del despachador (en algunos modelos)
Su despachador puede apargarse para facilitar la limpieza o para
evitar que sea activado involuntario por nir3os o animales
domesticos.
NOTA: La funci6n de cierre no interrumpe el flujo electrico a la
unidad, a la fabrica de hielo o a la luz del despachador.
0nicamente desactiva las barras del despachador.
Estilo 1: Oprima el bot6n de LOCK (Cierre) para apagar el
despachador. Oprima el bot6n de UNLOCK (Reactivaci6n) para
reactivar el despachador
Estilo 2: Presione y sostenga el bot6n bloqueo desactivado
(LOCK OUT) para apagar el despachador. Presione el bot6n
bloqueo desactivado (LOCK OUT) para desbloquear el
despachador.
Para encender y apagar la f&brica de hielo
Para poner a funcionar (ON) la fabrica de hielo, sencillamente baje
el brazo de control de alambre.
Para apagar (OFF) la fabrica de hielo manualmente, levante el
braze de control de alambre a la posici6n OFF (apagado - brazo
elevado) y escuche el chasquido.
NOTA: Su fabrica de hielo tiene un apagado automatico. A
medida que se produce el hielo, los cubitos de hielo Ilenaran el
dep6sito para hielo y estos levantaran el braze de control de
alambre a la posici6n de apagado (OFF - brazo elevado). No
fuerce el brazo de control de alambre hacia arriba o hacia abajo.
RECUERDE:
• Deje transcurrir 24 horas para la producci6n del primer Iote de
hielo. Deshagase de los tres primeros Iotes de hielo
producidos.
• La calidad del hielo dependera de la calidad del agua que
suministre a su fabrica de hielo. Evite la conexi6n de su
fabrica de hielo a un suministro de agua bland& Los quimicos
para ablandar el agua (como la sal) pueden dafiar ciertos
componentes de la fabrica de hielo y producir un hielo de muy
baja calidad. Si no se puede evitar el use de un suministro de
agua blanda, asegQrese de que el ablandador de agua este
funcionando correctamente y que goce de un buen
mantenimiento.
• Nunca use instrumentos afilados para romper el hielo en el
dep6sito o en el balde. Esto puede dafiar el balde y el
mecanismo de despachado.
• No guarde nada encima de la fabrica de hielo, en el dep6sito
de hielo o en la cubeta.
Para quitar y volver a colocar el depbsito de hielo
1. Levante desde abajo el panel que cubre el dep6sito y
deslicelo hacia atras.
2. Eleve el brazo de control de alambre hasta que enganche en
la posici6n OFF (apagado - brazo elevado). A0n se puede
sacar hielo del despachador pero no se puede hacer mas.
3. Levante y jale de la parte delantera del dep6sito de hielo para
sacarlo.
Vuelva a colocar el dep6sito empujandolo hasta el fondo o de
Io contrario el despachador de hielo no funcionar& Empuje el
el brazo de control de alambre hacia abajo a la posici6n ON
(encendido) para reiniciar la producci6n de hielo. Cerci6rese
de que la puerta este bien cerrada.
19

!_!!il;ii_i_,i!i_S_l'_!i;'_il;i:::__Ii:::::i1_!i_¸_i_iii1'C_i_i,C:ii_ii!il;!ii_,zf_i_Ci,:iiiiiii_¸O_i_i!i{_ii!ii_i,_ii:i:il;i
NOTA: No use con agua que no sea microbiol6gicamente
segura o que sea de calidad desconocida sin desinfectarla
adecuadamente antes o despu_s del sistema.
Luz de estado del filtro de agua (en algunos modelos)
La luz de estado del filtro de agua le ayudara a saber cuando
cambiar el filtro de agua. La luz cambiara de verde a amarilla. Esto
le dira que es casi tiempo de cambiar el filtro de agua. Se
recomienda reemplazar el filtro de agua cuando la luz de estado
cambie a rojo O cuando el flujo de agua al despachador de agua
o a la fabrica de hielo disminuya sensiblemente.
Despues de cambiar el filtro de agua, reajuste la luz de estado del
filtro de agua. La luz de estado cambiara de rojo a verde cuando
se reajuste el sistema,
Filtro de agua sin indicador (en algunos modelos}
Si su refrigerador no tiene la luz indicadora de estado, usted debe
cambiar el filtro de agua cada 6 6 9 meses segQn el uso. Si el flujo
de agua hacia el despachador de agua o a la fabrica de hielo
disminuye sensiblemente antes de que pasen 6 meses, cambie el
filtro mas seguido.
Uso del despachador sin el filtre de agua
Puede usar el despachador sin un filtro de agua. El agua no estara
filtrada.
1. Quite el filtro de agua.
2. Deslice la tapa del extremo del filtro y vuelva a colocar la tapa
en la rejilla de la base.
IMPORTANTE: No descarte la tapa. Es parte de su
refrigerador. Guarde la tapa para usarla con el filtro de
reemplazo,
3. Gire la tapa hasta que quede firmemente en su lugar.
CUIDADO DESU
REFRIGERADOR
Peligro de Explosi6n
Use un limpiador no inflamab_e,
No seguir esta instrucci6n puede ocasionar _amuerte,
e×plosion o i_ce_dio,
Tanto la secci6n del refrigerador como la del congelador se
descongelan automaticamente. No obstante, limpie ambas
secciones mas o menos una vez al mes para evitar la
acumulaci6n de olores, Limpie los derrames de inmediato.
IMPORTANTE: Debido a que el aire circula entre ambas
secciones, los olores que se formen en una secci6n pasaran a la
otra. Para eliminar los olores, limpie completamente ambas
secciones. Para evitar la transferencia de olores y la
deshidrataci6n de los alimentos, envuelva o tape bien los
alimentos.
Para limpiar su refrigerador:
NOTA: No use productos de limpieza abrasives o asperos, come
aerosoles para ventanas, productos de limpieza para fregar,
liquidos inflamables, ceras para limpieza, detergentes
concentrados, blanqueadores o productos de limpieza que
contengan productos de petr61eo en las partes de plastico, en el
interior yen los revestimientos o juntas de la puerta. No use
toallas de papel, estropajos para fregar u otros utensilios de
limpieza asperos.
1. Desenchufe el refrigerador o desconecte el suministro de
energia.
2. Lave a mano, enjuague y seque todas las partes
desmontables y las superficies interiores meticulosamente.
Use una esponja limpia o un pa_o liso y un detergente suave
en agua tibia.
3. Lave las superficies externas metalicas pintadas y de acero
inoxidable con una esponja limpia o un paso liso y detergente
suave con agua tibia.
4. No es necesaria una limpieza rutinaria del condensador en
ambientes de funcionamiento normal en el hogar. Si el
ambiente es particularmente grasoso o polvoriento, o si hay
bastante transito de mascotas en el hogar, el condensador
debera limpiarse cada dos o tres meses para asegurar la
maxima eficacia.
Si necesita limpiar el condensador:
• Quite la rejilla de la base,
• Use una aspiradora con un cepillo suave para limpiar la
rejilla, las Areas abiertas detras de la rejilla y el Area de la
superficie frontal del condensador.
• Vuelva a colocar la rejilla de la base cuando termine.
5. Enchufe el refrigerador o reconecte el suministro de energ[a.
;o
NOTA: No todos los feces son adecuados para su refrigerador.
AsegQrese de cambiar el foco con otro que sea del mismo
tamafio, forma y vatiaje. La luz del despachador requiere de un
foco de 10 vatios de uso pesado y las demas luces requieren un
foco de 40 vatios para electrodomesticos. Puede conseguir los
focos con su distribuidor.
1. Desenchufe el refrigerador o desconecte el suministro de
energia.
2. Si se indica, quite la pantalla de la luz.
NOTA: Para limpiar la pantalla de la luz, lavela con agua tibia y
un detergente I[quido. Enjuague y sequela pantalla
meticulosamente,
3. Quite el foco y reemplacelo con uno del mismo tamar_o, forma
y vatiaje,
4. Si se indica, vuelva a colocar la pantalla.
5. Enchufe el refrigerador o reconecte el suministro de energia.
20
