IKEA VAPPEBY User manual

VAPPEBY

2
1x
110084
1x

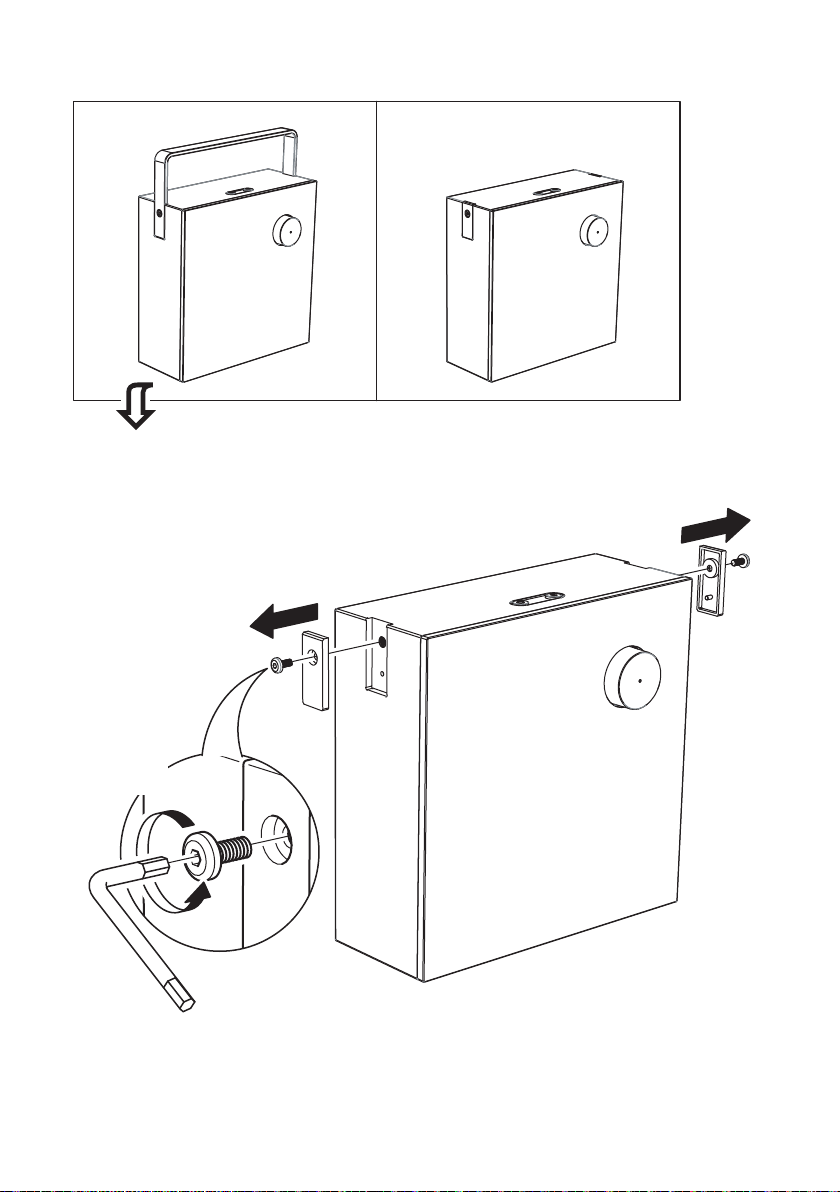

3
DRAFTDRAFT
1
2x
VAPPEBY 20 bluetooth speaker gen 3
3

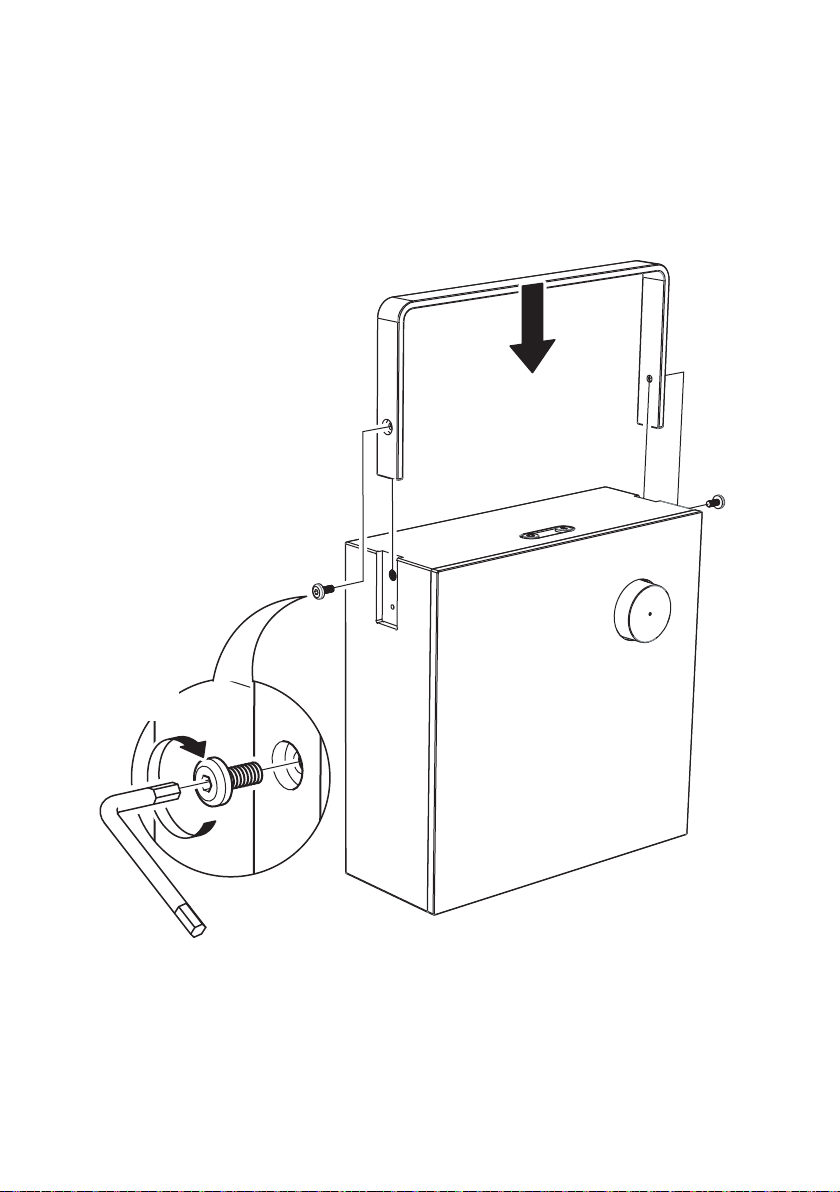

4
DRAFTDRAFT
2x
2
VAPPEBY 20 bluetooth speaker gen 3
4

5
<1,5 sec.>1,5 sec.

6

7

8
ENEBY
ENEBY
ENEBY

9
English 10
Français 18
Español 36

10English

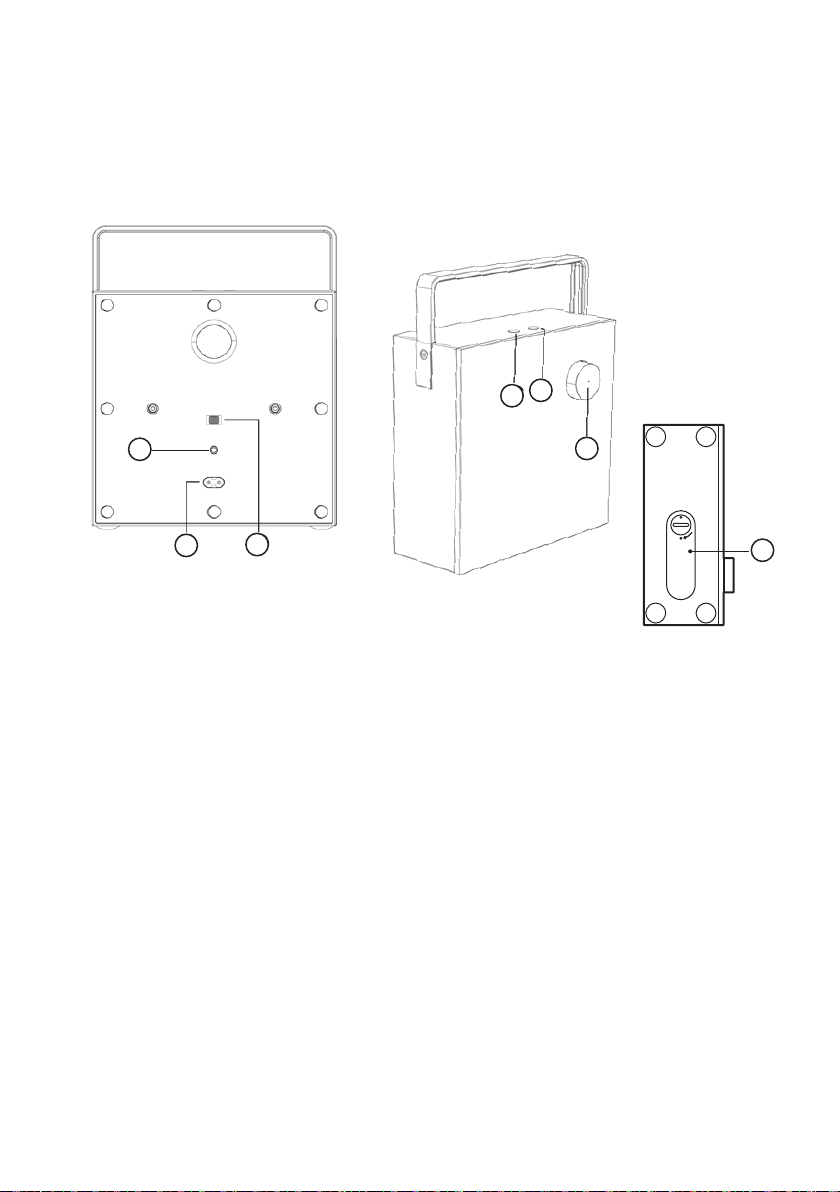

1. AC IN connector
2. Enable/Disable auto o switch
3. Power button and Spotify Tap
4. BT pairing button
5. Volume control
6. Battery compartment lid (battery sold
separately)
7. AUDIO IN connector
LED status
Flashing white: Bluetooth is pairing.
Solid white: Paired to a device.
Flashing red: Low battery.
Solid red: Charging (when speaker is o)

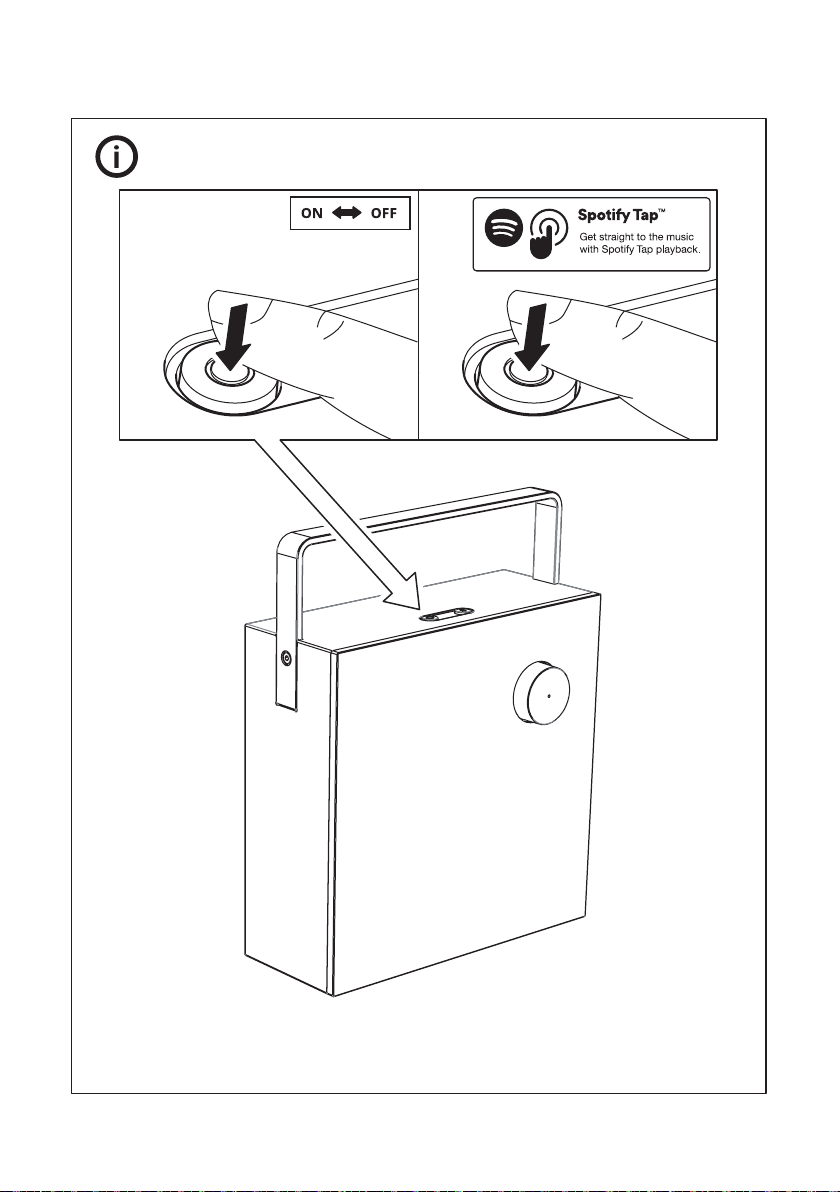

Getting started:
1. Connect mains cord into AC IN (1)
connector.
2. Long press on the ON/OFF button (3)
to turn the speaker ON. VAPPEBY 20
starts to search for paired devices. If
a paired device is found, the LED will
change from blinking to steady light
and speaker is ready to use.
3.If no device is found the LED
continues to blink and enters pairing
mode automatically. Go to the
Bluetooth settings in your mobile
device and connect to VAPPEBY 20
gen3. The LED should now stop
blinking and your speaker is ready to
use.

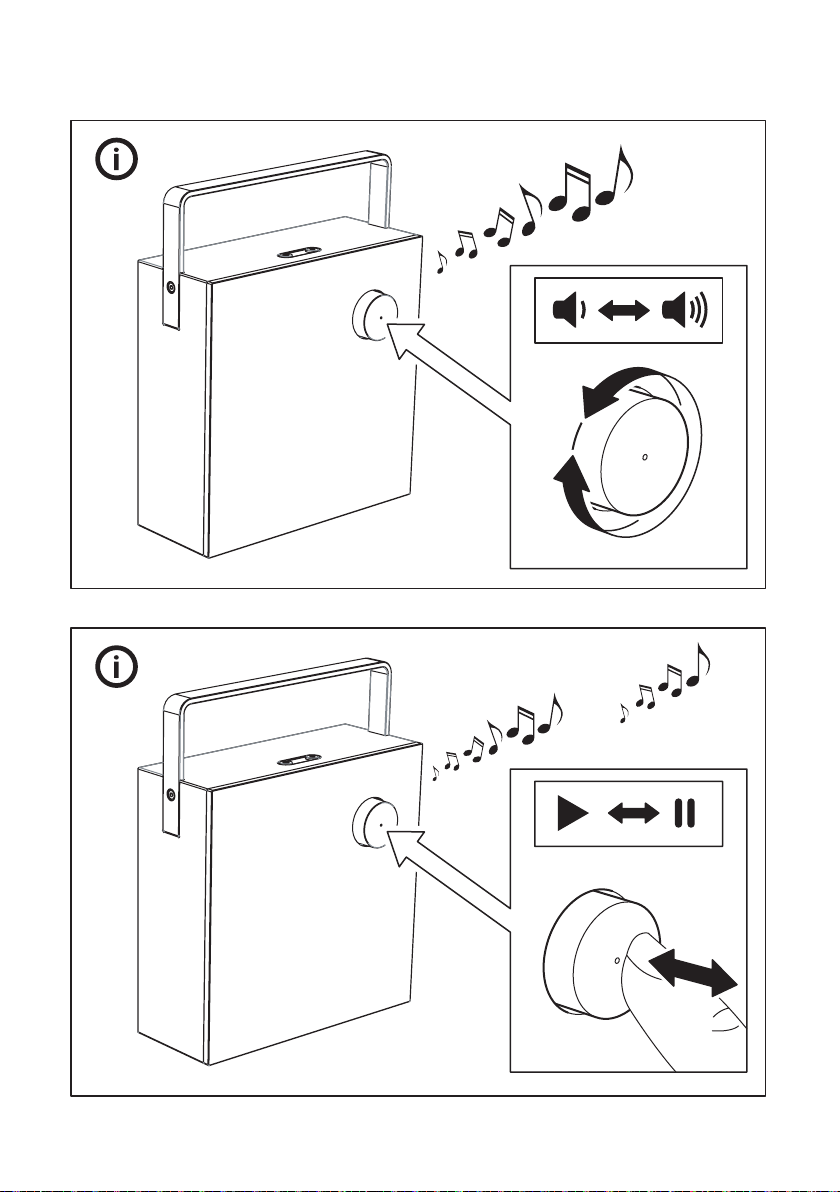

Adjust Volume
Turn the knob (5) left to decrease or
turn it right to increase volume level.
2
3
4
VAPPEBY 20 gen3 (E2036)
1 2
4
3
5
6
7

11
Using Spotify TapTM
Spotify TapTM let's you resume and
change music directly from your
Bluetooth speaker with the press of one
button.
If you have an iOS device:
Go to the App Store and download the
Spotify app. You will be able to create
an account or login if you already have
one.
If you have an Android device:
Go to the Google Play Store and
download the Spotify app. You will be
able to create an account or login if you
already have one.
First use
1. Make sure your device is paired via
Bluetooth to your VAPPEBY speakers.
2. Make sure the Spotify mobile app is
open. This will only be needed on the
rst use.
3.Press the Power button (3) to start
music. The LED indicator should blink
twice.
From now on, whenever you quick
press the Power button (3), the music
resume anytime your device is paired
and in range.
Changing music
Press again the Power button
(3) to change what's playing to a
recommended track.
Play music from external source:
Connect a portable audio device to the
AUDIO IN (7) jack on the rear panel.
The speaker automatically detects the
external input and disables Bluetooth
functionality. Use a 3.5mm 3-pol Audio
cable for this feature.
Use speaker throughout home:
VAPPEBY 20 has the possibility to be
portable. ENEBY battery pack is sold
separately.
• To insert the battery, open the
compartment lid (6) and insert the
battery in the correct direction.
• The battery is charging in the product
when mains cord is connected and
the speaker is turned on.
• When battery is low a red LED in the
knob (1) will ash. During charging the
red LED is on.
CAUTION:
• Risk of explosion if battery is replaced
by an incorrect type.
• Replace only with the same or
equivalent type.
•

12
Other settings:
Unpair Bluetooth devices Press and hold the Bluetooth pairing button (4) for ≥1.5 s.
The speaker will release the BT connection to the phone
and start searching for another device to pair with. LED will
change from steady light to ashing.
Set up a stereo pair You can pair two identical VAPPEBY 20 gen3 speakers to
create a wider stereo experience. In this conguration, one
speaker serves as the left channel and the other serves as
the right channel.
1. Turn on both speakers.
2. Press and hold the BT pair button (4) for 1,5 sec on each
speaker to release any existing BT connections. LED
indicator should be ashing on both speakers
3. Press and hold the BT pair button (4) on both speakers at
the same time for 4 seconds until a conrmation sound
is played. Wait for the speakers to connect to each other
4. The LED on one of the speakers will be ashing. Open
the Bluetooth setting on your mobile device and connect
to this speaker. This speaker will becoe the left channel
in the stereo pair
To disable the stereo pair, follow instructions “Unpair
Bluetooth devices” on both speakers.
Enable/Disable the auto-o
function
Move the switch (2) to position “20” to enable auto o.
The speaker will turn o automatically after 20 minutes if
no music is played. Move the switch (2) to position “∞” to
disable the auto o function
Factory reset Press and hold the volume knob (5) for 5 seconds. A
conrmation sound will be played

13
Safety and important notice
WARNING:
• Risk of overheating! Never install the
product in a conned space. Always
leave a space of at least 5 mm around
the product for ventilation. Ensure
curtains or other objects never cover
the ventilation slots on the product.
• Never place the product or batteries
near open ames or other heat
sources, including direct sunlight.
• Only use this product indoors. The
apparatus shall not be exposed to
dripping or splashing, no objects lled
with liquids, such as vases, shall be
placed on the apparatus.
• Never place this product on other
electrical equipment.
• The mains plug or an appliance
coupler is to be used as a disconnect
device, the disconnect device shall
remain readily operable.
• If the supply cord is damaged, replace
it with a new cord set which is type-
approved for your country.
• No open ame sources, such as
candle lights should be placed on the
apparatus
• Batteries (battery pack or batteries
installed) shall not be exposed to
excessive heat such as sunshine, re
or similar.
IMPORTANT!
• The speaker is for indoor use only and
can be used in temperatures ranging
from 0º C to 40º C (32˚F to 104˚F).
• Do not leave the speaker in direct
sunlight or near any heat source, as it
may overheat.
• Do not subject the speaker to
wet, moist or excessively dusty
environments, as this may cause
damage.
• The range between the speaker and
the receiver is measured in open air.
• Dierent building materials and
placement of the units can aect the
wireless connectivity range.
• Too high volume can damage your
hearing.
• Do not touch the acoustic
components.
• Do not use the product as a shelf or
stand.
CARE INSTRUCTIONS
To clean the speaker, wipe with a moist
cloth. Never submerge the speaker in
water.
NOTE!
Never use abrasive cleaners or chemical
solvents as this can damage the
product.

14
Troubleshooting
Problem Tip
Cannot use Bluetooth: Make sure 3.5mm connector is not plugged into AUDIO IN
jack on rear panel.
Make sure your phone, tablet or other media device supports
Bluetooth.
Make sure to connect to the IKEA device called VAPPEBY 20
gen3
Make sure your phone, tablet or other media device is paired
and that its Bluetooth is turned on.
Make sure no other Bluetooth devices in the room are paired.
If so, turn o the Bluetooth function in that device.
Poor sound quality when
playing via Bluetooth:
If Bluetooth reception is poor, move the device closer to the
speaker or remove any obstacles between the device and the
speaker.
Note: Bluetooth reception will normally operate at a distance
of up to 6-8m in conditions with an unobstructed path. When
objects, furniture or walls are in between, Bluetooth reception
will be reduced. When the device is placed in pockets of
clothes or in a bag, Bluetooth reception can be reduced.
Poor sound quality when
playing via AUDIO IN
input:
Make sure your phone, table or other media device is not at
maximum volume, if so, turn down the volume.
Product servicing
Do not attempt to repair this product
yourself, as opening or removing covers
may expose you to dangerous voltage
points or other risks.
Save these instructions for future
use.
Manufacturer: IKEA of Sweden AB
Address:
Box 702, SE-343 81 Älmhult, SWEDEN
Spotify TapTM is a trademark owned by
Spotify and any use of such marks by
IKEA is under license. All other Spotify
trademarks, service marks, trade
names, logos, domain names, and any
other features of the Spotify brand
are the sole property of Spotify or its
licensors.
The Bluetooth® word mark and logos
are registered trademarks owned by
Bluetooth SIG, Inc. and any use of such
marks by IKEA is under license. Other
trademarks and trade names are those
of their respective owners.

15
How to use ENEBY battery pack
(battery sold separately):
Good to know
• It is normal for the battery to become
hot during charging and it will
gradually cool down after charging.
• Charging time may vary depending
on remaining charge, battery age and
ambient temperature.
• Battery storage temperature:
-20°C to 25°C (-4°F to 77°F).
• Charger operation temperature:
0°C to 40°C (32˚F to 104˚F).
• Disconnect the battery from the power
outlet before cleaning or when it is not
used.
• Battery should not be left discharged
for a longer period.
• Battery should not be charged while in
contact with ammable material like
textiles.
• This battery can only be used with
IKEA products.
CAUTION
• Do not modify, disassemble, open,
drop, crush, puncture, or shred
battery.
• Do not expose the battery to rain or
water.
• Risk of res and burns. Do not open,
crush, heat above 140°F (60°C), or
incinerate.
• Keep battery away from open ame or
sunlight to prevent heat build-up.
• Keep battery away from high voltage
devices.
• This product is not a toy, keep away
from children. Ensure that all persons
who use this product read and follow
these warnings and instructions.
• Do not short-circuit the battery or its
cells.
• In the event of a cell leaking, do not
allow the liquid to come in contact
with the skin or eyes.
CARE INSTRUCTION
To clean the unit, wipe with a soft cloth
moistened with a little mild detergent.
Use another soft dry cloth to wipe dry.
NOTE!
Never use abrasive cleaners or chemical
solvents since this can damage the
product.
Product servicing
Do not attempt to repair this product
yourself, as opening or removing covers
may expose you to dangerous voltage
points or other risks.

16
TECHNICAL DATA
Type: ICBL14.4-36-A1
Capacity: 2600mAh/37.4Wh
Input: DC 16.8V, 2.0A
Output: DC 14.4V, 3.1A
For indoor use only
Rechargeable Li-Ion battery cell
inside.
This device conforms to UL STD. 2054
Technical data
Model Name VAPPEBY 20 gen3
Type number: E2036
Input: 100-240VAC 50/60Hz
Standby Power Consumption: <0.2 W
Rated Power Consumption: 36.0 W
Operating temperatures: 0°C to 40°C *(32˚F to 104˚F)
Operating humidity: 0 to 95%RH
Dimensions (mm/inch): 199x199x80 / 8" x 8" x 3" (without handle)
Weight: 1.5kg / 52.91oz (without battery)
Audio In: 3.5mm jack
Audio In Input sensitivity: 0.6 V
Battery playtime at 50% volume: 14-16 Hours
Auto Standby: 20 min
Speaker type: mixed mono
Woofer: 1 x 3.2"
Soft dome tweeter: 1 x 1"
Amplier output power: 1x15W + 1x5W
Frequency range: 57 - 20 KHz
Bluetooth Version: V 5.0
Wireless range in open air: 10 m
Operating frequency: 2400 - 2483.5 MHz
Radio output power: 6 dBm

17
This device complies with Part 15 of the
FCC Rules.
This device contains licence-exempt
transmitter(s)/receiver(s) that comply
with Innovation Science and Economic
Development Canada's licence-exempt
RSS standard(s).
Operation is subject to the following
two conditions:
(1) this device may not cause harmful
interference, and
(2) this device must accept any
interference received, including
interference that may cause
undesired operation of the device.
WARNING:
Any changes or modications to this
unit not expressly approved by the
party responsible for compliance could
void the user’s authority to operate the
equipment.
NOTE:
This equipment has been tested and
found to comply with the limits for
a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits
are designed to provide reasonable
protection against harmful interference
in a residential installation.
This equipment generates, uses and
can radiate radio frequency energy
and, if not installed and used in
accordance with the instructions, may
cause harmful interference to radio
communications. However, there is no
guarantee that interference will not
occur in a particular installation.
If this equipment does cause harmful
interference to radio or television
reception, which can be determined
by turning the quipment o and on,
the user is encouraged to try to correct
the interference by one or more of the
following measures:
• Reorient or relocate the receiving
antenna.
• Increase the separation between the
equipment and receiver.
• Connect the equipment into an outlet
on a circuit dierent from that to
which the receiver is connected.
• Consult the dealer or an experienced
radio/TV technician for help.
The crossed-out wheeled bin symbol
indicates that the item should be
disposed of separately from household
waste. The item should be handed in
for recycling in accordance with local
environmental regulations for waste
disposal. By separating a marked item
from household waste, you will help
reduce the volume of waste sent to
incinerators or land-ll and minimize
any potential negative impact on
human health and the environment. For
more information, please contact your
IKEA store.

18Français
1. AC IN connector
2. Enable/Disable auto o switch
3. Power button and Spotify Tap
4. BT pairing button
5. Volume control
6. Battery compartment lid (battery sold
separately)
7. AUDIO IN connector
LED status
Flashing white: Bluetooth is pairing.
Solid white: Paired to a device.
Flashing red: Low battery.
Solid red: Charging (when speaker is o)
Getting started:
1. Connect mains cord into AC IN (1)
connector.
2. Long press on the ON/OFF button (3)
to turn the speaker ON. VAPPEBY 20
starts to search for paired devices. If
a paired device is found, the LED will
change from blinking to steady light
and speaker is ready to use.
3.If no device is found the LED
continues to blink and enters pairing
mode automatically. Go to the
Bluetooth settings in your mobile
device and connect to VAPPEBY 20
gen3. The LED should now stop
blinking and your speaker is ready to
use.
Adjust Volume
Turn the knob (5) left to decrease or
turn it right to increase volume level.
2
3
4
VAPPEBY 20 gen3 (E2036)
1 2
4
3
5
6
7

19
Using Spotify TapTM
Spotify TapTM let's you resume and
change music directly from your
Bluetooth speaker with the press of one
button.
If you have an iOS device:
Go to the App Store and download the
Spotify app. You will be able to create
an account or login if you already have
one.
If you have an Android device:
Go to the Google Play Store and
download the Spotify app. You will be
able to create an account or login if you
already have one.
First use
1. Make sure your device is paired via
Bluetooth to your VAPPEBY speakers.
2. Make sure the Spotify mobile app is
open. This will only be needed on the
rst use.
3.Press the Power button (3) to start
music. The LED indicator should blink
twice.
From now on, whenever you quick
press the Power button (3), the music
resume anytime your device is paired
and in range.
Changing music
Press again the Power button
(3) to change what's playing to a
recommended track.
Play music from external source:
Connect a portable audio device to the
AUDIO IN (7) jack on the rear panel.
The speaker automatically detects the
external input and disables Bluetooth
functionality. Use a 3.5mm 3-pol Audio
cable for this feature.
Use speaker throughout home:
VAPPEBY 20 has the possibility to be
portable. ENEBY battery pack is sold
separately.
• To insert the battery, open the
compartment lid (6) and insert the
battery in the correct direction.
• The battery is charging in the product
when mains cord is connected and
the speaker is turned on.
• When battery is low a red LED in the
knob (1) will ash. During charging the
red LED is on.
CAUTION:
• Risk of explosion if battery is replaced
by an incorrect type.
• Replace only with the same or
equivalent type.
•

20
Other settings:
Unpair Bluetooth devices Press and hold the Bluetooth pairing button (4) for ≥1.5 s.
The speaker will release the BT connection to the phone
and start searching for another device to pair with. LED will
change from steady light to ashing.
Set up a stereo pair You can pair two identical VAPPEBY 20 gen3 speakers to
create a wider stereo experience. In this conguration, one
speaker serves as the left channel and the other serves as
the right channel.
1. Turn on both speakers.
2. Press and hold the BT pair button (4) for 1,5 sec on each
speaker to release any existing BT connections. LED
indicator should be ashing on both speakers
3. Press and hold the BT pair button (4) on both speakers at
the same time for 4 seconds until a conrmation sound
is played. Wait for the speakers to connect to each other
4. The LED on one of the speakers will be ashing. Open
the Bluetooth setting on your mobile device and connect
to this speaker. This speaker will becoe the left channel
in the stereo pair
To disable the stereo pair, follow instructions “Unpair
Bluetooth devices” on both speakers.
Enable/Disable the auto-o
function
Move the switch (2) to position “20” to enable auto o.
The speaker will turn o automatically after 20 minutes if
no music is played. Move the switch (2) to position “∞” to
disable the auto o function
Factory reset Press and hold the volume knob (5) for 5 seconds. A
conrmation sound will be played
