Exhausting cooker hood
The equipment is constructed in accordance with
European Standards and the requirements included in
the following Directives: 73/23 EEC (electric-low tension
safety), 89/336 EEC (electromagnetic compatibility),
93/68 EEC (EC marking regulations).
Before installing and/or using the hood:
• read all the instructions thoroughly;
• be sure that the ceiling structure is suitable for the
installation of this heavy equipment
• make sure that the voltage (V) and frequency (Hz)
ratings indicated on the plate inside the hood unit
correspond to the ones available in the installation
place.
• At least two people are needed for the installation
procedure, which it is advisable to entrust to competent
technicians.
USE
This cooker hood can be employed as exhausting
or filtering. Exhausting (external evacuation). Kitchen
smokes are driven outside through a flue (not provided
with the hood) joined to the exhaust pipe flue connector.
This pipe must not under any circumstances be
connected to cooker, boiler or burner exhaust pipes,
etc.
The use of pipes and holes on the wall with a smaller
diameter than the output of the motor will cause a
decrease in suction performance and an increased of
the noise level.
Use as short as possible tubes and with few curves.
Use pipes with smooth internal surfaces.
Filtering (inside recycling). The fumes pass through
activated carbon filters (supplied with the hood) to be
purified and recycled into the kitchen.
1. INSTALLATION
Read the instruction manual before installing and/or
using the hood. The minimum distance between the
supporting surface of the cooking hob and the lowest
part of the range hood must be not less than 65cm with
a gas hob. If the mounting instructions of the gas hob
indicate a wider distance, respect it.
The unit must not be mounted above cookers fitted
with top radiant plate.
For proper operation, it is recommended to install the
product at a distance of 200 – 210 cm from the floor.
Respect all the air discharge regulations.
The air must not be discharged in a pipe used to
discharge exhaust fumes produced by gas-fed
equipment or fuel-fed equipment (this does not apply to
filtering hoods).
The room must be adequately ventilated when
the hoods is used together with other gas or fuel
equipment.
For an easy access, it is advisable to move possible
furniture under the installation area.
INSTALLING THE HOOD
The hood can be installed in 2 different ways:
• Fixed directly to the ceiling:
This method of fixing can only be achieved if the distance
between the ceiling and the false ceiling is between 260
and 318mm.
For fixing, use the appropriate adjustable brackets
(Fig. 5).
Perform the following steps in order:
1. Make an opening in the false ceiling following the
dimensions shown in Fig. 1. 2. Drill 4 holes on the
ceiling following the dimensions shown in Fig. 1 for the
subsequent anchoring of the adjustable brackets.
3. Adjust the size of the brackets appropriately based on
the distance between the ceiling and the false ceiling
(Fig. 2).
4. Screw the brackets to the load-bearing ceiling using
the 4 screws supplied (Fig. 3).
5. Access the lower side of the hood and open the main
panel (Fig. 4).
6. Remove the metal filters and the central cover (Fig. 10
and Fig. 11) and bring the hood closer to its housing.
7. Electrically connect the hood and the air discharge
pipe (Fig. 5).
8. Anchor the hood using the 4 screws to the brackets
previously fixed to the ceiling (Fig. 6).
9. Reassemble the central cover and install the metal
filters before closing the main panel.
• Fixed directly on the false ceiling:
WARNING: use this type of installation ONLY and
EXCLUSIVELY when the false ceiling is able to support
the weight of the hood:
MOD. LINE-UP87: 25Kg. - MOD. LINE-UP117: 30Kg.
For this method of installation, use the special brackets
(Fig.7).
Perform the following steps in order:
1. Assemble the 4 brackets as shown in Fig. 7 and
tighten the 4 adjusting screws leaving sufficient travel to
engage the hood in the false ceiling.
2. Remove the metal filters and the central cover (Fig. 10
and Fig. 11) and place the hood in its housing.
3. Electrically connect the hood and the air discharge
pipe.
4. With the hood positioned, adjust the adjusting screws
until the hood is well anchored (Fig. 8).
The aspirator can also, by means of the special
extension, be positioned far from the hood at a distance
not exceeding 7mt. In this case the hood can only be
used in the exhaust version.
Respect the installation methods as shown in Fig. 9 in
order to keep the fan’s rotation axis horizontal.
For the electrical connection of the motor away from the
hood always use the supplied extension cord and make
the earthing connection using the yellow-green wire.
INSTALLATION, OPERATING AND MAINTENANCE INSTRUCTIONS FOR
RANGE HOODS DESIGNED FOR WALL FITTING 230 Vac • 50 Hz

INSTALLATION
2
2. ELECTRICAL CONNECTIONS
This equipment must be connected to a grounding plant.
Two types of electrical connection can be used:
1. Using a standard plug to be connected to the power
cable and inserted in a mains socket which must be
accessible (so that the plug can be disconnected when
servicing is carried out). Make sure that the plug is
accessible also after the complete installation of the
equipment.
2. By means of a fixed mains connection, fitting a
bipolar switch, which ensures the disconnection, with an
opening distance of the contacts allowing a complete
disconnection on the conditions of the over voltage III
category, according to installation regulations. The ground
connection (yellow-green wire) must not be interrupted.
Refer to the plate inside the hood for the mains voltage
and frequency ratings.
If the power cable is damaged, it must be replaced by the
manufacturer or by its service agent or a qualified person
in order to avoid any risk.
For stationary appliances permanently connected to
the fixed wiring, compliance with this requirement is
considered to be met if the instruction concerning
disconnection incorporated in the fixed wiring is in
accordance with AS/NZS 3000
Refer to the plate inside the hood for the mains voltage
and frequency ratings.
3. OPERATION
The hood is supplied with a multi speed motor.
The hood should be run at low speed under normal
conditions and at higher speeds only when there is a
heavy build-up of fumes or odour. Ideally, the hood should
be switched on as soon as cooking is started and then
kept on until all odour have been eliminated.

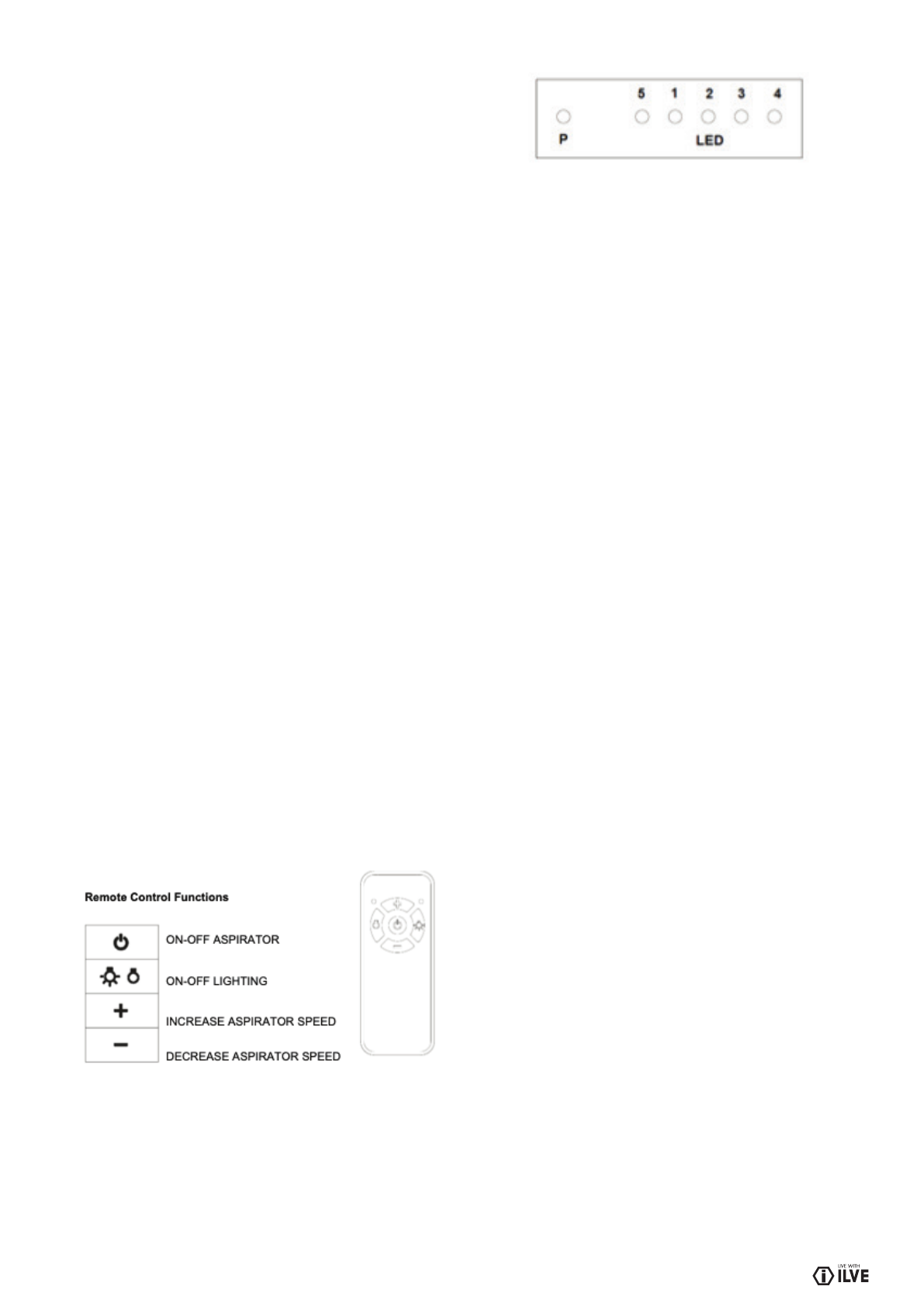

REMOTE CONTROL FUNCTIONS
When turned on, the engine is positioned at the second
speed. The motor speed is indicated by the lighting of
the respective green LED (ref. pos. 1-2-3-4). At the fourth
speed (intensive, ref. pos. 4), the LED flashes and after 5
minutes the motor returns to the third speed automatically.
REMOTE CONTROL ENCODING
The supplied remote control is already encoded and can
be used from the beginning for the total control of the
hood.
To encode another remote control, hold the button “P” on
the hood for 4 seconds until the programming red LED
lights up, at this point press immediately after the On / Off
aspirator.
When the red LED turns off, the programming is closed
and you cannot no longer program the remote control.
SAFETY SWITCH
In case the remote control is lost or out of batteries, the
appliance shall be switched off pushing the “P” button.
RESTORING FACTORY CONDITIONS (RESET)
Hold down the “P” button until the red LED lights up and
continue to press the button without releasing until the
LED turns off by itself. At this point no remote control will
be coupled and it will be necessary to pair one again.
GREASE FILTER MAINTENANCE WARNING
The electronic control report, after 100 hours of operation,
with the flashing of the LEDs, for 30 seconds at shutdown
of the hood, the need for cleaning of the grease filters.
To reset the counter, after cleaning the filters, while the
flashing warning press the “+” on the remote control until
shutdown.
5. MAINTENANCE AND REMINDERS
Always disconnect the hood from the mains before
carrying out any maintenance or cleaning operation.
Particular attention should be paid to the metallic anti-
grease filters that are designed to trap particles of fat
contained in the fumes. The metallic anti-grease filters
must be washed at least once a month with detergent in
hot water (or in the dish-washer). The filters may dis-colour
after a few washes. This is normal and does not mean
they have to be replaced. To remove the metallic anti-
grease filters, open the bottom panel of the hood and then
remove the filter by the handle. Fig. 17.
ATTENTION:
• the grease collected in the filter can easily catch fire
and it is therefore extremely important to clean the metallic
filter on a regular basis as per instructions. Grease filters
are removed as illustrated (Fig. 5).
• Do not flambé under the range hood
• Caution; accessible parts may become hot when used
with cooking appliances.
• Never leave the hob unattended when frying, as oil or
fat can catch fire.
The activated charcoal filters, if present, are designed to
collect unpleasant odour in the cooking fumes. The air is

33
then released purified in the environment. The charcoal
filters must not be washed, but replaced 2 or 3 times a
year, depending on how much the hood is used. New
filters are to be requested directly to the manufacturer.
To replace the charcoal filters, just remove the motor
protection panel, centrally positioned between the metal
filters: locking is performed with magnetic closures;
simply exert a modest manual force, without the use of
tools. At this point you can remove the active charcoal
filter through rotation of about 90 ° with respect to their
position to unhook from the locking lugs, accompanying
then the filter downward, without the aid of tools. Fig.
18-19-20-21.
To reinstall the new activated carbon filters, reverse
operations.
In order to remove the remaining glue or any impurity,
the cooker hood must be cleaned immediately after
installation and after having removed the protective film.
The cooker hood must be cleaned frequently both
internally and externally (at least once a month).
Do not let dirt gather on the inner and outer surfaces of
the hood.
To clean the exterior of the hood do not use either acid
or basic products, or abrasive sponges.
Clean the hood with a sponge dampen in warm water
and a little quantity of neutral detergent (for example
dishwasher detergent), in order to remove possible
particles of grease.
Rinse with a damp cloth, removing all the detergent
carefully, following the satin finish direction on the steel
surface.
Drying is very important, especially in areas where water
is particularly hard and leaves limestone.
The hood features a LED light that, in addition to
offering a good lighting and a significant energy savings,
are guaranteed to last on average 10 times more than
traditional lights.
All the ordinary and extraordinary maintenance can be
performed without having to remove the hood.



55
Eurolinx Pty Limited A.B.N. 50 001 473 347
trading as ILVE (“ILVE”)
Ofce:
48-50 Moore Street, Leichhardt N.S.W 2040
Post:
Locked Bag 3000, Annandale, N.S.W 2038
P: 1300 856 411
WARRANTY REGISTRATION
Your ongoing satisfaction with your ILVE product
is important to us. We ask that you complete the
enclosed Warranty Registration Card and return
it to us so that we have a record of the ILVE
product purchased by you, Alternitivley, you can
now register your warranty online at
http://support.eurolinx.com.au/
PRIVACY
ILVE respects your privacy and is committed
to handling your personal information in
accordance with the National Privacy Principles
and the Privacy Act 1988 (Cth). A copy of the
ILVE Privacy Policy is available at www.ilve.
com.au. ILVE will not disclose any personal
information set out in the Warranty Registration
Card (“Personal Information”) without your
consent unless required by:
1. law;
2. any ILVE related company;
3. any service provider which provide services
to ILVE or assist ILVE in providing services
(including repair and warranty services) to
customers. Our purpose in collecting the
Personal Information is to keep a record of
the ILVE product purchased by you, in order
to provide a better warranty service to you in
the unlikely event that there is a problem with
your ILVE product. ILVE may contact you at any
one or more of the addresses, email addresses
or telephone numbers set out in the Warranty
Registration Card. Please contact ILVE on 1300
694 583 should you not wish to be contacted by
ILVE.
WARRANTY
1. Warranty
ILVE warrants that each ILVE product will
remain, for a period of twenty four (24) months
computed from the date of purchase of the
ILVE product, free from defects arising in the
manufacture of the ILVE product (“Warranty”).
Except for consumer guarantees set
out in the Competition and Consumer Act 2010
(Cth) (“Act”), ILVE does not make any further
warranties or representations in relation to ILVE
products.
2. What is not Covered by the Warranty.
The Warranty does not apply if an ILVE product
is defective by a factor other than a defect
arising in the manufacture of the ILVE product,
including but not limited to:
(a) damage through misuse (including failure
to maintain, service or use with proper care),
neglect, accident or ordinary wear and tear
(including deterioration of parts and accessories
and glass breakage);
(b) use for purpose for which the ILVE product
was not sold or designed;
(c) use or installation which is not in accordance
with any specied instructions for use or
installation;
(d) use or operation after a defect has occurred or
been discovered;
(e) damage through freight, transportation or
handling in transit (other than when ILVE is
responsible);
(f) damage through exposure to chemicals, dusts,
residues, excessive voltage, heat, atmospheric
conditions or other forces or environmental
factors outside the control or ILVE;
(g) repair, modication or tampering by the
purchaser or any person other than ILVE, an
employee of ILVE or an authorised ILVE service
contractor*;
(h) use of parts, components or accessories
which have not been supplied or specically
approved by ILVE.
(i) damage to surface coatings caused by cleaning
or maintenance using products not recommended
in the ILVE product handbook provided to the
purchaser upon purchase of the ILVE product;
(j) damage to the base of an electric oven due to
items having been placed on the base of the oven
cavity or covering the base, such as aluminium
foil (this impedes the transfer of heat from the
element to the oven cavity and can result in
irreparable damage); or
(k) damages, dents or other cosmetic
imperfections not aecting the performance of the
ILVE in respect of an ILVE product purchased as a
“factory second” or from display
The Warranty does not extend to light globes
used in ILVE products.
3. Domestic Use
Each ILVE product is made for domestic use. This
Warranty may not extend to ILVE products used
for commercial purposes.
4. Time for Claim under the Warranty
You must make any claim under this Warranty
within twenty eight (28) days after the occurrence
of an event which gives rise to a claim pursuant
to the Warranty, by booking a service call on the
telephone number below.
Continued over...
WARRANTY

INSTALLATION
66
5. Proof of Purchase
Customers must retain proof of purchase in order
to be eligible to make a warranty claim in respect
of an ILVE product.
6. Claiming under the Warranty
Customers will bear the cost of claiming under this
Warranty unless ILVE determines the expenses
are reasonable, in which case the customer
must claim those expenses by providing written
evidence of each expense to ILVE at the address
on the Warranty Registration Card.
7. Statutory Rights
(a) These terms and conditions do not aect your
statutory rights.
(b) The limitations on the Warranty set out in this
document do not exclude or limit the application
of the consumer guarantees set out in the Act or
any other equivalent or corresponding legislation
in the relevant jurisdiction where to do so would:
(i) contravene the law of the relevant jurisdiction;
or
(ii) cause any part of the Warranty to be void.
(c) ILVE excludes indirect or consequential loss
of any kind (including, without limitation, loss of
use of the ILVE product) and (other than expressly
provided for in these terms and conditions)
subject to all terms,
conditions and warranties implied by custom, the
general law, the Act or other statute.
(d) The liability of ILVE to you for a breach of any
express or non-excludable implied term, condition
or warranty is limited at the option of ILVE to:
(i) replacing or repairing the defective part of the
ILVE product;
(ii) paying the cost of replacing or repairing the
defective part of the ILVE product;
(iii) replacing the ILVE product; or
(iv) paying the cost of replacing the ILVE product.
(e) Our goods come with guarantees that cannot
be excluded under the Australian Consumer
Law. You are entitled to a replacement or refund
for a major failure and for compensation for any
other reasonably foreseeable loss or damage.
You are also entitled to have the goods repaired
or replaced if the goods fail to be of acceptable
quality and the failure does not amount to a
major failure.
8. Defects
Any part of an ILVE product deemed to be
defective and replaced by ILVE is the property of
ILVE. ILVE reserves the right to inspect and test
ILVE products in order to determine the extent of
any defect and the validity of a claim under the
Warranty.
*For your closest ILVE authorised service
agent go to
https://support.eurolinx.com.au/#/map/retailers
All warranty service calls must be booked
through ILVE’s Customer Care Centre on
1300 85 64 11 option 1
01072021
6ILVE Operating Manual
Please complete and send to ILVE at: REPLY PAID 83617
LEICHHARDT NSW 2040
Last Name: First Name:
Address:
State: Postcode: Email:
Home Phone: Mobile:
Purchase Date: / / (Please attach proof of purchase to validate warranty)
MODEL NUMBER SERIAL NUMBER
(if you cannot locate the serial number please call ILVE on 1300 85 64 11)
1
2
3
4
WARRANTY REGISTRATION CARD
01072021
01072021
Warranty Card tear off
WARRANTY

NATIONAL SERVICE CENTRE
Our high quality appliances are designed and manufactured to give you many years of cooking pleasure.
Should you have any questions or issues with your appliance please email our national service centre
Our experienced staff are on hand to log your service request and ensure any matter is attended to promptly.
Technical support is available to authorised and licensed service providers only by contacting us at
10/55 Howe St
Osborne Park, WA
1/42 Cavendish Rd
Coorparoo, QLD
48-50 Moore St
Leichhardt, NSW
LUXURY KITCHEN APPLIANCES

Table of contents
Other ILVE Ventilation Hood manuals

ILVE
ILVE AGK Series User manual

ILVE
ILVE CS Series Guide

ILVE
ILVE T11 IVCC900X-20140811 Configuration guide

ILVE
ILVE X301ISL Series User manual

ILVE
ILVE C 90 User manual

ILVE
ILVE CAL Series User manual

ILVE
ILVE X50/80 User manual

ILVE
ILVE IVX41 User manual

ILVE
ILVE AG60 User manual

ILVE
ILVE Majestic AM70 User manual
Popular Ventilation Hood manuals by other brands

Zanussi
Zanussi ZHC66540 user manual

JUNO
JUNO JDK7530E Installation, use and maintenance handbook

Salda
Salda VEKA INT W EKO Installation instruction

Miele
Miele DA398-6 installation instructions

NEFF
NEFF D96IMV1N0 User manual and installation instructions

Sirius Satellite Radio
Sirius Satellite Radio ALFRESCO SLEM80 installation instructions
