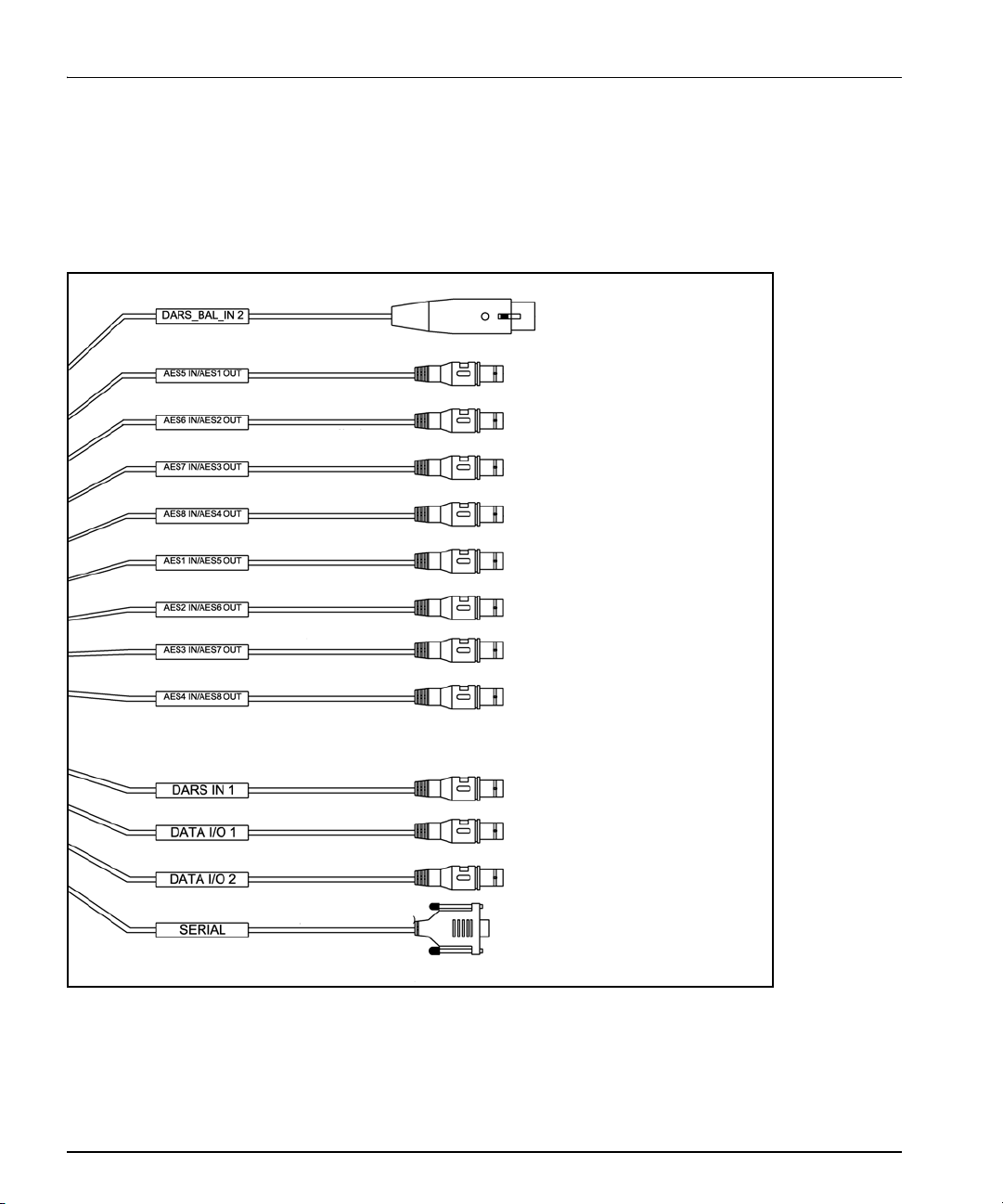

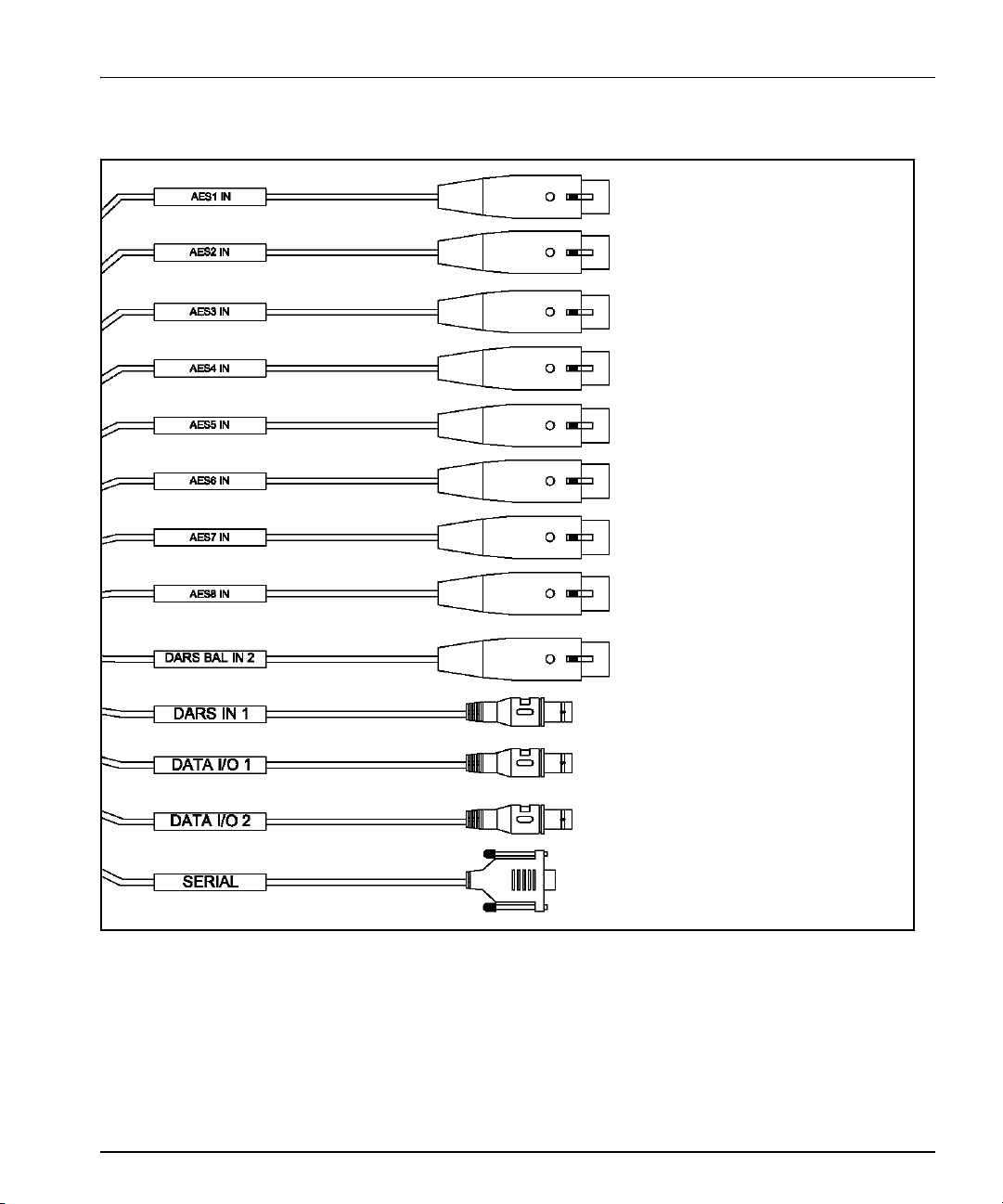

Breakout Cables ................................................................................6
RS-422/RS-232 Cable .....................................................................10
Signal Flow ............................................................................................11
Chapter 2: Installation
Overview ................................................................................................13

iv HMX6800+BC8 Installation and Operation Manual
Contents
Maximum 6800+Frame Power Ratings ............................................... 14
Unpacking the Module .......................................................................... 15
Preparing the Product for Installation ............................................ 15
Checking the Packing List ............................................................. 15
Setting Jumper CJ1 for Local or Remote Control ................................. 16
Installing 6800+Modules ..................................................................... 17
Required Frames and Back Connector Types ................................ 17
Installing and Removing Modules ................................................. 17
Upgrading Module Firmware ................................................................ 18
Upgrading the Firmware ................................................................ 18
Correcting a Failed Upgrading Procedure ..................................... 21
Chapter 3: Operation
Overview ............................................................................................... 25
Operating Notes ..................................................................................... 26
Q-SEE Compliant Thumbnails ...................................................... 26
Activating Multiplexer Functions ......................................................... 27
Audio Test Tones ........................................................................... 27
Audio Embedding Modes .............................................................. 27
Audio Embedding Errors ............................................................... 32
Input Audio Rate ............................................................................ 32
Cross-Functional Parameter Changes ................................................... 33
ADS Clean Parameter .................................................................... 33
PCM/Non-PCM Settings ................................................................ 34
Channel Word Length .................................................................... 34
Parameter Availability based on Operating Mode ......................... 35
Changing Parameter Settings ................................................................ 36
Changing Parameter Settings using Card-Edge Controls .............. 36
Setting HMX6800+BC8 Control Parameters ................................ 38
Changing Parameter Settings using CCS Software ....................... 49
Setting HMX6800+BC8 Remote Control Parameters ................... 50
LEDs and Alarms .................................................................................. 60
Monitoring LEDs ........................................................................... 60
Module Status LEDs ...................................................................... 61
Alarms ............................................................................................ 62
Chapter 4: Specifications
Overview ............................................................................................... 65
Inputs ..................................................................................................... 66

HMX6800+BC8 Installation and Operation Manual v
Contents
SDI Video Input ..............................................................................66
AES Input .......................................................................................66
Outputs ...................................................................................................67
SDI Video Output ...........................................................................67
RS-232/RS-422 ......................................................................................68
Propagation Delay ..................................................................................68
Power Consumption ...............................................................................68
Operating Temperature ..........................................................................68
Appendix A: Audio Bit Manipulation
Overview ................................................................................................69
Manipulating Channel Status Bits (C-Bit) .............................................70
Manipulating Validity and User Bits (V-Bit and U-Bit) ........................73
Identifying Audio Characteristics (Audio Sampling Frequency and Word
Length) ...................................................................................................74
Appendix B: Communication and Control
Troubleshooting Tips
Overview ................................................................................................75
General Troubleshooting Steps ..............................................................76
Software Communication and Control Issues ........................................77
+Pilot Lite Fails to Communicate with Installed Modules ...........77
+Pilot Lite Does Not Find All Modules in Frame ........................78
+Pilot Lite or CCS Software Application Not Responding ..........79
+Pilot Lite Cannot Control a Module Showing
in the Control Window ...................................................................79
+Pilot Lite Reports “Not Ready” Status .......................................79
CCS Software Application or Remote Control Panel Does Not
Communicate with Module ............................................................80
Alarm Query Fails When a Device Reboots ...................................80
Hardware Communication and Control Issues ......................................81
Frames Fail to Communicate with the PC after a Power Failure ...81
Module Does Not Seem to Work ....................................................81
Contacting Customer Service .................................................................81
Index
Keywords ...............................................................................................83

vi HMX6800+BC8 Installation and Operation Manual
Contents

HMX6800+BC8 Installation and Operation Manual vii
Preface
Manual Information
Purpose This manual details the features, installation, operation, maintenance,
and specifications for the HMX6800+BC8 Audio Multiplexers.
Audience This manual is written for engineers, technicians, and operators
responsible for installation, setup, maintenance, and/or operation of the
HMX6800+BC8 Audio Multiplexers.
Revision History Table P-1. Revision History of Manual
Edition Date Comments
A February 2007 Initial release
B November 2007 Update breakout cable information

viii HMX6800+BC8 Installation and Operation Manual
Preface
Writing Conventions
To enhance your understanding, the authors of this manual have
adhered to the following text conventions:
Obtaining Documents
Product support documents can be viewed or downloaded from our
website. Alternatively, contact your Customer Service representative to
request a document.
Table P-2. Writing Conventions
Term or
Convention Description
Bold Indicates dialog boxes, property sheets, fields, buttons,
check boxes, list boxes, combo boxes, menus,
submenus, windows, lists, and selection names
Italics Indicates E-mail addresses, the names of books or
publications, and the first instances of new terms and
specialized words that need emphasis
CAPS Indicates a specific key on the keyboard, such as
ENTER, TAB, CTRL, ALT, or DELETE
Code Indicates variables or command-line entries, such as a
DOS entry or something you type into a field
> Indicates the direction of navigation through a hierarchy
of menus and windows
hyperlink Indicates a jump to another location within the
electronic document or elsewhere
Internet address Indicates a jump to a Web site or URL
Note
Indicates important information that helps to avoid and
troubleshoot problems

HMX6800+BC8 Installation and Operation Manual ix
Preface
Unpacking/Shipping Information
Unpacking a Product
This product was carefully inspected, tested, and calibrated before
shipment to ensure years of stable and trouble-free service.
1. Check equipment for any visible damage that may have occurred
during transit.
2. Confirm that you have received all items listed on the packing list.
3. Contact your dealer if any item on the packing list is missing.
4. Contact the carrier if any item is damaged.
5. Remove all packaging material from the product and its associated
components before you install the unit.
Keep at least one set of original packaging, in the event that you need to
return a product for servicing.
Product ServicingExcept for firmware upgrades, HMX6800+BC8 modules are not
designed for field servicing. All hardware upgrades, modifications, or
repairs require you to return the modules to the Customer Service
center.
Returning a Product
In the unlikely event that your product fails to operate properly, please
contact Customer Service to obtain a Return Authorization (RA)
number, then send the unit back for servicing.
Keep at least one set of original packaging in the event that a product
needs to be returned for service. If the original package is not available,
you can supply your own packaging as long as it meets the following
criteria:
• The packaging must be able to withstand the product’s weight.
• The product must be held rigid within the packaging.
• There must be at least 2 in. (5 cm) of space between the product and
the container.
• The corners of the product must be protected.

x HMX6800+BC8 Installation and Operation Manual
Preface
Ship products back to us for servicing prepaid and, if possible, in the
original packaging material. If the product is still within the warranty
period, we will return the product prepaid after servicing.
Restriction on Hazardous Substances (RoHS)
Compliance
Directive 2002/95/EC—commonly known as the European Union (EU)
Restriction on Hazardous Substances (RoHS)—sets limits on the use of
certain substances found in electrical and electronic equipment. The
intent of this legislation is to reduce the amount of hazardous chemicals
that may leach out of landfill sites or otherwise contaminate the
environment during end-of-life recycling. The Directive, which took
effect on July 1, 2006, refers to the following hazardous substances:
• Lead (Pb)
• Mercury (Hg)
• Cadmium (Cd)
• Hexavalent Chromium (Cr-V1)
• Polybrominated Biphenyls (PBB)
• Polybrominated Diphenyl Ethers (PBDE)
According to this EU Directive, all products sold in the European Union
will be fully RoHS-compliant and “lead-free.” (See our website for
more information on dates and deadlines for compliance.) Spare parts
supplied for the repair and upgrade of equipment sold before
July 1, 2006 are exempt from the legislation. Equipment that complies
with the EU directive will be marked with a RoHS-compliant emblem,
as shown in Figure P-1.
Figure P-1. RoHS Compliance Emblem

HMX6800+BC8 Installation and Operation Manual xi
Preface
Waste from Electrical and Electronic
Equipment (WEEE) Compliance
The European Union (EU) Directive 2002/96/EC on Waste from
Electrical and Electronic Equipment (WEEE) deals with the collection,
treatment, recovery, and recycling of electrical and electronic waste
products. The objective of the WEEE Directive is to assign the
responsibility for the disposal of associated hazardous waste to either
the producers or users of these products. As of August 13, 2005, the
producers or users of these products were required to recycle electrical
and electronic equipment at end of its useful life, and may not dispose
of the equipment in landfills or by using other unapproved methods.
(Some EU member states may have different deadlines.)
In accordance with this EU Directive, companies selling electric or
electronic devices in the EU will affix labels indicating that such
products must be properly recycled. (See our website for more
information on dates and deadlines for compliance.) Contact your local
sales representative for information on returning these products for
recycling. Equipment that complies with the EU directive will be
marked with a WEEE-compliant emblem, as shown in Figure P-2.
Figure P-2. WEEE Compliance Emblem

xii HMX6800+BC8 Installation and Operation Manual
Preface
Safety
Carefully review all safety precautions to avoid injury and prevent
damage to this product or any products connected to it. If this product is
rack-mountable, it should be mounted in an appropriate rack using the
rack-mounting positions and rear support guides provided. It is
recommended that each frame be connected to a separate electrical
circuit for protection against circuit overloading. If this product relies
on forced air cooling, it is recommended that all obstructions to the air
flow be removed prior to mounting the frame in the rack.
If this product has a provision for external earth grounding, it is
recommended that the frame be grounded to earth via the protective
earth ground on the rear panel.
IMPORTANT! Only qualified personnel should perform service
procedures.
Safety Terms and Symbols in this Manual
WARNING
Statements identifying conditions or
practices that may result in personal injury
or loss of life. High voltage is present.
CAUTION
Statements identifying conditions or
practices that can result in damage to the
equipment or other property.

HMX6800+BC8 Installation and Operation Manual 1
Chapter 1
Introduction
Overview
The HMX6800+BC8 HD/SD Audio Multiplexers embed 8 AES audio
signals, in both balanced and unbalanced formats, into a single 1.5 Gb/s
HD or 270 Mb/s SD video stream. Following SMPTE specifications,
this embedder can embed up to eight AES audio signals into four
groups in the horizontal ancillary region of the HD-SDI or SD-SDI
output signal. The sample rate conversion can be disabled for
Dolby E®/compressed audio compliancy.
HMX6800+BC8 modules auto-detect between HD-SDI and SD-SDI
signals with full channel selection per HD or SD signal. Built-in video
and audio processing amplifiers allow for full control over the picture
and sound.
Each HMX6800+BC8 includes a module-specific breakout cable that
expands the number of available connections beyond what would fit on
a standard two-slot back connector. The breakout cable includes an
RS-422 serial connector to embed metadata.
HMX6800+BC8 modules can be controlled at the card edge; or
controlled and monitored through Pilot Lite, Pilot, Navigator, and
CCS-compliant control panels.
The following topics are described in this chapter:
•“Product Description” on page 2
•“Module Descriptions” on page 3
•“Breakout Cables” on page 6
•“Signal Flow” on page 11

2 HMX6800+BC8 Installation and Operation Manual
Chapter 1: Introduction
Product Description
HMX6800+BC8 modules have the following features:
• Automatic detection of all SMPTE 292M HDTV video standards
and SMPTE 259M 525/625 component video standards
• 16-, 20-, or 24-bit audio processing (selectable word length in
channel pairs)
• Audio test tone generator
• Programmable audio delays (up to 1.3 s)
• Inputs:
• SMPTE 292M HD-SDI or SMPTE 259M SD-SDI input
• Eight unbalanced AES digital audio or eight balanced AES
digital audio inputs
• Four SMPTE 292M HD-SDI with SMPTE 299M embedded audio
or SMPTE 259M SD-SDI with SMPTE 272M embedded audio
outputs
• Video delay for 1 video stream (up to 5 frames for HD and 25
frames for SD)
• Sample rate conversion disable on AES inputs for Dolby /
compressed audio embedding
• Optional ancillary data space cleaning mode before embedding
• 24-bit AES input audio embedding
• Data embedding (Dolby-E metadata)
• HD and SD video processing amplifier with controls for luminance
gain, luminance offset, chrominance gain, chrominance offset,
white clip, black clip, and hue (SD only)
• Audio processing amplifier with controls for delay, gain, invert,
channel multiplexing, and averaging
• Thumbnail streaming of output video, when installed in an
FR6802+QXF frame that also contains a 6800+Eth resource
module
• Card-edge LEDs to indicate signal presence (both audio and video)
and module failure
• Serial and Ethernet remote control and monitoring

HMX6800+BC8 Installation and Operation Manual 3
Chapter 1: Introduction
Module Descriptions
Front Module Figure 1-1 is a generic top-front view of a typical 6800+module and
shows the general location of standard LEDs, controls, and jumpers.
Figure 1-1. Typical 6800+Module
Table 1-1 on page 4 briefly describes generic 6800+LEDs, switches,
and jumpers. See “Operation” on page 25 for more information on
specific HMX6800+BC8 module controls, LEDs, and jumpers.
Module
status
LEDs
Hex switch
(Mode select
rotary switch)
Navigation
toggle
switch
Monitoring
LEDs
Remote/
local control
jumper
Extractor
handle
Control
LEDs

4 HMX6800+BC8 Installation and Operation Manual
Chapter 1: Introduction
Table 1-1. Generic 6800+Module Features
Feature Description
Module status
LEDs Various color and lighting combinations of these LEDs indicate the module state. See “Module Status LEDs” on
page 61 for more information.
Mode select
rotary switch This switch selects between various control parameters.
Navigation
toggle switch This switch navigates up and down through the available control parameters:
•Up: Decrease
•Down: Increase
Control LEDs Various lighting combinations of these control LEDs
(sometimes referred to as “Bank Select LEDs”) indicate
the currently selected bank. See Table 3-7 on page 36
for more information.
Monitoring
LEDs Each 6800+module has a number of LEDs assigned to indicate varying states/functions. See “Monitoring
LEDs” on page 60 for a description of these LEDs.
Local/Remote
control jumper •Local: Locks out external control panels and allows
card-edge control only; limits the functionality of
remote software applications to alarm monitoring
•Remote: Allows remote or local (card-edge)
configuration, operation, and monitoring of the
HMX6800+BC8

HMX6800+BC8 Installation and Operation Manual 5
Chapter 1: Introduction
Back Connectors
HMX6800+BC8 Back Connector for FR6802+ Frame
Figure 1-2 shows the double-slot back connector used by the
HMX6800+BC8 when installed in an FR6802+QXF frame.
Figure 1-2. HMX6800+BC8 Back Connector
Not connected
Breakout Cable
- 8 AES inputs
- Metadata input
- DARS input
HD/SD-SDI IN
HD/SD-SDI OUT1
HD/SD-SDI OUT2
HD/SD-SDI OUT3
HD/SD-SDI OUT4

6 HMX6800+BC8 Installation and Operation Manual
Chapter 1: Introduction
Breakout Cables Each HMX6800+BC8 comes with an unbalanced-audio breakout cable
similar to the one pictured in Figure 1-3. An optional balanced-audio
breakout cable, as seen in Figure 1-4 on page 7. For ordering
information, see Figure 2-2 on page 15.
Figure 1-3. HMX6800+BC8 Unbalanced-Audio Breakout Cable
(Part Number 6800+OPT+16+C)
DARS balanced in
Unbalanced AES 1 out
Unbalanced AES 2 out
Unbalanced AES 3 out
Unbalanced AES 4 out
Unbalanced AES 1 in
Unbalanced AES 2 in
Unbalanced AES 3 in
Unbalanced AES 4 in
DARS in
Data I/O
Genlock
Serial

HMX6800+BC8 Installation and Operation Manual 7
Chapter 1: Introduction
Figure 1-4. HMX6800+BC8 Balanced-Audio Breakout Cable
(Part Number 6800+OPT+16+XF)
If you need to make your own breakout cable, pinouts are listed in
Table 1-2, and pin numbers for the 44-pin connector are listed in
Figure 1-5.
Balanced AES 5 in (female)
Balanced AES 6 in (female)
Balanced AES 7 in (female)
Balanced AES 8 in (female)
Balanced AES 1 in (female)
Balanced AES 2 in (female)
Balanced AES 3 in (female)
Balanced AES 4 in (female)
DARS balanced in
DARS in
Data I/O
Genlock
Serial
