iMettos FW-580 User manual

Model:FW-580/FW-805
Please read this instruction manual carefully before operating this equipment
Electric Pie Warmer
Instruction Manual

1
Safety Tips
This instruction manual contains information about the installation, operation and
maintenance of the device and should be consulted as an important source of information
and reference guide.
Awareness of the safety instructions and instructions for use in this manual will ensure the
safe and correct use of the device.
In addition to the information given here, you should comply with any local Health and
safety Controls and generally applicable safety regulations.
The instruction manual forms part of the product and should be kept near the device and
easily accessible for anyone carrying out the installation, servicing, maintenance or
cleaning.
Safety
This device is designed in accordance with the presently applicable technological
standards. However, the device can pose a danger if handled improperly and
inappropriately. All persons using the device must follow the recommendations and
instructions in this instruction manual.
Safety instructions
Be sure to comply with the local regulations.
The manufacturer cannot be held liable for any property damage or personal injury due
to failure to comply with the safety regulations.
Proper installation, sanitation and the illumination facility of the working area are the
pre-conditions for the safety of operators.
Do not put the appliance outside the rooms.
Initial start-up of the appliance should be operated with the qualified personnel.
Be sure to connect the grounding plug.
Put the appliance out of the reach of children.
Unplug the appliance when not in use.
Any malfunction occurs, call the local dealer.
It is highly recommended that you use the genuine spare parts.
Unplug the appliance before cleaning. Be sure that the power supply is cut off.
Do not use the water jet to clean the appliance.
Read this instruction manual before using and keep them
available at all times!

2
1. General information
1.1 Information about the instruction manual
This instruction manual contains information about the installation, operation and
maintenance of the appliance and should be consulted as an important source of
information and reference guide. Awareness of the safety instructions and instructions for
use in this manual will ensure the safe and correct use of the appliance.
In addition to the information given here, you should comply with any local Health and
Safety Controls and generally applicable safety regulations. The instruction manual forms
part of the product and should be kept near the appliance and easily accessible for anyone
carrying out the installation, servicing, and maintenance or cleaning.
1.2 Other regulations
In addition to the information given here, you should comply with any local Health and
Safety Controls and generally applicable safety regulations. The instruction manual forms
part of the product and should be kept near the appliance and easily accessible for anyone
carrying out the installation, servicing, and maintenance or cleaning.
1.3 Note
NOTE! Read the instruction manual carefully before using the appliance. The user’s
manual should be kept near the appliance, easily accessible for anyone to operate the unit.
We reserve the right to make technical changes for purposes of developing and improving
the useful properties.
2. Technology parameter
Model
Power Input
Rated Voltage
Frequency
Dimensions (mm)
FW-580
1000W
220-240V
50/60Hz
640×360×530
FW-805
1500W
220-240V
50/60Hz
865×360×625
3. Operation Instructions
3.1Installation
·Be sure the ventilation is good.
·Be sure that the supporting area is large enough and even.
·Do not store any flammable liquids in the vicinity of this appliance.
·Abide all the local regulations.
3.2 Operation
·Connect the power supply. Press the switch and then rotate the thermostat knob

3
clock-wisely to the desired temperature. Then the heating elements begin to work.
When it reaches the set temperature, the heating elements stop working.
·In order to prevent the cakes or bread going dry in a short time, you may put a sponge
wet with water to keep the air humid.
4. Transportation and storage
In the process of transportation, try to avoid shaking, collision, inversion and extrusion.
Do not store it in a caustic environment.

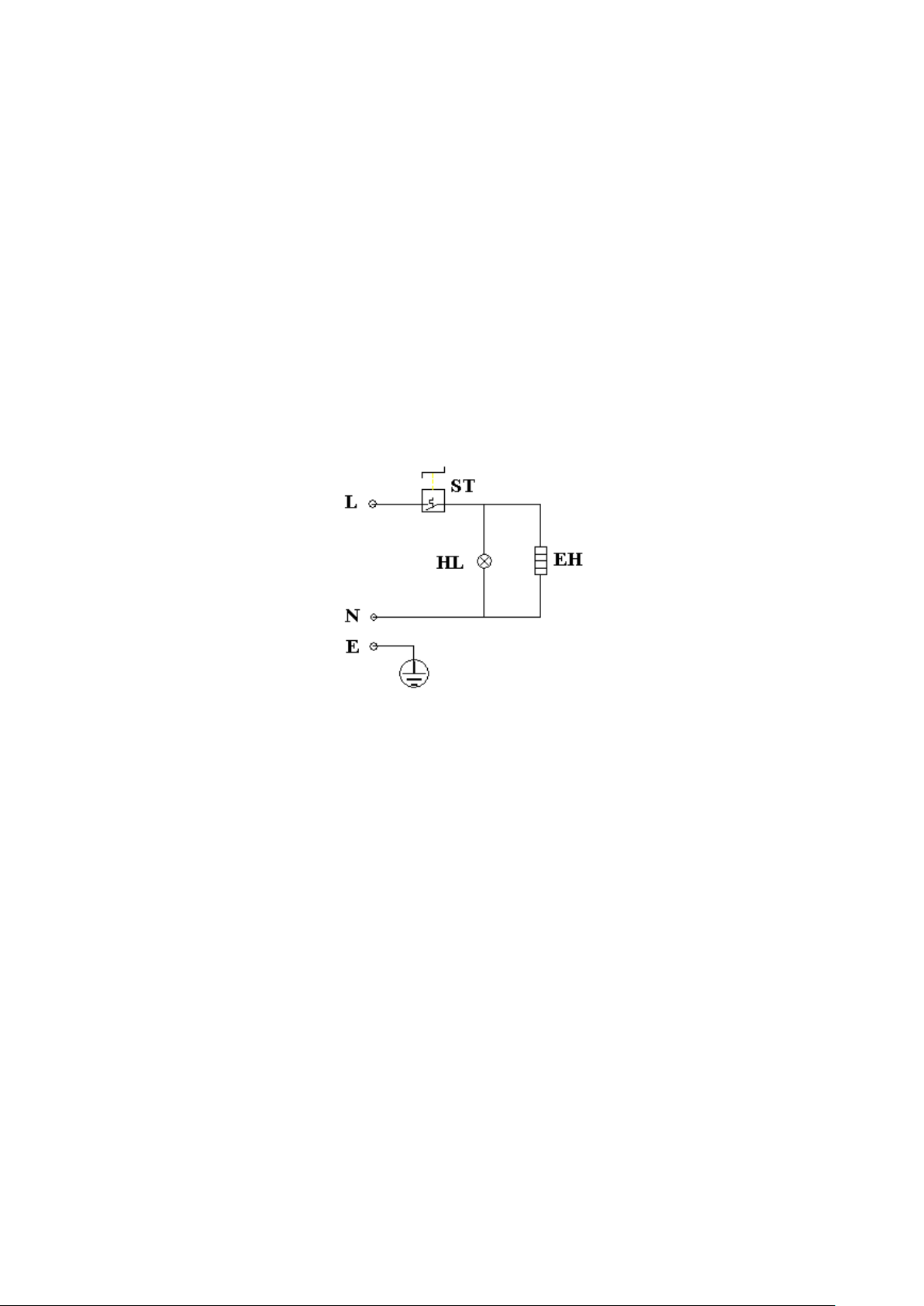

5. Circuit Diagram
6.Waste disposal
Discarding old devices
At the end of its service life the discarded device has to be disposed in accordance with the
national regulations. It is advisable to contact a company which is specialized in waste
disposal, or just contact the local disposal service in your community.
WARNING!
To exclude any abuse and the dangers involved make the waste device unfit for use before
disposal. For that purpose disconnect device from mains supply and remove mains
connection cable from the device.
ST－THERMOSTAT HL－INDICATOR LIGHT
EH－ELECTRIC HEATING ELEMENT

4
CAUTION!
For the disposal of the device please consider and act according to the national and local
rules and regulations.
7.WARRANTY
iMettos warrants to the original purchaser of every new product, under normal and proper
use and maintenance service as specified by iMettos and upon proper installation and
start-up in accordance with the instruction packet supplied with each unit. iMettos’
obligation under this warranty is limited to a period of two (2) year from the date of original
installation.
WARRANTY CLAIMS
All claims for parts must be made directly through iMettos.All claims should include:
Personal Details: Products Details:
Your name: Model number:
Your company: Serial number of the product:
Address: Date of purchase:
Email: Proof of purchase :
Phone:
Pertinent information supporting the existence of the alleged defect.(Such as picture etc.)
Please send the above information to [email protected]
Our warranty departments will according to the actual situation and reply you
within 24hours.

5
