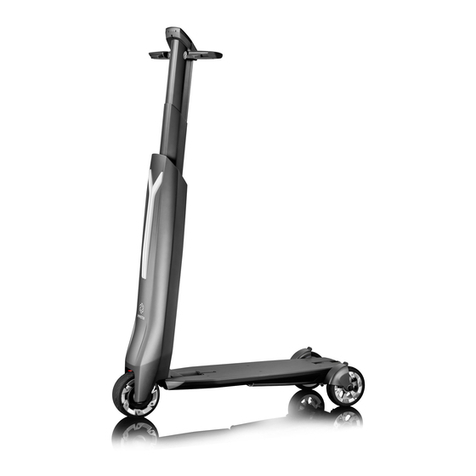

IMMOTOR GO User manual

IMMOTOR GO
QUICK START GUIDE

1) Scan the QR Code on the LCD Display
or go to App store and download the
Immotor APP.
2) Open the APP and create an account.
Download the Immotor APP and
experience all the features of the GO!
Use the QR Scanner in the APP to
scan the QR code by the rear wheels to
pair with your GO
Pair your device with your GO easily!
Before your first ride Speed limit
There are safety risks when learning to ride the Immotor GO. You must read the Instructions and
follow the User Tutorial in the Immotor GO App before your rst ride. Use your mobile device
(Android or iOS) to download the Immotor GO App, and be sure to follow the instructions before use.
·QUICK START GUIDE FILE AND GERMAN, FRENCH, AND SPANISH TRANSLATIONS ARE AVAILABLE
ONLINE AT WWW.IMMOTOR.COM.
You must rst download the Immotor GO App on your mobile device. The App will lead you
through the New Rider Tutorial. For your safety, the Immotor GO will limit the maximum speed
to 4 mph (6 km/h) for the rst 0.6 mile (~1km) until you have completed the New Rider Tutorial.
After completing the New Rider Tutorial, the max speed will be limited to 13 mph (20 km/h) in
mode 2, with the ability to activate Sport Mode in the App and reach a maximum speed of 16
mph (25 km/h).
After the rider has ridden 0.6
mile (1 km), mode 2 will be
unlocked and accessible.
Limited in mode 1 to 4 mph
(6 km/h) for the rst 0.6 miles
(1 km).
B
A
A
B
MODE 1
MODE 2

Features and Controls
Stem
Bag Hook
Battery
Compartment Latch
Brake Light
Rear Wheel
LCD Display
T-Handle
Handle Bar
Headlight
Main Body
Footboard
Wheel Cover
Front Wheel
Hub Motor
LCD Display
Missed Calls
Incoming Text
Message
GPS Signal
Bluetooth
Time
Battery
Remaining Range
88:88
88.8 km
Speedometer
Mileage
Odometer
Speed Mode
Lock / Unlock
Computer Error
Headlight
Cruise Control
MODE
8888.8km
88.8km
88.8km/h
!
Horn
USB Charge Port (covered)
Speed mode / Photo action
Long press / Short press
Brake Lever
Handle Bar and Button Controls
Power Button On/O
Cruise Control
Accelerator Lever
Light (Low/Hi Beam)

How to Unfold your Immotor GO
from Stand-By to Ride Mode
Stand-By Ride
1) Insert finger below the latch to the back of the slot,
then lift to pop “T” handle up.
(Figure A)
2) Pull up the“T” handle until it stops
(About 5 inches)
STEP 1
“T” Handle
Figure A
WARNING: When folding up your Immotor GO, never place
your hands or fingers between footboard and main body
21
*Tutorial videos are available on the App and at www.immotor.com

1) While holding “T” handle, lift trigger latch
to disengage footboard from body.
2 &3) Gently kick rear wheels away from main body as you
lower the footboard toward the ground until it latches
onto the rear axle.
Main Body
Main Body
Footboard
STEP 2
“T” Handle
1) With one hand on the“T” handle in up position, step on the footboard,
with one foot, and with opposite hand push red button located under the
“T’ handle with thumb to pull “T” handle up and extend fully.
STEP 3
“T” Handle
Foot board
Stem
1
2
1
3

• Once stem is locked into an“up” position, lift up
the handle bars (both sides) into horizontal position.
STEP 4
Stem
1) Once handle bars are locked into their
horizontal position, you may select one of 3 preset handle bar/
stem heights by pressing the red button and sliding the stem up
or down until it locks at desired height.
2) Stow the“T” handle by pushing it down
into its slot.
Select Handle Bar Height
12

How to install and remove
the Super Batteries
1) Insert finger in the battery compartment latch, press down
on the latch and pull slot away from main body to open the
battery compartment.
2) Release the two metal clips by lifting on tabs located in the
center, then pivot them outward.
STEP 1
Battery
Compartment
1 2
*Tutorial videos are available on the App and at www.immotor.com

STEP 2
1) With the 3-pin contact facing down (and logo on top),
slide the Super Battery (2) into the storage slots.
2) Close and secure the metal clips again to secure the
Super Batteries in place.
3) Shut the battery compartment door.
1
2
How to remove the Super Batteries
1) Insert finger in the battery compartment slot, press down
on the latch and pull away from main body to open the
battery compartment.
2) Release the metal clips that are securing the battery.
Remove the Super Batteries from their slots.
1
2

How to Unfold your Immotor GO
from Stand-By to Power Assist
Stand-By Power Assist
1
2
STEP 1
3
1) Insert finger below the latch to the back of the slot, then
lift to pop “T” handle up.
2) While holding “T” handle, lift and release trigger latch in order
to push rear wheels backwards until they lock into place, forming
a triangle base as shown above.
3) Press red button located under the“T” handle with thumb and
pull “T” handle up to extend. Raise handle bars.
*Tutorial videos are available on the App and at www.immotor.com

How to Unfold your Immotor GO
from Power Assist to Ride
Power Assist
12
1) While holding the handle bar with one hand, lift the trigger
latch to release the footboard.
2) Lower the footboard toward the ground until it latches
onto the rear axle.
STEP 1
Ride
*Tutorial videos are available on the App and at www.immotor.com

How to Fold your Immotor GO
from Power Assist to Stand By
Stand-ByPower Assist
1
2
3
STEP 1
1) Press the square button behind each handle bar to release and
fold them down until parallel with the stem.
2) Lift up the “T” handle. While holding it, press the red button
under “T” handle to release and push down until retracted fully
into the main body.
3) Lift the trigger latch to release rear wheels and fold/lock the
wheels into Stand-By mode.
*Tutorial videos are available on the App and at www.immotor.com

How to Fold your Immotor GO
from Ride to Power Assist
Power AssistRide
1
2
3
STEP 1
1) While holding the “T” handle or handle bars with one hand,
step on the foot latch located where the footboard meets the
body to release the hinge.
2) Lower the whole body to connect to the footboard - press
down on body until it clicks into place.
*The body should now be connected/latched to the footboard.
3) Using “T”handle or handle bars, lift GO upwards again until it
stands and wheels lock into Power Assist mode.
*Tutorial videos are available on the App and at www.immotor.com

How to Fold your Immotor GO
from Ride to Stand-By Mode
1) Press the square button behind the handle bar to release the
handle bars.
2) Fold the handle bars down until it is parallel with the stem.
3) Repeat with other handle bar.
STEP 1
Stand-By
*Tutorial videos are available on the App and at www.immotor.com
1
2
3
Ride

STEP 2
• Lift up the “T” handle. While holding it, press the red
button under “T” handle to release and push the stem
down until it retracts fully into the main body.
“T” Handle
Stem
1) While holding the “T” handle with one hand, step on the
top of the foot latch located where the footboard meets
the body to release the hinge.
2) Pivot the whole body down using “T” handle to connect
to the footboard and press until it clicks into place.
* The body should now be connected/latched to the
footboard.
Main body
Footboard
STEP 3
1 2

1) Using “T” handle, lift GO upwards again until it stands and
locks into Power Assist mode.
2&3) Lift the latch to release rear wheels and fold/lock the
wheels into Stand-By Mode.
STEP 4
3
Power Assist
Mode
2
1
• Push the handle down to close
STEP 5

How to use the Immotor GO in
Stand-By Mode
1) Ready for use - in office, restaurant or home.
2) Pull effortlessly with you like a rollable suitcase.
3) Use the built-in handle on the back to carry
upstairs or put into trunk of car.
3
2
1

How to Charge
2) Remove Super Batteries, place
in dual battery dock charger and
plug into outlet. (This accessory is
not included. it must be purchased
separately.)
1) Connect the AC Charger to
your GO (see below) and then
plug into an outlet.
Learn to Ride
1) Place your hand on the
driving handle and your feet
on the footboard
2) Your feet position should be similar to this.
3) Squeeze accelerator lever
to go, and squeeze the brake
lever to stop.
4) Have fun!
Accelerator
Brake
12
3 4
Two ways to charge the batteries
12

Product information
Item
Motor
Wheel
Suspension
Load
Body Composition
Display
Head/Brake Light
Super Battery
Bluetooth
Data/GPS
Speed
Hill Climbing
Ride Range
Recharge Time
Specication
Direct Drive Gearless Hub 350W/48V
Front wheel-6.5 in airless tire/ Rear-6 in airless tire
Dual rear and dual front wheel independent heavy duty springs
300 lbs/130KG
Aluminum alloy/High Impact Plastic
LCD Daybrite
Hi-brite LED
Lithium lon with smart power and battery management system
BT2.1+EDR/BLE4.1
GSM/WCDMA3G/Sim808
Max speed 25 Km/h, Minimum speed 1 Km/h
Up to 27% (15 degree slope)
Up to 16 Miles/2 batteries, 8 Miles/1 battery
2-3 hours
Support
·QUICK START GUIDE FILE AND GERMAN, FRENCH, AND SPANISH TRANSLATIONS ARE AVAILABLE
ONLINE AT WWW.IMMOTOR.COM.
·Please read the“Immotor GO User Manual” carefully before using it. You can download the le from
www.immotor.com
· Visit www.immotor.com for technical support and FAQ of Immotor GO
· Find more information via the APP settings menu.
Comply with local legal provisions. In some countries and regions, such vehicles are prohibited in the
public transport on the road under the specic circumstances, please check with your local authorities
and regulations.
Some features are not for all versions, and are not applicable to all areas.
IMMOTOR.LLC reserves all the rights.
Designed by IMMOTOR in California.
