ring RX1 User manual

ELECTRIC SCOOTER
USER MANUAL
MODEL: RX1 / RX2

ELECTRIC SCOOTER / ENG
2
PACKAGE CONTENTS
Scooter x1 Screw x4 Allen wrench x2 Charger x1
Please check first that you have received all these parts.
PRODUCT OVERVIEW
Congratulations, you have purchased RING Folding Electric Scooter!
Please charge the scooter for 5-6h NOW! Do not ride it immediately to avoid damaging the battery.
Please read carefully the complete user manual for this device, both for the sake of your safety and its
longevity. Pay special attention to the pages referring to IMPORTANT BATTERY NOTE, SAFETY
NOTE and WARRANTY CONDITIONS, to exercise the right to warranty.

ELECTRIC SCOOTER / ENG
3
ASSEMBLY AND SET UP
1. Assemble the scooter and put it on
the kickstand, then lock the assembly mechanism
using the moving ring
2. Attach the handlebar to the stem
using Allen screws
3. Tighten the screws onto both sides of
the stem with the Allen wrench
4. After the assembly, press the power
button to check if it is working properly
CHARGE YOUR SCOOTER
Charge the battery for the first time 6-8 hours as the first charge. After that, charge it until red
charger light turns green (approx. 4-5h)
Lift up the rubber
flap on the side
under the tread
Plug the power
adapter into the
charging port
When charging is
completed, put back
the rubber flap

ELECTRIC SCOOTER / ENG
4
HOW TO RIDE
Wear helmets and knee pads in case
of falls and injuries when you learn to
ride the scooter
Turn on the scooter, and
check the power indicator
Step on the deck with one foot, and
slowly kicks off the other on the ground.
When the speed reaches 5 km / h, the scooter is
ready for ride
When the scooter starts to coast, put both
feet on the deck and maintain balance. Pressing the
accelerator increases speed
Release the accelerator to slow down and and the
automatic battery charging system will activate;
squeeze the brake lever for a sudden brake
Tilt your body to the steering direction as
you turn, and slowly turn the handlebar

ELECTRIC SCOOTER / ENG
5
SAFETY INSTRUCTIONS
Do not ride in the rain
Be sure to slow down when you ride through speed
bumps, bumpy roads or other uneven surfaces.
Look out for doors, elevators and other overhead
obstacles
Do not accelerate when you go downhill
Always steer clear of obstacles
Do not press the accelerator when you're walking
alongside the scooter

ELECTRIC SCOOTER / ENG
6

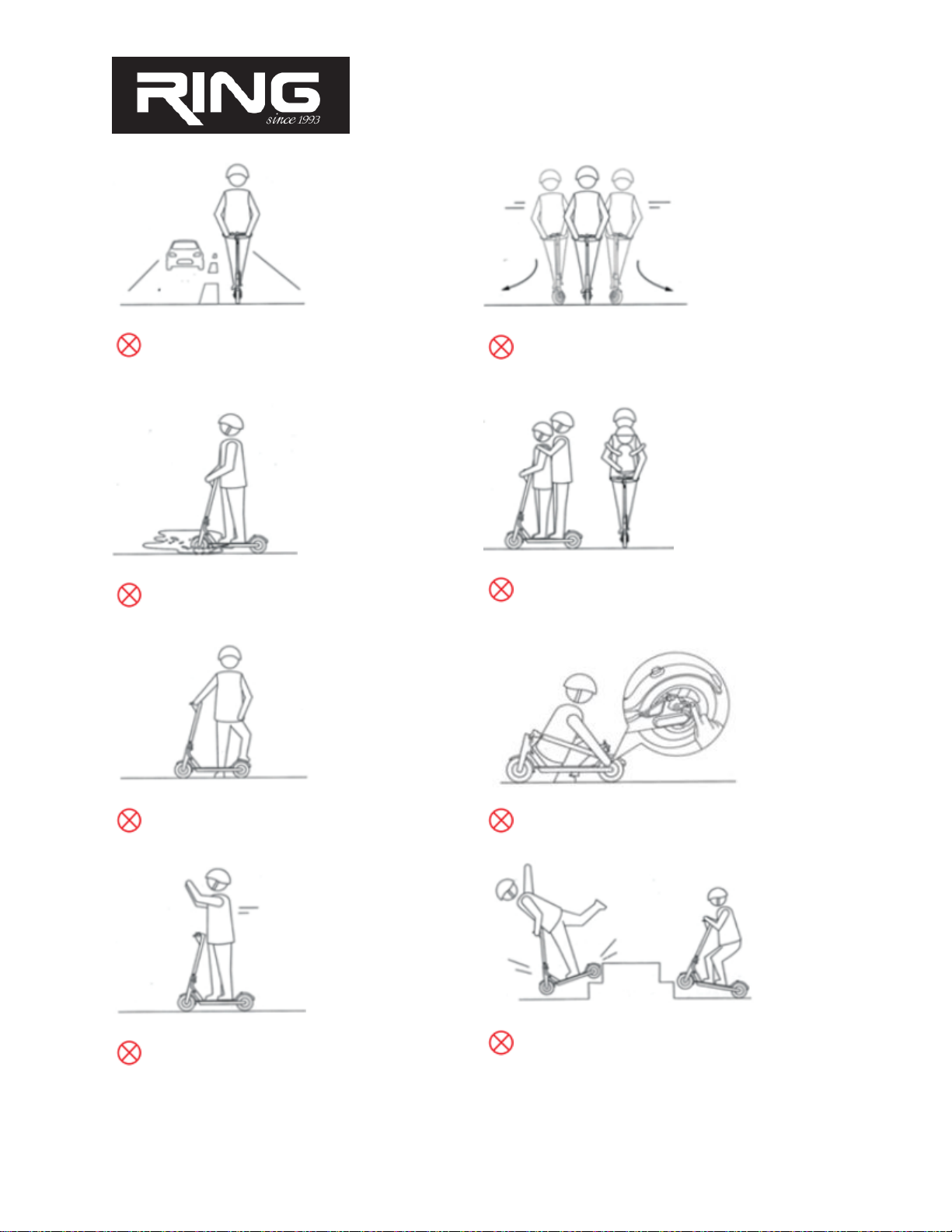

Do not ride in traffic lanes
Do not turn the handlebar violently during high-
speed riding
Do not ride in a ponding more than 2 cm deep
Do not ride with anyone else, including children
Do not keep your feet on the rear mudguard
Do not touch the disc brake
Do not keep your hands away from handlebar
Do not try riding up or down stairs

ELECTRIC SCOOTER / ENG
7
COMPUTER INSTRUCTIONS
ATTENTION! First, make sure that you have limited maximum speeds in the application by
modes, lest you think it's the real maximum speed of a scooter
1. The computer has 5 diodes indicating the battery charge level.
While using the scooter and consuming battery, the indicator will
slowly turn off one by one, and it will start to flash. If all 5
LEDs are turned on, battery level is 100%-86%; if 4 LEDs are
turned on and one is flashing, charge level is 85%-71%. Keep in
mind that the scooter self-charges during ride, so the battery level
may drop sharply, and during break the level returns for one or 2
lines above.
2. The computer turns on by briefly pressing the middle button and
shuts down by long press
3. There are three driving modes, (ECO), normal mode (S) and
Sport mode (D). Double click on on/off button to switch from one
to the other mode. Remember that in Eco mode usually the max
speed is set to 15 km/h. In ECO mode battery is consumed less and
we recommend it. It is a little slower and the scooter is ‘lazier’but
the battery lasts the longest of all modes. In other modes the
max speed is 25 km/h. Drive mode is the middle most often
and Sport mode is for speed rides, and in it the battery life is much
shorter than expected.
4. When riding longer at a single speed, the computer itself
switches to cruise mode where you do not need to press
accelerator to maintain that speed
5. The computer also shows the riding speed. Speed is achieved
depending on riding conditions, user weights etc.
6. In the dark, please turn on the light which is activated by short
pressing the on / off button when the computer is on.

ELECTRIC SCOOTER / ENG
8
INSTRUCTIONS FOR MINI ROBOT APPLICATION
Download MINI ROBOT application from the APP-Store or Google Play
1. Turn on the scooter, and turn on Bluetooth and APP on your phone to connect with the scooter. (Select
the correct Bluetooth No.).
2. IMPORTANT: check on the application if you have the desired speed selected as it can happen
that the speed on the application is limited to lower than your preference. Check the set maximum speed
and adjust it to your needs and desired speed (Eco, Drive and Sport mode)

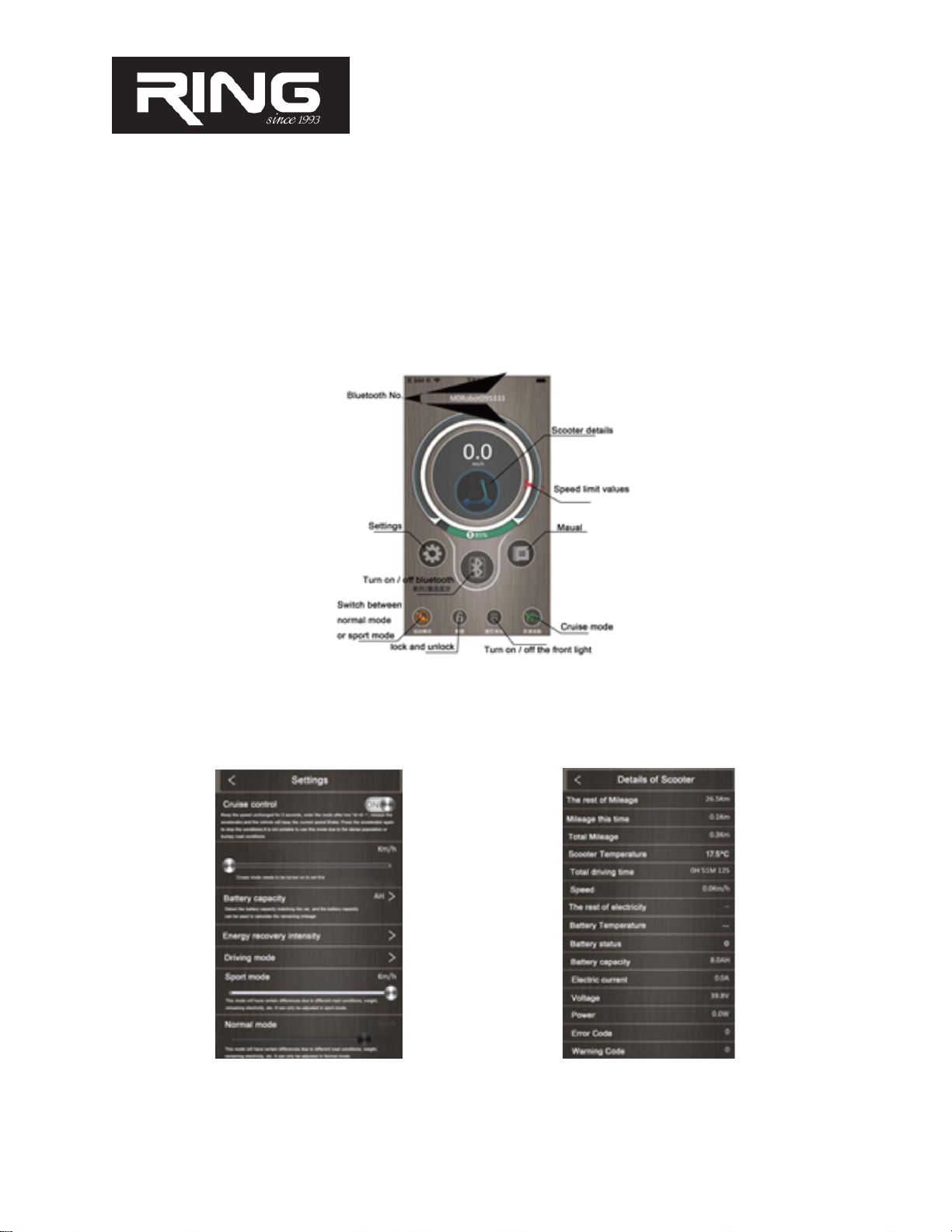

3. This is how the application screen looks like with its features:
4. Turn on the desired features, but also set up all parameters and features on your phone: select adequate
battery RX1 (4.4Ah); RX2 (6.6Ah)
5. In the APP, read the remaining km of riding, max speed for modes, turn on the light. With the APP
turned on you consume battery 20% more!!!

ELECTRIC SCOOTER / ENG
9
IMPORTANT BATTERY NOTE!
Do not use third-party batteries to avoid dangerous situations
Do not open or disassemble the battery to prevent electric shock. Avoid contact with metal objects to
prevent short circuit. Otherwise, the battery may malfunction or injure the user.
It is recommended to use the AC adapter provided in the original configuration
Improper charging and use of the battery may shorten its life
Please always charge the battery fully and do not allow it to be completely emptied
If the scooter is not to be used for 30 days, charge the battery and keep the device in a cool and dry place.
You should charge the battery every 30 days, otherwise the battery is likely to wear off/get damaged
which is not covered by the warranty
Do not leave the battery at temperatures over 50C or below -20C. (e.g. do not leave your scooter or
battery in a car exposed to the sun. This may destroy the battery or even lead to fire.
To avoid complete losing of scooter power, please charge the battery in time. It can really extend the
battery life. At room temperature, the battery will always offer more miles traveled and better
performance. For example, at temperatures of -20C, the possibility of miles traveled is more than twice
less than at home temperatures
A fully charged scooter/battery lasts 120-180 days at rest. Battery has a smart chip that remembers
charging/discharging information. If you do not charge the battery for an extended period of time, it may
cause damage which will make it impossible to recharge the device. This type of damage is not covered
by the warranty service.
It is forbidden to have the battery replaced or repaired by an unprofessional or someone outside of the
seller's authorized service center as this can lead to serious security incidents due to electric shocks or
short circuits!

ELECTRIC SCOOTER / ENG
10
IMPORTANT SAFETY NOTES
This electric scooter is a leisure device. But once they're in a public area, they'll be seen as
vehicles, subjecting to any risks faced by vehicles. For your safety, please follow instructions in the
manual.
At the same time, you should understand that risks cannot be entirely avoided as others may violate
traffic regulations and drive incautiously, and you're exposed to road accidents just as when you're
walking or biking. The faster the scooter is, the longer it takes to stop. On a smooth surface, the
scooter may slip, lose balance, and even result in a fall. Thus it is crucial that you use caution,
keep proper speed and distance, especially so when you're unfamiliar with the place.
Respect pedestrians' Right of Way. Try not to startle them while driving, especially children. When
you ride from behind pedestrians, ring your bell to give them a heads-up and slow your scooter to
pass from their left (applicable to countries where vehicles drive on the right). When you ride
across pedestrians, keep to the right at a low speed.
Closely follow your country's driving rules and safe driving rules. Violation of driving rules incurs
financial losses, physical injuries, accidents, legal disputes, conflicts and other unpleasant situations. Our
company shall not be liable, neither jointly nor severally.
Do not lend your scooter to whoever knows not the operations. And when you do lend it to your
friends, please take the responsibility to ensure he/she knows the operation and wears the safety
gear.
Check the scooter before every use. When you note loosen parts, low battery alerts, flat tires, excessive
wear, strange sounds, malfunctions and other abnormal conditions, stop riding
It is forbidden to leave the scooter on busy traffic roads for motor vehicles or to drive at high speed.
It is forbidden to turn abruptly in a settlement with a large flow of pedestrians.

ELECTRIC SCOOTER / ENG
11
Do not ride with anyone else, including children.
It is recommended to bend your knees slightly to better adjust to the bumpy road. If you travel on bumpy
roads stick to the low speed. (5-10km)
Do not accelerate when going downhill.
The engine must have a prior process before starting operation. You need to start the scoter with your foot
to a speed of 3-5 km/h, and then start the engine by pressing the accelerator
Do not use the electric scooter in rainy weather or on ponds and water, as well as ponding deeper than
2cm. It is very easy to detect moisture in the electronics and it is not subject to warranty
The maximum reach of the scooter was measured on an ideally flat surface, with a user weighing 75 kg
and at medium continuous speed. Any slope, more weight, higher air temperatures, speed change, affects
max reach
Try not to ride your scooter on slopes greater than 10%, as this will affect battery and engine life. In these
cases, support the ride using your foot
If your scoter keeps shutting down or shuts down while driving, it means that you have not changed it
enough before departure, so try not to get into a situation of starting the ride with battery less than half
changed
Drive on paved and concrete roads. On unpaved roads, drive at max 6 km/h, or avoid them completely
Keep both feet on the scooter when riding
Do not be alarmed by the sudden drop in battery level and return to higher level after a while. The battery
is restored with kinetic energy, and this is why this situation occurs
Be sure to charge the scooter every day, even if it is ridden only for a while, to preserve battery cells and
to get the best performance
Never wait for the battery to be completely discharged, as this destroy its cells
When you are not using the scooter, charge it at least once a month, otherwise the battery will deteriorate
very quickly
The scooter is for personal and not for commercial use. The warranty is not valid for commercial use

ELECTRIC SCOOTER / ENG
12
FOLDING
Make sure that the scooter's turned off. To fold, unlock the folding mechanism, and bend the
handlebar stem to hook the buckle on the rear mudguard. To open, press the bell trigger to
remove from the buckle, erect the handlebar and lock the folding structure.
Hold the handlebar stem with either one hand or both hands to carry.

ELECTRIC SCOOTER / ENG
13

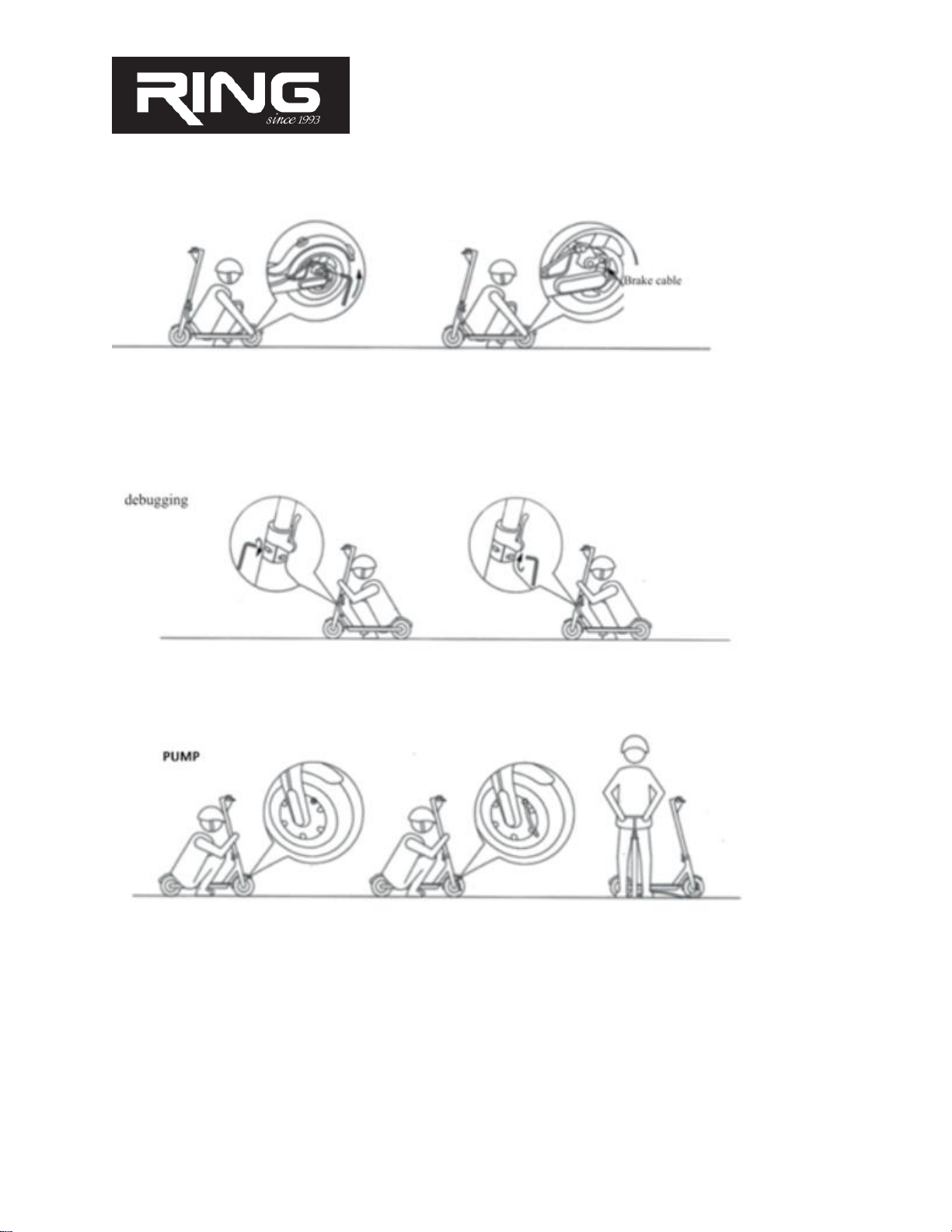

ADJUSTING THE DISC BRAKE, HANDLEBAR, TIRES
If the brake is too tight, use the M5 hexagon wrench to loosen the screws on the caliper, and slightly send
back the brake cable to shorten the exposed length, then tighten the screws. If the brake is too loose,
loosen the screws, and slightly pull out the brake cable to lengthen the exposed length, then tighten the
screws.
If the handlebar and its stem sway during riding, use the hexagon wrench to tighten the screws on the
folding mechanism.
If your tires are flat, remove the screw-on cap from the valve, and connect the extended nozzle adapter to
the valve for pumping up

ELECTRIC SCOOTER / ENG
14
CLEANING AND STORAGE
Clean and store your electric scooter
If you see stains on the scooter's body, wipe them off with a damp cloth. If the stains won't scrub off, put
on some toothpaste, and brush them with a toothbrush, then wipe them off with a damp cloth. If you see
scratches on plastic parts, use sandpaper or other abrasive materials to polish them.
Notes:
Do not clean the scooter with alcohol, gasoline, kerosene or other corrosive and strong chemical solvents
to prevent damage. Do not wash the scooter with a high-pressure water spray. During cleaning, make sure
that the scooter's turned off, the charging cable is unplugged, and the rubber flap is closed as water
leakage may result in electric shock or other major problems.
When the scooter's not in use, keep it indoors where it is dry and cool. Do not put it outdoors for long
time. Excessive sunlight, overheating and overcooling accelerate tire aging and compromise the scooter
and the battery pack's lifespan.

ELECTRIC SCOOTER / ENG
15
WARRANTY PERIOD
Name
Warranty
Period
The main unit
Frame, bonnet, controller,
handlebar, handles, dashboard,
back cover, brakes but not the
braking rate and cable
adjustment, disc brake system
(folding), fork, front fork control
system
2 years
Accessories
Battery, power supply,
transmission gears
6 months
The outer parts which are easy
to
wear off
Anti-collision bar, headlights,
instruments cover, set of handles,
inner tubes, bell, bumper, tail
lights, decorative cover, brake
cable rate adjusting, brake cable
3 months
CONDITIONS NOT COVERED BY THE WARRANTY
1. Authorized maintenance, misuse, collision, negligence, misuse, accident. Improper use of equipment
not intended for the product, or torn or modified label, anti-counterfeit mark.
2. Warranty period has expired.
3. Damage caused by force majeure.
4. Faults not in the fault list provided by the service center
5. Faults on the device or its components from the fault list occurring as a result of human factors and
interfering with normal operation.
6. Human factor related faults (including but not limited to prolonged device wetting, drilling, falling,
scratching, and damage on the outer case resulting from normal use and affecting electronics, battery etc,
punctured and damaged tires)
7. If this product is used for commercial purposes, warranty conditions do not apply.
8. Use packaging to transport the device safely. We recommend that you keep original packaging min 30
days after item purchase. In case of refund, we only accept returned goods in the original UNDAMAGED
packaging
9. Removed scooter serial number sticker (S / N)
10. If the original parts purchased from the importer are not fitted
11. If service is not provided by an authorized importer service

ELECTRIC SCOOTER / ENG
16
PARAMETERS
PERFORMANCE
Device
Parameters
Size
Length X Width X
Height
1080*430*1140mm
Folded: Length X
Width X Height
1080*430*490mm
Weight
Weight
12.5kgs
User
recommendation
Max user weight
110kgs
Permitted user age
14-50 years old
Permitted user height
120-200cm
Main parameters
Max speed
25KM/H
Max range(km)
depending on
conditions
RX 1 (10-20KM) RX 2 (7-15 km)
Slope
15°
Acceptable driving
terrain
Flat asphalted terrain, no more than 1 cm high step, no more
than 3 cm wide channel
Working temperature
0~40℃
Storage temperature
20-30℃
Protection level
IP54
Battery parameters
Battery voltage (VCD)
36V
Max. voltage on
charging (VCD)
42V
Capacity(WH)
280
Smart battery
management system
(Temperature anomaly / short circuit / Automatic
disconnection under / voltage / Over current /
Engine parameters
Power (W)
300
Max power (W)
500
Charger parameters
Rated power (W)
71
Voltage (VAC)
110~210V
Output voltage (VDC)
42V
Nominal current (A)
1.7V
Certificates
CE,ROSH
Charging time
3+
Note: Some parameters differ depending on the driver parameters and driving conditions, only for
reference. Max distance batteries have been tested with 75 kg drivers, with continuous driving
without breaks, and without slope, without change in speed and braking, at an outside temperature
of 20-25 degrees, on smooth asphalt terrain. All other conditions beyond these make the max range
references lower, especially the weight of the driver.
