ETTRONE Ali User manual

www.ettrone.com
Electric Bike - User Manual
Ali

Ali User Manual
Thanks for choosing your new ETTRONE electric bike.
The Ali is in a class of its own, combining a modern and
sleek design, powerful 250W motor and unique features.
Enjoy your ride!
*This user manual will guide you through important safety and performance information.
Read it before you take the first ride on your new ETTRONE bike, and keep it for future reference.

Contents
1. Safety Reminder ..................................................................................................................... 01
2. Product Overview .................................................................................................................. 03
3. Packing List ............................................................................................................................ 04
4. Assembling Your E-Scooter .................................................................................................. 05
5. Button Instructions & Dashboard ......................................................................................... 10
6. Warnings .................................................................................................................................. 11
7. Go Riding ................................................................................................................................. 16
8. Battery Information .............................................................................................................. 20
9. Specifications ....................................................................................................................... 24
10. Daily Care & Maintenance .................................................................................................. 27
11. Contact ................................................................................................................................. 30

1. Safety Reminder
01
Welcome
This e-bike is a recreational vehicle which requires practice before riding it to its full potential. ETTRONE
and/or its subsidiaries and affiliates are not responsible for any property damage, personal injury/death,
accidents, or legal disputes caused by violations of the safety instructions presented in this User Manual.
IMPORTANT
The combination of the safety alert symbols and the word WARNING in this manual indicates a
potentially hazardous situation which may result in injury, or is an alert against unsafe practices. Please
read this manual carefully and follow the recommendations.
To reduce the risk of injury, adult supervision is required. Never use in roadways, near motor vehicles, or
near steep inclines or steps, swimming pools or other bodies of water; always wear shoes and protective
gear including a helmet, and never allow more than 1 rider on board.

02
When riding in public spaces always follow and comply with the laws and regulations. Always allow
enough distance while braking; higher speeds require a longer distance to come to a stop. Always apply
the brakes gradually as sudden braking on low traction surfaces can cause the wheels to slip and
potentially fall. Always maintain a safe distance between you and other vehicles or pedestrians.
Always wear an approved helmet which fits properly while riding. Always slow down and yield the right of
way to pedestrians and overpass on the left if possible. Check for loose fasteners or hardware and/or any
damaged component. If the e-bike is making an abnormal noise stop the vehicle immediately and contact
ETTRONE for assistance.
ETTRONE recommends riders to be 14 years of age or older to ride this e-bike.
Riders below 18 years old should be accompanied by an adult.
Please read this manual carefully before you ride your e-bike.

2. Product Overview
03

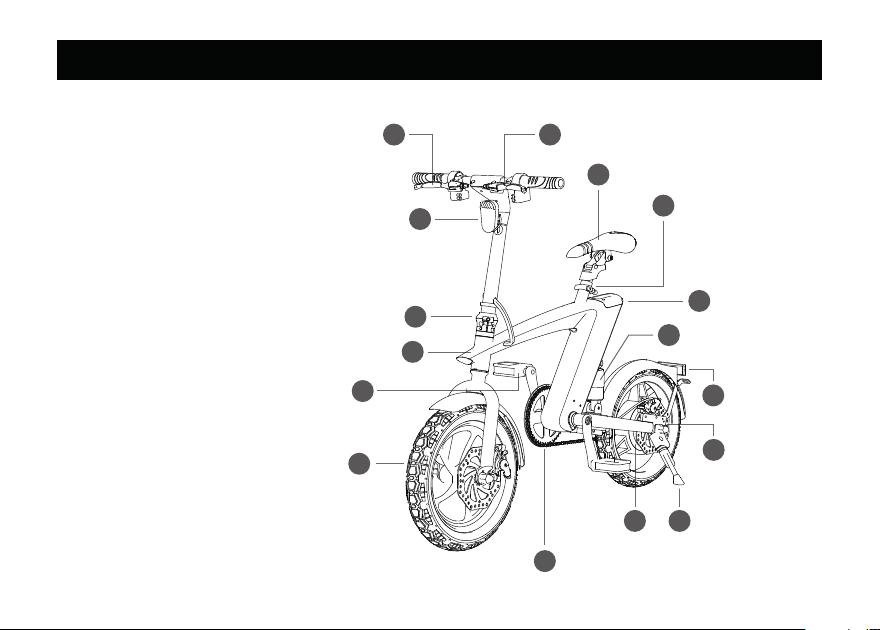

1. Front Brake Lever
2. Rear Wheel Lever
3. LED Head Light
4. Foldable Seat
5. Seatpost Height Lever
6. Stem Folding Latch
7. Removable Battery
8. Main Frame
9. Rear Shock Absorber
10. Foldable Pedals
11. Tail Light
12. Front Wheel
13. Rear Disc Brake
14. Crank
15. Hub Motor
16. Side Stand
10
Foldable
Pedals
2Rear Wheel Lever
4Foldable Seat
5Seat Adjustment
Lever
1
3
LED Head Light
14 Crank
Tail Light
11
7Removable Battery
9Rear Shock Absorber
15
Hub
Motor 16 Side Stand
8
Main Frame
Front Wheel
Lever
13 Rear Disc Brake
6
Stem Folding Latch
12
Front Wheel

04
3. Packing List

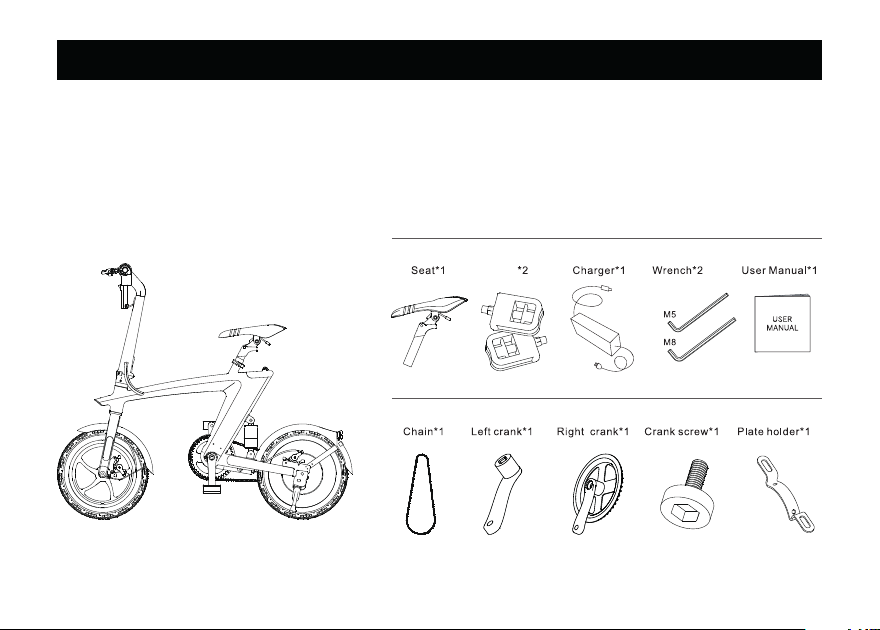

Verify that all items listed are included when unboxing your e-bike. Verify that all parts are in good
condition. Retain all packaging materials and original box, in case you need to ship it in the future. Unplug
the charging cable before assembling and power off the e-bike.
Electric Bike (1) Accesories
Foldable
Pedals

05
4. Assembling Your E-Scooter

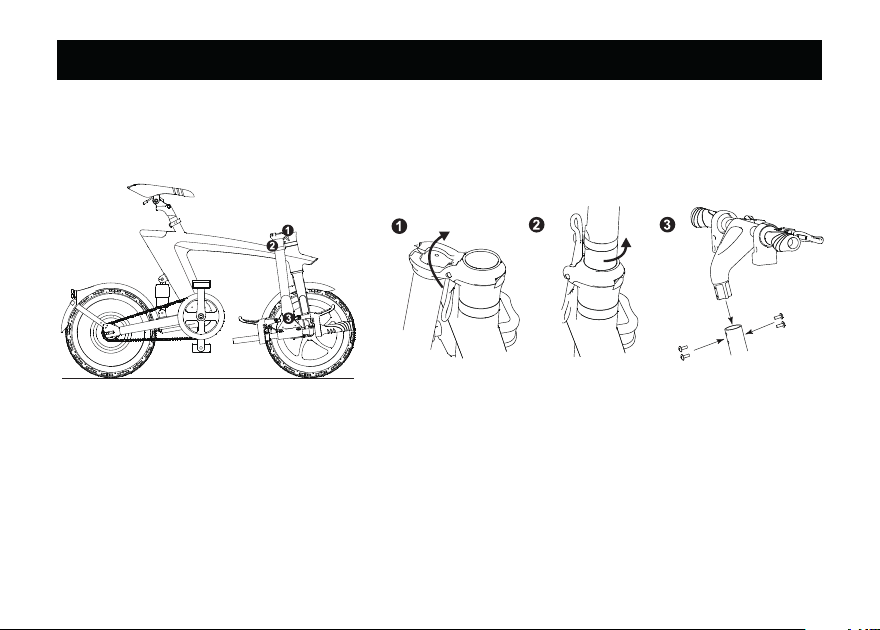

1. Unfold the stem with handlebar by pulling it upwards.
1. Lift the stem and secure the folding latch.
2. Rotate the safety locking ring counterclock wise to lock the latch.
3. Slide the handlebar assembly into the stem hole and secure it with the 4 screws provided.
Tighten securely.

06
2. Installing the brake levers 3. Installing the Pedals
a. Install the left side crank to the shaft of the
e-bike and bolt it in place with the screws
provided.
Check for stem play and adjust if required by rotating the
latch bolt as per the diagram. Do not over-tighten to allow
proper functioning.
Adjust the brake lever height to your desired level
by loosening the bolt and rotating the lever.
Tighten the bolts again securely.

07
b. Install the pedal marked with "L" on the left crank. Pay attention to the thread direction of the pedal and
turn counter clockwise to secure in place.

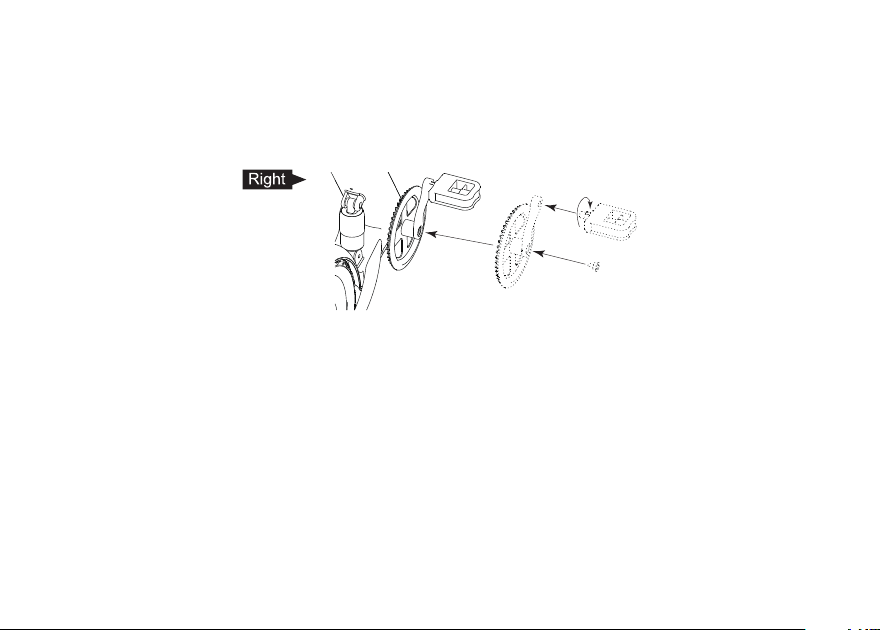

a. Install the right side crank along with the front sprocket to the shaft of the e-bike and bolt it in place
with the screws provided.
b. Install the pedal marked with "R" on the right crank. Pay attention to the thread direction of the pedal
and turn counter clockwise to secure in place.

08
4. Install battery pack
5. Installing the chain
Align the battery with the guides on the
frame and slide in gently. Turn the key
clockwise to lock.
Turn the key counter clockwise to unlock
the battery. Gently pull the battery out
using the battery strap.
a. Slide the chain over the the rear sprocket.
b. Slide the front side of the chain onto the driving sprocket and turn the pedal slowly to accomodate the
chain in place.

09
Chain Tension adjustment:
a. Use an M9 wrench to loosen the chain tensioner nuts.
b. Use an M10 wrench to adjust the chain tension as shown in the picture.
Chain Play: The chain should be able to move 1/4 to 1/2 inch in both directions.
6. Seat Installation
1. Disengage the seat post lock.
2. Insert the seat post into the frame of the e-bike.
3. Adjust the seat to the desired height and tighten the seat
post lock.
NOTE: Do not exceed the seat height limit marked with a line on
the seat post to avoid accidents and or damage to the e-bike.

10

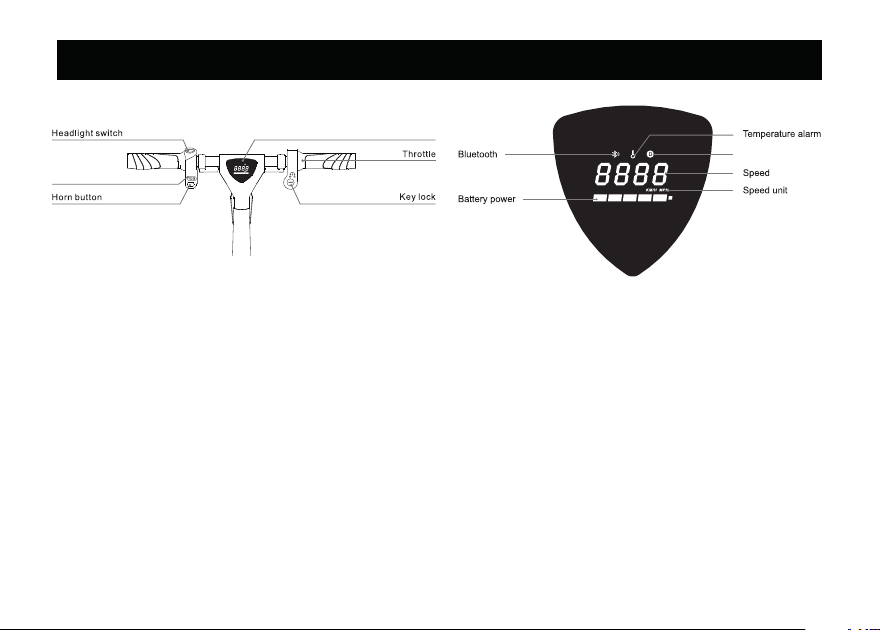

5. Button Instructions & Dashboard
Riding Mode switch
LED Display
Riding Mode
1. Display: Battery power, speeed, riding mode, etc.
2. Key Lock: Insert the key, turn clockwise to the ON position to turn on, and turn counterclockwise to the OFF position
to turn off.
3. Throttle: Move the throttle to ride in pure electric mode.
4. Headlight Switch: Push the switch to the ON position to turn on the front light, push it to the OFF position to turn off
the front light.
5. Photosensitive Switch: When the ambient light becomes dark, the front and rear lights will automatically turn on
when the headlight switch is not turned on.
6. Riding Mode Switch: Toggle the switch to any of the 5 available riding modes.
1) Pedal only mode 2) Pedal assist mode level 1 [ 5mph (7.5 km/h)], 3) Pedal assist mode level 2 [ 10 mph (15km/h)]
4) Pedal assist mode level 3 [ 16 mph (25km/h)], 5) Throttle only mode
7. Horn Button: Press the button to activate the horn sound.
8. Front and Rear Brakes: Gradually apply the brake levers, the e-bike will slow down and come to a complete stop.
NOTE: The throttle will not work while the brake lever/s are engaged.

11
6. Warnings
ATTENTION
Not following the following instructions can lead to serious injury/death and damage.
Please follow the traffic laws and regulations when
using electric bikes. It is forbidden to ride electric
bikes into the motorway.
DO NOT make calls and/or listen to music while riding.
Electric bikes should not be parked in the building
foyer, evacuation corridor or safety exit.

12
Pregnant women and users under the age of 14 are
prohibited to ride.

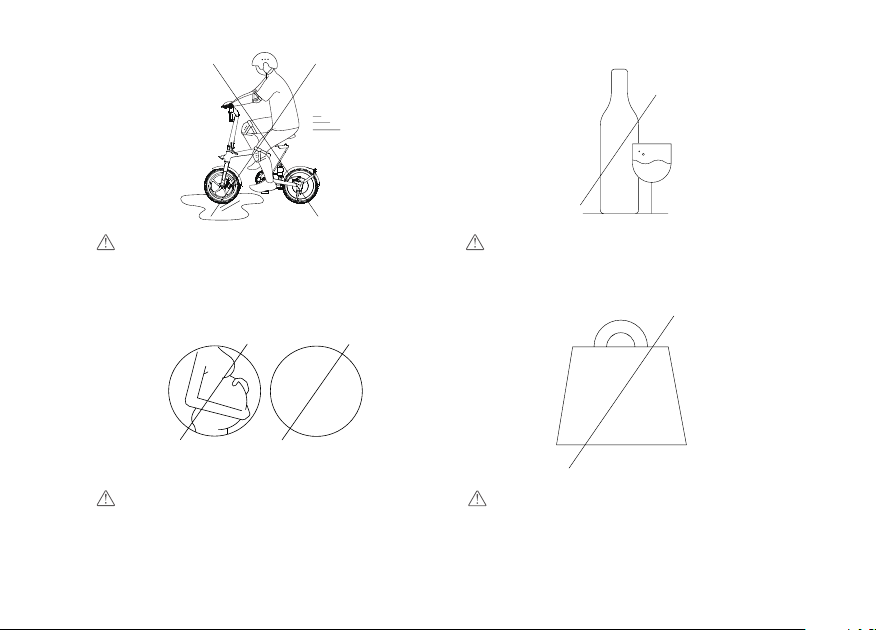

It is prohibited to ride on the road with severe water
accumulation. The road condition of the water
accumulation is unknown, which may easily cause
danger.
Do not ride if you are under the influence of alcohol
or any other drug.
Do not exceed the maximum rated load of 220 lb
(100 kg).
>220 lb
(100 kg)
<14

13

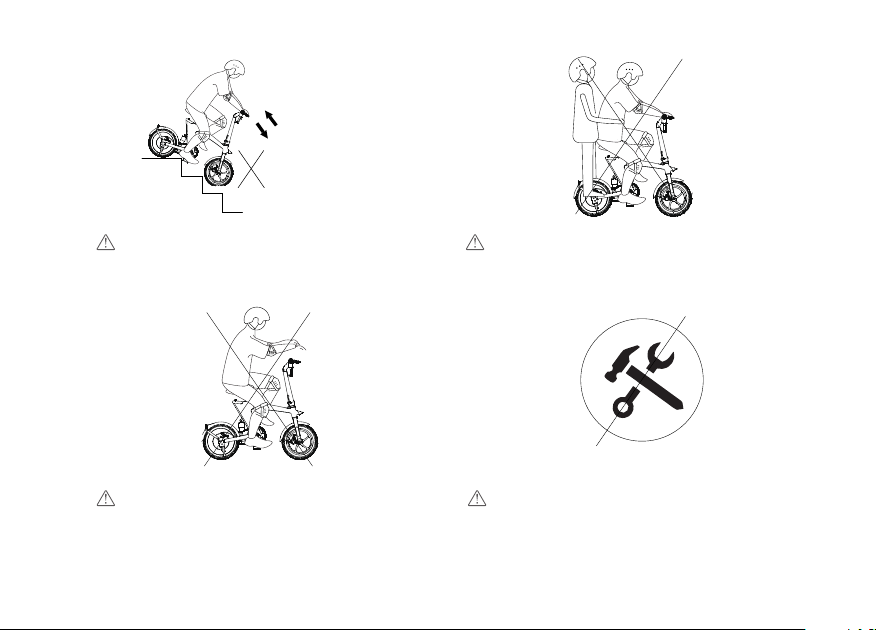

DO NOT engage in extreme riding.
DO NOT ride up or down stairs.
Hold the handlebar securely at all times with both
hands.
DO NOT modify the electric bicycle by yourself. It
may cause unstable operation of the electronic
system and cause danger when riding.
Only one person is allowed to ride the e-bike at the
same time. Do not carry children on arms.

14
Adjust the tire pressure to to 35-45 psi
(240Kpa-310 Kpa)
DO NOT modify the battery of an electric bicycle
without permission. Modification of the battery is
dangerous, and improper operation may cause the
battery to explode or catch fire.
Please try to avoid riding in rain or snow. If you need
to ride, slow down and avoid emergency braking.

15
Be alert! Pay attention to the road and/or obstacles.
DO NOT attempt any other activity while driving.
Control your speed while riding downhill as the
e-bike may obtain higher than normal speeds.

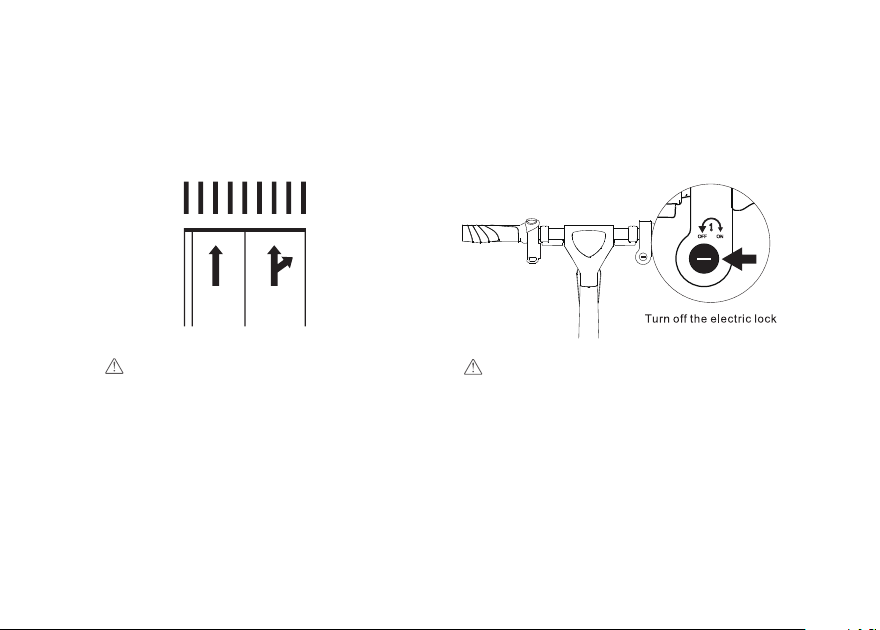

Always turn off the key switch to avoid unintended
throttle actuation.
