IMOUMLIVE DLJS6 User manual

6-Inch Mini Chainsaw
User manual (DLJS6）
Read all safety rules and instructions carefully before operating this tool.
Questions or Concerns?
contact IMOUMLIVE via
EN DE IT ES FR
[email protected]

Product Information
Extended functions
Charging the Battery
The use and maintenance of battery tools
Safety Warnings for Charger
Product Diagram
How To Lubricate The Chain
Proper use of the chainsaw safety lock
How to Adjust The Chain Tightness
How to Replace The Chain
How to Replace The Chain
Troubleshooting
Chainsaw Safety Precautions
Wartung und Reinigung
Environment
Services
EN.01
EN.02
EN.03
EN.04
EN.05
EN.06
EN.07
EN.07
EN.08
EN.09
EN.10
EN.11
EN.12
EN.13
EN.13
EN.13
English
Produktinformation
Erweiterte Funktionen
Das Batterie aufladen
Die Verwendung und Wartung von Akku-Werkzeugen
Sicherheitswarnungen für das Ladegerät
Produkt-Diagramm
Wie man die Kette schmiert
Richtige Verwendung der Kettensägen-Sicherheitssperre
Wie man die Kettenstraffung einstellt
Wie man die Kette austauscht
Wie man die Kette austauscht
Fehlerbehebung
Sicherheitsvorkehrungen für die Kettensäge
Wartung und Reinigung
Umwelt
Dienstleistungen
WEEE-Recycling-Anweisungen
DE.01
DE.02
DE.03
DE.04
DE.05
DE.06
DE.07
DE.07
DE.08
DE.09
DE.10
DE.11
DE.12
DE.13
DE.13
DE.13
DE.14
Deutsch

Informazioni sul prodotto
Funzioni estese
Caricamento della batteria
L'uso e la manutenzione degli utensili a batteria
Av vertenze di sicurezza per il caricabatterie
Diagramma del prodotto
Come lubrificare la catena
Corretto utilizzo del blocco di sicurezza della motosega
Come regolare la tensione della catena
Come sostituire la catena
Come sostituire la catena
Risoluzione dei problemi
Precauzioni per la sicurezza delle motoseghe
Manutenzione e pulizia
Ambiente
Servizi
IT.01
IT.02
IT.03
IT.04
IT.05
IT.06
IT.07
IT.07
IT.08
IT.09
IT.10
IT.11
IT.12
IT.13
IT.13
IT.13
Italiano
Información del producto
Funciones extendidas
Cargando la batería
El uso y mantenimiento de las herramientas con batería
Advertencias de seguridad para el cargador
Diagrama del producto
Cómo lubricar la cadena
Uso adecuado del bloqueo de seguridad de la motosierra
Cómo ajustar la tensión de la cadena
Cómo reemplazar la cadena
Cómo reemplazar la cadena
Solución de problemas
Precauciones de seguridad con la motosierra
Mantenimiento y limpieza
Medio ambiente
Servicios
ES.01
ES.02
ES.03
ES.04
ES.05
ES.06
ES.07
ES.07
ES.08
ES.09
ES.10
ES.11
ES.12
ES.13
ES.13
ES.13
España

Informations sur le produit
Fonctions étendues
Chargement de la batterie
L'utilisation et l'entretien des outils à batterie
Avertissements de sécurité pour le chargeur
Schéma du produit
Comment lubrifier la chaîne
Utilisation appropriée du verrou de sécurité de la tronçonneuse
Comment ajuster la tension de la chaîne
Comment remplacer la chaîne
Comment remplacer la chaîne
Dépannage
Précautions de sécurité pour la tronçonneuse
Maintenance et nettoyage
Environnement
Services
FR.01
FR.02
FR.03
FR.04
FR.05
FR.06
FR.07
FR.07
FR.08
FR.09
FR.10
FR.11
FR.12
FR.13
FR.13
FR.13
Français
To view the electronic version of the user manual, please
scan the OR code.
EN
ES FR
DE
IT

Product Information
Intended use
This tool is suitable for gardening pruning, shrub trimming, small
branch cutting, wood cutting, and is widely used in gardens, parks,
farms, highways, ranches, orchards, and greenhouses.
6 Inch Mini Chainsaw
Max. cuing diameter
Guide Plate Length
Weight
Power
Current
140mm
6 Inch
1.4KG
700W
35A
Battery Pack
Baery pack type
Baery Capacity
Charger Output
Charging Time
Working time
Li-lon
21V 3.0Ah 55Wh
21V 1.2A
2.5 H
1 H
Technical Specifications
EN.01EN.01

Extended functions

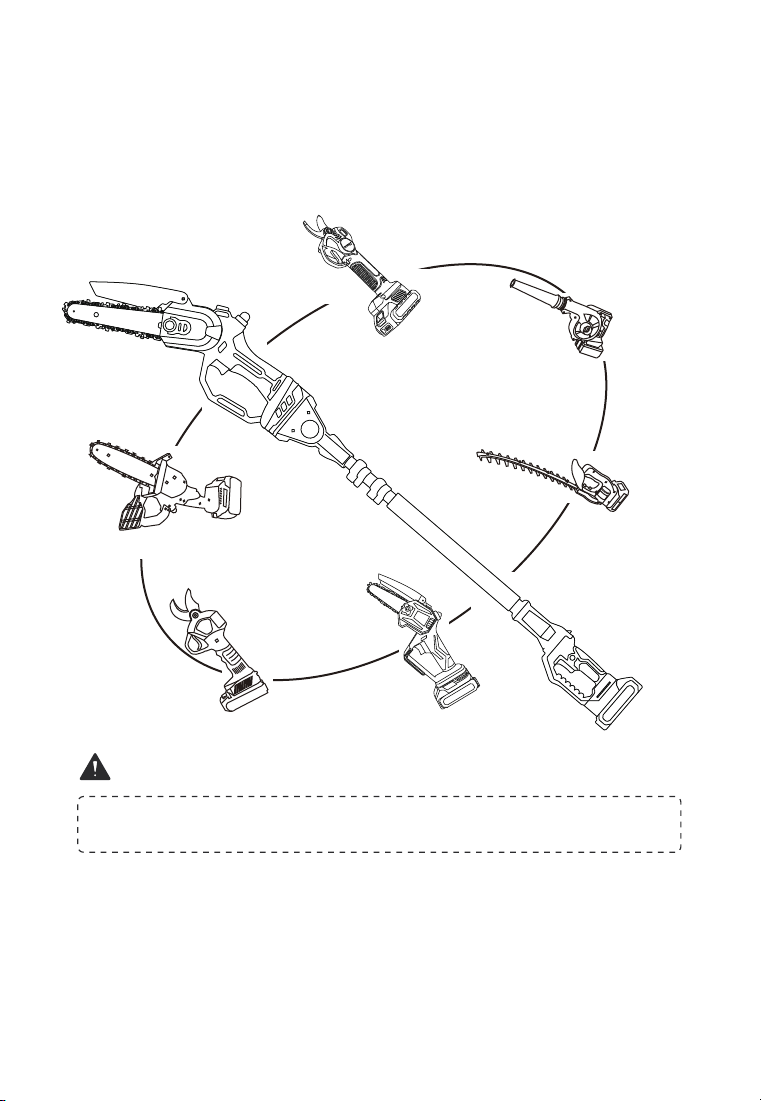

This product can be combined with a tall pole to form a Pole saw,
allowing you to use the most cost-effective cost to meet the needs
of users in different scenarios:
8-inch Chainsaw
Leaf Blower
Hedge Trimmer
Electric pruning shears
Electric pruning shears 4-inch Chainsaw
The package does not Include the high rod, tou can visit the
imoumlive brand in the amazon store to buy this ac cessory!
NOTE
EN.02

Charging the Battery
It is recommended to charge the new battery before using the electric
saw for the first time. Insert the output plug of the battery charger into
the chargingsocket of the battery, and then plug the charger into the
power outlet. The LED indicator on the charger will turn red during the
charging process and will turn green when the battery is fully charged.
It takes about 2 hours to fully charge the battery.
Battery Charging Jack
Lithium Battery Charger
Indicator Light
Red
Green
Status
Charging
Full Charged
After the battery is fully charged remove the charger plug from the
outlet and remove the battery from the charger.
1. It is normal that the battery and charger heat up during charging.
2. It is recommended to charge the battery every 3 months during
long-term storage to perserve the full life-time of the battery.
3. It takes approximately 5 charging-discharging cycles to reach the
full capacity of a new or stored battery.
4. Please do NOT charge the fully-charged battery again after a few
minutes of use. This can potentially reduce the lifetime and efficiency
of the battery.
5. Please do NOT use damaged batteries, disassemble the charger
or the battery.
6. Do NOT charge the battery outdoor or in a humid environment.
7. When the battery is low, the cutting strength of the electric saw
will decrease, which is normal.
8. Do NOT store the battery in a humid environment.
EN.03

The use and maintenance of battery tools
1. Try to use the battery provided by the manufacturer to connect the
device to use, to prevent the use of other batteries lead to the device
can not work properly, or even can burn the device.
2. Try to use the charger specified by the manufacturer for charging.
charger suitable for one battery pack may create a fire hazard when
used with another battery pack.
3. Do not disassemble the battery pack to prevent damage to the
battery or even the risk of short circuit.
4. Protect the battery from heat, such as continuous strong sun-light,
fire, water and moisture. Prevent the danger of explosion.
5. Use the chainsaw only with specifically designated battery packs.
Use of any other battery packs may create a risk of injury and fire.
6. When the battery pack is not in use, keep it away from other metal
objects, like paper clips, coins, keys, nails, screws or other small metal
objects that can make a connection from one terminal to another.
Shorting the battery terminals together may cause burns or fire.
7. Under abusive conditions, liquid may be ejected from the battery,
please avoid contact. If contact accidentally occurs, flush with water.
If liquid contacts eyes, seek medical help immediately. Liquid ejected
from the battery may cause irritation or burns.
CAUTION! RISK OF EXPLOSION!
Never charge non-rechargeable batteries!
Protect the rechargeable battery from heat,such as
continuous strong sun-light,fire,water and moisture.
Prevent the danger of explosion.
EN.04

Safety Warnings for Charger
Do not allow any liquid to come into contact with the charger.Danger
ofelectric shock may occur.
Do not place tools or chargers near the sink, washbasin, toilet,or any
other places near water.
Do not spill liquid of any kind on the chainsaw or the charger.Doing so
may short out parts, cause damage to the product andcreate the risk
of fire or electric shock.
The most suitable temperature to charge the battery packs are
between 68°F -77F. During charging, batteries must be placedin well
ventilated area.
The chainsaw is not to be used by persons (including children)with
reduced physical, sensory or mental capabilities, or lack ofexperience
and knowledge unless they have been givensupervisioninstructions.
Children must being supervised not to play with the appliance.
Donot recharge non-rechargeable batteries!
EN.05

Only insert the rechargeable battery once the device is completely
assembled.If the device is switched on accidentally,there is a danger
of injury.
NOTE
Product Diagram
Guide Bar
Battery Pack
Start Switch
Protective Baffle
Oil Storage Box
Chain Safety Button
Press
EN.06

When not using the chainsaw, please move the safety lock to the "Lock"
position to prevent accidental injuries.
NOTE
How To Lubricate The Chain
Vertical Ground Lubrication of chains Press the Oil Box
1 2 3
1. Hold the chainsaw vertically with the blade facing down and press
the Oil Box once to allow the lubricant to flow along the chain.
2. Wait for the lubricant to spread along the chain, then start the
chainsaw and idle twice.
Proper use of the chainsaw safety lock
UNLOCK UNLOCKLOCK
EN.07

When the chain cannot be automatically tightened, it is necessary to
check if there are wood chips or foreign objects stuck between the
motor gears and th chain. Please clean them thoroughly before
readjusting.
NOTE
Our Safety Switch Advantages:
1. It can be easily operated by users, whether they prefer using their
left hand or right hand.
2. Our chainsaw only requires the safety lock to be released, allowing
the device to be operated by simply pressing the "Start" button. This
reduces hand fatigue and improves work efficiency compared to
traditional safety locks.
How to Adjust The Chain Tightness
If the chain comes loose during use, follow the steps below to
adjust the chain.
1. Lift up the cover nut handle.
EN.08
2. Rotate the nut counterclockwise to
loosen it, and the chain will automati-
cally lock in place (no need to remove
the nut, just loosen it). After the chain
is automatically locked, tighten the
nut clockwise.

How to Replace The Chain
1. Lift up the cover nut handle.
3. When removing the cover plate,
lift the mudguard upward to open it.
5. After the guide bar is loose, the chain can be taken out directly.
4. Wear gloves, press the saw guide
firmly, and push it towards the motor
until you hear a "click" sound.
2. Rotate the nut counterclockwise.

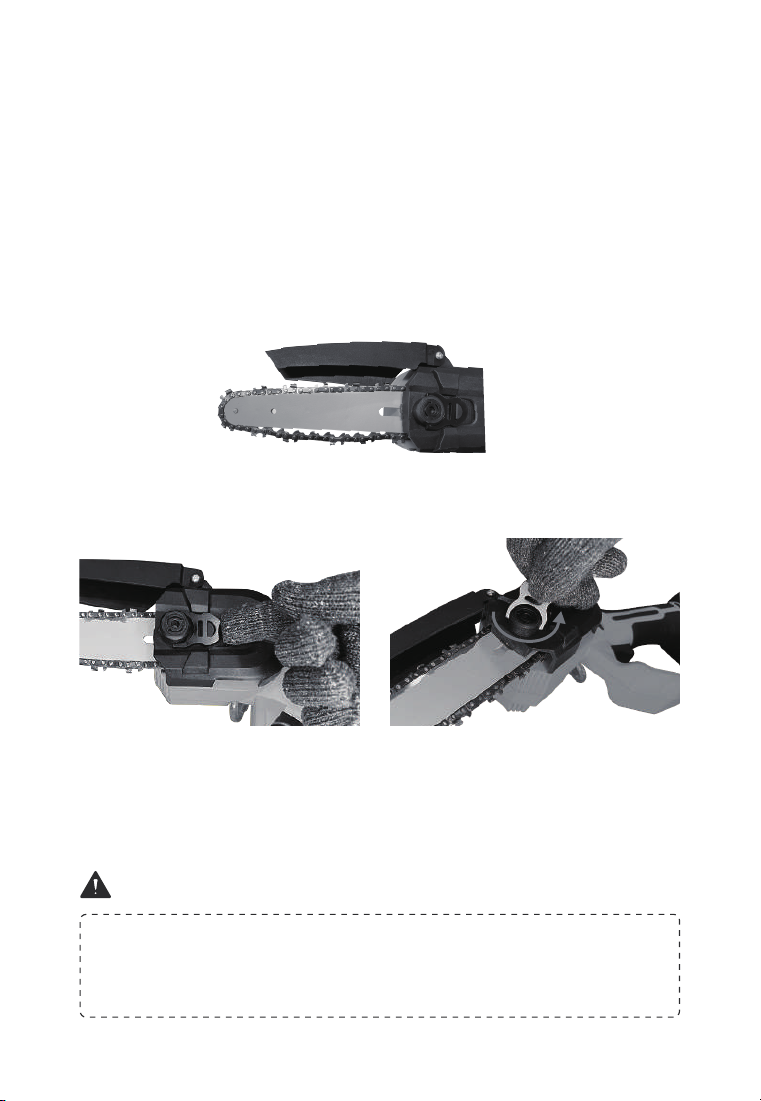

Removing the chain
EN.09

Install the chain
Keep your fingers away from the chain and guide bar area when pressing
the latch to prevent pinching. Also make sure there are no foreign objects
between the chain and the guide bar while pressing the latch.
NOTE:
How to Replace The Chain
3. After installing the chain, press the chain lock button to the right,
and the guide pin will automatically lock the chain.
2. Install the guide plate and chain
to ensure that the direction of the
chain blade is correct.
1. Clean the motor to ensure that
there is no debris.
Chain Blade Directon
lock buon
5. Make sure the cover plate is in a
tightly closed state before tightening
the nut clockwise.
4. When covering the cover plate,
lift up the mudguard and then put
the cover plate in place.
EN.10

Troubleshooting
Problem Possible Reason Possible Solution
The chain is
loose/ falling
o/popping
out
The chain is not installed in place
The cover is not locked tightly
causing the cover to come loose
Excessive wood chips cause the
chai to loosen
When installing the chain, snap the chain into
the groove of the guide plate, then toggle the
shrapnel to make the chain lock automatically
(Note: When toggling the shrapnel, please do
not put your ngers between the guide plate
and the chain to prevent pinching), and nally
check whether the chain is installed.
When installing the cover plate, you should
press the cover plate with one hand to prevent
loosening the misalignment, and the cover
plate must be in a tight state before locking
the cover plate screws.
Please clean the sawdust regularly to
ensure that there are no foreign objects
in the rotating pas of the chainsaw motor.
Lifespan
Unable to
cut wood
Can not pump
out oil
Stop working
Accessories
and other
questions
Some accessories such as chains and baeries
can be purchased separately at the IMOUMLIVE
store For any fuher assistance, directly contact
our customer service. Check the cover and nd
our contact information there
The lid of the oil reservoir is
too tight
The oiler is oveilling
The oiler tube is bent
Baery issue
The tool is overheating
/
/
/
Check that the baery is installed in place and
the baery is charged. lf you have a spare baery,
you can change the spare one to see if
themachine is turned on
Continuously using the tool for a long time will
cause overheating. Let the tool completely cool
down and try using it again
Please loosen the lid slightly to allow air
circulation.
Pour out a lile oil and leave 1/3 of the space in
the oil reservoir to ensure the internal pressure
work
Check if the transparent tube connecting the
oil pot is bent, if is, it needs to be adjusted to
maintain the normal ow of oil
The direction of the chain
blade is reversed Check the blade and reinstall the chain
Low baery Need to charge
The actual use time varies with
hardness, wood diameter, and
outside temperature
The peormance of lithium
baeries will decrease
signicantly in a low-temperature
environment or a high-temperature
environment, And duration will
reduce as well
EN.11

Chainsaw Safety Precautions
1. Do not forced use the chainsaw. Apply the correct power tool for
your application. The correct power tool will do the job better and
safer at the rate for which it was designed.
2. Do not use the chainsaw if the switch can not be turned on and off.
Any chainsaw that cannot be controlled with the switch is dangerous
and must be repaired.
3. Disconnect the plug from the power source and/or the battery
packfrom the chainsaw before making any adjustments, changing
accessories, or storing chainsaw. Such preventive safety measures
reduce the risk of unexpected start.
4. Store unused chainsaws out of the reach of children. Do not allow
people unfamiliar with chainsaws or these instructions to operate
them. Chainsaws are dangerous in the hands of untrained users.
5. Maintain the chainsaw. Check for misalignment or binding of moving
parts, broken parts and any other conditions that may affect chainsaw
operation. If there is damage, have the chainsaw repaired before use.
Many accidents are caused by poorly maintained chainsaws.
6. Keep cutting tools sharp and clean. Properly maintained cutting
tools have sharp cutting edges that are less prone to knotting and
easier to control.
7. Use the chainsaw and accessories in accordance with these
instructions, taking into account the working conditions and the work
to be performed. Using the chainsaw for operations different from
its intended use may result in hazardous situations.
8. Children should be supervised to ensure that they do not pla
with chainsaws.
EN.12

Wartung und Reinigung
Before cleaning and maintenance,always switch off the chainsaw
and remove the battery.
HINWEIS
Clean the chain carefully after each use.
Wipe the chain with lubricating oil and spray with metal protection
spray.
Do not spray the equipment with water or break it into the water,
otherwise it may cause electric shock.
Clean the machine casings regularly with a soft cloth preferably after
each use, keep the ventilator, motor room and equipment handle
clean.
Remove persistent dirt using a soft cloth moistened with soapsuds.
Do not use any solvents such as gasoline, alcohol. ammonia,etc.
Chemicals such as these will damage the synthetic components.
Environment
Faulty and/or discarded electrical of electronic apparatus
have to be collected at the appropriate recycling locations.
Services
Every imoumlive product automatically includes a 1-year warranty. To
make the customer support process quick and easy, register your product
online at www.imoum.com.
If you discover that your product is defective within the specified warrant
period, please contact Customer Support via [email protected].
DO NOT dispose of your product before contacting us. Once our Customer
Support Team has approved your request, please return the product with
acopy of the invoice and order ID.
Support Hours: Mon-Fri, 9:00 am-5:00 pm PST/PDT
Please have your order invoice and order ID ready before contacting
Customer Support.
EN.13

Brand: IMOUMLIVE
Product name: Mini Chainsaw
Model number: DLJS6
WEEE-Reg.-Nr. DE 95546078
Manufacture: Chongqing Mouma Keji You Xian GongSi
Address: 4-1, 131Ha0, Tian Chi Da Dao, Ba Nan Qu,
401320,Chongqing, China
Contact Us:[e-mail]
EU Responsible Person：C&E Connection
E-Commerce (DE) GmbH
Address：Zum Linnegraben 20, 65933, Frankfurt am
Main,Germany
E-mail：[email protected]
