impulce 2 Back Extension IT8011B User manual

I Back Extension
Assembly Instructions
T8011B

Table of contents
Important Safety Instructions--------------------------------- 1
Exploded View Diagram------------------------------------------ 2
Hardware List-------------------------------------------------- 3
Parts List----------------------------------------------------- 4
Assembly instructions------------------------------------------ 5
------
----------
--

Important Safety Instructions
1
Before beginning any fitness program, you should obtain a complete
physical examination from your physician. When using exercise equip-
ment, basic precautions should always be taken, including the following:
* Read all instructions before using the .
arewrittentoensureyoursafetyandtoprotect
* Do not allow children on or near the equipment.
* Use the equipment only for its intended purpose as described in this
guide. Do not use accessory attachments that are not recommended
by the manufacturer: such attachments might cause injuries.
* Wear proper exercise clothing and shoes for your workout---no loose
clothing.
* Be careful when getting on or off the equipment.
* Do not overexert yourself or work to exhaustion.
* If you feel any pain or abnormal symptoms, stop your workout imme-
diately and consult your physician.
* Never operate the unit when it has been dropped or damaged.
* Never drop or insert anything into any opening in the equipment.
* Always check the unit and its cables before each use. Make sure that
all fasteners and cables are secure and in good working condition.
* Frayed or worn cables can be dangerous and may cause injury.
Periodically check these cables for any indication of wear.
* Keep hands, limbs, loose clothing and long hair well out of the way of
moving parts.
* Do not attempt to lift more weight than you can control safely.
* Do not use the equipment outdoors.
* Read each step in the assembly instructions and follow the steps in
sequence. Do not skip ahead. If you skip ahead, you may learn later
that you have to disassemble compontents and that you may have
damaged the equipment.
* Assemble and operate the equipment on a solid, level surface. Locate
the unit a few feet from walls or furniture to provide easy access.
The Back Extension is designed for your enjoyment. By
precautions and using common sense, you will have
pleasurable hours of healthfull exercise with the
Back Extension These instruc-
tions the unit.
following these
many safe and
equipment.
Personal Safety During Assembly

2
I Back Extension

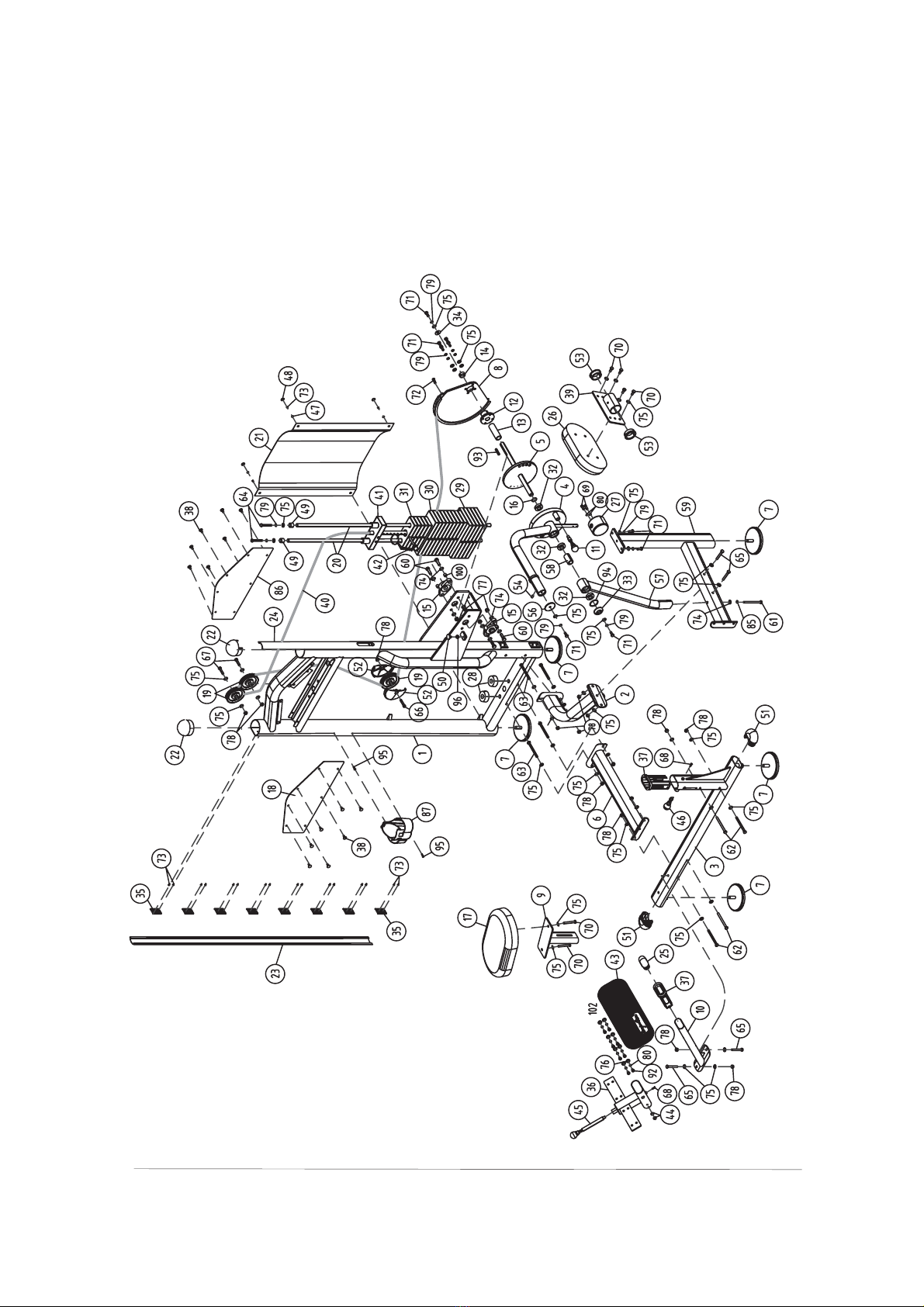

Exploded View Diagram
T8011B

3
0 100
10 20 30 40 50 60 70 80 90 110 120 130 140 150
Inches
0123456
/
12
/
14 /
34 / 34 / 34 / 34 / 34 / 34
/
14 / 14 / 14 / 14 / 14
/
12 / 12 / 12 / 12 / 12
Millimeters
Hardware List

4
Parts List
Item No. Description QTY Item No. Description QTY
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
Main Upright
Low Cross
Seat Frame
Pivot Arm
Adj.Shaft
Cross
Adj.Foot Plate
Cam
Seat Pad Support
Guide Tube
Long Pop Pin
Flange
Spacer
Short Spacer
Pillow Bolck
Spacer Washer
Seat Pad
Front Decal Plate
4.5" pulley
Guide Rod
Weight Shroud
"D" End Cap
Rear Side Cover
Front Side Cover
Plug
Back Pad
Counter Poise Block
Weight Rubber Bumper
20 Lb Weight
15 Lb Weight
10 Lb Weight
Bearing
Outer Washer
Bearing Washer
Plastic Block
Slide Frame
Sleeve
Button
Back Pad Support
Cable
Top Plate
Weight Pin
Pedal
Nylon Stem Button
Longer Pop Pin
Seat Pop Pin
Plastic Washer
Bolt Cover
Rubber Cap
1
1
1
1
1
1
5
1
1
1
1
1
1
1
2
1
1
1
3
2
1
2
1
1
1
1
1
2
6
8
5
3
1
1
15
1
2
14
1
1
1
1
1
1
1
1
4
4
2
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
Adj.stopper
Plug
Half-pulley Cover
Nylon Bushing
Set Screw M10×16
Spacer 16× 12.2×12.5
Big Bearing Washer
Angle Support
Spacer
Rear Support
Allen Bolt M12×40
Allen Bolt M12×120
Allen Bolt M10×120
Allen Bolt M10×115
Allen Bolt M10×75
Allen Bolt M10×70
Shoulder Bolt M10×50
Allen Bolt M10×45
Shoulder Bolt M8×20
Shoulder Bolt M8×25
Allen Bolt M10×30
Allen Bolt M10×25
Screw M4×20
Screw M5×10
Washer 13× 24×1.5
Washer 11× 20×2
Washer 9× 22×2
Nylon Locknut M12
Nylon Locknut M10
Spring Washer 10
Spring Washer 8
Allen Wrench S6
Allen Wrench S8
Weight Plate Number
Grease
Spring Washer 12
Rear Decal Plate
Plastic Cap
Decal Warning
Decal Maintenance Routine
Decal Pinch Points
Decal Tightening
Allen Bolt M8×20
Key
Hole Clip
Screw M6×15
Nut
Allen Wrench S5
ΦΦ
ΦΦ
ΦΦ
ΦΦ
Φ
Φ
Φ
1
2
2
2
1
4
1
1
1
1
4
1
4
4
2
4
1
2
2
2
6
9
1
34
9
42
8
4
15
11
10
1
1
1
1
1
1
1
1
1
1
1
8
1
1
2
1
1

5
Assembly instructions
Assembly of the takes professional installers
about 2 hours. If this is the first time you have assembled this
type of equipment, plan to spend more time. It is strongly recom
mended to assemble the equipment by professional installers.
You may find it quicker, safer, easier to assemble this equipment
with the help of a friend, as some of components may be large,
heavy or awkward to handle alone. It is important that you asse-
mble your product in a clean, clear, uncluttered area. This will
enable you to move around the product while you are fitting com-
onents and reduce the possibility of injury during assembly.
As with any assembled part, proper alignment and adjustment
is critical. While tightening the fasteners, be sure to leave room
for adjustments. Do not fully tighten the fasteners until instructed
to do so. Be careful to assemble the components in the sequence
presented in this guide.
Back Extension
-
p
Note

Step1 Install the Adj.Foot Plates
Align the Adj.Foot Plate(#7)to the Main Upright(#1),the
Seat Frame(#3), the Rear Support(#59), then secure
thembyhandle.
6

7
Step2 Assemble the Frame
1)Attach the Cross (#6)to the Main Upright (#1)using:
2)attach the Low Cross (#2)to the Main Upright (#1)using:
3)Attach the Seat Frame (#3)to the Cross (#6)using:
4)Attach the Rear Support (#59)to the Low Cross (#2)
and the seat Frame (#3)using:
5)Attach the Rear Support (#59)to the Main Upright (#1)
using:
Two Allen Bolts (#63)M10×115
Four Washers (#75) 11× 20×2
Two Nylon Locknuts (#78)M10
Two Allen Bolts (#63)M10×115
Four Washers (#75) 11× 20×2
Two Nylon Locknuts (#78)M10
Two Allen Bolts (#62)M10×120
Four Washers (#75) 11× 20×2
Two Nylon Locknuts (#78)M10
Two Allen Bolts (#65)M10×70
Two Allen Bolts (#62)M10×120
Eight Washers (#75) 11× 20×2
Four Nylon Locknuts (#78)M10
Two Allen Bolts (#71)M10×25
Two Spring Washers (#79) 10
Two Washers (#75) 11× 20×2
ΦΦ
ΦΦ
ΦΦ
ΦΦ
Φ
ΦΦ

8
Step3 Assemble the Pedal
Support
1)Attach the Guide tube (#10)to the Seat Frame (#3)using:
2)Attach the Nylon Stem Button (#44)to the Slide Frame
(#36)then insert them to the Guide Tube (#10),secure
them using:
3)Make sure the Slide Frame can Slide smoothly.
Two Allen Bolts (#65)M10×70
Four Washers (#75) 11× 20×2
Two Nylon Locknuts (#78)M10
One Shoulder Bolt (#68)M8×20
ΦΦ

9
Step4 Assemble the Pedal
Attach the Pedal (#43) to the Slide Frame (#36) using:
8
Eight Washers (#76) 9× 22×2
Eight Allen Bolts (#92) M8×20
Eight Spring Washers (#80) Φ
ΦΦ

10

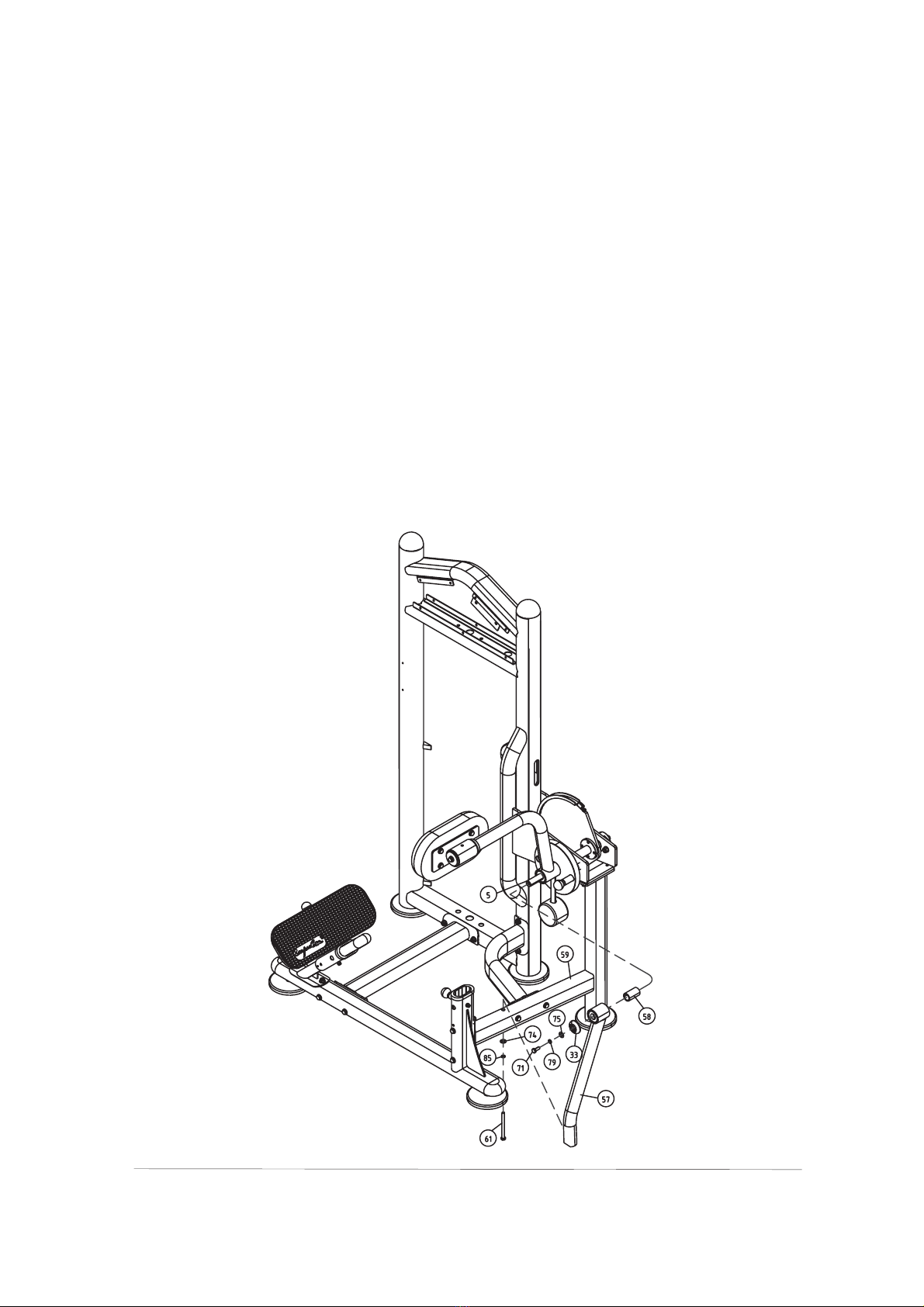

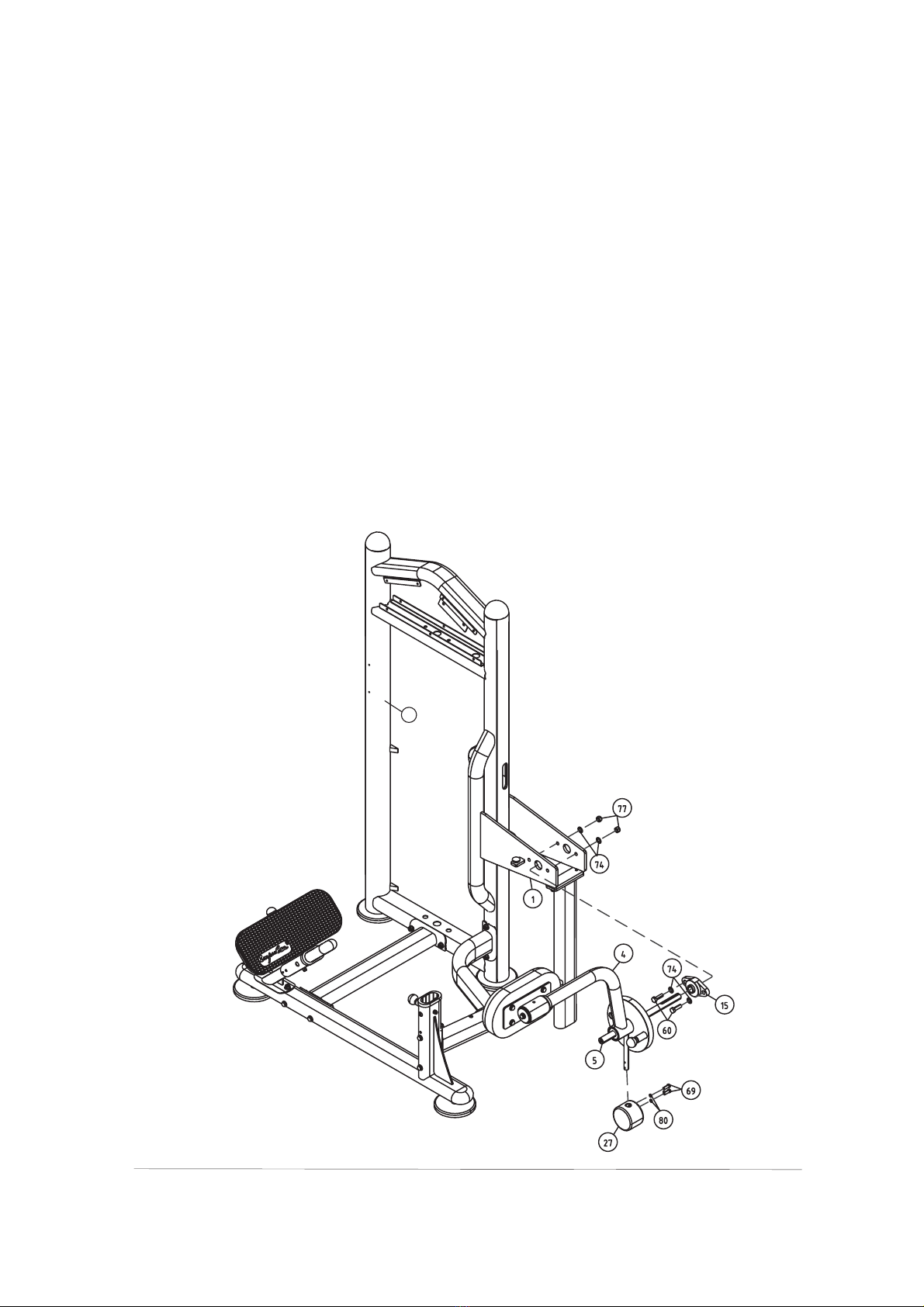

Step5 Assemble the Pivot Arm
1)Attach the Pillow Block (#15)to the Main Upright (#1)
using:
2)Insert the Adj.Shaft(#5) into the Main Upright(#1)and
through the Pillow Block (#15).
3)Attach the Counter Poise Block (#27)to the Pivot Arm
(#4) using:
Two Allen Bolts (#60)M12×40
Four Washers (#74) 13× 24×1.5
Two Nylon Locknuts (#77)M12
Two Shoulder Bolts (#69)M8×25
Two Spring Washers (#80)
ΦΦ
Φ8
1

11

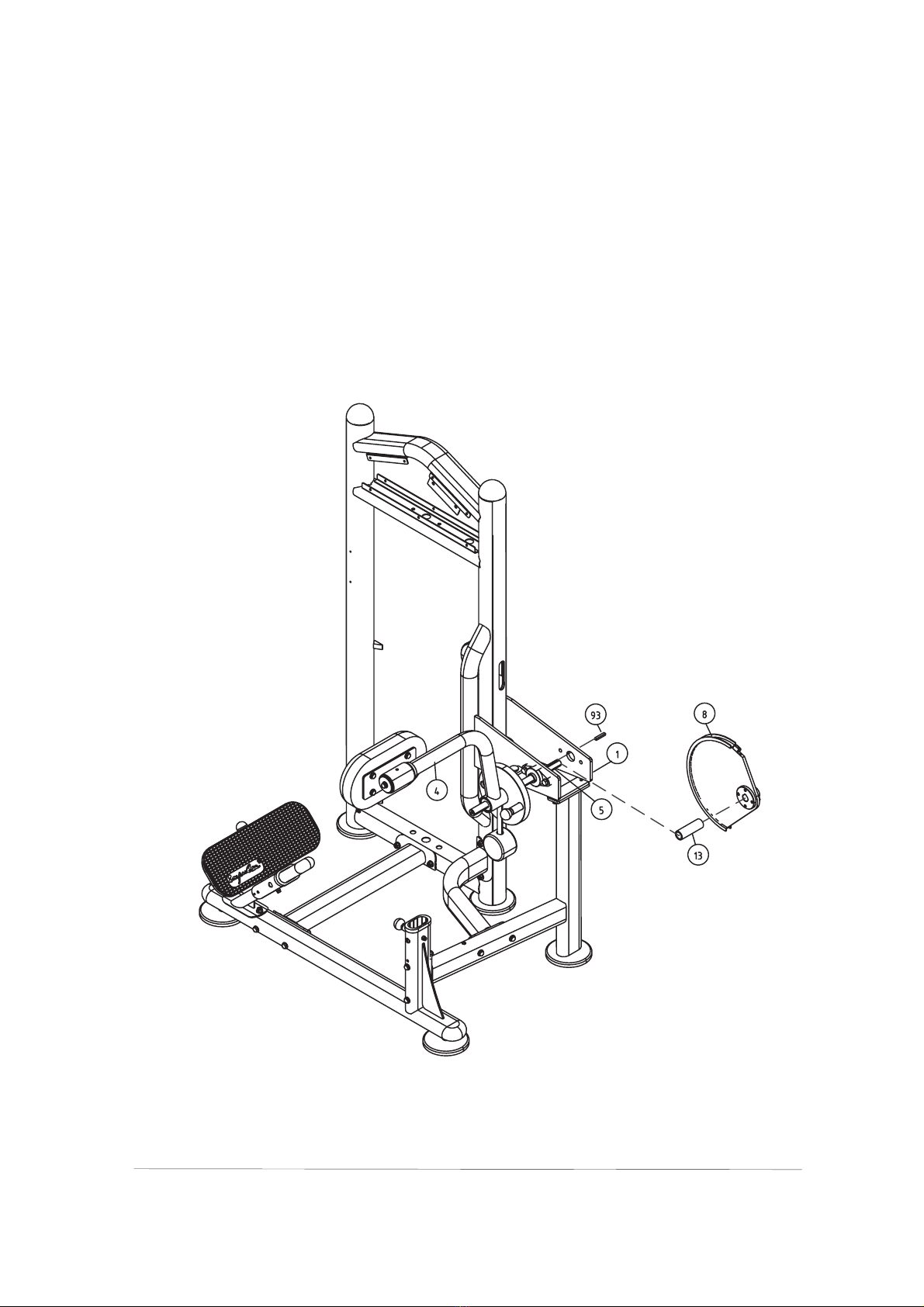

Step6 Assemble the Cam
Insert the Adj. Shaft (#5)through the Spacer (#13), the
Cam (#8)and the Main Upright (#1), next, secure the
Cam (#8)to the Adj.Shaft (#5)using the Key (#93).

12
Step7 Assemble the Pillow Block
1)Insert the Short Spacer (#14)onto the Adj.Shaft (#5).
2)Attach the Pillow Block (#15)to the Main Upright (#1)
using:
3)Secure the Adj.Shaft (#5)to the Pillow Block (#15)
using:
One Allen Bolt (#71)M10×25
One Spring Washer (#79) 10
One Washers (#75) 11× 20×2
One Bearing Washer (#34)
Two Allen Bolts (#60)M12×40
Four Washers (#74) 13× 24×1.5
Two Nylon Locknuts(#77)M12
ΦΦ
Φ
ΦΦ

13
Step8 Assemble the Angle
Support
1)Attach the Angle Support (#57)to the Adj.Shaft (#5)
using:
2)Attach the Angle Support (#57)to the Rear Support
(#59)using:
12
One Washer(#74) 13× 24×1.5
One Allen Bolt (#71)M10×25
One Spring Washer (#79) 10
One Washer (#75) 11× 20×2
One Outer Washer (#33)
One Spacer (#58)
One Allen Bolt (#61)M12×120
OneSpringWasher(#85)
Φ
ΦΦ
Φ
ΦΦ

14

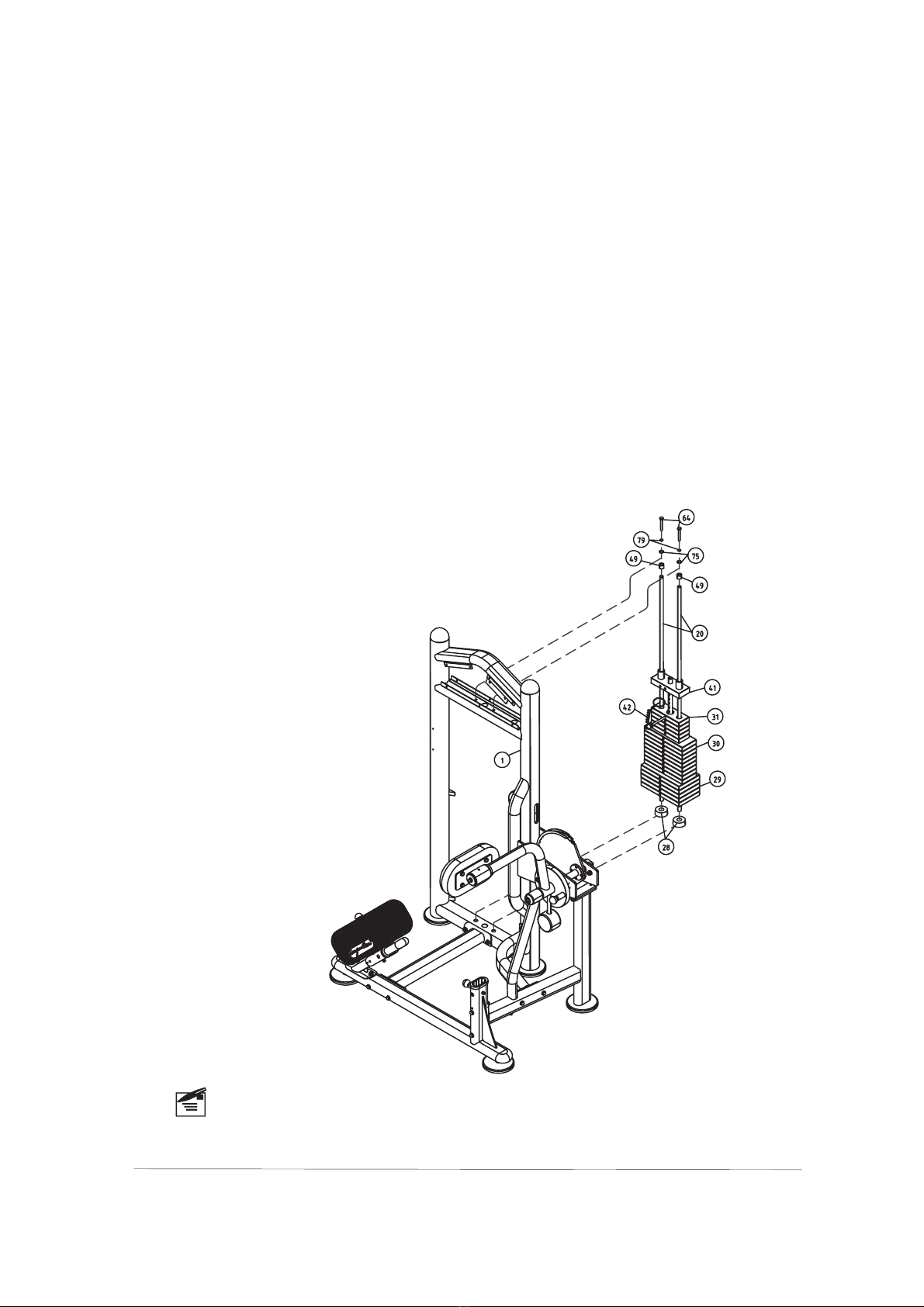

Step9 Assemble the Weight Plates
1)Insert both the Guide Rods (#20)into the Main Upright
(#1).
2)Slide the Weight Rubber Bumper (#28)down onto each
Guide Rod(#20).
3)Carefully begin sliding the Weight Plate one by one in
sequence :#29,#30,#31,#41
4)Align both the top ends of Guide Rods (#20)to the Main
Upright (#1)and secure them using:
Two Allen Bolts (#64)M10×75
Two Spring Washers (#79) 10
Two Washers(#75) 11× 20×2
TwoRubberCaps(#49)
Φ
ΦΦ
Make sure that Washers(#75)and Spring Washers(#79) are
on the top side.
Note

15
Step10 Route Cable
1)Put the clip tied on the weight pin leash onto the Top
Plate(#41) as shown,next connect the Cable(#40) to
the Top Plate(#41).
2)Route the Cable(#40) up and over the two Pulleies A
(#19).then secure them to the Main Upright(#1) using
3)Route the Cable(#40) down and under the Pulley B
(#19),then secure them to the Main Upright(#1) using
4)Connect the looped end of the Cable(#40) to the Cam
(#8), secure it using the Shoulder Bolt(#69) as shown
below.
5)Adjust the tension of the Cable (#40) using the Jam
Nut as shown below.
6)Make sure that the Cable is in the grooves of all pull-
eies, then fully tighten all bolts and nuts .
two Allen Bolts(#67) M10×45
four Washers(#75) 11× 20×1.5
two Nylon Locknuts(#78) M10
one Shoulder Bolts(#66) M10×50
two Half-pulley Covers(#52)
one Nylon Locknuts(#78) M10
ΦΦ

Jam Nut
Clip
Top plate
16
For Step10
A
B

17
Step11 Assemble the Decal Plates

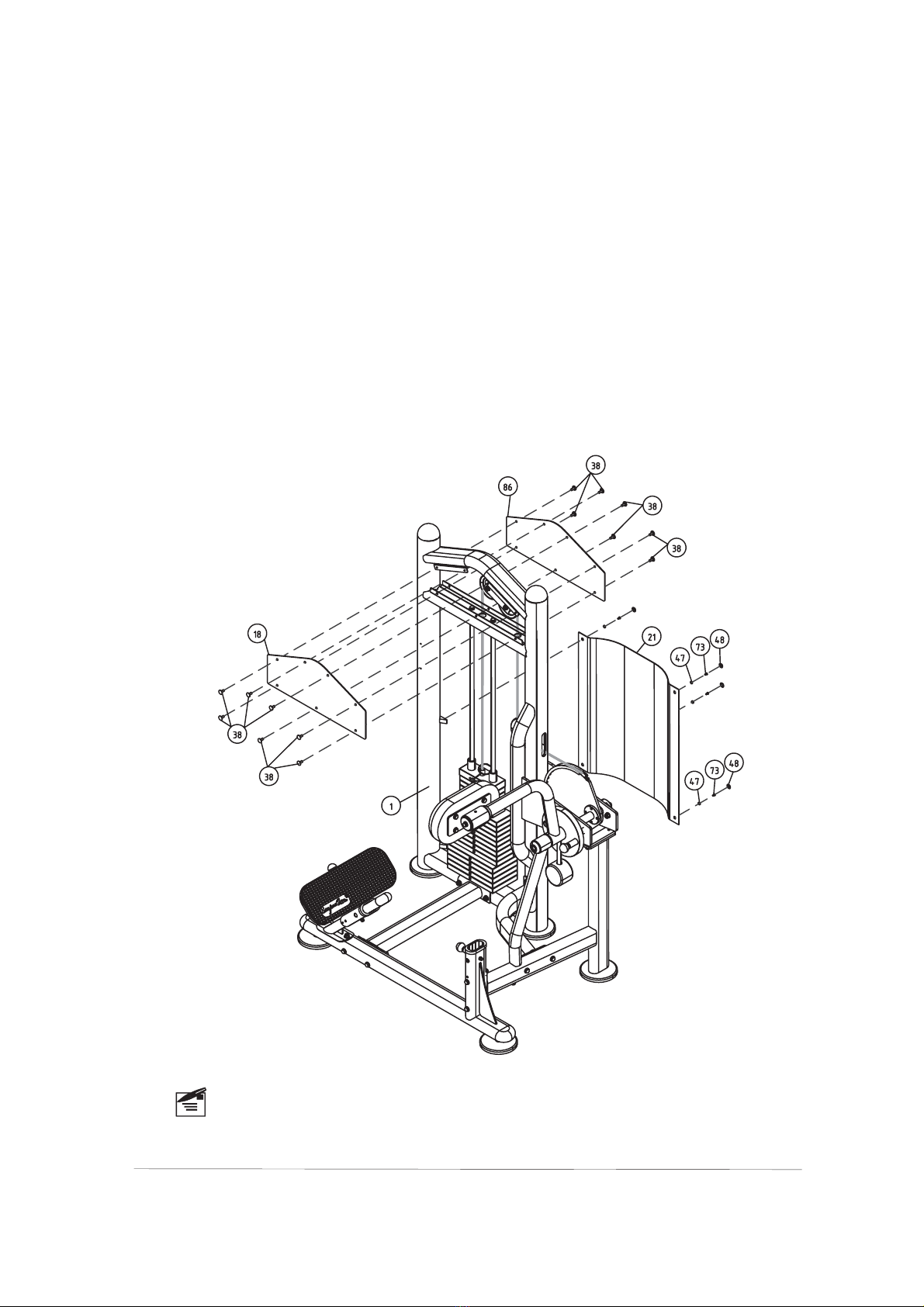

1)Attach the two Decal Plates(#18,86) to the Main Upr-
ight(#1) using:
2)Attach the Weight Shroud (#21)to the Main Upright
(#1) using:
fourteen Butttons(#38)
four Bolt Covers(#48)
four Plastic Washers(#47)
four Chamfer Bolts(#73)
The Front Decal Plate(#18) with the exercise instr -
ctions printed on it should be attached in the front
of the Main Upright(#1).
u
Note

18
Note

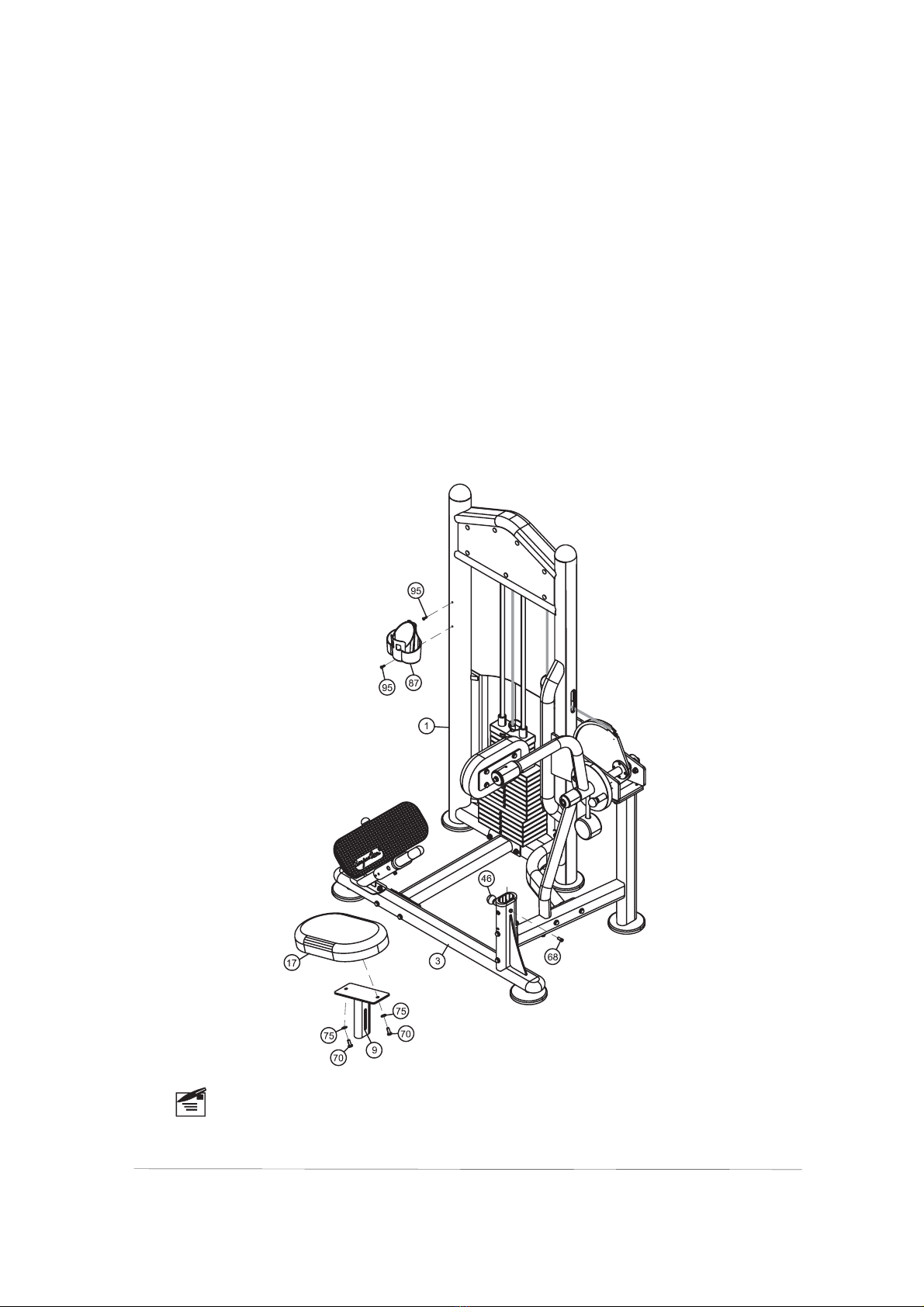

Step12 Assemble the Seat Pad
and the Plastic Cap
1)Attach the Seat Pad(#17) to the Seat Support(#9) using
2)Insert the Seat Support(#9) into the Seat Frame(#3) ,
lock it into place with the seat pop pin(#46) and the
Allen Screw(#68).
3)Attach the Plastic Cap (#87)to the main upright (#1)
using:
two Washers(#75) 11× 20×2
two Allen Bolts(#70) M10×30
Two Screw (#95)M6×15
ΦΦ
For a safe exercise,you need make the unit steady
by adjusting the Adj.foot plates.
