impulce 2 IT8004 PEC DEC User manual

IT8004 PEC DEC
Assembly Instructions

Table of contents
Important Safety Instructions--------------------------------- 1
Exploded View Diagram------------------------------------------ 2
Hardware List--------------------------------------------------
Parts List-----------------------------------------------------
Assembly instructions------------------------------------------
------ 3
---------- 4
-- 5

Important Safety Instructions
1
Before beginning any fitness program, you should obtain a complete
physical examination from your physician. When using exercise equip-
ment, basic precautions should always be taken, including the following:
* Read all instructions before using the .
arewrittentoensureyoursafetyandtoprotect
* Do not allow children on or near the equipment.
* Use the equipment only for its intended purpose as described in this
guide. Do not use accessory attachments that are not recommended
by the manufacturer: such attachments might cause injuries.
* Wear proper exercise clothing and shoes for your workout---no loose
clothing.
* Be careful when getting on or off the equipment.
* Do not overexert yourself or work to exhaustion.
* If you feel any pain or abnormal symptoms, stop your workout imme-
diately and consult your physician.
* Never operate the unit when it has been dropped or damaged.
* Never drop or insert anything into any opening in the equipment.
* Always check the unit and its cables before each use. Make sure that
all fasteners and cables are secure and in good working condition.
* Frayed or worn cables can be dangerous and may cause injury.
Periodically check these cables for any indication of wear.
* Keep hands, limbs, loose clothing and long hair well out of the way of
moving parts.
* Do not attempt to lift more weight than you can control safely.
* Do not use the equipment outdoors.
* Read each step in the assembly instructions and follow the steps in
sequence. Do not skip ahead. If you skip ahead, you may learn later
that you have to disassemble compontents and that you may have
damaged the equipment.
* Assemble and operate the equipment on a solid, level surface. Locate
the unit a few feet from walls or furniture to provide easy access.
The is designed for your enjoyment. By
precautions and using common sense, you will have
pleasurable hours of healthfull exercise with the
PEC DEC These instructions
the unit.
PEC DEC following these
many safe and
equipment.
Personal Safety During Assembly

2
I 8004 PEC DECT
Exploded View Diagram

3
Hardware List
0 100
10 20 30 40 50 60 70 80 90 110 120 130 140 150
Inches
0123456
/
12
/
14 /
34 / 34 / 34 / 34 / 34 / 34
/
14 / 14 / 14 / 14 / 14
/
12 / 12 / 12 / 12 / 12
Millimeters

Hardware List
0 100
10 20 30 40 50 60 70 80 90 110 120 130 140 150
Inches
0123456
/
12
/
14 /
34 / 34 / 34 / 34 / 34 / 34
/
14 / 14 / 14 / 14 / 14
/
12 / 12 / 12 / 12 / 12
Millimeters
4

Parts List
Item No. Description QTY Item No. Description QTY
5
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
Bolt Cover
Iron Bushing ID 12
Button
Side Cover
Plastic Block
Decal Weight Numbers
Allen Wrenh s=6
Allen Wrenh s=8
Rubber Cap
Decal Warning
Decal Mintennce Routine
Decal Pinch Pints
Decal Tightening
Decal Hint
Grease
Plastic Cap
Allen Bolt M6×15
Weight Rubber Bumper
Gimbal
Washer 11× 30×2
D End Cap
Allen Bolt M10×115
Allen Bolt M10×120
Allen Bolt M10×75
Allen Bolt M10×30
Allen Bolt M10×45
Allen Bolt M10×25
Shoulder Bolt M10×50
Hex Bolt M12×40
Hex Bolt M12×65
Shoulder Bolt M8×20
Nylon Locknut M10
ylon Locknut M12
Washer 11× 20×2
Washer 13× 24×1.5
Spring Washer 10
Little Tube
Screw M5×10
Rubber Block
Allen Bolt M8×25
Pop Pin
Allen Bolt M10×70
Plug RT30×60
Nylon Locknut M8
Washer 9× 22×1.6
Nylon Bolt M12×30
Plug
ΦΦ
ΦΦ
ΦΦ
Φ
ΦΦ
Hex Bolt M12×60
40×80
Screw M4×20
□
4
2
14
2
16
1
1
1
2
1
1
1
1
1
1
1
2
2
1
2
2
4
4
2
8
2
4
7
1
1
1
1
20
5
37
9
6
1
36
1
1
1
3
2
1
2
1
1
2
1
1
1
1
1
1
1
1
2
1
1
1
5
1
2
1
1
1
1
1
5
9
5
2
1
1
1
1
1
1
8
4
3
4
4
2
1
2
2
7
2
8
2
4
2
2
1
2
4
MainUpright
Side Frame
Right Arm
Left Arm
Right Axis Of Rotation
Left Axis Of Rotation
Cable Slide
Start Up Foot Frame
Arm Pad
Seat Pad
Back Pad
Seat Pad Support
Adi. Foot Plate
Plate
Gimbal Assy
Cable 1
Assistant Cable
Cable 2
Weight Pin
Top Plate
5lbs Weight
10lbs Weight
15lbs Weight
Guide Rod
Weight Shroud
Upper Cross Frame
Base Cross Frame
Flowing Pulley Plate
Front Decal Plate
Rear Decal Plate
4.5"Pulley Cover
3.5"Pulley Cover
Plug RT50×100
Foam
Aluminium Plug
Plug RT50×100
Short Screw Shaft
Plug Φ50
Bushing
4.5 Pulley
3.5"Pulley
Bearing ID 25
Bearing ID 12
Bearing Clip
Bumper
Spring
Slide Sleeve
Rubber Foot Sleeve
Plastic Washer
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50

Assembly instructions
Assembly of the takes professional installers about
2 hours. If this is the first time you have assembled this type of
equipment, plan to spend more time. It is strongly recom men
ded to assemble the equipment by professional installers.
You may find it quicker, safer, easier to assemble this equipment
with the help of a friend, as some of components may be large,
heavy or awkward to handle alone. It is important that you asse-
mble your product in a clean, clear, uncluttered area. This will
enable you to move around the product while you are fitting com-
onents and reduce the possibility of injury during assembly.
As with any assembled part, proper alignment and adjustment
is critical. While tightening the fasteners, be sure to leave room
for adjustments. Do not fully tighten the fasteners until instructed
to do so. Be careful to assemble the components in the sequence
presented in this guide.
PEC DEC
-
p
Note
6

Step1 Install the Adj. Foot Plates
Align the Adj. Foot Plates(#13)to the Main Upright(#1)
and the Side Frame(#2) then secure them by hands.
7

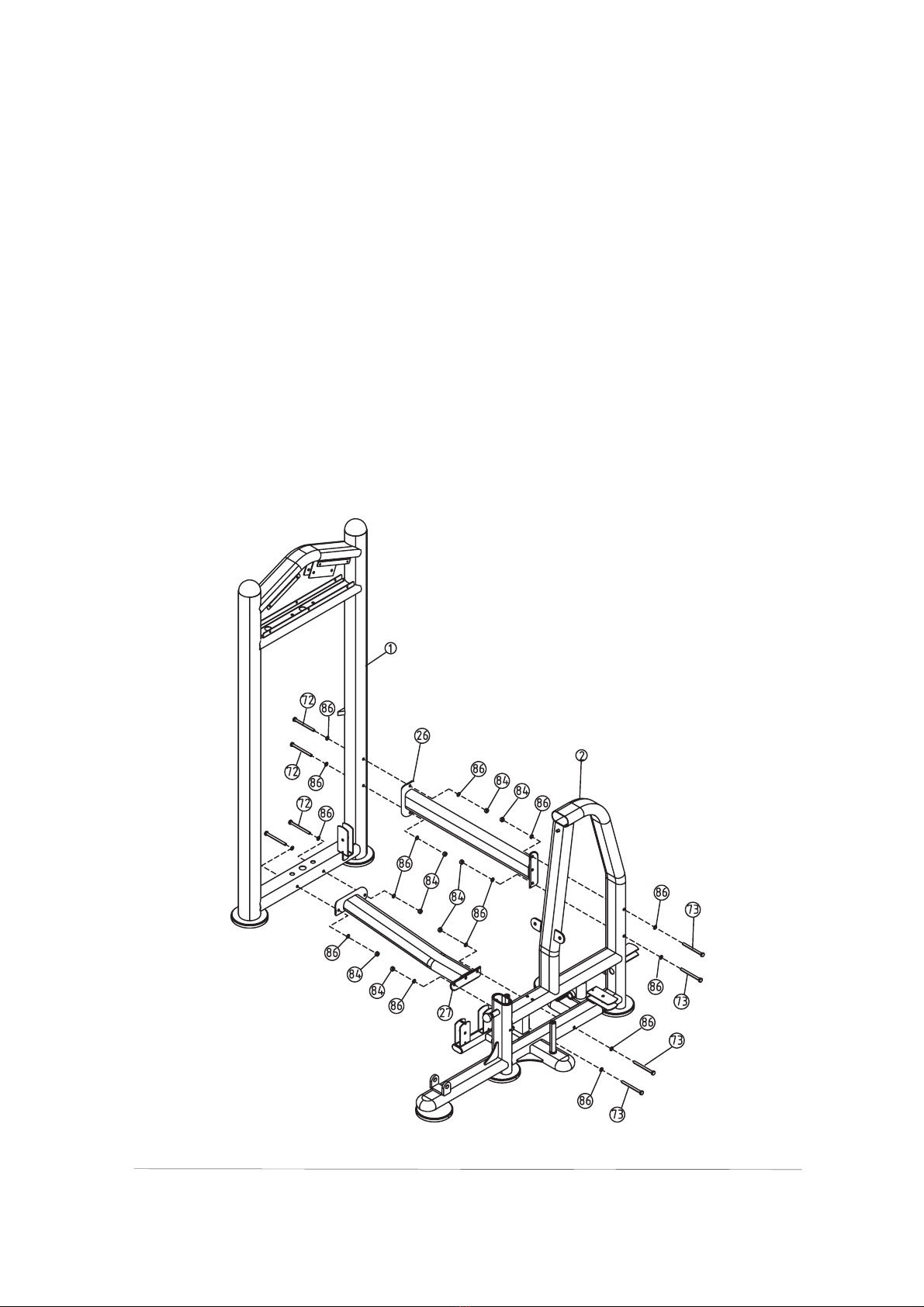

Step2 Assemble The Frame
8
1)Attach The Base Cross(#27) And The UpperCross(#26)
to the Main Upright(#1),using
2)Align the Side Frame(#2)To The Base Cross(#27)And
The Upper Cross(#26),Then Secure It Using
four Allen Bolts(#72) M10×115
eight Washers(#86) 11× 20×2
four Locknuts(#84) M10
four Allen Bolts(#73) M10×120
eight Washers(#86) 11× 20×2
four Locknuts(#84) M10
ΦΦ
ΦΦ

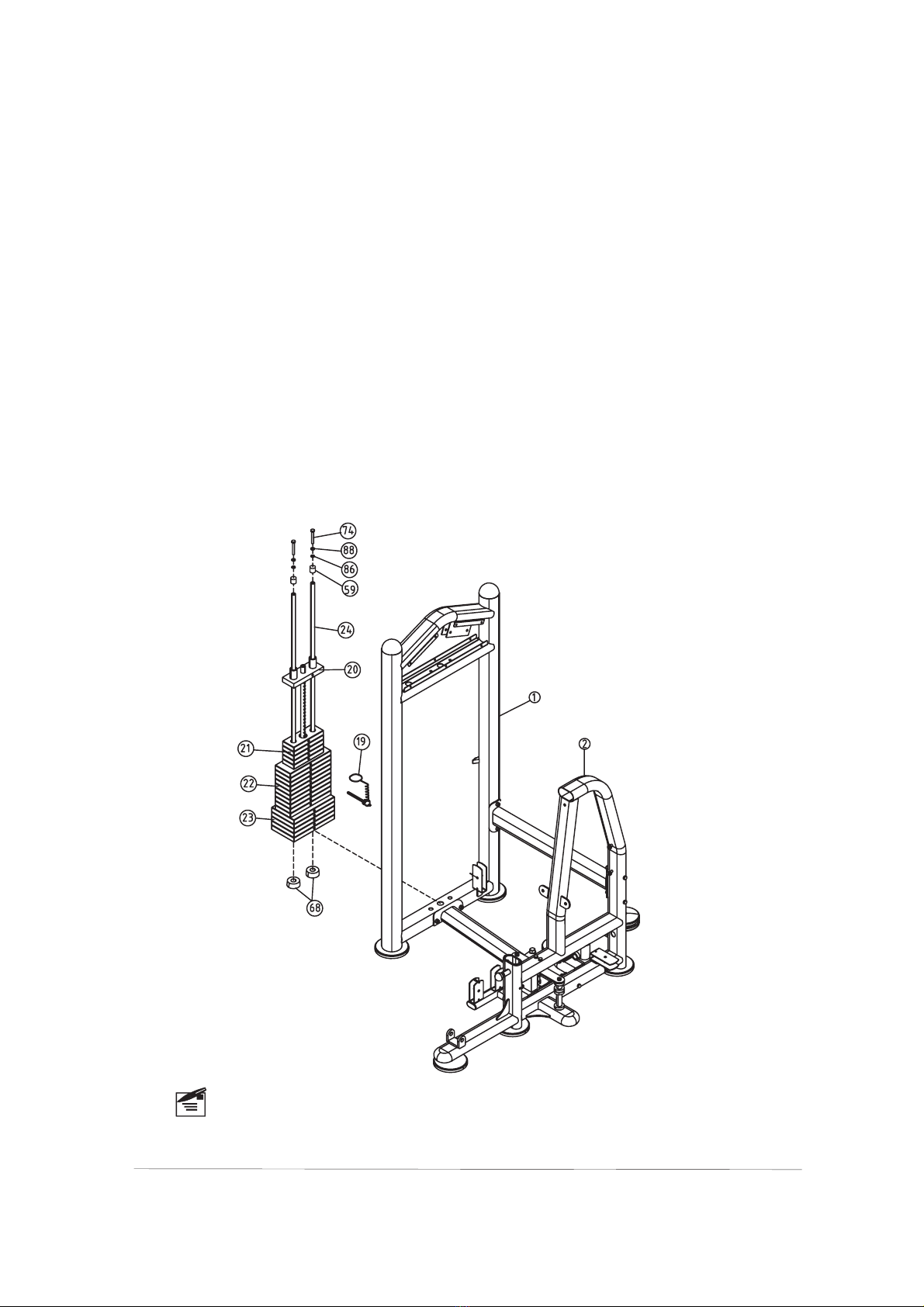

Step3 Assemble The Weight Plates
Note
Make sure that Washers(#67)and Spring Washers
(#69) are on the top side.
9
1 Insert the two Guide Rods(#24)into the Main Upright
(#1).
2)Slide the Weight Rubber Bumper(#68) down onto each
Guide Rod(# ).
3)Carefully begin sliding the Weight Plates one by one
in sequence;23,22,21,20
4)Align both top ends of the Guide Rods(#24) to the Main
Upright(#1) and secure them using:
)
24
two Allen Bolts(#74)M10×75
two Washers(#86) 11× 20×2
two Spring Washers(#88)
ΦΦ
Φ10
two Rubber Caps(#59)

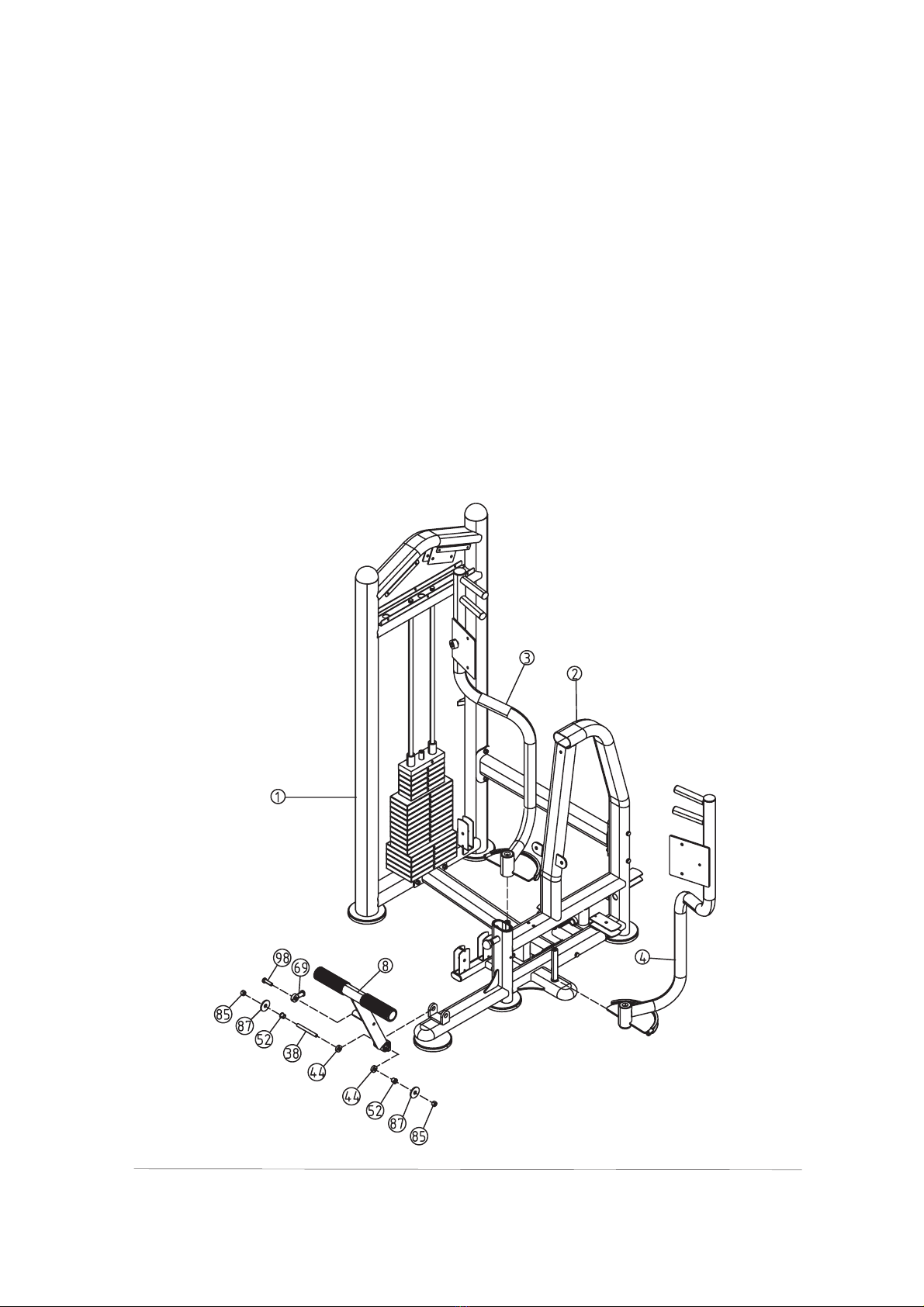

Step4 Assemble The Arm And
The Start Foot Frame
10
1)Insert The Right Arm (#3)And The Left Arm(#4)To The
Side Frame(#2)
2)Insert The Start Up Foot Frame(#8)Into The Side Frame
(#2)And Secure It Into Place Using:
3)Attach the Gimbal(#69)To The Side Frame(#2)Using:
two Nylon Locknuts(#85) M12
two washers(#87) 13× 20×2
two Iron Bushing ID 12(#52)
One short shaft(#38)
HEX Bolt M12×30(#98)
ΦΦ

Step5 Assemble The Axis Of
Rotation
11
1)Insert two Bearing Clip (#45) To The Side Frame(#2)
Then Insert The Right Axis of Rotation (#5) And The
Left Axis Of Rotation(#6)to the Side Frame(#2)
2)Align The #5.#6 To Two Gimbal Assy(#15) And Secure
IT into Place Using:
3)Insert the Cable Slide (#7) Into the side Frame (#2) ,
Then Align the Cable slide to the other side of the Gim-
ble Assy(#15) And Secure it into place using:
4)Insert two Bearing Clip (#45) to the side frame (#2) ,
Then Align The Plate(#14) To side frame(#2) And Sec-
ure it into Place Using
5)Attach the spring (#47)to the Axis Of Rotation(#5.#6)
and theSide Frame(#2).
one Hex Bolts(#81) M12×65
one Hex Bolt(#80) M12×40
Four Washers(#87) 13× 24×1.5
one little Tube(#89)
two Nylon Locknuts(#85)
One Hex Bolt(#82)M12×60
Two Washers(#87) 13× 24×1.5
One Nylon Locknut(#85)M12
two allen bolts (#94)M10×70
six washers (#86) 11× 20×2
two Nylon clocknutes(#84) M10
two sping washers(#88) 10
Two allen bolts(#78)M10×25
ΦΦ
ΦΦ
ΦΦ
Φ

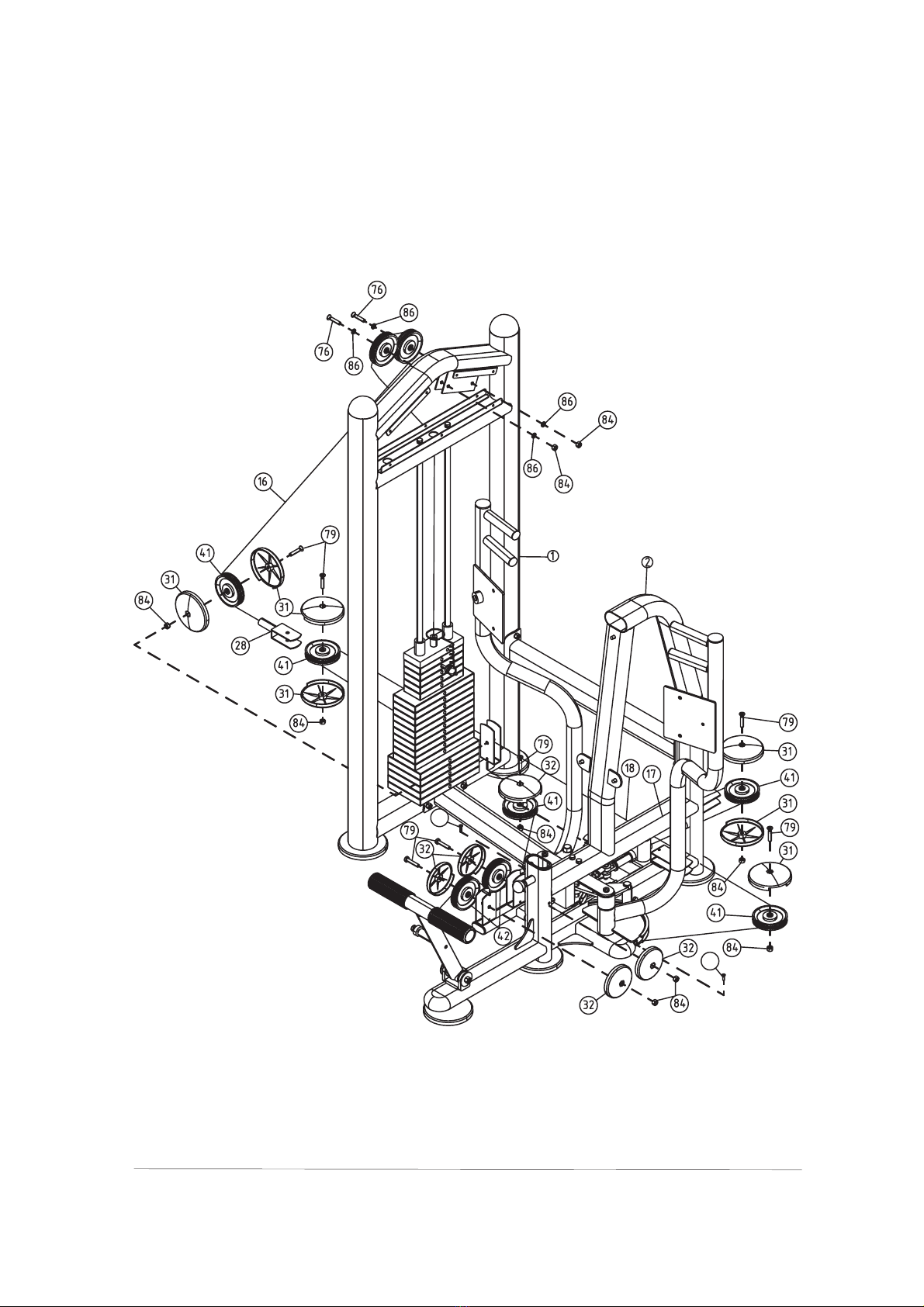

Step 6 Route The Cable
12
1)Put the clip tied on the weight pin leash onto the top
plate(#19),next connect the cable 1(#16) To the top
plate(#20)
2)Route the cable1(#16)up and over the two Pulley(#41),
and secure them to the Main Upright(#1),using:
3)Route the cable 1(#16) down and over the two Pulley
(#41), and Secure them to the Main Upright(#1),using:
4)Route the cable 2(#18) over the pulley(#41) ,one side
Secure the Right Arm (#3), the other side Secure the
Left Arm(#4) using:
5)Route the Assistant Cable (#17) Over the big pulley
(#41) and the two lillte pulleys(#42),one Side Secure
the Gimbal(#69),the other side Secure the Cable slide,
using:
Two Allen bolts(#76)M10×45
Two Nylon Locknuts(#84)M10
Four washers(#86)
One shoulder bolt (#79)M10×50
Two 4.5"Pulley Covers(#31)
Two Nylon locknuts(#84)M10
One fowing Pulley Plate (#28)
three pulleys(#41)
Four pulley covers(#31)
three shoulder Bolts(#79)M10×50
Three Nylon clocknuts(#84)M10
Two Screws (#100)M4×20
One big pulley(#41)
two little pulleys(#42)
Two 4.5"pulley covers
four 3.5" pulley covers(#32)
Three shouler Bolts(#79)M10×50
Three Nylon clocknuts(#84)

100
100
Forstep6
13

Step7 Assemble The Pads
14
1)Attach the Back Pad(#11)To the Side Frame(#2)Using:
2)Attach the Two Arm Pad(#9) To The Right Arm(#3)And
The Left Arm (#4) Using:
3)Attach the Seat Pad (#10) To The Seat Pad Support
(#12) using:
4)Insert The Seat Pad Support (#86) into the side Frame
(#2) Then secure it into place by the Pop Pin and the
Screw(#82)
one Allen Bolt (#94)M10×70
Two Allen Bolt(#75)M10×30
Three Washers(#86)
fout Allen Bolts(#75)M10×30
Four Washers(#86)
two Allen Bolts (#75)M10×30
Two Washers(#86) 11× 20×2
ΦΦ
ΦΦ
ΦΦ
11× 20×2
11× 20×2

Step8 Assemble The Decal Plates
The front Decal Plate (#29)with the exercise inst-
ructions printed on it should be attached in front of
the Main Upright (#1).
Note
15
1)Attach the two Decal Plates (#30,#29) to the Main
Upright(#1)Using:
fourteen Buttions (#53)
2)Attach the Weight Shroud(#25) to the Main Upright(#1),
Using:
four Bolt Covers (#51)
four Plactic Washers (#50)
four screws(#90)M5×10
3)Attach the Plastic Cap (#66) to the Main Upright (#1)
using:
two screws(#67)M6×15
