Imtra EX210512 User manual

© Exalto B.V. April 2009
For five Exalto H.D. Wipers
Electronic Wiper Control
Cat. no. 210512 (12V) • 210524 (24V)
Imtra Corporation
• 30 Samual Barnet Boulevard
New Bedford
MA 02745, U.S.A.
• T [phone]
• F [phone]
• Tollfree fax [phone]
• E [email protected]
• I www.imtra.com

Contents
1 General ............................................................... 4
1.1 Functions ......................................................... 4
1.2 Description ....................................................... 5
1.3 Power supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.4 Technical specifications............................................ 5
1.5 Default settings ................................................... 5
1.6 LED indicator bar ................................................. 6
1.7 Individual wiper buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.8 Declaration of conformity ......................................... 6
2 Installation ............................................................ 7
2.1 Dimensions touch pad ............................................ 7
2.2 Installation of the touch pad ...................................... 7
2.3 Dimensions junction box .......................................... 8
2.4 Installation of the junction box .................................... 8
3 Electric connections ................................................... 9
3.1 General lay out ................................................... 9
3.2 Wiring codes ..................................................... 9
3.3 Wiper connections ...............................................10
3.4 Fuse sizes ........................................................11
3.5 Cable sizes .......................................................12
4 Operation ............................................................12
4.1 ON/OFF switching ...............................................12
4.2 Choice of wipers .................................................12
4.3 Continuous mode ................................................12
4.4 Intermittent mode ...............................................12
4.5 Wipe/wash program .............................................13
4.6 Synchronised operation .......................................... 14
4.7 Self parking ...................................................... 14

1 General
1.1 Functions
Brief explanation of buttons and LED’s. Please, check chapter 4 for complete
operating instructions.
Pos. Function
1 Main ON/OFF switch and LED
Turns main power to the system on and off
2 Individual wiper ON/OFF buttons
Turns each wiper ON or OFF
3 Individual wiper LED
Lights when appropriate wiper is operating
4 Intermittent button
Increases the frequency of wiping in the intermittent mode
5 Intermittent button
Decreases the frequency of wiping in the intermittent mode
6 LED indicator bar
Used to indicate continuous mode or the intermittent setting
7 Wipe/wash button
Activates the wipe/wash program
4
1.2 Description
This electronic wiper control consists of a touch pad with 4 metres (13”)
connection cable and a separate junction box. The operation is based on a
microprocessor and controls up to three wipers. Each wiper can be switched
ON and OFF individually, but they can also run together.
This wiper control offers:
• two continuous speed;
• three intermittent speeds;
• self parking;
• wipe/wash program.
This control includes visual indications when it is ON, and for the continuous
and intermittent modes.
1.3 Power supply
This wiper control is available in two versions to operate under a power supply
of 12V or 24V DC. Check the power supply of the unit supplied, before
connecting it to the ships electric system.
1.4 Technical specifications
Power supply: 8 – 15V (12V) and 16 – 30V (24V)
Stand-by power consumption: less than 4W
Protections: reversed polarity
Working temperature: -10°C to +60°C
Storage temperature: -30°C to +70°C
Inputs: 1 – 5 parking signals
Outputs: 1 – 5 wiper contacts
pump/solenoid
Max. amperage draw: 12V wipers: 8A
24V wipers: 4A
pump/solenoid: 1A
1.5 Default settings
When the wipers are switched ON, an internal test will be carried out. All LED’s
in the LED indicator bar will lit for a few seconds. All wipers will start in the five
second intermittent mode, and LED’s A and B will be illuminated.
5
WIPER CONTROL
ON/OFF
WAS H
Exalto
2
3
4
1
7
6
5

1.6 LED indicator bar
The LED’s on the indicator bar (pos. 6) indicate the following settings:
Intermittent modes:
Maximum delay (10 sec): Illuminated LED: A
Medium delay (5 sec): Illuminated LED’s: A + B
Minimum delay (2,5 sec): Illuminated LED’s: A + B + C
Continuous mode:
Low speed: Illuminated LED’s: A + B + C + D
High speed: Illuminated LED’s: A + B + C + D + E
1.7 Individual wiper buttons
When pressing the individual wiper buttons (pos. 2), each wiper can be
switched ON and OFF individually. Please refer to paragraph 3.3 for the wiper
connections.
1.8 Declaration of conformity
This wiper control complies with the European requirements for
electromagnetic compatibility, as required from 89/366/EEC, 73/33/EEC and
EN60945 directives.
6
2 Installation
2.1 Dimensions touch pad
2.2 Installation of touch pad
The touch pad is to be fitted at a location that is within reach of the helmsman,
allowing ease of operation. Make sure that sufficient room is available for the
cables and the connectors. The required mounting hole for the touch pad is
79 x 80 mm. There should be at least 75 mm (3”) space available under the
front of the touch pad for the connection cable and plug.
The touch pad has four recessed mounting holes of 3,5 mm in diameter. They
allow easy and quickly fitting using stainless steel screws or the bolts and nuts
supplied.
7
E
B
A
C
D
98
85
Ø3,5
100
82,5
78
79
26
14
75
35
Dimensions in mm
Wiper 1
Wiper 3
Wiper 5
Wiper 2
Wiper 4
Wiper 1 Wiper 2 Wiper 3 Wiper 4 Wiper 5

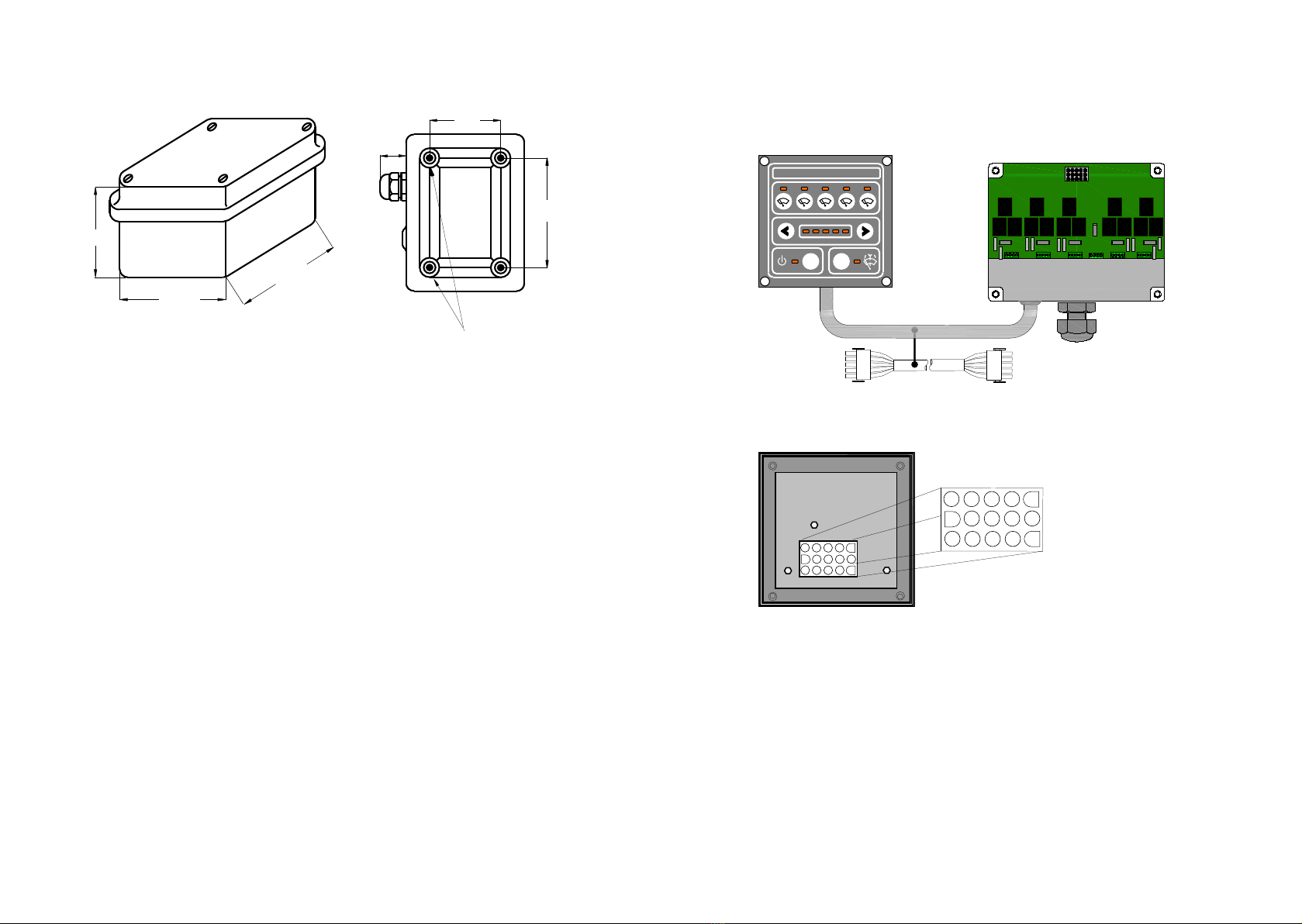

2.3 Dimensions junction box
2.4 Installation of junction box
The connection cable of 4 m (13”) length allows installation of the junction box
at such a distance, that the ‘clicking’ of the relays will not disturb the helmsman.
Should the junction box need to be installed at a larger distance, extension
cables are available in 3 m and 6 m. Maximum distance between the touch pad
and the junction box is 10 m.
The junction box must be mounted in a horizontal position and in a vibration
free location. The junction box contains relays that will not reset properly if
mounted otherwise.
The junction box has four mounting locations (holes not yet drilled). Only two
locations can be used, as the other two are blocked by the circuit board. The
box needs to be opened for drilling the two holes from the inside. The box can
then easily and quickly be fitted using stainless steel screws or bolts and nuts.
8
3 Electric connections
3.1 General lay out
3.2 Wiring codes
Code and function
1: Battery + 9: Wiper 3 self-park
2: Wiper 5 relay 10: High speed connection
3: Wiper 5 self-park 11: Wiper 2 relay
4: Negative (-) 12: Wiper 2 self-park
5: Wiper 4 relay 13: Washer pump output
6: Wiper 4 self-park 14: Wiper 1 relay
7: Dynamic park relay 15: Wiper 1 self-park
8: Wiper 3 relay
9
73
35
113
115
155
75
Mounting holesDimensions in mm.
W 2W 1 W 3 W 4 W 5
4m (13’)
WIPER
CONTR
OL
O
N
/
O
F
F
W
A
S
H
E
x
a
lt
o
WIPER CONTROL
ON/OFF
WASH
Exalto
1
4
7
10
13
3
6
9
12
15
14
11
8
5
2
80
154
200
98
144

10 11
3.3 Wiper connections 3.4 Fuse sizes
The power supply line on the circuit board in the junction box has an
integrated fuse of 2A. Each wiper outlet has an integrated fuse of 10A for 12V
systems and 6A for 24V systems, located in the junction box.
3.5 Cable sizes
Use new cables that are undamaged and of sufficient diameter. This to prevent
too much resistance for the required electrical current.
Recommended cable sizes:
Amperage Max. length Min. diameter
0.1 – 2.5 10 m (33“) 2.5 mm² (14 gauge)
2.6 – 4.0 10 m (33“) 4.0 mm² (12 gauge)
4.1 – 8.0 10 m (33”) 6.0 mm² (10 gauge)
W 1 W 2 W 3 W 4 W 5
Wiper 1
Wiper 2
Wiper 3 Wiper 4 Wiper 5
Pump / solenoid
Battery - Battery + Red
Black Blue
Battery
12V / 24V
Red
Black
Yellow
White
53a = Self park 53e = Common leg 31b = Negative 53 = Low speed 53b = High speed
To wiper motor
Color code and
connection of wiring
coming from the
junction box is:
* Red is to be
connected to the Self
Park (53a) motor wire
* Black is to be
connected to the
Negative (31b) and
Common Leg (53e) of
the motor wire
* Yellow is to be
connected to the Low
Speed (53) of the
motor wire
* White is to be
connected to the High
Speed (53b) of the
motor wire
Always refer to the users manual as
supplied with the Exalto wipers, before
connecting Exalto wipers to the control
panels!

12 13
4 Operation
4.1 ON/OFF switching
With the ON/OFF button (pos. 1) the wipers can be switched on. When pressing
this button once, an internal test is carried out. The wipers will start in the
default setting and the LED’s above the individual wiper buttons (pos. 3) will
illuminate. The LED next to the ON/OFF button (pos. 1) will stay illuminated as
long as the panel is ON. When this button is pressed again, all wipers will park
and stop.
4.2 Choice of wipers
When pressing one of the wiper buttons on pos. 2 each wiper can be switched
ON and OFF individually. The LED’s above these buttons (pos. 3) indicate which
wipers are activated. Switching ON a wiper when the others are already
operating may cause a short delay of the other wipers. This is to synchronise
the operation
4.3 Continuous mode
To activate the continuous mode in low speed, press the button on pos. 4 until
LED’s A, B, C and D on the LED indicator bar (pos. 6) are illuminated. The wipers
will run synchronized. Press once more on the button on pos. 4 and the
continuous high speed mode is activated. All five LED’s in the LED bar (pos. 6)
will be illuminated.
4.4 Intermittent mode
To activate the intermittent mode, press the button on pos. 5 until the required
delay setting is reached. The wipers will run synchronised in all intermittent
settings.
LED’s illuminated Delay Speed mode
1 LED: A 10 sec. Intermittent
2 LED’s: A + B 5 sec. Intermittent
3 LED’s: A + B + C 2,5 sec. Intermittent
4 LED’s: A + B + C +D low speed Continuous
5 LED’s: A + B + C +D high speed Continuous
4.5 Wipe/wash program
This wiper control has a built in ‘smart’ wipe/wash program which can be
activated by pressing the wipe/wash button (pos. 7). When shortly pressing
this button, the standard program will be started:
• The pump or solenoid will be activated allowing water to be sprayed onto the
screen.
• After three seconds, all wipers will start to run in the low speed mode for a
period of four seconds. Water will still be sprayed.
• After four second, the water supply will be stopped and the wipers will run
for another three seconds.
• After the program has been completed, the wipers will go back to the setting
that was previously used.
Besides the standard wipe/wash program as described before, you can also
choose a personalised program. The available programs are visualised here:
Standard program: press WASH button (pos. 7) once.
Personalised program: keep WASH button (pos. 7) pressed.
As long as the wipe/wash program is active, the LED next to the WASH button
will be illuminated. After the wash program has ended, all active wipers will go
back to the setting that was previously used.
As a standard, the wipers are included in the wash program. However, a wiper
can be excluded from the program as follows:
• Press the button on pos. 4 or pos. 5 until LED’s A, B, C, D and E blink.
• Press the button of the wiper that needs to be excluded and the respective
LED will go off.
• Press ON/OFF button (pos. 1) to store the new situation in the memory.
To undo, follow the same steps and the respective LED will illuminate again.
3 seconds 4 seconds 3 seconds
Spray Spray
Wipe Wipe
3 seconds unlimited 3 seconds
Spray Spray
Wipe Wipe

4.6 Synchronised operation
All wipers will run synchronised in each speed mode.
4.7 Self parking
When pressing the ON/OFF button (pos. 1) the wipers will go to the corner of
the screen and park, providing the wiper motors are equipped with a self-park
function.
14
