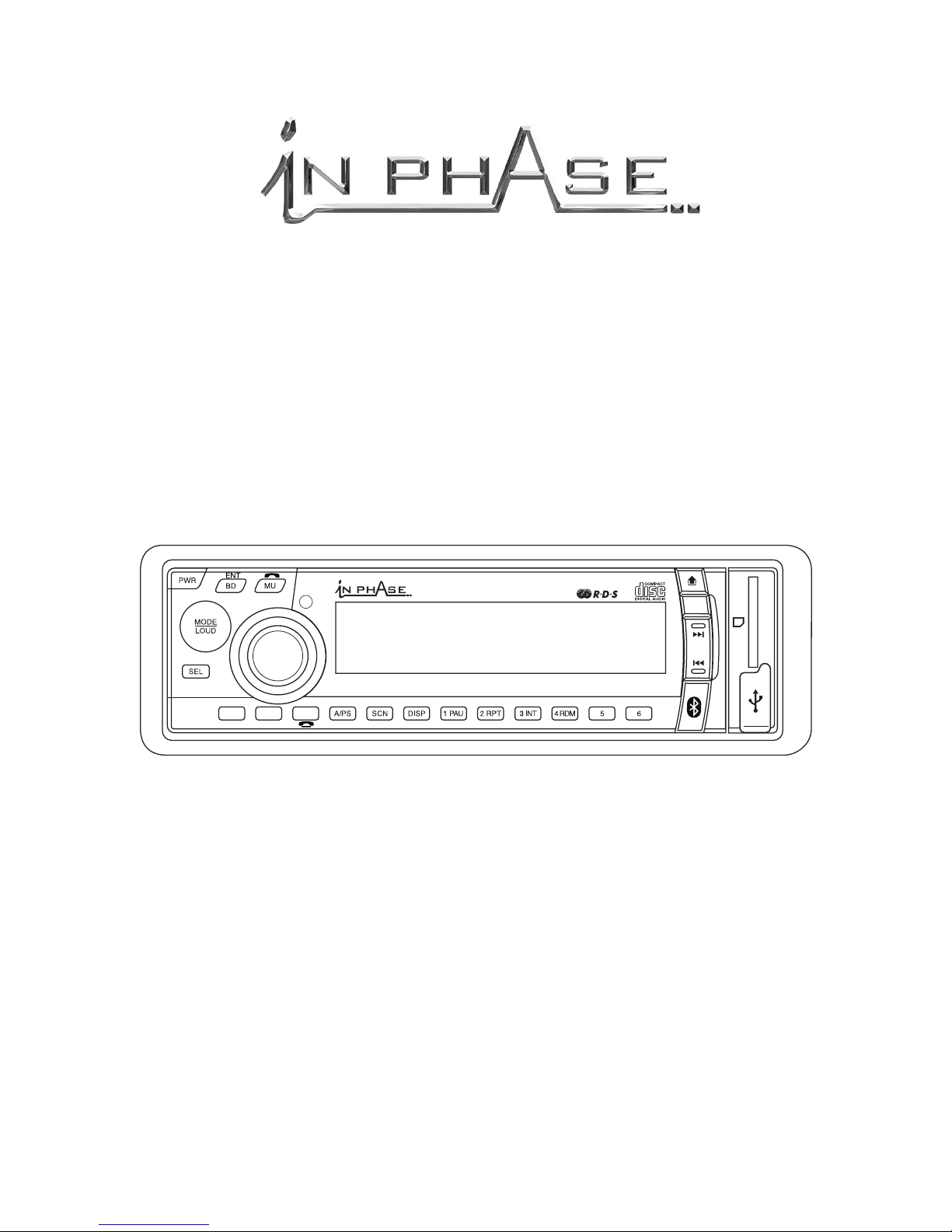

In Phase IPS 248BT User manual

IPS 248BT
INSTRUCTION MANUAL
Car Stereo CD/CDR/CDRW/MP3/WMA Player
with PLL MW/FM Stereo Radio
Radio Data System with PTY
USB / MMC / SD Card Input
Bluetooth Function in Mobile Phone
Flip Down and Detachable Front Panel System
RDM
POWER
5 6
4
TUNE/SEEK
VOL
VOL
MODE
21
7
3
PTY
9 08
*
AF
SEL
#
TA BAND DSP
INT
RPT
IPS 248BT
CD/MP3/WMA PLAYER 4x60WATTS
TAAFPTY
4(1-6)
19 10 14 29 1711 27163
2 7 5 6 30
12
13 8 20 21 22 23 24 25 26
1819
IPS 248BT
CD/MP3/WMA PLAYER 4x60WATTS
TAAFPTY
1
9
330 29
11
20
21
22
23
24 25
10
7
5
6
15
4 (1,2,3,4,5,6)
28 (1,2...,9,0 *,#)
2

EN-2
LOCATIONS OF CONTROLS
1. POWER ON/OFF ( )
2. FUNCTION SELECT BUTTON: CONTROLS FOR BASS/TREBLE/
BALANCE/FADER /
INITIAL VOLUME / CT / TA VOL / EON / DSP (SEL)
3. VOL UP/VOL DOWN BUTTON: CONTROLS FOR BASS/TREBLE/
BALANCE/FADER / INITIAL VOLUME / CT / TA VOL / EON / DSP
4. PRESET STATIONS (1,2,3,4,5,6)
5. ‘AF’ function (ALTERNATIVE FREQUENCIES)
6. ‘TA’ function (TRAFFIC ANNOUNCEMENT)
7. ‘PTY’ function (PROGRAM TYPE)
8. DISPLAY BUTTON (DISP)
9. MODE/LOUDNESS BUTTON (MODE/LOUD)
10. BAND/ENTER BUTTON (BD/ENT)
11. AUTOMATIC OR MANUAL TUNING
(FREQ UP OR FREQ DOWN )
CD TRACK/SEARCH BUTTON
12. AUTO SEEK SEARCH TUNING (A/PS)
13. ‘SCAN’ AUTOMATIC TUNING CONTROL (SCN)
14. MUTE BUTTON (MU)
15. EQUALIZER (DSP)
16. LCD DISPLAY
17. OPEN PANEL BUTTON ( )
18. CD SLOT
19. CD EJECT BUTTON ( )
20. PAUSE BUTTON
21. REPEAT BUTTON
22. INTRO BUTTON (Preview all Tracks)
23. RANDOM BUTTON
24, 25. FOLDER DOWN/UP (MP3/WMA Files only)
26. USB PORT
27. MULTI-MEDIA CARD (MMC) / SD CARD SLOT
28. PHONE NUMBER
29. ANSWER A CALL ( )
30. END A CALL ( )
RDM
POWER
5 6
4
TUNE/SEEK
VOL
VOL
MODE
21
7
3
PTY
9 08
*
AF
SEL
#
TA BAND DSP
INT
RPT
IPS 248BT
CD/MP3/WMA PLAYER 4x60WATTS
TAAFPTY
4(1-6)
19 10 14 29 1711 27163
2 7 5 6 30
12
13 8 20 21 22 23 24 25 26
1819
IPS 248BT
CD/MP3/WMA PLAYER 4x60WATTS
TAAFPTY
1
9
330 29
11
20
21
22
23
24 25
10
7
5
6
15
4 (1,2,3,4,5,6)
28 (1,2...,9,0 *,#)
2
RDM
POWER
5 6
4
TUNE/SEEK
VOL
VOL
MODE
21
7
3
PTY
9 08
*
AF
SEL
#
TA BAND DSP
INT
RPT
IPS 248BT
CD/MP3/WMA PLAYER 4x60WATTS
TAAFPTY
4(1-6)
19 10 14 29 1711 27163
2 7 5 6 30
12
13 8 20 21 22 23 24 25 26
1819
IPS 248BT
CD/MP3/WMA PLAYER 4x60WATTS
TAAFPTY
1
9
330 29
11
20
21
22
23
24 25
10
7
5
6
15
4 (1,2,3,4,5,6)
28 (1,2...,9,0 *,#)
2
RDM
POWER
5 6
4
TUNE/SEEK
VOL
VOL
MODE
21
7
3
PTY
9 08
*
AF
SEL
#
TA BAND DSP
INT
RPT
IPS 248BT
CD/MP3/WMA PLAYER 4x60WATTS
TAAFPTY
4(1-6)
19 10 14 29 1711 27163
2 7 5 6 30
12
13 8 20 21 22 23 24 25 26
1819
IPS 248BT
CD/MP3/WMA PLAYER 4x60WATTS
TAAFPTY
1
9
330 29
11
20
21
22
23
24 25
10
7
5
6
15
4 (1,2,3,4,5,6)
28 (1,2...,9,0 *,#)
2

EN-3
10
7
1
2
3
4
4
4
5
5
6
6
8
9
Dashboard
2182mm
53mm
34
TAP
1
2
13
Bend these
claws, if necessary
Release screw and
bracket

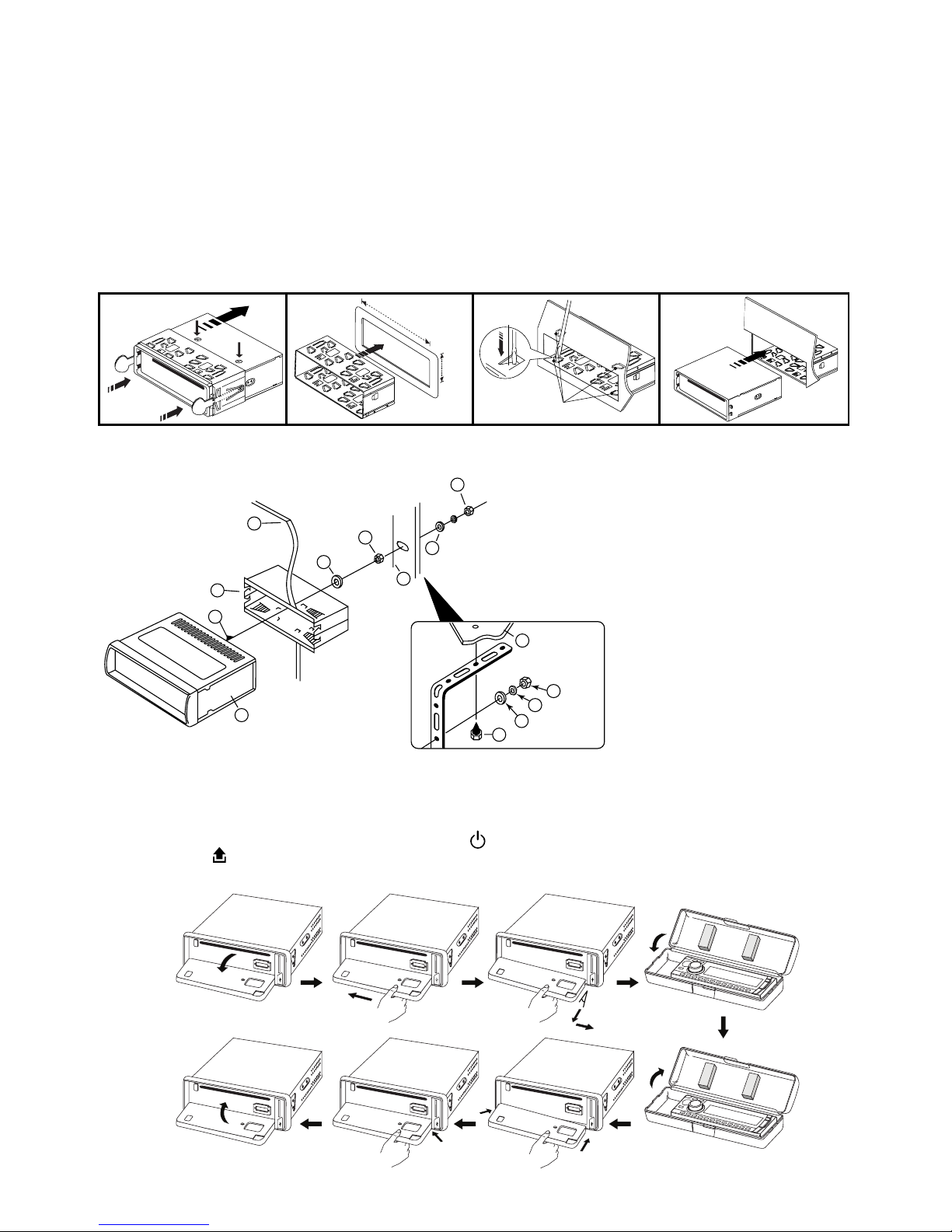

INSTALLATION
PRECAUTIONS
• Choose the mounting location carefully so that the unit will not interfere with the normal driving functions of the
driver.
• Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight or hot air
from the heater, or where it would be subject to dust, dirt or excessive vibration.
• Use only the supplied mounting hardware for a safe and secure installation.
• Be sure to remove the front panel before installing the unit.
Mounting angle adjustment
Adjust the mounting angle to less than 20°.
MOUNTING EXAMPLE
Installation in the dashboard
Note: Keep the release key in a safe place as you may need it in the future to remove the unit from the car.
TO SUPPORT THE UNIT
Detaching and attaching the front panel
The front panel of this unit can be detached in order to prevent the unit from being stolen.
FOLDING DOWN AND DETACHING/ATTACHING THE FRONT PANEL
Before detaching the front panel, be sure to press the button (1) to OFF rst.
Then press the button, let the Front Panel arrive in horizontal position and detach the panel by pulling it
towards you as illustrated.
2
1
< 10°
1. UNIT
2. RELEASE CASE
3. DASH BOARD
4. HEX NUT
5. LOCK WASHER
6. PLAIN WASHER
7. CAR BODY
8. REAR SUPPORT STRAP
9. TAPPING SCREW
10. M5 X 15 HEX BOLT

EN-4
Notes:
•Do not press the front panel hard against the unit when attaching it. It can be easily attached by pressing it
lightly against the unit.
•When you carry the front panel with you, put it in the supplied front panel case.
•Do not press hard or give excessive pressure to the display window of the front panel when attaching it to
the unit.
CLEANING THE CONNECTOR
The unit may not function properly if the connectors between the unit
and the front panel are contaminated with dirt. In order to prevent
this from happening, detach the front panel by pressing the
button and clean the connector from time to time.
Clean the connector with a cotton swab together with contact cleaner
as illustrated. Be sure to clean them carefully pin by pin and make
sure not to damage the connecting points.
ISO CONNECTOR
RCA Jack Line Out:
Red (right) White (left)
RCA Jack Line In:
Red (right) White (left)
CONNECTOR A
4. MEMORY +12V
5. AUTO ANTENNA OUTPUT
7. +12V (TO IGNITION KEY)
8. GROUND
Note: (connector A no. 7) must be connected by car
ignition key in order to avoid that car battery being
drained when the car will be not used for long period.
CONNECTOR B
1. REAR RIGHT SPEAKER (+)
2. REAR RIGHT SPEAKER (-)
3. FRONT RIGHT SPEAKER (+)
4. FRONT RIGHT SPEAKER (-)
5. FRONT LEFT SPEAKER (+)
6. FRONT LEFT SPEAKER (-)
7. REAR LEFT SPEAKER (+)
8. REAR LEFT SPEAKER (-)
Maintenance
FUSE REPLACEMENT
If the fuse blows, check the power connection and replace the fuse. If the fuse blows again after the
replacement, there may be an internal malfunction. In this case, consult your nearest repair center.
Warning
Use the specied amperage fuse for each lead. Use of a higher amperage fuse may cause serious
damage.
B
A
1 3 5 7
2 4 6 8
5 7
4 8
TAL K
ANTENNA
CONNECTOR
L(WHITE) R(RED)
LINE IN
ISO CONNECTOR
BLUETOOTH ANTENNA
CONNECT TO
EXTERNAL MICROPHONE
Cotton Swab
Rear of
front panel
Main unit
LINE OUT
L(WHITE) R(RED)

EN-5
OPERATING INSTRUCTIONS
1. POWER ON/OFF ( )
By pressing this key, the unit is on or off.
This unit is turned on by pressing any key.
2. FUNCTION SELECT BUTTON: BASS/TREBLE/BALANCE/FADER /
INITIAL VOLUME / CT / TA VOL / EON / DSP (SEL)
3. VOLUME UP/DOWN
Turning VOL knob (right/left) to adjust VOL/BAS/TRE/BAL/FAD. To select other functions, press the SEL button shortly
until the desired functions are shown on the display. Figure 1 shows how to control functions that are selected using
the SEL button.
1 3
24 25 26 2 2
Fig. 1 Selection of sound control functions
1. VOL 2. SEL 3. BASS 4. TRE 5. BAL 6. FAD
Increase or decrease the volume by turning VOL knob (right/left). These buttons can be used to adjust the BASS,
TREBLE, BALANCE and FADER.
IN VOL
SEL
2 sec.
SEL ADJ SEL TA VOL SEL EON SEL DSP
Press and hold SEL button to adjust INIT VOL /CT/TA VOL/EON ON/DSP
IN VOL: Can adjust Initial Volume level using this mode.
ADJ: Can adjust clock time. Turn VOL knob clockwise to set hours and counter clockwise to set minutes.
TA VOL: Can adjust TA Volume (The volume level when Trafc announcement is transmitted).
EON: Can selected EON condition, ON or OFF.
DSP: Can select DSP mode (Classic, Rock, POP, Flat)
4. PRESET STATIONS (1,2,3,4,5,6)
When pressed momentarily, these keys select a preset station directly. When pressed longer than 1 sec., current
station is stored in preset memory bank.
USING THE RDS FUNCTION
What is RDS?
The RDS (Radio Data System) is a digital information system developed by the EBU (European Broadcast Union).
Piggy-backed on normal FM broadcasts, RDS offers a variety of information services and automatic retuning functions
for RDS-compatible car stereos.
In 1988, RDS became available in the United Kingdom, France, West Germany, Ireland and Sweden. Test transmis-
sions are being conducted in many other European countries. It is expected that RDS will be available in most western
European countries in the near future.
5. ‘AF/REG’ function (ALTERNATIVE FREQUENCIES)
When pressed momentarily, AF/REG switching mode is selected.
When AF/REG switching mode is selected, the radio checks the signal strength of the AF all the time. When pressed
long, it is activated as regional mode ON/OFF.
– Regional mode ON:
AF switching or PI SEEK is implemented to the station which have all PI codes same as current station. REG seg-
ment is turned on, in LCD display.
– Regional mode OFF
The regional code in the format of PI code is ignored when AF switching or PI SEEK is implemented.
6. ‘TA’ function (TRAFFIC ANNOUNCEMENT)
When pressed momentarily, it is activated as TA mode on or off
When TA mode is on and trafc announcement is transmitted
– When the unit in CD/MP3 mode, it will switch to radio mode temporarily.
– If the volume level was under the threshold point, it will be raised to the threshold point.
– When TP station is received, TP segment is turned on in LCD display.
7. ‘PTY’ function (PROGRAM TYPE)
When pressed momentarily, it is activated as TPY ON/OFF function and start to search corresponding PTY informa-
tion then stops if the corresponding PTY information is detected.
By pressing this key longer than 2 sec., you can select PTY mode by turning Volume knob as below.
NEWS--AFFAIRS--INFO--SPORT--EDUCATE--DRAMA--CULTURE--SCIENCE--VARIED--POP--ROCK--EASY M--
LIGHT M--CLASSIC--OTHER M--WEATHER--FINANCE--CHILDREN--SOCIAL--RELIGION--PHONE IN--TRAVEL-
-LEISURE--JAZZ--COUNTRY--NATION. M--OLDIES--FOLK M--DOCUMENT--TEST--ALARM.

EN-6
8. DISPLAY (DISP)
Press DISP button to switch between display informations such as radio frequencies, clock, track and other informa-
tions depending on the playing MODE.
9. MODE/LOUDNESS BUTTON (MODE/LOUD)
By pressing this key, user can select. AUX/TUNER/CD-MP3/USB/SD/MMC/AD2P mode.
LOUDNESS: By pressing this key longer than 2 sec., you can select LOUDNESS mode.
10. BAND BUTTON (BD)
Each band is toggled cyclically by pressing this key FM1---FM2---FM3--MW(AM)1--MW(AM)2.
11. AUTOMATIC OR MANUAL TUNING (FREQ UP OR FREQ DOWN )
(A) RADIO MODE
When pressed momentarily, these keys are operated as SEEK tuning mode.
When pressed longer than 1 sec., they are operated as MANUAL tuning mode.
(B) CD/MP3/WMA PLAYER MODE
When pressed momentarily, they are operated as TRACK UP or TRACK DOWN mode.
When pressed longer than 1 sec., they are operated as CUE or REVIEW mode.
12. AUTO SEEK SEARCH TUNING (A/PS)
PS - By pressing shortly, the radio searches for each preset station. Each preset station will be played for 5 sec.
AS - By pressing longer than 1 sec, the 6 strongest stations are stored in the corresponding preset memory number.
When Automatic Scan operation is nish, the radio executes the preset scan.
13. ‘SCAN’ AUTOMATIC TUNING CONTROL (SCN)
Press SCAN button to activate radio scan. The unit will search for every station and will play 5 seconds of each sta-
tion found. To cancel SCAN, press the button once more.
14. MUTE BUTTON (MU)
Press this button to turn off the sound. Press it again to return to the previous volume level.
15. EQUALIZER (DSP)
Press DSP to select between (Classic, Rock, POP, Flat) equalizer modes.
16. LCD DISPLAY
The Liquid Crystal Display will display the current state of the unit.
17. OPEN THE FRONT PANEL
Press button and the front panel will open.
CD/MP3/WMA CONTROL LOCATION OF PARTS
TRACK/SEARCH BUTTON (11)
FORWARD AND REVERSE TRACK SEARCH (or changing songs)
Press the SKIP button ( or ) during play to go to the desired track(song).
....REVERSE ....FORWARD
Press and hold the SKIP button ( or ) during play to scan the disc at high speed. When the desired music section
of the disc is found, release the button. Normal play will resume.
18. CD SLOT
19. CD EJECT BUTTON
Press the EJECT ( ) button to remove the CD.
20. PAUSE BUTTON
During “PLAY”, press (20) ‘PAU’ button to “PAUSE”. Press it again to resume play.
21. REPEAT BUTTON
When this button is pressed, “RPT ON” indication is displayed and play of the selected track will be continually
repeated until the Track repeat mode is cancelled by pressing ‘RPT’ button again.
22. INTRO BUTTON (Preview all Tracks)
When this button is pressed, “INT ON” indication is displayed and the rst several seconds of each track of the disc
is played. Press again to stop intro and listen to track.
23. RANDOM BUTTON
When this button is pressed, “RDM ON” indication is displayed and each track of the disc is played in random instead
of normal progression. To cancel RANDOM mode, press ‘RDM’ button again.
24, 25. FOLDER DOWN/UP (In case of MP3/WMA les)
M5: Folder down / M6: Folder up

EN-7
HOW TO SELECT MP3/WMA FILES
1. Searching by Track:
• Press “A/PS”, then search track is activated.
• Turn “VOL” knob to left or right, select rst digit desired.
• Press “SEL” button, then the rst digit is xed and second digit will ash.
• Turn “VOL” knob to left or right, select 2’nd 3’rd respectively.
• Press “BD/ENT”, the song selected will start.
2. Searching by Character:
• Press “A/PS” twice, then character search mode is activated.
• Turn “VOL” knob to left or right, you can select the desired letter.
• Press “SEL” button, repeat steps above for 2’nd 3’rd character.
• The songs with the same character that you selected is displayed.
• Turn “VOL” knob to left or right, you can select the desired song.
• Press “BD/ENT”, then the song selected will start.“BD/ENT”, then the song selected will start., then the song selected will start.
3. Searching by File Name:
• Press “A/PS” 3 times, then folder search is activated.
• Turn “VOL” knob to left or right, you can select the desired folder.Turn “VOL” knob to left or right, you can select the desired folder.you can select the desired folder.
• Press “BD/ENT”, then the folder is xed and the rst le will be played.
Connecting it to Portable Digital MP3 Player
26. USB PORT
Using USB cable to connect Your Portable Digital MP3 Player.
*Not all USB MP3 players types are supported
27. MULTI-MEDIA CARD (MMC) / SD CARD SLOT
Support MP3/WMA ID3 format music only.
* IMPORTANT INFORMATION:
BECAUSE OF THE GREAT VARIETY OF PRODUCTS WITH USB, SDAND MMC CARD PORTS AND THEIR SOMETIMES
QUITE MANUFACTURER-SPECIFIC FUNCTIONS WE CAN NEITHER GUARANTEE THAT ALL DEVICES WILL BE
RECOGNIZED NOR THAT ALL OPERATING OPTIONS THAT ARE POSSIBLE IN THEORY WILL ACTUALLY WORK.
HOW TO USE BLUETOOTH IN YOUR CAR AUDIO
How to Perform Pairing
Before you can dial out from the car stereo, you must rst perform PAIRING. Pairing is a procedure used to connect 2
Bluetooth devices together.
1. This unit’s Bluetooth function is always on, perform the pairing starting from your cellular phone. Refer to your cellular
manual on proper pairing.
2. Perform the search for available Bluetooth devices, “CAR--BT ” will show. Enter ‘0000’ when asking for code.
3. After successful pairing, connect to the head unit if it is not automatically connected.
How to call / receive calls using wired remote controller
• When there is incoming call, press TALK button once to answer.
• During conversation, press TALK button once to end call.
• To make calls using call history
1. Press and hold TALK button to display “REDIAL” history.
2. Using VOL knob on main unit, turn repeatedly to select the phone number you want to make
call to and press “ ” to dial out.
Note: Up to 20 phone numbers will be displayed including previous outgoing and incoming calls.
How to call / receive calls using wireless remote controller
• To make calls, press “ ” button on the remote controller followed by pressing TEL NO using
number keys.
• After entering TEL NO, press “ ” again to dial out.
• During conversation, press “ ” button to end call.
• When there is incoming call, press “ ” button to receive call.
• Press “ ” button to reject incoming calls.
How to make / receive calls using front panel
• To make calls using call history
1. Press and hold “ ” to display “REDIAL” history.
2. Using VOL knob on main unit, turn repeatedly to select the phone number you want to make call to and press “ ”
to dial out.
• During conversation, press “ ” button to end call.
• When there is incoming call, press “ ” button to receive call.
• Press “ ” button to reject incoming call.
TALK BUTTON
MICROPHONE

EN-8
Audio Streaming
1. If your phone is “A2DP” format is compatible, you can play music in your mobile and the music will be transferred to
car audio unit.
2. Make sure your mobile and the car radio unit is paired and connected.
3. Play the music in your mobile according to your mobile operating method.
4. Unit will display “A2DP” when receiving A2DP music automatically, but for some mobile your have to press LD/MOD
button to change A2DP mode.
5. You can press or on head unit for previous or next tracks.
RESET
Reset button is placed on the housing.
The reset button is to be activated for the following reason:
• Initial installation of the unit when all wiring is completed.
• All the function button do not operate.
• Error symbol on the display.
TECHNICAL SPECIFICATIONS
CD/MP3/WMA PLAYER SECTION
Signal to Noise Ratio > 60 dB
Channel Separation > 50 dB (1kHz)
Frequency Response 20Hz - 20 kHz
TUNER (FM)
Frequency Range 87.5-108 MHz
Channel Step 50 kHz
Intermediate Frequency 150 KHz
Sensitivity 2.8 µV
Stereo Separation 37 dB
Signal to Noise Ratio > 50 dB
TUNER (MW)AM
Frequency Range 522-1620 KHz
Intermediate Frequency 25 KHz
Usable Sensitivity 32 dB
LINE-OUT
Output 1.5V (max.)
Impedance 10k Ohm
GENERAL
Power Supply 12V DC (10.8-15.6V allowable)
Speaker Impedance 4 or 8 ohm
Output Power 60W x 4CH
Fuse 10A
Note: Specications and the design are subject to possible modication without notice due to improvement.
RESET
