USER MANUAL
V 1.0
MODEL
IFLW9
9KG FRONT LOAD
WASHING MACHINE

2
Congratulations on purchasing your new appliance!
The InAlto brand is proudly distributed within Australia by esidentia
Group Pty Ltd and within New Zealand by Applico Ltd.
Please refer to the warranty card at the rear of this manual for
information regarding your product’s parts and labour warranty, or
visit online at:
– www.residentia.group
– www.applico.co.nz
– www.inalto.co.nz
Both esidentia Group & Applico are customer obsessed and our
Support Teams are there to ensure you get the most out of your
appliance. Should you want to learn more about recommended
usage, the various features of your appliance, and importantly taking
care of the unit when cleaning, our Support Teams are here to help.
Telephone Contacts:
– AU: 1300 11 4357
– NZ: 0800 763 448
It is important that you read through the following use and care
manual thoroughly to familiarise yourself with the installation and
operation requirements of your appliance to ensure optimum
performance.
Again, thank you for choosing an InAlto appliance and we look
forward to being of service to you.
Residentia Group Pty Ltd
ACN. 600 546 656
165 Barkly Avenue
Burnley, Victoria
Australia 3121
—
Applico Ltd
635 Great South Road
Penrose, Auckland 1061
New Zealand
WELCOME

3
CONTENTS
2 Welcome
4 Safety Instructions
5 Your Washing Machine
6 Installation
8 Washing Your Clothes
10 Quick Start Guide

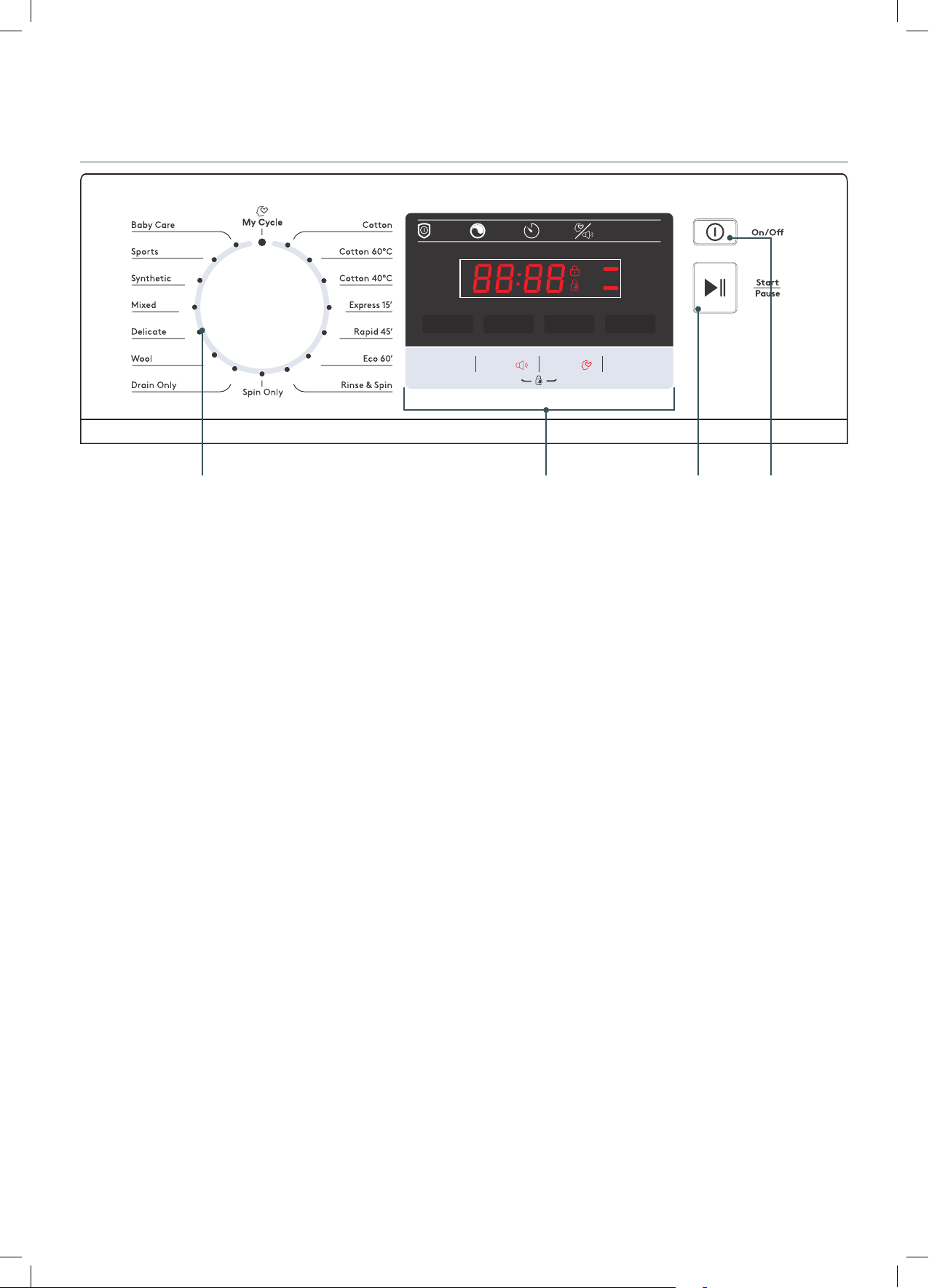

11 Controls
12 Operating Your Washing Machine
16 Maintenance
19 Troubleshooting
20 Technical Data
21 Appendix
22 Your Receipt
23 Purchase Details
24 Warranty Information

4
→ If the supply cord is damaged,it must be
replaced by the manufacturer,its service agent
or similarly qualified persons in order to avoid a
hazard.
→ The new hose-sets supplied with the appliance
are to be used and that old hose-sets should not
be reused.
→ This washing machine is for indoor use only.
→ The openings must not be obstructed by a
carpet.
→ This appliance is not intended for use by persons
(including children) with reduced physical,
sensory or mental capabilities, or lack of
experience and knowledge, unless they have
been given supervision or instruction concerning
use of the appliance by a person responsible for
their safety. Children should be supervised to
ensure that they do not play with the appliance.
→ Pull out its plug from the power socket before
cleaning or maintenance.
→ Make sure that all pockets are emptied.
→ Sharp and rigid items such as
coin,brooch,nail,screw or stone etc. may cause
serious damages to this machine.
→ Pull out its plug and cut o water supply after
the operation.
→ Please check whether the water inside the drum
has been drained before opening its door. Please
do not open the door if there is any water visible.
→ Pets and kids may climb into the machine. Check
the machine before every operation.
→ Glass door may be very hot during the operation.
Keep kids and pets far away from the machine
during the operation.
→ Take care that power voltage and frequency shall
be identical to those of washing machine.
→ Do not use any socket with rated current less
than that of washing machine. Never disconnect
the power plug with wet hands.
→ To ensure your safety,power cord plug must
be inserted into an earthed three-pole socket.
Check carefully and make sure that your socket
is properly and reliably earthed.
→ Children of less than 3 years should be kept away
unless continuously supervised.
→ Kids should be supervised to ensure that they do
not play with the machine.
→ Packing materials may be dangerous to the
kids. Please keep all packing materials (plastic
bags,foams etc) far away from the kids.
→ Washing machine shall not be installed in bath
room or very wet rooms as well as in the rooms
with explosive or caustic gases.
→ Make sure that the water and electrical devices
must be connected by a qualified technician in
accordance with the manufacturer’s instructions
and local safety regulations.
→ Before operating this machine,all packages and
transport bolts must be removed. Otherwise, the
washing machine may be seriously damaged
while washing the clothes.
→ Before washing the clothes at first time, the
washing machine shall be operated in one round of
the whole procedures without the clothes inside.
→ The washing machine with single inlet valve only
can be connected to the cold water supply. The
washing machine with double inlet valves can be
connected to the hot water and cold water supply.
→ Your washing machine is only for home use
and is only designed for the textiles suitable for
machine washing.
→ Flammable and explosive or toxic solvents
are forbidden. Gasoline and alcohol etc. shall
not be used as detergents. Please only select
the detergents suitable for machine washing,
especially for drum.
→ Do not to wash carpets.
→ Be careful of burning when washing machine
drains hot washing water.
→ Never refill the water by hand during washing.
→ After the program is completed, Please wait for
two minutes to open the door.
→ Please remember to disconnect water and power
supply immediately after the clothes are washed.
→ Do not climb up and sit on top cover of the
machine.
→ Do not lean against machine door.
→ Please do not close the door with excessive
forces. If it is found dicult to close the door,
please check if the excessive clothes are put in or
distributed well.
→ The household washing machine isn’t intended
to be built-in.
CAUTIONS DURING HANDLING MACHINE
→ 1 Transport bolts shall be reinstalled to the
machine by a specialized person.
→ 2 The accumulated water shall be drained out of
the machine.
→ 3 Handle the machine carefully. Never hold each
protruded part on the machine while lifting.
Machine door can not be used as the handle
during the conveyance.
NOTES ON DISPOSAL:
This product should not be disposed with other
household wastes. To prevent possible harm to the
environment or human health from uncontrolled
waste disposal,recycle it responsibly to promote the
sustainable reuse of material resources. To return
your used device,please use the collection systems
or contact the retailer where the product was
purchased. They return and can take this product for
environmental safe recycling.
SAFETY INSTRUCTIONS

5
P.06 P.07
Safety Precautions Overview of Washing Machine
Inlet pipe
H (optional)
Inlet pipe
C
Transport
plughole
Outlet hose
(optionalsupport )
Component
Accessories
S
ervice Panel
D
oor
Detergent Drawer
Power Plug
Control Panel
Outlet Hose
Detergent Box
ply immediately after the clothes are washed.
- Do not climb up and sit on top cover of the machine.
- Do not lean against machine door.
- Please do not close the door with excessive forces.If it
is found difficult to close the door,please check if the
excessive clothes are put in or distributed well.
- The household washing machine isn't intended to be
built-in.
- Cautions during Handling Machine
1.Transport bolts shall be reinstalled to the machine by
a specialized person.
2.The accumulated water shall be drained out of the machine.
3. Handle the machine c arefully. Never hold each protr-
uded part on the machine while lifting. Machine door
can not be used as the handle during the conveyance.
- Notes on disposal:
This marking indicates that this product should not
be disposed with other household wastes throug-
hout the EU.To prevent possible harm to the env-
ironment or human health from uncontrolled waste
disposal,recycle it responsibly to promote the su-
stainable reuse of material resources.To return
your used device,please use the collection systems
or contact the retailer where the product was pur-
chased. They return and can take this product for
environmental safe recycling.
H plug
( )
ole
optional
YOUR WASHING MACHINE

6
UNPACKING THE WASHING MACHINE
Unpack your washing machine and check if there is
any damage during the transportation. Also make
sure that all the items in the attached bag are
received.
If there is any damage to the washing machine
during the transportation, or any item is missing,
please contact the local dealer immediately.
DISPOSE THE PACKING MATERIALS
The packing materials of this machine may be
dangerous to kids. Please dispose them properly
and avoid easy touch by kids. Please dispose the
related packing materials according to the relevant
local regulations. Please do no throw the packing
materials away together with the other daily living
rubbishes.
REMOVE TRANSPORT BOLTS
Before using this washing machine, transport bolts
must be removed from the backside of this machine.
Please take the following steps to remove the bolts:
1. Loosen all bolts with spanner and then remove
them.
2. Stop the holes with transport hole plugs.
3. Keep the transport bolts properly for future use.
→
SELECT THE LOCATION
Before installing the washing machine, the location
characterized as follows shall be selected:
→ Rigid, dry, and level surface (if not level, please
make it level with reference to the following
figure “Adjust Leg”)
→ Avoid direct sunlight
→ Sucient ventilation
→ Room temperature is above 0 C
→ Keep far away from the heat resources such as
coal or gas. Make sure that the washing machine
will not stand on power cord.
→ Do not install the washing machine on the
carpet floor.
ADJUST LEG
1. When positioning the washing machine, please
first check if the legs are closely attached to the
cabinet. If not, please turn them to their original
positions with hand or spanner and tighten the
nuts with spanner.
2. After positioning the washing machine, press
four corners on top cover of washing machine in
sequence.
If the washing machine is not stable when being
pressed, this leg shall be adjusted.
3. Ensure the positioning status of washing
machine. Loosen the lock nut with spanner and
turn the leg with hand until it closely contacts
with the floor. Press the leg with one hand and
fasten the nut closely to the cabinet with the
other hand.
→
4. After being locked properly, press four corners
again to make sure that they has been adjusted
properly. If it is still unstable, it has to repeat
Steps 2 and 3.
5. Put a solid cylinder (e.g. pop cans) oppositely on
the top cover of the washing machine from in
the left, right, front and back directions. If the
cylinder keeps stable, the washing machine is
positioned level. If it rolls, the washing machine
is positioned unlevel. The rolling direction is the
direction of lower ground surface. Then, the two
legs in this direction shall be raised at the same
time until the washing machine is level. Steps
1–3 are repeated to make the bottom legs closely
against the ground and the nuts shall be locked
tightly.
CONNECT INLET PIPE
Connect the inlet pipe as indicated in the figure.
For the model which has hot valve , please connect
the hot vale to hot water tap. Energy will decrease
automatically for some program.
→
INSTALLATION

7
INSTALL INLET PIPE
1. Connect the elbow to tap and fasten it clockwise.
2. Connect the other end of inlet pipe to the inlet
valve at the backside of washing machine and
fasten the pipe tightly clockwise. Notes: after
connection, if there is any leakage with hose,
then repeat the steps to connect inlet pipe. The
most common type of tap shall be used to supply
water. If tap is square or too big, then standard
tap shall be changed.
→
HOLE PLUG
This Hole plug is used to jam the hole on the back
cabinet.
→
PLACE OUTLET HOSE
There are two ways to place the end of outlet hose:
1. Put it beside the water trough.
→
2. Connect it to the branch drain pipe of the
trough.
→
Max.100cm
Min.60c m
Position outlet hose properly so that the floor will not
be damaged by water leakage.
NOTE:
If the machine has outlet hose support, please install
it like the following pictures.
1.
→ When installing outlet hose, fix it properly with
a rope.
→ Position outlet hose properly so that the floor will
not be damaged by water leakage.
2.
Trough
Hose Retainer
Bind
Max.100cm
Min.60cm
Min .60c m
Max.100c m
→ If outlet hose is too long, do not force it into
washing machine as it will cause abnormal
noises.
ELECTRICAL CONNECTION
As the maximum current through the unit is 10A
when you are using its heating function, please make
sure the power supply system (current, power voltage
and wire) at your home can meet the normal loading
requirements of the electrical appliances.
→ Please connect the power to a socket which is
correctly installed and properly earthed.
→ Make sure the power voltage at your place is
same to that in the machine’s rating label.
→ Power plug must match the socket and cabinet
must be properly and eectively earthed.
→ Do not use multi-purpose plug or socket as
extension cord.
→ Do not connect and pull out plug with wet hand.
→ When connecting and pulling out the plug, hold
the plug tightly and then pull it out. Do not pull
power cord forcibly.
→ If power cord is damaged or has any sign of
being broken, special power cord must be
selected or purchased from its manufacturer or
service center for replacement.

8
WARNING
1. This machine must be earthed properly. If
there is any short circuit, earthing can reduce
the danger of electrical shock. This machine is
equipped with power cord, which includes plug,
earthing wire at earthing terminal.
2. Washing machine shall be operated in a circuit
separate from other electrical appliances.
Otherwise, power protector may be tripped or
fuse may be burned out.
CHECKLIST BEFORE WASHING CLOTHES
Please read this operation method carefully to avoid
the troubles of washing machine and damages of
clothes.
Check first if clothes will be damaged by detergent
Place your liquid detergent on a spare white towel
and put this in contact with a hidden part of your
colour clothing. Check if the towel takes on any of
the colour.
→ When washing scarves and other clothes
that easily get decolorised, please wash them
separately before washing.
KEEP IN MIND:
Never put the clothes to be washed in washing
machine for a long period of time. Otherwise it
may get moldy and cause spots. Therefore, please
wash the clothes in time. The clothes also may get
color changed or distorted if they are not washed
according to the stated washing temperature. As
for the stains on sleeves, collars and pockets, use
the liquid detergent and wash it with a brush gently
before washing.
CLOTHES THAT CANNOT BE WASHED
The clothes that may get distorted if being immersed
in water or put throught the washing machine cycle:
→ Ties, waistcoats, western-style clothes, outer
garments etc. may have obvious shrinkage if
being immersed in water; the decolorized clothes
such as blended spinning clothes of artificial
fiber etc.
→ Wrinkle-style clothes, embossed clothes, resin
clothes etc. may get distorted when being
immersed in water. Among cotton and wool
materials, the clothes that get easily distorted
are wrinkle-style silk, fur products and fur
decorations;
→ Clothes with decoration, long dress and
traditional clothes etc are the products to get
decolorized easily.
→ Please do not wash the clothes without material
labels and washing requirements.
→ Never wash the clothes stained with the
chemicals such as gasoline, petroleum, benzene,
paint thinner and alcohol.
PLEASE PAY ATTENTION TO DETERGENTS
→ “Low bubble” detergent or washing powder
or washing powder special for drum washing
machine shall be selected according to fiber
types (cotton, synthetic fiber, soft products and
wool products), colors, washing temperatures,
dirty degrees and types. Otherwise, excessive
bubbles may be generated and overflowed out of
the drawer so that accidents may take place.
→ Bleacher belongs to alkali type and can damage
clothes, so it is suggested to use as little as
possible.
→ Powder detergents can easily leave the residues
in the clothes so as to generate the bad smell, so
they shall be suciently rinsed.
→ Detergent can not easily get dissolved
completely if there is too much detergent or
water temperature is rather low. It can remain in
clothes, pipes and washing machines to pollute
the clothes.
→ Washing shall follow the weight of clothes,
dirty degrees, local water hardness as well
as the recommendations from the detergent
manufacturers. Please consult the water
company if you are not clear of water hardness.
NOTES:
Keep detergents and additives in safe and dry places
out of touch by kids.
PLEASE TAKE OUT THE ITEMS OUT OF THE POCKETS
Please check the pockets of the clothes to be
washed, empty the rigid items such as decorations
and coins, otherwise washing machine may be
damaged or have abnormal troubles.
WASHING YOUR CLOTHES

9
FOR THE CLOTHES TO BE WASHED, THEY ARE
CLASSIFIED ACCORDING TO THE FOLLOWING
CHARACTERISTICS:
The symbol types of care labels: the clothes to be
washed are classified into cotton, blended fiber,
synthetic fiber, silk, wool and artificial fiber.
→ COLOR White and colorful colors shall be
identified. All new colorful articles
shall be washed in a separate way.
→ SIZE the articles of dierent sizes are
washed together to increase the
washing eects.
→ SENSITIVITY soft articles shall be washed
separately. As for new pure wool
textiles, curtains and silks, the
soft washing procedure shall be
selected. Check the labels in all
washing articles.
The clothes shall be sorted before being put into
washing machine. As for the curtains with hooks,
the hooks shall be removed before being washed.
The decorations on the clothes may damage the
washing machine. As for the clothes with buttons or
embroideries, they shall be turned over before being
washed.
→ FASTENERS Zips shall be zipped close and
buttons or hooks shall be fixed.
The loose band or ribbon shall be
bound together.
It is suggested to put bras into the pillowslip with
zip or buttons sealed to prevent the steel wire from
popping out of bras into the drum and damaging the
machine. Especially delicate textiles such as laced
curtains, straight jackets, small articles (tight socks,
handkerchiefs, ties etc.) shall be put into string bag for
washing. When washing a single big and heavy dress
such as Turkish towels, jeans, wadded jackets etc., it
may easily cause great eccentricity and give alarm due
to great unbalance. Therefore it is suggested to add
one or two more clothes to be washed together so that
draining can be done smoothly.
CLEAN AWAY DUSTS, STAINS AND
PET HAIRS FROM THE CLOTHES.
The clothes may be damaged and disturb washing eects
during the friction between dusts, stains and clothes.
TO PROTECT BABY SKIN
Baby articles (baby clothes and towels) including
napkins shall be washed separately. If they are
washed together with the adults’ clothes, they may
be infected. Rinsing times shall be increased to
ensure the thorough rinsing and cleaning without the
detergent residues.
NOTE:
It is suggested that the parts that are easily stained
such as white sockets, collars and sleeves etc. shall
be hand washed before being put into washing
machine to achieve more ideal washing eects.
Please use powder or liquid detergents. The residues
of the soap could remain in the gaps of the clothes if
soap is used.
CONFIRM THE WASHING CAPACITY
Do not put excessive washings; otherwise it may
aect the washing eects. Please confirm the
maximum aordable washing quantity according to
the following table.
FIBER TYPE MAX. LOADING CAPACITY
(9.0KG)
Cotton 9.0kg
Synthetic 4.5kg
Wool 2.0kg
Delicate 2.5kg
The clothes which easily get fuzzed shall be turned
over for washing The clothes which easily get fuzzed
shall be washed separately; otherwise the other
articles can be stained with dust and thrum etc.
Preferably, black clothes and cotton clothes shall
be washed separately because they can easily get
stained with the thrums of other colors when being
washed together. Please check before washing.
WASHING MACHINE SHALL NOT WASH WATER-
PROOF MATERIALS (SKI SUITS, OUTSIDE NAPKIN
PADS, CURTAINS).
As for the fiber products that water can not get
soaked easily into such as water-proof cushions, and
clothes, it is better not to wash. Otherwise there will
be water bursting out or abnormal vibration to cause
danger while rinsing and draining so that the clothes
also may be damaged. (Such as outside napkin pads,
raincoats, umbrella, ski suits, car covers, sleeping
sacks etc.)
CAUTIONS DURING DRAINING
Draining of normal clothes: Moistures of washings
are drained through drain hole. Draining of water-
proof clothes and fiber products: In the normal
washing and draining status, moistures of water-
proof clothes and fiber products can not be drained
while washing water is gathered in one direction so
that the eccentricity of washing machine is too great
and vibration or moving is caused.

10
P.14 P.15
Operate Washing Machine Operate Washing Machine
Confirm the washing capacity:
Do not put excessive washings; otherwise it may affect the washing effects. Please confirm
the maximum affordable washing quantity according to the following table.
The clothes which easily get fuzzed shall be turned over for washing
The clothes which easily get fuzzed shall be washed separately; otherwise the other
articles can be stained with dust and thrum etc. Preferably, black clothes and cotton
clothes shall be washed separately because they can easily get stained with the thrums
of other colors when being washed together.
Please check before washing.
Washing machine shall not wash water-proof materials (ski suits, outside napkin
pads, curtains).
As for the fiber products that water can not get soaked easily into such as water-proof
cushions, and clothes, it is better not to wash. Otherwise there will be water bursting out
or abnormal vibration to cause danger while rinsing and draining so that the clothes also
may be damaged. (Such as outside napkin pads, raincoats, umbrella, ski suits, car covers,
sleeping sacks etc.)
Cautions during Draining
Draining of normal clothes:
Moistures of washings are drained through drain hole.
Draining of water-proof clothes and fiber products:
In the normal washing and draining status, moistures of water-proof clothes and fiber
products can not be drained while washing water is gathered in one direction so that the
eccentricity of washing machine is too great and vibration or moving is caused.
Quick start
1.After washing, the washing machine will make the sound
2.Close the water tap;
3.Press the and pull out the power plug.
;
On/Off
After washing notes:
1 Install the washing machine
7 Plug the power supply
6 Turn on the water tap
9 Select the desired programme
5 Put down (hang up) the drain pipe
4 Close the door
10 Press the [start/pause]
3 Measure out the detergent
2 Open the door and
Load the laundry
8 Press the On/Off
Delicate
Cotton
Synthetic
Wool
9.0kg
9.0kg
4.5kg
2.0kg
2.5kg
AFTER WASHING NOTES:
1. After washing, the washing machine will
make the sound
2. Close the water tap;
3. Press the On/O button and pull out the
power plug.
QUICK START GUIDE

11
1. PROGRAM SELECTION KNOB
→ For the convenience of users to
washing clothes with the dierent
program.
2. FUNCTIONS:
→ Press the button repeatedly to set the
Delay time, a Temperature, the Speed
or Function.
3. START/PAUSE BUTTON
4. ON/OFF BUTTON
6. WORKING STATE LED
NOTES:
1. The Control panel line chart is for reference only,
Please refer to real product as standard.
2. The Control panel could be changed without
written notice. Please visit the website of
Washing Machine or call up the service line for
consultation.
KEY
CONTROLS
➀ ➁ ➂ ➃
Delay Speed FunctionTemp.
PRE-W AS H
EX TR A RI NSE
SET MY CYCLE / SIGNAL:
PRESS FOR 3 SECONDS
DELAY
START
EXPRESS
WASH
POWER OF F
MEMO RY

12
P.16 P.17
Operate Washing Machine Operate Washing Machine
Washing Clothes at first time
Before washing clothes at first time, the washing machine shall be operated in
one round of the whole procedures without clothes in as follows:
1.Connect power source and water.
2.Put a little detergent into the box and close it.
3.Press the button “On/Off”.
4.Press the button “Start/Pause”.
The drawer is separated as follows:
I: Pre-detergent or washing powder.
II: Main detergent
: Washing additive,such as fabric softener or tackifier.
Put detergent into washing machine.
1.Pull out the drawer.
2.Fill pre-detergent into Case I (when necessary).
3.Fill detergent into Case II.
4.Fill softener into Case (when necessary).
Notes:
- As for the agglomerated or ropy detergent or additive, before they are poured into the detergent box,
it is suggested to use some water for dilution to prevent the inlet of detergent box from being blocked
and overflowing while filling water.
-
option1: detergent (powder) . option2(liquid)
Please choose suitable type of detergent for the various washing temperature to get the best washing
effect with less water and energy consumption.
Select the procedure
The proper washing procedures shall be selected according to the types, quantities, and
dirtiness of the clothes to be washed in combination with the following washing
temperature table.
Start up washing machine
Connect the power. Check if water pipes are connected properly. Open the tap completely.
Put in the clothes to be washed and fill in the detergent and tackifier. Then press the button
“On/Off”,Select the proper procedures and functions and press the button “Start/Pause”.
90 ℃
60 ℃
Seriously besmirched, pure white cotton or flax (for example: coffee
table cloths, canteen table cloths, towels, bed sheets)
Moderately besmirched, colorful flax, cotton and synthetic articles
with certain decolorizing degree (for example: shirts, night pajamas;
Slightly besmirched, pure white flax
Normally besmirched articles ( synthetic and wool)for example:
40 ℃,30 ℃,
Cold water20 ℃,
Ⅰ
Ⅱ
Option1 Option2
View of Control Panel
Start/Pause
Press the button to start or pause the wash cycle
On/Off
Press once to turn the washing machine on, press again to turn the washing machine off.
Notes:
1.The Control panel line chart is for reference only,Please refer to real product as standard.
2.The Control panel could be changed without written notice. Please visit the website of Washing Machine or call up the service line for
consultation.
Function setting
Press the button repeatedly to set the Delay time.
Temperature ,speed and so on.
Speed
1600: 0-400-800-1200-1400-1600
On Off/
Programme
For the convenience of users to washing clothes with the different programme.
OPERATING YOUR
WASHING MACHINE

13
P.18 P.19
Operate Washing Machine Operate Washing Machine
- Wool
You can select this procedure to wash the wool textiles labeled with “Machine Wash”.
Please select the proper washing temperature according to the label on the articles to be
washed. Furthermore, the proper detergent shall be selected for wool textiles.
- Drain Only
Separate Drain only Procedure.
- Spin Only
Separate spin only procedure. Soap water or rinse water shall be drained out before spinning.
- Rinse&Spin
Separate Rinse&Spin Procedure.
- My Cycle
Press Speed 3sec. for my cycle to memory the procedure. The default my cycle is cotton.
The main function can be selected as follows:
- Prewash
The Prewash function can get an extra wash before main wash.
- Express Wash
The function can decrease the washing time.
- Extra Rinse
The laundry will undergo extra rinse once after you select it.
- Delay
Delay function can be set with this button, the delaying time is 0-24H.
Set the delay function:
1.Select a programme;
2.Press the Delay button to choose the time;
3.Press Start/Pause to commence the Delay operation.
Cancel the Delay function :Press the Delay button until the display will be 0H . It should be
pressed before starting the program. If the program already started, should press the
On/Off button.
Notes: If there is any break in the power supply while the machine is operating, a special
memory stores the selected programme and when the power is restarted ,press the
Start/Pause button the left time is continues.
- Child Lock
To avoid that the washing procedure cannot operate normally due to the mis operation by
kids during the washing procedure, you can select this function, In this case, the other
buttons except On/Off button can not work, at this state ,the machine power off when press
the key on/off. The machine remembers the program child lock and the program during
powered off when press the key on/off again.
Press “Temp” and “Speed” together 3 seconds during the running procedure, the buzzer
will beep ,Start/Pause button as well as the rotary switch are locked. Press the two buttons
for 3 seconds together and buzzer will beep to release to locking. But cut off the power
supply , the kid’s protection is also release to locking. The kid’s protection will not be
cancelled after all procedures are completed.
- Cotton
You can select this procedure to wash the daily washable clothes. The washing period
is quite long with quite strong washing intension. It is recommended to wash the daily
cotton articles, for example: bed sheets, quilt covers, pillowcases, gowns, underwear etc.
℃
℃/40℃
- ECO 60'
- Synthetic
You can select this procedure to wash the quite delicate clothes. The procedure is shorter
compared with that for cottons and the washing intension is quite gentle. It is recommended
to wash synthetic articles, for example: shirts, coats, blending. As for curtains and laced
textiles, the procedure “Synthetic ” shall be selected. While washing the knitting textiles,
detergent quantity shall be reduced due to its loose string construction and easily forming
bubbles.
- Delicate
You can select this procedure to wash your delicate clothes. Its washing intension is gentler
and revolution speed is less compared with the procedure “Synthetic”. It is recommended
for the articles to be washed softly.
- Cotton 60/40
You can select this procedure to wash the daily clothes. The washing period is quite long
with quite strong washing intension. The temperature is default is 60 .
- Express 15'
This procedure is suitable for washing few and not very dirty with 15'.
- Rapid 45'
This procedure is suitable for washing few and not very dirty clothes quickly.
As for few light dirty clothes, the maximum temperature of washing is limited to 30℃, and saving
more energy.
- Baby Care
You can select this procedure to wash your baby’s clothes, it can make the baby's wear
cleaner and make the rinse performance better to protect the baby skin.
- Sports
You can select this procedure to wash the activewear.
- Mixed
You can select this procedure wash the tough clothes, that need much more time and
strength. It is used for the daily clothes fo cotton, such as sheets, chained, pillowcases
bathrobe and underwear.
First, turn the rotary switch to select the corresponding procedures according to the types
of textiles.
Second, select the proper temperature according to the dirtiness. Generally, the higher the
temperature is, the more the power is consumed.
Last, select the proper revolution speed. The higher the revolution speed is, the drier the
textiles are spun, but higher the noises will also be increased.
The surfaces of delicate textiles will have wrinkles and the working life of washing
machine will be shortened.
PLEASE NOTE: to protect the clothes, the lower revolution speed shall be selected for delicate textiles.
The main washing procedures depend on the types of the clothes to be washed as follows:

14
P.18 P.19
Operate Washing Machine Operate Washing Machine
- Wool
You can select this procedure to wash the wool textiles labeled with “Machine Wash”.
Please select the proper washing temperature according to the label on the articles to be
washed. Furthermore, the proper detergent shall be selected for wool textiles.
- Drain Only
Separate Drain only Procedure.
- Spin Only
Separate spin only procedure. Soap water or rinse water shall be drained out before spinning
.
- Rinse&Spin
Separate Rinse&Spin Procedure.
- My Cycle
Press Speed 3sec. for my cycle to memory the procedure. The default my cycle is cotton.
The main function can be selected as follows:
- Prewash
The Prewash function can get an extra wash before main wash.
- Express Wash
The function can decrease the washing time.
- Extra Rinse
The laundry will undergo extra rinse once after you select it.
- Delay
Delay function can be set with this button, the delaying time is 0-24H.
Set the delay function:
1.Select a programme;
2.Press the Delay button to choose the time;
3.Press Start/Pause to commence the Delay operation.
Cancel the Delay function :Press the Delay button until the display will be 0H . It should be
pressed before starting the program. If the program already started, should press the
On/Off button.
Notes: If there is any break in the power supply while the machine is operating, a special
memory stores the selected programme and when the power is restarted ,press the
Start/Pause button the left time is continues.
- Child Lock
To avoid that the washing procedure cannot operate normally due to the mis operation by
kids during the washing procedure, you can select this function, In this case, the other
buttons except On/Off button can not work, at this state ,the machine power off when press
the key on/off. The machine remembers the program child lock and the program during
powered off when press the key on/off again.
Press “Temp” and “Speed” together 3 seconds during the running procedure, the buzzer
will beep ,Start/Pause button as well as the rotary switch are locked. Press the two buttons
for 3 seconds together and buzzer will beep to release to locking. But cut off the power
supply , the kid’s protection is also release to locking. The kid’s protection will not be
cancelled after all procedures are completed.
- Cotton
You can select this procedure to wash the daily washable clothes. The washing period
is quite long with quite strong washing intension. It is recommended to wash the daily
cotton articles, for example: bed sheets, quilt covers, pillowcases, gowns, underwear etc.
℃
℃/40℃
- ECO 60'
- Synthetic
You can select this procedure to wash the quite delicate clothes. The procedure is shorter
compared with that for cottons and the washing intension is quite gentle. It is recommended
to wash synthetic articles, for example: shirts, coats, blending. As for curtains and laced
textiles, the procedure “Synthetic ” shall be selected. While washing the knitting textiles,
detergent quantity shall be reduced due to its loose string construction and easily forming
bubbles.
- Delicate
You can select this procedure to wash your delicate clothes. Its washing intension is gentler
and revolution speed is less compared with the procedure “Synthetic”. It is recommended
for the articles to be washed softly.
- Cotton 60/40
You can select this procedure to wash the daily clothes. The washing period is quite long
with quite strong washing intension. The temperature is default is 60 .
- Express 15'
This procedure is suitable for washing few and not very dirty with 15'.
- Rapid 45'
This procedure is suitable for washing few and not very dirty clothes quickly.
As for few light dirty clothes, the maximum temperature of washing is limited to 30℃, and saving
more energy.
- Baby Care
You can select this procedure to wash your baby’s clothes, it can make the baby's wear
cleaner and make the rinse performance better to protect the baby skin.
- Sports
You can select this procedure to wash the activewear.
- Mixed
You can select this procedure wash the tough clothes, that need much more time and
strength. It is used for the daily clothes fo cotton, such as sheets, chained, pillowcases
bathrobe and underwear.
First, turn the rotary switch to select the corresponding procedures according to the types
of textiles.
Second, select the proper temperature according to the dirtiness. Generally, the higher the
temperature is, the more the power is consumed.
Last, select the proper revolution speed. The higher the revolution speed is, the drier the
textiles are spun, but higher the noises will also be increased.
The surfaces of delicate textiles will have wrinkles and the working life of washing
machine will be shortened.
PLEASE NOTE: to protect the clothes, the lower revolution speed shall be selected for delicate textiles.
The main washing procedures depend on the types of the clothes to be washed as follows:
Operate Washing Machine Operate Washing Machine
P.20 P.21
- Bubble Removal Function
Bubble Check Function: Redundant bubbles will occur when there is excessive detergent,
which will affect wash and rinse effects. The procedure will check automatically and one
bubble removal procedure will be added automatically to remove bubbles when excessive
bubbles are checked.
- Power off Memory
For the convenience of the users, this program remember the washing program and function
that is the choice of the users at the last time. The next time when selecting the program Memory,
this machine will run the program of your memory automatically.
- Suppression of the acoustic signals
This is an additional buzzer function on your appliance. After deactivating the buzzer function,
the buzzer will be closed.
After starting the machine, press the “Temp” button for 3 seconds and you will hear a beep,
then the buzzer will be closed. To restart the buzzer function, press the “Temp”button
again for 3 seconds. The setting will be kept until the next reset.
Warning: After deactivating the buzzer function, the sounds will not be activated any more.
Table of Washing Procedures
Energy test program: Cotton 60℃, Speed: the highest speed; Other as the default.
Notes: The parameters in this table are only for user's reference. The actual parameters maybe different with the parameters in above mentioned table.
Half load for 9.0Kg machine:4.5Kg.
“Cotton 60℃ ” are the “standard Cotton 60℃” programme and the standard washing programs to which the information in the label
and the fiche relates, and they are suitable to clean normally soiled cotton laundry and that they are the most efficient programmes in terms
of combined energy and water consumptions for washing that type of cotton laundry,that the actual water temperature may differ from the
declared cycle temperature.
Load(kg) Detergent Box
Procedure
Description
Default Speed
(RPM)
Default Time
(Min)
Cotton
40
Sports
40
Mixed
40
Drain Only
Spin Only
Rinse&Spin
ECO 60'
Cold
Express15'
Cold
Wool
40
Delicate
30
● Means must ○ Means optional Means not necessary
Synthetic
40
Cotton 60℃
60
Cotton 40℃
40
Rapid 45'
40
Baby care
Delay
60
Softener
Case
×
1600
800
800
800
800
800
800
400
800
800
1400
1400
800
1200
800
Prewash
Extra rinse
9.0kg
9.0
9.0
4.5
9.0
9.0
9.0
2.0
2.0
2.0
2.5
4.5
9.0
9.0
2.0
4.5
2:40
1:19
1:13
0:01
0:14
0:31
1:00
0:15
1:06
1:00
1:40
2:05
1:32
0:45
1:39
(℃)
Default Temp.

15
Operate Washing Machine Operate Washing Machine
P.20 P.21
- Bubble Removal Function
Bubble Check Function: Redundant bubbles will occur when there is excessive detergent,
which will affect wash and rinse effects. The procedure will check automatically and one
bubble removal procedure will be added automatically to remove bubbles when excessive
bubbles are checked.
- Power off Memory
For the convenience of the users, this program remember the washing program and function
that is the choice of the users at the last time. The next time when selecting the program Mem
ory,
this machine will run the program of your memory automatically.
- Suppression of the acoustic signals
This is an additional buzzer function on your appliance. After deactivating the buzzer function
,
the buzzer will be closed.
After starting the machine, press the “Temp” button for 3 seconds and you will hear a beep,
then the buzzer will be closed. To restart the buzzer function, press the “Temp”button
again for 3 seconds. The setting will be kept until the next reset.
Warning: After deactivating the buzzer function, the sounds will not be activated any more.
Table of Washing Procedures
Energy test program: Cotton 60℃, Speed: the highest speed; Other as the default. Notes: The parameters in this table are only for user's reference. The actual parameters maybe different with the parameters in above mentioned table. Half load for 9.0Kg machine:4.5Kg.
“Cotton 60
℃
” are the “standard Cotton 60
℃
” programme and the standard washing programs to which the information in the label
and the fiche relates, and they are suitable to clean normally soiled cotton laundry and that they are the most efficient programmes in terms
of combined energy and water consumptions for washing that type of cotton laundry,that the actual water temperature may differ from the
declared cycle temperature.
Load(kg) Detergent Box
Procedure
Description
Default Speed
(RPM)
Default Time
(Min)
Cotton
40
Sports
40
Mixed
40
Drain Only Spin Only Rinse&Spin ECO 60'
Cold
Express15'
Cold
Wool
40
Delicate
30
● Means must ○ Means optional Means not necessary
Synthetic
40
Cotton 60℃
60
Cotton 40℃
40
Rapid 45'
40
Baby care
Delay
60
Softener
Case
×
1600
800 800 800
800 800 800 400 800 800
1400 1400
800
1200
800
Prewash
Extra rinse
9.0kg
9.0 9.0
4.5
9.0 9.0 9.0 2.0 2.0 2.0
2.5 4.5
9.0 9.0 2.0
4.5
2:40
1:19
1:13
0:01
0:14
0:31
1:00
0:15
1:06
1:00 1:40
2:05
1:32
0:45
1:39
(℃)
Default Temp.
Operate Washing Machine Operate Washing Machine
P.20 P.21
- Bubble Removal Function
Bubble Check Function: Redundant bubbles will occur when there is excessive detergent,
which will affect wash and rinse effects. The procedure will check automatically and one
bubble removal procedure will be added automatically to remove bubbles when excessive
bubbles are checked.
- Power off Memory
For the convenience of the users, this program remember the washing program and function
that is the choice of the users at the last time. The next time when selecting the program Memory,
this machine will run the program of your memory automatically.
- Suppression of the acoustic signals
This is an additional buzzer function on your appliance. After deactivating the buzzer function,
the buzzer will be closed.
After starting the machine, press the “Temp” button for 3 seconds and you will hear a beep,
then the buzzer will be closed. To restart the buzzer function, press the “Temp”button
again for 3 seconds. The setting will be kept until the next reset.
Warning: After deactivating the buzzer function, the sounds will not be activated any more.
Table of Washing Procedures
Energy test program: Cotton 60℃, Speed: the highest speed; Other as the default.
Notes: The parameters in this table are only for user's reference. The actual parameters maybe different with the parameters in above mentioned table.
Half load for 9.0Kg machine:4.5Kg.
“Cotton 60℃ ” are the “standard Cotton 60℃” programme and the standard washing programs to which the information in the label
and the fiche relates, and they are suitable to clean normally soiled cotton laundry and that they are the most efficient programmes in terms
of combined energy and water consumptions for washing that type of cotton laundry,that the actual water temperature may differ from the
declared cycle temperature.
Load(kg) Detergent Box
Procedure
Description
Default Speed
(RPM)
Default Time
(Min)
Cotton
40
Sports
40
Mixed
40
Drain Only
Spin Only
Rinse&Spin
ECO 60'
Cold
Express15'
Cold
Wool
40
Delicate
30
● Means must ○ Means optional Means not necessary
Synthetic
40
Cotton 60℃
60
Cotton 40℃
40
Rapid 45'
40
Baby care
Delay
60
Softener
Case
×
1600
800
800
800
800
800
800
400
800
800
1400
1400
800
1200
800
Prewash
Extra rinse
9.0kg
9.0
9.0
4.5
9.0
9.0
9.0
2.0
2.0
2.0
2.5
4.5
9.0
9.0
2.0
4.5
2:40
1:19
1:13
0:01
0:14
0:31
1:00
0:15
1:06
1:00
1:40
2:05
1:32
0:45
1:39
(℃)
Default Temp.
WASHING PROCEEDURES

16
P.22 P.23
Before your maintenance starts, please do pull out the power plug or disconnect power
and close the tap.
- Solvents are forbidden to avoid that the washing machine is damaged, and toxic gases
are generated or exploded.
- Never use water to sprinkle and wash the washing machine.
- It is forbidden that the detergents containing PCMX are used to clean the washing machine.
Cleaning and Maintenance of Washing Machine Cabinet
Proper maintenance on the washing machine can extend its working life. The surface can
be cleaned with diluted non-abrasive neutral detergents when necessary. If there is any
water overflow, use the wet cloth to wipe it off immediately. No sharp items are allowed to
strike the cabinet.
Notes: formic acid and its diluted solvents or equivalent are forbidden.
Clean Internal Drum
The rusts left inside the drum by the metal articles shall be removed immediately with
chlorine-free detergents.
Never use steel wool.
Dispose a Frozen Washing Machine
When the temperature drops below zero and your washing machine gets frozen, you may:
1.Disconnect the power supply for the washing machine.
2.Wash the tap with warm water to loosen inlet pipe.
3.Take down inlet pipe and immerse it in warm water.
4.Pour warm water into washing drum and wait for 10 minutes.
5.Reconnect inlet pipe to the tap and check whether inlet and outlet are working normally.
Notes: when the washing machine is reused, make sure the ambient temperature is above 0 C
Anti-freeze
If your washing machine is located in the room where it can get frozen easily, please drain
the remaining water inside drain pipe and inlet pipe thoroughly.
Remove the remaining water in inlet pipe:
1.Close the tap.
2.Screw off the inlet pipe from tap and put its end into the container.
3.Start up any procedure except single Wash or Drain
procedure. Water will be drained out of inlet pipe if any
for about 40 seconds.
4.Reconnect the inlet pipe to tap.
Remove the remaining water in drain pump
To avoid burning, it shall be done after the hot water
inside the machine cools down.
Maintenance
Maintenance
Clean detergent box and grooves
Clean detergent drawer and grooves
1.Press down the arrow location on softener cover
inside the drawer.
2.Lift the clip up and take out softener cover and wash
all grooves with water.
3.Restore the softener cover and push the drawer into
position.
Clean inlet filter
Inlet filter shall must be cleaned if there is not any or
insufficient water in when the tap is opened.
Clean the tap filter:
1.Close the tap.
2.Select any procedure except “Wash” or “Drain”
procedure.
3.Press the button “Start/Pause” and keep the
procedure running for about 40 seconds.
4.Remove the inlet pipe from the tap.
5.Use water to wash the filter.
6.Reconnect the inlet pipe.
Washing the filter in washing machine:
1.Screw off the inlet pipe from the backside of the
machine.
2.Pull out the filter with long nose pliers and reinstall
it back after being washed.
3.Reconnect the inlet pipe.
4.Open the tap and make sure there is no water leakage.
5.Close the tap.
Notes: Generally, the tap filter is washed first and then the filter in washing machine will be washed.
If only the filter in washing machine is washed, then the steps 1~3 in cleaning the tap filter shall be
repeated.
MAINTENANCE

17
P.22 P.23
Before your maintenance starts, please do pull out the power plug or disconnect power
and close the tap.
- Solvents are forbidden to avoid that the washing machine is damaged, and toxic gases
are generated or exploded.
- Never use water to sprinkle and wash the washing machine.
- It is forbidden that the detergents containing PCMX are used to clean the washing machine.
Cleaning and Maintenance of Washing Machine Cabinet
Proper maintenance on the washing machine can extend its working life. The surface can
be cleaned with diluted non-abrasive neutral detergents when necessary. If there is any
water overflow, use the wet cloth to wipe it off immediately. No sharp items are allowed to
strike the cabinet.
Notes: formic acid and its diluted solvents or equivalent are forbidden.
Clean Internal Drum
The rusts left inside the drum by the metal articles shall be removed immediately with
chlorine-free detergents.
Never use steel wool.
Dispose a Frozen Washing Machine
When the temperature drops below zero and your washing machine gets frozen, you may:
1.Disconnect the power supply for the washing machine.
2.Wash the tap with warm water to loosen inlet pipe.
3.Take down inlet pipe and immerse it in warm water.
4.Pour warm water into washing drum and wait for 10 minutes.
5.Reconnect inlet pipe to the tap and check whether inlet and outlet are working normally.
Notes: when the washing machine is reused, make sure the ambient temperature is above 0 C
Anti-freeze
If your washing machine is located in the room where it can get frozen easily, please drain
the remaining water inside drain pipe and inlet pipe thoroughly.
Remove the remaining water in inlet pipe:
1.Close the tap.
2.Screw off the inlet pipe from tap and put its end into the container.
3.Start up any procedure except single Wash or Drain
procedure. Water will be drained out of inlet pipe if any
for about 40 seconds.
4.Reconnect the inlet pipe to tap.
Remove the remaining water in drain pump
To avoid burning, it shall be done after the hot water
inside the machine cools down.
Maintenance
Maintenance
Clean detergent box and grooves
Clean detergent drawer and grooves
1.Press down the arrow location on softener cover
inside the drawer.
2.Lift the clip up and take out softener cover and wash
all grooves with water.
3.Restore the softener cover and push the drawer into
position.
Clean inlet filter
Inlet filter shall must be cleaned if there is not any or
insufficient water in when the tap is opened.
Clean the tap filter:
1.Close the tap.
2.Select any procedure except “Wash” or “Drain”
procedure.
3.Press the button “Start/Pause” and keep the
procedure running for about 40 seconds.
4.Remove the inlet pipe from the tap.
5.Use water to wash the filter.
6.Reconnect the inlet pipe.
Washing the filter in washing machine:
1.Screw off the inlet pipe from the backside of the
machine.
2.Pull out the filter with long nose pliers and reinstall
it back after being washed.
3.Reconnect the inlet pipe.
4.Open the tap and make sure there is no water leakage.
5.Close the tap.
Notes: Generally, the tap filter is washed first and then the filter in washing machine will be washed.
If only the filter in washing machine is washed, then the steps 1~3 in cleaning the tap filter shall be
repeated.

18
P.25P.24
Pull out the power plug to avoid electrical shock before washing.
After using the washing machine, pull out the power cord and close the door tightly to avoid
pinching the kids.
Remove foreign matters
Drain Pump Filter:
Drain pump filter can filter the yarns and small foreign matters from the washings.
Clean the filter periodically to ensure the normal operation of washing machine.
According to the soil level within the cycles and the frequency of the cycles, you have to inspect
and clean the filter regularly.
The pump should be inspected if the machine does not empty and/or spin;
The machine makes an unusual noise during draining due to objects such as safety pins, coins
etc. blocking the pump.
The Service_panel proceed as follows:
When the appliance is in use and depending on the programme selected there can be hot water in the
pump. Never remove the pump cover during a wash cycle, always wait until the appliance has finished
the cycle, and is empty. When replacing the cover, ensure it is securely retight end so.
Warning!
2.Turn the filter down as
shown with the figure and
take out sundries matters.
1.After the power is dis-
connected, use hand to
open the filter cover.
3.Reinstall each part back
after sundries matters are
removed.
Maintenance
Troubles Reason Solution
Washing machine
cannot start up
Check if the door is closed tightly.
Check if power plug is inserted well.
Check if water supply tap is opened.
Check if button “Start/Pause” is pressed.
Check if button “On/Off” is pressed.
Door cannot be
opened
Heating fault
Water leakage
Water is
overflowed from
the bottom of the
machine
Indicator or
display does
not light.
Detergent
residues in the
box
Washing effects
are not good
Abnormal noise
Great vibration
The clothes are too dirty.
Insufficient detergent quantity.
Washing powder is dampened
and agglomerated.
Power is disconnected.
PC board has problems.
Harness has connection
problem.
The inlet pipe is not connected
firmly.
Outlet hose has water leakage.
NTC is damaged and heating
pipe is aging.
Machine's safety protection
design is working.
The connection between inlet
pipe or outlet hose and tap or
washing machine is not tight.
Drain pipe in the room is blocked.
Disconnect the power.
Can normally wash the clothes.
Only cannot wash with heating.
Shall contact the service center promptly.
Check and fasten water pipes.
Clean up outlet hose and ask a
specialized person to repair it when
necessary.
Fix the inlet pipe.
Replace the drain hose.
Check if the power is shut down and
power plug is connected correctly.
If not, please call up service line.
Clean and wipe the box.
Use liquid detergents or the detergents
special for drum.
Select a proper procedure.
Add the proper detergent quantity
according to the instructions in
detergent package.
Check if the fixing (bolts) has been removed.
If cabinet is installed on the solid and level
floor.
Check if there are any barrettes or metal
articles inside.
Check if the legs in the washing machine
are adjusted level.
Troubleshooting

19
P.25P.24
Pull out the power plug to avoid electrical shock before washing.
After using the washing machine, pull out the power cord and close the door tightly to avoid
pinching the kids.
Remove foreign matters
Drain Pump Filter:
Drain pump filter can filter the yarns and small foreign matters from the washings.
Clean the filter periodically to ensure the normal operation of washing machine.
According to the soil level within the cycles and the frequency of the cycles, you have to inspect
and clean the filter regularly.
The pump should be inspected if the machine does not empty and/or spin;
The machine makes an unusual noise during draining due to objects such as safety pins, coins
etc. blocking the pump.
The Service_panel proceed as follows:
When the appliance is in use and depending on the programme selected there can be hot water in the
pump. Never remove the pump cover during a wash cycle, always wait until the appliance has finished
the cycle, and is empty. When replacing the cover, ensure it is securely retight end so.
Warning!
2.Turn the filter down as
shown with the figure and
take out sundries matters.
1.After the power is dis-
connected, use hand to
open the filter cover.
3.Reinstall each part back
after sundries matters are
removed.
Maintenance
Troubles Reason Solution
Washing machine
cannot start up
Check if the door is closed tightly.
Check if power plug is inserted well.
Check if water supply tap is opened.
Check if button “Start/Pause” is pressed.
Check if button “On/Off” is pressed.
Door cannot be
opened
Heating fault
Water leakage
Water is
overflowed from
the bottom of the
machine
Indicator or
display does
not light.
Detergent
residues in the
box
Washing effects
are not good
Abnormal noise
Great vibration
The clothes are too dirty.
Insufficient detergent quantity.
Washing powder is dampened
and agglomerated.
Power is disconnected.
PC board has problems.
Harness has connection
problem.
The inlet pipe is not connected
firmly.
Outlet hose has water leakage.
NTC is damaged and heating
pipe is aging.
Machine's safety protection
design is working.
The connection between inlet
pipe or outlet hose and tap or
washing machine is not tight.
Drain pipe in the room is blocked.
Disconnect the power.
Can normally wash the clothes.
Only cannot wash with heating.
Shall contact the service center promptly.
Check and fasten water pipes.
Clean up outlet hose and ask a
specialized person to repair it when
necessary.
Fix the inlet pipe.
Replace the drain hose.
Check if the power is shut down and
power plug is connected correctly.
If not, please call up service line.
Clean and wipe the box.
Use liquid detergents or the detergents
special for drum.
Select a proper procedure.
Add the proper detergent quantity
according to the instructions in
detergent package.
Check if the fixing (bolts) has been removed.
If cabinet is installed on the solid and level
floor.
Check if there are any barrettes or metal
articles inside.
Check if the legs in the washing machine
are adjusted level.
Troubleshooting
TROUBLESHOOTING

20
P.26 P.27
Door lock
problem
Door is not closed properly. Restart after the door is closed.
Reason Solution Description
Display
LED
Please call up service line if there are still troubles.
Drain problem
while washing
Water injecting
problem while
washing
Tap is not opened or water
flows too slowly.
Inlet valve filter is blocked.
Inlet pipe is twisted.
If water is not supplied
Open the tap or wait till the
water supply becomes normal.
Check inlet valve filter.
Straighten the water pipe
Check the other taps in the
room.
Please call up service line if there are still troubles.
Please call up service line if there are still troubles.
Outlet hose is blocked or twisted
Drain pump is blocked
Wash and straighten outlet hose.
Wash drain pump filter
Please call up the service line if there is any other problem.
Remove the problems
The label and sign on the fabric can help you to choose the best way to launder your clothes.
Iron
Do not iron
Dry clean
Do not dry clean
Warm iron.medium
(max 150℃)
Cool iron(max 110 ℃ )
A
F
Dry clean normal cycle
with any solvent
Dry clean normal cycle
petroleum solvent only Dry flat
Tumble dry normal Drip dry
Hang to dry
/Line dry
Tumble dry. Low heat
(max 110℃)
Tumble dry. Medium
(max 150℃ )
C
C
Bleach
Do not bleach
Hand wash
Do not wash
40
Warm wash
(max 40℃ )
Chlorine bleach
may be used
Normal wash
Gentle wash
Chlorine bleach
not be used
Do not tumble dry
Iron with cloth
Steam Iron
Dry after wash
Line Dry in shade
Warmly dry clean
No Wring
Line Dry No machine wash
To avoid fire,electrical shock and other accidents,please remember the following reminding:
- Only the voltage indicated in power label can be used. If you are not clear of the voltage
at home, please contact the local power bureau.
- When you are using the heating function, the maximum current through the washing
machine will reach 10A. Therefore, please make sure the power supply units (current,
voltage and cable) can meet the normal load requirements for the machine.
- Protect the power cord properly. Power cord shall be fixed well so that it will not trip the
people or other things and be damaged. Special attention shall be paid to the socket. It
shall be plugged into the sockets easily and attention shall be paid to the plug location.
- Do not make the wall-mounted socket overloaded or cable extended. Overloading of the
wiring may cause fire or electrical shock. Do not pull out power plug with wet hand.
- To ensure your safety, power plug shall be inserted into an earthed three-pole socket.
Carefully check and ensure that your socket is properly and reliably earthed.
Appendix
P.28
公司地址下方需添加公司网站或相关人邮件信息，例如：
You can find relevant information via the email:[e-mail]
是否添加根据各订单顾客需求而定。
P.29
Wuxi Little Swan Co., Ltd.
No.18 ChangJiang South Road, Wuxi City, Jiangsu Province, China
Dimension(W*D*H)
Net Weight
Rated Power
MAX.Current
Standard Water Pressure
Washing Capacity
Power Supply
595*565*850
72kg
1950W
10A
0.05MPa~1MPa
9.0kg
220-240V~,50Hz
Product Specifications
ADDITIONAL INFORMATION FOR Standard performance TESTING:
(AS/NZS 2040.1:2005+Amdt1-2007+Amdt2-2009)
1. Water connections:Cold & hot water connection
2. Water supply pressure: 320 kPa
3. Warm wash Program: Cotton 60℃ Display: 4:46
Cold wash program: Cotton Cold( no temperature display is cold wash)
4. Detergent type: Drum detergent
5. Detergent quantity: Default
6. Adding detergent:
The detergent is dissolved and added as Paragraph B7.3 of AS/NZS 2040.1
The detergent shall be dissolved in 1 L of water
7. Anti-sudsing agent: Max
8. Test load mass: 9.0kg
9. Water consumption: L
10.Test Voltage:220-240V~,50Hz
92
Testing methods
TECHNICAL DATA
