Toshiba TW-BL85A2 Series User manual

OWNER’S MANUAL
FRONT LOADING
WASHING MACHINE
Read This Manual
Read and follow the instructions carefully.
Keep the operation instructions handy for
use . future
MODEL:
TW-BL85A2 Series
TW-BL95A4
TW-BL105A4 Series
TW-BL115A2 Series
Series

1
CONTENTS
SAFETY INSTRUCTIONS
INSTALLATION
OPERATIONS
MAINTENANCES
Safety Instructions……………………………………
Product Description …………………………………
Installation …………………………………………
Quick Start……………………………………………
Before Each Washing…………………………………
Detergent Dispenser…………………………………

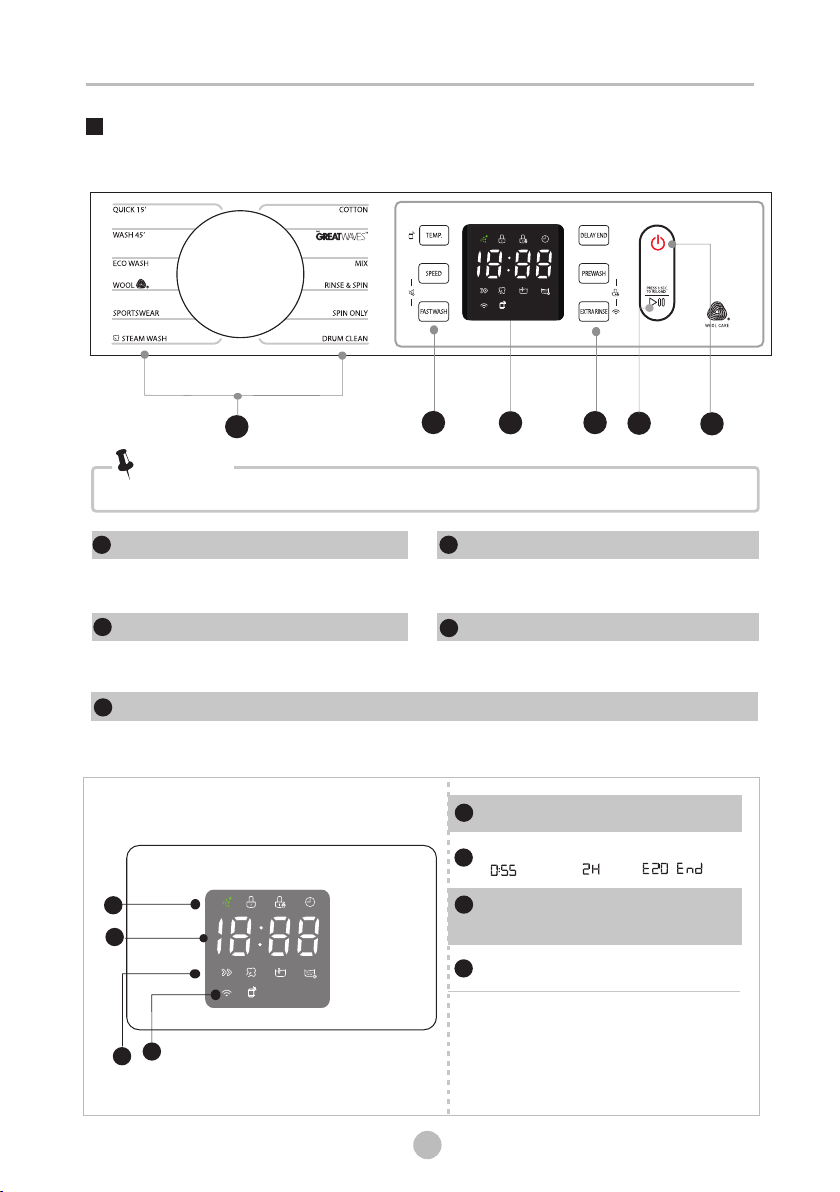

Control Panel…………………………………………
Option ………………………………………………
Programmes …………………………………………
Cleaning And Care …………………………………
Trouble Shooting ……………………………………
Technical Specifications ……………………………
2
10
11
15
16
17
18
19
26
31
34
35

2
SAFETY INSTRUCTIONS
Safety Instructions
• This appliance is not intended for use by persons
(including children) with reduced physical,sensory or mental
capabilities or lack of experience and knowledge unless they
have been given supervision or instruction concerning use of
the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play
with the appliance.
• If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons
in order to avoid a hazard.
• The new hose-sets supplied with the appliance are to be used
and that old hose-sets should not be reused.
• The openings must not be obstructed by a carpet.
• This appliance is intended to be used in household.
• The maximum permissible inlet water pressure is 1 MPa.
The minimum permissible inlet water pressure 0.05 MPa is .

3
SAFETY INSTRUCTIONS
Safety Instructions
For your safety,the information in this manual must be followed
to minimize the risk of fire or explosion, electric shock, or to
prevent property damage, personal injury or loss of life.
Explanation of the symbols:
manufacturer, its service agent or similarly qualied
persons in order to avoid a hazard.
• If the supply cord is damaged, it must be replaced by the
The electric shock!
This combination of symbol and signal word indicates
a potentially dangerous situation which may result in
death or serious injuries unless it’s avoided.
Warning!
This combination of symbol and signal word indicates
a potentially dangerous situation which may result in
slight or minor injuries.
Note!
This combination of symbol and signal word indicates
a potentially dangerous situation which may result in
slight or minor injuries or damage to property and the
environment.
Caution!
Warning!

4
• The new hose-sets supplied with the appliance must
be used and the old hose-sets must not be used.
• Before maintenance, unplug the appliance.
• Always unplug the machine and turn off the water
supply after use. The standard inlet water pressure:
0.05MPa~1MPa.
• This appliance must be grounded. In the event of
malfunction or breakdown , grounding will reduce the
risk of electric shock by providing a path of least
resistance for electric current.
• This appliance is equipped with a cord having an
equipment-grounding conductor and grounding plug.
The plug must be plugged into an appropriate outlet
that is properly installed and grounded in accordance
with all local codes and ordinances.
SAFETY INSTRUCTIONS
• Improper connection for the appliance when using
not grounded outlet or when GND terminal of outlet
is not suitable with GND terminal of power plug, can
result in risk of electric shock. Check with a qualified
electrician or service person if you are in doubt as to
whether the appliance is properly grounded.
• Do not modify the plug provided with the appliance.
If it does not fit the outlet , have a proper outlet
installed by a qualified electrician.
• Make sure that the water and electrical devices must
be connected by a qualified technician in accordance
with the manufacturer's instructions and local safety
regulations.

5
SAFETY INSTRUCTIONS
Risk to children !
• The appliance can be used by children aged from 8 years and persons
with reduced physical, sensory or mental capabilities or
or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards
involved.
• Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made
by children without supervision.
• Children of less than 3years should be supervised to
ensure that they do not play with appliance.
• Animals and children may climb into the machine. Check
the machine before every operation.
• Children should be supervised that they do not play with
the appliance.
•
•
•
Pull out its plug from the power socket before cleaning
or maintenance.
Do not use any socket with rated current less than that
of appliance. Never pull out power plug with wet hand.
Please remember to disconnect water and power supply
immediately after the clothes are washed.
• Glass door may be very hot during the operation. Keep
children and pets far away from the machine during the
operation .
• Remove all packages and transport bolts before using
the appliance. Otherwise, serious damage may result.
• Plug must be accessible after installation.

Risk of explosion!
• Items that have been soiled with substances such as cooking oil,
acetone, alcohol, petrol, kerosene, spot removers, turpentine, wax
and wax removers should be washed in hot with an extra amount
of detergent.
The appliance must not be installed behind a lockable
door, a sliding door or a door with a hinge on the
opposite side to that of the washer dryer.
• The appliance is for indoor use only.
• It isn't intended to be built-in using.
• The openings must not be obstructed by a carpet.
• The appliance shall not be installed in bath room or
very wet rooms as well as in the rooms with explosive
or explosive and corrosive gases.
• The appliance with single inlet valve only can be
connected to the cold water supply.
• Plug must be accessible after installation.
•
Installing the product!
SAFETY INSTRUCTIONS
Caution!
6

• Remove all packages and transport bolts before using
the appliance. Otherwise, serious damage may result.
Risk of damaging appliance!
• Your product is only for home use and is only designed
for the textiles suitable for machine washing.
• Do not climb up and sit on top cover of the machine.
• Do not lean against machine door.
• Cautions in transporting the appliance:
1.Transport bolts shall be reinstalled to the machine by
a specialized person.
2.The accumulated water shall be drained out of the
machine.
3.Handle the machine carefully. Never hold each protruded
part on the machine while lifting. Machine door can
not be used as the handle during the conveyance.
4.This appliance is heavy. Transport with care.
5.Hands shall not be inserted into running drum.
• Please do not close the door with excessive forces. If it
is found difficult to close the door, please check if the
clothes are put in or distributed well.
• It is forbidden to wash carpets.
Operating the appliance!
• Before washing the clothes at first time, the product
shall be operated in one round of the whole procedures
without the clothes inside.The suggested program is
“DRUM CLEAN”.
• Flammable and explosive or toxic solvents are forbidden.
Gasoline and alcohol etc.Shall not be used as detergents.
Please only select the detergents suitable for machine
washing, especially for front load washing machine.
SAFETY INSTRUCTIONS
7

• Make sure that all pockets are emptied. Sharp and rigid
items such as coin,brooch,nail,screw or stone etc. may
cause serious damages to this machine.
• Please check whether the water inside the drum has
been drained before opening its door.Please do not open
the door if there is any water visible.
• Be careful of burning when the product drains hot
washing water.
• Never refill the water by hand during washing.
• After the program is completed, Please wait for two
minutes to open the door.
SAFETY INSTRUCTIONS
8

SAFETY INSTRUCTIONS
•
•
Fabric softeners, or similar products, should be used
as specified by the fabric softener instructions.
Remove all objects from pockets such as lighters and matches
before use the appliance.
9

Product Description
• The product line chart is for reference only, please refer to real product as
standard.
Note!
10
INSTALLATION
Drum
Power supply cord
Control panel
Detergent dispenser
Drain pump filter
Door
Water supply hose
Top cover
Drain hose
Accessories
Transport
plughole
Supply hose
cold water
Drain hose
(
support
optional)
Owner’s manual Screw(optional) Rat resistance
panel(optional)
Spanner assembly
(optional)
Container(optional)

INSTALLATION
Installation

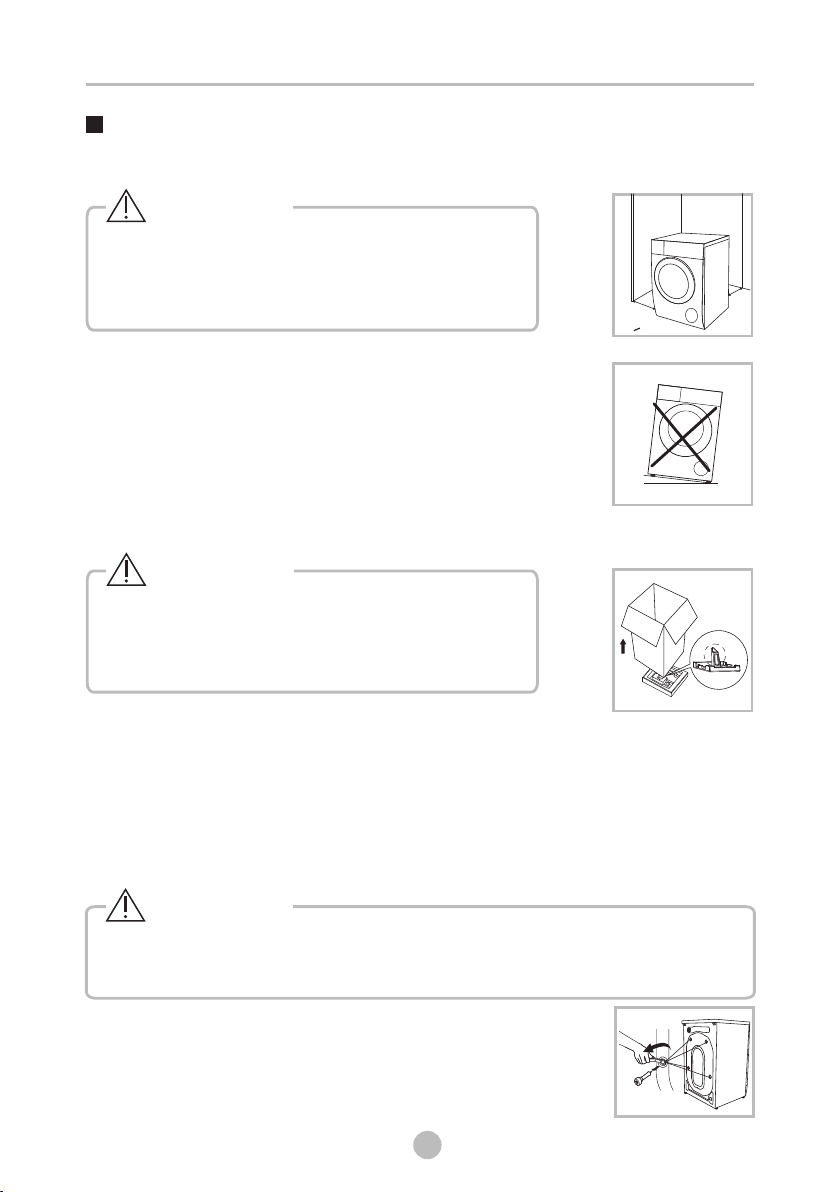

Before installing the machine, the location characterized
as follows shall be selected:
1.Rigid, dry, and level surface
2.Avoid direct sunlight
3.Sufficient ventilation
4.Room temperature is above 0 C
5.Keep far away from the heat resources such as coal or gas.
°
Unpacking the washing machine
1. Remove the cardboard box and styrofoam packing.
2. Lift the washing machine and remove the base packing.Make sure the small triangle
foam is removed with the bottom one together. If not, lay the unit down with side
surface, then remove the small foam from the unit bottom manually.
3. Remove the tape securing the power supply cord and drain hose.
4. Remove the inlet hose from the drum.
Please take the following steps to remove the bolts:
1.Loosen 4 bolts with spanner and then remove them.
2.Cover the hole with transport hole plugs.
3.Keep the transport bolts properly for future use.
Remove transport bolts
• Stability is important to prevent the product from
wandering!
• Make sure that the product should not stand on
the power cord.
Warning!
• Packaging material (e.g. Films, Styrofoam) can be
dangerous for children.
• There is a risk of suffocation ! Keep all packaging
well away from children.
Warning!
• You must remove the transport bolts from the backside before using the product.
• You’ll need the transport bolts again if you move the product , so make sure
you keep them in a safe place.
Warning!
w
w
W 20mm>
Installation area
11

12
INSTALLATION

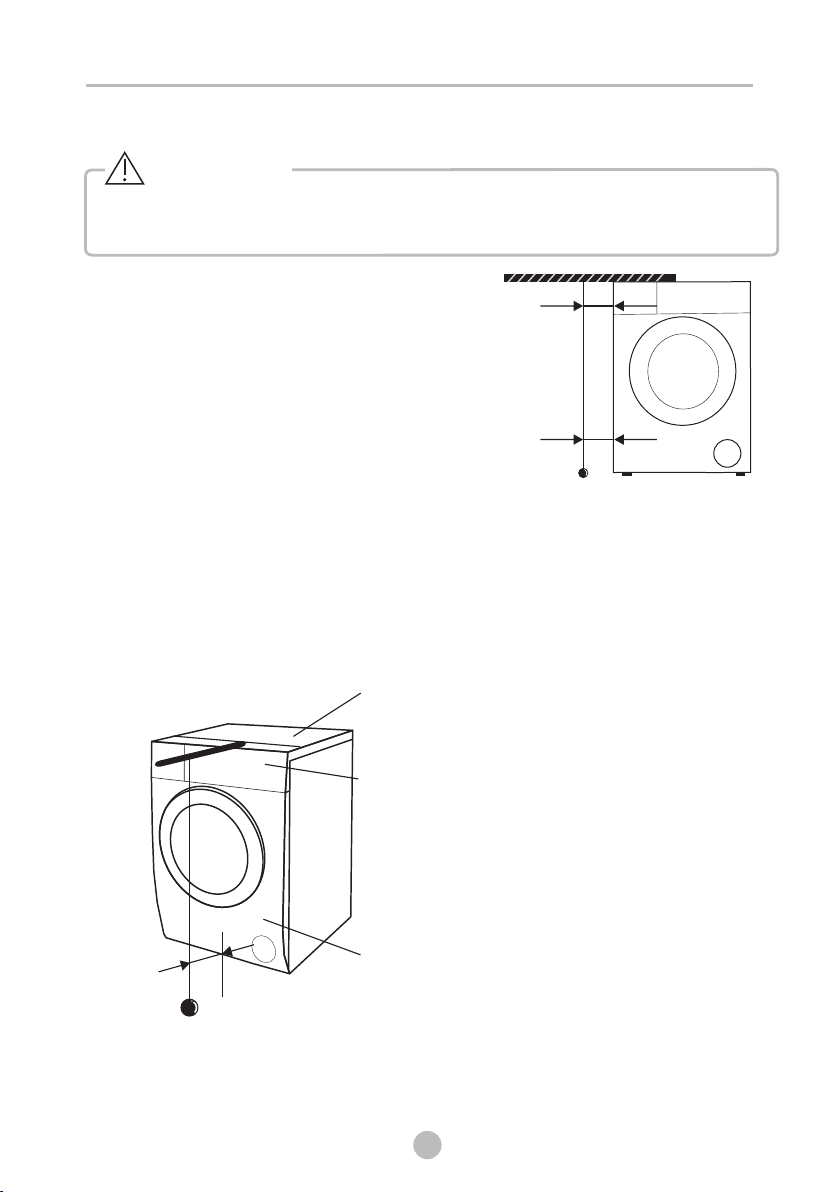

Levelling the washing machine
• Check with the gradienter if the machine placement is balanced and steady.
• If there is no gradienter, check the balance as per the following method.
Warning!
b
a
cFront Cover
Control Panel
Top Cover
1.If it’s balanced from left to right.
• Take a long stick, and tie a rope at the end of it.
Bind a heavy object at the end of the rope.
• Hang the rope from the top cover of the
machine. Adjust the legs till the difference
between ‘a’ and ‘b’ is less than 1cm.
2.If it’s balanced from front to back
• Put the stick at the middle of the control panel, and hang the rope in front of the
machine.
• Keep 10cm away from the rope end to the control panel edge. Adjust the legs till
‘c’ is 3.5~4.5cm (‘c’ is the distance from rope to bottom of front cover ).

INSTALLATION
1.Check if the legs are closely attached to the cabinet. If not, please turn them to
their original positions tighten the nuts.
2.Loosen the lock nut turn the feet until it closely contacts with the floor.
3.Adjust the legs and lock them with a spanner, make sure the machine is steady.
Levelling the washing machine
• The lock nuts on all four feet must be screwed tightly against the housing.
Connect Water Supply Hose
Connect the inlet pipe as indicated, There are two ways to connect the inlet pipe.
1.Connection between ordinary tap and inlet hose.
• To prevent leakage or water damage, follow the instructions in this chapter
• Do not kink, crush, modify or sever water inlet hose.
!
234 1
Raise Lower
Lock nut
foot
Warning!
Warning!
Loosen clamp nut and
four bolts
Press the tap end
tightly to the rubber
ring inside the clamp,
and then, tighten the
4 bolts
Press slide bushing,
insert inlet hose into
connecting base
slide bushing
2341
Connection finished
clamp nut
Tap with threads and inlet hose Special tap for washing machine
2.Connection between screw tap and inlet hose.
slide bushing
13

INSTALLATION
Warning!

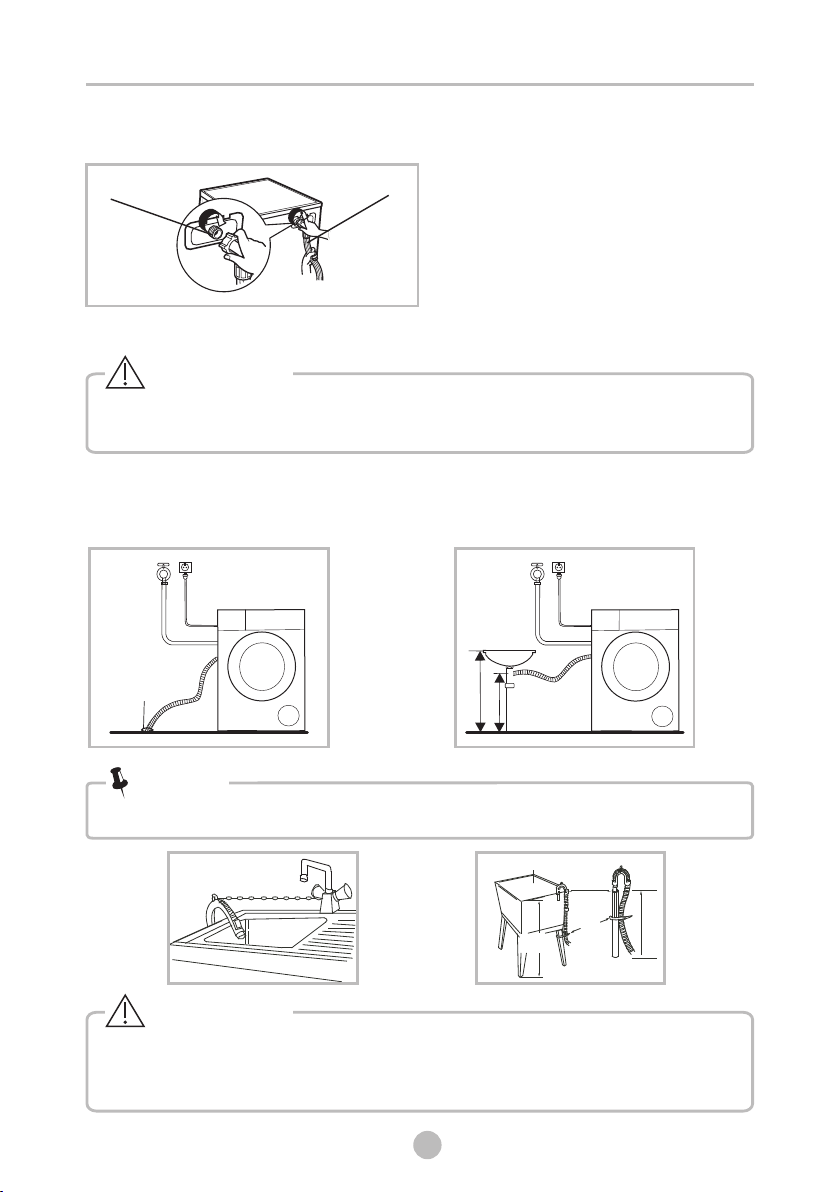

Drain Hose
There are two ways to place the end of drain hose:
1.Put it into the drain port. 2.Connect it to the branch drain pipe of
the trough.
•
• If drain hose is too long, do not force it into washing machine as it will cause
abnormal noises.
When installing drain hose, fix it properly with a rope.
•
•Position drain hose properly ,otherwise damage might result of water leakage.
Do not kink or protract the drain hose.
Drain port
Min.60cm
100cm
Max.
Trough
Hose Retainer
Bin d
Max.100cm
Min.60cm
Min.60cm
Max.100cm
If the machine has
• drain hose support, please install it like the following .
Warning!
Note!
water supply hose
water Inlet valve
Connect the other end of inlet pipe to the inlet valve at the backside of product
and fasten the pipe tightly clockwise.
14

1. Before Washing
Buzzer beep or “End” on display.
Open tap
Load
Close door
Plug in
Add detergent
Quick Start
3. After Washing
• Detergent only need to be added in "case I “after selecting pre-washing
for machines with this function.
1 2 3 4 5
2. Washing
Power On
Select Programme Select function
or default
Start up
1 2 3 4
• If default is selected, step 3 can be skipped.
Note!
Note!
OPERATIONS
Main wash
Prewash
Softener
10
15
• Before washing, please make sure it’s installed properly.
• Before washing at first time, the washing machine shall be operated in
one round of the whole procedures without clothes in as follows.
The suggested program is “DRUM CLEAN”.
Caution!

Knot the longstrips,zip or
button
• When washing a single clothes, it may easily cause great imbalance and give
alarm. Therefore it is suggested to add one or two more clothes to be washed
together so that washing process can be done smoothly.
• Don't wash the clothes soaked in kerosene, gasoline, alcohol and other
flammable materials.
• The working condition of the washer should be(0-40)°C.If used under 0°C,the
inlet valve and draining system may be damaged. If the machine is placed under
condition of 0°C or less, then it should be transferred to normal ambient
temperature to ensure the water supply hose and drain hose are not frozen
before use.
•Please check the labels and the explanation of using detergent before wash. Use
non-foaming or less-foaming detergent suitable for machine washing properly.
Take out the items out of
the pockets
Put small clothes into the
pillow slip
Check the label
Before Each Washing
Turn easy-pilling and
long-pile fabric inside out
Separate clothes with
different textures
Warning!
OPERATIONS
16

Programme
COTTON
GREATWAVES
MIX
RINSE&SPIN
SPIN ONLY
DRUM CLEAN
Means must Means optional ○
Programme
STEAM WASH
SPORTSWEAR
WOOL
ECO WASH
WASH 45’
QUICK 15’
Detergent Dispenser
• As for the agglomerated or ropy detergent or additive, before they are
poured into the detergent box, it is suggested to use some water for
dilution to prevent the inlet of detergent box from being blocked and
overflowing while filling water.
• Please choose suitable type of detergent for the various washing
temperature to get the best washing performance with less water and
energy consumption.
Note!
Caution!
• Detergent only need to be added in "case I “after selecting pre-washing
for machines with this function.
17
OPERATIONS
• To prevent the powder detergent from remaining in the dispenser under
low water pressure, charge the powder detergent into the container, then
put the container into the drum.
Pre wash
Main wash
Softener
II
I
Release button to
pull out the dispenser

Control Panel
OPERATIONS
18
On/Off
Product is switched on or off.
Start/Pause
Press the button to start or pause the
washing cycle.
Programmes
Available according to the laundry type.
Option
This allows you to select an additional
function and will light when selected.
Note!
• The chart is for reference only, Please refer to real product as standard.
1
3
2
4
Display
The display shows the settings, estimated time remaining, options, and status
messages for your washer. The display will remain on through the cycle.
5
Fast Wash-Steam-Prewash-Extra
Rinse
D
Wifi-Remote Control
С
C
A
A
B
D
UFB-Door Lock- -Delay EndChild Lock
B
Wash Time Delay EndTime
Error End
433
521

PREWASH
The Prewash function can get an extra wash before main wash,it is suitable for
washing the dust rises to surface of the clothes;You need to put detergent into
the Case (I) when select it.
EXTRA RINSE
The laundry will under go extra rinse once after you select it.
FAST WASH
The function can decrease the washing time.
Option
10
19
OPERATIONS
DELAY END
Set the Delay end function:
1. Select a programme
2.Press the DELAY END button to choose the time(the delaying end time is 1-24 H.)
3.Press [Start/Pause] to commence the delay operation
Choose the Programme Start
On/Off Setting time
DELAY
END
[ ]
[On/Off]
Cancel the Delay function:
Press the DELAY END button until the display be 0H.It should be pressed before
starting the programme. If the programme already started, should press the
button to reset the programme.
Caution!
• If there is any break in the power supply while the machine is operating, a special
memory stores the selected programme and when the power is restarted, press the
[Start/Pause]button the program will continue(some machines you can directly
run the previous program without pressing [Start/Pause] button ).
STEAM
Steam function is only selectable from the app. For program STEAM WASH,
steam function is on by default.
