Indesit FID20 Mk2 User manual

Electric built in Double oven
Instructions for installation and use
FID20 Mk2
FIDM20 Mk2

Contents
You must read these instructions prior to using the
appliance and retain them for future reference.
Introduction 2
Safety Information 3
Features 5
Temperature Conversion Chart 7
Controls 8
Multifunction Switch (FIDM20 only) 10
Oven Timer Operation 11
Grill Pan and Handle 17
Grilling Notes 18
Using the Top Oven for Grilling (FID20 only) 19
Using the Top Oven for Grilling (FIDM20 only) 21
Using the Top Oven as a Convection Oven 22
Operation when using the Top Oven as a Convection Oven 23
Top Oven Cookery Notes 24
Top Oven Temperature Charts 25
Main Oven - Fan Grilling (FIDM20 only) 27
Main Oven - Fan Grilling Roasting Chart (FIDM20 only) 28
Using the Main Oven for other Functions 29
Main Oven - Convection Oven (FIDM20 only) 30
Main Oven - Fan Oven 30
Main Oven - Fan Oven Cookery Notes 31
Main Oven Temperature Charts 33
Main Oven Grilling (FIDM20 only) 35
Care and Cleaning 36
Installation 41
Something Wrong? 45
If it Still won’t Work 46
Key Contacts Back Cover
1

Introduction
2
This appliance conforms to the following EEC Directives:
Electromagnetic Compatibility Low Voltage Equipment
89/336/EEC 73/23/EEC
92/31/EEC 93/68/EEC
93/68/EEC
Your new appliance is guaranteed* and will give lasting service. This guarantee is only applicable
if the appliance has been installed in accordance with the installation instructions detailed in
this booklet.
To help make best use of your cooking equipment, please read this booklet carefully.
The cooker is designed specifically for domestic use and responsibility will not be accepted for
use in any other installation.
To help remove the ‘new’ smell, heat up the empty ovens to maximum temperature for a
minimum of two or three hours, keeping the oven doors closed. Ensure that the room is well
ventilated (e.g. open a window or use an extractor fan) and that persons who may be sensitive
to the odour avoid any fumes.
It is suggested that any pets be removed from the room until the smell has ceased.
This odour is due to temporary finish on oven liners and elements and also any moisture
absorbed by the insulation.
When the cooker is first used an odour may be emitted,
this will cease after a period of use
* The guarantee is subject to the provisions that the appliance:
(a) Has been used solely in accordance with the Users Instruction Book.
(b) Has been properly connected to a suitable supply voltage as stated on the
rating plate attached to this equipment.
(c) Has not been subjected to misuse or accident or been modified or repaired by
any person other than the authorised employee or agent.
(d) Has been correctly installed.

Always
●Always make sure you remove all packaging and literature from inside the oven
and grill compartments before switching on for the first time.
●Always make sure you understand the controls prior to using the appliance.
●Always keep children away from the appliance when in use as the surfaces will
get extremely hot during and after cooking.
●Always make sure all controls are turned off when you have finished cooking
and when not in use.
●Always stand back when opening an oven door to allow any build up of steam or
heat to disperse.
●Always use dry, good quality oven gloves when removing items from the
oven/grill.
●Always take care to avoid heat/steam burns when operating the controls.
●Always turn off the electricity supply at the wall switch before cleaning and
allow the appliance to cool.
●Always make sure the shelves are in the correct position before switching on the
oven.
●Always keep the oven and grill doors closed when the appliance is not in use.
●Always take care when removing utensils from the top oven when the main oven
is in use as the contents may be hot.
●Always keep the appliance clean as a build up of grease or fat from cooking can
cause a fire.
●Always follow the basic principles of food handling and hygiene to prevent the
possibility of bacterial growth.
●Always keep ventilation slots clear of obstructions.
●Always refer servicing to a qualified appliance service engineer.
●During use the oven becomes hot. Care should be taken to avoid touching
heating elements inside the oven,
SAFETY ADVICE
IN THE EVENT OF A CHIP PAN OR ANY OTHER PAN FIRE:
1. TURN OFF THE COOKER APPLIANCE AT THE WALL SWITCH.
2. COVER THE PAN WITH A FIRE BLANKET OR DAMP CLOTH, this will smother the
flames and extinguish the fire.
3. LEAVE THE PAN TO COOL FOR AT LEAST 60 MINUTES BEFORE MOVING IT.
Injuries are often caused by picking up a hot pan and rushing outside with it.
NEVER USE A FIRE EXTINGUISHER TO PUT OUT A PAN FIRE as the force of
the extinguisher is likely to tip the pan over. Never use water to extinguish
oil or fat fires.
3
Safety Information
When used properly your appliance is completely safe but as with any electrical product
there are certain precautions that must be observed.
PLEASE READ THE PRECAUTIONS BELOW BEFORE USING YOUR APPLIANCE.

Never
●Never leave children unsupervised where a cooking appliance is installed as all
cooking surfaces will be hot during and after use.
●Never allow anyone to sit or stand on any part of the appliance.
●Never store items above the appliance that children may attempt to reach.
●Never remove the oven shelves whilst the oven is hot.
●Never heat up unopened food containers as pressure can build up causing the
container to burst.
●Never store chemicals, food stuffs or pressurised containers in or on the
appliance, or in cabinets immediately above or next to the appliance.
●Never operate the grill with the door closed as this will cause the appliance to
overheat.
●Never use the appliance as a room heater.
●Never use the grill to warm plates.
●Never dry any items on the oven doors.
●Never install the appliance next to curtains or other soft furnishings.
●Never allow children to play with the appliance controls.
●Never use ‘steam cleaners’.
4
Safety Information

Features (FID20 only)
5
WARNING: Do not touch the glass doors when the oven is in use as these areas can
become hot.
❍❍❍
NEVER line the shelves, floor or sides of the oven or grill with aluminium foil as
overheating and damage may result.
TOP OVEN
TEMPERATURE CONTROL
TIMER
GRILL PAN &
FOOD SUPPORT
TOP OVEN
DOOR
OVEN LIGHT
OVEN SHELF
MODEL & SERIAL NUMBER
GRILL
SETTING
CONTROL
GRILL
ELEMENT
FAN GRILL
ELEMENT
CATALYTIC
LINER
OVEN FAN
CATALYTIC
LINER
INNER DOOR
GLASS MAIN OVEN
DOOR
GRILL SHELF
INNER DOOR
GLASS
MAIN OVEN TEMPERATURE
& FUNCTION CONTROL
MAIN OVEN PILOT LIGHT
TOP OVEN PILOT LIGHT

Features (FIDM20 only)
6
TOP OVEN
TEMPERATURE
CONTROL
TIMER MAIN OVEN PILOT LIGHT
TOP OVEN PILOT LIGHT
GRILL PAN &
FOOD SUPPORT
TOP OVEN
DOOR
MAIN OVEN
LIGHT
TOP OVEN
LIGHT
OVEN SHELF
MODEL & SERIAL NUMBER
GRILL
SETTING
CONTROL
GRILL
ELEMENT
FAN GRILL
ELEMENT
CATALYTIC
LINER
OVEN FAN
CATALYTIC
LINER
INNER DOOR
GLASS
MAIN OVEN
DOOR
GRILL SHELF
INNER DOOR
GLASS
❍❍❍❍
MAIN OVEN
TEMPERATURE
CONTROL
MULTIFUNCTION
SELECTOR
WARNING: Do not touch the glass doors when the oven is in use as these areas can
become hot.
NEVER line the shelves, floor or sides of the oven or grill with aluminium foil as
overheating and damage may result.

Temperature Conversion Chart
7
The chart below gives details of comparisons of oven settings for gas
conventional ovens and fan oven in degrees ˚F and ˚C
CONVENTIONAL
OVEN
˚F ˚C
250 120
275 140
300 150
325 160
350 180
375 190
400 200
425 220
450 230
475 240
GAS
MARK
1/2
1
2
3
4
5
6
7
8
9
FAN
OVEN
˚C
100
120
130
140
160
170
180
200
210
220

Controls (FID20 only)
8
Cooling Fan: A gentle flow of air will be blown below the control panel when the grill
control is used and after a short period of time when the ovens are used.
Note: Whenever the appliance has been used, the cooling fan may
run on or restart itself after all the controls have been turned off.
This indicates that the appliance is still warm.
Oven Interior The oven lights are operated when their respective oven control is
Lights used. (N.B. Not all models have a top oven interior light).
The main oven has a light only position.
CONTROL MARKINGS
Note: It is advisable to check that all oven controls have been switched off when you have
finished using the appliance.
Control Knob Description
Grill Setting Control
Top Oven Temperature
Control
Main Oven Temperature &
Function Control
A
B
C
Function
Selects the heat at which the grill will cook the food.
min – max Grill Settings Control:
min = Low, max = High
- Selects the cooking temperature
(Degrees Centigrade) when using the top
oven as a conventional oven
.
Fan Only Setting
- This is used to decrease the amount
of time required to defrost food items.
Oven Light Only
- Switches on the Main Oven Interior
Light Only.
Main Oven Temperature Scale
(in Degrees Centigrade).
- When cooking select the required
cooking temperature.
100 -
MAX
90 -
MAX
AGRILL SETTING
CONTROL
BTOP OVEN TEMPERATURE
CONTROL
TOP OVEN PILOT MAIN OVEN PILOT
CMAIN OVEN TEMPERATURE
AND FUNCTION
CONTROL
TIMER

Controls (FIDM20 only)
9
IMPORTANT
Before using your oven in the ordinary way, ALWAYS make sure that the timer has been
set to MANUAL operation. Unless this is done, the main oven cannot heat up.
Before seeking assistance, make sure this is done (refer to oven timer operation).
MULTIFUNCTION SELECTOR
Rotate the control knob in either direction to the required function. Many of the
functions will also require the main oven thermostat to be set before the oven will heat
up.
MAIN OVEN TEMPERATURE CONTROL
This is used in addition to the multifunction selector. This is used for the functions: fan
oven, fan grill, half grill and full grill and convection oven.
Turn the control clockwise to set the oven thermostat to the required temperature.
If the timer is set correctly and the selector switch set to a suitable function an indicator
light will illuminate (Fan Oven, Convection Oven and Fan Grilling modes only). This will
remain on until the oven reaches the required temperature. This light will then cycle on
and off as the thermostat maintains control of the oven temperature.
TOP OVEN TEMPERATURE CONTROL
Turn the control clockwise to set the top oven thermostat to the required temperature.
An indicator light will illuminate. This will remain on until the oven reaches the required
temperature. This light will then cycle on and off as the thermostat maintains control of
the oven thermostat.
GRILL CONTROL
The grill control is designed to provide variable heat control of either both grill elements
on together or the single left-hand grill element only.
To set the grill power, turn the grill control:
- clockwise for FULL grill to any setting MIN - MAX, or
- anti-clockwise for HALF grill to any setting MIN - MAX.
COOLING FAN
A gentle flow of air will be blown below the control panel when the grill control is used and
after a short period of time when the ovens are used.
Note: Whenever the appliance has been used, the cooling fan may run on or restart
itself after all the controls have been turned off. This indicates that the appliance is still
warm.
TOP OVEN PILOT
AGRILL SETTING CONTROL
BTOP OVEN TEMPERATURE CONTROL DMULTIFUNCTION SELECTOR
CMAIN OVEN TEMPERATURE CONTROL
TIMER MAIN OVEN PILOT

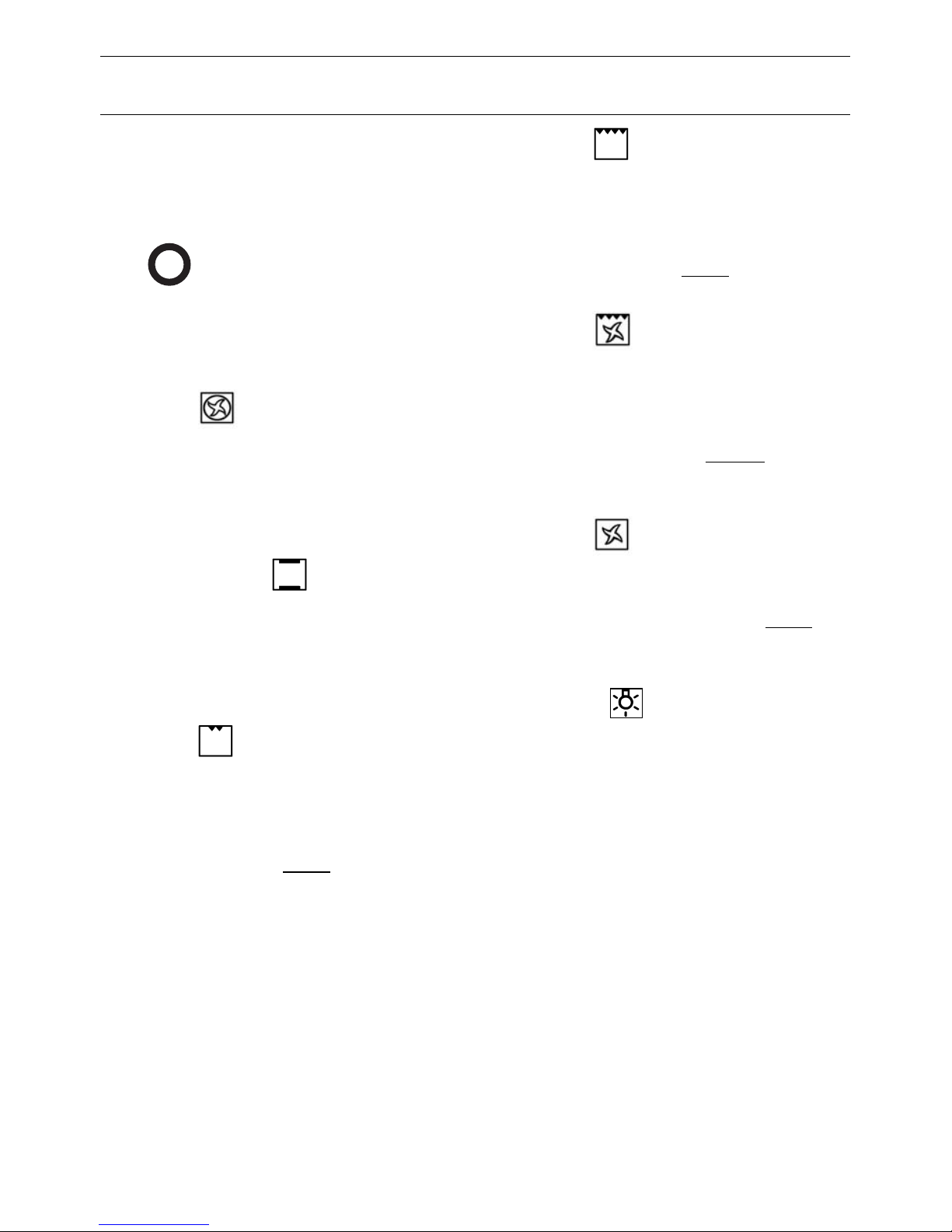

Multifunction Selector Switch (FIDM20 only)
10
The Multifunction selector switch is
used when operating the main oven.
With the exception of the O position
the main oven light will remain on
when this selector switch is used.
Off
With the selector in this position the
main oven will not heat up. The timer
will still operate.
Fan Oven
The oven fan and a rear element are
controlled when this function is selected.
Use the main oven thermostat control
to set the required temperature.
Convection Oven
Top and base elements are controlled
when this function is selected.
Use the main oven thermostat to set the
required temperature.
Half Grill
With this function selected only the left
hand side of the grill will be on.
Use the oven thermostat control to set
the required temperature.
Oven door must be open for grilling.
Full Grill
Both inner and outer grill elements will
be on in this position.
Use the oven thermostat control to set
the required temperature.
Oven door must be open for grilling.
Fan Grill
The oven fan and fan grill element are
controlled when this function is selected.
Use the oven thermostat control to set
the required temperature.
Oven door must be closed for fan
grilling.
Fan Only
The oven fan will operate when this
function is selected.
The oven thermostat control must be
set in the off position.
Light Only
This function switches on the oven light
only.

Oven Timer Operation
11
The Main Oven (only) can be controlled by the automatic timer.
1. Select foods which will require the same cooking time and
temperature.
2. To ensure food does not cool down and require reheating, set the end
time so the food is ready when you require it.
3. Always ensure that meat and poultry is defrosted before placing in the
oven.
4. Whenever possible, take food out of the refrigerator and keep it as
cool as possible.
5. If cooking food that requires frying before placing in the oven for auto
cooking, keep the delay start time to a minimum.
6. Never place hot or warm food in the oven for delay start cooking as it
could cause the oven to be warm and produce harmful bacteria in the
food.
7. We advise that dishes containing left-over cooked poultry or meat, e.g.
Shepherd's Pie, should not be cooked automatically if there is to be a
delay period.
8. Ensure that delay start times are kept to a minimum to prevent
bacterial growth in food.
9. Wine or beer may ferment and cream may curdle during the delay
period so it is best to add these ingredients just before serving.
10. Foods which discolour should be protected by coating in fat or tossing
in water to which lemon juice has been added, prior to placing food in
the oven.
11. Dishes containing liquid should not be filled too full to prevent boiling
over.
12. Food should be well sealed (but not airtight) in a container to prevent
the loss of liquid during cooking. Aluminium foil gives a good seal.
13. Always ensure that food is piping hot and cooked thoroughly before
serving.
14. Only reheat food once.
Automatic Cooking
Hints on
Automatic
Cooking
Note: Timer must be set to ‘Time of Day’ and ‘Manual’ before the
ovens can be used.
NEVER operate the grill or top oven when the main oven is set
to cook automatically because the oven cavity can become
warm and this may cause bacterial growth in food.

12
Know Your Timer
CLOCKFACE
The timer incorporates a 24 hour clock.
Ensure the correct time of day is always set, before using your cooker.
SYMBOLS
A ‘bell’ symbol will light up when you select a Minute Minder Period and will
remain lit for the period set.
At the end of the Minute Minder Period, the timer will emit an audible tone and
the ‘bell’ symbol will disappear.
The ‘cookpot’ symbol will light up either:–
– When the timer is in manual mode, or
– During the actual Cook Period.
‘AUTO’ will light up:–
– When the timer is first turned on it will flash. It will go out when a time of day
is set or when the timer is set to manual.
The ‘AUTO’ symbol will flash at the end of an Auto Cooking programme to
indicate that the programme has finished.
(When the ‘AUTO’ symbol is flashing, to return the oven to Manual operation,
turn the oven controls off, ensure that the correct time of day is set, and press
the “Manual” button – The ‘AUTO’ symbol will go out).
Here you can set a time period of up to 23 hours 59 minutes, that will count down.
When it reaches zero, the timer will emit an audible tone.
For Example: If you set 20 minutes, the audible tone will occur 20 minutes later.
Cook Period is the actual length of time for which, the timer will switch the oven(s)
on as part of an “Auto Cooking” programme.
(e.g. If you set 2 hours, the food will be cooked for 2 hours).
The time of day at which you want an “Auto Cooking” programme to end.
For Example: If you set a “Cook Period” for 2 hours, and “End Time” of 11:00. The
timer will switch the oven(s) on at 9:00 and turn the oven(s) off at 11:00. You will hear
a audible tone at 11:00, to indicate that the Auto Cooking Programme has finished.
Notes:
- When setting an Auto Cooking programme you will need to set the oven
control(s) to the required temperature(s) when you set the timer.
- If an Auto Cooking programme has been set the oven(s) will only operate during
the pre-programmed time.
Needs to be pressed to cancel an Auto Cooking programme and return the oven(s) to
Manual operation.
Used to adjust the various timer function settings.
Minute Minder
Button
Cook Period Button
End Time Button
Manual Button
“+” and “–” Buttons
TIMER FUNCTION BUTTONS
AUTO COOKING PROGRAMME

Electronic Clock and Automatic Oven Timer Operation
13

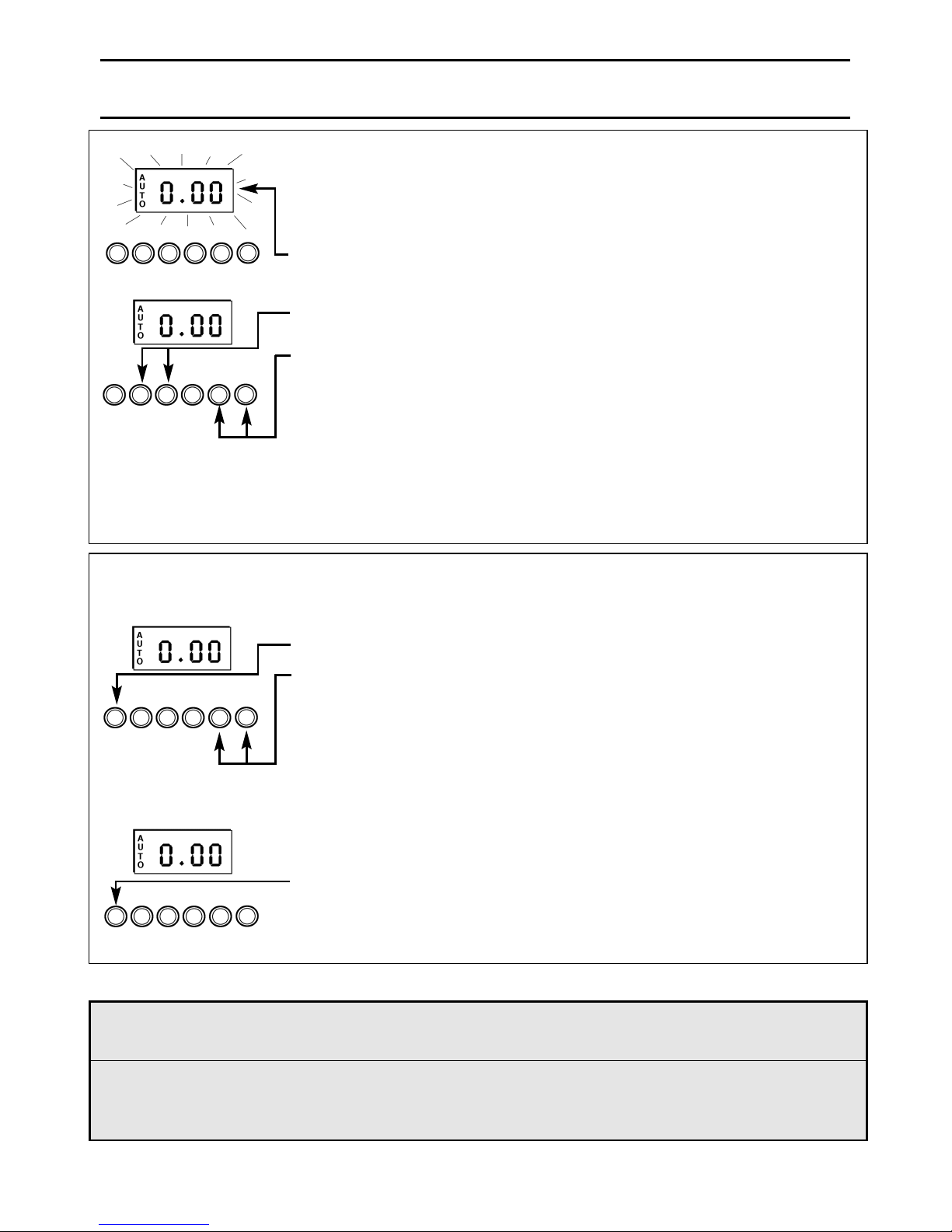

SETTING THE TIME OF DAY
Step 1 Make sure all oven controls are turned Off.
Step 2 Check the electricity supply to the cooker is turned on.
Step 3 When switched on the display will show 0.00 and the Auto symbol,
flashing intermittently.
Step 4 Press & hold in both the Cook Period & End Time buttons together.
Step 5 With the Cook Period & End Time buttons still held in, press either the “+”
or “–” buttons to set the correct time of day.
Step 6 Release all the buttons simultaneously.
THE TIME OF DAY IS NOW SET.
To change the time of day repeat Steps 4, 5 & 6 above.
Note: You cannot adjust the time of day if the timer has been set for an
Auto Cooking Programme.
SETTING THE MINUTE MINDER
Step 1 Ensure the time of day is set correctly.
Step 2 Press and hold the Minute Minder button.
Step 3 With the Minute Minder button held in, set the required Minute Minder
period using the “+” and “–” buttons. A ‘bell’ symbol will light up.
Release all buttons and the timer display will revert back to the time of day.
The ‘bell’ symbol will remain lit to signify that a Minute Minder period has been
set.
At the end of the set time an audible tone will be heard, and the ‘bell’ symbol will
disappear.
Step 4 To cancel the audible tone press the Minute Minder button.
Note 1 When the Minute Minder has been set, the time remaining can be checked at any
time by simply pressing the Minute Minder button.
Note 2 If necessary the Minute Minder can be cancelled before the tone sounds by press
ing and holding the Minute Minder button and then at the same time pressing the
“–” button until 0.00 appears in the display window.

Electronic Clock and Automatic Oven Timer Operation
14
Step 3 Press and hold in the Cook Period button.
The display will read 0.00 with the ‘cookpot’ symbol lit.
Step 4 With the Cook Period button still held in, set the required Cook Period
using the “+” and “–” buttons.
Release the buttons and the timer display will revert to the time of day with the
‘Auto’ symbol and ‘cookpot’ symbol lit.
Step 5 Press and hold in the End Time button.
The display will read the earliest possible end time for the Cook Period
that you have set above.
The ‘Auto’ symbol and ‘cookpot’ symbol will be lit.
Step 6 With the End Time button still held in, use the “+” and “–” buttons to set
the ‘End Time’ (i.e. The time you require the oven to switch off).
Release all the buttons and the timer will revert back to the time of day.
The ‘Auto’ symbol will remain lit to signify that an Auto Cooking Programme has
been set. The ‘cookpot’ symbol will go out.
Step 7 Turn the oven control(s) to the required temperature, and if necessary
select the appropriate oven function.
At the end of the Automatic Cook Period the Auto Symbol will flash and an
intermittent bleeping sound will be heard.
The audible tone will continue unless cancelled.
The ‘Auto’ symbol will continue to flash until the timer is returned to Manual
operation (see below).
Step 8 Press the Manual button, the audible tone will be cancelled and the
oven(s) will be returned to Manual.
Step 9 Turn the oven control(s) to the OFF position.
AUTO COOKING PROGRAMMES
There are two Auto Cooking programmes that can be selected using your timer:–
(a) To set the timer to switch the oven(s) On and Off Automatically
(b) To set timer to switch on immediately and OFF automatically after a set cook period.
a) TO SET THE TIMER TO SWITCH THE OVEN(S) ON AND OFF AUTOMATICALLY
This allows you to cook at a specified time for a chosen period before the oven switches
off Automatically.
Step 1 Check that the correct time of day is set, if not follow instructions for setting the time of day.
Step 2 Place food onto the correct shelf position in the oven and close the oven door(s).

Electronic Clock and Automatic Oven Timer Operation
15

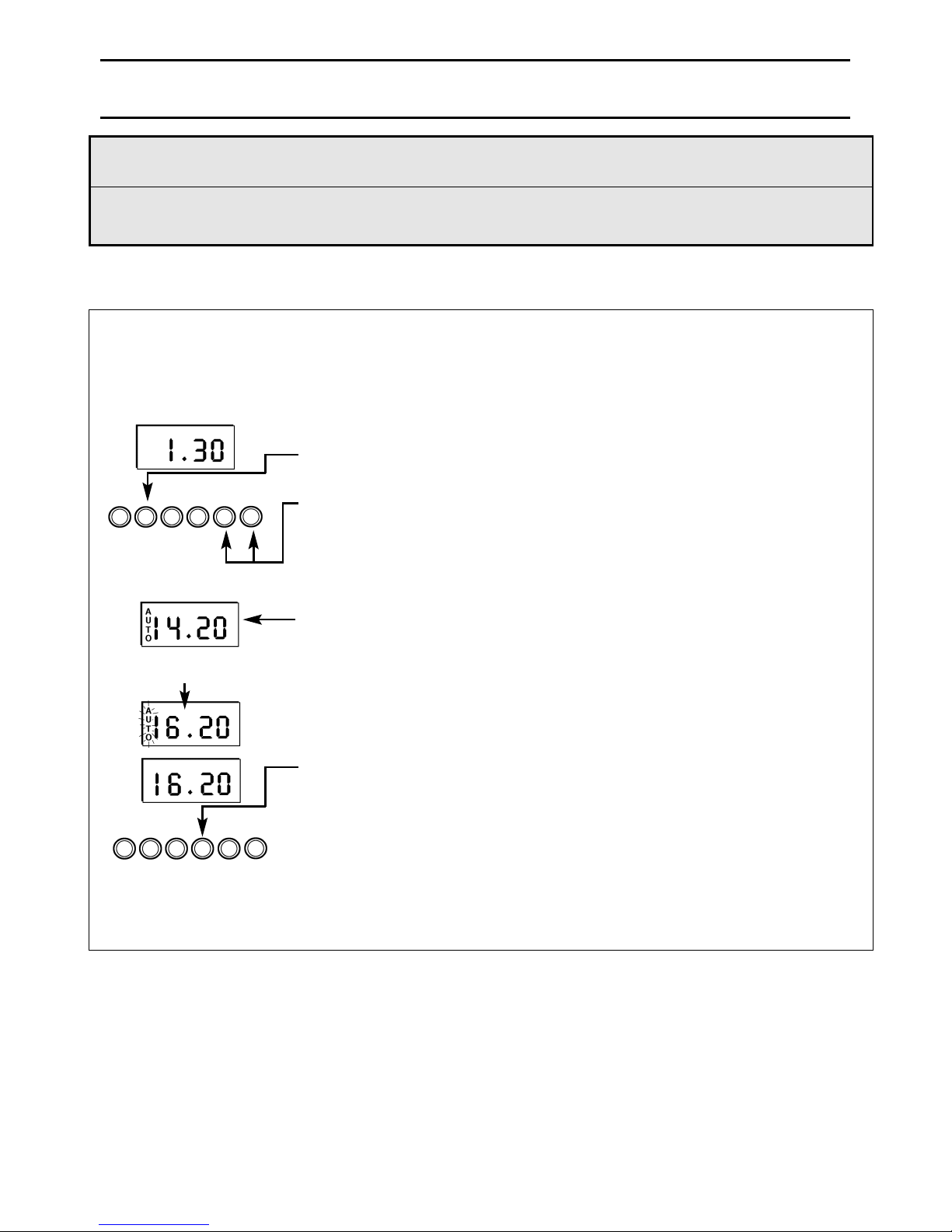

Step 4 Press & hold in the Cook Period button, the display will read 0.00 and the
‘cookpot’ symbol will light up.
With the Cook Period button still held in set the required Cook Period using the
“+” and “–” buttons. Example: 1hr 30 minutes (as shown).
Note: Cook Period is the length of time the food requires to cook.
Step 5 Release all buttons.
The timer display will revert to the time of day with the ‘Auto’ symbol lit &
‘cookpot‘ symbol remaining lit.
At the end of the Cook Period the ‘Auto’ symbol will flash and an intermittent
audible tone will be heard.
The audible tone will continue to flash until the timer is returned to Manual
operation (see below).
Step 6 Press the Manual button. The audible tone will be cancelled and the
oven(s) will be returned to Manual.
Step 7 Turn the oven control(s) to the OFF position.
b) TO SET TIMER TO SWITCH ON IMMEDIATELY AND OFF AUTOMATICALLY AFTER A SET COOK
PERIOD
Step 1 Check that the correct time of day is set, if not follow instructions for setting the time of day.
Step 2 Place food onto the correct shelf position in the oven and close the oven door(s).
Step 3 Turn the oven control(s) to the required temperature, and if necessary select the appropriate oven
function.
Note 1 When cooking automatically the Cook Period can be checked at any time by simply
pressing the Cook Period button.
Note 2 When cooking automatically the End Time can be checked at any time by simply
pressing the End Time button.
NOTE: The Cookpot symbol disappears

Electronic Clock and Automatic Oven Timer Operation
16
OTHER NOTES ON TIMER OPERATION
1. When cooking Automatically the Cook Period can be checked at any time simply by pressing the Cook
Period button.
2. When cooking Automatically the End Time can be checked at any time by simply pressing the End Time
button.
3. Having set a Cook Period and End Time an electronic device stores the information. The device within the
timer will switch the oven(s) on and off at the required times.
4. When setting an Auto Cooking Programme and a mistake is made, to clear:–
(a) Press & release the Manual button.
(b) Start the sequence again.
5. If at any time the display shows three flashing zero’s 0.00 and ‘Auto’, it is likely that the electricity supply to
the oven has been interrupted. Reset the timer to the correct time of day.
Food in the oven may, therefore, not have been cooked, before serving check food is thoroughly heated
and completely cooked.
6. To set each function always press and hold the required function button and at the same time press “+” or
“–” buttons.

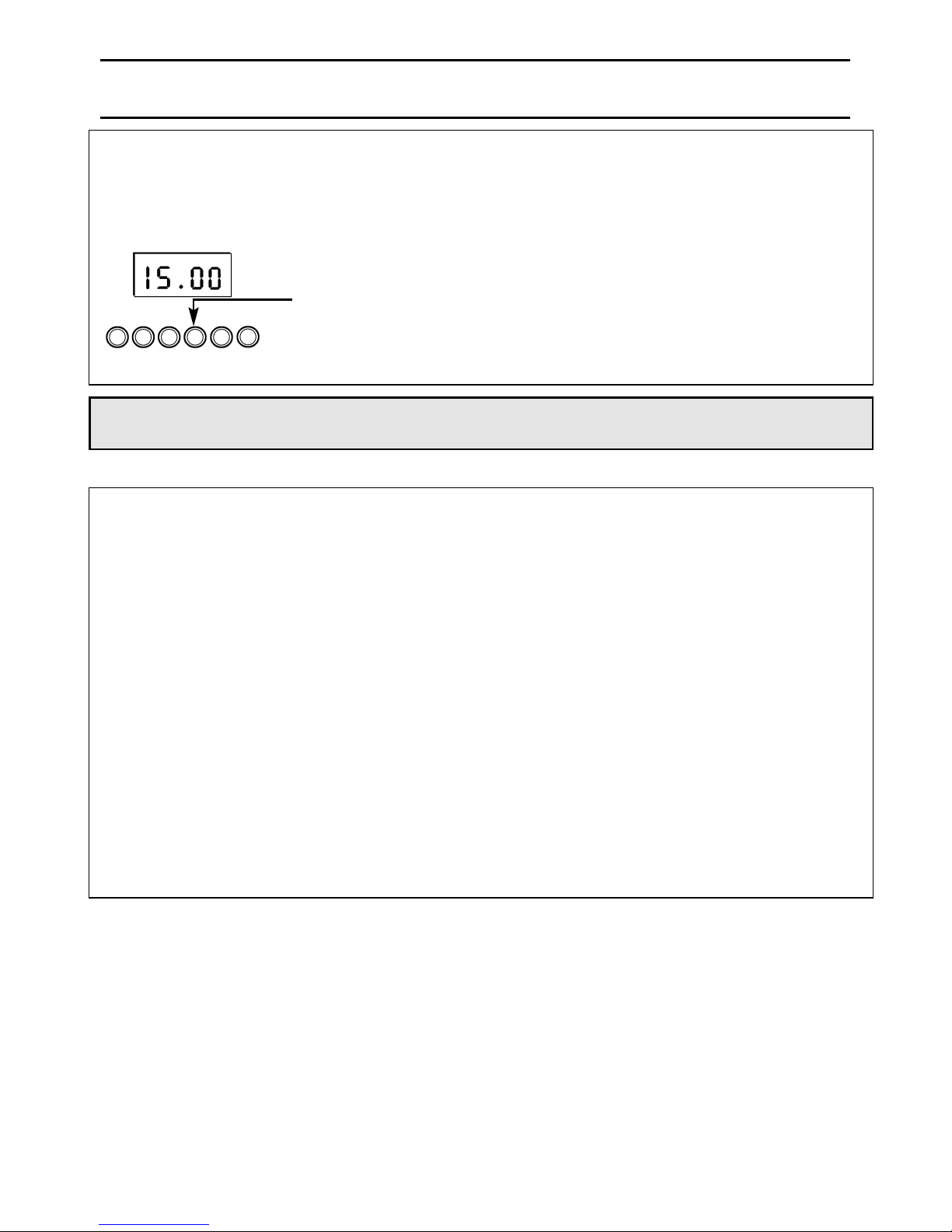

TO CANCEL AN AUTO COOKING PROGRAMME BEFORE
THE COOK PERIOD HAS FINISHED.
Step 1 Turn the oven control(s) to the OFF position.
Step 2 Press the Manual button to return the oven(s) to “Manual” operation.
The ‘Auto’ symbol will go out.
Note 1 When cooking automatically the Cook Period can be checked at any time by simply pressing
the Cook Period button.

Step 1 Remove the screw and washers from the grill pan bracket (a).
Step 2 Tilt the handle over the recess (b).
Step 3 Slide it towards the centre of the pan (c).
Step 4 Locate the handle over the bracket (d).
For a fixed handle, replace the screw and washers and ensure they are fully
tightened up. If a detachable handle is required, do not replace the screw and
washers.
The grill pan handle is detachable from the pan, to facilitate cleaning and storage.
The grill pan handle can be fixed as follows:
Grill Pan and Handle
17
Note: If a fixed handle is required, the grill pan cannot be kept in the main oven
with the door closed but may be stored in the top oven with the door closed,
when the top oven is not in use..
Step 1 Step 2 Step 3 Step 4
(a)
(b) (c)
(d)

Grilling Notes
18
Grill Pan, Food Support
Top Oven Shelf Positioning for Grilling
GRILL PAN FOOD SUPPORT
NOTE: - Preheat the grill if indicated on grill chart.
- The grill pan must be placed on the correct shelf and positioned centrally
under the grill element.
- Leave the control at MAX for toast, and for fast cooking of foods.
- For thicker foods requiring longer cooking, turn the switch to a lower
setting after the initial sealing on both sides at MAX. The thicker the food, the
lower the control should be set.
- DO NOT line the grill pan with aluminium foil, as this increases the amount
of fat spitting which can cause a fire.
- After use always return the grill control to the OFF (0) position.
ENSURE SHELVES ARE FITTED CORRECT WAY UP.
DO NOT PLACE FOOD/UTENSILS DIRECTLY ON THE OVEN FLOOR
3
2
1
3
2
1

Operation when using the Top Oven for Grilling
19
DO NOT allow young children near to the appliance when the grill is in use as the surfaces
get extremely hot.
AGRILL SETTING
CONTROL
BTOP OVEN TEMPERATURE
CONTROL
Step 1 Ensure that the timer is set to manual.
Step 2 Place the grill pan runner/support in the correct position (see Grilling Guide).
Locate the grill pan in the runner/support, position centrally under the grill
element.
Leave the door fully open.
Step 3 Turn knob (A) clockwise for FULL grill or anti-clockwise for HALF grill, to select
the Grill Setting (min-max).
(min = Low, max = High)
Grill control example:
= Maximum Grill setting.
NOTE: Do not grill with the grill/top
oven door closed.
Step 4 After use, turn the grill control (A)
to the off position (●).
MAX
MAX
FID20
DOOR POSITION
FOR GRILLING.
TIMER
