Loader
Loader
Attention!!
Read this manual carefullybefore installing this device!
Main connection
Before connecting the device to the mains,check if the
mains supplyvoltage corresponds to the voltage printed
onthe type plate of the adapter. Ifthe mains voltage is
different, consult your supplier.
Guarantee
No guarantee canbe given if safetyregulations are not
followed.
Security
Always disconnect the power supplybefore handeling
anything inside the device.
Installation
This device has to be installed byauthorised personal
only.
Replacing / Empty / Cleaning the banknote reader
Remove the stack unit and check if there is a banknote, sticky fluid or dirt in the banknote route. If there is remove it.
Manual R 12 - 2
Open the stack unit and check if the notes are properly stacked en if nothing is stuck. Close the stack unit and place it back in
the banknote reader, making sure it is properly secured. You should hear a 'click', if you do not, please check if the plastic bolt
has placed itself correctly in the metal lock as can be seen on the first picture.
Replacing / Empty / Cleaning the coin tester
The coin tester is attached to the front plate, to remove it lightly pull back the plastic flap that holds it into place and remove the
coin tester in the opposite direction in a quarter circulair motion.
3 - Loader AL - CL 500
Loader

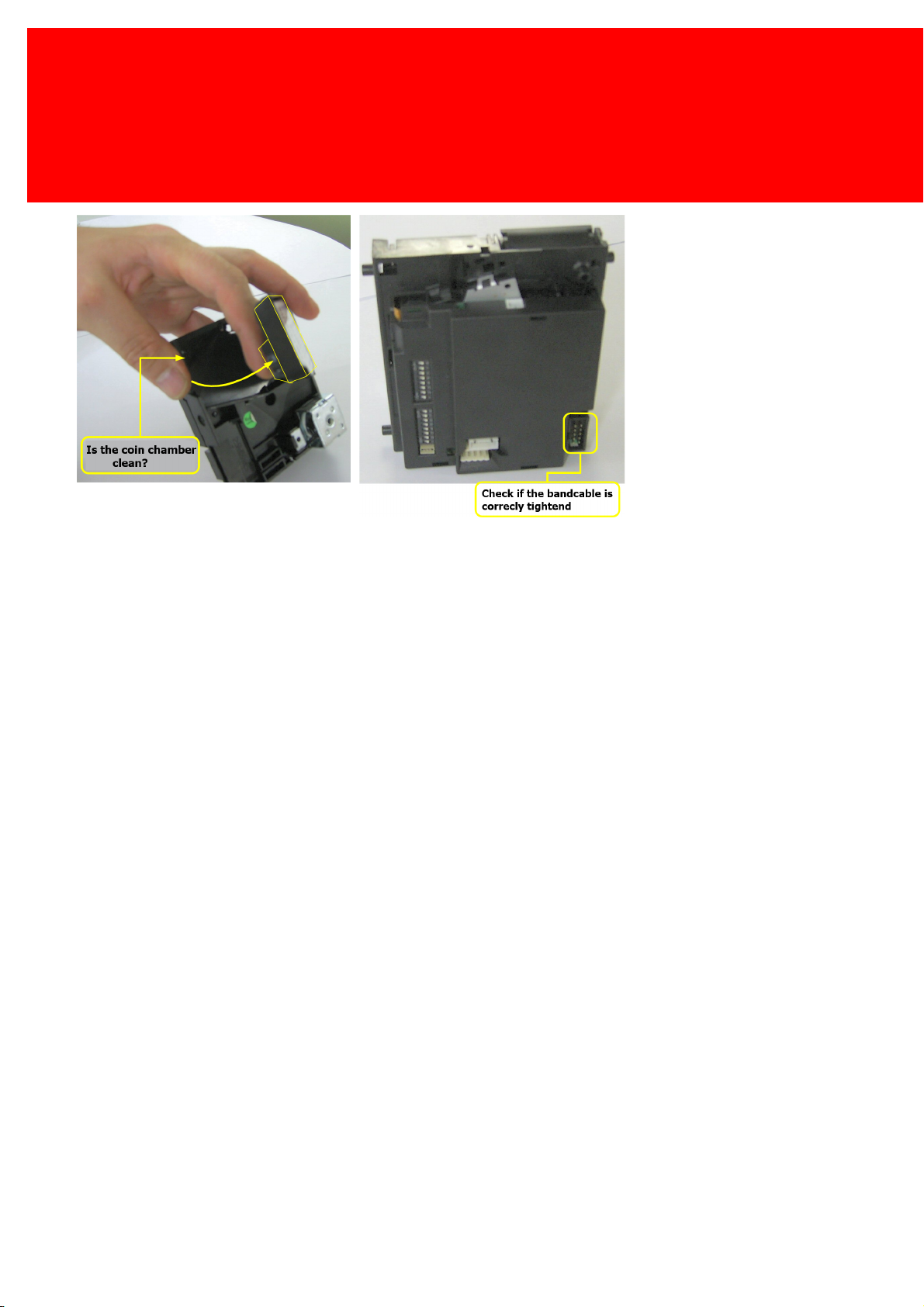

The part of the coin tester that has the sticker and barcode kan be opened to clean the inside. Remove all the dirt and sticky
fluids. Place the coin tester back in the loader. Only the flatcable should be connected, the white cable attached to the front plate
must not be connected.
Kaart locked
Ifthe loader (or anyother terminal) returns the message 'Card Locked', this means that the user will
have removed the card too soonat another terminal, preventing the transactionthe be properly
processed. The card will thenbe locked onanyother terminal (including the loader) enwill returnthe
message "Card locked by" "<nnnnnnnnn>" (<nnnnnnnnn> stands for the serial number of the terminal
that has locked the card). The user will have to returnto the terminal that locked the card.
Ifthe card is presented againto the terminal, the uncompleted transaction will be completed. Because
of this a user cannot avoid payment.
Ifthe terminal returns the message "Card locked" or "Card blocked" but does not displaythe nummer of
a terminal thenthe situation is different. Youshould callyour service provider,this could be Inepro or
one of her dealers.
