infaco Powercoup PW2 User manual

Assembly instructions
THD600/THD700/THS700

SAFETY INSTRUCTIONS ______________________________________________ 5
PERSONAL PROTECTIVE EQUIPMENT__________________________________ 5
ENVIRONMENTAL PROTECTION ______________________________________ 5
GENERAL OVERVIEW ________________________________________________ 6
CHARACTERISTICS __________________________________________________ 6
VIEWS OF ACCESSORIES _____________________________________________ 6
USER’S MANUAL____________________________________________________ 7
Installation and power connection______________________________________________7
USING THE MACHINE_______________________________________________ 7
Mounting and disassembly of the handle_____________________________________________ 7
Storage-Transportation __________________________________________________________ 8
Hedge trimmer___________________________________________________________________ 9
Hedge trimmer with extension pole__________________________________________________ 12
SAFETY PRECAUTIONS______________________________________________ 16
Warning________________________________________________________________________ 17
CARE AND MAINTENANCE __________________________________________ 18
Care - greasing___________________________________________________________________ 19
Sharpening______________________________________________________________________ 21
Setting clearance_________________________________________________________________ 22
SAFETY INSTRUCTIONS _____________________________________________ 23
WARRANTY CONDITIONS __________________________________________ 24
RECOMMANDATIONS ______________________________________________ 25
REPAIR ____________________________________________________________ 26
WARRANTY CARD _________________________________________________ 29
CARACTÉRISTIQUES TECHNIQUES ___________________________________ 32
DECLARATION OF INCORPORATION__________________________________ 32
content
3

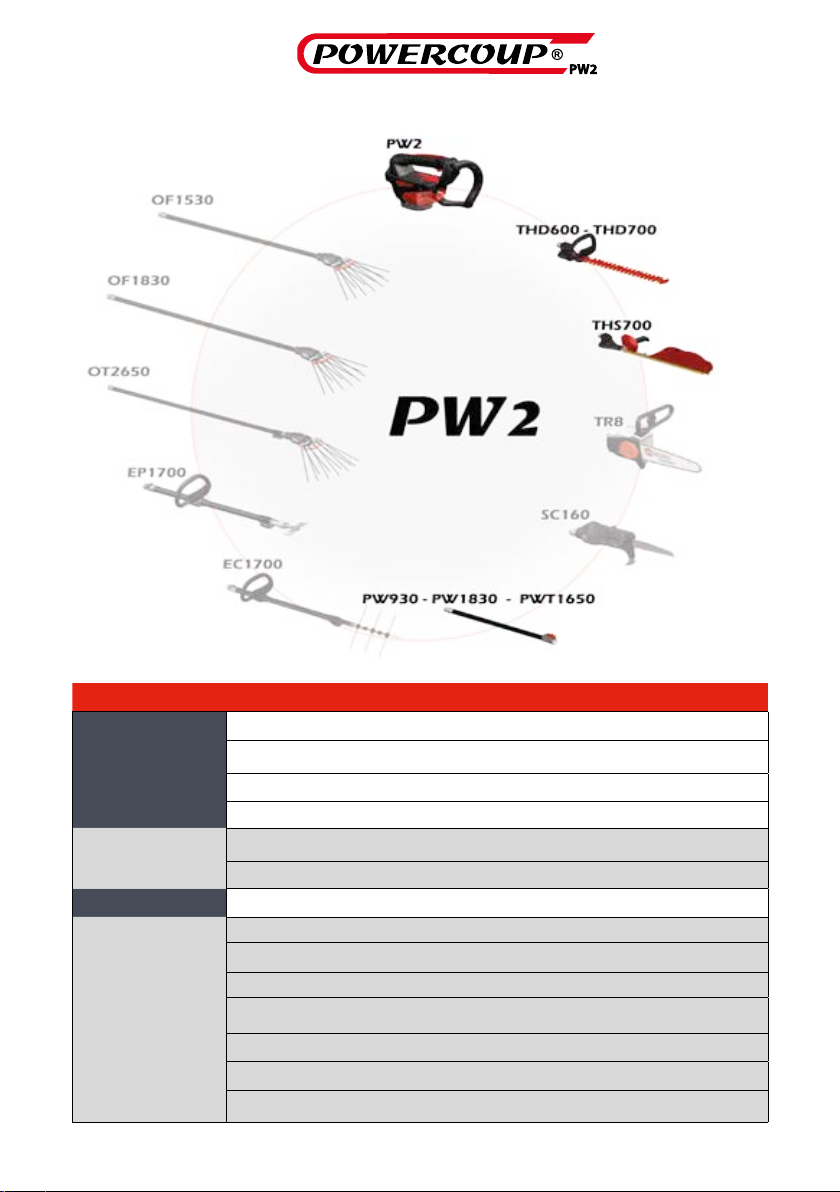

Reference Description
PW2 Universal handle for the POWERCOUP PW2 range.
THD600 Double hedge trimmer, length of the cutting 600 mm (23,5’’).
THD700 Double hedge trimmer, length of the cutting bar 700 mm (27,5’’).
THS700 Single hedge trimmer, length of the cutting bar 700 mm (27,5’’).
TR8
Chain saw, max cutting capacity Ø150 (5,9’’).
SC160 Reciprocating saw, max cutting capacity Ø100 (3’’).
PW930 Carbon extension pole, length 930 mm (3 ft ).
PW1830 Carbon extension pole, length 1830 mm (6 ft ).
PWT1650 Telescopic arbon extension pole, length 1.10 to 1.65 m (43.31’’ to 64,96’’).
EC1700 Flower Thinner, telescopic pole 1,5 to 2,2 m (59.05’’ to 86.61’’).
EP1700 Desuckering tool, telescopic pole 1,3 to 2 m (51.18’’ to 78.74’’).
OT2650 Olive harvester, telescopic pole 1,5 to 2,6 m (59.05’’ to 102.36’’).
OF1830 Olive harvester, fixed pole 2,5 m (98.42’’).
OF1530 Olive harvester, fixed pole 2,2 m (86.61’’).
4

5
Keep all safety warnings and instructions so that you can refer to them at
a later date.
The term “tool” in the warnings refers to your electrical tool run off the main
supply (with supply power cord) or your electrical battery-operated tool (without
a supply power cord).
WARNING. Read all safety warnings and all instructions. Failure to
abide by warnings and instructions could lead to an electric shock, fire
and/or serious injury.
PERSonal PROTECTIVE EQUIPMENT
ENVIRONMENTAL PROTECTION
Follow the specific instructions for waste elimination in your
country.
Electrical appliances should not be thrown in the garbage.
The device, accessories and packaging should be recycled.
Ask your specialist INFACO retailer for the latest information on
eco-compatible waste elimination.
SAFETY instructions
Read the user manual carefully, especially the safety instructions.
You MUST wear a helmet, eye protection and hearing protection
Hand protection, for work gloves.
Foot protection by closed toed shoes.
Face protection, or visor.
Note: The extensions poles are made of carbon, which conducts electricity. Do not use
the extensions poles near electricity supply points or electrical wires.
Note: Do not place any part of your body close to the blade. Do not remove cut mate-
rial or hold the material you wish to cut while the blades are moving..
10m

GENERAL OVERVIEW
CHARACTERISTICS
VIEWS OF ACCESSORIES«PW2»
6
Retractable handle Handle nozzle
Poignée Déflecteur
Handle nozzle
Blade
Protect blade
Blade
THD600 / THD700 THS700
Blade nozzle
Pptional:
Left deflector shield
For left-handed installation
Reference THD600 THD700 THS700
Alimentation 48VCC
Power 1000W Max
Weight
3300g 3400g 3500g
Blade length 570mm 700mm 700mm
Size 28mm
Height 21mm
Blade speed 3200 cuts/min
Options
x x Left deflector shield
Li_ion battery
500Wh 10,4Amp.
Ref : L810B
Power cord
Ref : PW225S
PW2 handle
Ref : PW2
NOT
L810B
NOT
PW2
NOT
PW2
NiMH battery
150Wh 3,1Amp.
Ref : 731B
NOT
F3010
Li-ion battery
120Wh 2,5Amp.
Ref : 831B
Extension pole 930
Lenght: 93cm
Ref : PW930
NOT
F3015
NOT
THD/THS
Handle

USER’S Manual
USING the machine
7
THS700
NOT
THD/THS

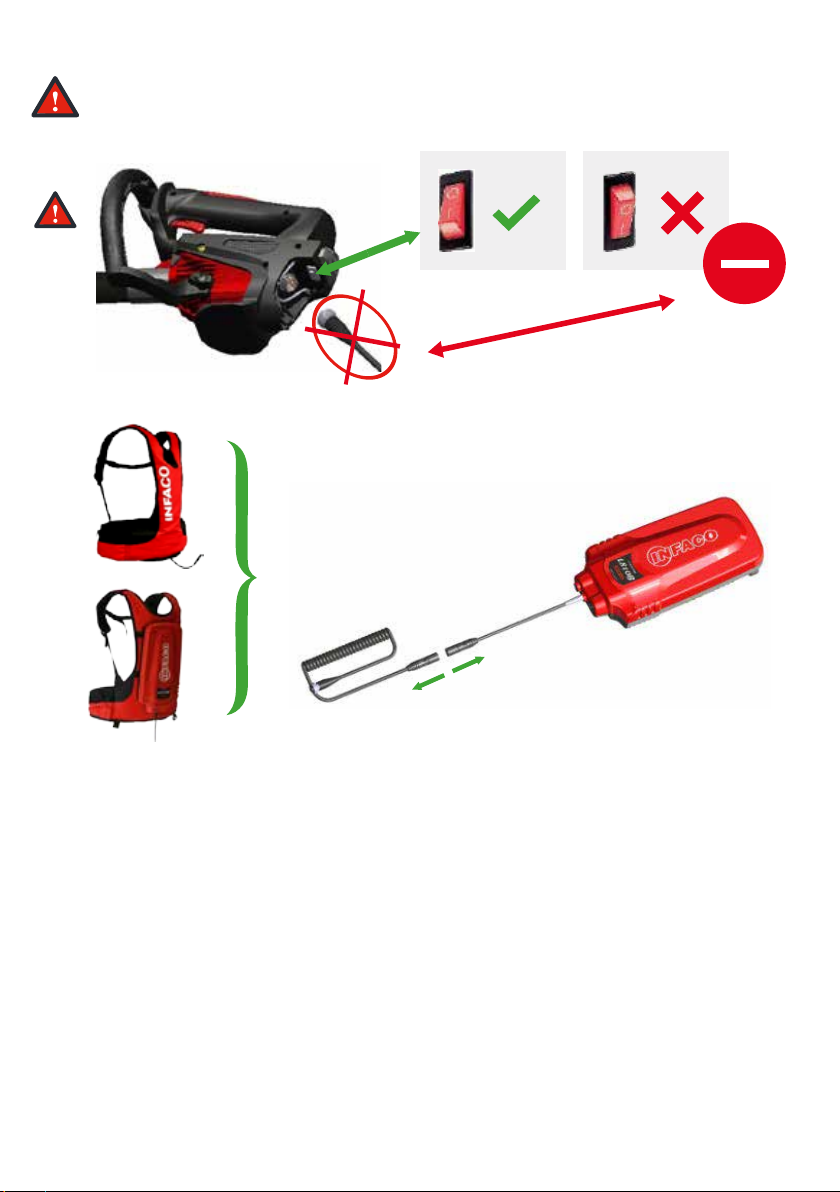

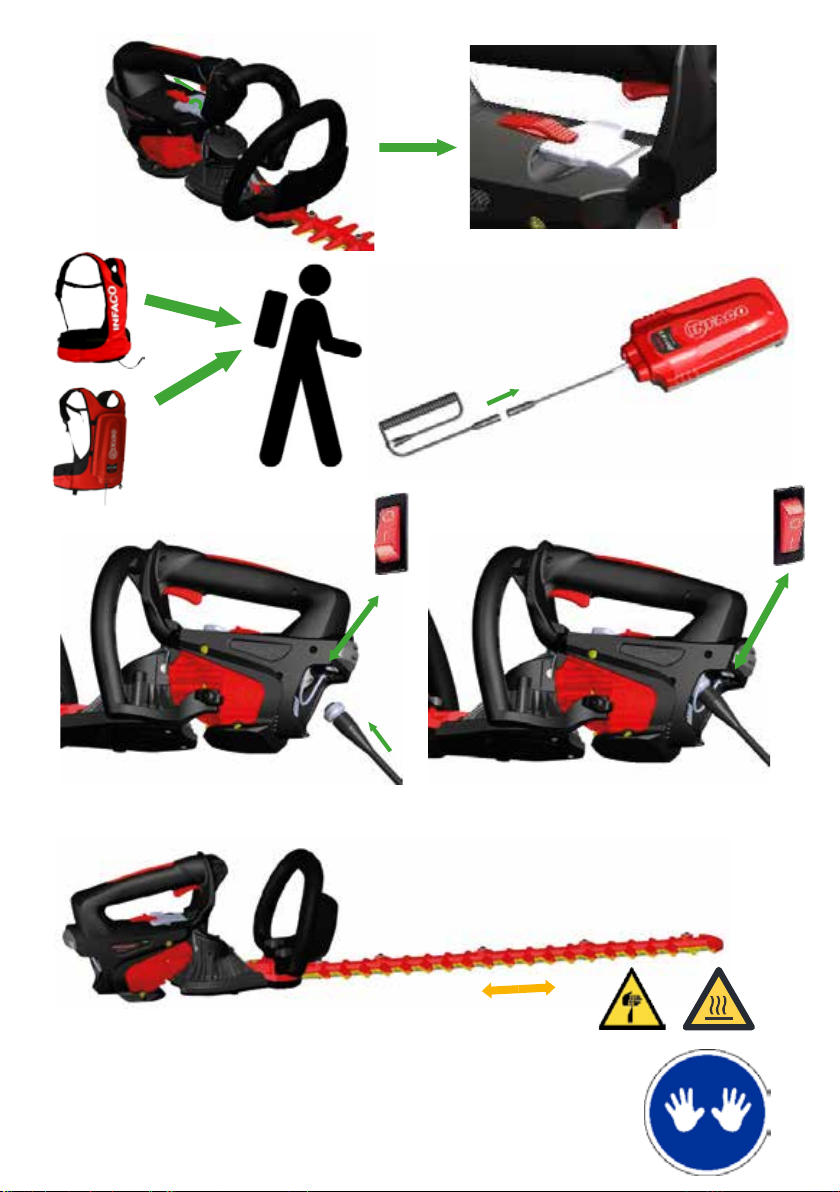

Only use INFACO brand batteries with a supply voltage 48 volts.
If it is raining, the battery vest must be worn underneath waterproof clothing so
that the battery unit and control box remain dry.

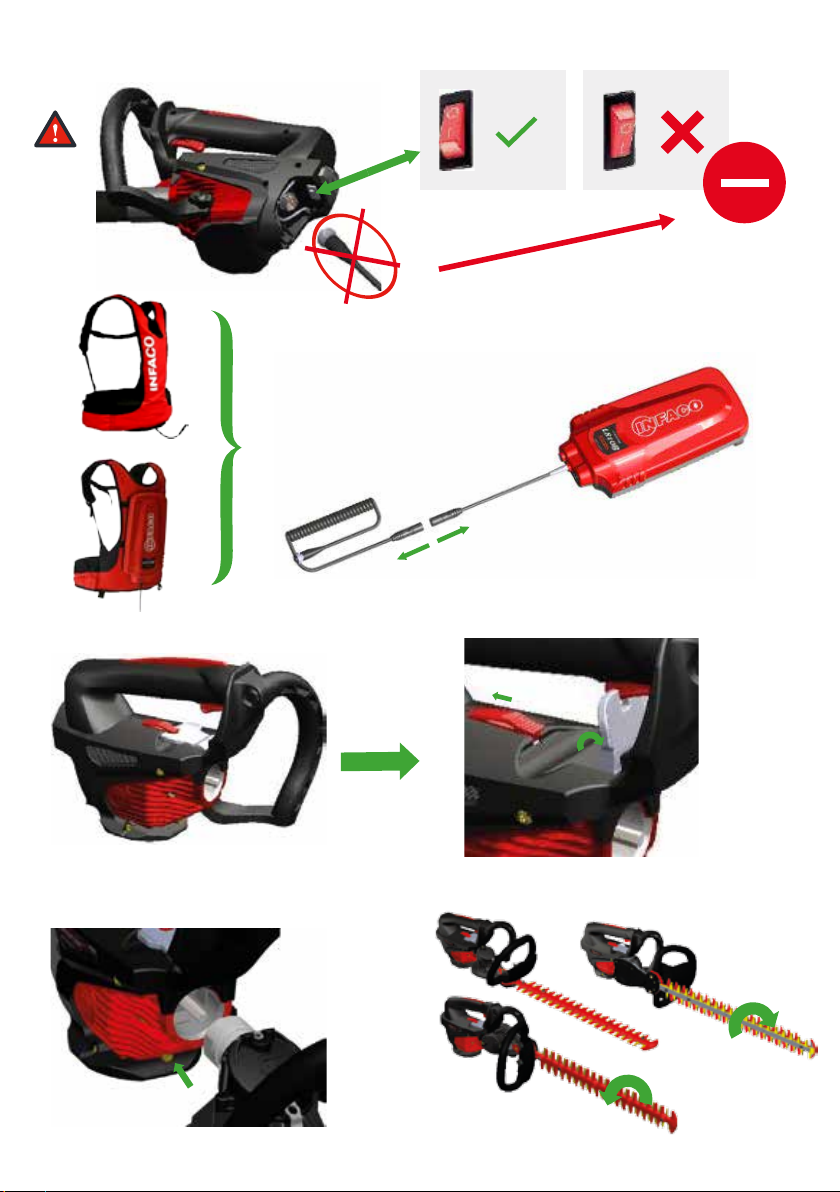

Installation and power connection

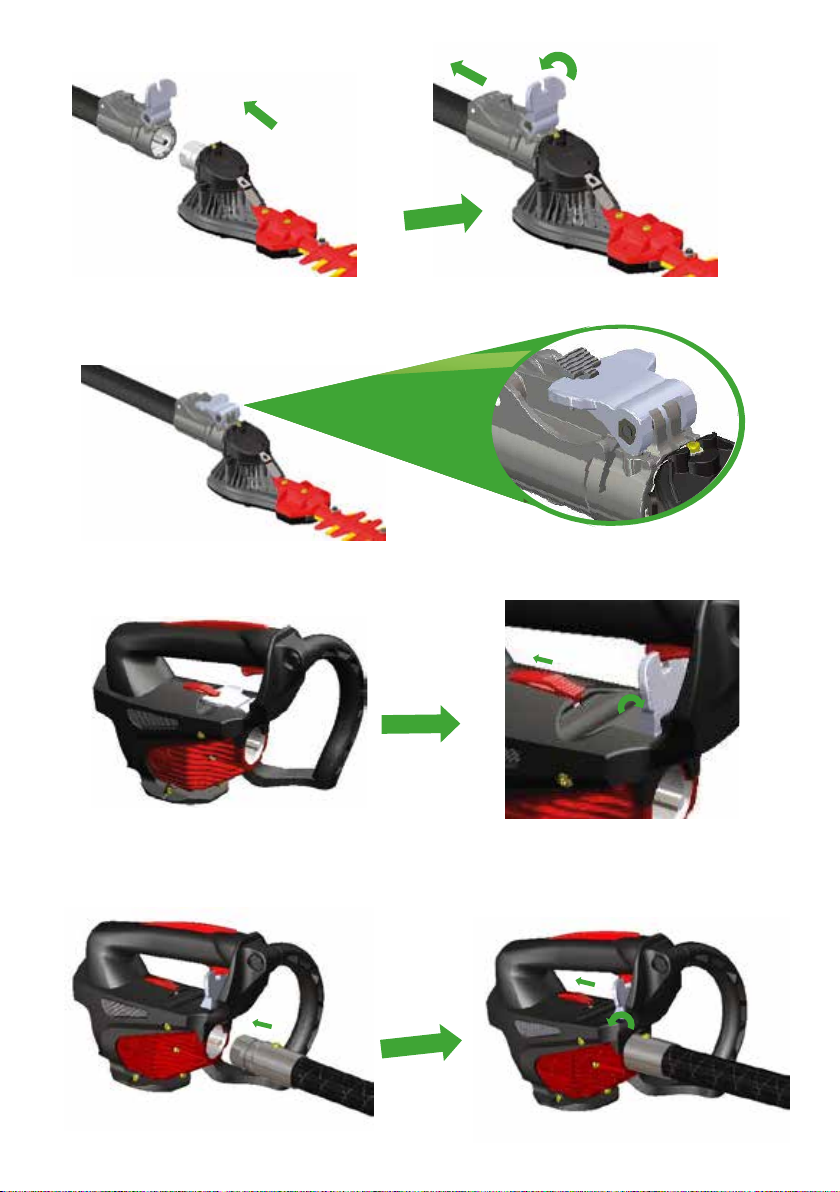

Mounting and disassembly of the handle
OFF ON

Storage - transportation
8
For transportation, storage, maintenance, tool maintenance or any other operation
outside of using the tool you must unplug the tool.

Hedge trimmer
9
2
1
- 90°
+ 90°
A/ B/
C/ D/

1
1
2
2

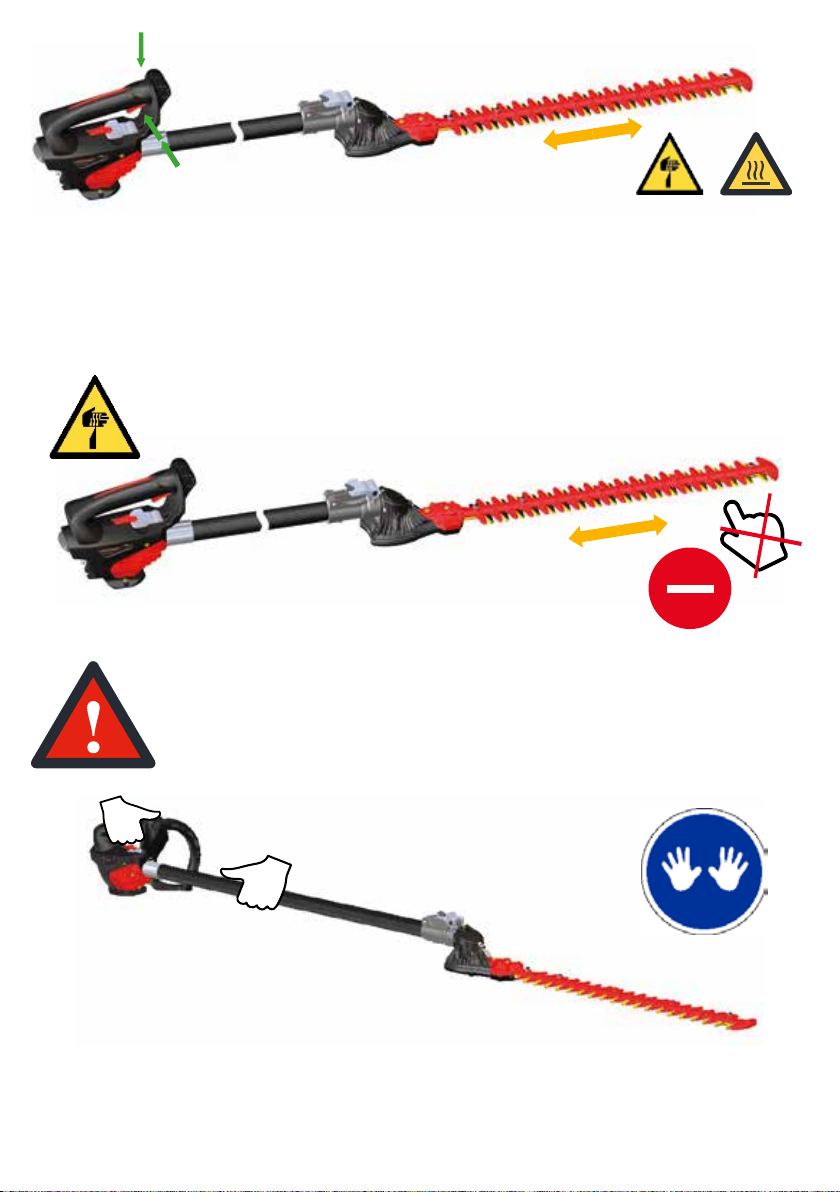

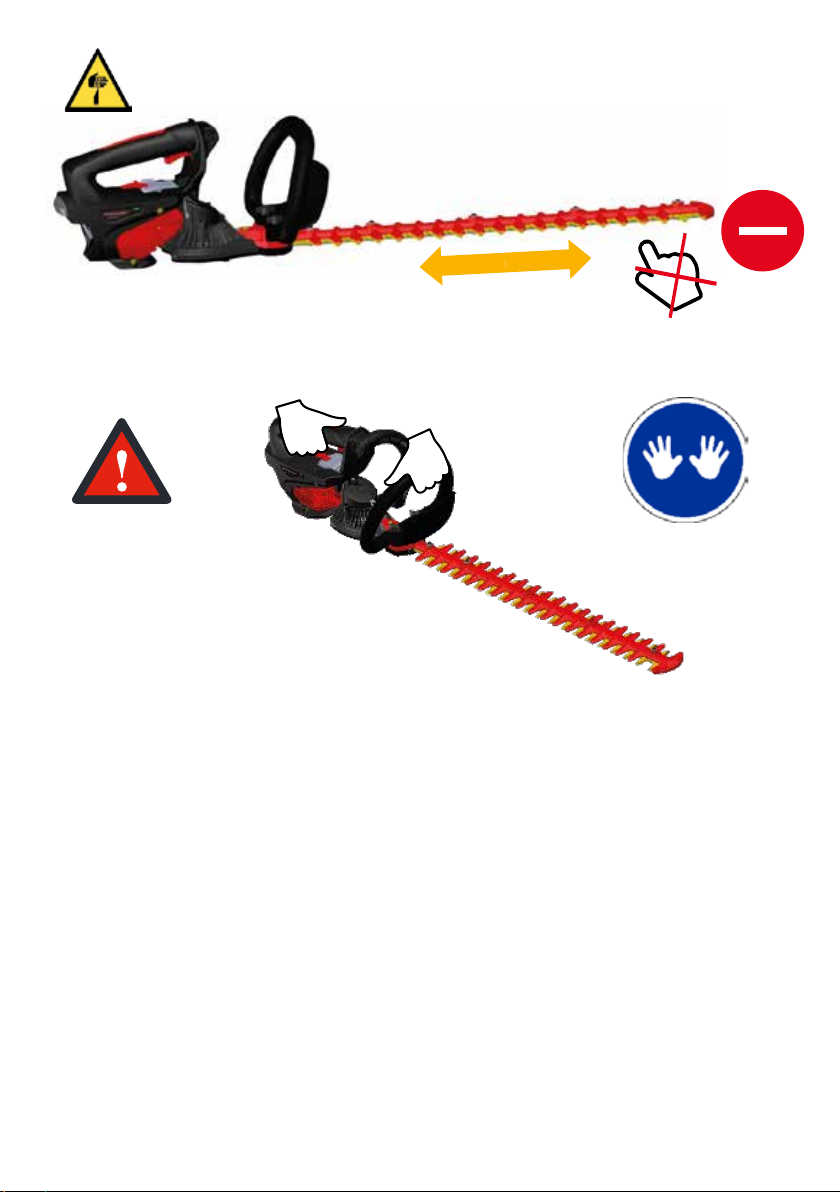

1 Start: 2 short pulls of the trigger = ON
Standby output: 2 short pulls of the trigger = ON
Normal operation: 1 long pull of the trigger = ON
Releasing the trigger = OFF Must keep both hands
10
E/ F/
G/
H/
I/ J/
K/

The tool is fitted with an electronic protection system. As soon as the tool becomes
blocked due to meeting strong resistance, the electronic system causes the motor to stop.
Restart the tool by carrying out operation «k» in “Using the machine” on page 7.
Must keep both hands
11
L/
M/

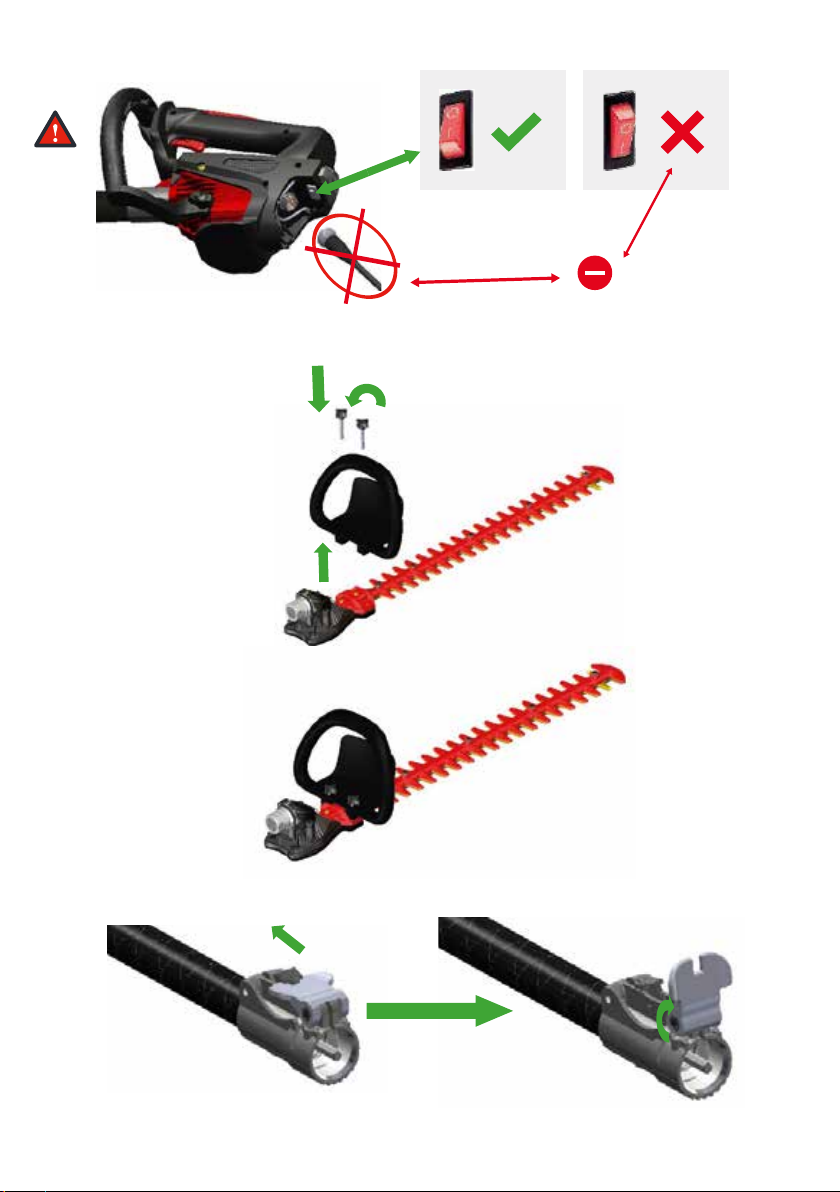

Hedge trimmer with extension pole
12
2
1
A/ B/

13
2
1
1
c/ D/
E/
F/ G/
H/ i/
12
2

1
2
j/
k/
L/ m/
n/
14 15

1 Start: 2 short pulls of the trigger = ON
Standby output: 2 short pulls of the trigger = ON
Normal operation: 1 long pull of the trigger = ON
Releasing the trigger = OFF
Must keep both hands
15
1

safety precautions
Must keep both hands
For transportation, storage, maintenance, tool maintenance or any other operation
outside of using the tool you must unplug the tool.
2
A/
16 17
1
OFF OFF
B/
C/

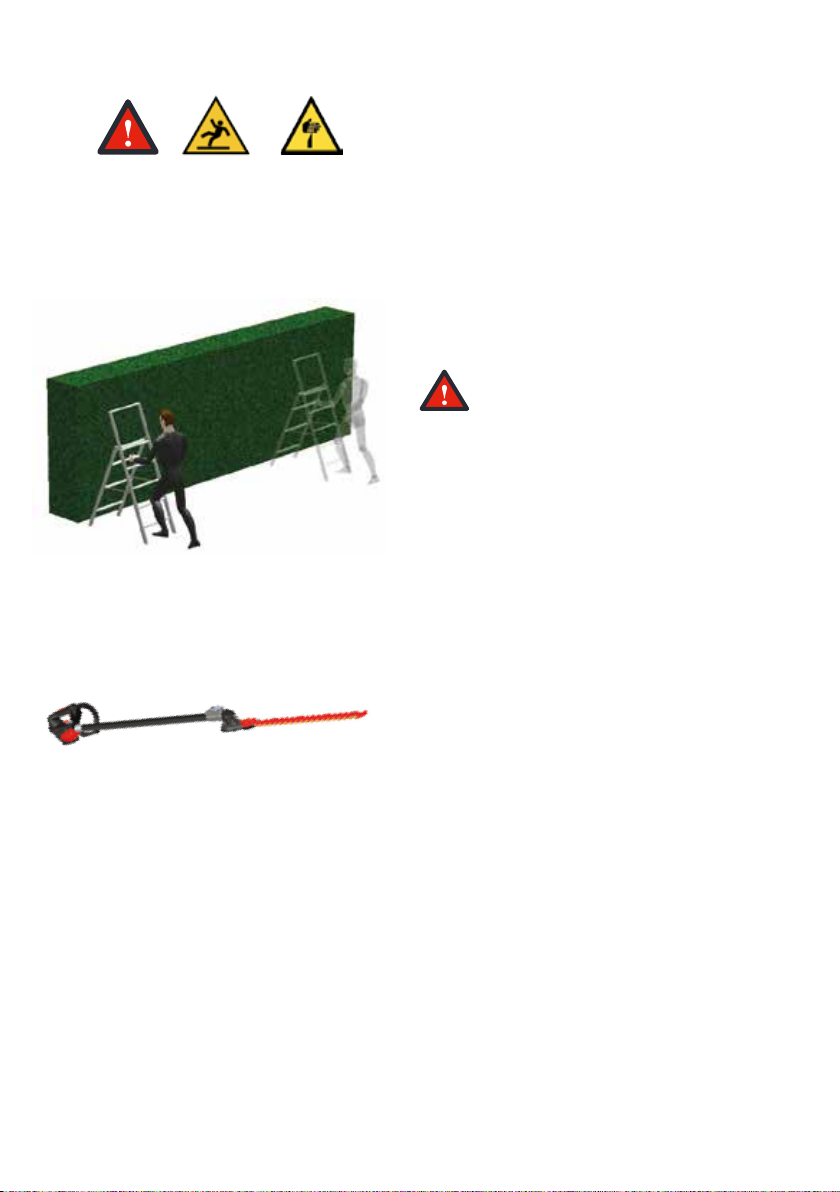

Warning concerning work at height using a ladder
This configuration is risky and not recommended.
We advice using an extension pole
(optional) for all work at height. It can
avoid risks from falling and other accidents.
(see VIEWS OF ACCESSORIES Page 6)
It is imperative to put the machine to
the ground. Unplug the cable from the
battery before moving from A to B.
Warning
17

Before starting work
At the end of work daily
Each time the battery is changed
Monthly
If faulty If damaged As required
Weekly
CARE and MAINTENANCE
All maintenance operations or maintenance
must be performed after disconnecting the
tool from all power sources.
Maintenance of the tool depends on
frequency of use.
Occasional use, space out intervals.
Intensive use, more frequent intervals.
X X
X X
X X
X X
XX
X
X
X
X
X X
X
X X
X X
X X X
X X X X
X X X
X X
Complete tool
Visual inspection
Cleaning
Have checked by dealer
Accessories Cleaning and greasing
Adjust clearance
Blade clearance Check
Blade
Visual inspection
Cleaning and greasing
Sharpening
Change
Hedge trimmer
head
Check the adjustment
Greasing
Have checked by dealer
Power cord Visual inspection
Battery Visual inspection
Vest Visual inspection
Handle Visual inspection
18 19
Yearly

19
Care - greasing
Clean B500N
BLADE
Recommended products:
Lithium grease ref : 352B
+
Cleaner ref : B500N
+
Lubricant ref : B500L
Lubricate B500L or 352B

20
Greasing
Recommended products:
Grease ref : B400G
or
Lithium grease ref : 352B
(supplied with PW2 handle)
