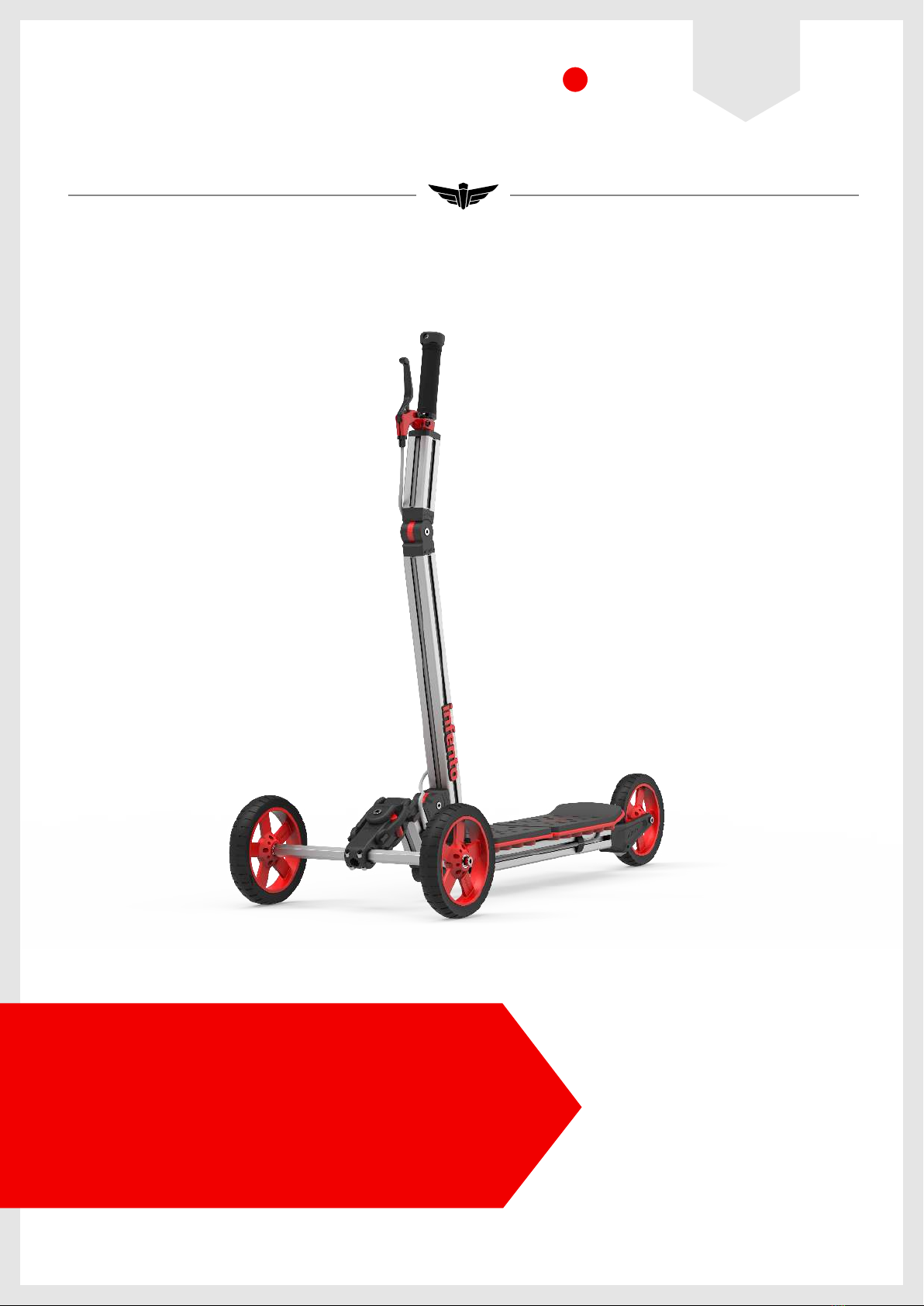

Inferno CRUISER G1 Instructions for use

CONSTRUCTION MANUAL
CRUISER
G1
6-14
118 - 168 cm / 47 - 66 inch
70 kg / 153 lbs
2,5 hours
Length
Max weight
Time to build
YEARS

Before you start constructing and use our product, please carefully
read the following safety warning and download our manual from our
website. This safety warning and manual contains important informa-
tion relating to your child’s safety. It is your responsibility to review this
information with your child and make sure they are fully aware of all
the warnings before they start riding. Failure to follow instructions and
safety precautions can result in serious injury or death.
You can fi nd a digital copy of the manual at the following web address:
www.infentorides.com
WARNING - IMPORTANT NOTICE TO PARENTS
PLEASE PRINT OUT THE MANUAL AND KEEP
THE MANUAL AND THIS SAFETY WARNING IN A
SAFE LOCATION FOR FUTURE REFERENCE.

WARNING! PARENTAL SUPERVISION
AND APPROPRIATE USE
Like any moving product, rides made from
Infento parts can be dangerous if due care
and attention is not paid. To reduce the risk
of serious injury: use only under close adult
supervision. Parents must review the following
warnings and instructions with each Infento
ride that is being build. It is your responsibility
to review this information and make sure that
all riders understand all warnings, cautions,
instructions and safety topics, and assure that
young riders are able to safely and responsibly
use this product. Infento recommends that you
periodically review and reinforce the infor-
mation in this manual with younger riders, and
that you inspect and maintain your child’s
Infento rides to insure their safety.
WARNING! RIDING ON
INFENTO RIDES CAN BE A
DANGEROUS ACTIVITY
Riding on Infento rides can be a dangerous
activity. Certain conditions may cause the equip-
ment to fail without fault of the manufacturer.
Rides made from Infento parts can and are
intended to move, and it is therefore possible to
lose control, fall off and/or get into dangerous
situations that no amount of care, instruction or
expertise can eliminate. If such things occur you
can be seriously injured or die, even when using
safety equipment and other precautions. Ride at
your own risk and use common sense.
WARNING! NO LIABILITY FOR
CONSTRUCTED RIDES THAT
DIFFER FROM OUR MANUALS
The rides that you can fi nd in our manuals have
been tested by offi cial independent testing
agencies. We will not be responsible or liable,
directly or indirectly, in any way for any loss or
damage of any kind incurred as a result of your
decision to build constructions or rides that
diff er from the offi cial rides that we show in our
manuals.
ASSEMBLY – SUBSECTION
WARNING! OUR KITS
CONTAIN SMALL PARTS
This package contains small parts which, before
assembly, present a choking hazard to children
under the age of three. Care should be taken
during unpacking and assembly to insure that
all small parts and plastic bags are accounted
for and kept out of the reach of children.
WARNING! TO AVOID
SERIOUS INJURY:
1. Toys are to be assembled by an adult using
Infento manuals.
2. All fasteners (bolts and nuts) should be
fully tightened.
3. It is the responsibility of the adult who
assembles this bicycle to properly install all
parts included in the factory sealed shipping
carton and to make the adjustments to the
functional parts such as handle bar and seat
and chain when necessary.
USE – SUBSECTION
WARNING! TO AVOID
SERIOUS INJURY:
1. Continuous adult supervision is
required.
2. Only ride constructed rides that have been
built according to the instructions given in the
offi cial Infento manual.
3. Never exceed the maximum weight. You can
fi nd the maximum weight for every specifi c ride
in our manual.
4. Always check the manual to see the minimum
and maximum age as well as the minimum and
maximum length for every specifi c ride.
5. Always wear safety equipment such as a
helmet, knee pads and elbow pads. We
recommend riders always wear a properly fi tted
helmet that complies with local or national
guidelines or laws. Keep chinstrap of helmet
securely buckled.
6. Always wear closed toed shoes (lace-up
shoes with rubber soles), never ride barefooted
or in sandals, and keep shoe laces tied and out
of the way of the wheels.
7. Avoid streets and surfaces with water, sand,
gravel, dirt, leaves, and other debris. Wet we-
ather impairs traction, braking and visibility.
8. Excessive exposure to sunlight, temperatures
below 0 degrees Celsius, water, sand, gravel,
dirt, leaves, and other debris can damage,
shrink, expand or weaken parts. Keep your ride
in a dry environment with proper heating.
9. Avoid sharp bumps, drainage grates and
sudden surface changes. Your Infento ride may
suddenly stop.
10. Ride on smooth, paved surfaces away from
motor vehicles. Wet, slick or uneven and rough
SAFETY SECTION
surfaces may impair traction and contribute to
possible accidents.
11. Never risk damaging surfaces, such as carpet
or fl ooring, by use of an Infento ride indoors.
12. Never use near motor vehicles, streets,
roadways, alleys, swimming pool areas, hills,
steps, sloped driveways, inclines and public
highways.
13. Watch out for pedestrians, skaters, skate-
boards, scooters, bikes, children or animals who
may enter your path, and respect the rights and
property of others.
14. Avoid excessive speed associated with
downhill rides.
15. Do not use at night or in periods with
reduced visibility.
16. Before every use, please make sure that
the complete ride and all joints have been
assembled tightly, as with use, joints may
wear out.
17. Before using your Infento ride, please check
that the screws are tightened securely.
18. It’s your own responsibility if you modify the
product other than manufacturer’s instructions.
19. Maintain a hold on the handlebars at all times.
20. Brake will get hot from continuous use.
Do not touch after braking.
21. Periodically check hardware and tighten
if necessary. Replace worn or broken parts
immediately.
22. Skill is required to avoid falls or collision
causing injury to the user and third parties.
23. Check operation of breaks every time
before bicycle is ridden.
24. Check local laws before you start with riding.
25. Never tow wagons, other vehicles, or
children on skates or skateboards.
26. Make certain that anyone who uses an
Infento ride has been fully instructed in its
operation.
27. Instruct your child on how to use the
breaks.
28. Do not perform stunts.
29. Never use headphones or a cell phone
when riding.
30. Only one rider at a time on an Infento ride.
31. Do not allow children to stand on the
product at any time.
FAILURE TO USE COMMON SENSE AND
HEED THE ABOVE WARNINGS INCREASES
RISK OF SERIOUS INJURY. USE WITH
APPROPRIATE CAUTION AND SERIOUS
ATTENTION TO SAFE OPERATION.

SAFETY SECTION

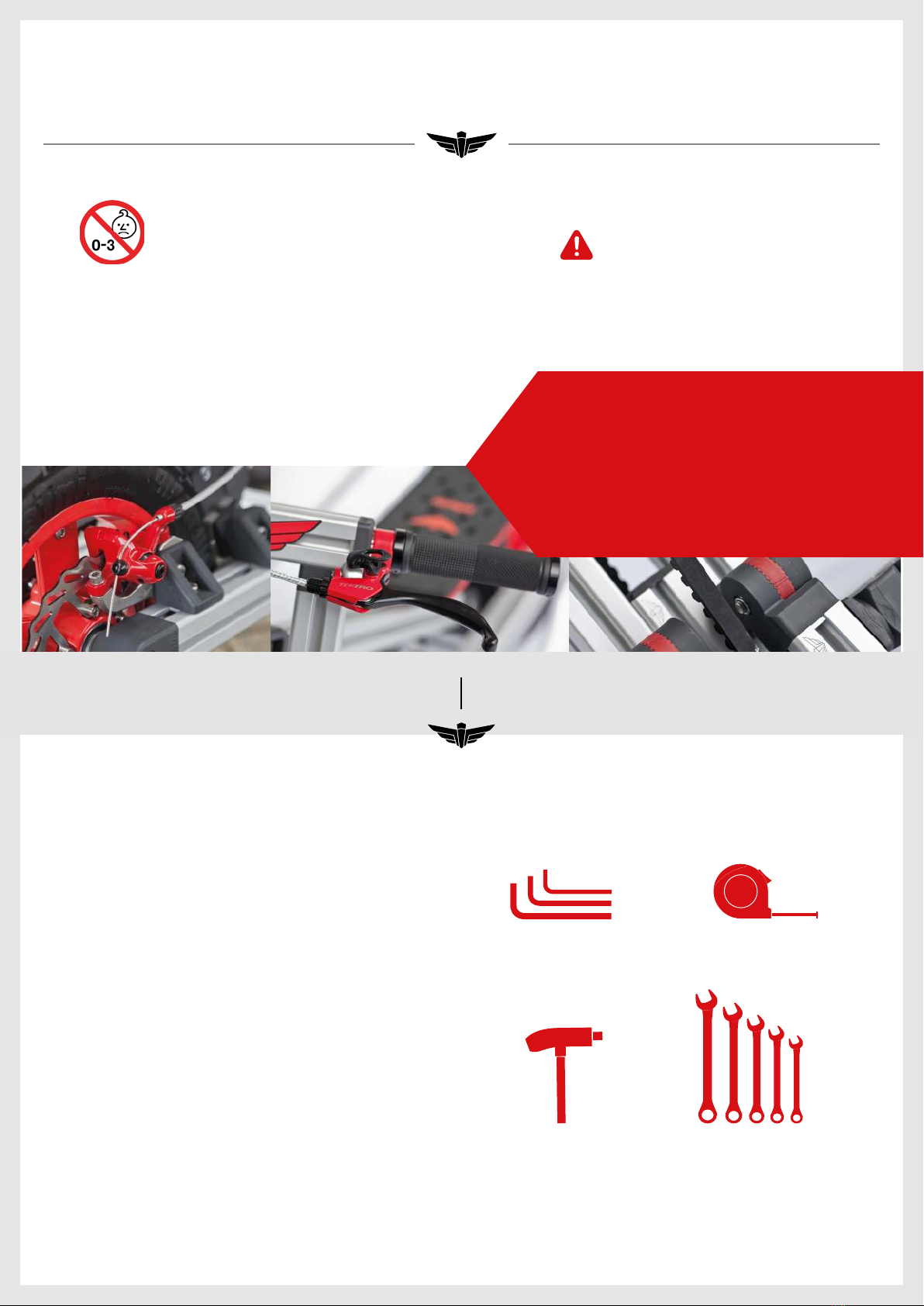

OUR KITS CONTAIN SMALL PARTS
This package contains small parts which,
before assembly, present a choking hazard to
children under the age of three. Care should be
taken during unpacking and assembly to insure
that all small parts and plastic bags are accounted
for and kept out of the reach of children.
QUESTIONS OR SUPPORT NEEDED?
You can mail us all your questions at:
[email protected]
and our team will reply you as soon
as possible.
INSTRUCTIONMAINTENANCE
1.
2.
3.
4.
5.
6.
7.
8.
Oil or grease moving parts periodically.
Check nuts and bolts often and tighten
if necessary.
Any parts showing evidence or wear should
be replaced immediately.
Follow closely the assembly instructions
pertaining to the proper adjustments of parts
Periodically check the brake system for
proper function
Periodically check the steering mechanism
for proper function
Check the air pressure in the tires to be
the amount specifi ed in the manual
Periodically check the bicycle’s tooth belt to
be sure that it is not too lose which could
allow the chain to slip off the sprockets.
RECOMMENDED TOOLS
4 x Allen key
3, 4, 5, 6 mm
5 x Wrench
10, 13, 14, 15, 19 mm
1 x Tapeline
1 x T-handle
for Allen key
WARNING! PROTECTIVE EQUIPMENT
SHOULD BE WORN.
Not to be used in traffic. 50 kg max.

1
V 1.3
ride CRUISER
.09inch | 180mm
22.05inch | 560mm
Profile
1x
Double check here:
Does your result looks exactly like
the image at the bottom of the
page?
T-Positioning block
4x
7 inch wheel house
Washer M8-24
1x
Tighten the bolts with full force. Ensure
that you hold the long side of the Allen key
in your hand as this enables you to exert
greater force.
1x
+
+
+
+
3.94in | 100mm
Bolt M8x25 nylock
1x
First, get all required materials
stated here and then follow the
instructions.

Check frequently if all
parts are still firmly
tightened and function
properly.
Constructing and
playing always under
supervision of an adult.
Tighten bolts with full
force (15Nm) to prevent
them from coming loose.

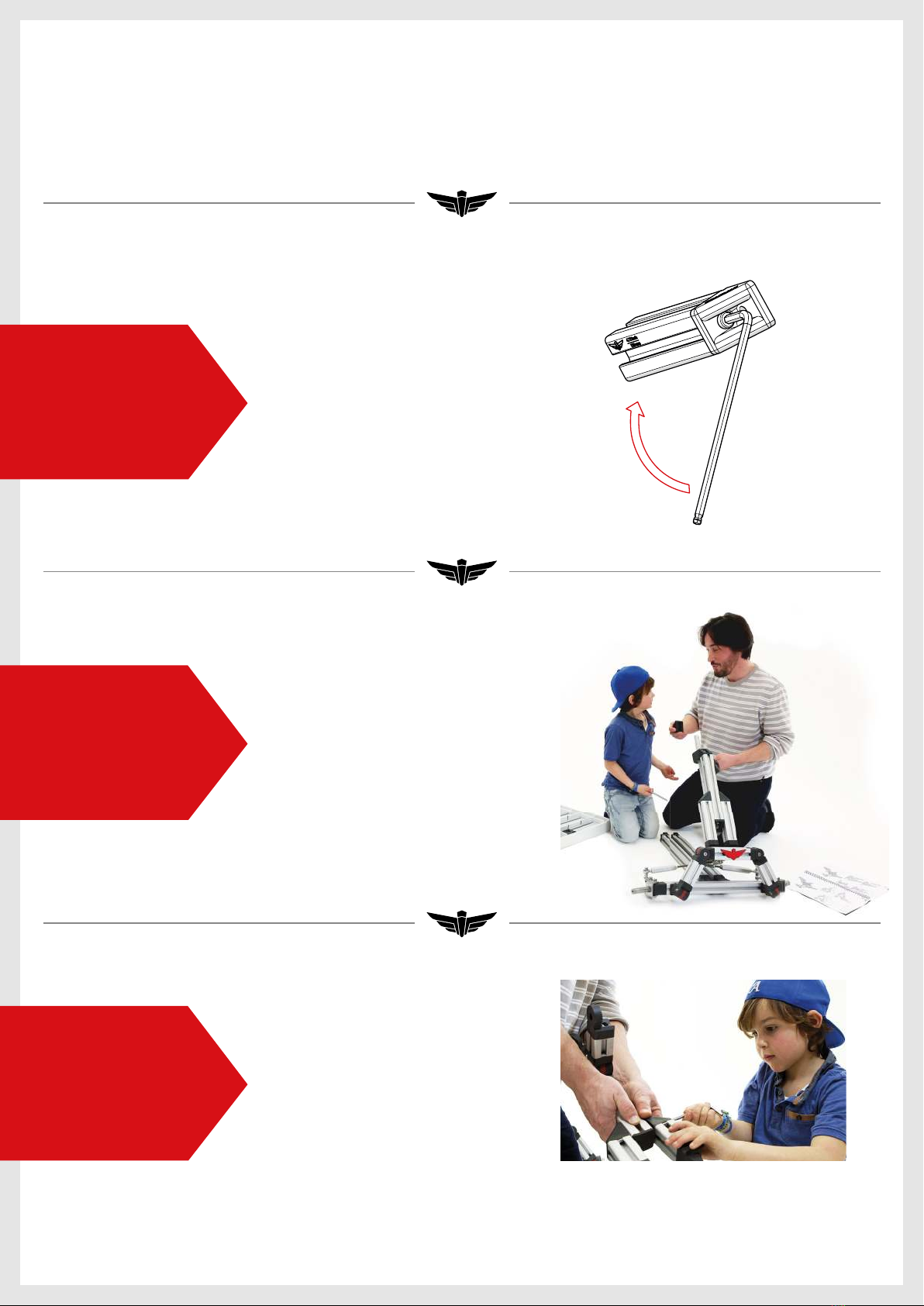

TOP 3 REQUIREMENTS MAKING A
GREAT INFENTO EXPERIENCE:
1
2
3

3
V 1.3
ride CRUISER
Bolt M8x20
1x
Multi angle joint
1x
T-Positioning block
4x
+ +
The positioning blocks are
some of the smallest Infento
parts but they are also some of
the most important. They ensure
that everything connects to each
other properly. This prevents
parts from twisting and com-
ing loose when under pressure.
Therefore, always use at least
two positioning blocks per block.

4
V 1.3

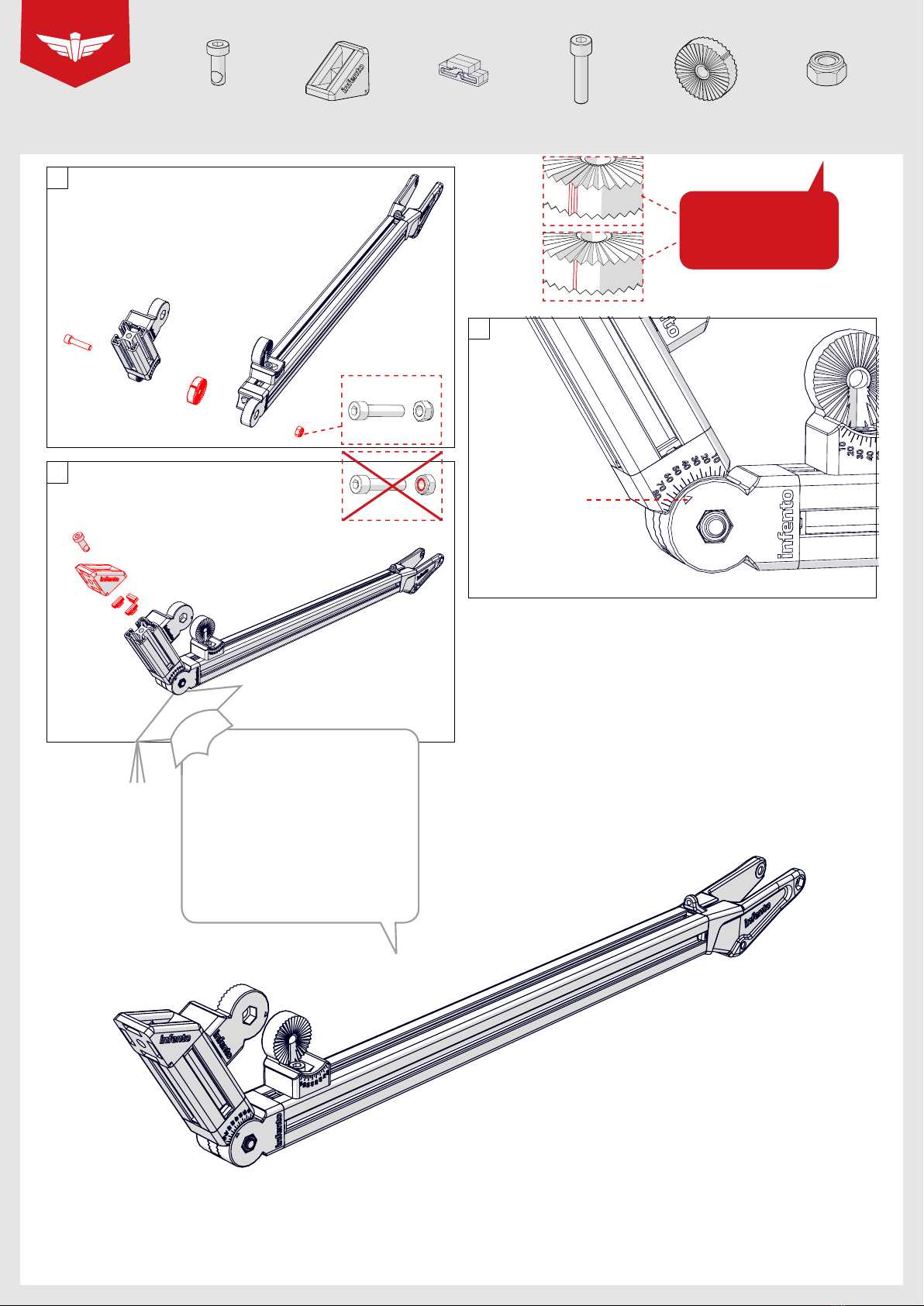

ride CRUISER

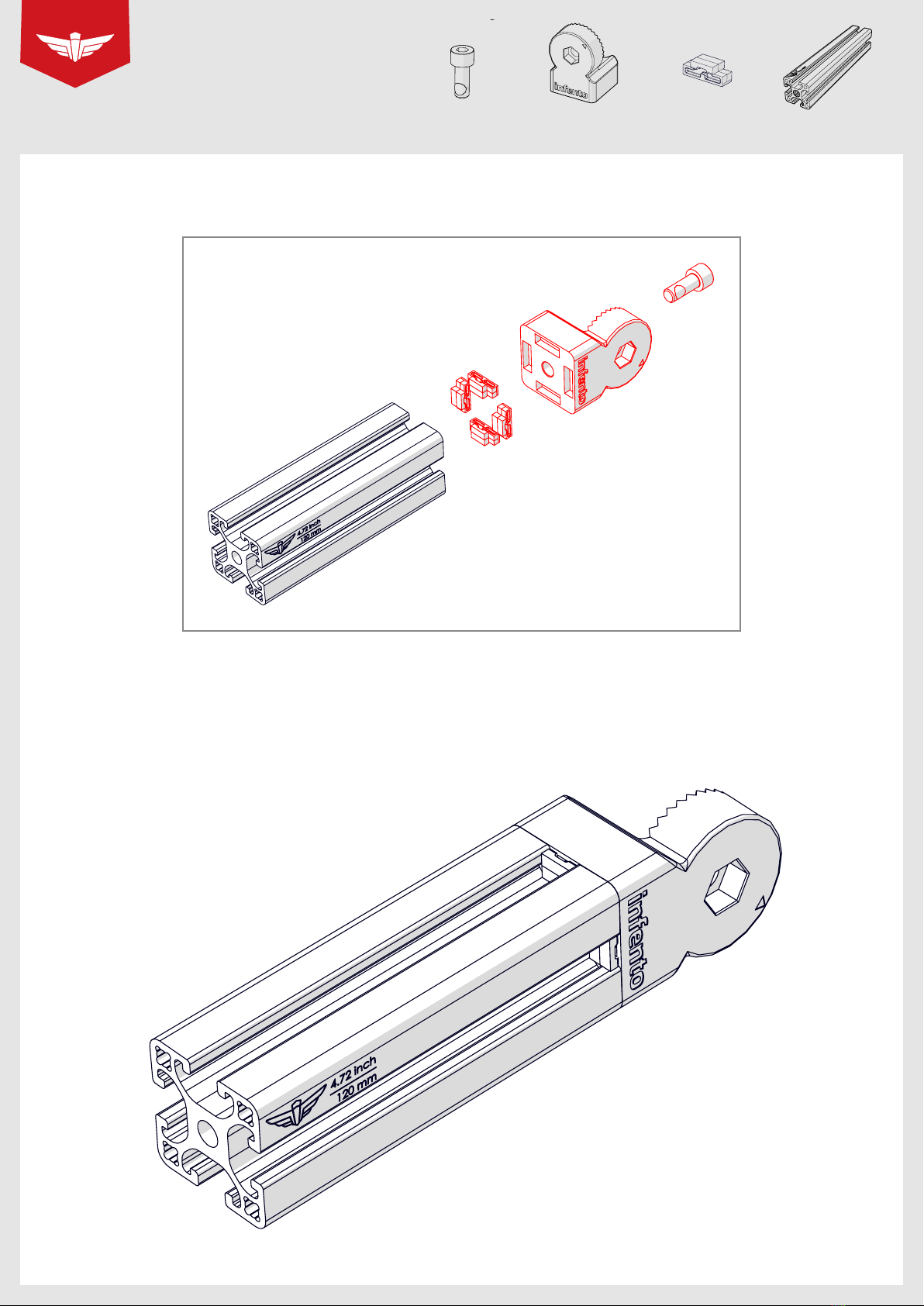

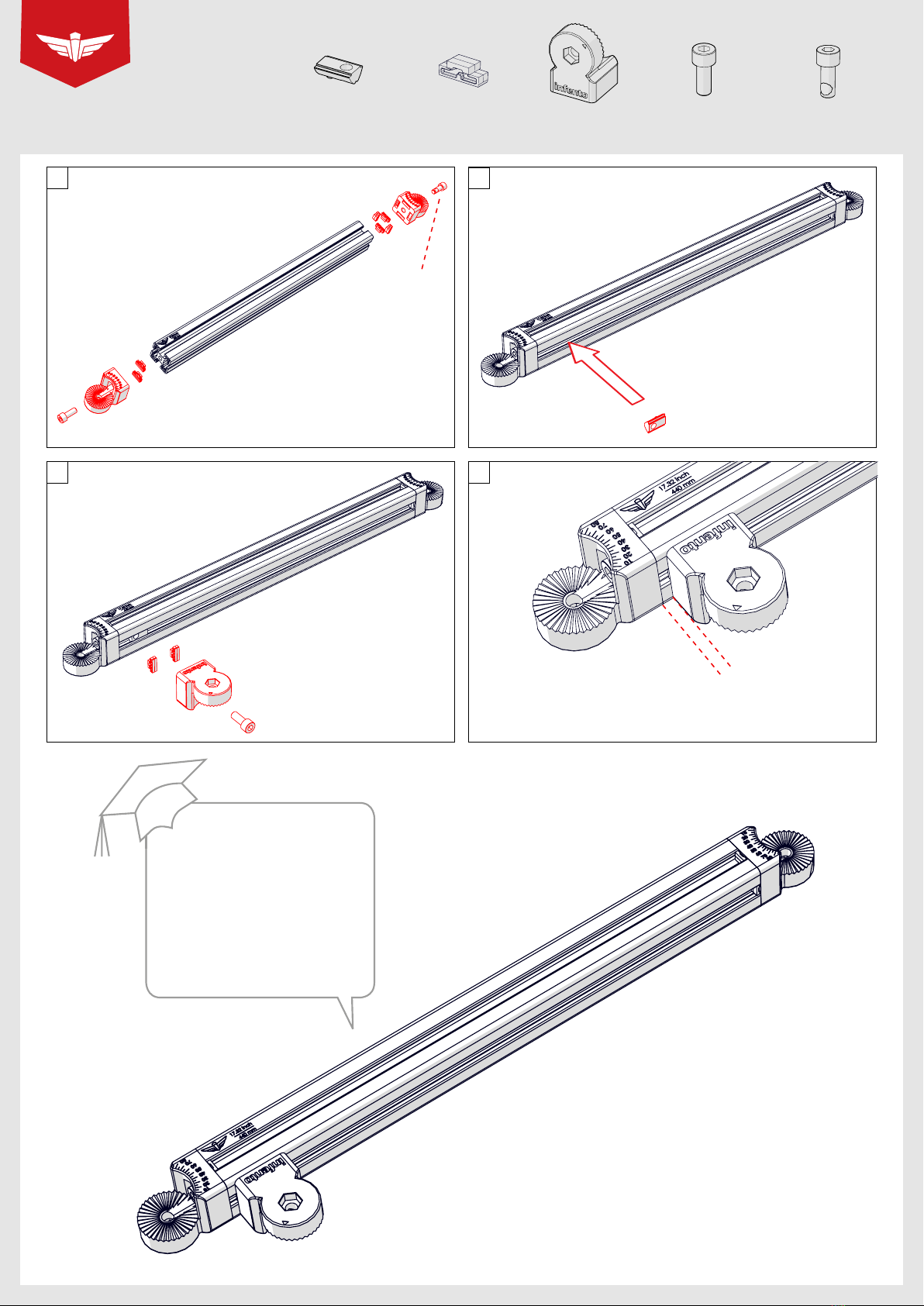

A
B
C
If you look carefully you can
see that the sides of the profi le
slope slightly inwards. If you
tighten a bolt securely the profi le
will be pulled fl ush against the
block so the profi le is properly
tensioned. As a result the bolts
remain more tightly in place.
This is called tensile stress.
Profile nut short
1x
T-Positioning block
2x
Multi angle joint
1x
Bolt M8x20
1x
+++
13 mm | 0,5”
When tightening the bolt
always check whether
the profile nut remains
perfectly straight in the
slot. If this becomes
crooked, you can push
against the side of the
profile bolt with the Allen
key to correct this.

5
V 1.3
ride CRUISER
AB
C D
Bolt M8x20
2x
T-Positioning block
6x
Multi angle joint
2x
Profile nut short
1x
++
+
36 mm | 1,4”
3.15inch | 80mm
Profile
xle clamp ring
1x
+

6
V 1.3
ride CRUISER
A
B
C

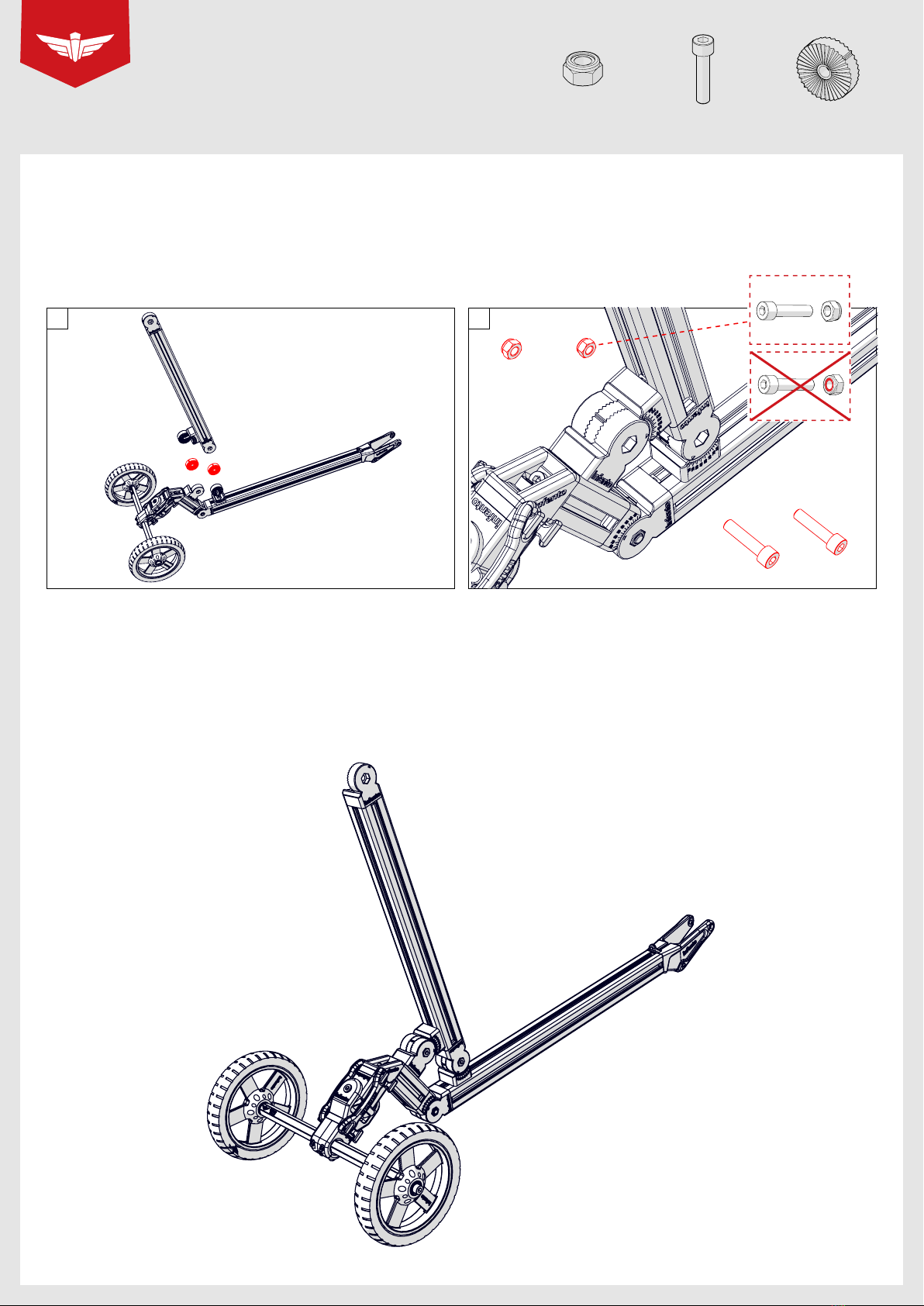

Locknut M8 1x
Knurled disc 2 stripes
1x
Bolt M8x35
1x
++
There are two diff erent
knurled discs. One for each
corner ending in a 5 (5-15-25-etc.
degrees), which has one stripe
round the outside, and one for
each corner that ends in a 0 (0-
10-20-etc degrees), which has
two stripes round the outside.
There are two types of
knurled discs. Please
see education section.
60°
++
Bolt M8x20 nylock
(low head)
1x
T-Positioning block
3x
L- joint
1x
+

7
V 1.3

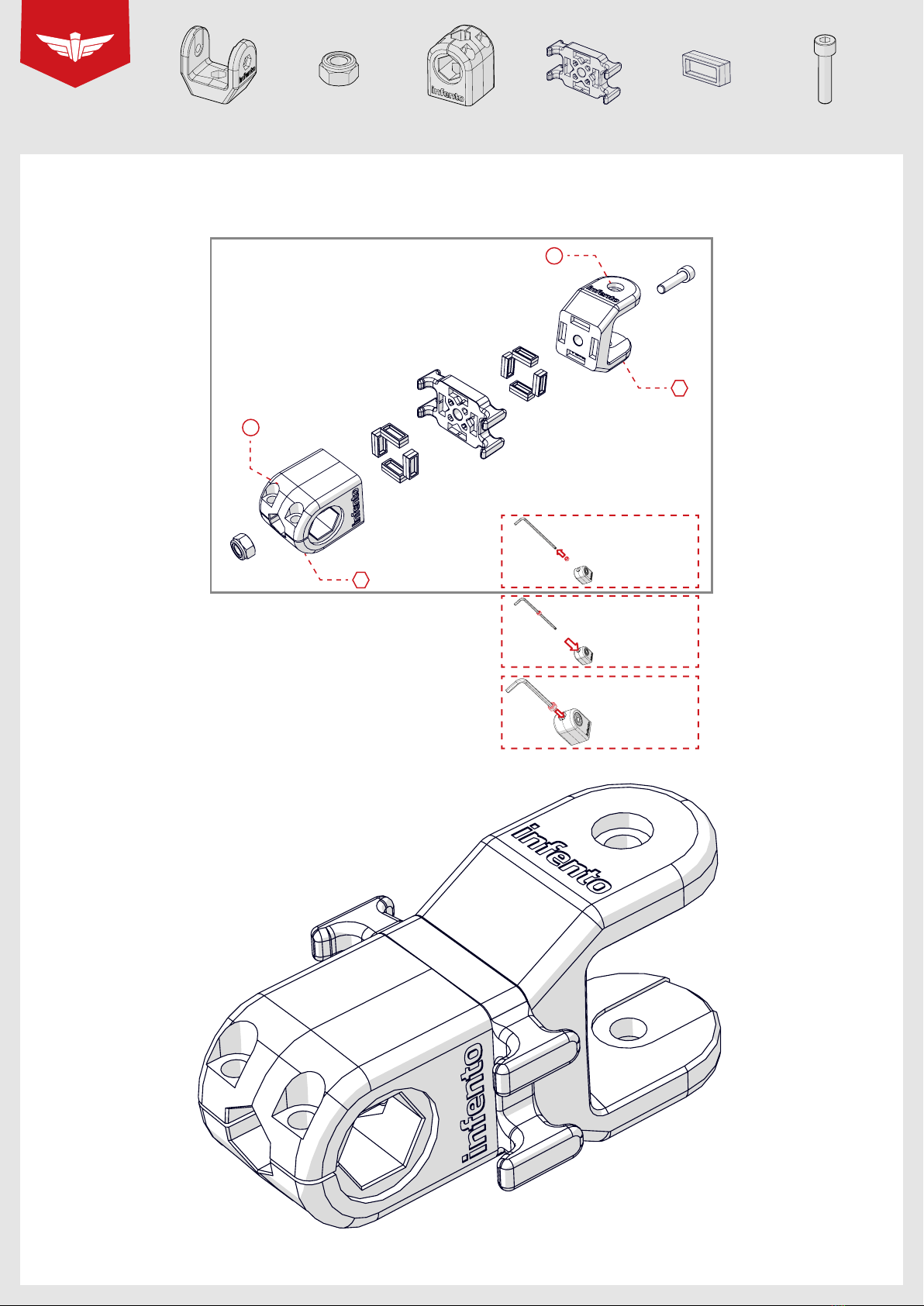

ride CRUISER
Bolt M8x35
1x
Positioning block
8x
Stabilizer plate
1x
Locknut M8 1x
++ + +
Parrellel clamp joint
Bearing block
40x40_8
1x
take a 5mm
Allen key, slide
the nut on it
stick the Allen
key through
the part
let the nut
slide down
NUT-IN-PART-TRICK
2
1
3

8
V 1.3
ride CRUISER
Bolt M8x35
1x
Positioning block
8x
Stabilizer plate
1x
Locknut M8 1x
++ + +
take a 5mm
Allen key, slide
the nut on it
stick the Allen
key through
the part
let the nut
slide down
NUT-IN-PART-TRICK
2
1
3
U-Block
1x
Axle clamp
1x
+

9
V 1.3
ride CRUISER
AB
C D
Washer M8-16
2x
Bolt M8x60
1x
Locknut M8 1x
+
+
Angle limiter
40º
1x
+

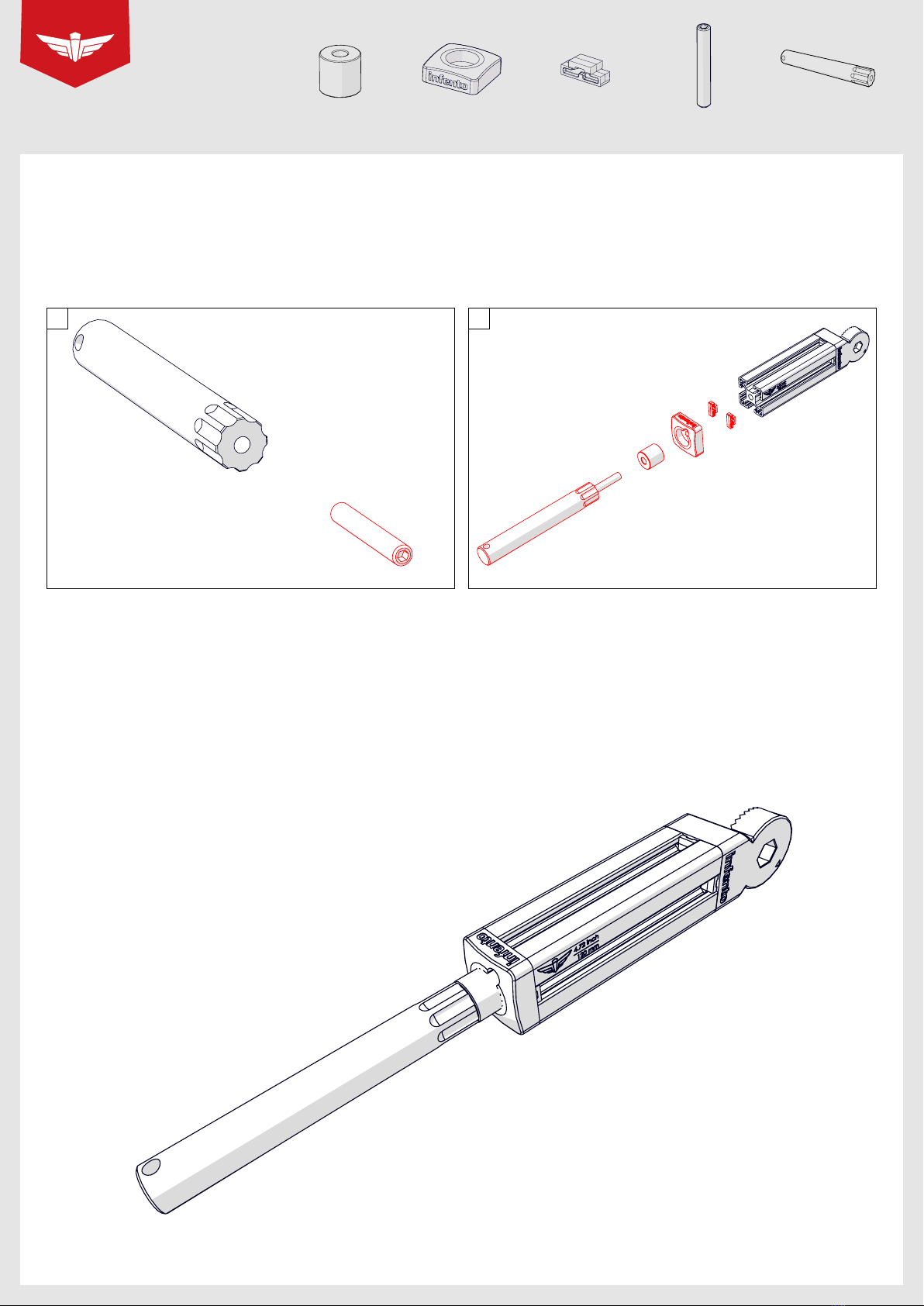

10
V 1.3
ride CRUISER
A
B
C
37inch | 111mm
12.95inch | 329mm
Axle
1x
Bolt M6x25
2x
Locknut M6
2x
++
145 mm | 5,7”
Leave a gap
of at least
0.5mm when
tightening
the bolts.

11
V 1.3
ride CRUISER
AB
C D
Stabilizer rubber
85S black
2x
Washer M8-16
2x
+ + +
adjuster
Bolt M8x45 nylock
2x
7 inch wheel
2x

12
V 1.3
ride CRUISER
AB
C D
without bearings
Bolt M8x20 nylock
1x
Bolt M8x20
2x

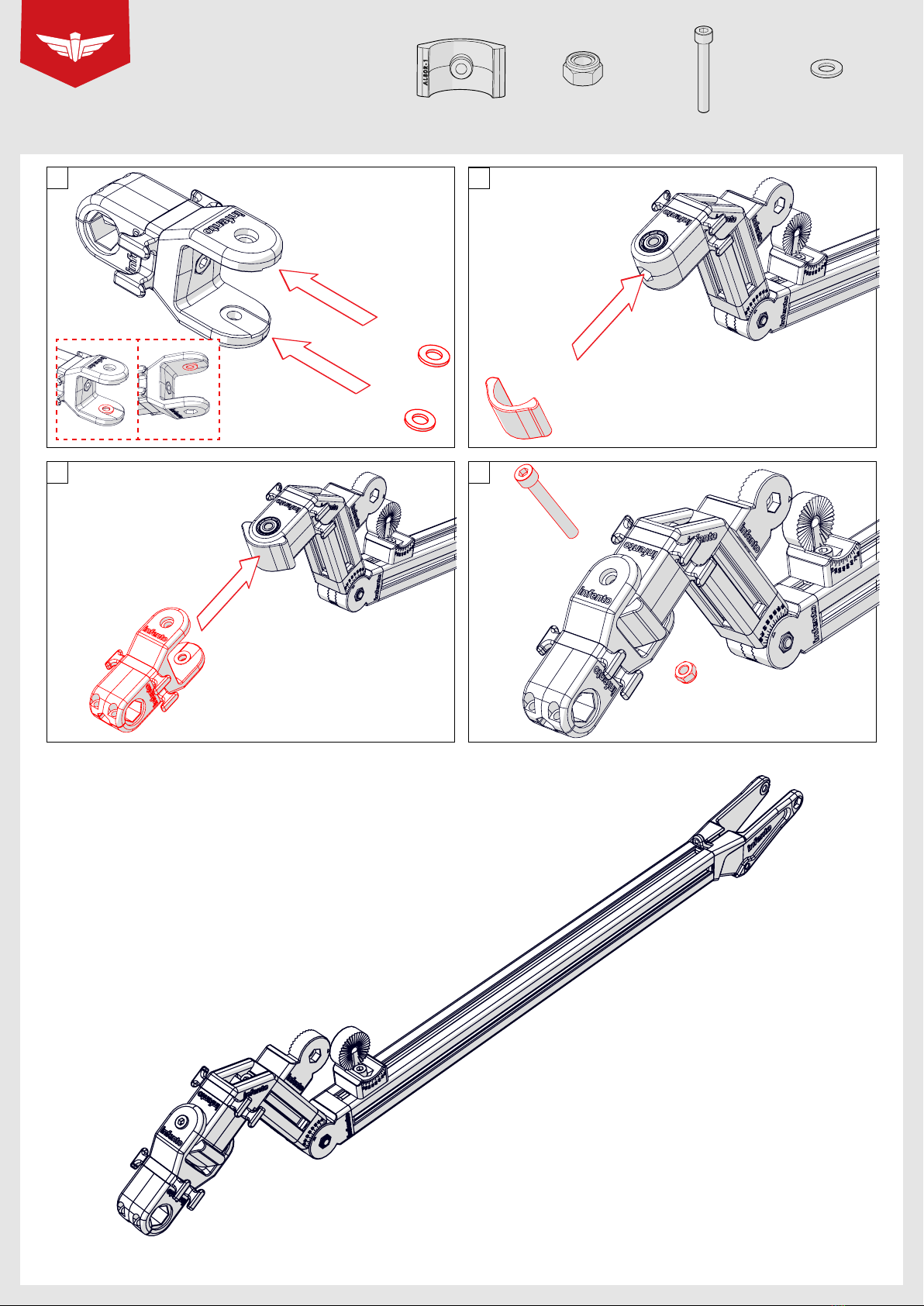

Multi angle joint
3x
Profile nut short
1x
The plastic parts of Infento
are made using injection moul-
ding technology where molten
plastic is pressed under high
pressure into a mould.
A mould consists of steel
blocks in which a shape is
recessed.
+ +++
lockbolt
6 mm | 0,2”
T-Positioning block
8x

13
V 1.3
ride CRUISER
A B
Knurled disc 2 stripes
2x
Bolt M8x35
2x
Locknut M8 2x
++

14
V 1.3
ride CRUISER

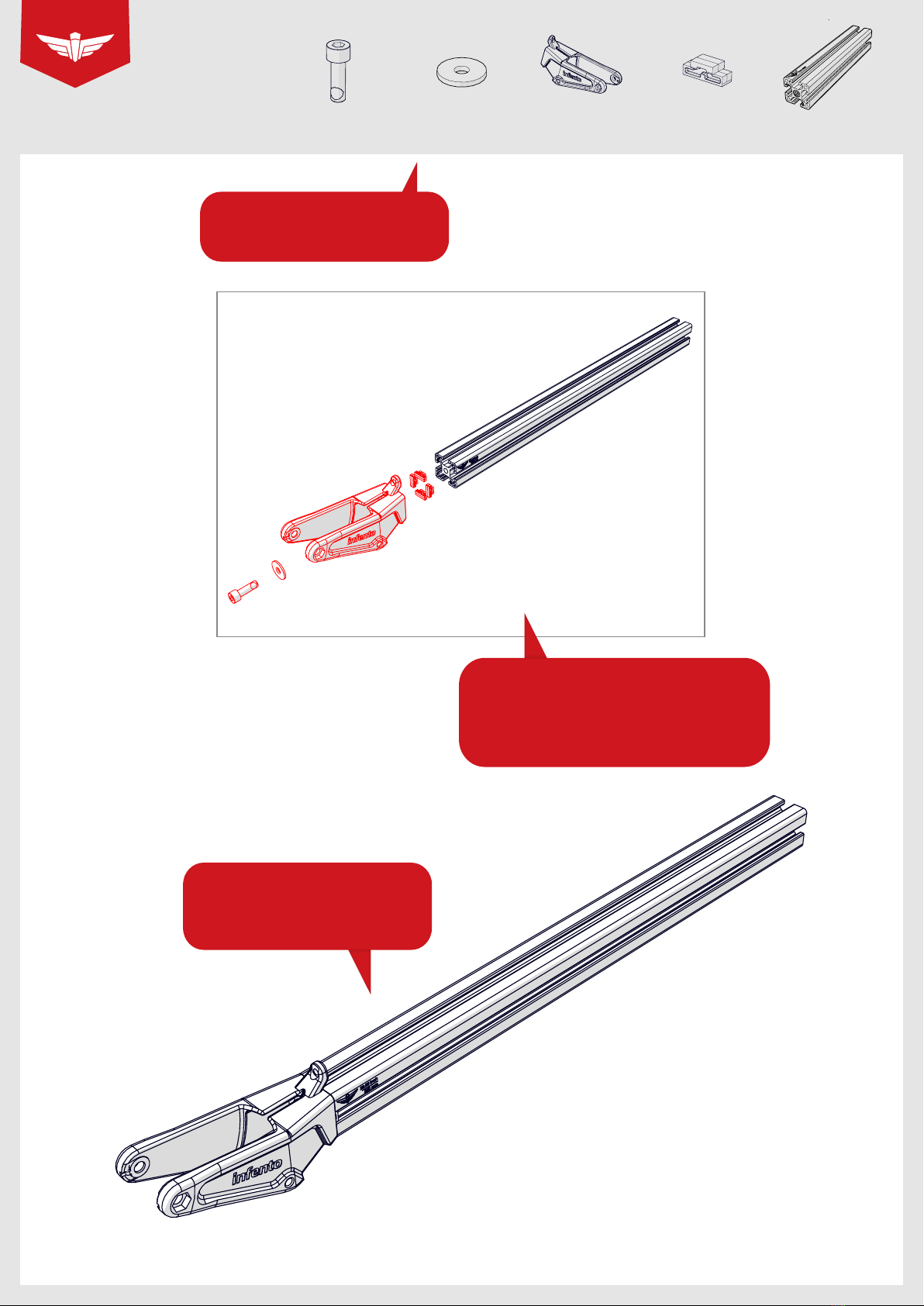

4.72inch | 120mm
Profile
1x
Multi angle joint
1x
without bearings
Bolt M8x20 nylock
1x
+++
T-Positioning block
4x

15
V 1.3
ride CRUISER
A B
Handlebar short1x
Axle plate
1x
+ +++
M8x55
Adjusting bolt
1x
T-Positioning block
2x
Handlebar spacer
1x

16
V 1.3
ride CRUISER
AB
C D
Bolt M8x35
1x
Locknut M8 1x
Knurled disc 2 stripes
1x
+
+
+

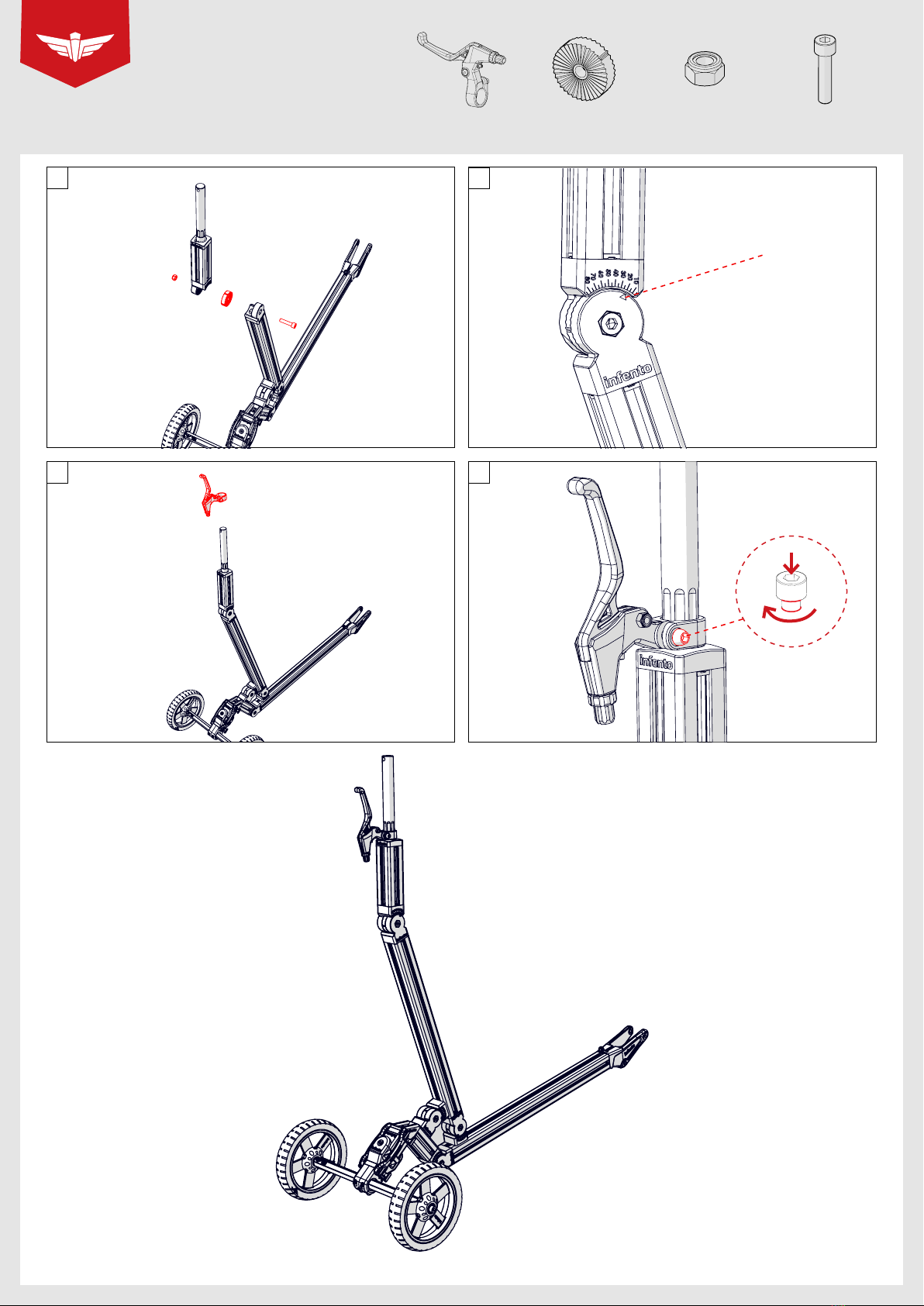

Brake lever left 1x
20°
