Infinity Infinity S401 Spot User manual

Infinity S401 Spot V1
Highlite International B.V. –Vestastraat 2 –6468 EX –Kerkrade –the Netherlands
Ordercode: 41506
MANUAL
ENGLISH

1
Ordercode: 41506
Infinity S401 Spot
Table of contents
Warning ...............................................................................................................................................................................3
Safety Instructions .........................................................................................................................................................3
Operating Determinations ..........................................................................................................................................5
Rigging ............................................................................................................................................................................5
Connection with the mains.........................................................................................................................................6
Return Procedure..........................................................................................................................................................7
Claims..............................................................................................................................................................................7
Description of the device.................................................................................................................................................8
Output..........................................................................................................................................................................8
Electrical ......................................................................................................................................................................8
Control .........................................................................................................................................................................8
Optical system............................................................................................................................................................8
Movement...................................................................................................................................................................8
Gobos & Colors ..........................................................................................................................................................8
Physical ........................................................................................................................................................................8
Certification and Safety ...........................................................................................................................................9
Frontside..........................................................................................................................................................................9
Backside .......................................................................................................................................................................10
Installation.........................................................................................................................................................................10
Lock/Unlock the Moving Head ................................................................................................................................10
Set Up and Operation .....................................................................................................................................................11
Control Modes.............................................................................................................................................................11
One Infinity (Stand-alone)......................................................................................................................................11
One Infinity (Manual) ..............................................................................................................................................11
Multiple Infinitys (DMX control) ..............................................................................................................................12
Multiple Infinitys (Wireless DMX Control) ..............................................................................................................13

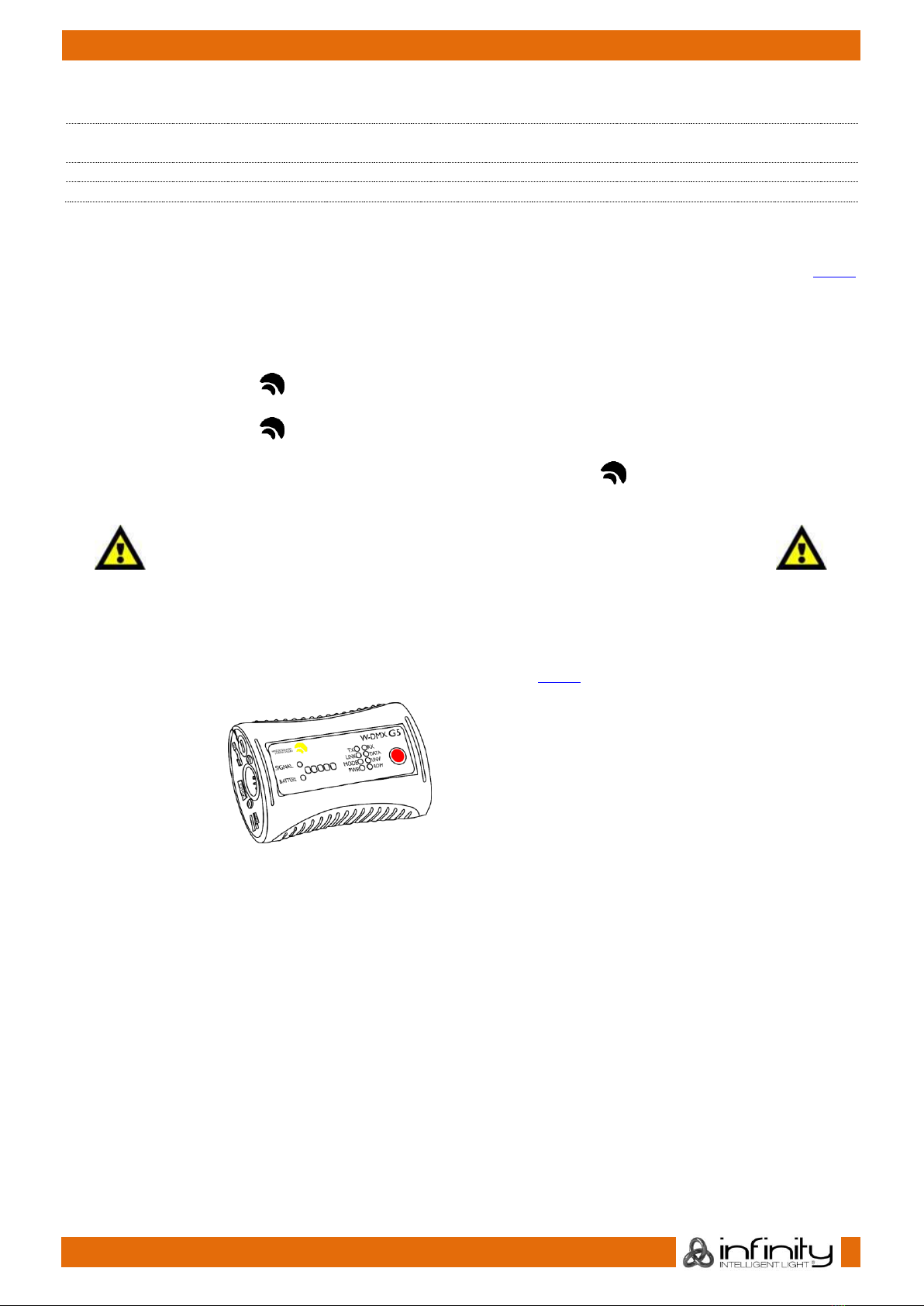

Connect the Infinity to the Wireless DMX Signal Transmitter ...........................................................................14
Disconnect the Infinity from the Wireless DMX Signal Transmitter ..................................................................14

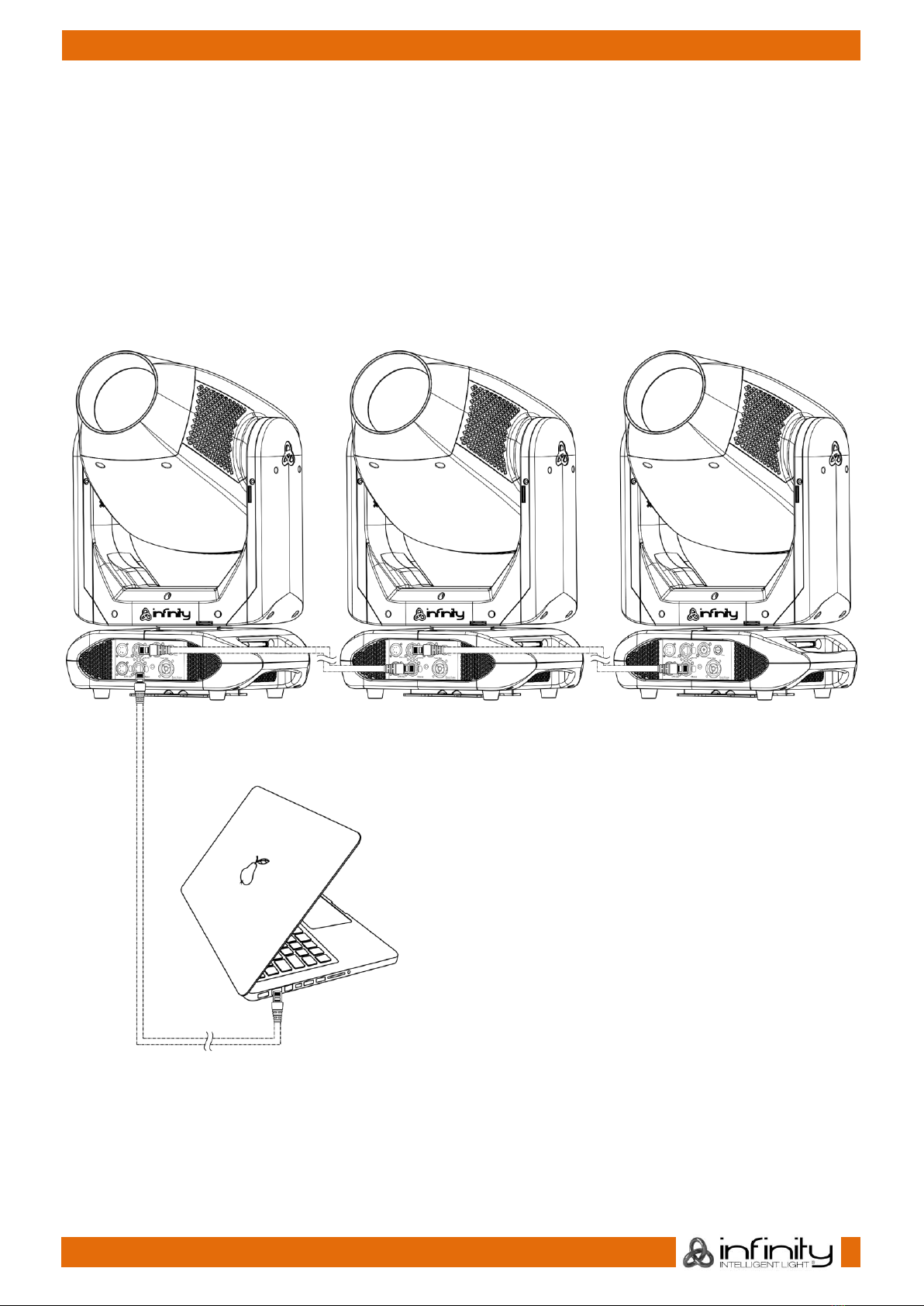

Multiple Infinitys (ArtNet Control) ..........................................................................................................................15
Connecting to a Network .........................................................................................................................................16
ArtNet Settings..........................................................................................................................................................16

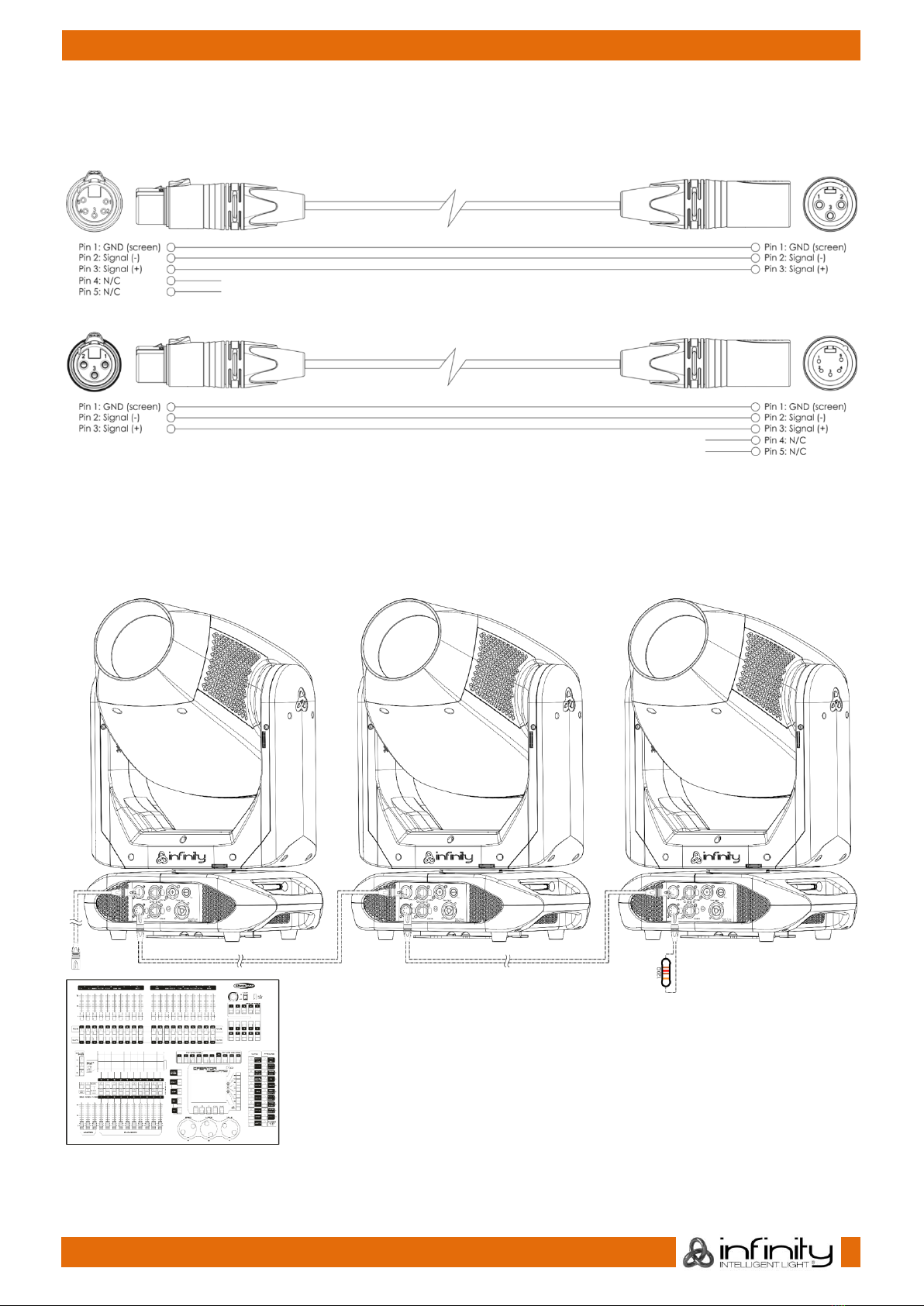

How to Make a Data Cable.....................................................................................................................................17
Software for controlling .............................................................................................................................................17
Fixture Linking...............................................................................................................................................................18
Data Cabling...............................................................................................................................................................18
Control Panel ...............................................................................................................................................................19
Control Mode ..............................................................................................................................................................19
DMX Addressing ..........................................................................................................................................................19
Menu Overview...........................................................................................................................................................20
Start-Up .........................................................................................................................................................................24
Safety Lock...................................................................................................................................................................24
No Reset Start-Up ........................................................................................................................................................24
Main Menu Options....................................................................................................................................................25
1. DMX Addressing...................................................................................................................................................25
2. Control Mode .......................................................................................................................................................26
2.1. User Personality .................................................................................................................................................26
3. Settings Menu.......................................................................................................................................................27
3.1. Network Settings ...............................................................................................................................................29
3.2. Lock Code .........................................................................................................................................................30
3.3. Touch Calibration.............................................................................................................................................31
3.4. Service Menu.....................................................................................................................................................31
3.5. Reset Function...................................................................................................................................................32
4. Manual Control ....................................................................................................................................................33
5. Stand-Alone..........................................................................................................................................................34

2
Ordercode: 41506
Infinity S401 Spot
6. Information............................................................................................................................................................34
6.1. Fixture Information............................................................................................................................................35
6.2. Fan Information.................................................................................................................................................35
6.3. Error Information ...............................................................................................................................................35
6.4. Channel Information........................................................................................................................................36
DMX Channels .............................................................................................................................................................37
37 channels...............................................................................................................................................................41
26 channels...............................................................................................................................................................46
Maintenance....................................................................................................................................................................50
Replacing the Fuse.....................................................................................................................................................50
Gobo Size .....................................................................................................................................................................50
Replacing a Gobo From the Rotating Gobo Wheel ...........................................................................................51
Glass Gobo Orientation.............................................................................................................................................52
Rotating and Static Gobo Wheel, Color Wheel and Animation Wheel.................................................................53
Troubleshooting ...............................................................................................................................................................54
No Light.........................................................................................................................................................................54
No Response to DMX..................................................................................................................................................54
Product Specifications....................................................................................................................................................56
Dimensions........................................................................................................................................................................57
Moving Head Position / DMX Values...........................................................................................................................58

3
Ordercode: 41506
Infinity S401 Spot
Warning
Unpacking Instructions
Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure
that all parts are present, and have been received in good condition. Notify the dealer immediately and
retain packing material for inspection if any parts appear damaged from shipping or the carton itself
shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be
returned to the factory, it is important that the fixture be returned in the original factory box and packing.
Your shipment includes:
●Infinity S401 Spot
●2 x mounting bracket with quick-locks
●Neutrik PowerCON True1 power cable 1,5 m
●User manual
LED Expected Lifespan
LEDs gradually decline in brightness over time. HEAT is the dominant factor that leads to the acceleration
of this decline. Packaged in clusters, LEDs exhibit higher operating temperatures than in ideal or singular
optimum conditions. For this reason, when all color LEDs are used at their fullest intensity, life of the LEDs is
significantly reduced. If improving life expectancy is of higher priority, place care in providing for lower
operational temperatures. This may include climatic-environmental and the reduction of overall
projection intensity.
Safety Instructions
Every person involved with the installation, operation and maintenance of this device has to:
●be qualified
●follow the instructions of this manual
Before the initial start-up, please make sure that there is no damage caused by transportation.
Should there be any, consult your dealer and do not use the device.
To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to
follow the safety instructions and warning notes written in this manual.

4
Ordercode: 41506
Infinity S401 Spot
Please consider that damages caused by manual modifications to the device are not subject to
warranty.
This device contains no user-serviceable parts. Refer servicing to qualified technicians only.
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused by the non-observance of
this manual or any unauthorized modification to the device.
●Never let the power cord come into contact with other cables! Handle the power cord and all
connections with the mains with particular caution!
●Never remove warning or informative labels from the unit.
●Never use anything to cover the ground contact.
●Never lift the fixture holding it by the projector-head, as the mechanics may be damaged. Always
hold the fixture by the transport handles.
●Never place any material over the lens.

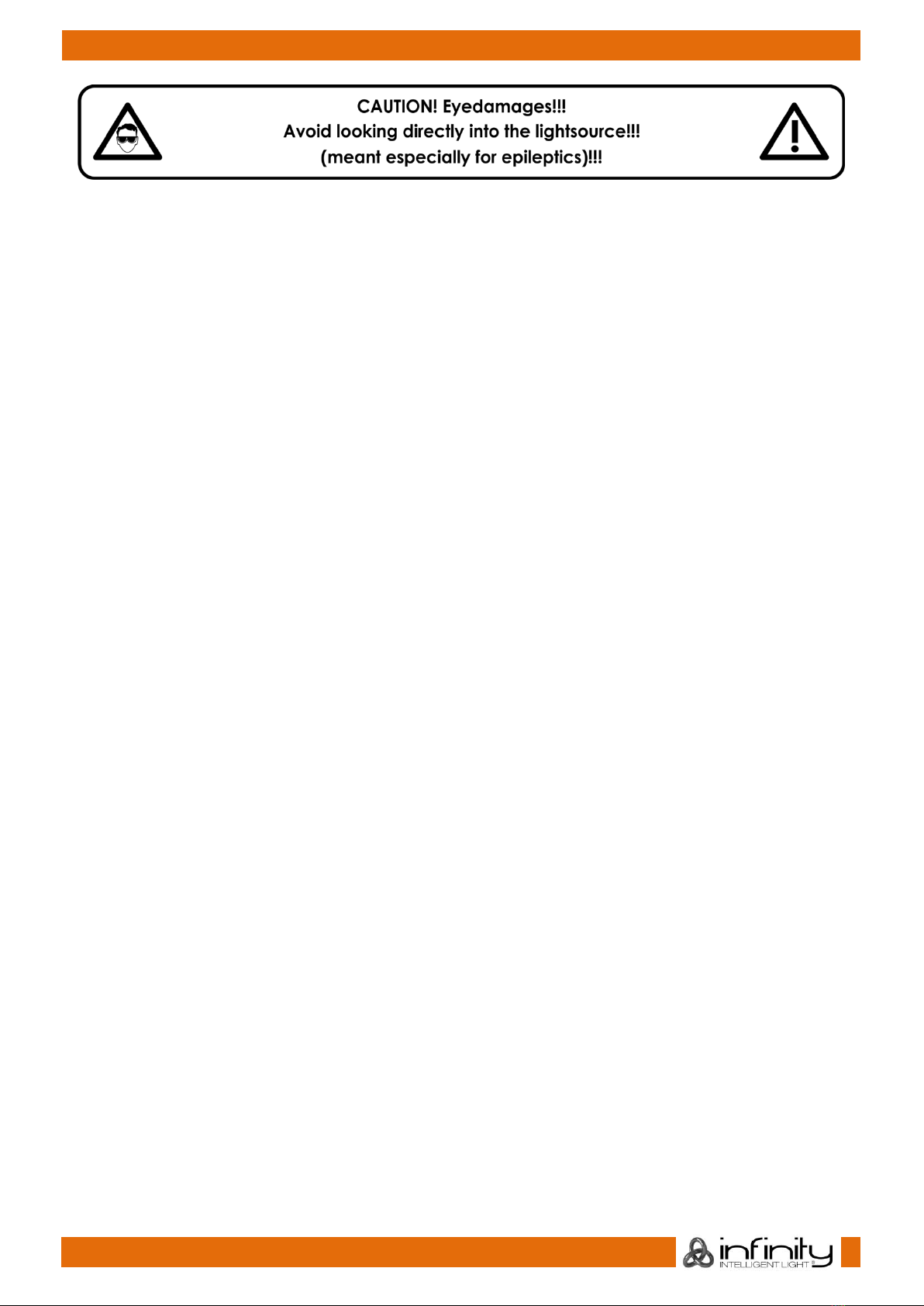

●Never look directly into the light source.
●Never leave any cables lying around.
●Never loosen the screws of the rotating gobo otherwise you risk opening of the ball bearing.
●Do not insert objects into air vents.
●Do not connect this device to a dimmer pack.
●Do not switch the device on and off in short intervals, as this will reduce the device’s life.
●Do not touch the device’s housing bare-handed during its operation (housing becomes hot). Allow
the fixture to cool for at least 5 minutes before handling.
●Do not shake the device. Avoid brute force when installing or operating the device.
●Only use the device indoors, avoid contact with water or other liquids.
●Only operate the fixture after having checked if the housing is firmly closed and all screws are tightly
fastened.
●Only operate the device after having familiarized with its functions.
●Avoid flames and do not put close to flammable liquids or gases.
●Always keep the case closed while operating.
●Always allow a free air space of at least 50 cm around the unit for ventilation.
●Always disconnect power from the mains, when device is not used or before cleaning! Only handle
the power cord holding it by the plug. Never pull out the plug by tugging the power cord.
●Make sure that the device is not exposed to extreme heat, moisture or dust.
●Make sure that the available voltage is not higher than stated on the rear panel.
●Make sure that the power cord is never crimped or damaged. Check the device and the power
cord from time to time.
●If the lens is obviously damaged, it has to be replaced.
●If device was dropped or struck, disconnect mains power supply immediately. Have a qualified
engineer inspect for safety before operating.
●If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not
switch it on immediately. The arising condensation water might damage your device. Leave the
device switched off until it has reached room temperature.
●If your Infinity device fails to work properly, discontinue the use immediately. Pack the unit securely
(preferably in the original packing material), and return it to your Infinity dealer for service.
●For adult use only. Moving head must be installed beyond the reach of children. Never leave the unit
running unattended.
●Never attempt to bypass the thermostatic switch or fuses.
●For replacement use fuses of same type and rating only.
●The user is responsible for correct positioning and operating of the Infinity. The manufacturer will not
accept liability for damages caused by the misuse or incorrect installation of this device.
●This device falls under protection class I. Therefore it is essential to connect the yellow/green
conductor to earth.
●Repairs, servicing and electric connection must be carried out by a qualified technician.
●WARRANTY: Till one year after date of purchase.

5
Ordercode: 41506
Infinity S401 Spot
Operating Determinations
●This device is not designed for permanent operation. Consistent operation breaks will ensure that the
device will serve you for a long time without defects.
●In order to eliminate wear and improve the device’s lifespan, during periods of non-use, completely
disconnect from power source via breaker or by unplugging.
●The maximum ambient temperature ta = 40°C must never be exceeded.
●The relative humidity must not exceed 50 % with an ambient temperature of 40°C.
●If this device is operated in any other way than the one described in this manual, the product may
suffer damages and the warranty becomes void.
●Any other operation may lead to dangers like short-circuit, burns, electric shock, crash etc.
You endanger your own safety and the safety of others!
Rigging
Please follow the European and national guidelines concerning rigging, trussing and all
other safety issues.
Do not attempt the installation yourself!
Always have the inspections carried out by an authorized dealer!
Procedure:
●If the Infinity is lowered from the ceiling or high joists, professional trussing systems have to be used.
●Use a clamp to mount the Infinity, with the mounting bracket, to the trussing system.
●The Infinity must never be fixed swinging freely in the room.
●The installation must always be secured with a safety attachment, e.g. an appropriate safety net or
safety cable.
●When rigging, derigging or servicing the Infinity, always make sure, that the area below the
installation site is secured and that there are not any unauthorized people around.

6
Ordercode: 41506
Infinity S401 Spot
The Infinity can be placed on a flat stage floor or mounted to any kind of truss with a mounting bracket
and a clamp.
Improper installation can cause serious injuries and/or damage of property!
Connection with the mains
Connect the device to the mains with the power-plug.
Always check if the right color cable is connected to the right place.
International
EU Cable
UK Cable
US Cable
Pin
L
BROWN
RED
YELLOW/COPPER
PHASE
N
BLUE
BLACK
SILVER
NEUTRAL
YELLOW/GREEN
GREEN
GREEN
PROTECTIVE GROUND
Make sure that the device is always properly connected to the earth!
Improper installation can cause serious injuries and/or damage of property!

7
Ordercode: 41506
Infinity S401 Spot
Return Procedure
Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.
Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned
without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.
Call Highlite 0031-455667723 or mail [e-mail] and request an RMA prior to shipping the
fixture. Be prepared to provide the model number, serial number and a brief description of the cause for
the return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is
the customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace
product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.
Note: If you are given an RMA number, please include the following information on a piece of paper
inside the box:
01) Your name
02) Your address
03) Your phone number
04) A brief description of the symptoms
Claims
The client has the obligation to check the delivered goods immediately upon delivery for any short-
comings and/or visible defects, or perform this check after our announcement that the goods are at their
disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be
reported to the carrier upon receipt of merchandise.
It is the customer's responsibility to notify and submit claims with the shipper in the event that a fixture is
damaged due to shipping. Transportation damage has to be reported to us within one day after receipt
of the delivery.
Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with
a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless
otherwise agreed in writing.
Complaints against us must be made known in writing or by fax within 10 working days after receipt of the
invoice. After this period complaints will not be handled anymore.
Complaints will only then be considered if the client has so far complied with all parts of the agreement,
regardless of the agreement of which the obligation is resulting.

8
Ordercode: 41506
Infinity S401 Spot
Description of the device
Features
The Infinity S401 Spot is a moving head with high output and great effects.
Output
●Lux @ 5m 6°: 34442
●Lux @ 5m 30°: 2205
●Beam angle: 6° - 30°
●Light source: 1 x 350W White LED
●Color temperature: 7500K
Electrical
●Input voltage: 100-240V AC, 50/60Hz
●Power consumption: 610W max. at full output
Control
●Onboard: Battery-powered, fixture-orientated touch display
●Control modes: Stand-Alone, Manual, DMX-512, W-DMX, ArtNet
●Control protocol: DMX, W-DMX, RDM, sACN, ArtNet
●DMX channels: Basic (26 channels), Advance (37 channels), User (up to 37 channels)
●Wireless DMX: Wireless Solutions Sweden
Optical system
●Dimmer: 16 bit, 0-100%
●Strobe: 0-20Hz
●Selectable PWM: 0,6/1,2/2/4/6/15 kHz
●Focus: Motorized auto focus
●Iris: Motorized, 0-100%
●Zoom: 8 or 16 bit (motorized)
●Prisms: 3-facet circular prism & 5-facet linear rotating prism
●Frost filter: Yes
●Animation: Continuously bi-rotating flame wheel & digital motion FX
Movement
●Pan: 540°
●Tilt: 270°
●Pan/Tilt resolution: 16 bit
●Special: Fixture-orientated auto pan invert
Gobos & Colors
●Rotating gobo wheel: 6 glass gobos + open
●Static gobo wheel: 7 metal gobos + open
●Gobo size: Glass gobo: 25,9 mm (gobo size); 22,94 mm (image diameter); 1,1mm (gobo thickness)
●Gobo functions: Gobo-flow effect, Gobo shake
●Gobo rotation: Bi-directional
●Gobo index: 8 or 16 bit
●Color wheel: 7 dichroic filters + white
●CMY: 0-100%
●CTO: 0-100%
●Color functions: Split colors, Rainbow-flow effect, CMY macros
Physical
●Color: Black
●Housing: Metal & flame-retardant plastic
●Data connection: 5-pin Neutrik XLR & RJ-45 IN/OUT
●Power connection: Neutrik PowerCON True1 IN/OUT
●Fuse: F12AL/250V
●Dimensions: 385 x 284 x 680 mm (LxWxH)
●Weight: 28,9 kg

9
Ordercode: 41506
Infinity S401 Spot
Certification and Safety
●Certification: CE
●Max. ambient temperature: 40°C
Optional accessories:
70454–Safety cable Saveking 4 mm (Natural)
70456 –Safety cable Saveking 4 mm (Black)
FLA43 –DMX Terminator
75101 –Fast Coupler 150 kg (Black)
Frontside
Fig. 01
01) Lens
02) LCD display
03) Menu control
