Infinity PS212 User manual

~Inflnit¥
Powered Subwoofer
PS212
Owner's Guide
(120V)

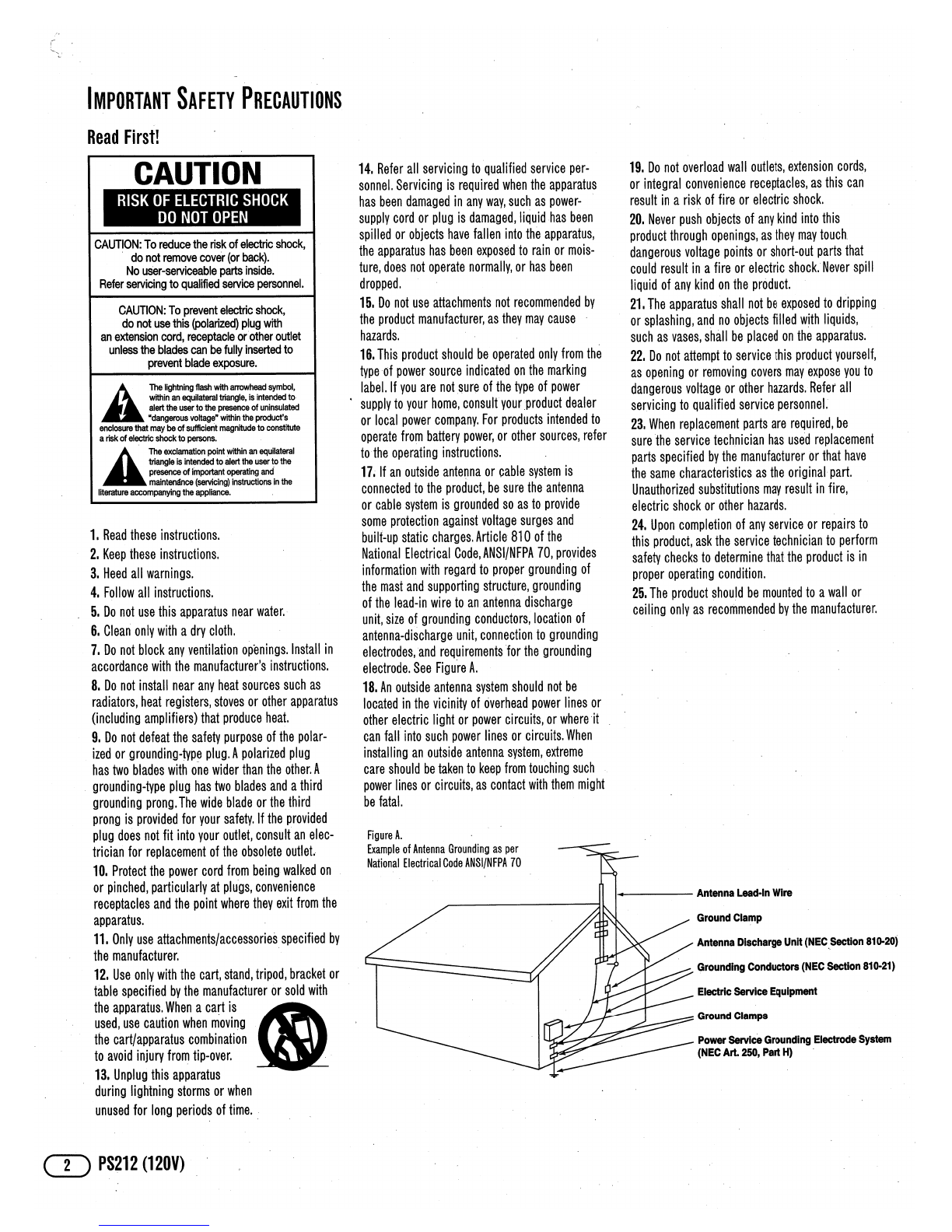

IMPORTANT SAFETY PRECAUTIONS
Read First!
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: To reduce the risk of electric shock,
, do not removecove'r (or back).
No user-serviceable parts inside.
Refer servicing to qualified service personnel.
CAUTION: To prevent electric shock,
do not use this (polarized) plug with
an extension cord, receptacle or'other outlet
unless,the blades can be fully inserted to
prevent blade exposure.
A
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
"dangerous voltage" within the product's
enclosure that may be of sufficient magnitude to constitute
a risk of electric shock to persons.
A'
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenlince (servicing) instructions in the
literature accompanying the appliance.
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in
accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as
radiators, heat registers, stoves or other apparatus
(including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polar-
ized or grounding-type plug. A polarized plug
has two blades with one wider than the other. A
grounding-type plug has two blades and a third
grounding prong. The wide blade or the third
prong is provided for your safety. If the provided
plug does not fit into your outlet, consult an elec-
trician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on
or pinched, particularly at plu'gs, convenience
receptacles and the poi'nt where they exit from the
apparatus.
11. Only use attachments/accessories specified by
the manufacturer. '
12. Use only with the cart, stand, tripod, bracket or
table specified by the manufacturer or sold with
the apparatus. When a cart is (Q
used, use caution when moving
the cart/apparatus combination '
to avoid injury from tip-over. '
13. Unplug this apparatus
during lightning storms or when
unused for long periods of time. ,
~ PS212 (120V)
14. Refer all servicing to qualified service per-
sonnel. Servicing is required when the apparatus
has been damaged in any way, such as power-
supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or mois-
ture, does not operate normally, or has been
dropped.
15. Do not use attachments not recommended by
the product manufacturer, as they may cause
hazards.
16. This product should be operated only from the
type ,of power source indicated on the marking
label. If you are not sure of the type of power
· supply to your home, consult your .product dealer
or local power company. For products intended to
operate from battery power,or other sources, refer
to the operating instructions.
17~ If an outside antenna or cable system is
connected to the product, be sure the antenna
or cable system is grounded so as to provide
some protection against voltage surges and
built-up static charges. Article 810 of the
National Electrical Code, ANSI/NFPA 70, provides
information with regard to proper grounding of
the mast and supporting structure, grounding
of the lead-in wire to an antenna discharge
unit, size of grounding conductors, location of
antenna-discharge unit, connection to grounding
electrodes, and requirements 'for the grounding
electrode. See Figu're A.
18. An outside antenna system should not be
located in the vicinity of overhead power lines or
other electric light or power circuits, or where 'it
can fall into such power lines or circuits. When
installing an outside antenna system, extreme
care should be taken to ke.ep from touching such
power lines or circuits, as contact with them might
be fatal.
Figure A.
Example of Antenna Grounding as per
National Electrical Code ANSI/NFPA 70
19. Do not overload wall outlets, extension cords,
or integral convenience receptacles, as this can
result in a risk of fire or electric shock.
20. Never push objects of any kind into this
product through openings, as they may touch,
dangerous voltage points or short-out parts that
could result in a fire or electric shock. Never spill
liquid of any kind on the product.
21. The apparatus shall not be exposed to dripping
or splashing, and no objects filled w.ith liquids,
such as vases, shall be placed on the apparatus.
22. Do not attempt to service this product yourself,
as opening or removing covers may expose you to
dangerous voltage or other hazards. Refer all
servicing to qualified service personnel.
23. When replacement parts are required, be
sure the service technician has use'd replacement
parts specified by the manufacturer or that have
the same characteristics as the original part.
Unauthorized substitutions may result in fire,
electric shock or other hazards.
24. Upon completion of any service or repairs to
this product, ask the service technician to perform
safety checks to determine that the product is in
proper operating condition.
25. The product should be mounted to a wall or
ceiling only as recommended by the manufacturer.
1_---- Antenna Lead·ln Wire
Ground Clamp
Antenna Discharge Unit (NEC.,Section 810-20)
Grounding Conductors (NEC Section 810·21)
Electric service Equipment
Ground Clamps

Figure 1. This example shows the subwoofer positioned behind th.e
right-channel satellite speaker to re-create the actual location of
bass instruments in an orchestra and/or add impact to movie
spundtracks.
SUB
INTRODUCTION
Infinity' PS212 Powered Subwoofer
The Infinity PS212 powered subwoofer continues Infinity's longstanding
commitment to accurate sound reproduction. Our proprietary technology
and engineering resources work together to deliver uncompromised
low-frequency performance in any stereo or multichannel home
theater system.
Unpacking the Subwoofer
If you suspect damage from transit, report it immediately to your dealer.
Keep the shipping carton and packing materials for future use.
PLACEMENT
Since the installation of a subwoofer can be somewhat more complicated
than installing full-range speakers, it is essential that you read this
section very carefully prior to connecting the subwoofer to your system.
Should you have questions re!ating to your installation, it is advisable
to call your dealer or visit www.infinitysystems.com for assistance.
The performance of the subwoofer is directly related to .its placement
in the listening room and how you align the subwoofer with its satellite
speakers. Setting the volume of the subwoofer in relationship to the left
and right speakers is also of critical importance because it is essential
that the subwoofer integrate smoothly with the entire system. Setting the
subwoofer's volume level too high will result in an overpowering, boomy
bass. Setting the volume level too low will negate the benefits of
the subwoofer.
Here are several additional facts on installation that may prove useful.
It is generally believed by most audio authorities that low frequencies
(below. 125Hz) are nondirectional and, therefore, placement of a sub-
woofer within any listening room is not critical. While in theory it is true
that the larger wavelengths of extremely low frequencies are basically
nondirectional, the fact is that, when installing a subwoofer within the
limited confines of a room, reflections, standing waves and absorptions
generated within the room will strongly influence the performance of any
subwoofer system. As a result, specific location of thesubwoofer becomes
important, and we strongly recommend that you experiment with placement
. before choosing a final location.
Placement will depend upon your room and the amount and q~ality of bass
required (for example, whether or not your room permits placement of the
subwoofer near either satellite). Be su're to leave a minimum of six inches
between the wall and the port on the subwoofer.
oo
O~~RIGHT
CHANNEL
SPEAKER
PRIMARY
~--++----+-- LISTENING
AREA
PS212 (120V) ·0

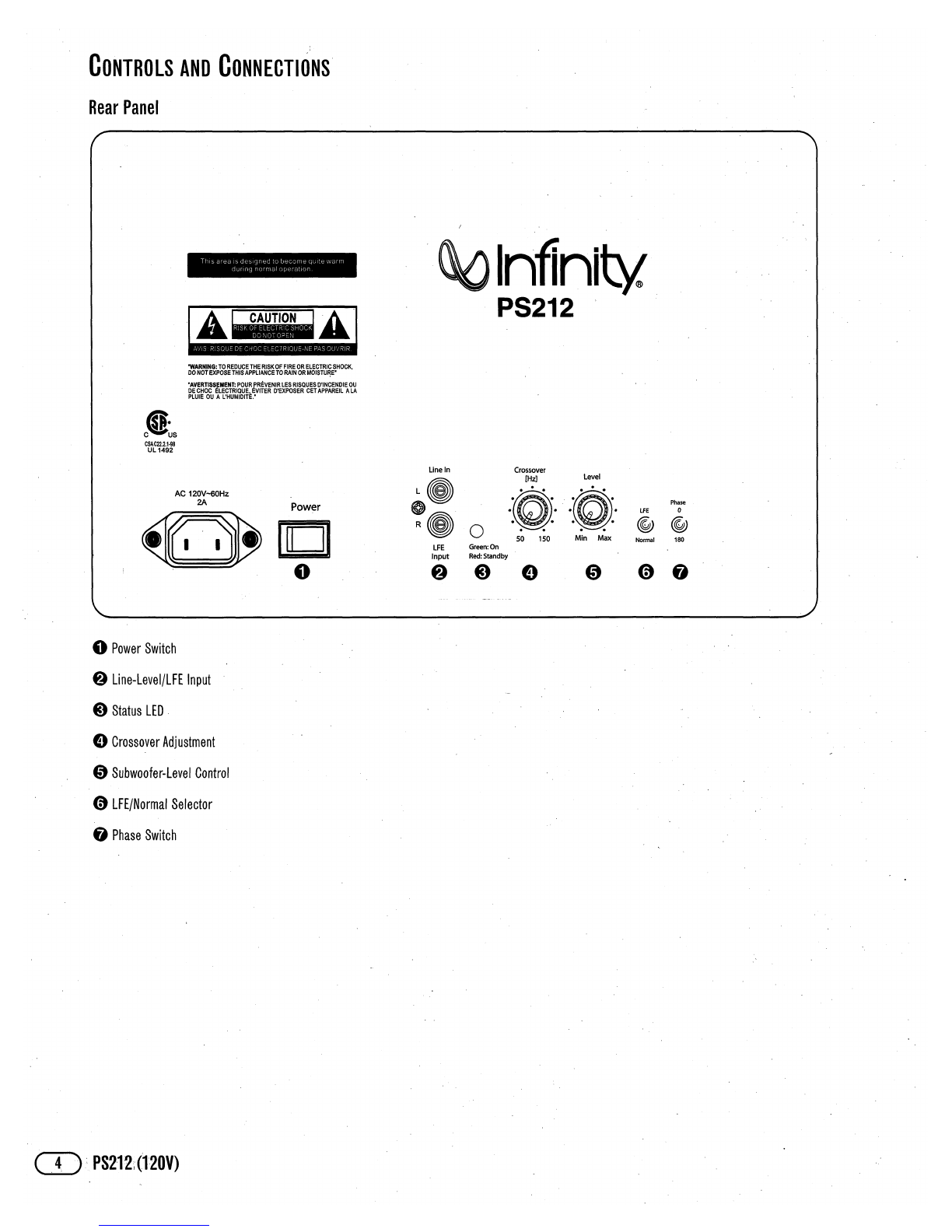

CONTROLS AND CONNECTIONS
Rear Panel
Thlsarealsdeslgnedtobecomequltewarm
during normal operation
«I.
eUS
CSAC22.2.1-98
UL 1492
~Infinit¥'
PS212
Line In
AC 120V-60Hz
2A
o Power Switch
8 Line-Level/LFE Input
6) Status LED.
e Crosso~er Adj ustment
o Subwoofer-Level Control
(3 LFEjNormal Selector
8 Phase Switch
ill . PS2'12;(l20V)
LFE
Input
o
Green: On
Red: Standby
8
Crossover
[Hz]
Level
·0· ·0·
Phase
LFE
0
..
©J ©J
50 150 . .
Min Max
Normal
180
e00&

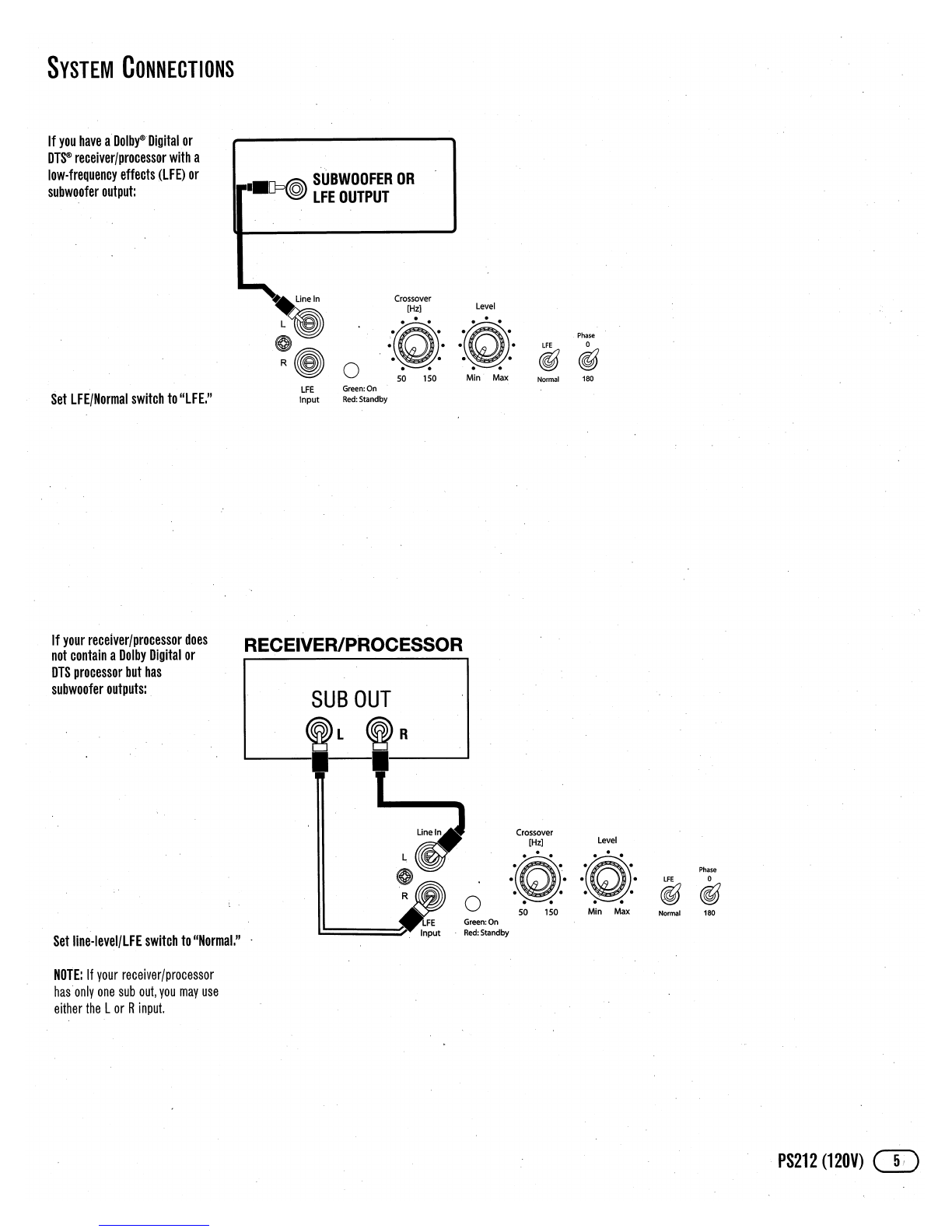

SYSTEM CONNECTIONS
If you have a' Dolby® Digital or
DTS® receiver/processor with a
low-frequency effects (LFE) or
subwoofer output:
._CP'@ SUBWOOFER OR
~ LFE OUTPUT
Crossover
[Hz] Level
Set LFE/Normal switch to "LFE."
50 150
LFE Green: On
Input Red: Standby
Min Max
Phase
@J@j
Normal 180
Crossover
[Hz] Level
If your receiver/processor does
not contain a Dolby Digital or
DTS processor but has
subwoofer outputs:
Set line-Ievel/LFE switch to "Normal."
NOTE: If your receiver/processor
has'only one sub out, you may use
either the L or R input.
RECEIVER/PROCESSOR
o
Green: On
, Red: Standby
50 150 Min
Max
Phase
iJ@j
Normal 180
PS212 (120V) CO

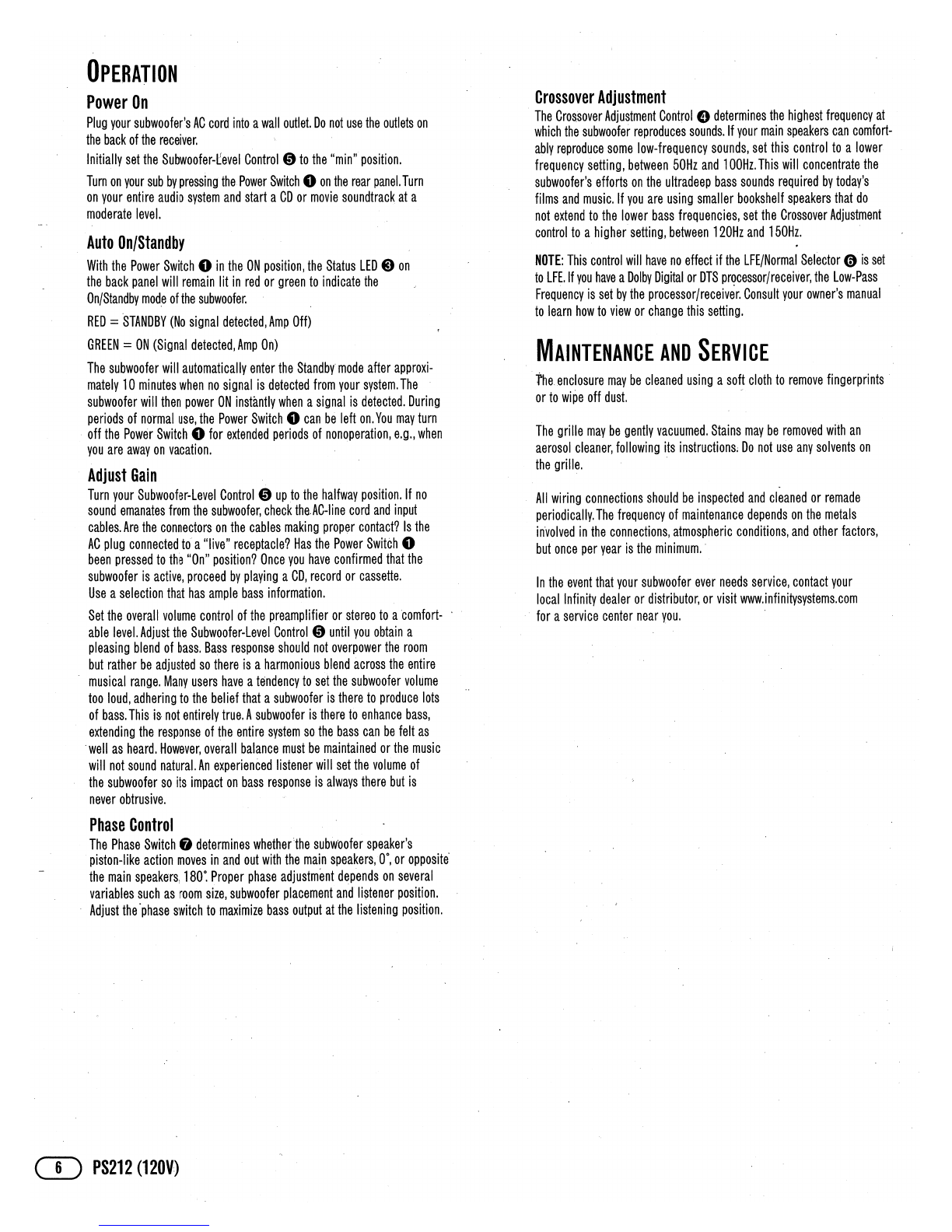

OPERATION
Power On
Plug your subwoofer's AC cord into a wall outlet. Do not use the outlets on
the back of the receiver.
Initially set the Subwoofer-tevel Control Cit to the "min" position.
Turn on your sub by pressing the Power Switch 0 on the rear panel. Turn
on your entire audio system and start a CD or movie soundtrack at a
moderate level.
Auto On/Standby
With the Power Switch 0 in the ON position, the Status LED 8 on
the back panel will remain lit in red or green to indicate the
On/Standby mod,e of the subwoofer.
RED = 'STANDBY (No signal detected, Amp Off)
GREEN = ON (Signal detected, Amp On)
The subwoofer will automatically enter the Standby' mode after approxi-
mately 10 minutes when no signal is detected from your system. The
subwoofer will then power ON instantly when a signal is detected. During
periods of normal use, the Power Switch 0 can be left on. You may turn
off the Power Switch 0 for extended periods of nonoperation, e.g., when
you are away on vacation.
Adjust Gain
Turn your Subwoofer-Level Control Cit up to the halfway position. If no
sound emanates from the subwoofer, check thaAC-line cord and input
cables. Are the connectors on the cables making proper contact? Is the
AC plug connected to a "live" receptacle? Has the Power Switch 0
been pressed to the "On" position? Once you have confirmed that the
subwoofer is active, proceed by playing a CD, record or cassette.
Use a selection that has ample bass information.
Set the overall volume control of the preamplifier or stereo to a 'comfort- .
able level. Adjust the Subwoofer-Level Control Cit until you obtain a
pleasing blend of bass. Bass response should not overpower the room
but rather be adjusted so there is a harmonious blend across the entire
musical range. Many users have a tendency to set the subwoofer volume
too loud, adhering to the belief that a subwoofer is there to produce lots
of bass. This is· not entirely true. A subwoofer is there to enhance bass,
extending the response of the entire system so the bass can be felt as
. well as heard. However, overall balance must be maintained or the music
will not sound natural. An experienced listener will set the volume of
the subwoofer so its impact on bass response is always there but is
never obtrusive.
Phase Control
The Phase Switch 8 determines whethe(the subwoofer speaker's
piston-like action moves in and out with the main speakers, 0°, or opposite'
the main speakers, 180~ Proper phase adjustment depends on several
variables such as room size, subwoofer placement and li$tener position.
Adjust the ·phase switch to maximize bass output at the listening position.
co PS212 (120V)
Crossover Adj ustment
The Crossover Adjustment Control e determines the highest frequency at
which the subwoofer reproduces sounds. If your main speakers can comfort-
ably reproduce some low-frequency sounds, set this control to a lower
frequency setting, between 50Hz and 100Hz. This will concentrate the
subwoofer's efforts on the ultradeep bass sounds required by today's
films and music. If you are using smaller bookshelf speakers that do
not extend to the lower bass frequencies, set the Crossover Adjustment
control to a higher setting, between 120Hz and 150Hz.
NOTE: This control will have no effect if the LFE/Normal Selector 0 is set
to LFE.lf you have a Dolby Digital or DTS processor/receiver, the Low-Pass
Frequency is set by the processor/receiver. Consult your owner's manual
to learn how to view or change this setting.
MAINTENANCE AND SERVICE
fhe.enclosure may be cleaned using a soft cloth to remove fingerprints
or to wipe off dust.
The grille may be gently vacuumed. Stains may be removed with an
aerosol cleaner, following its instructions; Do not use any solvents on
the grille.
All wiring connections should be inspected and cleaned or remade
periodically. The frequency of maintenance depends on the metals
in'volved in the connections, atmospheric conditions, and other factors,
but once per year is the minimum ..
In the event that your subwoofer ever needs service, contact your
local Infinity dealer or distributor, or visit www.infinitysystems.com
for a service center near you.

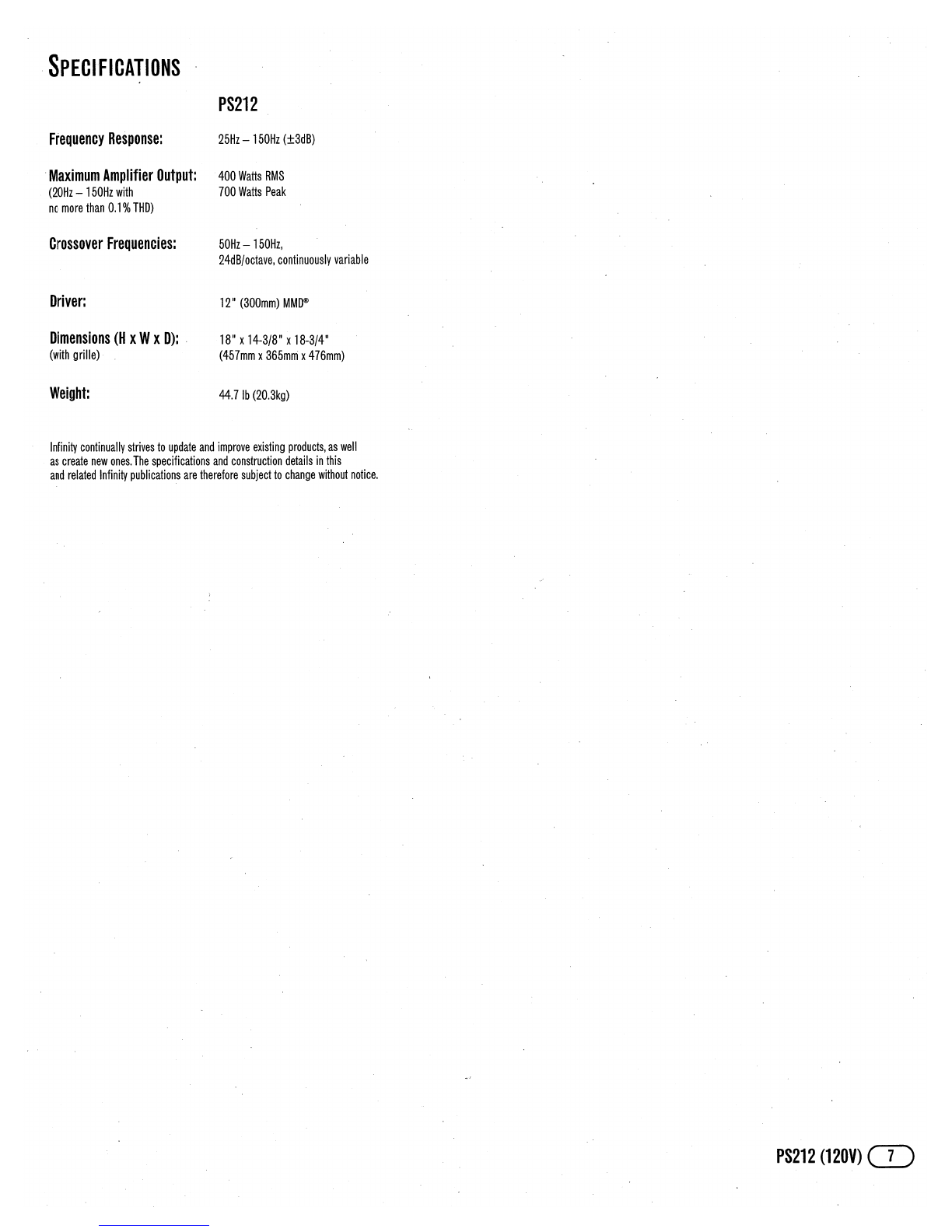

SPECIFICATIONS
PS212
Frequency Response:
. Maximum Amplifier Output:
(20Hz - 150Hz with
no more than 0.1 % THD)
Crossover Frequencies:
Driver:
Dimensions (H xWx D): .
(with grille)
Weight:
25Hz - 150Hz (±3dB)
400 Watts RMS
700 Watts Peak
50Hz - 150Hz,
24dB/octave, continuously variable
12" (300mm) MMD®
18" X 14-3/8" x 18-3/4"
(457mm x 365mni x 476mm)
44.7 Ib (20.3kg)
Infinity continually strives to update and improve existing products, as well
as create new ones. The specifications and construction details in this
and related Infinity publications are therefore subject to change without notice.
PS212 (120V) CD

~Infinity!
TECHNOLOGY • PERFORMANCE • DESIGN
Infinity Systems, 250 Crossways Park Drive, Woodbury, NY 11797 USA 516.674.4INF (4463) (USA only) www.infinitysystems.com
Infinity, Harman International and MMD are register.ed trademarks of Harman International Industries, Incorporated.
Dolby is a registered trademark of Dolby Laboratories; DTS is a registered trademark of DTS, Inc.
Part No. 406-000-05522-E 11/06'
© 2006 Harman Internati·ona.llridustries, Incorporated. All rights reserved.
H.A Harman International Company
