InfiRay IRS-FB432A Series User manual

IRS-FB432A/ IRS-FB462A Series
Dual-spectrum Network
Bullet Camera
Quick Start Guide
V1.0.0
Yantai IRay Technology Co., Ltd.

V1.0.0 I
Yantai IRay Technology Co., Ltd.
11th Guiyang Street, YEDA
Yantai 264006, P. R. China
©IRay Technology Co.,Ltd. 2020 Reserve all the right. All in this manual
including texts, pictures, diagrams and other contents belong to IRay Technology
Co.,Ltd (Hereinafter referred to as “Our company”or “IRay Photoelectric”). Without
the written permission, no one shall copy, photocopy, translate or disseminate all or part
of this manual.
This manual is used as a guide. The photos, graphics, diagrams and illustrations
provided in the manual are only used to explain, which may be different from the
specific product. The actual product shall prevail. We try our best to make sure the
contents in this manual are accurate. We do not provide any representations or
warranties in this manual.
This manual may be updated by IRay Photoelectric due to version update or other
purposes. If you need the latest version of this manual, please contact us. IRay
Photoelectric recommends that you use this manual under the guidance of professionals.
Version History
Version
Date
Description
Revised by
Checked by
V1.0.0
2020-08-13
Initial Version
Wang Yunqi
Lin Wenjuan
Lu Fengjuan

V1.0.0 II
Yantai IRay Technology Co., Ltd.
11th Guiyang Street, YEDA
Yantai 264006, P. R. China
Important Safety Instructions
In order to avoid danger or property damage, the following right usage rules are for
you to follow.
Please read the instructions carefully and rigorously follow the instructions before
usage. The User Manual should be carefully kept after being read.
It indicates that low or medium potential risk is existing. The
ignore of the instructions may lead to light or medium damage
for people.
It indicates that potential risk is existing. The ignore of the
instruction may lead to device damage, data loss, device
performance degradation or other unpredictable results.
It indicates that this is the additional information which can
emphasize and implement the main text content.
⚫The local electrical safety standards should be rigorously followed in the
process of installation and usage.
⚫Please use power adapter which is produced by regular companies. Please
check whether the power is normal or not before the device is operated. (Power

V1.0.0 III
Yantai IRay Technology Co., Ltd.
11th Guiyang Street, YEDA
Yantai 264006, P. R. China
supply requirements should comply with those on the device labels.)
⚫In order to make emergency power off when necessary, please install
power-off equipment which is easy to use when installing the wires.
⚫Please protect power lines from being treaded or pressed, especially the
connecting points which are led from the plug, power socket or other unit.
⚫Please make sure the camera is fixed firmly if it’s being installed on walls or
ceilings.
⚫If the camera does not work normally, please contact shops or factories. Do not
disassemble or revise the product in any way (Our company is not responsible
for the problems which are caused by unauthorized modification or
maintenance.)
⚫Please do not place the device in damp, dusty, extremely hot, extremely cold
places or places with corrosive gas or unstable light.
⚫The camera should be transported, used and stored in allowable humidity and
temperature range.
⚫Avoid making the lens aiming at strong light (e.g. sun or laser), or else the
image sensor would be damaged.
⚫Please do not block the vents near the camera in case of heat accumulated.
⚫Please transport the devices with the factory packaging or the packaging

V1.0.0 IV
Yantai IRay Technology Co., Ltd.
11th Guiyang Street, YEDA
Yantai 264006, P. R. China
materials of the same quality.
⚫Please do not press, vibrate violently or soak the camera during transportation,
storage or installation.
⚫It is advised to use the camera with lighting protector.
⚫Soft dry cloth can be used to clean the device. For the dirt difficult to clean,
please use soft cloth with little neutral detergent and then wipe dry. Do not use
volatile detergent like alcohol, benzene or diluent, or strong and abrasive
detergent, or else the camera coating would be damaged and also the camera
performance could be reduced.
⚫The lens cover is optical device, so please do not touch directly or wipe the
cover. Soft brush or hairdryer can be used to blow the dust away. For the
grease or fingerprint, soft cloth can be used to wipe it away. Cotton cloth or
lens cleaning paper with cleaning solution can be used to wipe repeatedly until
it’s clean.
⚫Please revise the password promptly after logging in in case of being
embezzled.
⚫Please use the accessories or parts which are confirmed by manufacturers and
installed or maintained by the service professionals.

V1.0.0 V
Yantai IRay Technology Co., Ltd.
11th Guiyang Street, YEDA
Yantai 264006, P. R. China
Table of Contents
Important Safety Instructions................................................................ II
1. Introduction .......................................................................................... 1
1.1 Product Information ............................................................................. 1
1.2 Product Features................................................................................... 1
1.3 Product Appearance ............................................................................. 2
1.4 Cable Instructions................................................................................. 2
1.5 Alarm Interface Wiring Instructions .................................................... 4
2.Installation...............................................................................................5
2.1 Pre-installation Instructions ................................................................. 5
2.2 Monitoring Distance Recommendations.............................................. 6
2.3 Installation Guide ................................................................................. 8
3.Operation Guide.................................................................................. 13
3.1 Preparations ........................................................................................ 13
3.2 Login the System................................................................................ 13
3.3 Main Interface Description ................................................................ 15

V1.0.0 1
Yantai IRay Technology Co., Ltd.
11th Guiyang Street, YEDA
Yantai 264006, P. R. China
1. Introduction
1.1 Product Information
IRS-FB432A/ IRS-FB462A Series Dual-spectrum Bullet Camera is a new-type
thermal imaging net camera integrated with the functions of Internet remote
monitoring, video server and high definition camera. The high- definition optical
camera and advanced IR thermal imaging detectors are installed in this product, so it
can realize the function of dual-spectrum shooting, and at the same time
comprehensively collect the characteristic information of the monitoring scenes. It can
also be widely used in the intelligent safety surveillance fields of indoor and outdoor
environmental monitoring, perimeter prevention, industrial temperature measuring and
fire alarm.
1.2 Product Features
⚫The latest InfiRay® 12μm IR thermal imaging detector, advanced IR vision
algorithm, more distant and clearer image.
⚫Function of front-end independent temperature measuring; installed with
professional temperature measuring analysis tools and multiple linkage alarm rules;
function of fire point detecting alarm.
⚫Function of intelligent behavior analysis, such as regional invasion detecting,
boundary violation detecting, entering and leaving area detecting and left items
detecting, etc.

V1.0.0 2
Yantai IRay Technology Co., Ltd.
11th Guiyang Street, YEDA
Yantai 264006, P. R. China
⚫One-piece shell, with outdoor protection class IP66.
⚫ONVIF standard interface protocol supported, available SDK, secondary
development and third-party platform connection supported.
1.3 Product Appearance
Figure 1.1 Appearance and Interface for Dual-spectrum Bullet Camera
1.4 Cable Instructions
The cable includes interfaces for power, alarm, audio, RS-485, network, video, etc.
See the following figure for interface instructions.

V1.0.0 3
Yantai IRay Technology Co., Ltd.
11th Guiyang Street, YEDA
Yantai 264006, P. R. China
Figure1.2 Cable Instructions
⚫Video interface(VIDEO): output analog video signal. The device can output
images if connected to TV monitor.
⚫Audio Output(AUDIO OUT): output audio signal to speakers and other
equipment for sound output.
⚫Audio Input(AUDIO IN): input audio signal and receive linear analog audio
signal for sound collection.

V1.0.0 4
Yantai IRay Technology Co., Ltd.
11th Guiyang Street, YEDA
Yantai 264006, P. R. China
⚫Power connector(DC12V): support DC 12V DC power supply. Please connect the
positive and negative poles of the power supply correctly.
⚫Network Interface(LAN): network signal output and connected with standard
Ethernet cable.
⚫RS-485 Interface(RS485): RS485 interface can control PTZ
⚫ALARM OUT: 1 channel alarm output interface for outputting alarm switch
signal to the alarm equipment, among which pin_1 and pin_2 are alarm output 1,
pin_3 and pin_4 are reserved interfaces with no function.
⚫ALARM IN: 2 channels alarm input interface for receiving the switch signal of
the external alarm source, among which pin_1 is ground, pin_2 is alarm input 1, pin_3
is ground, pin_4 is alarm input 2.
1.5 Alarm Interface Wiring Instructions
The equipment can be connected to alarm signal (0～DC5V) input and switch output
(no voltage). An external power supply is required when connecting the alarm. The
specific wiring method is shown in the figure below.

V1.0.0 5
Yantai IRay Technology Co., Ltd.
11th Guiyang Street, YEDA
Yantai 264006, P. R. China
Figure 1.3 Alarm Output Wiring Diagram
2. Installation
2.1 Pre-installation Instructions
Before installation, please make sure that the equipment in the package is intact with
all complete parts.
⚫The wall for installation should be of a certain thickness, and can bear at least 4
times the weight of the camera and accessories.
⚫If the device is fixed on a concrete wall or ceiling, firstly install the expansion
screws (the installation holes of the expansion screws should match that of the
bracket), and then install the bracket.
⚫You can use self-tapping screws to install the bracket directly in case of wooden
walls.

V1.0.0 6
Yantai IRay Technology Co., Ltd.
11th Guiyang Street, YEDA
Yantai 264006, P. R. China

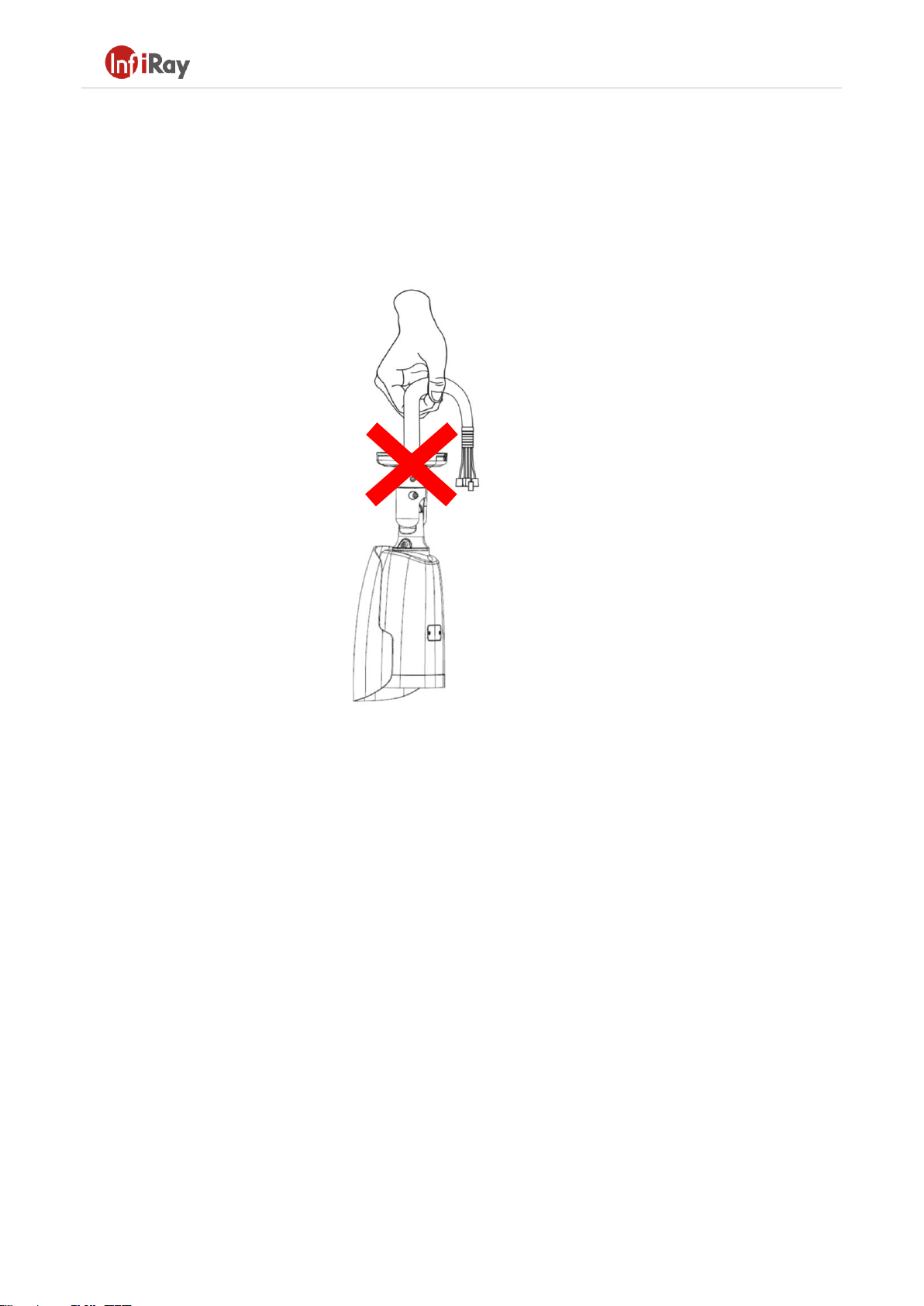

⚫Do not directly pull the cable at the back of the device when moving, otherwise it
may affect the waterproof performance or cause wiring problems shown in the figure
below.
Figure 2.1 Wrong Handling
2.2 Monitoring Distance Recommendations
Since the thermal imaging channel of the bullet camera uses a fixed-focus athermal
lens, remote electric focusing cannot be realized. Therefore,before installing the bullet
camera, please select the corresponding installation position and lens focal length
according to the monitoring requirements to realize the purpose of monitoring. The
comparison of lens focal length and monitoring distance is shown in the following
tables.
DO NOT drag the
camera with its
cables

V1.0.0 7
Yantai IRay Technology Co., Ltd.
11th Guiyang Street, YEDA
Yantai 264006, P. R. China
Table 2.1 Monitoring Distance Recommendation（17μm Pixel）
Focal length/mm
9.7
13
19
25
35
Resolution/mrad
1 .753
1.308
0.895
0.680
0.486
Detection
distance(Vehicle)/m
875
1173
1714
2255
3157
Detection
distance(Human)/m
285
382
559
735
1029
Recognition
distance(Vehicle)/m
219
293
428
564
789
Recognition
distance(Human)/m
71
96
140
184
257
Identification
distance(Vehicle)/m
109
147
214
282
395
Identification
distance(Human)/m
36
48
70
92
129
Table 2.2 Monitoring Distance Recommendation（12μm Pixel）
Focal length/mm
9.1
13
19
25
35
Resolution/mrad
1.319
0.923
0.632
0.480
0.343
Detection
distance(Vehicle)/m
1163
1661
2428
3194
4472
Detection
distance(Human)/m
379
542
792
1042
1458
Recognition
distance(Vehicle)/m
291
415
607
799
1118
Recognition
distance(Human)/m
95
135
198
260
365
Identification
distance(Vehicle)/m
145
208
303
399
559
Identification
distance(Human)/m
47
68
99
130
182

V1.0.0 8
Yantai IRay Technology Co., Ltd.
11th Guiyang Street, YEDA
Yantai 264006, P. R. China
⚫Assuming that it is clear, the visibility of the atmosphere is at a normal level, and
there is no obvious fog or haze, the probability of reading the target at the specified
distance is 50%.
⚫Take human as 0.5m (width)×1.8m(height), and limit length is 0.75m. Take
vehicle as 4.0m(width)×1.4m(height), and limit length is 2.3m.
⚫According to the Johnson criterion of infrared images, it is assumed that:
Detect target: the target should be at least 1.5 pixels on the image.
Recognize target: the target should be at least 6 pixels on the image.
Identify target: the target should be at least 12 pixels on the image.
The actual detection range may vary according to different camera settings,
environmental conditions, user experience, monitor or display type and so on.
2.3 Installation Guide
Both wall or ceiling mounting of the equipment are available. Different installation
methods can be selected according to different installation environments.
2.3.1 TF Card Installation
Step 1 The TF card slot is located under the device. Use the H1.5 hex key to unscrew
the TF card slot cover, as shown in the figure below.

V1.0.0 9
Yantai IRay Technology Co., Ltd.
11th Guiyang Street, YEDA
Yantai 264006, P. R. China

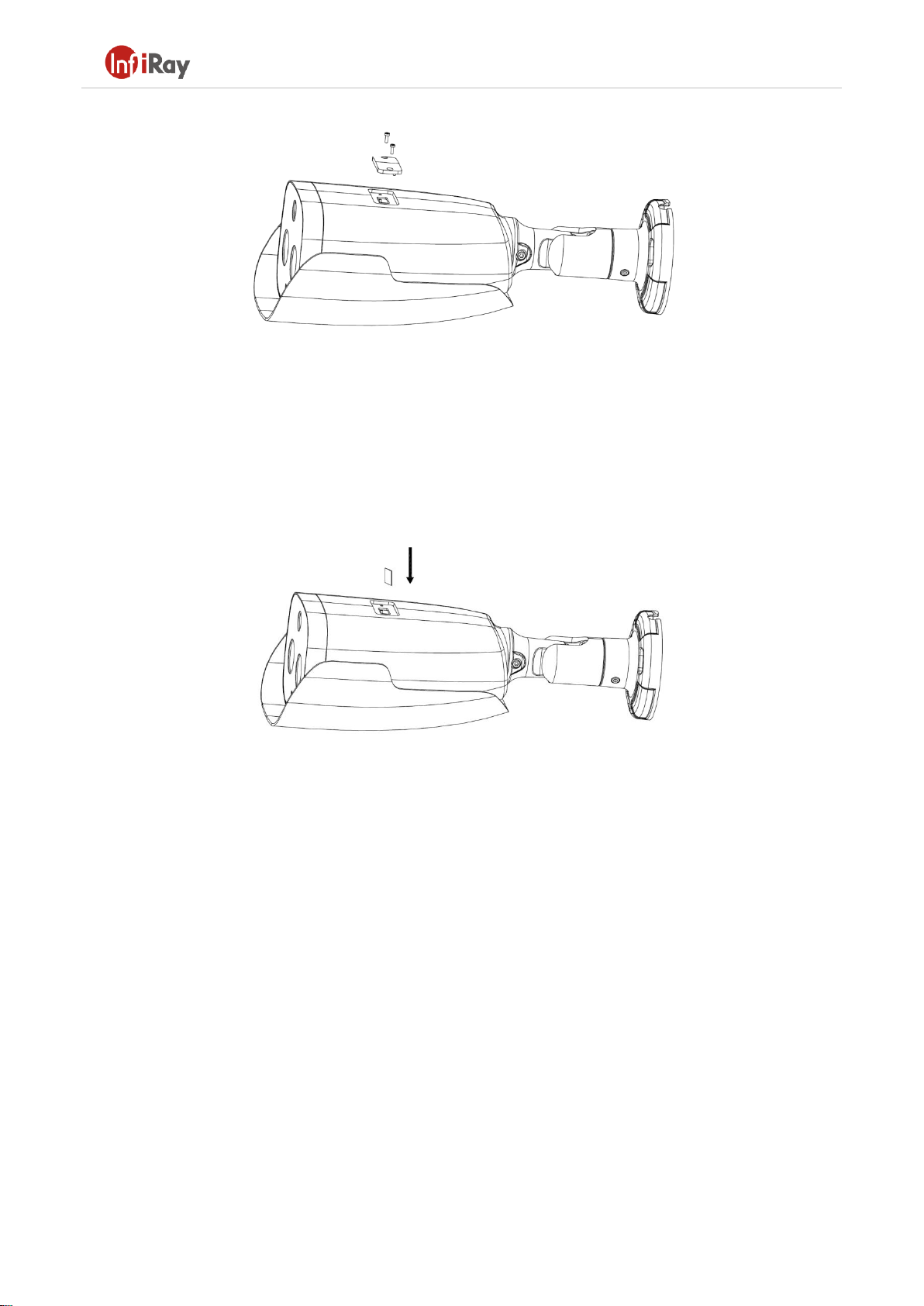

Figure 2.2 Unscrew TF card Slot Cover
Step 2 Insert the TF card slowly into the TF card slot in the direction indicated by the
arrow. After you hear a "click", the installation is completed, as shown in the figure
below.
Figure 2.3 Install TF Card
Step 3 After installation, close the TF card slot cover and tighten the screws.
2.3.2 Wall/Ceiling Mounting
Step1 Install stickers
The installation sticker is attached with the device. Please stick the sticker to the
selected wall, and then punch three installation holes Φ5 according to the label on the
sticker. The recommended depth is 25mm. The installation sticker is shown in Figure
2.4. After the installation hole is drilled, insert the expansion tube into the drilled

V1.0.0 10
Yantai IRay Technology Co., Ltd.
11th Guiyang Street, YEDA
Yantai 264006, P. R. China
holes.
According to the "A" marked on the sticker, open a Φ36 hole with "A" as the center of
the circle for wiring.

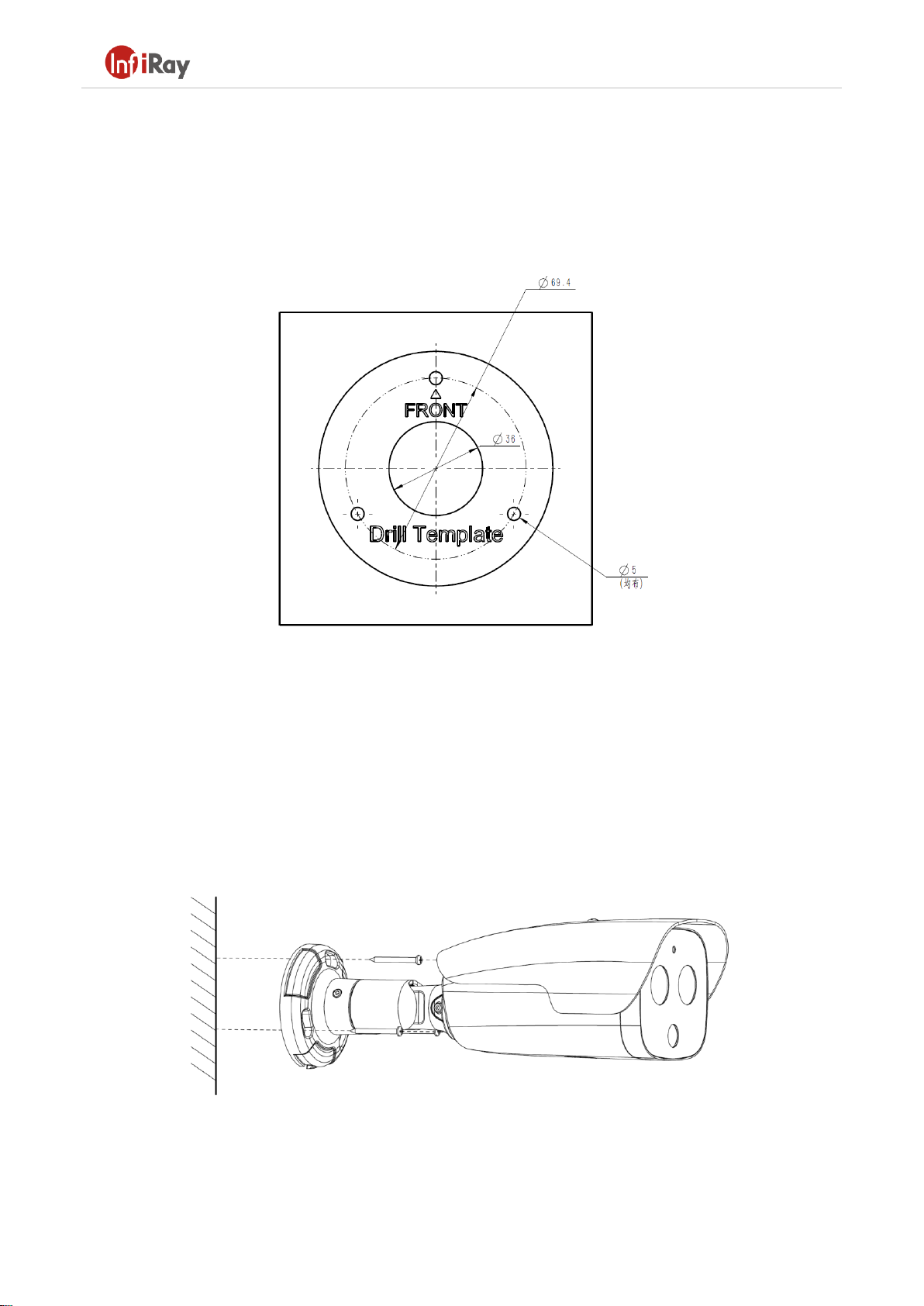

Figure 2.4 Install Sticker
Step 2 Fix bullet camera
Pass the tail wire of the device through the "A" hole, and then use the attached
self-tapping screws to fix the tube camera to the installation wall. The wall mounting
is shown in Figure 2.5, and the ceiling mounting is shown in Figure 2.6.
Figure 2.5 Wall Mounting

V1.0.0 11
Yantai IRay Technology Co., Ltd.
11th Guiyang Street, YEDA
Yantai 264006, P. R. China
Figure 2.6 Ceiling Mounting
Step 3 Adjust the Monitoring Angle
Use the equipped L-shaped hex key to loosen 1 lock nut near the device bracket
respectively, adjust it to a predetermined position by turning or rotating, and tighten
the lock nut, as shown in the figure below.
Figure 2.7 Three-axis Adjustment
2.4 Install the waterproof set for the network port
Install the matching network port waterproof set if necessary when using the device.

V1.0.0 12
Yantai IRay Technology Co., Ltd.
11th Guiyang Street, YEDA
Yantai 264006, P. R. China
The installation steps of the waterproof set for the network port are as follows.
Step 1 Pass the network cable through the fastening nut and the main body of the
waterproof set in turn.
Step 2 Break off the waterproof rubber ring and put it on the network cable between
the main body of the waterproof set and the fastening nut.
Step 3 Put the O-shaped rubber ring and the network cable into the network port.
Figure 2.8 Install Cable
Step 4 Align the notch of the mesh with the buckle of the main body of the waterproof
set, put the main body of the waterproof set into the end of the network port, and
tighten it clockwise.
Step 5 Put the rubber ring into the main body of the waterproof set.
Step 6 Turn the tightening nut clockwise to compress the waterproof glue.
Figure 2.9 Finished Installation

V1.0.0 13
Yantai IRay Technology Co., Ltd.
11th Guiyang Street, YEDA
Yantai 264006, P. R. China
3. Operation Guide
3.1 Preparations
1. The default IP address of the device:192.168.1.19.
2. Subnet mask code is 255.255.255.0, The IP address of the device can be
modified, for example, changing the device address to 192.168.1.194; Adjust
your computer's IP address to the same network segment as the network video
server with the same subnet mask. For example: 192.168.1.120.
3. Test whether the device can start normally. Under WINDOWS, run the
<Start→run→cmd> operation, open the command line window, and enter Ping
192.168.1.19 in the command line window. If "Request time out" is not
displayed, it means the startup is normal.
4. When using the browser (Internet Explore) to access the video server for the
first time, the control must be installed.
5. Install the plug-in after exiting 360 and other anti-virus software.
3.2 Login the System
1. Enter the IP address of the device in the address bar of the IE browser to log in,
and the login page as shown below appears:

V1.0.0 14
Yantai IRay Technology Co., Ltd.
11th Guiyang Street, YEDA
Yantai 264006, P. R. China
Figure 3.1 Login Interface
2. Read the prompts on the web page carefully. If you need to install the control,
please click the "Download and install the control" button, and then follow the
prompts to successfully complete the installation of the control.
3. Please upgrade the browser version to 6.0 and above if the IE browser version
used is lower than 6.0.
4. Enter the user name: admin (default, administrator user) or operator (operator
user) or user (ordinary user).
5. Enter the password: admin(default, administrator password)or
operator(operator password)or user(ordinary user password)；
6. Click【OK】button to enter the preview screen of the video server. As shown
