InFocus DisplayLink 2101 User manual

Model: 2101

Declaration of Conformity
Manufacturer: InFocus Corporation 27500 SW Parkway Avenue Wilsonville, OR 97070
We declare under our sole responsibility that this device conforms to the following
directives and norms: EMC Directive 2004/108/EC, EMC: EN55022, EN55024, EN61000-
3-2, EN61000-3-3
FCC Warning
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated
in a commercial environment. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
Changes or modications not expressly approved by InFocus Corporation may void
authority to operate the equipment.
Canada
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numerique de la classe A est conforme a la norme NMB-003 du Canada.

Contents
Introduction .............................................................................................................................. 3
DisplayLink Extender Product Contents .................................................................................... 3
Requirements ................................................................................................................................ 3
About the DisplayLink Extender ................................................................................................. 3
Installation guide .................................................................................................................... 6
Connecting the Computer module to the Projector module .................................................. 6
Installing the Projector module .................................................................................................. 7
Installing the Computer module ................................................................................................ 7
Troubleshooting ...................................................................................................................... 8
Specications ........................................................................................................................... 11
Limited Warranty ..................................................................................................................... 12
Limitation of Liability ............................................................................................................. 12
Obtaining Warranty Service ................................................................................................ 13
Technical Glossary .................................................................................................................. 14

Introduction
The instructions in this guide assume a general knowledge of computer installation procedures, and
familiarity with USB cabling requirements.
NOTE: Notes provide additional information that could be useful.
CAUTION: Cautions provide important information about an operational requirement.
DisplayLink Extender Product Contents
Your DisplayLink Extender is packaged with:
• DisplayLink Extender Quickstart Guide
• Computer module
• Projector module
• Projector module power cord
Requirements
To complete the installation, you will also require the following items that are not included with the product:
• USB 2.0 compatible computer (Windows or Mac) with a USB compliant operating system
• An InFocus or ASK Proxima projector with a DisplayLink connector
• The USB cable included with your projector (or a high-quality USB 2.0-compliant USB type-A to
mini-B cable, no more than 2m in length).”
• CAT 5 Unshielded Twisted Pair (UTP) cable with two RJ45 connectors (if using surface cabling),
OR, CAT 5 cabling with two information outlets and two CAT 5 patch cords with RJ45 connectors (if
using premise cabling)
All references to CAT 5 cable in this document represent the minimum requirement. Category 6 or better or STP cable
may be substituted.
About the DisplayLink Extender
The DisplayLink Extender enables users to extend beyond the standard 5m cable limit for USB peripheral
devices. With the DisplayLink Extender, the projector can be located up to 100 meters from the computer.
The DisplayLink Extender is composed of two individual modules; the computer module and the projector
module.
note
note
3

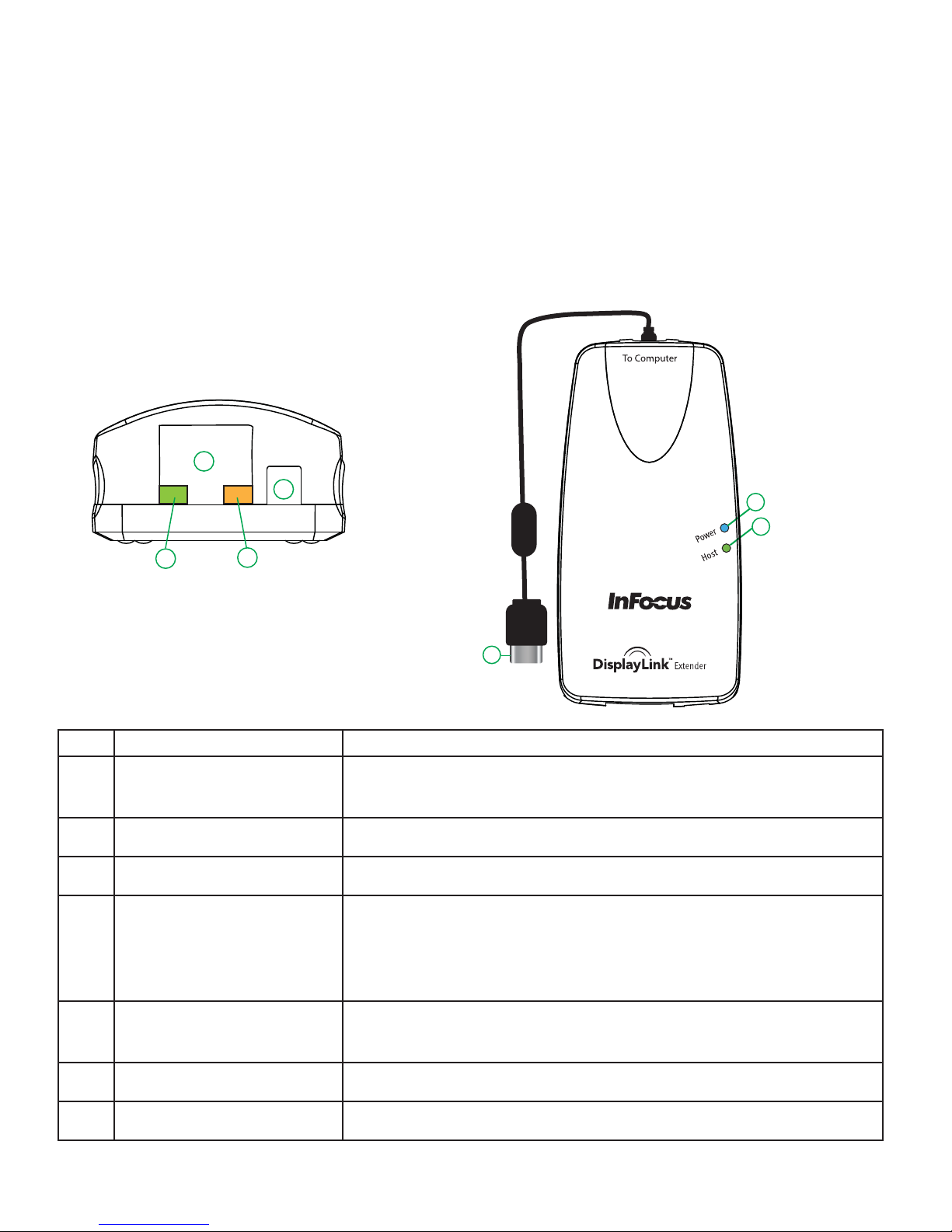

The Computer module
The Computer module connects to the computer using the attached USB cable. Power for this module is
provided by the computer’s USB port.
Back View Top View
ITEM TYPE DESCRIPTION
1 Power LED (Blue) LED turns on when power is supplied. O when no power is
supplied.
2 Host LED (Green) LED turns on when DisplayLink Extender is installed properly.
3 Link Port (RJ45) Accepts RJ45 connector for CAT 5 cabling (or better).
4 Link LED (Green) on RJ45
Indicates connectivity between the Computer and Projector
modules. LED turns on when link between the Computer and
Projector modules is established. O when there is no link
between Computer and Projector modules.
5Activity LED (Amber) on
RJ45
Indicates activity on RJ45 port. LED blinks intermittently when
data is transmitted between Computer and Projector modules.
6 Power/Cong port Manufacturer use only.
7 USB Type A connector Used to connect the Computer module to the computer.
4
3
45
6
1
2
7

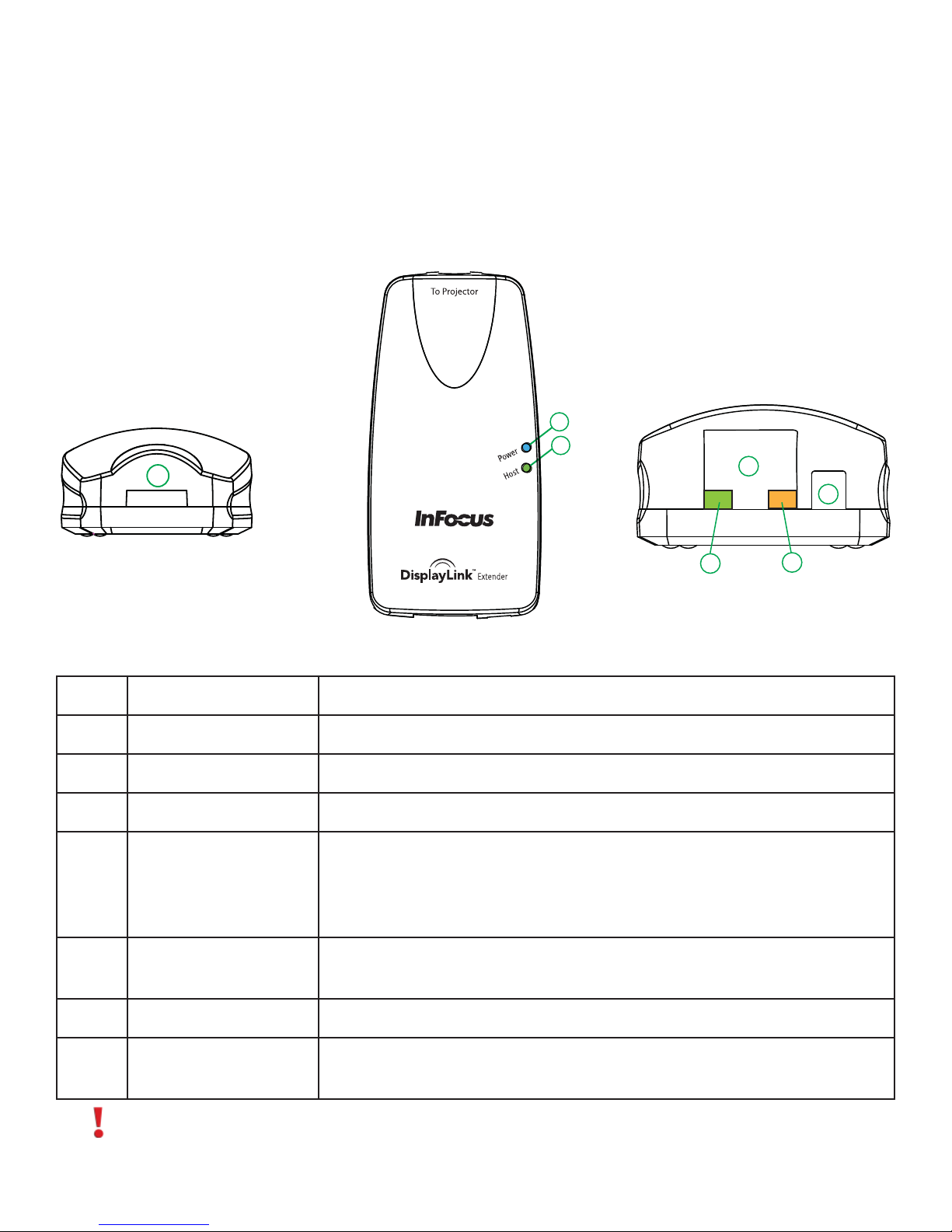

The Projector Module
The Projector module provides a USB Type A port for projectors. The Projector module allows you to
connect one projector directly. Additional devices may be connected by attaching USB hubs to the
projector module.
The Projector module is powered by the projector via the included power cord.
Top View
Front View Rear View
ITEM TYPE DESCRIPTION
1 Power LED (Blue) LED turns on when power is supplied. O when no power is supplied.
2 Host LED (Green) LED turns on when DisplayLink Extender is installed properly.
3 Link Port (RJ45) Accepts RJ45 connector for CAT 5 cabling (or better).
4 Link LED (Green) on
RJ45
Indicates connectivity between Computer and Projector modules.
LED turns on when link between Computer and Projector modules
is established. O when there is no link between Computer and
Projector modules.
5 Activity LED (Amber)
on RJ45
Indicates activity on RJ45 port. Blinks intermittently when data is
transmitted between Computer and Projector.
6 Power/Cong port Connects to the included Projector module power cord.
7 Device Port (USB
Type A port)
USB device connection.
The Power/Cong port is only for use with the included power cord. No USB devices can be connected/used on the port.
5
73
45
6
1
2

Installation guide
Before you can install the DisplayLink Extender, you need to prepare your site.
1. Determine where the computer is to be located and set up the computer.
2. Determine where you want to locate the Projector(s).
3. If you are using surface cabling, the DisplayLink Extender supports a maximum distance of 100m.
OR
If you are using premise cabling, ensure CAT 5 cabling is installed between the two
locations, with CAT 5 information outlets located near both the computer and the projectors.
Connecting the Computer module to the Projector module
To ensure proper operation, it is recommended that only CAT 5 or better, Unshielded Twisted Pair cabling
be used to connect the Computer module to the Projector module. The cabling must have a straight-through conductor
conguration with no crossovers, and must be terminated with 8 conductor RJ45 connectors at both ends. The
combined length of any patch cords using stranded conductors must not exceed 10m.
With Surface Cabling
1. Plug one end of the CAT 5 cabling (not included) into the Link port (RJ45) on the Computer module.
2. Plug the other end of the CAT 5 cabling into the Link port (RJ45) on the Projector module.
With Premise Cabling
1. Plug one end of a CAT 5 patch cord (not included) into the Link port (RJ45) on the Computer module.
2. Plug the other end of the patch cord into the CAT 5 information outlet near the Host computer.
3. Plug one end of the 2nd CAT 5 patch cord (not included) into the Link port (RJ45) on the
Projector module.
4. Plug the other end of the 2nd patch cord into the CAT 5 information outlet near the USB device.
The maximum length of the CAT 5 cable, including patch cords, must not exceed 100 meters. The combined
length of any patch cords using stranded conductors must not exceed 10m.
note
note
6
To
Computer
DisplayLink
+5V DC
To
Projector
PC
USB 2.0 (CAT 5) Extension
Max Length 100m

Installing the Projector module
1. Place the Projector module near the Projector.
2. Plug the Projector module power cord between the projector module and the projector’s
+5VDC connector.
3. Connect the Projector module to the projector’s DisplayLink connector using the USB cable that was
included with your projector (or a high-quality USB 2.0-compliant USB type-A to mini-B cable, no
more than 2m in length).
Only use the power cord supplied with DisplayLink Extender. Use of substitute power cords may cause permanent
damage to the system and will void the warranty.
Installing the Computer module
1. Place the Computer module near the computer.
2. Plug the USB Type A connector on the Computer into a USB port on the computer.
7

Compatibility
The DisplayLink Extender complies with USB 2.0 specications governing the design of USB devices. InFocus
Corporation does not, however, guarantee that all USB devices are compatible with the DisplayLink Extender
as there are a number of dierent congurations that may impact the operation of USB devices over
extended distances.
Troubleshooting
The following table provides troubleshooting tips. The topics are arranged in the order in which they should
be executed in most situations. If you are unable to resolve the problem after following these instructions,
please contact technical support for further assistance.
PROBLEM CAUSE SOLUTION
All LEDs on
Computer
module are o.
The Computer module is not
receiving enough power from the
USB port or the a computer AC
adapter.
1. Ensure that the USB Type A connector from
the Computer module to the computer is
properly inserted directly in a USB port.
2. Move the Computer USB Type A connector to
another USB port on the computer.
All LEDs on
Projector
module are o
The Projector module is not
receiving power from the
projector
1. Ensure that the power cord is properly
connected to both the Projector module and
the projector.
Link LEDs on
Computer
module and
Projector
module are o.
There is no connection between
the Computer module and
Projector module.
1. Ensure that a CAT 5 cable (or better)
with straight-through conductors is connected
between the Computer module and Projector
module.
2. If the CAT 5 cable is defective, connect a short
CAT 5 patch cord between the Computer
module and Projector module to determine if
the original CAT 5 cable is defective.
8

PROBLEM CAUSE SOLUTION
Link LED on
Computer module
is on, Host LED on
Computer module
is o
• The computer is not powered
on.
• The Computer module is not
connected to the computer
(when used with the optional
Computer AC adapter)
• The computer does not
support USB hubs.
• The DisplayLink Extender is
malfunctioning
1. Disconnect the Projector module from the
DisplayLink port and power connector on the
projector.
2. Disconnect the Computer module from the
computer.
3. Reconnect the Computer module to the
computer.
4. Reconnect the Projector module to the
DisplayLink port and to the power cord.
5. In the Universal Serial Bus controllers section of
Device Manager, check that the DisplayLink
Extender is recognised as a“Generic USB Hub”.
DisplayLink
Extender modules
were working but
the Host LED on
Projector module
is suddenly
blinking
The Projector module is in
suspend mode. The operating
system may put the DisplayLink
Extender in suspend mode
when the computer is put into a
Suspend/Standby state or when
no projector is attached.
1. Recover/Resume the operating system from
Suspend/Standby mode (see your operating
System’s documentation).
2. Connect a projector to the Projector module..
All LEDs on both
the Computer
module and
Projector module
are on but the USB
device does not
operate correctly
or is detected
as an “Unknown
Device” in the
operating system.
• The projector is
malfunctioning.
• The computer does not
recognise the projector.
• The application software for
the device is not operating.
• The DisplayLink Extender is
malfunctioning.
1. Disconnect the Computer module from the
computer.
2. Connect the projector directly to the USB port
on the computer.
3. If the projector does not operate properly,
consult the projector user documentation.
4. Update your system BIOS, chipset or USB Host
controller drivers from your System/Mother
board manufacturer’s website.
5. If the projector operates properly when directly
connected to the computer, connect another
USB device to the Computer module.
Connect the DisplayLink Extender to
the computer.
6. If the other USB device does not operate, the
DisplayLink Extender may be malfunctioning.
Contact InFocus support for assistance.
7. If the other USB device operates properly, the
projector may be malfunctioning. Contact
InFocus support.
9
