INFODRAW PMRS-104 User manual

FAST Installation (PMRS 104)
Release date: April, 2017
Preface: This manual Consists of 3 main parts:
Chapter one: Introduction
Chapter two: Hardware interfaces
Chapter three: Installation

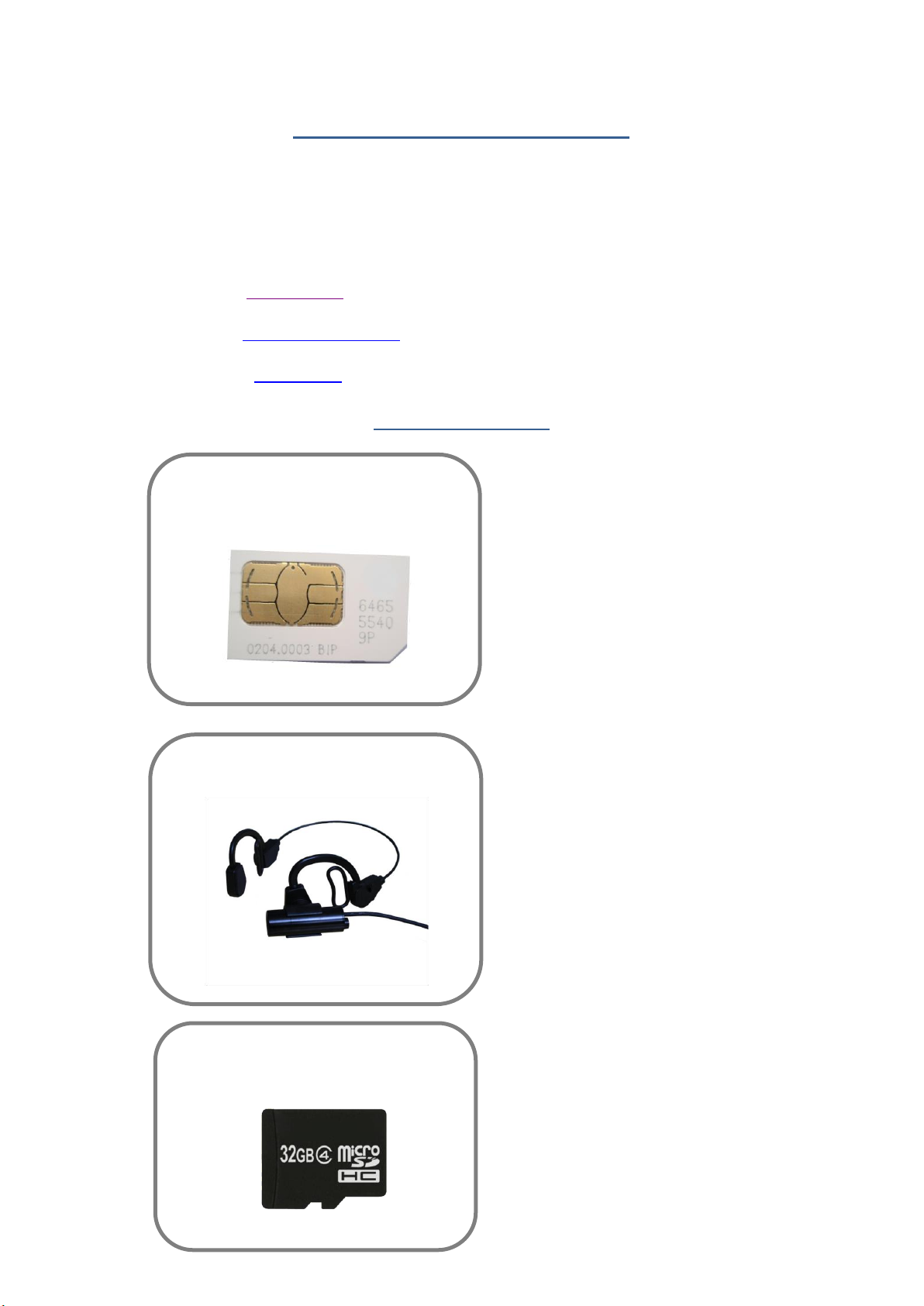

Required Items
SIM Data Card
Camera(s)
Micro SD Card
4G/3G/HSPA/EDGE
SIM Data Card from a cellular
provider is required for the unit.
Any HD camera with HDMI
connection can be connected to
the PMRS unit.
A Micro SD Card is required for
recording in the MRS device. The
speed of the SD Card will vary
depending on the make.
SDs with storage above 32GB have to
be formatted to a FAT32 format
(through third party apps).

Chapter 1 - Introduction
1-1 Introduction:
Infodraw PMRS is a portable handheld multimedia streaming and
monitoring system from the field. It allows users to stream live
video/audio/location from anywhere over the cellular 4G/ 3G/ HSPA/ EDGE
networks and can be monitored from any location upon alarm/ request. The media
streaming is done using PMRS units which can be carried handheld or located either
on mobile vehicles or fixed locations. The units can be monitored remotely from
fixed/mobile control centres, mobile phones/PDAs or an internet web client.
1-2 System Components:
The system consists of the following components:
PMRS units which can stream 1 video channel, 1 audio channel and GPS
location over the cellular network to the MRS server.
MRS Server which communicates with units and clients.
MRS Client which communicates with the server and
has viewing and control capabilities for all connected
units.

1-3 System Architecture:
Server-Based –M2M (recommended). This architecture is based on a server
with a fixed IP address. Multiple units can communicate with the server as
well as multiple clients. All clients are connected to the server and have
viewing and control capabilities.
Server can reside in any PC with global IP address or inside the unit.
If the server is inside the unit and static IP is received from the cellular
provider, this IP address can be sent via SMS to any cell phone on activation.
1-3-1 Server Based Architecture:

Chapter 2 - Unit Hardware Interfaces
The unit has a standard HDMI which supports
the video input and audio.
The GPS antenna has a SMA interface located
on the top of the PMRS unit.
Connect the GPS antenna to the SMA
connector.
The SIM card slot is located on the side of the
unit. Pull the notch out to insert the SIM card.
The PMRS has a built in alarm button located
on the side of the unit. The button can be used
in emergencies and can be set up to trigger a
variety of actions on the MRS monitor (Refer to
Alarm Button Section).
2-1 Video Input/ Audio Input/ 5V Power Output:
2-2 GPS Antenna Connector:
2-4 SIM Card Slot:
2-5 Alarm Button:
The PMRS has an internal GSM antenna.
However an external GSM antenna connector
can be added to the PMRS if required and has a
SMA interface which will be located on the top
corner of the PMRS unit next to the GPS
antenna.
2-3 GSM Antenna Connector:
GPS
GSM

1) USB HOST/CLIENT AND CELLULAR OPERATION:
UP - USB client –Configuration mode
DOWN - Normal cellular operation
2) USB IN/OUT:
UP - USB out to connector –Configuration mode
DOWN –USB on board –Cellular streaming video.
The USB client is used for configuring the
device’s parameters using the Device Config
application. Connect the USB cable between
here and a PC when configuring the unit. Dip
switch must be set correct in order to
communicate through usb
Insert a Micro SD card into the Micro SD slot for
recording on the PMRS device.
2-6 USB Client:
2-7 Micro SD Slot:
2-8 5V-12 Power Input:
The 5V-12V power input is located on the side
of the unit.
The PMRS has 2 Dip Switches located on the
side of the unit. The dip switches are for setup
and operation. The functions of each switch are
described below in order from left to right:
2-9 Dip Switches:

1) Green LED –External power is connected.
2) Red LED –Software status, blinks when software is running.
3) Blue LED (on) –Modem is on.
4) Blue LED (flashing every second) –Modem is connected to a cellular provider.

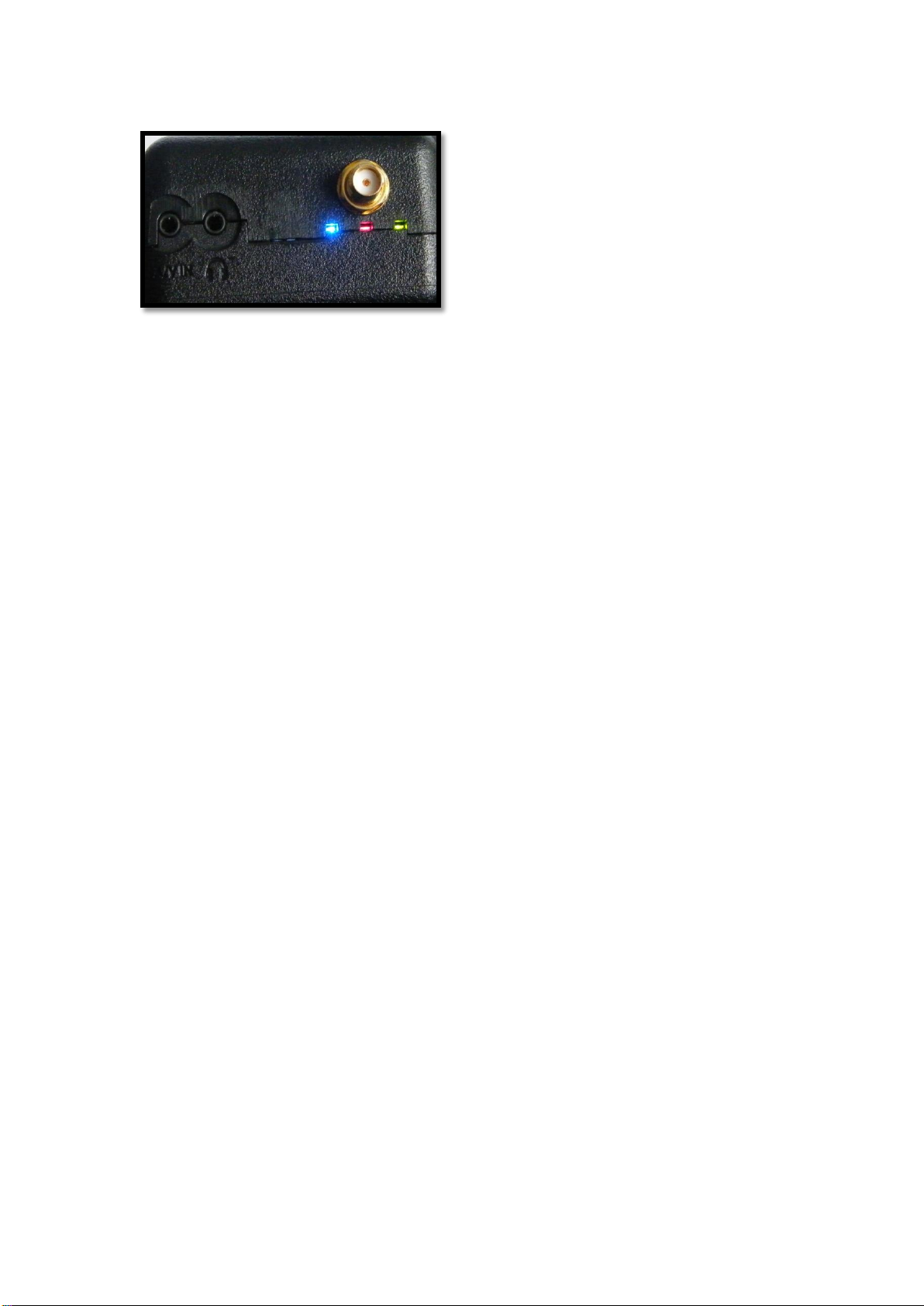

The PMRS has 3 LEDs located on the top side of
the unit. The 3 LEDs indicate the following:
2-12 LEDs:

HDMI
COLOR
FUNCTION
1
BLUE
GPIO IN 1
2
WHITE-BLACK
GPIO IN 2
3
ORANGE
12V ON
4
RED-BLACK
EXTERNAL ON
5
GREEN
GPIO OUT 1
6
PURPLE
GPIO OUT 2
7
BLUE-WHITE
RS232 TX+
8
BROWN
RS232 TX-
9
PURPUL-WHITE
PTZ TX+
10
GREY
PTZ TX-
11
YELLOW
5V
12
RED
TTL TX
13
WHITE
TTL RX
14
BLACK
GND

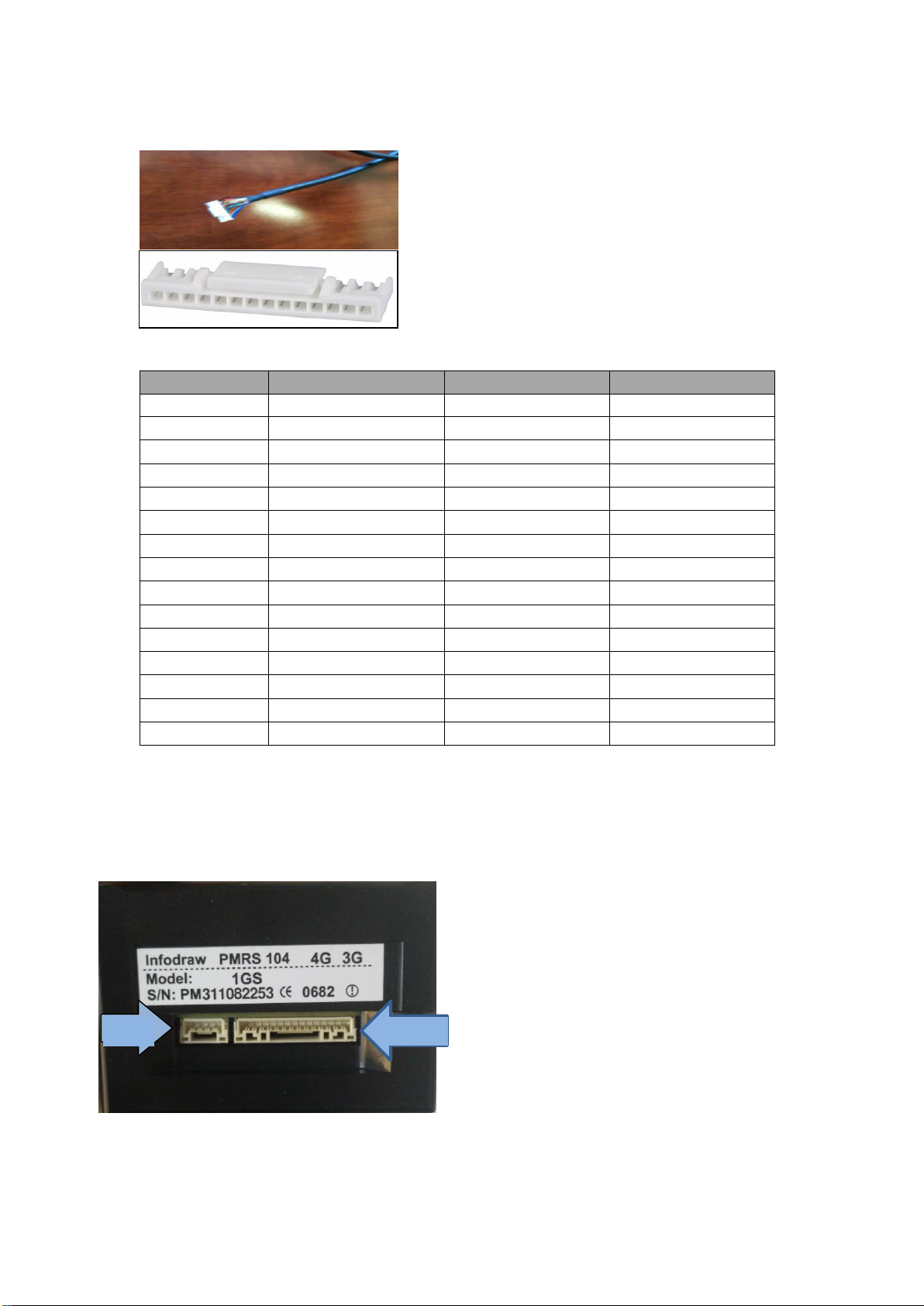

The i/o Cable has several different coloured
wires for specific purposes such as PTZ and
GPIO. The definitions of the wires are listed
below.
2-13 I/O Cable:
The i/o Cable and LAN Cable Input are located
on the bottom side of the PMRS unit.
1-6-14 I/O Cable and LAN Cable Input:
1 2
14
LAN
GPI/O

Chapter 3 - Installation
PMRS software can be downloaded from http://www.infodraw.com/dlds
The Installation section is divided to 3 parts:
1. Installation of servers
2. Change setting MRS configurator (WIN 7, 8,10 and Android app)
3. Installation of MRS monitor (watch video)
3-1 Installation on Server Computers
1. Open ports 12654 (TCP) and 12655 (UDP) on the firewalls of your computer
and your router.
2. Make sure the IP of the server is static, external and can be reached from the
outside.
3. Open the web browser and enter the website www.infodraw.com/dlds
4. Open the folder of the latest version (6.1.0.2 –for example)
5. Open the folder of the Service program and run the
Setup_MRS_Service.msi file attached
If you want to activate more than one device simultaneously please contact
Infodraw-Israel R&D to purchase a server license.

3-2 Installation of MRS Configurator
Every device needs to have its parameters changed in order to connect to the
server. The MRS Device configurator allows the user to make changes in the
settings of the device, changes that would take effect on activation.
There are two ways to change the parameters on the on the PMRS device:
1. MRS configurator for PCs –(Drivers need installation for Windows 7 and
below). After which, setting the parameters.
2. MRSconfig (for Android Devices)
3-2-1 Set parameters via PC (Device Configurator –7 and
below)
1. Browse to the website: www.infodraw.com/dlds
2. Open the folder of the latest version of the PMRS ("6.1.0.2" for example).
3. Enter the “MRS device config” folder and activate the
Setup_MRS_DeviceConfig.msi file.
4. Change the 2 dip switches (1 & 2) to external USB mode (up position).
5. Insert the USB cable into the unit and to the PC.
6. Activate the PMRS device.
7. Open the MRS Device Configurator program.
8. Open the driver menu and Download drivers
9. Click on test mode –the computer will restart
(Only for windows Vista, 7 - 64-bit OSs)
10. If the drivers are not automatically installed, update the drivers by inserting
the path to the folder where the drivers were downloaded (on stage 7) on
the “MRS Device” in the device manager.
11. Turn on the unit and wait about 30 seconds.
12. After a few seconds system shows new hardware is detected.
13. Turn on the device.
3-2-2 Install Device Configurator (WIN 8.1 and 10)
In WIN 8.1 and up there is no need to install drivers.
1. Install the MRS configurator
2. Elevate the two DIP switches.
3. Connect the USB cable from the PMRS device to your PC
4. Activate the device
5. Activate the MRS configurator

3-2-3 Set Parameters on the Device (on PC computer)
1. Once the unit is connected to the PC, parameters are loaded.
2. Go to connection screen.
3. Change the IP (of the server IP).
4. Save parameters (write to device- in the "File" menu) or click on the candle
icon that is placed on the top-left side of your screen. Wait for about 10
seconds (you should see “parameters saved” in the status bar).
5. Turn off the device.
6. Change back the 2 dip switches to a down position (as shown) for normal
work with modem.
7. Insert the SIM card (notch is outside)
8. Insert the micro SD card.
9. Turn on the device.
To Activate WiFi (if installed):
Go to the Wireless LAN section of the configurator, Enable the Wireless-LAN.
Enter the SSID and Password of your WiFi network.
Choose the Automatic: DHCP client Option and Save the changes.

3-2-4 Set Parameters via Android (MRSconfig)
Attention! This feature is only available in PMRS 201/104/410 devices
MRSConfig Activation:
Look for the MRSConfig app in your "google play" store, download it - the
application is free.
Step 1: Prepare the DIP switches, the left DIP switch needs to be in a "down" position
and the right DIP switch needs to be elevated
Step 2: Activate the PMRS Device
Step 3: Activate the Bluetooth feature on your Android phone and Click on the
MRSConfig icon on your touchscreen
Step 4: Click on the PMRS device that you would like to configure.
Step 5: Click to allow "Pairing" when you are asked to optimize your Bluetooth
services.
Step 6: Open the menu on the top-left side and enter the Connection screen
Step 7: Fill the Remote Server option and fill in your IP address.
Step 7: Click on "Save" to save the changes you wish to make.
For TMRS devices:
Click on the menu in the top left corner and go to the Wireless LAN section
Enter the SSID and the Password of you WiFi network.
Fill-in the Automatic: DHCP client circle.
Click “save” to save the settings.

3-3 Watch video
1. Open your browser to www.infodraw.com/dlds
2. Open the folder of the latest MRS version and in it, open the folder of the
Monitor-Client.
3. Run the Setup_MRS_Client.msi file and install the program.
4. After installation is complete, open the MRS Monitor program.
5. Go to the session menu and click on “Connection”
6. Fill the “Remote Server” circle.
7. Enter the IP address of the server (If you are on the server computer- enter
127.0.0.1).
A more comprehensive manual is available at
http://www.infodraw.com/pmrs100usermanual.pdf
