Ingics iBS05 User manual

INGICS TECHNOLOGY
Guide
Ver.01
iBS05 User Guide
Introduction
The document is a guide for iBS05/iBS05G/iBS05H/iBS05T. To quickly verify it, please download INGICS iBS01
Tag Utility APP from below link(Android only):
https://play.google.com/store/apps/details?id=com.ingics.tag.igstagconfig
Overview
Operation
Basically, iBS05 will always transmit BLE payload in the configured time interval(by default, iBS05/05G is 5s and iBS05H/05T
is 30s) in the background after power on. The transmitted BLE payload/message is then received and uploaded to the
internet/cloud server by the beacon gateway, such as iGS01S or iGS03W/M/E. Besides background transmission, button or
sensor status change will also trigger an immediate BLE transmission for monitoring the sensor in real time.

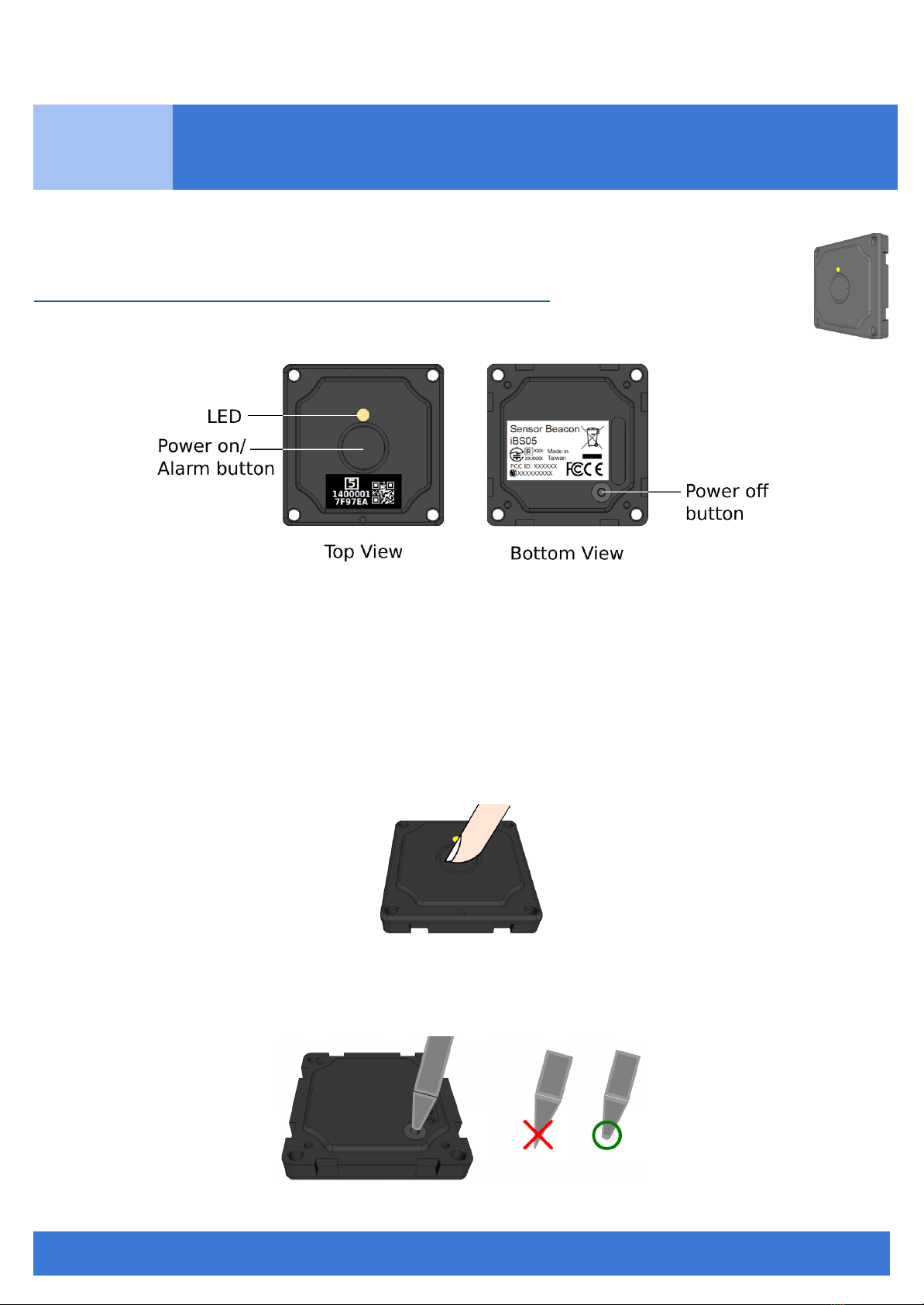

Power on
iBS05 is in standby mode at shipping. You can power on it by pressing the front button. The LED will flash “Red” to indicate it
is powered on. After power on, the button becomes the alarm button.
Power off
When necessary, users can power off iBS05 by applying a pencil with a blunt tip to the rubber button on the bottom side. The
LED will flash “Orange” to indicate it is powered off and entering the standby mode.
INGICS TECHNOLOGY CO., LTD. • [email protected] • WWW.INGICS.COM
1

INGICS TECHNOLOGY
Alarm Button
After power on, the front button acts as an alarm button. As pressing the button, the LED will light up “green” and trigger an
immediate BLE transmission with the button activation event. As the back end server received this status change, it can be
used as a warning or alarming.
LED
Power on( Start of Config mode)
Red blinking
End of Config mode
Green blinking
Alarm Button
Green on when pressed
Battery inserted/Power off
Orange blinking
Working Mode
Hall Sensor (iBS05H)
Inside iBS05H, there is a hall sensor that can be used to detect if a
magnet is in range or not. Depending on the strength of the magnet, the
active range is around 0.5cm~1.5cm. The sensor position is marked on
the enclosure. A typical usage is to put an iBS05 and magnet on the
door(or window) and door frame. When they are close to the active range,
iBS05 will trigger an immediate BLE transmission. On the other hand,
when they are far away from a close state, it will also trigger an
immediate BLE transmission.
Accelerometer (iBS05G)
The accelerometer will be active when its status changes. It includes from motion to still or from still to motion. An
immediate BLE transmission with status change will be triggered as active.
INGICS TECHNOLOGY CO., LTD. • [email protected] • WWW.INGICS.COM
2

INGICS TECHNOLOGY
Temperature Sensor (iBS05T)
iBS05T is always monitoring the environment temperature and transmitting the
temperature value in the configured time interval .
Verifying
1. Power on iBS05
2. Open iBS01 Tag Utility APP and Press “START SCAN”.
3. Wait for a while, you should see the BLE payload of iBS05 received by the APP.
Below is an explanation of the payload shown in the APP.
Battery
Level
iBS05 uses a CR2032 coin battery as the power source. It consumes only a little power and keeps working for a long time.
Below is a suggestion for translating the battery voltage to the remaining capacity at room temperature.
Capacity
Voltage
High
>2.9V
Middle
>2.7V
Low
>2.6V
Change battery
<=2.6V
Remember, a proper filtering on the voltage is necessary. When iBS05 works in a low temperature environment, the battery
voltage will be lower. For example, in -20 ºC,the voltage should be adjusted to 0.1V~0.3V lower.
INGICS TECHNOLOGY CO., LTD. • [email protected] • WWW.INGICS.COM
3

INGICS TECHNOLOGY

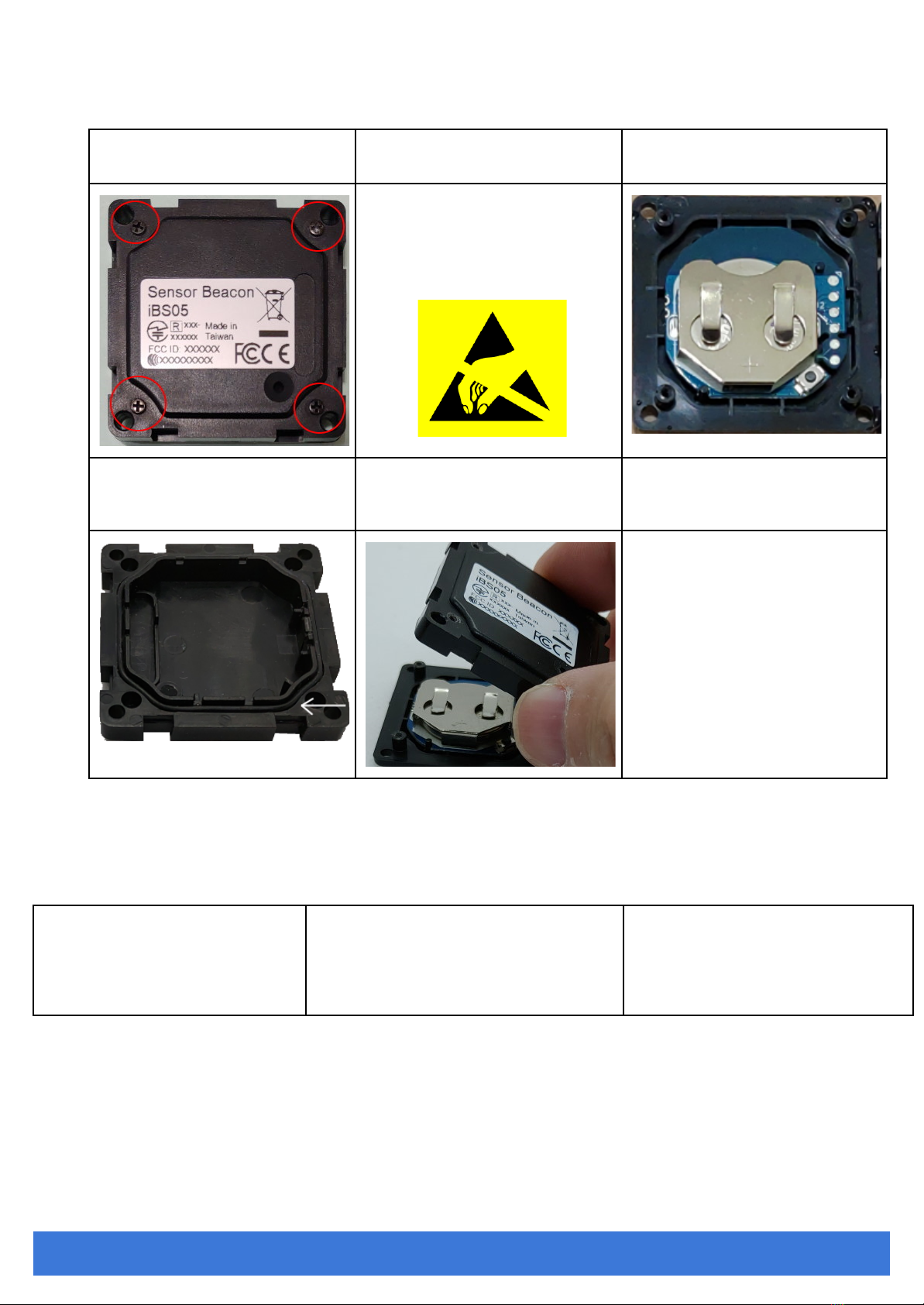

Changing Battery
1. Remove the 4 screws and open
the bottom case.
It is very important that without the
enclosure protection
2. You can now remove the battery
and change a new battery
The internal of iBS05 is sensitive
to electrostatics.Before opening
the bottom cover, please make sure
the proper procedure is executed to
avoid any electrostatic damage to
iBS05
3. Before closing the bottom cover,
please make sure the O-ring is in the
proper position
4. Close the bottom cover
5. Fix the 4 screws
Configuration
When powered on, iBS05 will be in configuration mode for 20 sec. Users can use iBS01 Tag Utility to scan and connect iBS05
to configure the transmit power and ADV(advertising) interval.
Steps
1. Power on iBS05
(if iBS05 is already powered on,
please power off it first then power
on again)
2. Press the CONFIG icon on the up-right
corner of the utility within 20 secs. Select
iBS05 for configuration.
3. In the SETTING page, you can
configure TX power and ADV interval.
After configuring, press SAVE and
DISCONNECT for the parameters to
take effect.
INGICS TECHNOLOGY CO., LTD. • [email protected] • WWW.INGICS.COM
4

INGICS TECHNOLOGY
Parameters
In iBS05, there are two parameters that can be configured.
a. TX power: +4 dBm ~ -20dBm.
b. ADV Interval: From 100 ms~60 min.
Waste Electrical and Electronic Equipment Recycling
Our product is compliant with the WEEE directive for re-use/recovery/recycling. This cross-out
wheeled-bin symbol is a reminder that this product should not be treated as household waste. Instead
hand it over to the appropriate collection point for the recycling of electrical and electronic equipment in
accordance with local environmental regulations for waste disposal.
Since our product is not sold directly to the end user and generally it is a part of our customer’s solution,
our customer is recognized as a professional seller. Our customer has the responsibility to comply with
the requirement of the directive too. To help our customers, when necessary, we will provide a WEEE
compliant assessment report for registering and communicating with the local authorities and recycling
agency.
Certification
Bluetooth SIG Qualification
Model number: iBS05/iBS05H/iBS05T/iBS05G
Declaration ID: D048813
Description: Beacon
Japan MIC Regulatory
201-210714
FCC Regulatory
2AH2IIBS05
NCC Regulatory
iBS05 CCAH21LP6550T2
iBS05H CCAH21LP6552T6
iBS05T CCAH21LP6553T8
iBS05G CCAH21LP6551T4
CE Regulatory
iBS05 series have been tested and complies with the essential requirements of the DIRECTIVE 2014/53/EU, DIRECTIVE
2014/35/EU and DIRECTIVE 2014/30/EU. Below is the copy of the CE Conformity of Declaration.
INGICS TECHNOLOGY CO., LTD. • [email protected] • WWW.INGICS.COM
5

INGICS TECHNOLOGY
Statement
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the
following measures:
. Reorient or relocate the receiving antenna.
. Increase the separation between the equipment and receiver.
. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
. Consult the dealer or an experienced radio/TV technician for help.
FCC Caution:To assure continued compliance, any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment. (Example - use only shielded interface
cables when connecting to computer or peripheral devices).
FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters
between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The antennas used
for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be
co-located or operating in conjunction with any other antenna or transmitter.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) This device must accept any interference received, including interference that may
cause undesired operation.
Industry Canada Statement
This device complies with Industry Canada licence-exempt RSS standard. Operation is subject to the following two
conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur
de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le
fonctionnement.
IC Radiation Exposure Statement
This equipment complies with IC RSS-102 radiation exposure limit set forth for an uncontrolled environment. This equipment
should be installed and operated with minimum distance 20cm between the radiator and your body.
Cet équipement est conforme aux CNR-102 d'Industrie Canada. Cet équipement doit êtreinstallé et utilisé avec une distance
minimale de 20 centimètres entre le radiateur et votrecorps. Cet émetteur ne doit pas être co-localisées ou opérant en
conjonction avec autreantenne ou émetteur. Les antennes utilisées pour cet émetteur doivent être installés etfournir une
distance de séparation d'au moins 20 centimètre de toute personne et doit pas être co-située ni fonctionner en conjonction
avec une autre antenne ou émetteur.
NCC 警語
「取得審驗證明之低功率射頻器材，非經核准，公司、商號或使
用者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。低功率射
頻器材之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應
立即停用，並改善至無干擾時方得繼續使用。前述合法通信，指依電信管理
法規定作業之無線電通信。低功率射頻器材須忍受合法通信或工業、科學及
醫療用電波輻射性電機設備之干擾。」
INGICS TECHNOLOGY CO., LTD. • [email protected] • WWW.INGICS.COM
6

INGICS TECHNOLOGY
INGICS TECHNOLOGY CO., LTD. • [email protected] • WWW.INGICS.COM
7

INGICS TECHNOLOGY
Revision History
DATE
REVISION
CHANGES
May 30, 2021
0a
Initial release
June 2, 2021
0b
Add Waste Electrical and Electronic Equipment Recycling section for
appropriate recycling the equipment
Aug 2, 2021
0c
Fix typo, modify LED section, and add Working mode section
Oct 28, 2021
01
1. Update certification section
2. Fine tune the suggested battery capacity versus voltage
3. In hall sensor section , add iBS05H working with magnet figure
4. Add detailed description/figure in “Changing battery” section.
