FSR T3-IPS User manual

FSR 244 Bergen Boulevard, Woodland Park, NJ 07424, Phone: [phone] - Fax: [phone]
43071 LIT1518A
T3-IPS INSTALLATION INSTRUCTIONS

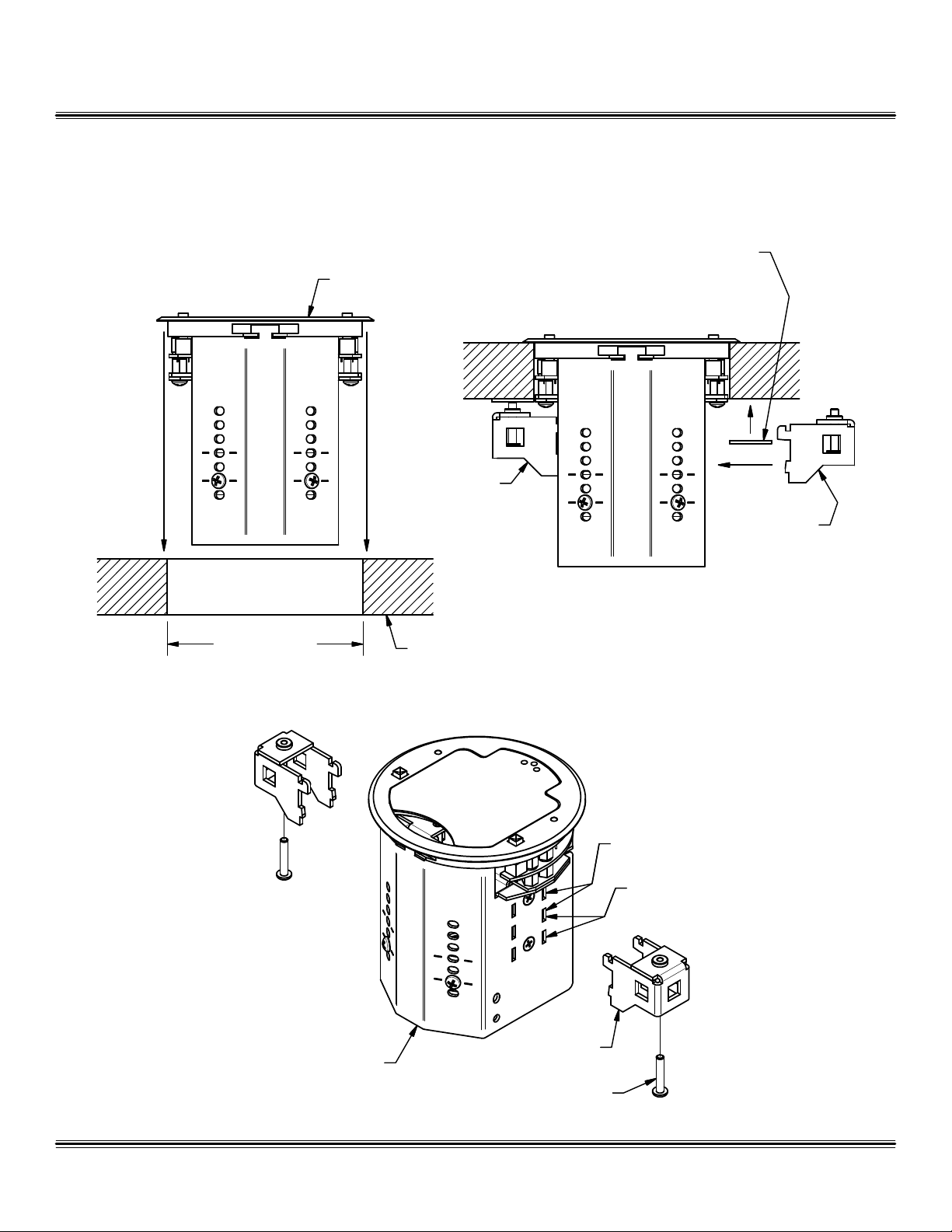

DRILL 3.50" DIAMETER HOLE IN TABLE TOP.
1.
2. INSERT T3 ASSEMBLY AND ORIENT AS REQUIRED.
3. INSTALL MOUNTING CLAMPS TO ASSEMBLY AND SECURE TO TABLE BY
SCREWING MOUNTING SCREWS TO UNDERSIDE OF TABLE.
MAKE ELECTRICAL CONNECTIONS AS REQUIRED.
4.
(2) MOUNTING
CLAMP
(2) MOUNTING
SCREW
T3 ASSEMBLY
3.50" DIAMETER TABLE
CUSTOMER TO PROVIDE
KO SLUG/PENNY/OTHER
HARD FLAT PIECE FOR
SCREW END, WITH SOFT
TABLE WOOD
MOUNTING
CLAMP AND
MOUNTING
SCREW
(SEE BELOW)
MOUNTING
CLAMP AND
MOUNTING
SCREW
INSTALLED
SLOTS USED FOR 5/8" TO
1-1/8" THICK TABLE TOPS
SLOTS USED FOR 1-1/8" TO
1-9/16" THICK TABLE TOPS
MODEL ILLUSTRATED
MAY DIFFER FROM
MODEL PURCHASED

CONTROL LEADS
CONTROL LEADS
POLE
GRN / RED SWITCHED LED +
POLE
GRN / RED SWITCHED LED +
SWITCH / LED PC BOARD
T3-IPS TABLE BOX WIRING PINOUT
FOR ONE AND TWO BUTTON / LED MODELS
ONE BUTTON / ONE
LED MODELS
ADDITIONAL COMPONENTS
FOR TWO BUTTON / TWO
LED MODELS
6’ WIRE TAILS
6’ WIRE TAILS
