Inkel IPA-60 User manual


MIXING AMPLIFIER
2 IPA-60/120/240/360
Welcome 2
Unpacking 2
Before Use 2
Safety Instruction 4
Operation 5
Features 5
Front Panel 6
Rear Panel 7
Connectiong Speaker 8
Setting IPA-CDR(CD&MP3, TUNER MODULE) 8
Connection 9
Block Diagram 10
Specification 11
Service and Warranty 12
Contents

MIXING AMPLIFIER
IPA-60/120/240/360 3
Welcome you from management and staffs of INKEL PA.
All of the staffs here at INKEL PA have dedicated to provide excellent products of value, and we are glad
that you have purchased one of our products.
We sincerely trust that this product will provide satisfactory service, but if anything goes up you do not
satisfy completely, we will endeavor to make things right.
Welcome to INKEL PA and thank you for joining our worldwide family.
Please inspect all equipment carefully right after unpacking. If you find any damages, contact your supplier
or dealer immediately. Only a shipper may file a damage claim as a carrier for damages which have been
incurred during shipping. Be sure to keep carton boxes and other all packing materials for the carrier’s
inspection. If your packing materials are in good condition, please keep them. If you ever need to return
the unit to INKEL PA or an authorized service center, you should use only the original factory packing.
Welcome
WARNING : TO PREVENT FIRE OF ELECTRIC SHOCK HAZARD,
DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE
Unpacking
To insure proper use of this product, please read owner’s manual carefully and keep this manual in an
easily accessible place for future reference.
Before Use
CAUTION : TO REDUCE THE RISK
OF ELECTRIC SHOCK
DO NOT REMOVE THE COVER (OR BACK)
NO USER SERVICABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL
This lightening flash with arrowhead symbol within an equilateral triangle is intended to alert the
user to the presence of non insulated “dangerous” voltage within the product’s enclosure that may
be of sufficient magnitude to constitute a risk of electric shock to persons.
This exclamation point within an equilateral triangle is intended to alert the user to the presence
of important operating and maintenance (servicing) instruction in the literature accompanying the
products.

MIXING AMPLIFIER
4IPA-60/120/240/360

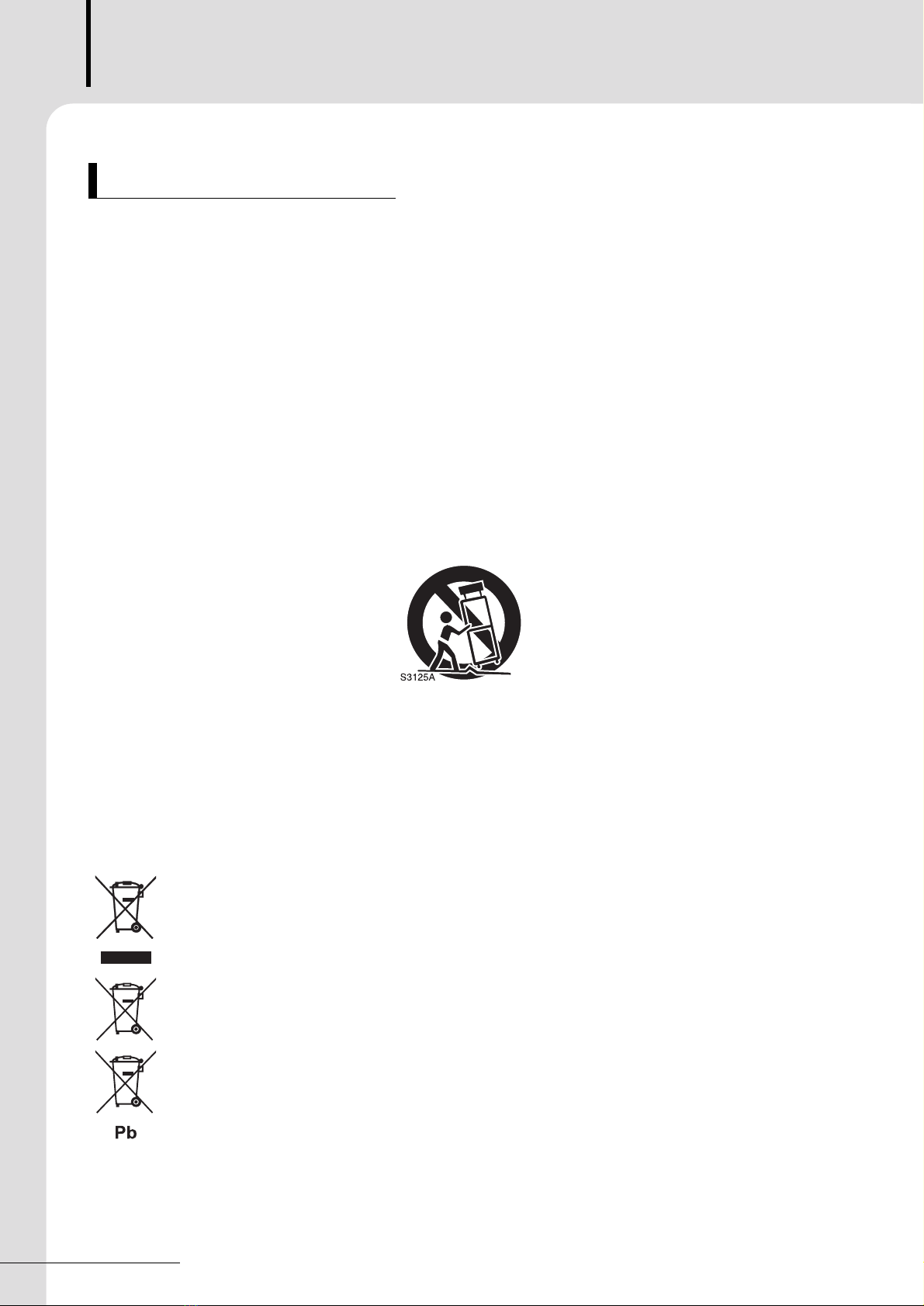

Safety Instruction
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one
wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third
prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in
any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
Information for Users on Collection and Disposal of Old Equipment and used Batteries
These symbols on the products, packaging, and/or accompanying documents mean that used electrical
and electronic products and batteries should not be mixed with general household waste.
For propertreatment, recovery and recycling of old products and used batteries, please take them to
applicable collection points, in accordance with your national legislation.
By disposing of these products and batteries correctly, you will help to save valuable resources and
prevent any potential negative effects on human health and the environment which could otherwise arise
from inappropriate waste handling.
For more information about collection and recycling of old products and batteries, please contact your
local municipality, your waste diposal service or the point of sale where you purchased the items.
Information on Disposal in other Countries outside the European Union
These symbols are only valid in the European Union. If you wish to discard these items, please contact
your local authorities or dealer and ask for the correct method of diposal.
Note for the battery symbol (bottom two symbol examples):
The sign Pb below the symbol for batteries indicates that this batteries contains lead.

MIXING AMPLIFIER
IPA-60/120/240/360 5
Features
*A PUBLIC ADDRESS AMPLIFIER WITH RATED OUTPUT OF 60W(IPA-60), 120W(IPA-120W),
240W(IPA-240), 360W(IPA-360)
*4 MICROPHONE INPUT & 3AUX INPUT WITH LEVEL CONTROL.
*CONVENIENT FOUR-TONE CHIME AND THREE-BAND EQUALIZER.
*SIX SPEAKER SELECT SWITCHES ENABLE YOU TO SELECT ANY COMBINATION OF UP TO FIVE
SPEAKERS.
*PRIORITY FUNCTION ON MIC1 & CHIME
MIC1 and CHIME mutes other inputs when in use.
*BUILT IN MONITOR SPEAKER.
*BUILT IN +15V PHANTOM POWER FOR CONDENSOR MICROPHONE.
*SETTING THE RACK WITH BRACKET (SEPARATE SALE : BRACKET)
*OPTION : 1 CD & MP3 MODULE (our model, IPA-CDR/U)
Operation
1. Turn off the switch before plugging in, and place tone controller on the middle and the volume minimized.
2. Check whether speaker and input jack are connected properly.
3. Check the power and put a plug into the outlet.
4. When press a power switch, then POWER LED and PROT LED is illuminated and this device starts operation.
*Note : This apparatus will be operated after three seconds while PROT LED is out by built-in delay circuit to protect
speaker and devices.
5. Adjust the volume with output level indicator.
6. Refer to the details how to operate the chime.
7. This apparatus contains protect circuits and when they are in operation, since amplifier and speaker system are
blocked by output relay, there is no sound from the speaker. The protect circuits are operated when DC offset voltage
is supplied or when amplifier is overheated. Check the connection of SET when protect circuits are in operation.

MIXING AMPLIFIER
6IPA-60/120/240/360
1. MIC LEVEL CONTROL
It controls MIC volume which comes from MIC 1 to MIC
4. Adjust the volume properly.
2. AUX LEVEL CONTROL
It controls the volume which comes from AUX input 1 to
3. Adjust the volume properly.
3. TONE CONTROL
It is consisted with 3 tone controllers, HIGH, MID, and
LOW. Adjust the tone properly.
4. MASTER LEVEL CONTROL
This knob provides continuous control of the overall
volume of the amplifier's output signal.
5. SIGNAL INDICATOR
This LED indicates amount of signal which comes out
from speaker.
6. CLIP INDICATOR
This LED indicates the distortion of signal which comes
out from speaker.
Adjust in/output level so that the clip LED is not
illuminated during operation.
7. PROTECTION CIRCUIT INDICATOR
This LED indicates the operation statue of protection
circuit. When it is illuminated, output is blocked.
8. CHIME SWITCH
Pressing this switch activates the one shot chime.
*Note : One-shot Chime: Although press the switch
several times, the chime rings only once.
9. MONITOR SPEAKER SWITCH
This switch is used to listen to the signal with inside
speaker.
10. SPEAKER SELECT SWITCH
With this switch, you can turn on/off each signal comes
from five speaker output terminals or with ALL switch,
you can turn on/off whole system when distribute an
announcement to whole area.
11. POWER SWITCH
If press this switch, then LED is illuminated and power
is supplied.
12. BLANK PANEL
When set our model, IPA-CDR/U (1CD&MP3, TUNER ,
USB) MODULE, change this blank panel to IPA-
CDR/U.
Front Panel

MIXING AMPLIFIER
IPA-60/120/240/36 7

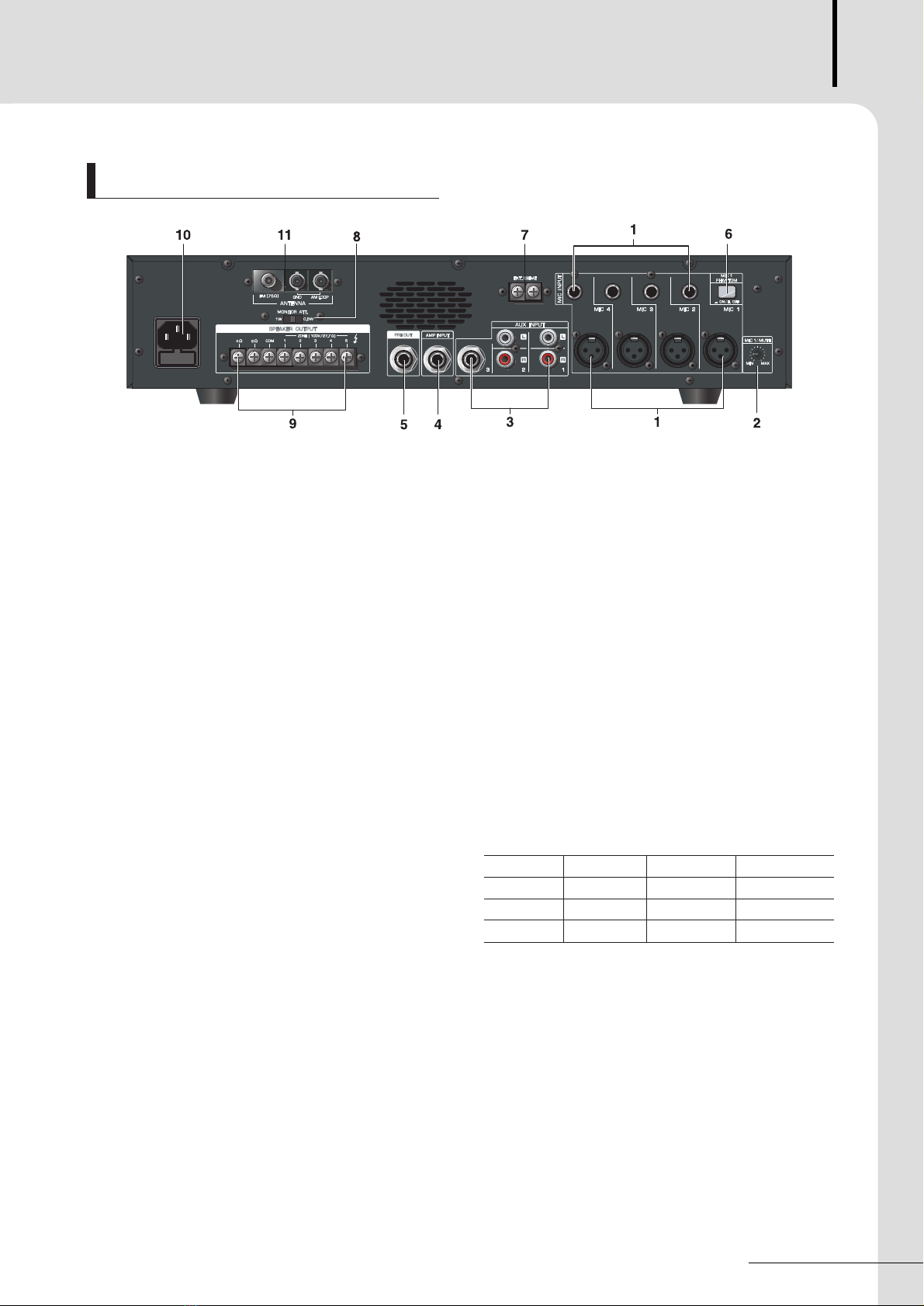

1. MIC INPUT JACK (MIC1~MIC4)
These jacks are used when you want to use MIC 1~4
inputs and it is consisted with electronic balanced for
noise prevention.
2. MIC 1 MUTE CONTROL
By incoming signal on MIC1, this controller blocks all
signals except MIC 1 and CHIME by priority order.
3. AUX 1 ~ 3 INPUT JACK
Connect an external source(CD,TUNER,DECK etc) to
these input.
4. AMP INPUT JACK
By connecting external device’s signal to this input
jack, it can be used to expand amplifiers. Also, it can be
used as patch by connecting effectors between pre-
amplifier output and amplifier input of this device.
5. PRE-AMP OUTPUT JACK
This output provides line level output signal for
connection to an external amplifier.
6. PHANTOM POWER SWITCH
When you want to use condenser MIC, if turn on this
switch, +15V condenser MIC power is supplied on No.2
and 3 of XLR jack. Because this power is supplied to
microphones in parallel, you can connect it to other
dynamic microphones. However, if connect it to other
types of MIC, be sure about plug wiring to do not
unbalanced.
*Note: If turn on this switch when volume controller of
input channel and mater volume controller is not
placed at minimized, impact voltage can be incurred
suddenly to MIC circuit, and it may cause defeats of
speaker.
7. EXTERNAL CHIME SWITCH
Connect the switch to this terminal if you want to use 4-
tone chime remotely.
8. MONITOR ATT. SWITCH
It controls the volume of monitor speaker.
9. SPEAKER OUTPUT
This terminal is used to connect speaker, be careful to
do not overload.
Impedance and output voltage are as follows. Be
noticed that SP 1~5 terminals are controlled by speaker
select-switch on the front panel.
IPA-60 4Ω/15.5V 8Ω/17.8V 166Ω/100V
IPA-120 4Ω/21.9V 8Ω/30.9V 83.3Ω/100V
IPA-240 4Ω/30.9V 8Ω/43.8V 41.6Ω/100V
IPA-360 4Ω/37.9V 8Ω/53.6V 27.7Ω/100V
10. AC CONNECTOR AND FUSE HOLDER
Connect the supplied standard AC input cable to this
input. The fuse holder below the input contains the AC
overload protection fuse.
If the fuse has blown out, replace it with a fuse of the
same type and rating. If the fuse continues to blow,
refer servicing to a qualified service technician.
11.ANTENNA TERMINAL (when set IPA-CDR/U)
When set our model, IPA-CDR/U (1CD&MP3,TUNER,
USB) on this device,this terminal connects antenna.
Rear Panel

MIXING AMPLIFIER

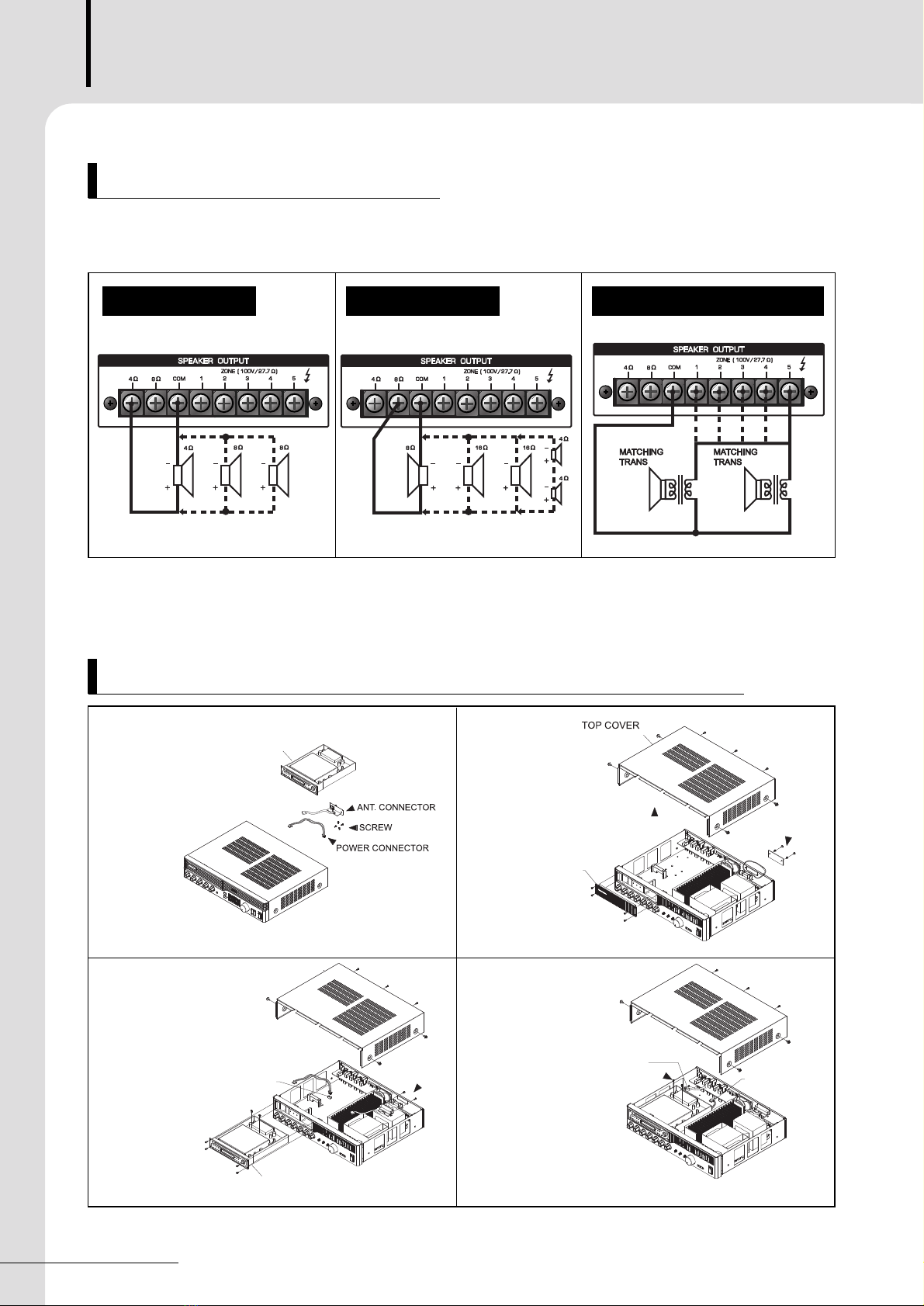

Connecting Speaker
Setting IPA-CDR/U(CD&MP3, TUNER , USB MODULE)
When connect speaker, pull a power cord from the outlet. And then, select a proper terminal depends on your speaker
types and connection methods to connect it to speaker terminals on the rear panel.
Total impedance of speaker terminal must be higher than regulated impedance in any time, and do not use two sorts of
impedance simultaneously.
8IPA-60/120/240/360
For example at 4ΩFor example at 8ΩFor example at Hi-Z(IPA-360)
FIG. 2FIG. 1
FIG. 3 FIG. 4
IPA-CDR/U
FIX TO CONNECTOR
FIX TO ANT
TERMINAL
IPA-CDR/U
FIX TO CD MODULE
BY SCREW WIRE FORMING
TAKE OUT SCREW
BLANK PANEL
TAKE OUT REVET
PRODECURE 1
1.Take out top cover and blank panel
2.Take out the antenna jack cover
PRODECURE 3
1. Assemble the CD module
2. Assemble the antenna jack
PRODECURE 4
1. Fix screws inside of CD module
2. Put the CD module connector
3. Close the tope cover
4. Fix a form to do not touch antenna wire with heat sink by using tie band

MIXING AMPLIFIER

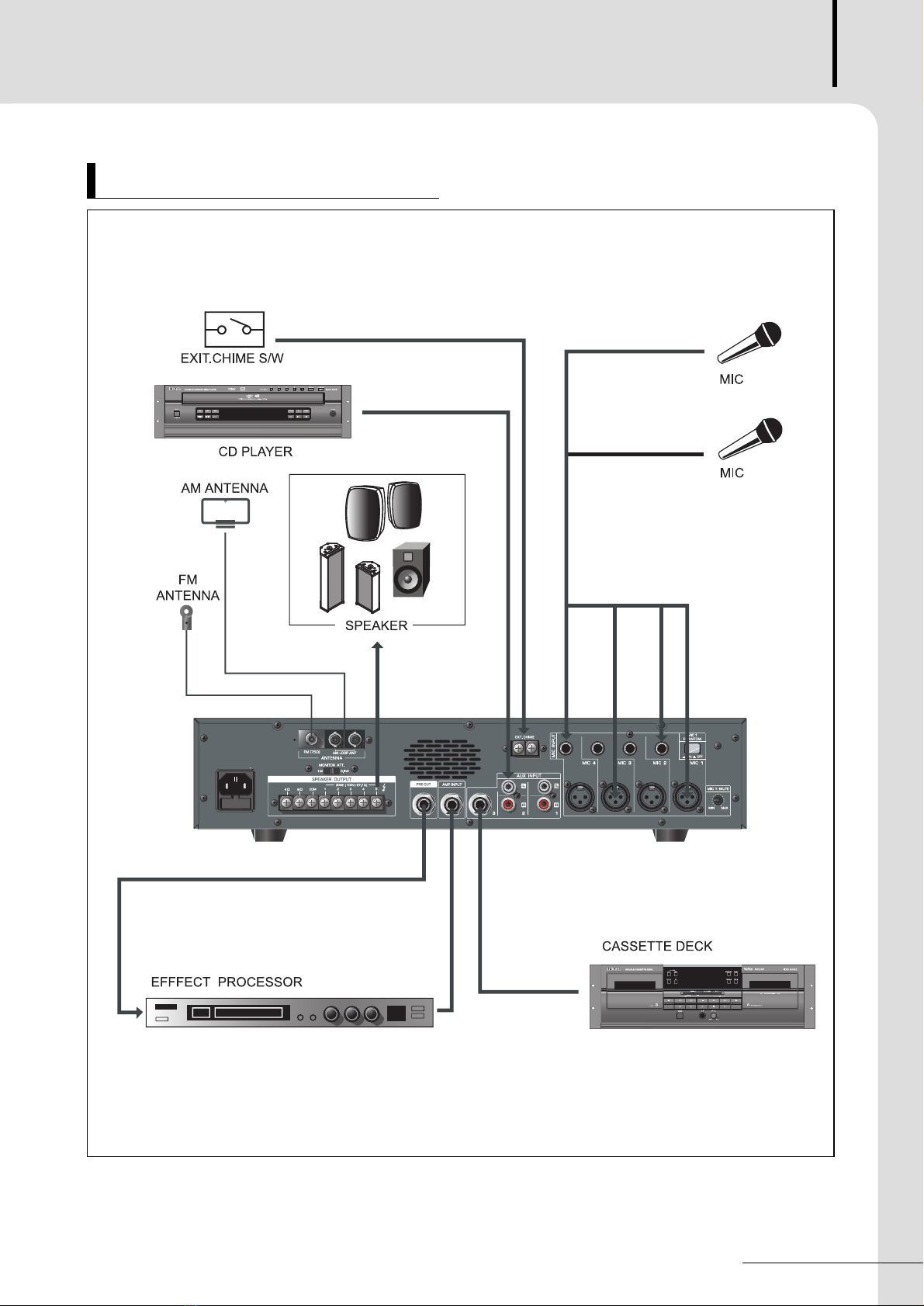

Connection
IPA-60/120/240/360 9

MIXING AMPLIFIER
Block Diagram
10 IPA-60/120/240/360

MIXING AMPLIFIER
Specifications
■■ELECTRICAL
Rated Output
IPA-60/120/240 at T.H.D 1% IPA-60:60W, IPA-120:120W, IPA-240:240W
IPA-360 at T.H.D 3% 360W
Input Sensitivity/Impedance
MIC -60dB/600Ω, Bal
AUX -3/-10/-20dB/10KΩ, Unbal
AMP IN 0dB/47KΩ, Unbal
Frequency Response (+1/-3dB)
MIC 120Hz ~ 10KHz
AUX 100Hz ~ 12KHz
AMP IN 80Hz ~ 15KHz
T.H.D (at 1KHz, 1/2 Power)
MIC Less than 1%
AUX, AMP IN Less than 0.5%
S/N Ratio
MIC Better than 50dB
AUX Better than 65dB
AMP IN Better than 90dB
Tone Control
HIGH (10KHz) ±12dB
MID (1KHz) ±15dB
LOW (100Hz) ±12dB
Phantom Power DC +15V
Output Voltage/Impedance
Europe IPA-60 4Ω/15.5V, 8Ω/17.8V, 81.6Ω/70V, 166Ω/100V
IPA-120 4Ω/21.9V, 8Ω/30.9V, 40.8Ω/70V, 83.3Ω/100V
IPA-240 4Ω/30.9V, 8Ω/43.8V, 20.4Ω/70V, 41.6Ω/100V
IPA-360 4Ω/37.9V, 8Ω/53.6V, 13.6Ω/70V, 27.7Ω/100V
USA.CANADA IPA-60 4Ω/15.5V, 8Ω/17.8V, 16Ω/31V, 81.6Ω/70V
IPA-120 4Ω/21.9V, 8Ω/30.9V, 16Ω/43.8V, 40.8Ω/70V
IPA-240 4Ω/30.9V, 8Ω/43.8V, 16Ω/61.9V, 20.4Ω/70V
IPA-360 4Ω/37.9V, 8Ω/53.6V, 12Ω/65.7V, 13.6Ω/70V
Operation Temperature -10℃~ +40℃
Storage Temperature -20℃~ +60℃
■GENERAL
Power Source AC 100V~120V 50/60Hz
AC 220V~240V 50/60Hz
(Supplied AC main transformer depends on country requirements)
Power Consumption IPA-60:75W, IPA-120:130W, IPA-240:140W, IPA-360:170W
Weight IPA-60:8.6kg, IPA-120:10.5kg, IPA-240:12.4kg, IPA-360:14.6kg
Dimensions 436(W) ×88(H) ×340(D)mm
※Specifications and design subject to change without notice.
IPA-60/120/240/360 11

MIXING AMPLIFIER
12 IPA-60/120/240/360
Service and Warranty
TO PURCHASE ADDITIONAL INKEL PA. GEAR AND ACCESSORIES
To purchase INKEL PA gear and optional accessories, contact any authorized INKEL PA distributor.
For a list of INKEL PA distributors please visit our website at www.inkelpa.com.
SERVICE AND REPAIR
For replacement parts, service and repairs please contact the INKEL PA distributor in your country.
INKEL PA does not release service manuals to consumers, and advice users to not attempt any self repairs, as doing so
voids all warranties.
You can locate a dealer near you at www.inkelpa.com.
WARRANTY INFORMATION
Warranty terms and conditions vary by country and may not be the same for all products.
Terms and conditions of warranty for a given product may be determined first by locating the appropriate country which
the product was purchased in, then by locating the product type.
To obtain specific warranty information and available service locations contact INKEL PA directly or the authorized
INKEL PA distributor for your specific country or region.
CUSTOMER SERVICE AND TECHNICAL SUPPORT
We encourage you to visit our online help and support at http://www.inkelpa.com.
There you can find answers to frequently asked questions, tech tips, downloads, returns instruction and other helpful
information.
We make every effort to answer your questions within one business day.

MIXING AMPLIFIER
IPA-60/120/240/360 13
MEMO

MIXING AMPLIFIER
14 IPA-60/120/240/360
MEMO

MIXING AMPLIFIER
IPA-60/120/240/360 15
MEMO

This manual suits for next models
3
Table of contents
Other Inkel Amplifier manuals
