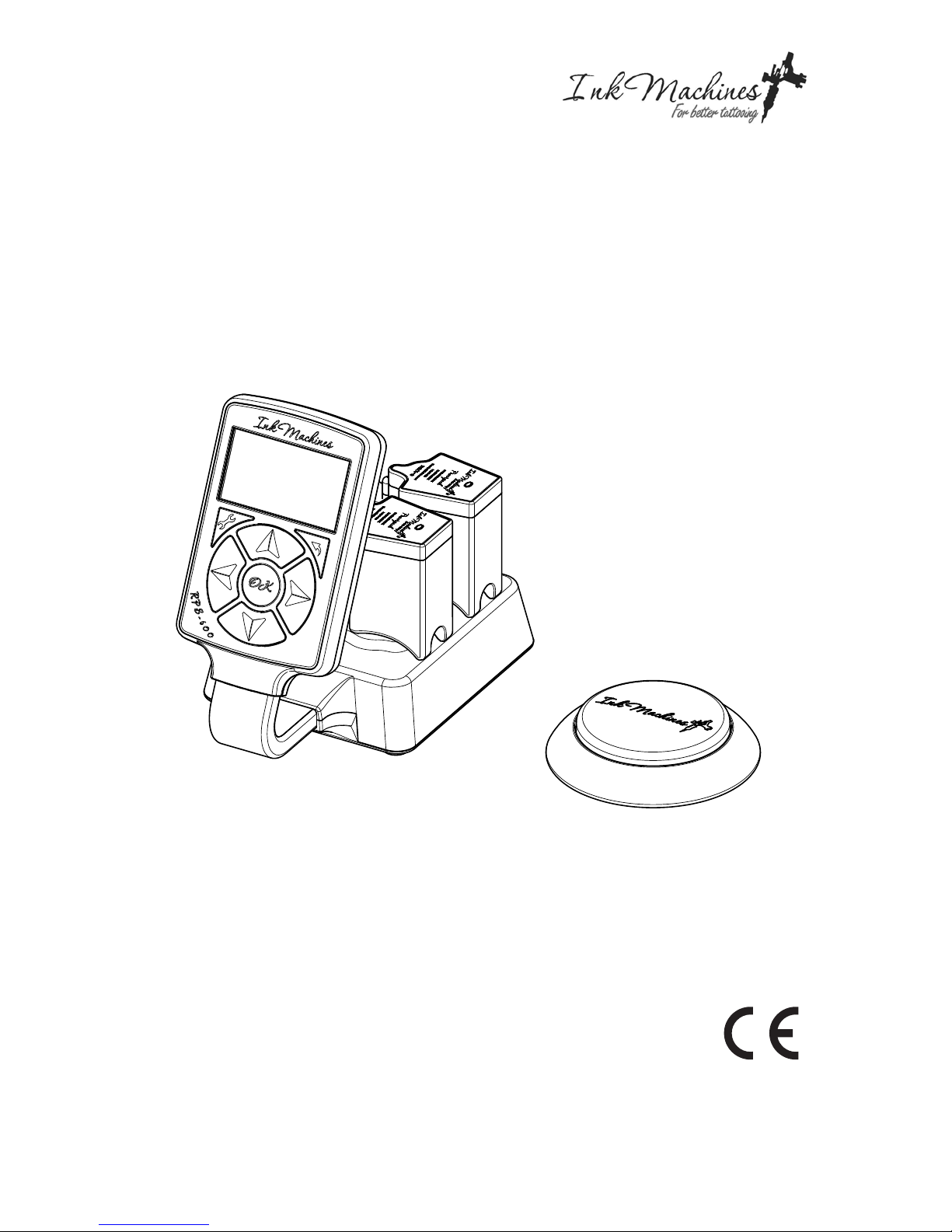

InkMachines RPS-600 User manual



Manualfor

RPS-600














Manufacturer:InkMachinesSwedenAB
BOX8025
35008VÄXJÖ,Sweden


Content

InkMachines
RPS-600Draft0.10/2014‐01‐271(26)
Content
Content....................................................................................................................................1
Documenthistory.......................................................................................................................2
Introduction ............................................................................................................................3
Intendeduse...............................................................................................................................3
Documentinformation...............................................................................................................3
Description..............................................................................................................................4
Mainunit/charger....................................................................................................................5
Userinterface–ControlpanelandDisplay................................................................................5
Powerpack..................................................................................................................................5
Footswitch.................................................................................................................................5
Poweradapter............................................................................................................................5
USBcable....................................................................................................................................5
Approvals................................................................................................................................6
Identificationlabels....................................................................................................................6
Safety.......................................................................................................................................7
Regulations.................................................................................................................................7
Product.......................................................................................................................................7
Customer....................................................................................................................................7
Electromagneticcompatibility...................................................................................................8
Instruction...............................................................................................................................9
Delivery.......................................................................................................................................9
Unpacking...................................................................................................................................9
Gettingstarted.........................................................................................................................10
Connection............................................................................................................................13
Wires........................................................................................................................................13
User interface .......................................................................................................................14
Settings.....................................................................................................................................15
Pairing.......................................................................................................................................16
ActivePowerpack.....................................................................................................................16
Sleepmode...............................................................................................................................16
KickStart...................................................................................................................................16
Boostmode..............................................................................................................................17
Speed(CPS)...............................................................................................................................17
Dutycycle.................................................................................................................................17
Technical specification........................................................................................................18
Mainunit,RPS-600©...............................................................................................................18
Powerpack©............................................................................................................................18
FootswitchWFS©...................................................................................................................19
Poweradapter,ATS065‐A240..................................................................................................19
Warranty................................................................................................................................20
Cleaning................................................................................................................................21
Preparation...............................................................................................................................21
Footswitch...............................................................................................................................21
Service and maintenance....................................................................................................22
Exchangeoffootswitchbattery..............................................................................................22
Accessories..........................................................................................................................24


InkMachines
RPS-600Draft0.10/2014‐01‐272(26)
Waste.....................................................................................................................................25
Trouble shooting..................................................................................................................26

Document history
DateChangesRevision
 
 
 
 


Introduction

InkMachines
RPS-600Draft0.10/2014‐01‐273(26)
Introduction
WeareproudtopresenttheRPS-600wirelesspowersupplyfortheDragonfly and Stingraytattoo
machines.Designedwiththetattooartistinfocusandmanufacturedwiththehighestqualitymaterials
andcomponentsavailable.
WorkingwithoutcordsgivestheTattooartistflexibilityandafreedomtoperformotherwisedifficult
movements.Italsoenablestheusertoprovideabetterenvironmentfortheircustomersasthecord
reducetheriskforcrosscontamination
Intended use
TheRPS-600isdesignedanddevelopedsolelyfortattooingofhumansfortheusebyprofessional
tattooartistsonly.TheRPS-600canbeusedwiththeproductsDragonfly and Stingrayandwithother
tattoomachinesthatcanbepoweredbyawire.
Document information
Itisimportanttokeepthisdocumentforthelifeoftheequipment,andpassthedocumentontoany
subsequentholderoruseroftheequipment.
Informationinthisdocumentissubjecttochangewithoutnotice.InkMachinesassumesno
responsibilityforanyerrorsthatmayappearinthisdocument
Stylistic conventions
Inthismanualallreferencestextsareshowninitalic.
CautionsandNotesareshownasbelow
Text
Document producer
ThisdocumenthasbeenproducedbyInkMachinesSwedenAB.
Theoriginalmanualisproducedintheenglishlanguage.



Description

InkMachines
RPS-600Draft0.10/2014‐01‐274(26)
Description
TheRPS-600wirelesspowersupplyisapowersupplydesignedtoallowthefreedomoftattooing
withoutanycordstothetattoomachineorthefootswitch.Oncethemachinesareriggedwith
Powerpacks(max6machines)themainunitwillsensewhichmachineyoupickupandrecallthevolt
settings.NormallythereisnoneedtotouchthePowerpacksduringthesessiononcesetupand
encapsulated.


Systemoverview
a.Userinterface/Displaye.Footswitch
b.Userinterface/Controlpanel f.Power adapter(differentdep.oncountry)
c.Mainunit/chargerg.USBcable
d.Powerpack 
a
b
f
g
d
e
c

Description

InkMachines
RPS-600Draft0.10/2014‐01‐275(26)
Main unit / charger
TheMainunitisdesignedtostandonitsownonaflatsurface.CombinedwithalargeLCDdisplaythe
statusandsettingsofthesetupiseasilyoverviewedfromtheworkingposition.Communications
betweentheunitsarebyradioforoptimalreliabilityandperformance.TheRPS-600canhandleupto
6activePowerpacksandcharge4.
TheMainunit/chargerisalsoequippedwithregular¼"Phonoplugsonthebackandcanhandleother
tattoomachinesandfootswitchesbywireforfullcompatibility.ThereisalsoaUSBconnectionfor
futuresoftwareupgrades.
User interface – Control panel and Display
TheUserinterfacegivesyouthepossibilitytocontrolthevoltageandthesettings,andtoviewtimeleft
andstatusoftheactivePowerpack.TheUserinterfaceisequippedwithaDisplayandaControlpanel.
TheDisplaywillshowthestatusoftheActivePowerpackandtheControlpanelwillmakeitpossibleto
choosedifferentselectionsandchangesettings.
AllthetouchingtakesnormallyplaceontheControlpanelduringthesession,soforthehygienicbarrier
theUserinterfaceisdesignedtoaccepta100x150mmplasticbag,seeCleaningandhygienic.Thereis
noneedtotouchthePowerpacksduringsession.
Powerpack
ThebatterypacksorPowerpacksaremadewithleadingedgebatterytechnologyweighingonly65
gramseach.ThenormalRCAorclipcordfromthemachinetothefloorweighsabout50grams,sothe
actualweightdifferencefromanormalcordedsetupisabout15grams.
ThePowerpacksslidesontoanyDragonfly or Stingraymachineandaredesignedtoavoidinterfere
withthehandasslightaspossible.Thehighcapacitybatteriesallowsabout5hoursofeffectiverunning
undernormalcircumstances(thetimecanvarydependingonsetup).
Foot switch
Thesimplerounddesignmakesiteasytoactivatefromallanglestheelectronicsisdesignedwitha
magneticswitchwhichensuresoptimalservicelife.Standardchangeablebuttoncellbatteryeasyto
replacebyuser,seeServiceandmaintenance.TheFootswitchcommunicateswiththeMainunitby
radioforoptimalreliabilityandperformance.
Power adapter
Note! To avoid damage to product,
use only the Power adapter delivered with the product!
ThepurposeofthePoweradapteristodelivertherightpowertotheMainunit.ThePoweradapter
deliveredisselectedtofitwiththelocalrequirementsforelectricalpower.ThePoweradapteristested
togetherwiththeMainunitandshouldonlybeusedwiththisproduct.
USB cable
TheUSBcableshouldONLYbeusedforsoftwareupgradestotheMainunit. 

Approvals

InkMachines
RPS-600Draft0.10/2014‐01‐276(26)
Approvals
ThisproductisapprovedandtestedtotheUSrequirementsoftheFederalCommunications
Commission,Title47CodeofFederalRegulationsPart15‐RadioFrequencyDevices.
TheproductalsocomplieswiththeEuroperequirementsforCE‐markingtowardstheR&TTEDirective,
1999/5/EC.
SeeDeclarationofconformityintheendofthemanual.
Identification labels
Theproductislabelledaccordingtobelow;










Safety

InkMachines
RPS-600Draft0.10/2014‐01‐277(26)
Safety
Regulations
Alwaysfollowlocalregulationsconcerningthetattoooperation.Itistheoperationsresponsibilityto
followregulationsandtoprovideareliableenvironmentfortheircustomers.
Themanufacturerdoesnothaveresponsibilityforanykindofmaterialorpersonaldamageor
infectioncausedbytheoperation.Negligenceormisuseofthemachineorthecomponentsattachedto
themachineistheoperationsresponsibility.
Themanufacturerdoesnothaveresponsibilityforcontaminationorinfectionofhumansoranimals.
Product
Tokeepyourproductingoodshapehandleitwithcare!
Theproductshouldnotunderanycircumstancescomeindirectcontactwithfluids.Iffluidswillgetin
contactwiththeelectronicitcanruintheproduct.
Donotconnectanyotherpoweradapterthentheonedeliveredwiththemachine.
Keeptheproductawayfromwarmplaces.
Customer
InkMachinesonlyprovideproductsforprofessionaltattooartistsandtheproductmayonlybeusedby
professionalswithknowledgeaboutdiseasesandhowtomaintainacleanworkingenvironmentanda
sterileequipment.
Foragoodhygienicbarrieruse:
-steriletubes,grips,tipsandneedles.
-rubbergloves.
-plasticbagsandwrapsfortattooequipment;aroundthepowersupplyandthemachinewiththe
Powerpackorthepowercord.
Alwayskeepyourequipmentclean!SeechapterCleaningandhygienicforfurtherinstruction.


Safety

InkMachines
RPS-600Draft0.10/2014‐01‐278(26)
Electromagnetic compatibility
Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:
(1)thisdevicemaynotcauseharmfulinterference,and
(2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycauseundesired
operation.
Note!
ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuant
topart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmful
interferenceinaresidentialinstallation.Thisequipmentgenerates,usesandcanradiateradio
frequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions,maycauseharmful
interferencetoradiocommunications.However,thereisnoguaranteethatinterferencewillnotoccur
inaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevision
reception,whichcanbedeterminedbyturningtheequipmentoffandon,theuserisencouragedtotry
tocorrecttheinterferencebyoneormoreofthefollowingmeasures:
‐Reorientorrelocatethereceivingantenna.
‐Increasetheseparationbetweentheequipmentandreceiver.
‐ Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiveris
connected.
‐Consultthedealerforhelp.



Instruction

InkMachines
RPS-600Draft0.10/2014‐01‐279(26)
Instruction
Delivery
Whenyourpackagearrivepleasecheckthat:
-therearenotransportdamages
-everythingisdeliveredaccordingtoyourorder.
Unpacking
Note! Before unpacking make sure the area is cleaned!
Standardpartsdelivered:

a‐c.1powersupply;
Mainunit/charger,Display,
Controlpanel
d.2powerpacks
e.1footswitch
f.1poweradapterforlocal
connectionreq.
g.1USBcable





TheproductisdeliveredinabagwithtraysforallyourtattooequipmentfromInkMachines.

a.Poweradapterc. Tattoo machines e. Powersupply
b.Powerpacksd. Footswitch f. Cableunits
a
bcd
e
f
a
b
f
g
d
e
c

Instruction

InkMachines
RPS-600Draft0.10/2014‐01‐2710(26)
Getting started
TogetthePowerpackandthetattoomachineuprunningfollowthestepsbelow:


1Connectthepoweradaptertothemainunit (see
Connection)andthepowercordtoaregularwallpower
outlet.
Caution! Make sure you have the right power cord for your
country.
Note! The product is not equipped with a power on button.
Whenpowerupthedisplaywillpresent;
-theInkMachinelogotype
-theSoftwareversion
AfterthatthecharginglocationforthePowerpackswillbe
shownas4crossedoversymbolsontheDisplay.




2Place thePowerpacksontotheMainunit/charger sothe
chargingcanbegin.ThePowerpackswillstartloading,see
statusontheDisplay.OncethePowerpacksareputinthe
mainunitthePowerpackswillautomaticallypair*tothe
Mainunit.Thepairingwilltakeabout5sec.
Note! It will take a couple of minutes for the correct
charging to be displayed.
ThechargingcycletakesaboutonehourifthePowerpacks
areempty.





3Placethedeliveredfootswitch nearbyyouonthefloor,make
sureyoucanreachit.Themainunitwillrecognizethefoot
switchasitispaired*fromthefactory.


Instruction

InkMachines
RPS-600 Draft0.10/2014‐01‐2711(26)

4Whenchargingiscompleteyouarereadytostartusingthe
units.
Firstsetupthetattoomachinesyouintendtouselikeyou
wouldnormallydo,forfurtherinstructionsreadthe
Dragonfly or Stingraymanuals.
Note! Clean the Tattoo machines before attaching the
Powerpacks.


Makesurethecableisintherightplacebeforeattachingthe
Powerpacktothetattoomachine.


5ConnectthePowerpackstoyourDragonfly or Stingray
tattoomachinebyslidingitontothebackofthemachines.
ThePowerpackshouldgoallthewayandmatewiththeback
surfaceofthemachine.


OntheStingraythereshouldbeagapbetweenthepowerpack
andthemachine.


6ToactivatethePowerpackandthemachineyouareholdingyou
needtoshakeitorgiveitagentletilt.TheactivePowerpack**
willbehighlightedontheDisplay.


YoucanalsochoseactivePowerpackmanuallybyselecting
activePowerpackwiththearrowsontheControlpanel.
gap
Dragonfly Stingray

Instruction

InkMachines
RPS-600Draft0.10/2014‐01‐2712(26)

7Nowyoushouldbeabletostartthemachinewiththefoot
switchortheOKbuttonontheControlpanel.Informationwill
behighlightedonthedisplayfortheactivatedmachineanda
symbol[RUN]showingthattheunitisworking.


8Setthevoltageyouneedwiththeup(+)anddown(‐)arrowson
theUserinterfaceandmakesurethemachineisrunningthe
wayyouwantit.



ForadditionalsettingsseeSettings.

9Repeatthesteps4‐8withupto6wirelessmachineswith
Powerpacks.
AdditionalPowerpackscanbechargedwhileworking.Max4
Powerpackscanbeplacedinthechargeratthesametime.



10 Ifyouwanttousea7th machineofanotherbrandyoucan
connectitwithaRCAoraclipcordtothe¼"Phonooutleton
thebackoftheMainunit.Youwillfindthevoltsettingsforthe
wiredmachinetotherightonthedisplay,pressingthearrowto
therightasfaraspossible.
Thewiredmachinealwayshavetobeactivatedmanuallyonthe
Userinterface.


*readmoreaboutPairingunderUserinterface.
**readmoreaboutactivePowerpackunderUserinterface.
+
-

Connection

InkMachines
RPS-600Draft0.10/2014‐01‐2713(26)
Connection
Wires
ThewiringconnectionpointcanbefoundonthebacksideoftheMainunit.



Connectionpointfor;
a.thepoweradapterdeliveredwhittheunit. c.for wiredTattoomachine,rotaryandcoil.
b.forawiredfootswitch.d.USBcable ONLYforfuturesoftwareupgrade.

a
b
cd

User interface

InkMachines
RPS-600Draft0.10/2014‐01‐2714(26)
User interface


a.VoltageforactivePowerpack e.Powerpackschargingonthecharger
(max4).(diff.whencablecordrunning)
b.RunningstatusforactivePowerpackf.Totalmanualtimeactivated.
c.Currentpowerconsumptionwhenrunning
onbattery.(Aforcord)
Keepitlowtosavepower!
g.AutomaticworkingtimeforactivePowerpack
d.SelectionsfortheTotalmanualtime.
START,STOP,RESET
h.PairedPowerpacksvoltageandpowerleft on
eachPowerpack.
(ev.wiredtattoomachineconnectedCABL.)
Controlpanel
i.Settings,seeSettingsfurtherbelow. l.NavigateleftandrightbetweenTimeroptions
andActivePowerpack
j.Returntomainmenum.StartandStopTattoomachine.
Confirmselections
k.ChangeVoltagetotheactiveunit,arrow
up(+)andarrowdown(‐)
a
b
c
e
f
g
j
m
l
d
h
i
k
k
l

User interface

InkMachines
RPS-600Draft0.10/2014‐01‐2715(26)
Settings

EachPowerpackhasitsownindividualsettings.ChooseSettingsinthemainmenuandthebelow
settingswillbedisplayed.TomovebetweenSettingsusethebuttonswitharrowsontheControlpanel.
TheactivePowerpackisconfiguredandthesettingsaresavedforthatuniquePowerpack.
FOOTSWITCHMODE
TOGGLE Themachineispoweredwhenpressingthepedalonce.The
machineisunpoweredwhenpressingitagain.
HOLD Themachineispoweredwhenthefootiscontinuouslypressing
thefootpedal
BACKLIGHTDisplay settings.
Presstheleftandrightarrowkeyswhenselecting
CONTRASTDisplay settings.
Presstheleftandrightarrowkeyswhenselecting
BOOSTMODE*
OFF,ON
Willtrytoobtainconstantspeedwhentheloadisincreasing.

KICKSTART*
OFF
LOW,MEDIUM,HIGH
Givesextrapowertothetattoomachineatstartup.

PAIRFOOTSWITCH*Pairthefoot switchtotheMainunit.
UNPAIRFOOTSWITCH*Unpairthefoot switchfromtheMainunit.
UNPAIRPOWERPACKS*UnpairPowerpacksfromtheMainunit
SLEEPMODE*ManuallyactivatingofSleepmode.
*Seefurtherbelow


User interface

InkMachines
RPS-600Draft0.10/2014‐01‐2716(26)
Pairing
ThepairingfunctionisessentialsotheMainunitcanprovidethecorrectsignalstotheActivePowerpack
andthecorrectFootswitch.
Powerpack
ThePowerpackswillbepairedtotheMainunitwhentheyareloadedtothecharger.EachMainunit
canhave6Powerpackpaired.Thenumberofpairedpowerpackswillbeshownonthelowerpartofthe
display.
ItispossibletohaveseveralMainunitsintheroom,thenyouwillbeabletoborrowPowerpacksfrom
otherMainunits.
YouneedtounpairthepowerpacktobeabletopairitwithanotherMainunit.TounpairthePowerpacks
choseUNPAIR POWERPACKSfromtheSettingsmenu.WhenunpairingthePowerpackallpaired
PowerpackstothatMainunitwillbeunpaired.AttachethePowerpacktotheMainunit/chargerto
pairitagain.
Footswitch
ThefootswitchdeliveredwiththepackagewillbepairedwiththeMainunitbeforedeliveryto
customer.TounpairthefootswitchselectUNPAIR FOOTSWITCHfromtheSettingsmenu.To
connectthefootswitchagainchoosePAIR FOOTSWITCHfromtheSettingsmenu.
Active Powerpack
TocontrolandviewcorrectstatusofthePowerpackyouwanttoworkwhit,youneedtochooseActive
Powerpack.
ChooseactivePowerpack;
-tiltorshakethePowerpack,thiswillsendasignaltothepairedMainunittochangeactive
Powerpack.
-usethearrowkeysontheUserinterfaceControlpaneltomanuallyselectwhich
Powerpackthatshouldbeactive.
TheActivePowerpackwillbehighlightedonthedisplay.

Sleep mode
TheSleepmodeisautomaticactivatediftheunitisnottouchedforawhile,thiswillputthemachinein
Standbymode.Sleepmodewilldimthedisplayandwilluselesspower.MeanwhilethePowerpacks
loadedonthechargerwillgooncharging.DonotdisconnecttheMainunit.
TheSleepmodecanbemanuallyactivatedfromtheSettingsmenubychoosing;SLEEP MODE.
TodeactivateSleepmodejusttiltthetattoomachine,pushabuttonortheFootswitch.
Kick Start
TheKickstartgivesextrapowertotheTattooMachineatstartup.Thiscouldbeusefulifthemachine
isequippedwithextrafeaturesandthestandardvoltageisnotenoughforthestartup.Thereare4
levels;LOW, MEDIUM, HIGH andOFF.
Note! Only use this feature if necessary, it will increase wear!

User interface

InkMachines
RPS-600Draft0.10/2014‐01‐2717(26)
Boost mode
TheBoostmodewillincreaseyourmachinescapabilityconsiderable.Itwillenablethemachinetokeep
thesamespeedwhentheworkloadisincreasing.Dependingonyoursetupthisfeaturecanbereally
useful.
Note! Only use this feature if necessary, it will increase wear!
Speed(CPS)
ThespeedofthemachineisdisplayedasCPS,thecyclespersecondinHz.
Duty cycle
ThedutycycleisdisplayedasDUTYin%,itiscalculatedasthecontacttime.


Technical specification

InkMachines
RPS-600Draft0.10/2014‐01‐2718(26)
Technical specification
Main unit, RPS-600 ©

Voltoutput4‐ 18 voltDC
Powerinput24V2.7A
Frequency2.4GHz
MachinecompatibilityDragonfly and Stingraywirelessandothermachinesbycable
DisplayLCD60x33mm(2.7”)
Chargercapacity 4Powerpackssimultaneouscharging
Connections:¼"Phonoforvariouswiredtattoomachines4‐18v
¼"Phonoforwiredfootswitch
USBforsoftwareupgrades
5.5mmpowerconnection
Operatingtemperature10‐35

CIndooruseonly.
Weight470grams
DimensionsLxW xH190x110x170mm
Powerpack ©

Voltoutput5‐ 14voltDC
Frequency2.4GHz
MachineCompatibilityDragonfly and Stingray
Batterycapacity Upto5hours. Dependingonsetup
SensorsAccelerometerforactivation
Operatingtemperature10‐35

CIndooruseonly.
Weight65grams
DimensionsLxW xH62x40x50mm


Technical specification

InkMachines
RPS-600Draft0.10/2014‐01‐2719(26)
Foot switch WFS ©

BatteryCR2450 3v 620mAh
Frequency2.4GHz
MachineCompatibilityDragonfly and Stingray
BatteryCR2450
Operatingtemperature10‐35 

CIndooruseonly.
Weight240grams
DimensionsLxW xH100x100x25mm

Power adapter, ATS065-A240

Powerinput100‐240V50‐60Hz
Poweroutput24V2.7A
Operatingtemperature10‐35 

CIndooruseonly.
Weight300grams
DimensionsLxWxH115x52x38mm



