INNLED TA51W2 User manual

#madeinfrance
User Manual // DMX transmitter - ref. TA51W2 V01.a

INNLED - 360, Avenue des Compagnons, 34170 Castelnau-le-Lez - FRANCE
Tel : [phone] // Fax : [phone] // mail : [email protected]
2 / 13
Thankyou for purchasing an INNLED product.
« Commited to supporting the french industry, this product
was developed and assembled within our Montpellier
workshop. We attach particular importance to our clients’
feedback so feel free to contact us in case of any comment
or suggestion.
So we can continue ’’ lighting up your ideas ’’ in the most
efficient way... »
The Innled team
Terms of use and Warranty terms, read page 13

3 / 13
INNLED - 360, Avenue des Compagnons, 34170 Castelnau-le-Lez - FRANCE
Tel : [phone] // Fax : [phone] // mail : [email protected]
Contents
INNLED products are designed to light up your greatest moments, however organised
or totally improvised they are ! Whether you are indoors or outdoors, whether you have
access to power or not, we will continue lighting up your ideas at all times.
DIMENSIONS AND INSTALLATION
USING YOUR TRANSMITTER
• Home screen
• Parameters
• Wifi menu
ART-NET CHARACTERISTICS
FREQUENCIES TABLE
OPTIONS AND ACCESSORIES
• Wireless driving
LAPPS : INNLED APP
• BASIC Mode
• EXPERT Mode
• Wifi Menu
TECHNICAL SPECIFICATIONS
• TA51W2 transmitter
• LAPPS
WARRANTY TERMS
p 4
p 5
2.
1.
p 7
3.
p 8
4.
p 8
5.
p 9
p 11
p 13
6.
7.
8.

INNLED - 360, Avenue des Compagnons, 34170 Castelnau-le-Lez - FRANCE
Tel : [phone] // Fax : [phone] // mail : [email protected]
4 / 13
109 mm
84 mm
The TA51W2 transmitter is equipped with
three DMX inputs :
- one OPEN DMX on the USB input
- one on the XLR 3 or 5 points DMX IN
connector
- an ARTNET input on 2.0.0.1., universe 0
on the access point.
The two inputs cannot coexist at the
simultaneously.
FRONT
BACK
DIMENSIONS AND INSTALLATION
1.
Navigation wheel with
validation button
Wifi antenna
LCD colour screen
Transmission antenna
45 mm

INNLED - 360, Avenue des Compagnons, 34170 Castelnau-le-Lez - FRANCE
Tel : [phone] // Fax : [phone] // mail : [email protected]
5 / 13
Parameters
Provides access to the transmitter’s settings.
1.
2.
3.
4.
5.
Assignment
Allows you to assign your receivers on the DMX
universe of your choice.
Wifi
Provides access to the settings of the access
point (except V Lite)
Tools
Tools page
HF Scan
Starts an HF Scan. This button is only available
in the Auto Mode.
Universe
Settings of the DMX HF universe sent by the transmitter.
Initially the receivers follow Universe 1 ; if you change this setting,
make sure you assign your receivers again with the same universe.
REMINDER : the receiver’s addressing is done as the receiver is
switched on.
Frequency
For the settings of the frequency channel, we advise you to stay on
Auto mode (the least crowded channel).
1 / PARAMETERS
Home screen
2.USING YOUR TRANSMITTER
Each HF receiver is « assigned » to a DMX universe ; UNIVERSE 1 is the default setting.
When switched on, the receiver ( KUB, Hariz, ... ) continuously scans the frequencies, until
the assigned universe is detected.
When delivered, the products are set to function on UNIVERSE 1 ( 32 in all ) and the
transmitter set to transmit on frequency 1 ( 22 in all ).
If you wish to change these settings :

INNLED - 360, Avenue des Compagnons, 34170 Castelnau-le-Lez - FRANCE
Tel : [phone] // Fax : [phone] // mail : [email protected]
6 / 13
Protocol
Since 2015, we’ve been using the version B of the protocol. If you
have receivers < 2015, please refer to version A.
1 / PARAMETERS
(continuation)
Universe
Allows you to chose the number of the DMX universe which is
assigned to the receivers, from 1 to 24.
Address
Allows you to send the DMX address to the receivers (Hariz, KUB,
Pak, etc). This setting can be adjusted from 001 to 511.
DMX1 Value
Allows you to know the values sent to the DMX input.
HF analysers
Allows you to see how busy the 2,4Ghz frequencies are.
Maj OnAir
Allows you to update the DMX receivers to « wireless ».
2 / ASSIGNMENT
3 / TOOLS
Once the address number is provided, switch the concerned receiver(s) on. Repeat the
operation for each DMX address required for your show.
WARNING ! The assignment is taken into account as you switch on the receiver. If the
receivers are already switched on, the assignment is not taken into account.
COMMENTS
- During the assignment, the DMX is not active.
- The modification of the assignment setting does not modify the DMX transmission protocol
(Settings menu).

INNLED - 360, Avenue des Compagnons, 34170 Castelnau-le-Lez - FRANCE
Tel : [phone] // Fax : [phone] // mail : [email protected]
7 / 13
Levels of the HF channels
From 1 to 21 (left to right).
Colour code
Green : no signal detected
Orange : signal detected but little traffic or power.
Red : Channel to avoid as strong signal or with dense traffic.
ElectArt
Choice of the wifi network number.
Wifi password
Predefined password : 01234567.
This setting can be modified.
Wifi channel
Choice of the wifi channel.
4 / HF analyser
5 / Wifi Menu
3.ART-NET CHARACTERISTICS ( except version Lite )
Node address : 2.0.0.1
Broadcast on address : 2.255.255.255
Universe : 0
Automatic IP address via DHCP
Maximum Node frequency : 33 HZ (works ideally at 25Hz)

INNLED - 360, Avenue des Compagnons, 34170 Castelnau-le-Lez - FRANCE
Tel : [phone] // Fax : [phone] // mail : [email protected]
8 / 13

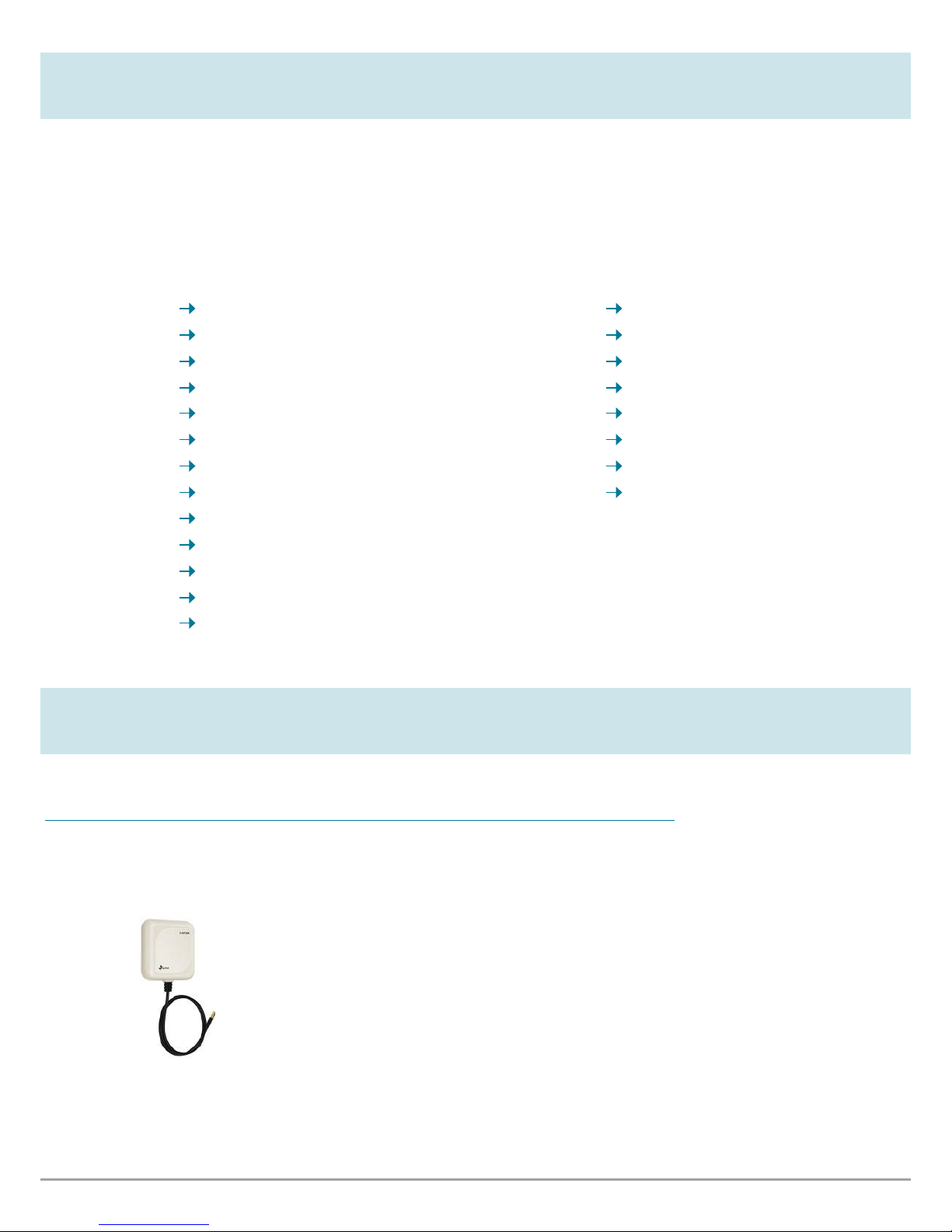

4.FREQUENCIES TABLES
According to the :
« Décision n° 03-908 de l’Autorité de régulation des télécommunications » (France)
Authorized inside / outside :
12404 Mhz
2 2408 Mhz
32412 Mhz
4 2416 Mhz
5 2420 Mhz
6 2424 Mhz
72428 Mhz
8 2432 Mhz
9 2436 Mhz
10 2440 Mhz
11 2444 Mhz
12 2448 Mhz
13 2452 Mhz
Authorized only inside :
14 2456 Mhz
15 2460 Mhz
16 2464 Mhz
17 2468 Mhz
18 2472 Mhz
19 2476 Mhz
20 2480 Mhz
21 2483,5 Mhz
5.OPTIONS AND ACCESSORIES
1. 9 dBi DIRECTIONAL ANTENNA
• For 2,4 GHz networks
• Angle : 90° horizontal – 60° vertical
• Distance : 250m
• 9dBi directional operation provides
extended point to point connection or
indoor and outdoor area coverage
• Features : 100cm(39.4 in) CFD-200
low loss cable for flexible deployment
• RP-SMA Male connector
• Provides easy installation mounting
kits
Wireless driving

INNLED - 360, Avenue des Compagnons, 34170 Castelnau-le-Lez - FRANCE
Tel : [phone] // Fax : [phone] // mail : [email protected]
9 / 13
6.LAPPS : INNLED’S APP
PIXEL
Random flashes
Choice of colour : YES
Intensity setting : YES
Choice of colour : NO
Intensity setting : YES
Choice of colour : NO
Intensity setting : YES
Connected to the TA51W2, LAPPS allows you to
drive one or several lamps form a distance. Navigate
through a panel of colours, set your intensity and
chose your effects.
LAPPS WILL ONLY WORK WITH THE TA51W2 TRANSMITTER.
1. BASIC Mode
Basic Mode : available effects
This page will give you access to an
overall intensity setting, a range of 9 colours and 3
pre-programmed effects : Pixel, Chase and Rainbow.
CHASE
Cascade of colour with frank transitions
RAINBOW
Waves of colour on 5 minute cycles

INNLED - 360, Avenue des Compagnons, 34170 Castelnau-le-Lez - FRANCE
Tel : [phone] // Fax : [phone] // mail : [email protected]
10 / 13
CHASE
Cascade of colours with frank transitions
Choice of colour : NO
Intensity setting : YES
Choice of colour : NO
Intensity setting : YES
Choice of colour : YES
Intensity setting : NO
Choice of colour : YES
Intensity setting : YES

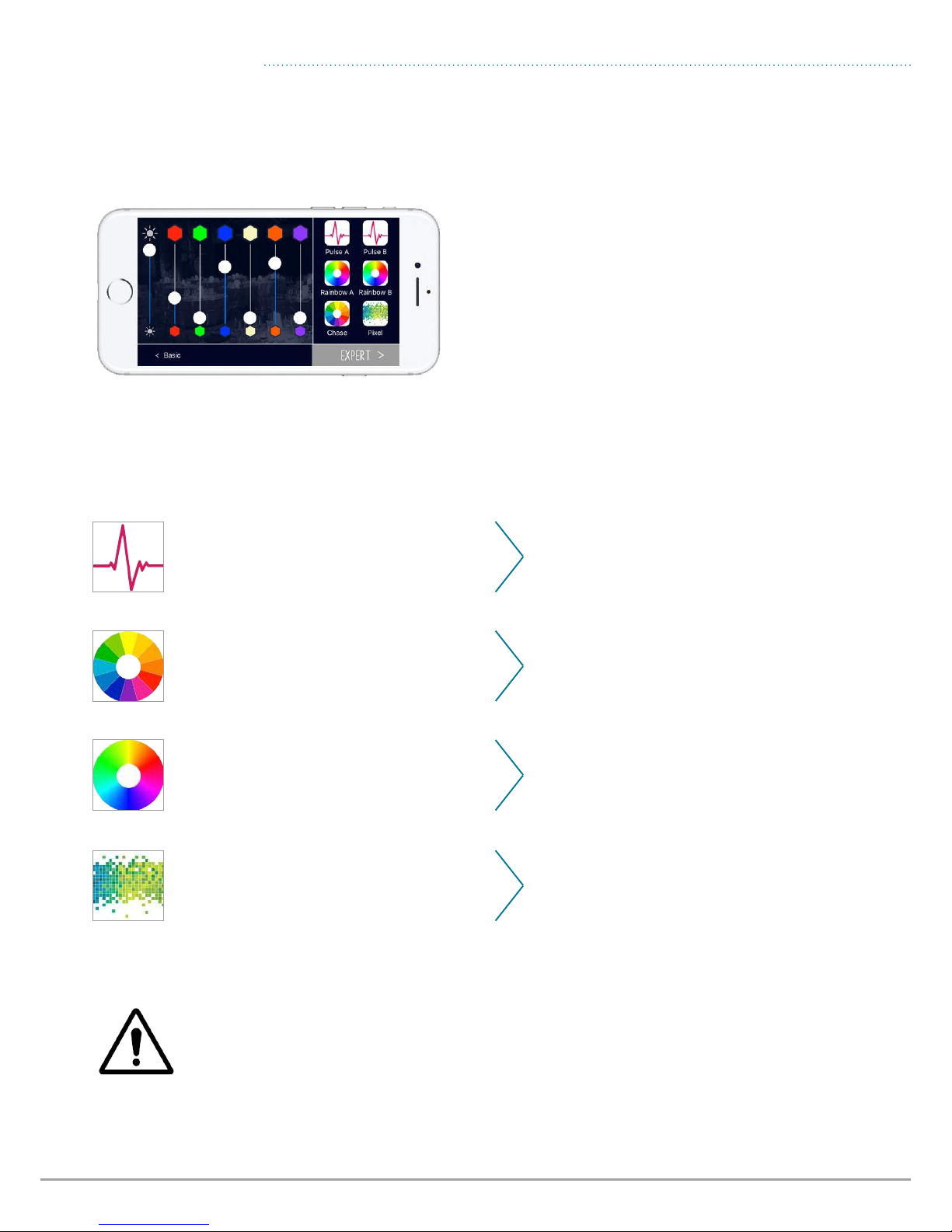

2. EXPERT Mode
Settings Page
The Settings page gives access to an interactive
console allowing you to vary the colours of the
selected lamps, in order to create your own
composition.
This page also includes a general intensity setting and
6 pre-programmed effects : 2 Pulse, 2 Rainbow, 1
Chase and 1 Pixel.
PULSE
Synchronized breathing with variable
intensity ( increasing and decreasing )
Expert Mode : available effects
In the EXPERT mode, the «Pulse» and «Rainbow» effects are available
in synchronous (lamps work together) or asynchronous.
Within this mode, two pages are available.
PIXEL
Random flashes
RAINBOW
Waves of colours on 5 minute cycles

INNLED - 360, Avenue des Compagnons, 34170 Castelnau-le-Lez - FRANCE
Tel : [phone] // Fax : [phone] // mail : [email protected]
11 / 13
7.TECHNICAL SPECIFICITIES
POWER SUPPLY
• Supplied
• USB port
• DC 5V USB
HF POWER
• (2,4Ghz) : 20db (100mW)
FREQUENCY
• 21
UNIVERSES AND CHANNELS
• 31
• 15872 channels
ANTENNA
• External articulated 1db
• SMA connector
ENTRIES
• USB “OPEN DMX” entry
• XLR DMX 5 points entry
• Art Net in on access point
OUTPUT
• XLR 5 points reboosted output
SECURITY
• Configurable SSID and password
• WPA2 Security on the Wifi
PROTOCOL
• W2.4EC-DMX-A and B
IP
• IP20
NORMS
• CE
DIMENSIONS
• L 100 x l 85 x H 48mm
WEIGHT
• +/- 300g
TEMPERATURE RANGE
• 0° to +40°C
WARRANTY
• 2 years

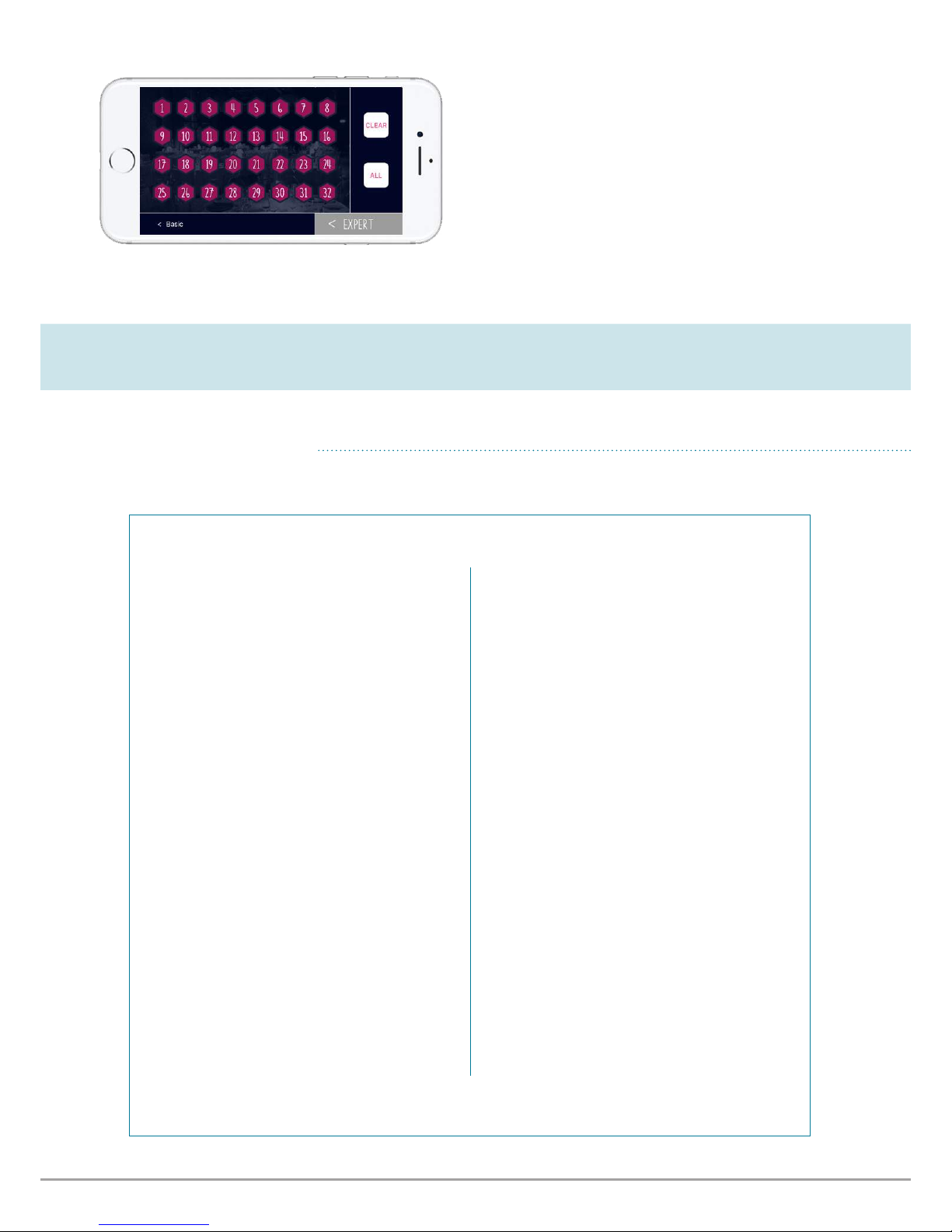

To reach the Selection Page, click on the
“ EXPERT > ” tab on the bottom right hand side
corner. This page allows you to chose the lamp(s) to
control.
All the lamps are automatically selected when you
open the page.
Pink = selected
Grey = not selected
Selection Page
1. TA51W2 transmitter

INNLED - 360, Avenue des Compagnons, 34170 Castelnau-le-Lez - FRANCE
Tel : [phone] // Fax : [phone] // mail : [email protected]
12 / 13
AVAILABILITY
• Androïd on Google Play
• Apple store
ACCESS
• Wifi, 2,4GHz band
ADRESSING
• Fixed addressing of 32 lamps on 6
DMX channels : dimmer, strobe, red,
green, blue, warm white
RANGE
• HARIZ
• PAK
• KUB
MEMORY OCCUPATION
• 683 Ko
BASIC MODE
• General intensity
• Warm white + 8 colours
• 3 effects (rainbow, chase, pixel)
EXPERT MODE
• Settings Page with :
- 6 effects (2 Pulses, 2 Rainbows,
Pixel, Chase)
- 5 cursors (intensity, R, G, B, Warm
White)
- 10 time-limited buttons : up / down
in 3s
• Selection Page from 1 to 32 lamps
2. LAPPS

INNLED - 360, Avenue des Compagnons, 34170 Castelnau-le-Lez - FRANCE
Tel : [phone] // Fax : [phone] // mail : [email protected]
13 / 13
#madeinfrance
Please refer to INNLED’s general warranty terms
Furthermore, INNLED products are designed for professional use only, they are not to be used
in a domestic environment.
Committed to an approach based on quality, INNLED reserves the right to adapt or modify
the technical characteristics of its products at any given moment and without any given notice,
the adaptations or modifications then apply to all the orders placed after the date upon which
those adaptations or modifications were made.
Warranty Terms
