ADJ VIZI CMY300 User manual

User Instructions
12/17
VIZI CMY300

©2017 ADJ Products, LLC all rights reserved. Information, specications, diagrams, images, and
instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying
product names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection
claimed includes all forms and matters of copyrightable materials and information now allowed by
statutory or judicial law or hereinafter granted. Product names used in this document may be
trademarks or registered trademarks of their respective companies and are hereby acknowledged.
All non-ADJ Products, LLC brands and product names are trademarks or registered trademarks of
their respective companies.
ADJ Products, LLC and all aliated companies hereby disclaim any and all liabilities for property,
equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic
loss associated with the use or reliance of any information contained within this document, and/or as
a result of the improper, unsafe, unsucient and negligent assembly, installation, rigging, and opera-
tion of this product.
Europe Energy Saving Notice
Energy Saving Matters (EuP 2009/125/EC)
Saving electric energy is a key to help protecting the enviroment. Please turn o all electrical products when
they are not in use. To avoid power consumption in idle mode, disconnect all electrical equipment from power
when not in use. Thank you!
Date Document
Version
Software
Version
DMX
Channel
Mode
Notes
>
DOCUMENT VERSION
Please check www.adj.com for the latest revision/update of this guide.
12/06/17 1 1.00 24/26/38 Initial Release

ADJ Products, LLC - www.adj.com - Vizi CMY300 User Manual Page 2
Vizi CMY300 Table of Contents
Introduction
Features
Warranty Registration
Installation
Safety Precautions
DMX Set Up
DMX Channel Modes
System Menu
Operating Instructions
Master-Slave Conguration
Multiple Unit Power Linking
Dimmer Curve Chart
Dimensional Drawings
Fuse Replacement
Warranty
Technical Specications
3
4
4
4
5
7
12
28
29
34
35
35
36
37
38
39

ADJ Products, LLC - www.adj.com - Vizi CMY300 User Manual Page 3
Vizi CMY300 Introduction
Unpacking: Thank you for purchasing the Vizi CMY300 by ADJ Products, LLC. Every Vizi CMY300
has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the
shipping carton for damage that may have occurred during shipping. If the carton appears to be dam-
aged, carefully inspect your xture for any damage and be sure all accessories necessary to operate
the unit has arrived intact. In the case damage has been found or parts are missing, please contact our
toll free customer support number for further instructions. Do not return this unit to your dealer without
rst contacting customer support.
Introduction: The ADJ Vizi CMY300 is a DMX intelligent, high powered, CMY LED moving head
fixture. This xture can be used in a stand alone set up or connected in a Master/Slave set up. The
Vizi CMY300 has five operating modes: Sound Active mode, Auto Run mode, RGBWA+UV Dimmer
mode, Static Color mode, and DMX controlled. To optimize the performance of this product, please
read these operating instructions carefully to familiarize yourself with the basic operations of this unit.
These instructions contain important safety information regarding the use and maintenance of this
unit. Please keep this manual with the unit, for future reference.
Customer Support: ADJ provides a customer support line, to provide set up help and to answer any
question should you encounter problems during your set up or initial operation. You may also visit us
on the web at www.adj.com for any comments or suggestions. Service Hours are Monday through
Friday 8:00 a.m. to 4:30 p.m. Pacic Standard Time.
Voice: [phone]
Fax: [phone]
E-mail: [e-mail]
Warning! To prevent or reduce the risk of electrical shock or re, do not expose this unit to rain or
moisture.
Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs yourself,
doing so will void your manufactures warranty. In the unlikely event your unit may require service
please contact ADJ Products, LLC.
PLEASE recycle the shipping carton when ever possible.

Vizi CMY300 Features
• Multi-Colors
• Five Operating Modes
• Electronic Dimming 0-100%
• Built in Microphone
• DMX-512 protocol
• 3-Pin DMX Connection
• Three DMX Modes: 24 Channel Mode, 26 Channel Mode, and 38 Channel Mode.
• Multiple Unit Power Linking (See page 35)
Vizi CMY300 Warranty Registration
Vizi CMY300 Installation
The Vizi CMY300 carries a 2 year limited warranty. Please fill out the enclosed warranty card to
validate your purchase. All returned service items whether under warranty or not, must be freight pre-
paid and accompany a return authorization (R.A.) number. The R.A. number must be clearly written on
the outside of the return package. A brief description of the problem as well as the R.A. number must
also be written down on a piece of paper included in the shipping carton. If the unit is under warranty,
you must provide a copy of your proof of purchase invoice. You may obtain a R.A. number by con-
tacting our customer support team on our customer support number. All packages returned to the
service department not displaying a R.A. number on the outside of the package will be returned to the
shipper.
The unit should be mounted using a mounting clamp (not provided), axing it to the mounting
bracket that is provided with the unit. Always ensure that the unit is rmly xed to avoid vibration
and slipping while operating. Always ensure that the structure to which you are attaching the unit is
secure and is able to support a weight of 10 times the unit’s weight. Also, always use a safety cable
that can hold 12 times the weight of the unit when installing the xture.
The equipment must be installed by a professional, and it must be installed in a place where it is out
of the reach of people’s grasp.
ADJ Products, LLC - www.adj.com - Vizi CMY300 User Manual Page 4

ADJ Products, LLC - www.adj.com - Vizi CMY300 User Manual Page 5
Vizi CMY300 Safety Precautions
• To reduce the risk of electrical shock or re, do not expose this unit rain or moisture
• Do not spill water or other liquids into or on to your unit.
• Do not attempt to operate this unit if the power cord has been frayed or broken. Do not attempt to
remove or break o the ground prong from the electrical cord. This prong is used to reduce the risk
of electrical shock and re in case of an internal short.
• Disconnect from main power before making any type of connection.
• Do not remove the cover under any conditions. There are no user serviceable parts inside.
• Never operate this unit when it’s cover is removed.
• Never plug this unit in to a dimmer pack
• Always be sure to mount this unit in an area that will allow proper ventilation. Allow about 6”
(15cm) between this device and a wall.
• Do not attempt to operate this unit, if it becomes damaged.
• This unit is intended for indoor use only, use of this product outdoors voids all warranties.
• During long periods of non-use, disconnect the unit’s main power.
• Always mount this unit in safe and stable matter.
• Power-supply cords should be routed so that they are not likely to be walked on or pinched by
items placed upon or against them, paying particular attention to the point they exit from the unit.
• Cleaning -The fixture should be cleaned only as recommended by the manufacturer. See page 26
for cleaning details.
• Heat -The appliance should be situated away from heat sources such as radiators, heat registers,
stoves, or other appliances (including amplifiers) that produce heat.
• The fixture should be serviced by qualified service personnel when:
A. The power-supply cord or the plug has been damaged.
B. Objects have fallen, or liquid has been spilled into the fixture.
C. The fixture has been exposed to rain or water.
D. The fixture does not appear to operate normally or exhibits a marked change in performance.
E. The fixture has fallen and/or subjected to extreme handling.

Vizi CMY300 Safety Precautions
RISK GROUP 3 - RISK OF EXPOSURE TO ULTRAVIOLET (UV) RADIATION!
FIXTURE EMITS HIGH INTENSITY ULTRAVIOLET (UV) LIGHT
AT A WAVELENGTH OF 399NM - 435NM.
WEAR PROPER EYE AND SKIN PROTECTION.
AVOID PROLONGED PERIODS OF EXPOSURE.
AVOID WEARING WHITE COLOR CLOTHING AND/OR
USING (UV) PAINTS ON SKIN.
AVOID DIRECT EYE AND/OR SKIN EXPOSURE AT DISTANCES SHORTER THAN 11 feet (3.3m).
DO NOT OPERATE FIXTURE WITH DAMAGED OR MISSING EXTERNAL COVER PROTECTIVE
LENS.
DO NOT LOOK DIRECTLY INTO THE (UV) LIGHT AND/OR VIEW (UV) LIGHT DIRECTLY WITH
OPTICAL INSTRUMENTS THAT MAY CONCENTRATE THE LIGHT/RADIATION OUTPUT.
INDIVIDUALS SUFFERING FROM A RANGE OF EYE CONDITIONS, SUNLIGHT EXPOSURE
DISORDERS, OR INDIVIDUALS USING PHOTOSENSITIVE MEDICATION, MAY RECEIVE
DISCOMFORT IF EXPOSED TO THE ULTRAVIOLET (UV) LIGHT EMITTED FROM THIS FIXTURE.
ADJ Products, LLC - www.adj.com - Vizi CMY300 User Manual Page 6

ADJ Products, LLC - www.adj.com - Vizi CMY300 User Manual Page 7
Vizi CMY300 Mounting

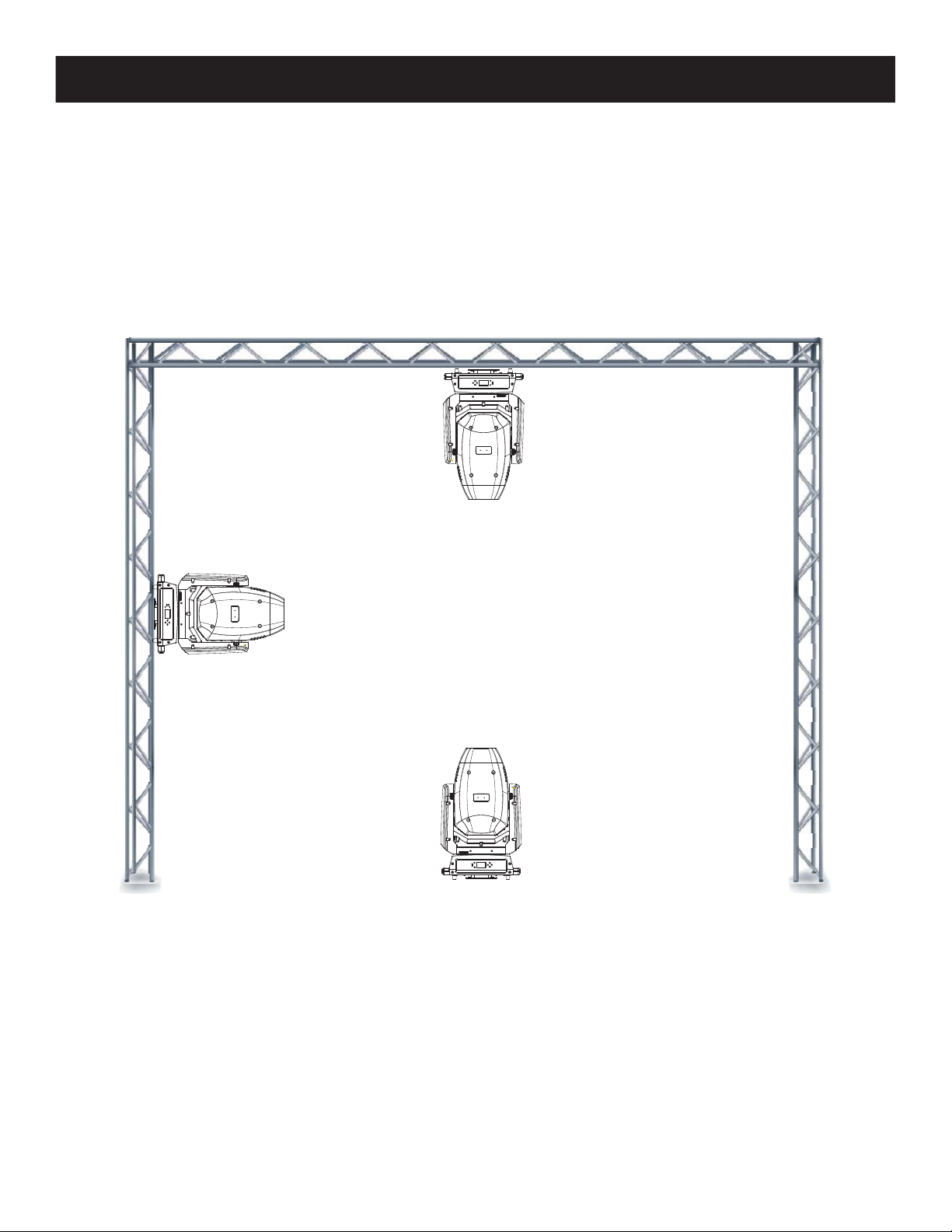

The Vizi CMY300 is fully operational in three dierent mounting positions, hanging upside-down from
a ceiling, sideways on trussing, or set on a at level surface. Be sure this xture is kept at least 12m
(40ft) away from any ammable materials (decoration etc.). Always use and install the supplied safety
cable as a safety measure to prevent accidental damage and/or injury in the event the clamp fails
(see next page). Never use the carrying handles for secondary attachment.
When installing the unit, the trussing or area of installation must be able to hold 10 times the weight
without any deformation. When installing the unit must be secured with a secondary safety attach-
ment, e.g. and appropriate safety cable. Never stand directly below the unit when mounting, remov-
ing, or servicing the unit.
Overhead mounting requires extensive experience, including calculating working load limits, installa-
tion material being used, and perodic safety inspection of all installation material and unit. If you lack
these qualications, do not attempt the installation yourself.
These installaiton should be checked by a skilled person once a year.

ADJ Products, LLC - www.adj.com - Vizi CMY300 User Manual Page 8
Vizi CMY300 Mounting
Screw one clamp each via a M12 screw and nut into the Omega holders. Insert the quick-lock fas-
teners of the Omega holder’s into the respective holes on the bottom of the Vizi CMY300. Tighten
the quick-lock fasteners fully clockwise. Install the second Omega holder. Pull the safety-cable
through the openings located on the base plate and over the trussing system or a safe xation spot.
Insert the end in the carabine and tighten the safety screw.
NOTICE: The suitable enviromental temperature for this lighting xture is between -25˚ C to 45˚C.
Do not place this lighting xture in an enviroment where the temperatures are under or above the
temperatures stated above. This will allow the xture to run at its best and help prolong the xture
life.
1.BolteachclamptotheOmegaholderwithscrewandlocknutthroughtheholeintheholder.
2.Fastentheomegaholdersonthebottomofthebasebyinsertingquick‐lockfastenersintotheholes
ofthebaseandtightenfullyclockwise. 
3.Hangthexturetothesupport using the clamps andtighten thescrews.Fasten a safetycablethrough
thebottomofthebaseandoverthesupport.

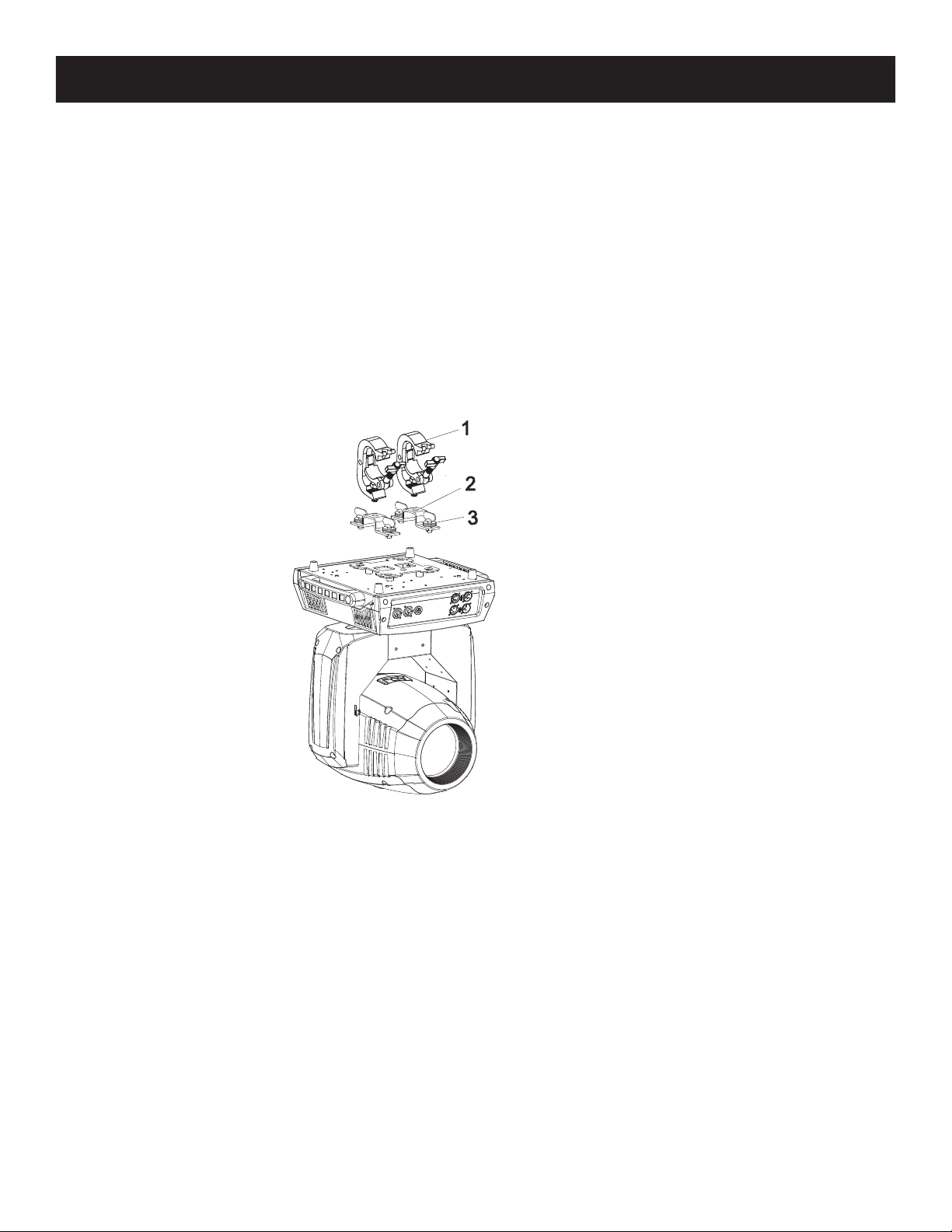

1.Clamp
2.Omega-holders
3.Quick-lock fastener

ADJ Products, LLC - www.adj.com - Vizi CMY300 User Manual Page 9
Vizi CMY300 DMX Set Up
Power Supply: The ADJ Vizi CMY300 contains a automatic voltage switch, which will auto sense the
voltage when it is plugged into the power source. With this switch there is no need to worry about the
correct power voltage, this unit can be plugged in anywhere.
DMX-512: DMX is short for Digital Multiplex. This is a universal protocol used as a form of commu-
nication between intelligent fixtures and controllers. A DMX controller sends DMX data instructions
from the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture
via the DATA “IN” and DATA “OUT” XLR terminals located on all DMX fixtures (most controllers only
have a DATA “OUT” terminal).
DMX Linking: DMX is a language allowing all makes and models of dierent manufactures to be
linked together and operate from a single controller, as long as all xtures and the controller are DMX
compliant. To ensure proper DMX data transmission, when using several DMX fixtures try to use
the shortest cable path possible. The order in which fixtures are connected in a DMX line does not
influence the DMX addressing. For example; a fixture assigned a DMX address of 1 may be placed
anywhere in a DMX line, at the beginning, at the end, or anywhere in the middle. When a fixture is
assigned a DMX address of 1, the DMX controller knows to send DATA assigned to address 1 to that
unit, no matter where it is located in the DMX chain.
Data Cable (DMX Cable) Requirements (For DMX Operation): The Vizi CMY300
can be controlled via DMX-512 protocol. The Vizi CMY300 has 3 DMX channel
modes. Your unit and your DMX controller require a standard 3-pin XLR connector
for data input and data output (Figure 1). We recommend Accu-Cable DMX cables.
If you are making your own cables, be sure to use standard 110-120 Ohm shielded
cable (This cable may be purchased at almost all pro lighting stores). Your cables
should be made with a male and female XLR connector on either end of the cable.
Also remember that DMX cable must be daisy chained and cannot be split.

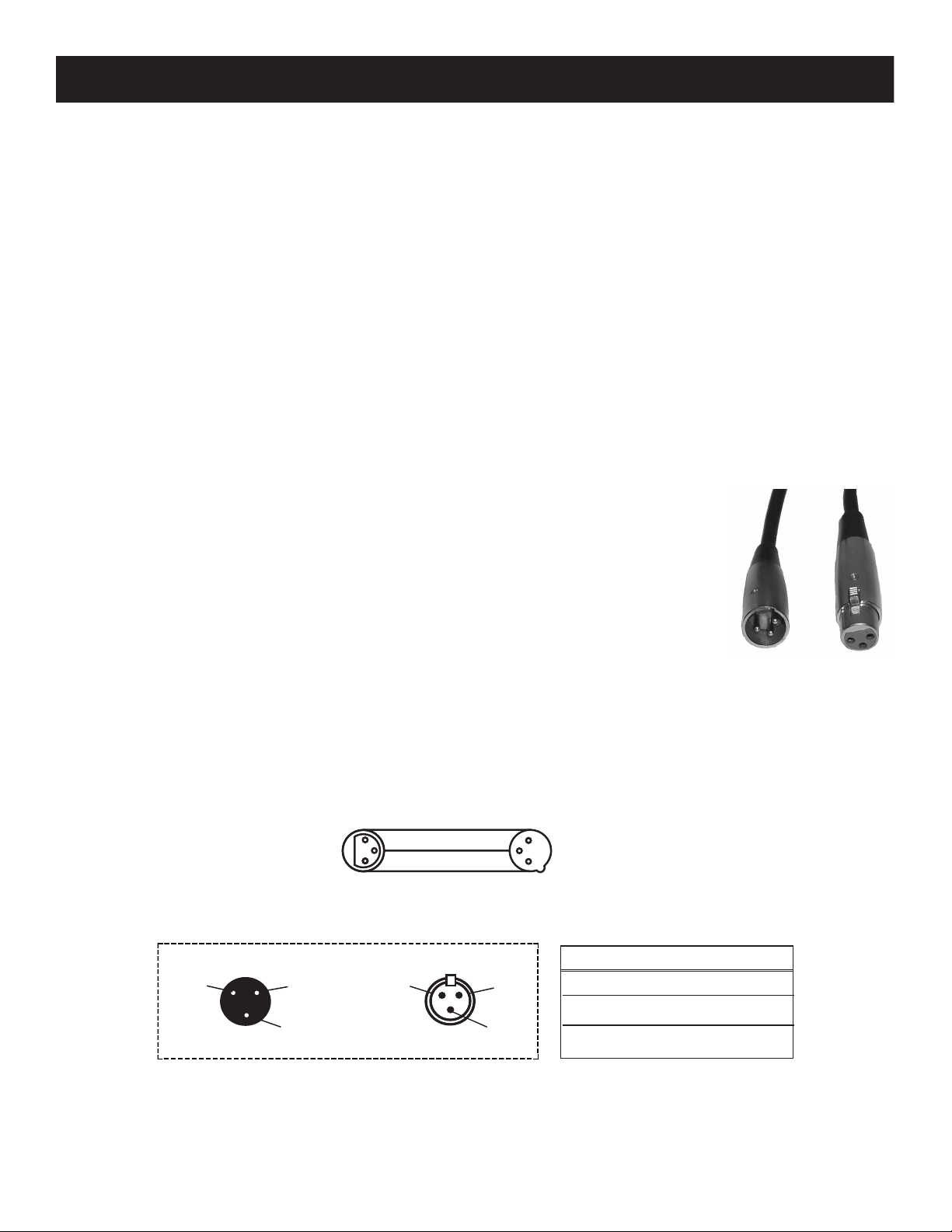

Figure 1
Notice: Be sure to follow gures two and three when making your own cables. Do not use the ground
lug on the XLR connector. Do not connect the cable’s shield conductor to the ground lug or allow the
shield conductor to come in contact with the XLR’s outer casing. Grounding the shield could cause a
short circuit and erratic behavior.
DMX512 IN
3-PIN XLR
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
DMX512
DMX+,DMX-,COMMON
1
2
3
Termination reduces signal errors and
avoids signal transmission problems
and interference. It is always advisable
to connect a DMX terminal, (Resistance
120 Ohm 1/4 W) between PIN 2 (DMX-)
and PIN 3 (DMX +) of the last fixture.
1
2
3
1
2
3
DMX +
DMX -
COMMON
DMX512 OT
3-PIN XLR
Figure 2
Figure 3
1 Ground 1 Ground
XLR Male Socket XLR Pin Conguration
3 Hot
2 Cold 2 Cold
3 Hot
XLR Female Socket
Pin 3 = Data True (positive)
Pin 2 = Data Compliment (negative)
Pin 1 = Ground

ADJ Products, LLC - www.adj.com - Vizi CMY300 User Manual Page 10
Special Note: Line Termination. When longer runs of cable are used, you may need to use a termina-
tor on the last unit to avoid erratic behavior. A terminator is a 110-120 ohm 1/4 watt resistor which is
connected between pins 2 and 3 of a male XLR connector (DATA + and DATA -). This unit is inserted
in the female XLR connector of the last unit in your daisy chain to terminate the line. Using a cable
terminator (ADJ part number Z-DMX/T) will decrease the possibilities of erratic behavior.
Vizi CMY300 DMX Set Up
DMX512 IN
3-PIN XLR
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
DMX512
DMX+,DMX-,COMMON
1
2
3
Termination reduces signal errors and
avoids signal transmission problems
and interference. It is always advisable
to connect a DMX terminal, (Resistance
120 Ohm 1/4 W) between PIN 2 (DMX-)
and PIN 3 (DMX +) of the last fixture.
1
2
3
1
2
3
DMX +
DMX -
COMMON
DMX512 OT
3-PIN XLR
Figure 4
5-Pin XLR DMX Connectors. Some manufactures use 5-pin DMX-512 data cables for DATA transmis-
sion in place of 3-pin. 5-pin DMX xtures may be implemented in a 3-pin DMX line. When inserting
standard 5-pin data cables in to a 3-pin line a cable adaptor must be used, these adaptors are readily
available at most electric stores. The chart below details a proper cable conversion.
Conductor 5-Pin XLR Male (In)3-Pin XLR Female (Out)
Pin 1
Do Not Use
Do Not Use
Pin 3
Pin 2
Pin 1
Pin 3
Pin 2
Not Used
Not Used
Data True (+ signal)
Data Compliment (- signal)
Ground/Shield
3-Pin XLR to 5-Pin XLR Conversion

ADJ Products, LLC - www.adj.com - Vizi CMY300 User Manual Page 11
2. USB
3. LED:
POWER On PowerOn
DMX On DMXinputpresent
4. Display:Toshowthevariousmenusandtheselectedfunction.
5. Button:
MENU Toenterintothe menu orleavethemenu
 UP To  moveupinthemenu
 DOWN To movedowninthemenu
ENTER Toperformthedesiredfunctions
6. DMXinput/output: ForDMX512operation,use3/5‐pinXLRplugcabletolinktheunitstogether

7. Fuse(T10A):Protecttheunitfromdamage ofovercurrent.
8. PowerCable:Toconnecttothemainssupplyornext xture.

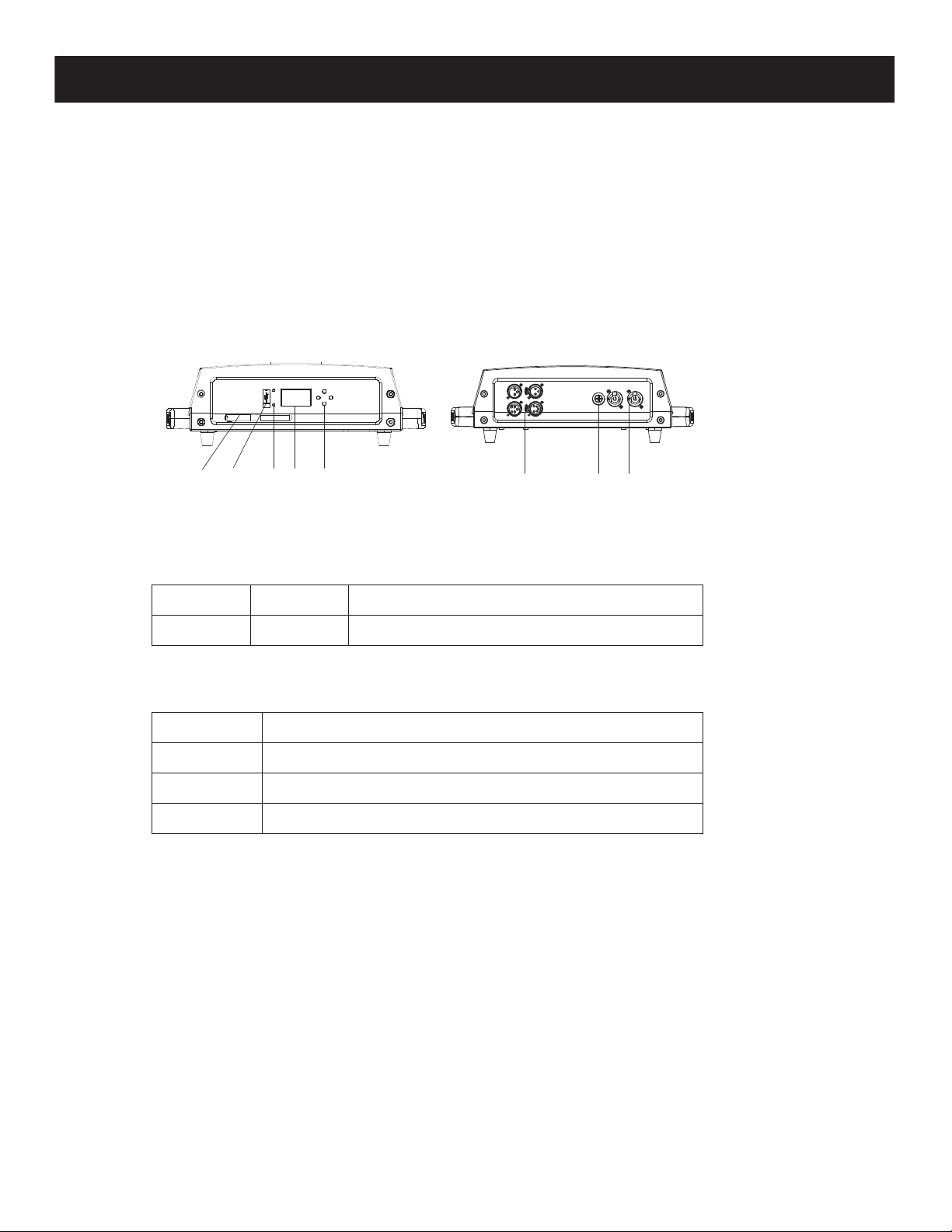

FrontviewRearview
2 4 6
1357 8
1. WiFly Antenna
Vizi CMY300 Control Panel and Connections

ADJ Products, LLC - www.adj.com - Vizi CMY300 User Manual Page 12
Vizi CMY300 24 Channel Mode (Basic Setting)
Channel Value Function
1 0 - 255 PAN MOVEMENT BY 540°
2 0 - 255 TILT MOVEMENT BY 270°
3 COLOR WHEEL
0 - 6 OPEN
7 - 12 RED
13 - 18 LIGHT GREEN
19 - 25 PINK
26 - 31 ORANGE
32 - 37 CTB
38 - 44 CTO
45 - 50 UV
51 - 56 GREEN
57 - 63 LIGHT BLUE
64 - 127 COLOR INDEXING
128 - 190 CLOCKWISE SCROLL FAST - SLOW
191 - 192 STOP
193 - 255 COUNTER-CLOCKWISE SCROLL SLOW - FAST
4 CYAN
0 - 255 0% - 100%
5 MAGENTA
0 - 255 0% - 100%
6 YELLOW
0 - 255 0% - 100%
7 ROTATING GOBOS (GOBO WHEEL 1)
0 - 7 OPEN
8 - 15 ROTATING GOBO 1
16 - 23 ROTATING GOBO 2
24 - 31 ROTATING GOBO 3
32 - 39 ROTATING GOBO 4
40 - 47 ROTATING GOBO 5
48 - 55 ROTATING GOBO 6
56 - 63 ROTATING GOBO 7
64 - 72 ROTATING GOBO 1 SHAKE
73 - 81 ROTATING GOBO 2 SHAKE
82 - 90 ROTATING GOBO 3 SHAKE
91 - 99 ROTATING GOBO 4 SHAKE
100 - 108 ROTATING GOBO 5 SHAKE
109 - 117 ROTATING GOBO 6 SHAKE
118 - 127 ROTATING GOBO 7 SHAKE
128 - 190 CLOCKWISE SCROLL FAST - SLOW
191 - 192 STOP
193 - 255 COUNTER-CLOCKWISE SCROLL SLOW - FAST

ADJ Products, LLC - www.adj.com - Vizi CMY300 User Manual Page 13
Vizi CMY300 24 Channel Mode (Basic Setting)
Channel Value Function
8 ROTATING GOBO INDEXING & GOBO ROTATION
0 - 127 GOBO INDEXING 0 - 360
128 - 189 CLOCKWISE ROTATION FAST - SLOW
190 - 192 STOP
193 - 255 COUNTER-CLOCKWISE ROTATION SLOW - FAST
9 FIXED GOBOS (GOBO WHEEL 2)
0 - 6 OPEN
7 - 12 GOBO 1
13 - 18 GOBO 2
19 - 25 GOBO 3
26 - 31 GOBO 4
32 - 37 GOBO 5
38 - 44 GOBO 6
45 - 50 GOBO 7
51 - 56 GOBO 8
57 - 63 GOBO 9
64 - 70 GOBO 1 SHAKE SLOW - FAST
71 - 77 GOBO 2 SHAKE SLOW - FAST
78 - 84 GOBO 3 SHAKE SLOW - FAST
85 - 91 GOBO 4 SHAKE SLOW - FAST
92 - 98 GOBO 5 SHAKE SLOW - FAST
99 - 105 GOBO 6 SHAKE SLOW - FAST
106 - 112 GOBO 7 SHAKE SLOW - FAST
113 - 119 GOBO 8 SHAKE SLOW - FAST
120 - 127 GOBO 9 SHAKE SLOW - FAST
128 - 190 CLOCKWISE WHEEL ROTATION FAST - SLOW
191 - 192 STOP
193 - 255 COUNTER-CLOCKWISE WHEEL ROTATION SLOW - FAST
10 PRISM 1 (LINEAR)
0 - 10 NO EFFECT
11 - 127 ON
128 - 255 MACRO 1 - 32
11 PRISM 1 ROTATION
0 - 127 PRISM INDEXING
128 - 190 CLOCKWISE ROTATION FAST - SLOW
191 - 192 NO ROTATION
193 - 255 COUNTER-CLOCKWISE ROTATION SLOW - FAST
12 PRISM 2 (3 FACET)
0 - 127 NO EFFECT
128 - 255 ON
13 PRISM 2 ROTATION
0 - 127 PRISM INDEXING
128 - 190 CLOCKWISE ROTATION FAST - SLOW
191 - 192 NO ROTATION
193 - 255 COUNTER-CLOCKWISE ROTATION SLOW - FAST

ADJ Products, LLC - www.adj.com - Vizi CMY300 User Manual Page 14
Vizi CMY300 24 Channel Mode (Basic Setting)
Channel Value Function
14 FOCUS
0 - 255 CONTINUOUS ADJUSTMENT FROM NEAR - FAR
15 ZOOM
0 - 255 ZOOM ADJUSTMENT FROM SMALL - BIG
16 SHUTTER & STROBE
0 - 31 SHUTTER CLOSED
32 - 63 SHUTTER OPEN
64 - 95 STROBE EFFECT SLOW - FAST
96 - 127 SHUTTER OPEN
128 - 159 PULSE EFFECT
160 - 191 SHUTTER OPEN
192 - 223 RANDOM STROBE EFFECT SLOW - FAST
224 - 255 SHUTTER OPEN
17 MASTER DIMMER
0 - 255 0% - 100%
18 IRIS
0 - 191 MAXIMUM DIAMETER TO MINIMUM DIAMETER
192 - 223 PULSE CLOSING FAST - SLOW
224 - 255 PULSE OPENING SLOW - FAST
19 FROST
0 - 255 0% - 100%
20 CMY SPEED & COLOR MACRO SPEED
0 - 255 FAST - SLOW
21 PAN/TILT MOVEMENT SPEED
FAST - SLOW

ADJ Products, LLC - www.adj.com - Vizi CMY300 User Manual Page 15
Vizi CMY300 24 Channel Mode (Basic Setting)
Channel Value Function
22 COLOR MACRO
0 - 7 OFF
8 - 15 MACRO 1
16 - 23 MACRO 2
24 - 31 MACRO 3
32 - 39 MACRO 4
40 - 47 MACRO 5
48 - 55 MACRO 6
56 - 63 MACRO 7
64 - 71 MACRO 8
72 - 79 MACRO 9
80 - 87 MACRO 10
88 - 95 MACRO 11
96 - 103 MACRO 12
104 - 111 MACRO 13
112 - 119 MACRO 14
120 - 127 MACRO 15
128 - 135 MACRO 16
136 - 143 MACRO 17
144 - 151 MACRO 18
152 - 159 MACRO 19
160 - 167 MACRO 20
168 - 175 MACRO 21
176 - 183 MACRO 22
184 - 191 MACRO 23
192 - 199 MACRO 24
200 - 207 MACRO 25
208 - 215 MACRO 26
216 - 223 MACRO 27
224 - 231 MACRO 28
232 - 239 MACRO 29
240 - 247 MACRO 30
248 - 255 RANDOM CMY
23 DIMMER MODES
0 - 20 STANDARD
21 - 40 STAGE
41 - 60 TV
61 - 80 ARCHITECTURAL
81 - 100 THEATER
101 - 255 DEFAULT TO UNIT SETTING

ADJ Products, LLC - www.adj.com - Vizi CMY300 User Manual Page 16
Vizi CMY300 24 Channel Mode (Basic Setting)
Channel Value Function
24 SPECIAL FUNCTIONS
0 - 69 NOTHING
70 - 79 ENABLE BLACKOUT WITH PAN/TILT MOVEMENT
80 - 89 DISABLE BLACKOUT WITH PAN/TILT MOVEMENT
90 - 99 ENABLE BLACKOUT WITH COLOR WHEEL MOVEMENT
100 - 109 DISABLE BLACKOUT WITH COLOR WHEEL MOVEMENT
110 - 119 ENABLE BLACKOUT WITH GOBO WHEEL MOVEMENT
120 - 129 DISABLE BLACKOUT WITH GOBO WHEEL MOVEMENT
130 - 139 FOCUS COMPENSATE DISABLE
140 - 149 FOCUS COMPENSATE NEAR
150 - 159 FOCUS COMPENSATE MEDIUM
160 - 169 FOCUS COMPENSATE FAR
170 - 199 NOTHING
200 - 209 RESET ALL
210 - 219 RESET EFFECT
220 - 229 RESET PAN/TILT MOTORS
230 - 255 NOTHING
GOBO 1 GOBO 2 GOBO 3 GOBO 4 GOBO 5 GOBO 6 GOBO 7
1
2
3
4
5
67
8
9
22.0 mm 22.0 mm 22.0 mm
22.0 mm 22.0 mm 22.0 mm 22.0 mm
16 mm 16 mm
16 mm 16 mm 16 mm 16 mm
GOBO WHEEL 1
GOBO WHEEL 2

ADJ Products, LLC - www.adj.com - Vizi CMY300 User Manual Page 17
Vizi CMY300 26 Channel Mode (Standard Setting)
Channel Value Function
1 0 - 255 PAN MOVEMENT BY 540°
2 PAN MOVEMENT FINE (16BIT)
3 0 - 255 TILT MOVEMENT BY 270°
4 0 - 255 TILT MOVEMENT FINE (16BIT)
5 COLOR WHEEL
0 - 6 OPEN
7 - 12 RED
13 - 18 LIGHT GREEN
19 - 25 PINK
26 - 31 ORANGE
32 - 37 CTB
38 - 44 CTO
45 - 50 UV
51 - 56 GREEN
57 - 63 LIGHT BLUE
64 - 127 COLOR INDEXING
128 - 190 CLOCKWISE SCROLL FAST - SLOW
191 - 192 STOP
193 - 255 COUNTER-CLOCKWISE SCROLL SLOW - FAST
6 CYAN
0 - 255 0% - 100%
7 MAGENTA
0 - 255 0% - 100%
8 YELLOW
0 - 255 0% - 100%
9 ROTATING GOBOS (GOBO WHEEL 1)
0 - 7 OPEN
8 - 15 ROTATING GOBO 1
16 - 23 ROTATING GOBO 2
24 - 31 ROTATING GOBO 3
32 - 39 ROTATING GOBO 4
40 - 47 ROTATING GOBO 5
48 - 55 ROTATING GOBO 6
56 - 63 ROTATING GOBO 7
64 - 72 ROTATING GOBO 1 SHAKE
73 - 81 ROTATING GOBO 2 SHAKE
82 - 90 ROTATING GOBO 3 SHAKE
91 - 99 ROTATING GOBO 4 SHAKE
100 - 108 ROTATING GOBO 5 SHAKE
109 - 117 ROTATING GOBO 6 SHAKE
118 - 127 ROTATING GOBO 7 SHAKE
128 - 190 CLOCKWISE SCROLL FAST - SLOW
191 - 192 STOP
193 - 255 COUNTER-CLOCKWISE SCROLL SLOW - FAST

ADJ Products, LLC - www.adj.com - Vizi CMY300 User Manual Page 18
Vizi CMY300 26 Channel Mode (Standard Setting)
Channel Value Function
10 ROTATING GOBO INDEXING & GOBO ROTATION
0 - 127 GOBO INDEXING 0 - 360
128 - 189 CLOCKWISE ROTATION FAST - SLOW
190 - 192 STOP
193 - 255 COUNTER-CLOCKWISE ROTATION SLOW - FAST
11 FIXED GOBOS (GOBO WHEEL 2)
0 - 6 OPEN
7 - 12 GOBO 1
13 - 18 GOBO 2
19 - 25 GOBO 3
26 - 31 GOBO 4
32 - 37 GOBO 5
38 - 44 GOBO 6
45 - 50 GOBO 7
51 - 56 GOBO 8
57 - 63 GOBO 9
64 - 70 GOBO 1 SHAKE SLOW - FAST
71 - 77 GOBO 2 SHAKE SLOW - FAST
78 - 84 GOBO 3 SHAKE SLOW - FAST
85 - 91 GOBO 4 SHAKE SLOW - FAST
92 - 98 GOBO 5 SHAKE SLOW - FAST
99 - 105 GOBO 6 SHAKE SLOW - FAST
106 - 112 GOBO 7 SHAKE SLOW - FAST
113 - 119 GOBO 8 SHAKE SLOW - FAST
120 - 127 GOBO 9 SHAKE SLOW - FAST
128 - 190 CLOCKWISE WHEEL ROTATION FAST - SLOW
191 - 192 STOP
193 - 255 COUNTER-CLOCKWISE WHEEL ROTATION SLOW - FAST
12 PRISM 1 (LINEAR)
0 - 10 NO EFFECT
11 - 127 ON
128 - 255 MACRO 1 - 32
13 PRISM 1 ROTATION
0 - 127 PRISM INDEXING
128 - 190 CLOCKWISE ROTATION FAST - SLOW
191 - 192 NO ROTATION
193 - 255 COUNTER-CLOCKWISE ROTATION SLOW - FAST
14 PRISM 2 (3 FACET)
0 - 127 NO EFFECT
128 - 255 ON
15 PRISM 2 ROTATION
0 - 127 PRISM INDEXING
128 - 190 CLOCKWISE ROTATION FAST - SLOW
191 - 192 NO ROTATION
193 - 255 COUNTER-CLOCKWISE ROTATION SLOW - FAST

ADJ Products, LLC - www.adj.com - Vizi CMY300 User Manual Page 19
Vizi CMY300 26 Channel Mode (Standard Setting)
Channel Value Function
16 FOCUS
0 - 255 CONTINUOUS ADJUSTMENT FROM NEAR - FAR
17 ZOOM
0 - 255 ZOOM ADJUSTMENT FROM SMALL - BIG
18 SHUTTER & STROBE
0 - 31 SHUTTER CLOSED
32 - 63 SHUTTER OPEN
64 - 95 STROBE EFFECT SLOW - FAST
96 - 127 SHUTTER OPEN
128 - 159 PULSE EFFECT
160 - 191 SHUTTER OPEN
192 - 223 RANDOM STROBE EFFECT SLOW - FAST
224 - 255 SHUTTER OPEN
19 MASTER DIMMER
0 - 255 0% - 100%
20 IRIS
0 - 191 MAXIMUM DIAMETER TO MINIMUM DIAMETER
192 - 223 PULSE CLOSING FAST - SLOW
224 - 255 PULSE OPENING SLOW - FAST
21 FROST
0 - 255 0% - 100%
22 CMY SPEED & COLOR MACRO SPEED
0 - 255 FAST - SLOW
23 PAN/TILT MOVEMENT SPEED
FAST - SLOW
