Innov'SA COCOON User manual
2
READ CAREFULLY BEFORE ANY USE
Symbols used in this user guide.
Warning
Indicates a hazardous situation that may cause serious injuries or death. Must be
avoided.
1–USER GUIDE
Make sure nobody and/or nothing can be stuck in the moving mechanism before starting a
complete cycle (up and down movement).
Storage conditions
The COCOON chair must be stored according to the upright mention indicated on the
package, in a dry and temperate aera.
Use conditions.
You must not use this chair before:
- being trained to its operation by the reseller or their installer,
- reading and understanding this guide.
Be sure to leave enough distance (around 60 cm / 24 inches) behind the seat to avoid any
direct contact with the wall when in ‘relax’ position.
Always check nothing can jam or be hidden under the mechanism before each use. The
seat’s mechanism can cause serious injuries. So be very careful in case children or pets are
nearby.
Ensure the seat is placed on a plane non-sloping surface so that the chair is stable on the
ground and can’t slip.
Do not put the seat near any source of significant heat.
Plug the power cable on a mains source compliant to the standards in force and to the
220/230V power unit voltage.
The seat shall not be used if there is any risk of stormy weather. The seat should not be
moved while used.
We recommend a dry shot cycle to get used to the seat’s operation.
Use by children must be forbidden. The leg-rest is not an additional seat. Always unplug
the power cord before moving the seat.
If the quilt gets compact, untighten the Velcro straps and tap it so it can take back its original volume.
To guarantee safety and product compliance, only original parts and accessories distributed by
INNOV’SA must be used.
3
Any modification of the seat is forbidden and will cause a breach of warranty. Any misuse of
the seat will also cause a breach of warranty. The product shall not be put in full light in order
not to cause the colour fading of the covers.
The two rear casters should not be removed.
Safe practice
The COCOON seat shall not be used by disoriented people. In case of dependent
users, help and watchfulness from a third party are compulsory.
Weight limits
This lifter seat shall not be used by people weighing more than 160 kg / 352 lbs
(COCOON 1 or 2 motors) and 220 kg / 485 lbs (COCOON XXL).
2 –ASSEMBLY
Take the chair out of its box.
Put the backrest on the base before placing the armrests.
Tilt the seat’s mechanism rearwards using the remote control.
Raise the seat cover to have a good view of the brackets.
You can reach 2 possible seat depths: 45 cm (17 in) or 55 cm (21 in).
To reach the 55 cm seat depth, place the backrest’s female bracket (A) (picture 1) in front of the
base’s male bracket (C). Insert the bracket (C) in the bracket (A) until it clicks into place.
To reach the 45 cm seat depth, place the backrest’s female bracket (B) (picture 2) in front of the
base’s male bracket (C). Insert the bracket (C) in the bracket (B) until it clicks into place.
You can now put the armrests in place.
Insert the metal rod of your armrest in the hole provided in the seat’s armrest board. Repeat the
operation for the other side.
You can change your seat’s depth whenever you want. To do so, pull the female bracket tab (picture
2 bis) to the outward for both sides of the backrest and lift the backrest at the same time. Put back
the backrest in place at the wanted depth.
▪
▪
▪
▪
Plug the actuator’s electric cable to the transformer.
▪
Plug the power cord to the other side of the transformer.
(B)
Depth 45 cm
Picture 2 bis
(A)
(C)
(B)
(B)
(C)
(A)
Picture 2
4
▪
Check that all the power connexions are in the right place.
▪
Plug the power cord to the mains, ensuring that it is compliant to the electrical
standards in force and to a 220V power voltage.
If you want to remove the backrest, tilt the chair’s mechanism to the rearward, then slightly
pull the bracket tab to the outward.
Any improper handling shall lead to a breach of warranty.
Noise and friction of the chair
Your chair may make some noise when changing position (tilt up and down and moving to
the lift position) due to the friction of the fabrics.
This is completely normal. The comfort and life span of your chair are fully preserved.
Assembly of the magazine rack
▪
Open the armrest as shown on picture 3.
▪
Insert the magazine rack in the armrest board and ensure it does not impair the
armrest board of the armrest (picture 3 bis).
Assembly of the tray:
▪
Place the COCOON chair in the lift position (picture 4)
▪
Insert the metal support of the tray in the provided opening (
picture 5)
▪
Put the tray on the support.
▪
If you want to change the lateral tray, take out the black plug obstructing the opening and put the
tray support in place.
Picture 3
Put your magazine rack in the
middle of the armrest board so
as not to close the notch on
the front of the armrest board.
Picture 5
Picture 4
Opening for tray support
installation.
Picture 3 bis
5
Using the remote control
▪
Secure and reversible remote control
▪
The remote control is prevented from falling by being placed under the armrest
cover.
COCOON chair single motor and XXL (picture 6)
2 buttons remote control
The 2 buttons remote control
allows you to manage the tilt angle by
yourself.
Green button
: the chair tilts rearward and the leg rest rises.
White button
: The chair comes back to the sitting position, the leg rest
lowers, and chair moves to lift position.
VERY IMPORTANT
When plugging the chair to the mains, DO NOT PRESS any button of the remote
control.
COCOON chair 2 motors (picture 7)
Four buttons remote control
Green button:
The backrest tilts rearward.
White button:
The backrest comes back to its straight position.
Blue button:
The leg rest rises while the chair comes back to sitting position.
Yellow button:
The leg rest lowers, and the chair moves to lift position.
Always check nothing can be stuck or hidden under the mechanism before any use.
The chair’s mechanism can cause serious injuries. Pay careful attention with young children and pets.
Picture 6
Picture 7
6

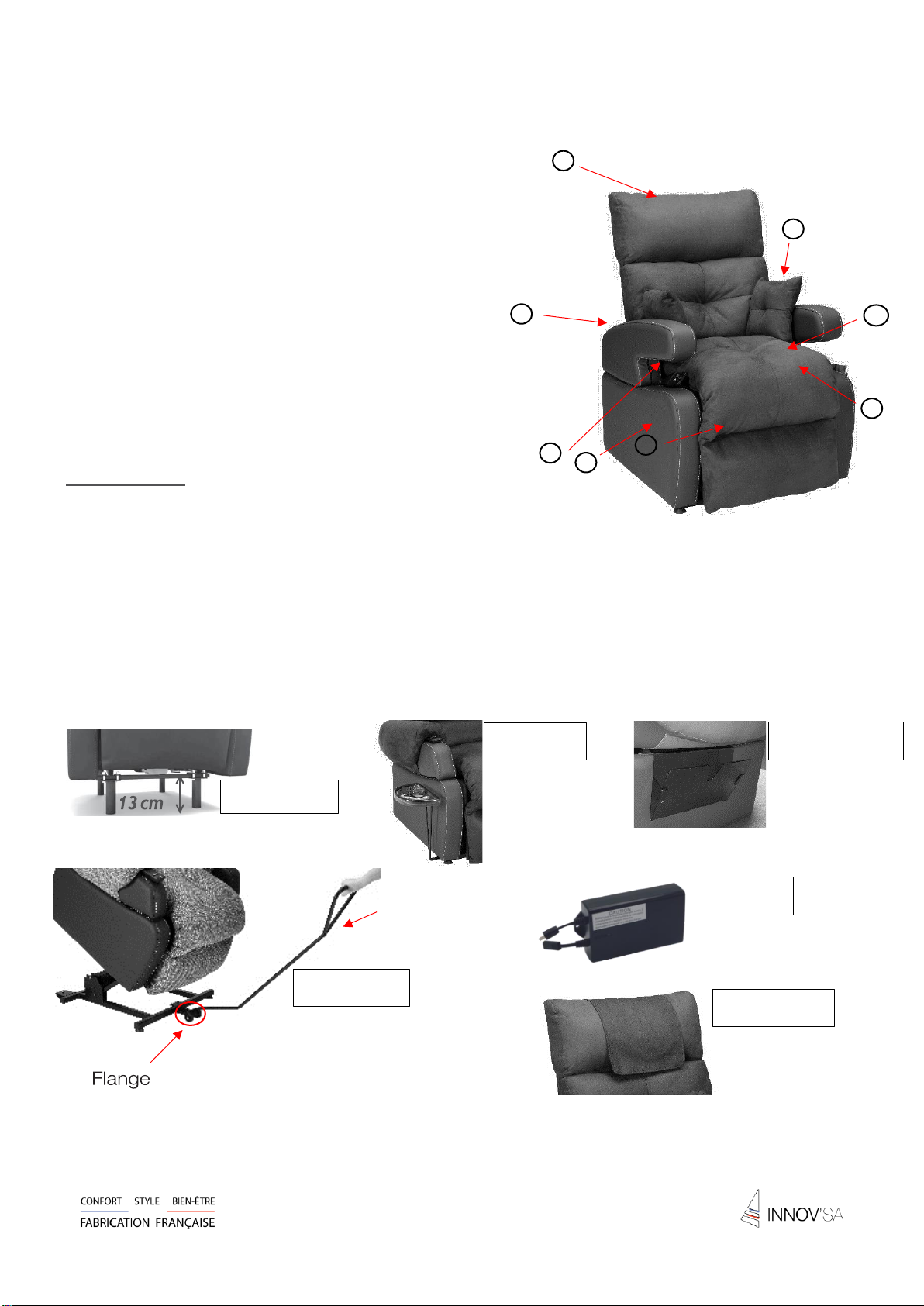

Composition of the COCOON chair
Your COCOON chair is made up as follows.
1 –A backrest
2 –A removable/washable backrest quilt
3 –A seat base
4 –A removable/washable seat base/leg rest quilt
5 –A leg rest
6 –Two retractable/removable armrests
7 –Seat reducer comfort cushion for
2
nd
generation Cocoon chair
8 –Two armrest boards
9 –A remote control
Accessories:
Optional accessories are available, as follows.
-
L/R reversible tray (picture 8)
-
L/R reversible magazine rack (picture 8 bis)
-
Battery kit (picture 9)
-
Hoist friendly kit (picture 10)
-
Mobility kit (picture 11) fitted with a flange + 1 transport stick.
-
Head protection (picture 12)
Picture 8
Picture 8 bis
Picture 10
Picture 11
Transport
stick
1
2
7
9
6
3
4
5
8
Picture 9
Picture 12
7
Changing the quilt modules
to be washed or replaced
Backseat quilt:
-Remove the Velcro strap from the cover flap behind the backrest
-Zip down the left and right sides of the quilt
Seat base/leg rest quilt:
Remove the Velcro straps at the bottom, as well as on the right and the left of the seat
base.
All modules can be machine-washed at 30°C.
We advise you to put the quilts in a washing net or in a pillowcase to keep their original
aspect.
TECHNICAL SPECIFICATIONS
Maximum user weight
160 kg / 352 lbs (1 and 2 motors) /
220 kg /485 lbs (XXL version)
Coatings
Fire protection standards 1021-1 and 1021-2 compliant:
PVC/PU: Chocolate, Taupe grey, Licorice, Pistachio, Raspberry
Test reports nb 367160734 and nb 367160735
Polyester (velvet): Brown & Raw
Test reports nb 18.0433.01 and nb 18.02686.01
Mottled fabric: Brown & Grey
Test report nb 18.03363.01
Quilt padding
Silicone hollow fibre
8
CLEANING PROTOCOL FOR
COCOON COATINGS
➢All detergent, solvent and stain remover not listed in the French standard for institutions
furniture ARE STRICTLY FORBIDDEN.
➢Ball-point pens ink spots require immediate cleaning to prevent ink migration into the coated
fabric, which makes them indelible.
WARRANTY CERTIFICATE
Name:
First name:
Address:
ZIP code:
City:
Date of purchase:
Serial number:
For the warranty to be valid, the date of purchase must be clearly indicated.
9
Please take care of the environment. This product and its package can be sorted for
recycling. At the end of their lifespan, throw this product and its package in an authorized
collecting area so they can be recycled. This waste recovery will allow environment
protection.
For us to continually improve our services quality, we pay attention to any comments you
may have concerned quality, operation, or use of our products.
NOTES
Warranty conditions
Mechanism and motor: 5 years
Chair: 2 years
The chair warranty concerns any structural defect resulting from a material or manufacturing fault for
2 years, from the delivery date.
The purchase date must be written in the certificate attached to this guide.
Through this warranty, we only offer free refurbishing or exchange of the defected parts, after
INNOV’SA agreement. We want to make it clear that this refurbishing or exchange can only be done
with new parts, new subsets, or standard exchange of said parts only after evaluation by INNOV’SA.
We disclaim all liability for the damage caused by inappropriate uncompliant assembly and/or repair,
by neglect and fatigue, as well as by the modification of components or elements by the user or by
a third party. In these cases, the manufacturer’s liability can’t be engaged.
This warranty does not concern normal wear and tear of the paddings, wheels, (silicone) tubes, etc.
The damage caused by the use of force, or a non-compliant use are not insured. The damage
caused by users of more than the maximum authorized weight for each chair model are excluded
from the warranty. This warranty is valid only if the maintenance instructions are strictly respected.
10
Compliance
INNOV’SA chairs are manufactured according to the below mentioned directives, including the last
editions and the national law organizing these directives:
Low voltage equipment 2014/35/UE
Electromagnetic compliance (EMC) 2014/30/UE
Restriction of the use of hazardous substances (RoHS) in electrical and electronic equipment
Directive 2011/65/EU
INNOV’SA chairs are compliant to the following electrical standards:
▪EN 60335-1/A11:2014
▪EN 55014-1/A2 :2011
▪EN 55014-2/A2 :2008
▪EN 61000-3-2 :2014
▪EN 61000-3-3 :2013
▪EN 62233:2008
▪EN 50581 :2012
Give a new life to your furniture. When you want to get rid of it, if your chair is in a good shape, you
can give it to a structure specialized in social and solidarity economy. You can also put it in a drop-
off centre or give it back when buying a new one.
For more information about our COCOON chair, please visit our web site at www.innov-sa.fr
