Innovatek In-403dtm User manual

OWNER's MANUAL

Mobile Video System

DETACHABLE PANEL

4 INCH IDE COLOR DIGITAL SCREEN TFT

TV TUNER

MOTORIZED SLIDE DOWN AND

CAR DVD/VCD/CD/MP3 PLAYER

AM/FM- RDS DIGITAL PLL TUNING RADIO

MPEG4 PLAYER

USB CONNECT

EON

REL

TA/AF

MOD

BND

CH 1-6

CAR DVD/VCD/CD/MP3/MPEG4/TV PLAYER

CLK

PTY

IN-403DTM

DVD/RECEIVER CONTROLDVD/RECEIVER CONTROL

SETUP

ENTER

123

45 6

789

VOL

SEL

A/PS

MUTE STOP

MO/ST

REPEAT

POWER

CLK

PLAY/PAUSE

ANGLE

MODE

BAND

VOL

OSD

TITLE/PBC

LO/D X

GOTO +10

TOP INT

RDM

CONTENTS

Safety Information......................................................................................

Disc Notes .................................................................................................

Installation .................................................................................................

Panel Angle Adjustment ..............................................................................

Electric Connection ....................................................................................

Remote Control ..........................................................................................

Basic Operation ........................................................................................

Setup .........................................................................................................

Specifications ...........................................................................................

Trouble Shooting ......................................................................................

.....................................................................

Scroll Caption Operation ..........................................................................

Video Quality Operation ...........................................................................

Rear View Camera .................................................................................

MPEG4 Player ........................................................................................

USB Operation .......................................................................................

On-Screen Display Function ...................................................................

Multi-Audio Language Function ..............................................................

Multi-Subtitle Language Function ...........................................................

Multi-Angle Function .............................................................................

Title Menu Function ...............................................................................

TV Operation ..........................................................................................

General Setup ........................................................................................

Speaker Setup .......................................................................................

Dolby Digital Setup ................................................................................

Preferences Setup .................................................................................

Defaults Table ........................................................................................

MP3/WMA/JPEG Disc Play

AUX Operation .......................................................................................

SAFETY INFORMATION

CAUTION:

WARNING:

REGION MANAGEMENT INFORMATION:

THIS DVD PLAYER IS A CLASS I LASER PRODUCT. HOWEVER THIS DVD

PLAYER USES A VISIBLE/INVISIBLE LASER BEAM WHICH COULD CAUSE .

HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE

THE DVD PLAYER CORRECTLY AS INSTRUCTED.

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF

PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN

HAZARDOUS RADIATION EXPOSURE.DO NOT OPEN COVERS AND DO NOT

REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS

EQUIPMENT TO RAIN OR MOISTURE.

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, AND ANNOYING

INTERFERENCE, USE ONLY THE RECOMMENDED ACCESSORIES.

THIS DEVICE IS INTENDED FOR CONTINUOUS OPERATION.

This product incorporates copyright protection technology that is protected

by method claims of certain U.S. Patents and other intellectual property rights

owned by Macrovision Corporation and other rights owners.Use of this

and is intended for home and other limited viewing uses only unless

otherwise authorized by Macrovision Corporation. Reverse engineering or

disassembly is prohibited.

This DVD Player is designed and manufactured to respond to the Region

Management Information that is recorded on a DVD disc. If the Region number

described on the DVD disc does not correspond to the Region number of this

DVD Player, this DVD Player cannot play this disc.

DISC NOTES

Preparing New Discs with

Spots

Rough

A new disc may have rough edges on

its inside and outside edges.If a disc

with rough edges is used, the proper

setting will not be performed and the

player will not play the disc.Therefore,

remove the rough edges in advance

by using a ball point pen or pencil as

shown on the right.To remove the

rough edges, press the side of the pen

or pencil against the inside and outside

edges of the disc.

Disc formats supported by this

player

Rough spots

outside edge

Ball point pen

or pencil

Rough spots

on inside

edge

Label side

Do not touch

the

underside

of the disc

Do not

bend

Wipe the disc from

center

toward the outside

edge

Disc Cleaning

Use a dry soft cloth to wipe the surface.

If the disc is quite dirty, use a soft cloth

slightly moistured with isopropyl (rubbing)

alcohol. Never use solvents such as

benzine, thinner or conventional record

cleaners as they may mar the surface of

the disc.

Handling and Cleaning

Dirt, dust, scratches and warping disc

will cause misoperation.

Do not place stickers or make

scratches on discs.

Do not warp discs.

A disc should always be kept in its

case when not in use to prevent from

damaging.

Do not place discs in the following

places:

1.Direct sunlight

2.Dirty, dusty and damp areas

3.Near car heaters

4.On the seats or dashboard

Discs which cannot be played

with this player

DVD-ROM

DVD-R/DVD-RAM

CDV

CD-G

Note:

A disc may become somewhat scratched

(although not enough to make it

unusable) depending on your handle it

and conditions in the usage environment.

Note these scratches are not an

indication of any problem with the player.

CD-RW

DVD

VCD

MP3

Audio and Video

Discsize12cm

Audio and Video

Discsize12cm

Audio

Discsize12cm

Audio

Discsize12cm

Choose the mounting location where the unit will not interfere with the normal

driving function of the driver.

Before finally installing the unit, connect the wiring temporarily and make sure

all connected up properly and the unit and the system work properly.

Use only the parts included with the unit to ensure proper installation. The use

unauthorized parts can cause malfunctions.

Consult with your nearest dealer if installation requires the drilling of holes or

modifications of the vehicle.

Install the unit where it does not get in the driver s way and cannot injure the

passenger if there is a sudden stop, like an emergency stop.

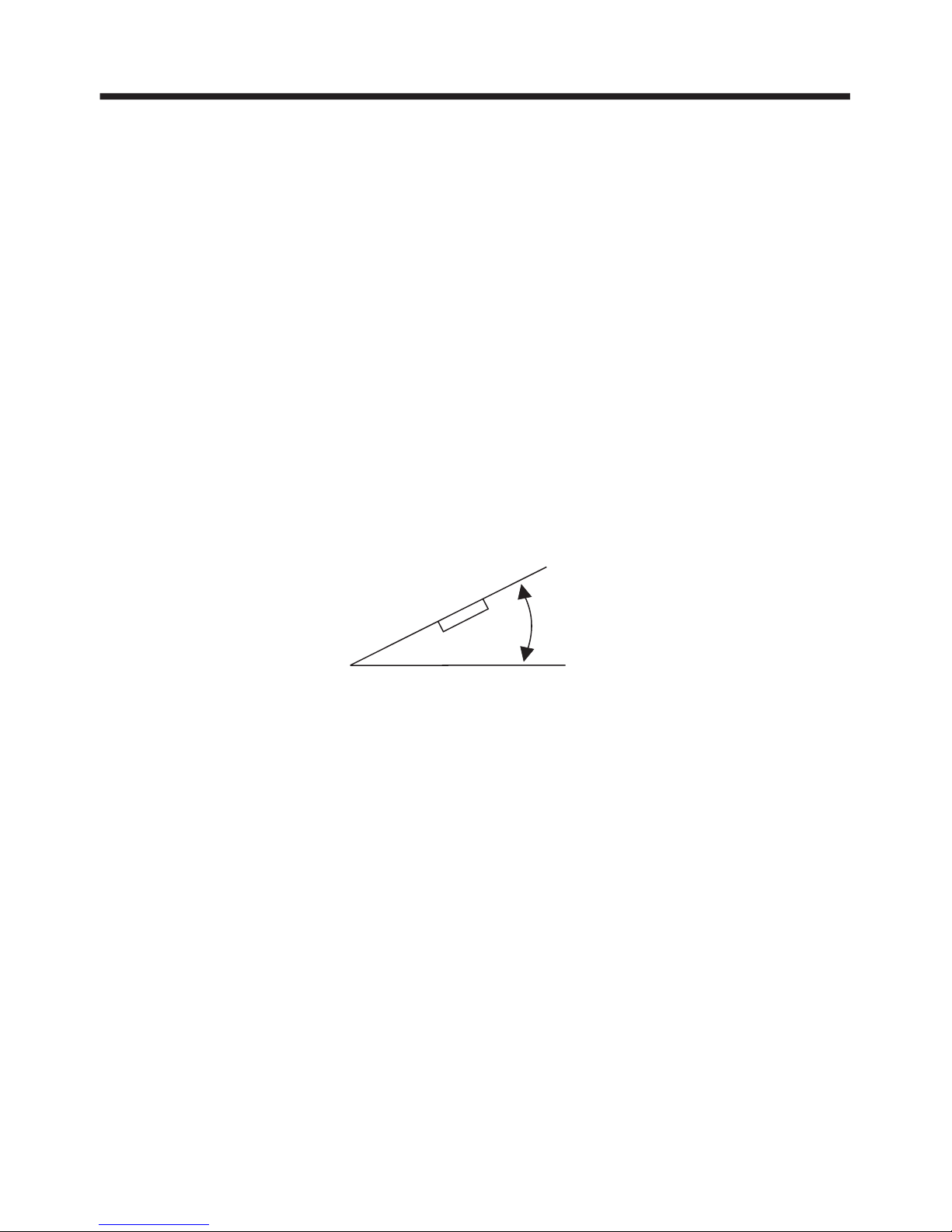

If installation angle exceeds 30 from horizontal, the unit might not give its

performance.

Avoid installing the unit where it would be subject to high temperature, such

direct sunlight, or from hot air, from the heater, or where it would be

dirt or excessive vibration.

This unit can be properly installed either from "Front"(conventional DIN

or "Rear"(DIN Rear-mount installation, utilizing threaded

the unit chassis). For details, refer to the following

illustrated installation methods.

NOTES:

DIN FRONT/REAR-MOUNT

it is

other

optimum

as from

subject to dust,

Front-mount)

screw holes at the sides of

INSTALLATION

If you want to take CHASSIS out of the SLIDE BRACKET HOUSING,

first remove the PLASTIC COVER of the both sides away, then insert

the two KEY PLATE into left and right side of chassis as above illustration.

DASH BOARD

METAL MOUNTING

STRAP

HEX NUT

SPRING WASHER

PLAIN WASHER

TAPPING SCREW

CONSOLE

SLIDE BRACKET

HOUSING

HEX BOLT

KEY PLATE

PLASTIC COVER

INSTALLATION

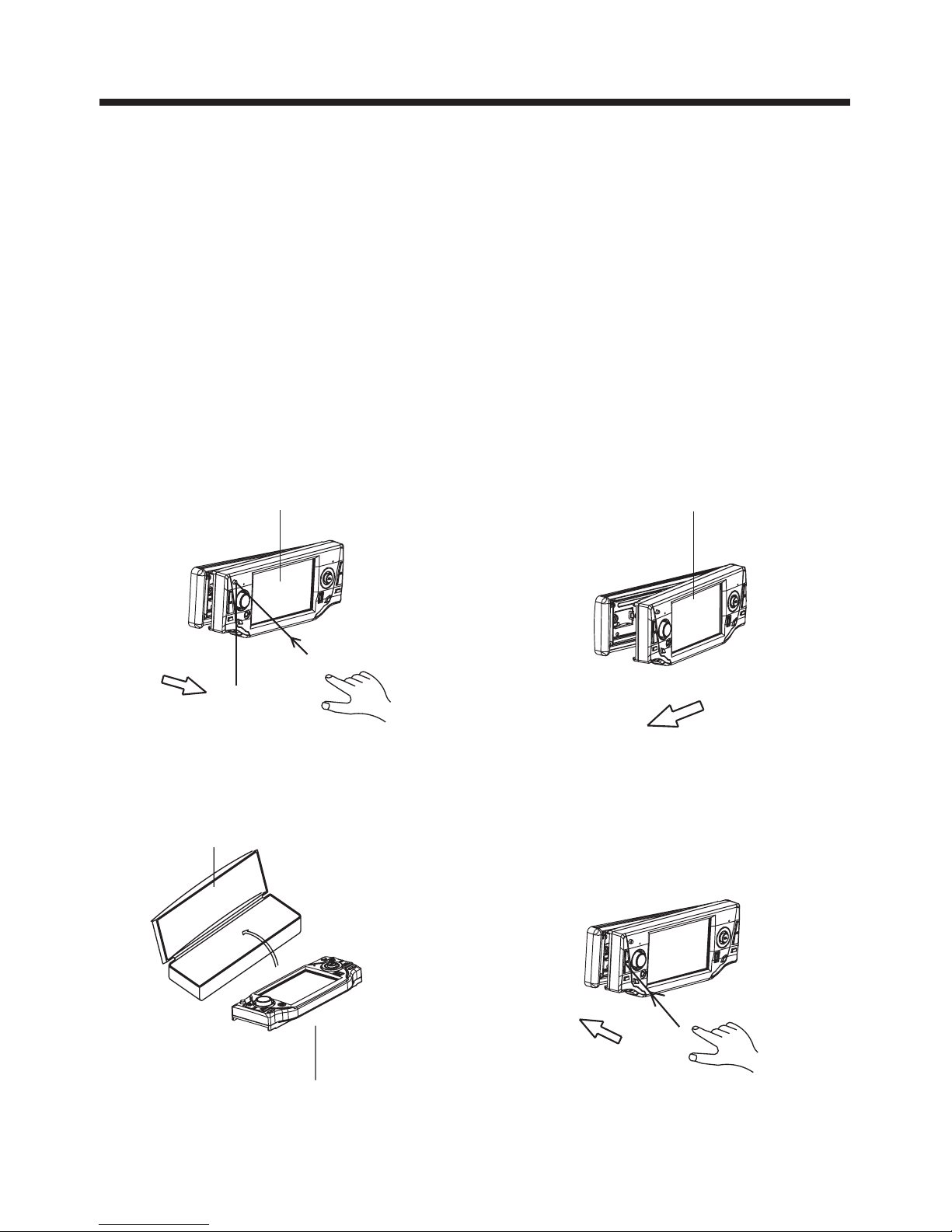

How To Remove And Install The Front Panel

When detaching or attaching the control panel, be careful not to damage the

connectors on the back of the control panel and on the panel holder.

Detaching The Front Panel

Before detaching the control panel, be sure to turn off the power.

1). Press the release button and the left hand side of the front panel will release.

(FIG. 1)

2). Pull-off the front panel (FIG. 2) and keep the front panel into the case (FIG. 3)

Attaching The Front Panel

1). First insert the right hand side of the front panel into the hollow of the unit .

2). Gently push the left hand side of the front panel until you feel a “ Click” .

and then press the PWR button (2) briefly to switch the device ON.

Attaching The Front Panel

FIG.4

FIG.3

PROTECTIVE CASE

FRONT PANEL

FIG.2

FRONT PANEL

FIG.1

FRONT PANEL

RELEASE BUTTON

PANEL ANGLE ADJUSTMENT

Caution:

Do not insert your finger behind the control panel.

When you want to change the viewing angle of the operating unit to play,

you can press the (angle)button repeatedly to select the desired angle

as follows:

CHANGING THE CONTROL PANEL ANGLE

Angle 3

Angle 4

Angle 1 Angle 2

ELECTRIC CONNECTION

WIRING CONNECTION

Note:

the earth connection cable (parking brake B-) must be connected in order for DVD

pictures to be played back to the monitor. If the cable has not been correctly

connected, the message “PARKING BRAKE” appears on the monitor.

VIDEO IN YELLOW

RCH IN RED

LCHINWHITE

GREY SUBWOOFER

VIDEO OUT 2 YELLOW

COAXIAL OUT BROWN

WHITE (B+)12V

REAR CAMERA SWITCH

GREEN

YELLOW

AUX(optional)

RCA CABLE

REAR CAMERA INPUT

(B-)PARKING BRAKE

FRONT RCA WHITE L

RCH RED

LCH WHITE

FRONT RCA RED R

VIDEO OUT 1 YELLOW

REAR RCA OUTPUT

CABLE (optional)

FRONT RCA OUTPUT

CABLE

(FOR RCA LINE OUT VERSION ONLY)

GREY

GREY/BLACK

FRONT

Rch SPK.

VIOLET

VIOLET/BLACK

WHITE

WHITE/BLACK

GREEN

GREEN/BLACK

REAR

Lch SPK.

AUTO

ANTENNA BLUE

FUSE

GROUND(B-)

MEMORY

BACK-UP(B+)

IGNITION

SWITCH(B+)

ANTENNA CONNECTOR

RED

YELLOW

BLACK

MAIN UNIT

REAR

Rch SPK.

FRONT

Lch SPK.

CHOKE

BOX

TV ANT IN

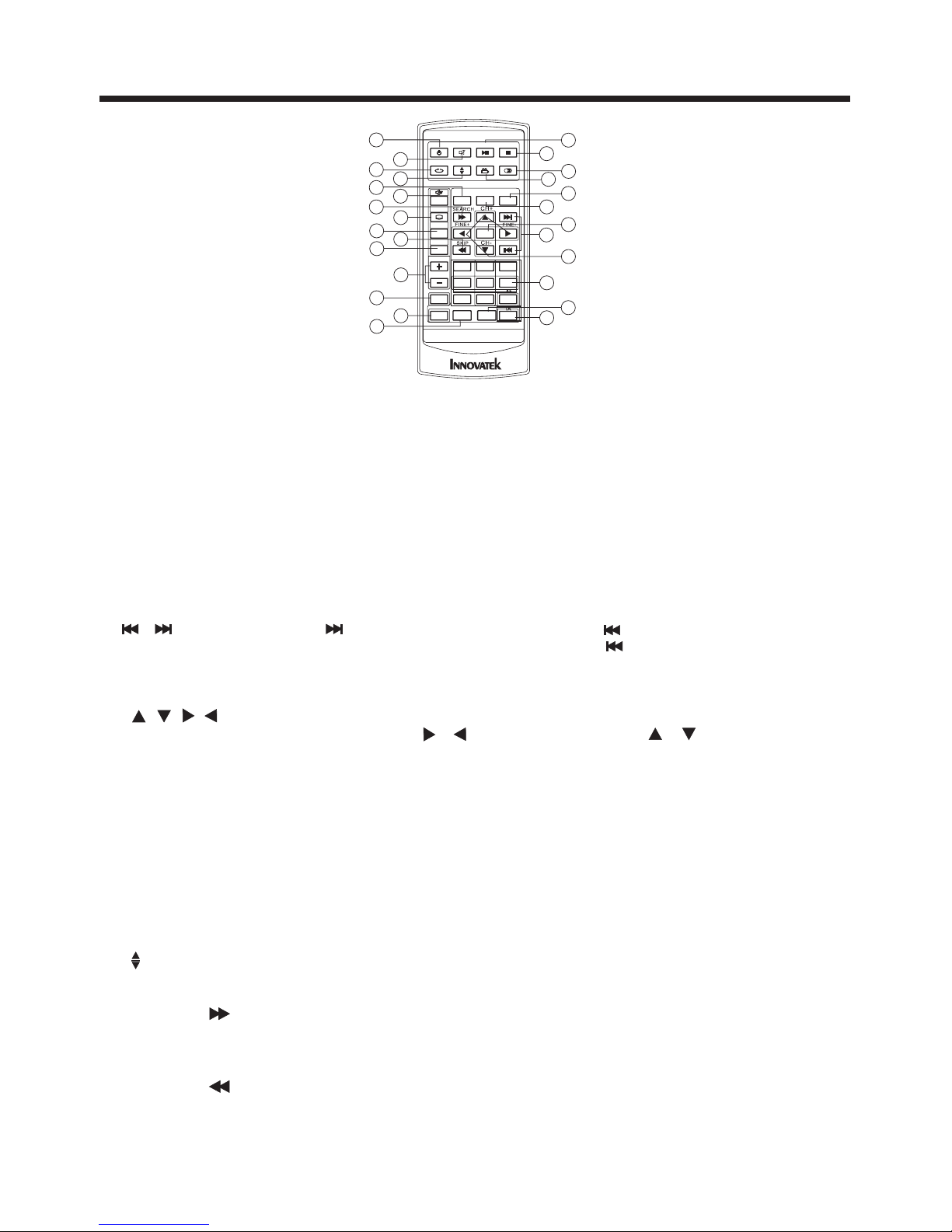

REMOTE CONTROL

1.CLK

2.MODE

3.STOP

4.SETUP

5.MO/ST(AUDIO)

6. SUBTITLE

LO/DX

7.REPEAT

8.GOTO

9. /

10.SEL

11. VOL+/VOL-

12. / / /

13.MENU

SUB WOOFER

14.BAND(OSD)

15.POWER

16.PLAY/PAUSE

17.MUTE

18.TITLE/PBC

(A/P)

19.

20.ANGLE

21.EQ

22.SEARCH

23.ENTER

24.SKIP

25. 0 - 9

26.+10

27. RADIO PRESET

Press it briefly to show/hide the clock, press longer to set the time.

Press it to change between TV, RADIO ,DISC and AUX IN mode.

Press it to stop playback, press PLAY/PAUSE to resume playback .

Press it to open the SETUP menu.

In radio mode, press it to select STEREO or MONO mode (In disc

mode, press it to changing of the AUDIO soundtrack on multiaudio

soundtrack dvd disc. Changing of the sound mode of the vcd/cd disc.)

Changing of the SUBTITLE language on multi-subtitle language

DVD disc. In radio mode,.Press this button for distance reception

when you are located at weak signal location, depress it for

stronger signal.

Switch the Repeat mode of DVD/VCD/CD/MP3 disc.

Press to skip to the next track & press to skip back one track.

(Note:In DVD mode, press continually the twice to skip back one track.)

Press it repeatedly to change mode through Volume , Bass, Treble,

Balance , Fader, Color, Bright, Contrast, Tint and BG Color modes.

Press it to adjust volume level

Use these buttons to navigate the various menus present in the product.

In TV mode, press / to fine tune. Press the / to select channel

upward and downward.

Press it to display the root menu of the DVD disc. Press it long to switch

the Subwoofer ON and OFF.

Display statistical disc information during playback.(In radio mode, press

this button to switch between the five radio bands.)

Press it to turn on the unit ,press it again to turn off.

Press it to mute down sound.

Display the TITLE menu that is stored in DVD disc changing

between PBC ON and PBC OFF on the VCD disc.(Auto store

and preset scan function in radio stations .)

Press it to adjust the screen viewing angle. (See page 7.)

Changing of the view angle on multi-angle DVD disc.

Press it to turn to equalization function.

In TV mode, Press it to search TV channel automatically.

In DISC mode, Press it to start forward rapidly.

Confirm the Track/Chapter selected with the number key or

selected with the cursor buttons on TV screen.

In TV mode, press it to ADD and DELETE channel .

In DISC mode, press it to reverse rapidly

Tens digit select button, cooperatively used with numeric buttons.

Six preset memory buttons.

In DISC mode, starting playback, stopping picture/track. In Radio

mode, PTY selection of the program type.

Numeric buttons. In radio mode, 0 and 9 act as TA/AF.

Disc search button, cooperatively used with numeric buttons

DVD/RECEIVER CONTROLDVD/RECEIVER CONTROL

SETUP

ENTER

123

45 6

789

VOL

SEL

A/PS

MUTE STOP

MO/ST

REPEAT

POWER

CLK

PLAY/PAUSE

ANGLE

MODE

BAND

VOL

OSD

TITLE/PBC

LO/D X

GOTO +10

TOP INT

RDM

REMOTE CONTROL

Using the Remote Control

Face the remote control towards the player front face IR mark (remote control signal

receiver).

Operation angle: About 30 degree in each the direction of the front of the IR mark.

Preparing the Remote Control

1.First push to inside as the direction indicated by the arrow (See )And then

Remove the battery holder as the direction indicated by the arrow (See ).

2.Replace the battery Set a new battery property with (+)side up as illustrated

(See ).

3.Insert the battery holder. Push in the holder to the original position(See ).

Inserting the Batteries

BASIC OPERATION

1.REL BUTTON

Press the REL button to detach the removable front panel. Refer to see page 6 .

3-4.VOL+/VOL- & SEL BUTTON

Press SEL 4 button briefly to across the sound/picture mode selection menu

by repeatedly pressing the SEL button you can select the individual menu items

such as volume, bass, treble, balance, fader, color, bright, contrast and tint .

Then rotate the VOL + / - to adjust the selected mode.

(The corresponding value will show on the display.)

When mode has not been adjusted for several seconds, display returns to normal

radio or CD display.

()

Tint Contrast Bright Color

Volume Bass Treble Balance Fader

Adjust volume level by using VOL + / - button.

Note: The unit is initially set to volume mode.

Press SEL button one time. Adjust bass level by using VOL +/-button.

Press SEL button two times. Adjust treble level by using VOL + / -button.

Press SEL button three times. Adjust sound balance between left

and right speakers by using VOL + / VOL - button.

Press SEL button four times. Adjust sound balance between front and

rear speakers by using VOL + / VOL - button.

A.Volume:

B.Bass:

C.Treble:

D.Balance:

E.Fader:

( : the function of the Color, Bright, Contrast and Tint. Please see 16 page.)NOTE

press the BAND button on the front panel or on the remote controller to select

your desired radio band and word which band is selected will be displayed

in the TFT . Press it to change the bands as below :

In RADIO mode

. BND BUTTON

FM MW LW

For 3 Bands (Europe)

FM MW

For 2 Bands (Europe)

FM AM

For 2 Bands (USA)

2. (POWER On/Off )BUTTON

Press this button to switch the device on. WELCOME appears in the display.

Press it again to switch the device off. SEE YOU appears in the display.

1 3

17 2

1411

19 16

EON

REL

TA/AF

MOD

BND

CH 1-6

CAR DVD/VCD/CD/MP3/MPEG4/TV PLAYER

CLK

PTY

BASIC OPERATION

6. TA/AF BUTTON

TA Function [traffic Announcement] Button(for Rds Only)

AF [Alternative Frequencies]

In RADIO mode

When swing the SEL knob briefly in the TA/AF direction, it is activated as

TA mode ON or OFF.

During radio operation in one FM frequency band the search for a traffic announ-

cement station is started automatically (TA SEEK) .

If an FM station is being received which transmits the latest traffic announcements

from time to time, the TP display lights up.

If an FM station is being received which transmits the latest traffic announcements

automatically interrupt CD operation(the word TRAFFIC appears in the display).

The volume level is increased to the minimum value for the transmission of traffic

announcements. After the traffic announcements has finished, the programe that

was previously running is resumed.

When swing the SEL knob in the TA/AF direction and keep more than 2 seconds,

it is activated as AF mode ON or OFF .

Segment off: AF switching mode off.

Segment on: AF switching mode on, the radio continuously tests the signal stren-

gth of the AF frequency. Whenever the new AF frequency is stronger than the sta-

tion that is currently tuned in, the radio switches to this frequency for a short time

and the message “NEW FREQUENCY” is displayed for one to two seconds.

Segment flashing: AF switching mode is selected, but RDS information is not

received yet.

. When press the SEL button for a longer time to access the selection menu:

REG ON/ REG OFF, PI MUTE/PI SOUND, AF OFF/ AF ON.

Regional mode ON

PI CODE is checked when AF CHECK in progress

Regional mode OFF

PI CODE and COVERAGE AREA is not checked when AF check in progress.

7. APS/DISP BUTTON

Automatic Memory Function:

Program Scan Function:

Display ON/OFF Function:

In Radio mode, swing the SEL knob in the direction of APS/DISP for about 2

seconds to active automatic station storage.the radio searches within the current

frequency band, e.g. FM1, for the strongest station are then allocated to the

corresponding storage locations. Then the station of the first storage location

is set. If you would like to search for more stations in the FM band, press the BND

button(5) in order to change to the FM2 or FM3 band. Swing the SEL button (4)

again in the APS/DISP direction for about 2 seconds to continue search.

In Radio mode, swing the SEL knob in the direction of APS/DISP to scan and play

all the preset sations in order, and it will hold at each band for about 5 seconds .

If you like one of them, press the PLAY/PAUSE button to stop the scanning .

In Disc mode, swing the SEL knob briefly in the direction of APS/DISP to turn off

the display image (the monitor on the unit only) , the sound will stay on. (Swing it

again to resume the playback picture mode.) You can press SEL knob briefly to

select the “BG COLOR” by repeatedly pressing the SEL knob, then

rotate the VOL+/- to select the background color among of the

“AUTO, BG COLOR: 01........BG COLOR: 11”, in “ AUTO” mode, the monitor of

unit will change the background color automatically.

BASIC OPERATION

9. (ANGLE)BUTTON

you can change the viewing angle of the operating unit . Press this button up to

four times in order to select the desired position.

8. MU/PTY BUTTON

PTY(PROGRAM TYPE) FUNCTION

Press it button briefly to switch of the loudspeakers for a short period. The word

MUTE flashes in the display. Press it again to cancel the mute function.

This function can also be cancelled by using the VOL multifunction

In RADIO mode :

Press and hold for about 2 seconds to across the PTY function selection menu,

press this button repeatedly, you can select the PTY type as bellow:

NEWS ,AFFAIRS,INFO,SPORT,EDUCATE,DRAMR,CUL TURE,SCIENCE

VARIED,POP M,ROCK M. EASY M, LIGHT M, CLASSICS, OTHER M, WEATHER

FINRNCE,CHILDREN,SOCIAL, RELIGION,PHONE IN , TRAVEL , LEISURE

JAZZ, COUNTRY, NATION M, OLDIES,FOLK M,DOCUMENT,TEST,ALRRM.

When PTY is selected, the radio starts to search corresponding PTY information

(PTY SEEK), and stops if the corresponding PTY information is detected.

If corresponding PTY information is not existed any more, PTY type is

automatically exit to normal mode.

10. /CH 1-6 BUTTON(RADIO PRESET)

a). In Disc Playback Mode

Press this button to pause playback, press it again to resume playback.

b). In Radio Mode

Press this button repeatedly to preset station. With this system a total of 30

stations can be stored in the memory . Each band store up to six preset

stations. The stations might be FM1, FM2, FM3, AM1 (MW1) and AM2 (MW2)

band. The operation as below:

- store in memory

press and hold the desired memory location for several seconds, the current

listening station will be stored into the number location.

- retrieve a preset station

press it button repeatedly to retrieve a station which had been stored in the

memory in advance the chosen number is shown on display.

11. / BUTTONS (TUNE, SEEK, TRACK, SKIP UP/DOWN)

a) In DISC, USB mode:

if you wish to jump forwards or backwards press the SEL button (4) briefly in

the or direction. (Note: in DVD mode, press the SEL button continually

twice in direction to skip back one track during playback.)

Note:For some VCD 2.0 dics(PBC-playback control), and buttons may

be unavailable.

TV System Select

In TV mode, Swing the SEL knob in the direction of APS/DISP to cycle through

the different TV standards (“PAL-BG”, “PAL-DK”, “PAL-I”,“PAL-MN” ) , if you are

in European frequency mode , you can use the VOL+/- to select among the

PAL options.

BASIC OPERATION

To wind through the tracks keep the SEL button pressed in the or direction

for about 2 seconds. FF X2 appears in the display. Operating the SEL button

again, the speed of rapid forward/reverse changes according to the disc

as follow:

DVD/VCD/CD/MP3:

Normal Playback 2x 4x 8x 16x

b) In Radio Mode:

Move the SEL button in the direction of or in order to set a radio station

manually. Keep the SEL taste pressed down in the or direction in order to

start the search for a radio station automatically.

12. MOD BUTTON

Press it repeatedly to select TV, AUX IN , RADIO and DISC mode.

During the USB playback, you can press STOP button and then press GOTO

button to select the DISC mode.

13. (EJECT) BUTTON

Press this button to insert and eject the Disc . The operating unit swings down-

wards. Insert the Disc with the labelled side facing upwards gently into the CD

slot until the device draws in the CD/DVD automatically. The operating unit will

automatically swings back to the normal position.

17. AUX IN SOCKET

The operation of the AUX , please see page 16.

18. USB CONNECT LINE SOCKET

The operation of the USB, please see page 18.

19. TFT Display (liquid crystal display)

The operation of the TFT, please see page 17.

16. IR (infrared)

Sensor for the remote control.

14. RESET BUTTON

RESET button is placed on the housing and must be activated with either a

ballpoint pen or thin metal object. The RESET button is to be activated for the

following reasons:

A. Initial installation of the unit when all wiring is completed.

B. All the function buttons do not operate.

C. Error symbol on the display.

15.CLK BUTTON

Press it to change the display to clock display. Press it again to return to previous

display. In clock display, press and hold for about 2 seconds until the hour display

flashes. Rotate the VOL+/- to adjust hours , press CLK button to flash minute

then use VOL+ /VOL- to adjust minutes.

BASIC OPERATION

F. Long Press to play disc in random.

In the DVD/VCD/CD/MP3 disc playing, press the 4/RDM button on the front

panel to play in random (depend on the disc used for VCD).

4/(RDM)

E.Long Press button to scan disc.

a. In the state of CD disc playing, press the 3/INT button to play the previous 6

seconds part of each track/chapter on disc.

b. In the state of Mp3 disc playing, the 3/INT button is not available.

c. In the state of VCD disc playing , long press the 3/INT button, the screen will

display as follow (long press it again will release this mode.):

3/(INT)

SELECT DIGEST TYPE:

TRACK DIGEST

DISC INTERVAL

TRACK INTERVAL

1). you can use the buttons on the remote control to select the item,

and then press the ENTER button to confirm .

2).

You can use the buttons to select the items ,and then press the

ENTERtoconfirm.

You can also select the items using the corresponding number buttons, and

then press the ENTER to confirm .

In Track Digest OR Disc/Track Interval MODE.

// /

d. In the state of DVD disc playing , long press the 3/INT button, the screen will

display as follow (long press it again will release this mode.):

SELECT DIGEST TYPE:

TITLE DIGEST

CHAPTER DIGEST

TITLE INTERVAL

CHAPTER INTERVAL

// /

1). you can use the buttons on the remote control to select the item,

and then press the ENTER button to confirm .

2).

You can use the buttons to select the items ,and then press the

ENTERtoconfirm.

You can also select the items using the corresponding number buttons, and

then press the ENTER to confirm .

In Title/Chapter Digest OR Title/Chapter Interval MODE.

TOP/RPT/INT/RDM FUNCTION (Only for the RC.)

A.To memorize the current frequency, press any one of the six preset buttons[1-6]

on the remote controller hold for more than 2 seconds.

B.To recall the preset memory, press one of the preset buttons [1-6].

C.Press button to select the first track/chapter to play.

a. In the state of VCD/CD/MP3 disc playing, press the button to select the

first track/chapter to play.(depend on the disc used for VCD)

b. In the state of DVD disc playing, the 1TOP button is not available.

D.Press REPEAT button briefly to select repeat mode as follow.

1/(TOP)

REPEAT ALL

CHAPTER REPEAT ON TITLE REPEAT ON

DVD:

REP-ONE REP-ALL

VCD/CD/MP3:

a. Continuously repeat at the current chapter/track, when selected

REP-ONE mode.

b. Select REP-ALL mode to continuously repeat all chapter/track on the

current disc.

c. REPEAT feature does not support VCD2.0 (with PBC ON).

BASIC OPERATION

To connect analogue replay devices. Use this jack to replay sound of other replay

equipment such as DVD players, computers, etc. Via the loudspeakers.

1). Please connect the external device with stereo jack plug the Aux in socket(17).

2). Press the MOD button to select the AUX IN connection.

3). Rotate the VOL+/- to adjust the volume level.

AUX Operation

Scroll Caption Adjustment

You can adjust your desired scroll caption , the method of the operation as follow:

a). Press and hold the SETUP button (for about 2 seconds) on the remote control,

the adjustment scroll bar will display on the screen .

b). Use the VOL+/- to select among of the “A, B, C ....X, Y, Z, and blank ”, and use

the / button on the front panel to ahead/back (proceed/cancel) , and then

press the SETUP button briefly to confirm . (Press the SETUP button longer

again to renew . )

In Radio mode:

1.When inserting an MP3/WMA/JPEG disc.

Ex: When Mp3 file is detected.

MP3/WMA/JPEG DISC PLAY

.Current track(file)(highlighted bar)

.Elapsed playing time of the current

track(

.total playing time.

.Selected playback mode

.Operation mode icon. (Play),

(stop), (pause), (forward)

(reverse).

.Current track (file) number/total

number of tracks(files) in the current

folder.

not available for JPEG disc)

( not available for

JPEG disc)

109 new

.......

I Know my love

00:56 04:07

003/112 Repeat folder

456

03–

05 U-N

Use/// ontheremotecontroltoselect the folder, then press ENTER button

to confirm, A list of files in the folder appears. Use / buttons to select the

desired track and then press ENTER button to start playback.

Pressing REPEAT button repeatedly can select two kinds of repeat play mode.

2.REP-ONE:

Play the same song over and over again.

3.REP -FOLDER:

Play all songs in the discover and over again.

In the playback, use or to skip an item ahead or back.

In the playback, swing the SEL knob in the direction of / button (more than 2

seconds) on the front panel or short press on the remote control to rapid

forward/reverse.

BASIC OPERATION

Rear View Camera

When connecting the rear view camera.the mirror image of the rear view through

the rear view camera is automatically displayed on the monitor when you change

the gear to the back position.(The monitor on the unit only.)

if the parking brake is not engaged,“parking brake” flashes on the monitor,

and no playback picture will be shown. Only the audio will be heard.

-This warning appears only when the parking brake wire is connected to the

parking brake system built in the car. (See page .8)

NOTE(For The Brake Function)

COLOR: 0 to 32

Adjust the color fo the picture-lighter or darker.

BRIGHT:0to32

Adjust if the picture is too bright or too dark.

CONTRAST: 0 to 32

Adjust the contrast of the bright ans dark portion.

TINT:0to32

Adjust the tint if the human skin color is unnatural.

-Adjustable when “NTSC is selected for NTSC/PAL

Adjustable Items:

“““.

(The function of the VOLUME, BASS, TREBLE, BALANCE and FADER, Please

see page 11.)

Video Quality Adjustment

Press SEL button briefly to across the sound/picture mode selection menu

by repeatedly pressing the SEL button you can select the individual menu items

such as volume, bass, treble, balance, fader, color, bright, contrast and tint .

Then rotate the VOL + / - to adjust the selected mode.

(The corresponding value will show on the display.)

Tint Contrast Bright Color BG Color

Volume Bass Treble Balance Fader

MPEG4DISCPLAY

MPEG4 disc is playing as the format

of FILE . For example:

Use/// ontheremotecontrolto

select the item ,then press ENTER button

to confirm, the list of file in the folder appears .

Pressing REPEAT button repeatedly can

select three kinds of repeat play mode.

REP-ONE:

Play the same song over and over again.

REPEAT ALL:

Play all songs in the current directory in sequence, over and over again.

FOLDER REPEAT:

Play all songs in the discover and over again.

In the playback, use or to skip an item ahead or back.

In the playback, swing the SEL knob in the direction of / button on the front

panel and keep more than 2 seconds or short press on the remote control to

rapid forward/reverse.

Viba-chi-39MB

Viba-Eng-39MB

Viba-logfight-39MB

.............

00:56 04:07

002/006 Repeat folder

NEW

BASIC OPERATION

Press the OSD button during playback

to display the contents of the current

disc on the screen.

A.Example for DVD:

a.Press OSD for the first time:

TITLE ELAPSED

TT 01/01 CH 01/38 0:02:06

e.Press OSD for the fifth time:

The message on the screen will be

cleared.

d.Press OSD for the fourth time:

c.Press OSD for the third time:

b.Press OSD for the second time:

TITLE REMAIN

TT 01/01 CH 01/38 3:24:36

CHAPTER ELAPSED

TT 01/01 CH 01/38 0:02:56

CHAPTER REMAIN

TT 01/01 CH 01/38 0:04:32

B.Example for VCD/SVCD/CD:

a.Press OSD for the first time:

b.Press OSD for the second time:

c.Press OSD for the third time:

d.Press OSD for the fourth time:

SINGLE ELAPSED

TRACK 01/16 00:49

SINGLE REMAIN

TRACK 01/16 02:45

TOTAL ELAPSED

TRACK 01/16 00:60

TOTAL REMAIN

TRACK 01/16 78:46

Title Number, Total Title Number,

Chapter Number, Total Chapter

Number of this Title of the disc

currently being played will be shown

on the screen,along with the elapsed

time.

On-Screen Display Function

USB Operation

Following the diagram below, connect

your USB device to the front panel USB

port . If it is properly connected,

the device will be mounted and start

playing automatically.

Changing From USB to DISC Playback

Modes

Changing From DISC to USB Playback

Modes

If you are in USB Playback mode and

wish to begin playback of a disc already

in the player, press the STOP button

once. Then press the GOTO button

and the player will switch to DVD/VCD/

CD/MP3 Playback mode.

If the disc present in the player is an

MP3 disc, press the STOP button once

and press the GOTO button to USB

playback.

If the disc present in the player is an

DVD or VCD or CD disc, press the

STOP button twice and press the

GOTO button to USB playback.

Important Note:

TO PREVENT DAMAGE TO THE USB

DEVICE, DO NOT REMOVE OR

DISCONNECT IT DURING PLAYBACK.

It is also a good practice to remove

the USB drive during disc playback.

In USB Playback mode

REPEAT

Use the UP, DOWN, RIGHT or LEFT

buttons to navigate to and select files

to play, and press ENTER to begin

playback (or viewing, in the case of

JPEG files). To skip to the next or

last track, press the or buttons.

Press the or buttons for Fast

Forward or Fast Reverse playback.

play modes are also available

by repeatedly pushing until

the desired mode is found.

(USB connect line)

USB port

e.Press for the fifth time:

The message on the screen will be

cleared for SVCD and VCD.

C.Example for MP3:

Each time OSD is pressed, the

message displayed on screen changes

as follows:

OSD

SINGLE ELAPSED SINGLE REMAIN

BASIC OPERATION

Multi-audio Language Function

For DVD:

AUDIOPress during playback.

Each time the button is pressed,

number of the audio soundtrack

language changes on sequential order.

NOTES:

- The language number is different

according to the disc.

- Some disc only contain one language

soundtrack

- When no different language

soundtrack are recorded will be

display at screen left top corner.

MONO LEFT MONO RIGHT

STEREO

MIX-MONO

For VCD/CD:

AUDIOPress during playback. It is

possible to switch the sound between

monaural and stereo sound.

Title Menu Function

For DVD:

TITLE

If the DVD has multiple titles recorded

on the disc. It can select preferred title

from the title menu to start playback.

- Press during playback.The title

menu is display.

- Press the cursor button shown in TV

screen, select preferred title by the

cursor button and confirmed by

ENTER key.

For VCD:

TITLE/PBCPress button on the remote

control while the disc is playing, you can

switch between "PBC on"and "PBC off"

mode.

Press during playback.

Each time the button is pressed, number of

the subtitle language changes in

sequential order.

Multi-subtitle Language

(for DVD Only)

Function

SUBTITLE

1.Connect the TV antenna to the TV.IN

(from Ant) jack on the back of the unit.

2. Press the mode button on the remote

control to select the TV mode.

Press the SEARCH button on the remote

controller to star search channel

automatically.

- Press the / button to choose the

channel upward and downward.

- The numeric button (0-9) allow you to

select the corresponding channel directly.

Note:

In TV mode, the +10 button is not available.

You can press / button on the remote

controller to fine TV channel. It can be

improve the picture quality .

In TV mode ,after search channel

automatically, when you want delete the

no sign channel, press the SKIP button (the

screen display SKIP),the channel will be

deleted. Also, you can press numeric button

to select channel, then press SKIP to add

channel(the screen display SAVE).

TV Operation

Switching to TV mode

Auto searching TV channels

Selecting channel

Fine TV channel

Channel ADD/DEL

Multi-angle Function

(for DVD Only)

Press ANGLE during playback. Each

time the button is pressed, number of

the angle changes in sequential order.

Notes:

- The angle number is different

according to the disc.

- The function only work for disc having

scenes recorded at different angles.

- When no different angle are recorded,

will be displayed at screen left top

corner.

Notes:

- The language number is different

according to the disc.

- Some discs only contain one subtitle

language.

- When no different subtitle language

are recorded, will be displayed

at screen left top corner.

Table of contents

Other Innovatek Car Video System manuals

Innovatek

Innovatek IN-431B User manual

Innovatek

Innovatek IN-432B User manual

Innovatek

Innovatek IN-435BTS User manual

Innovatek

Innovatek IN-431BTS User manual

Innovatek

Innovatek IN-433B User manual

Innovatek IN-403DTM User manual

Popular Car Video System manuals by other brands
