Rosen A7 User manual

A7 DVD Entertainment System
Owner's Manual
R
.mp3
a new generation of leadership in mobile video
ROSEN

WIDE
RES
SURROUND
SOUND

NOTICEOFINTENDEDUSE
ROSENENTERTAINMENTSYSTEMSAREDESIGNEDTO
ENABLEVIEWINGOFVIDEORECORDINGSONLYFORREAR-
SEATOCCUPANTS.
MOBILEVIDEOPRODUCTS ARENOTINTENDED FORVIEW-
INGBYTHEDRIVERWHILE THEVEHICLEIS INMOTION.
SUCHUSEMAYDISTRACTTHE DRIVERORINTERFEREWITH
THEDRIVER’SSAFEOPERATIONOFTHEVEHICLE,AND
THUSRESULTINSERIOUSINJURYORDEATH.SUCHUSE
MAYALSO VIOLATESTATELAW.
ROSENENTERTAINMENTSYSTEMSDISCLAIMSANYLIABIL-
ITYFORANYBODILYINJURYORPROPERTYDAMAGETHAT
MAYRESULTFROMANYIMPROPERORUNINTENDEDUSE.
About the Registered Marks
This product incorporates copyright protection technology that is
protected by method claims of certain U.S. patents and other
intellectual property rights owned by Macrovision Corporation and
other rights owners. Use of this copyright protection technology must
be authorized by Macrovision Corporation, and is intended for home
and other limited viewing uses only unless otherwise authorized by
Macrovision Corporation. Reverse engineering or disassembly is
prohibited.
NOTICES

Table of Contents
Getting Started................................................................................................................................................................................................ 4
Switching On, Lowering and Adjusting the Screen, Finding the Remote Control ButtonsYou Need, Listening Over the Vehicle Speakers
Introduction .................................................................................................................................................................................................... 6
Discs Played by the A7 .................................................................................................................................................................................. 7
Changing Monitor Settings............................................................................................................................................................................ 8
Using the Dome Lights ................................................................................................................................................................................. 8
Using the Remote Control ............................................................................................................................................................................ 9
Basic Remote Control Buttons ................................................................................................................................................................... 10
Using Menu and Navigation Buttons ...........................................................................................................................................................11
Using Audio Buttons .....................................................................................................................................................................................11
Using DVD Disc Feature Buttons ............................................................................................................................................................... 12
Changing the Shape and Size of the Image .............................................................................................................................................. 12
Changing the Remote Battery..................................................................................................................................................................... 12
Audio CD and MP3 Playback....................................................................................................................................................................... 13
Rosen Entertainment Sound ...................................................................................................................................................................... 14
Using the Headphones ............................................................................................................................................................................... 15
Listening Over the Car Speakers ................................................................................................................................................................ 16
Watching Broadcast Television (with Tuner-equipped systems) ............................................................................................................. 16
Using Games and Camcorders ................................................................................................................................................................. 17
Optional Accessories for your A7................................................................................................................................................................. 17
What Can I Do About Black Bars On the Screen? ...................................................................................................................................... 18
Changing DVD Setup .................................................................................................................................................................................. 20
Troubleshooting........................................................................................................................................................................................... 23

Switching On, Lowering and Adjusting the Screen
Use the system when your vehicle is running, or with the
ignition key switch in the “accessory” position.
Press the OPEN button, as shown. The screen lowers and
powers on automatically. To adjust the viewing position, rotate
the adjustment knob.

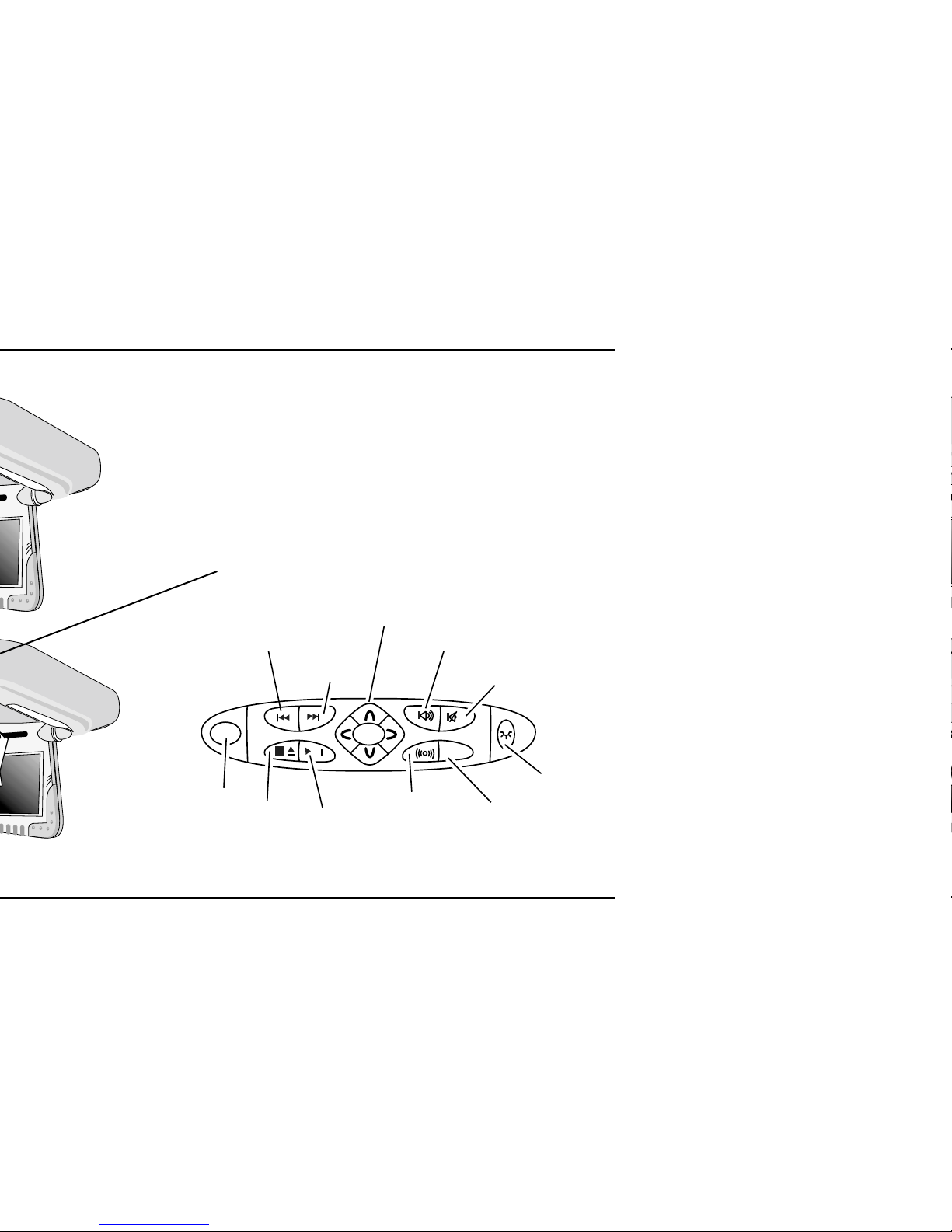

The Front Panel Controls of the A7
Previous
Next
Navigation
Keys Speaker
On/Off
Mute
Rosen
Entertainment
Sound Source
Select
Play/
Pause
Stop/
Eject
Open
ENTER
OPEN
SOURCE
Dome Light
GETTING STARTED USING YOUR A7

Watching Video
To Watch a DVD:
1 Press EJECT to remove any loaded disc.
2 Insert a DVD onto the slot, label side up.
3 For most DVDs, playback begins automatically. If not, press
PLAY or ENTER as instructed on screen (this varies by DVD).
To Watch Broadcast Television (with optional TV tuner):
1 Press SOURCE until “TV Tuner “ and a channel number (for
example, “2”) appear on the screen.
2 To change channels, press NEXT or PREVIOUS on the front
panel, or UP CH and DOWN CH on the remote.
To Use Another Video Source (optional video game or camcorder):
1 Connect the RCA audio and video outputs of the device to the
RCA inputs of the A7 (check with your Authorized Rosen
dealer for the location of these connectors).
2 Press SOURCE until “Auxiliary Input” appears on the screen.
Listening Over the Vehicle Speakers
1 Press SPEAKER. “Speaker Sound Enabled” will appear on the
screen. (If “Headphone Sound Only” appears, press again.)
2 Turn on the car radio. Make sure A7 MUTE is off. Tune to FM
frequency 87.9. If no A7 audio is heard, try tuning in 88.3.
Using the Dome Lights
1 Press the DOME LIGHT button to turn the dome lights on or off.
Note: To prevent battery drain, the dome light automatically
shuts off after 5 minutes of use.
Inserting a disc
Activating the Dome Light
(Note: The ignition key switch must be in the Run or Accessory position)

6
Rosen A7 Owner’s Manual
INTRODUCTION
Welcome to the Rosen A7 Vehicle Entertainment System Owner’s
Manual. To get the most enjoyment from using your A7 system,
please make sure that you and your passengers take time to read
these instructions.
Your system includes the following components:
· An 7.0” widescreen flat panel display
· An internal DVD/CD/MP3 Player
· Wireless Infrared (IR) Headphones (2 pair)
· A Remote Control
· A Stereo FM Modulator (lets A7 sound be heard over your
vehicle’s speakers)
· Other parts and cables installed out of sight in your vehicle
Precautions
In order to operate the player,
the vehicle ignition key switch
must be in the ACC or engine ON position.
WARNING!
Operate the system with the engine
running, if possible. To avoid a dead
battery, do not use the system for long
periods of time without starting the
engine.
•Use this system only if properly installed by a qualified installer.
•If the units show signs of overheating or malfunction, power off
the unit and consult your dealer immediately.
•Do not open the unit - there are no serviceable parts inside.
•Do not press on the display surface; this can damage it.
•Clean the LCD panel with a slightly damp, soft cloth using
household glass cleaner. Do not use solvents such as benzene,
thinner, or commercially available cleaners.
•If your car was parked in a very cold or very hot place, the
picture may not be clear. The A7 system is not damaged. The
picture will become clear after the temperature returns to normal.
•When using portable radios and telephones near the system,
picture or sound interference may occur.
Notes:
The system’s operating voltage range is 11-16VDC operat-
ing voltage. The system operating temperature is 0oto 50o
Celsius. Use of the A7 system beyond the safe operating
ranges listed can cause temporary or permanent damage to
the unit, and such damage may not covered by the
manufacturer’s warranty.
Adjust volume using the volume control on the headphones
or the vehicle radio. There is no volume control on the A7
remote or on the overhead console.
ACC or engine
ON position

7
Rosen Entertainment Systems
DISCS PLAYED BY THEA7
Compatible Discs
DVD, Video CD (VCD), CD/CD-R, and MP3 discs are compatible with
the A7. The identifying logo and description of each disc type is given
below.
DVD 12 cm disc/8 cm disc
(single-sided disc only)
VideoCD 12 cm disc/8 cm disc
CD/CD-R,MP3 12 cm disc/8 cm disc
DVDRegions
This digital media player is designed and manufactured to respond to
the Region Management Information that is recorded on a DVD disc. If
the Region number described on the DVD disc does not correspond
to the Region number of this player (Region 1), it will not be able to
play the DVD disc. Some DVD discs are manufactured to operate in
“all” zones, and those discs are compatible with the A7.
Region Icons:
Incompatible Discs:
The following disc types are incompatible:
· DVD-ROM
· DVD-R/DVD-RW/DVD-RAM
· PhotoCD
· CD-ROM (Excluding most CD-Recordable discs using MP3 or CD-A
formats)
· CD-Audio manufactured with certain copy protection methods
· Any DVD with a Region number other than “1” and “ALL”
ALL
146
1

8
Rosen A7 Owner’s Manual
Changing Monitor Settings
Display Adjustments: The A7 monitor has adjustable video settings.
To change these settings, press the ENTER button on the overhead
console and hold it for two seconds. A menu with the following
options appears:
COLOR (32)
CONTRAST (32)
BRIGHT (32)
TINT (32)
To select a setting to be changed: Press the DOWN button to move
the cursor down the menu list (it will cycle back to the the top).
To change the value of a setting: Use the LEFT and RIGHT arrow
buttons to decrease and increase the value of the setting. The range
is zero to 63, with 32 as the default.
To exit the menu: Press the ENTER button to save the settings and
exit the menu.

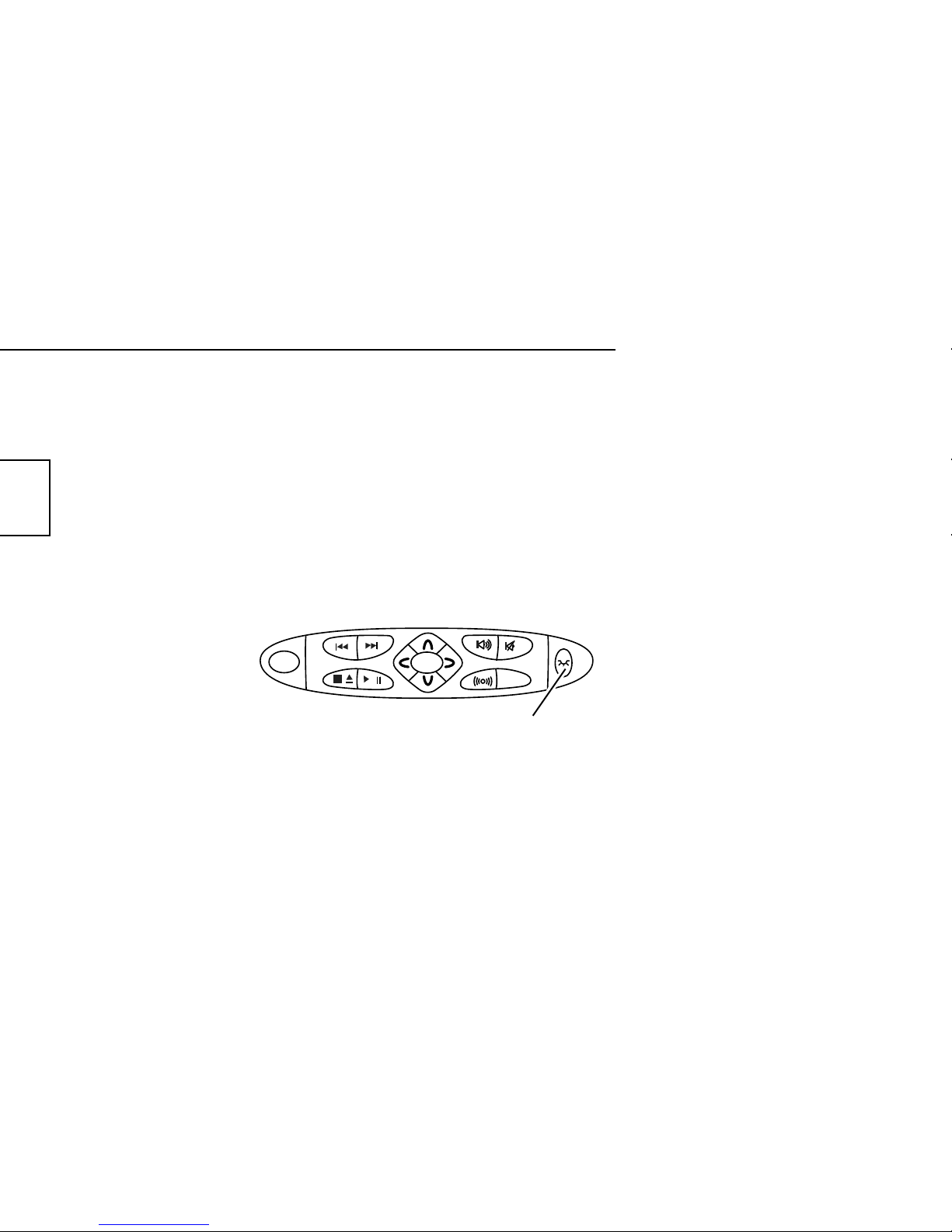

Selecting among various display modes: The A7 has a
“widescreen” display, with a 16:9 aspect ratio (the same aspect ratio
as high-definition televisions).
•To view widescreen DVD’s, press the DISPLAY MODE button
until “Wide” is displayed on the screen.
•To watch “fullscreen” DVD’s or broadcast television (using an
optional TV tuner), press until “Standard” is displayed.
•To stretch the picture to take up more of the screen, select the
“Stretch” mode.
Note: While it is not technically a “monitor” setting, the
internal DVD player can be configured for either a widescreen
16:9 output compatible with the 7” screen, or for a a standard
4:3 output. Using the correct “WIDE” setting will eliminate or
greatly reduce the “black bars” on the top and bottom of the
screen when viewing a widescreen DVD. See page 18 more
more information.
Using the Dome Lights
The A7 has built-in dome lights for interior illumination. In many
vehicles, this feature replaces an original factory dome light, which is
sometimes displaced by installation of the A7 system.
The dome lights are controlled by the Dome Light button on the front
panel of the A7.
ENTER
OPEN
SOURCE
Dome Light
Note: Some vehicles have a dome light dimming feature that
causes the dome light to fade out gradually. The system dome
light may not fade in the exact manner as the factory dome
light, but will still turn on and off normally in conjunction with
the use of the vehicle’s doors. This is proper operation for the
system. If you have any questions, contact your Rosen
authorized dealer.

9
Rosen Entertainment Systems
USINGTHE REMOTE CONTROL
You can use the A7 remote control or the front-panel controls to
operate the system. The remote control offers more functionality than
the front-panel controls. Always aim the remote control at the A7
control panel - it contains the infrared sensor. For definitions of each
remote control button’s specific function, see the following sections
of this manual.

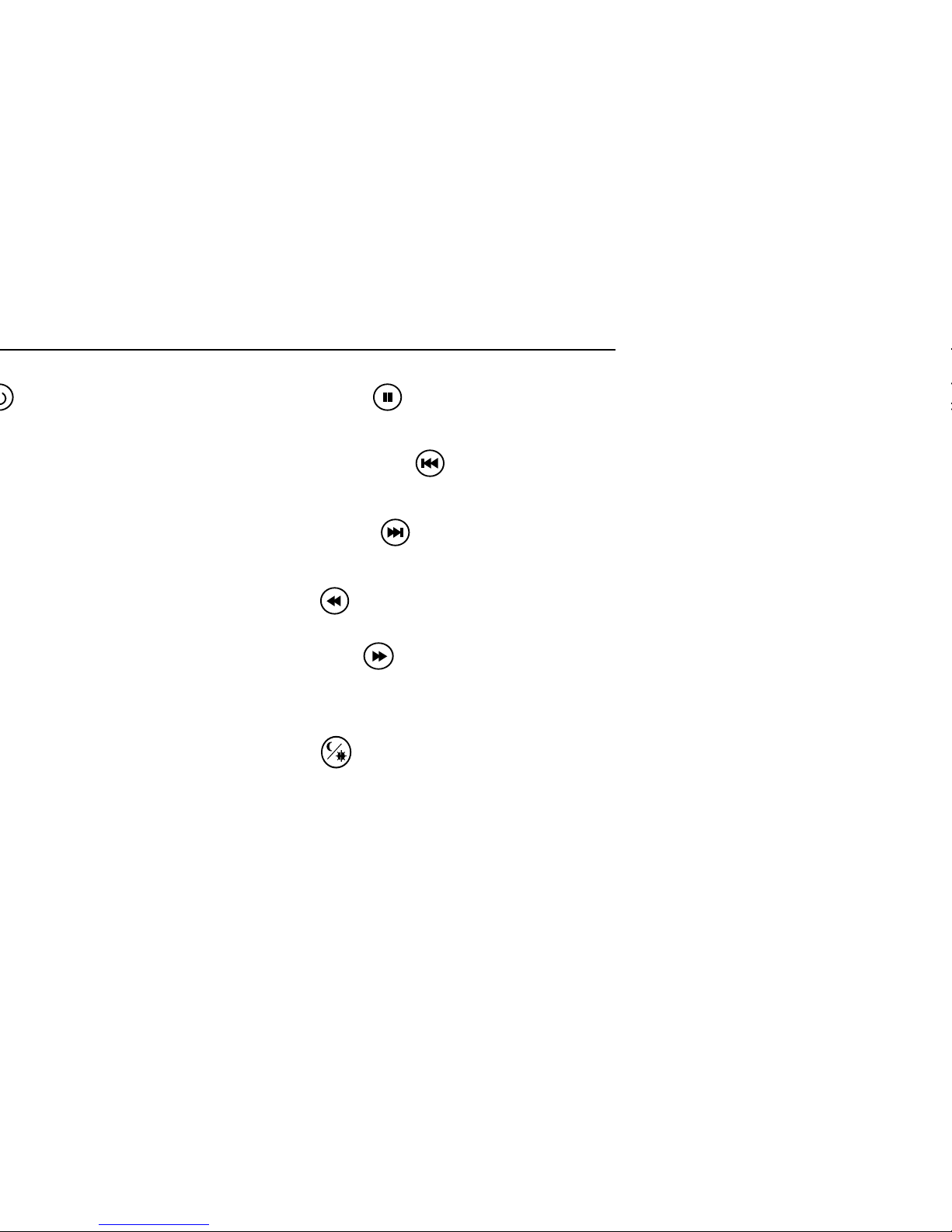

1 Optional Source Unit Power 15 Info
2 Pause 16 Eject
3 Stop 17 Navigate left
4 Play 18 Enter
5 Previous Chapter/Track 19 Navigate Right
6 Reverse 20 Subtitle
7 Fast forward 21 Source Menu
8 Next Chapter/Track 22 Navigate Down
9 Speaker on/off 23 Disc Menu
10 Rosen Entertainment Sound 24 Disc Zoom
11 Surround Sound 25 No function
12 Mute 26 Day/night
13 Source select 27 Random play
14 Navigate up 28 Display Mode
If you try to perform a DVD action that is not permitted (such as
accessing the disc menu while the disc is loading), the on-screen
display will use the following symbol:
SOURCE
+
DISC
ZOOM
DISC
MENU
CH
CH
SOURCE
MENU
ENTER
DISPLAY
RANDOM
INFO
ROSEN
MODE
PLAY
SUB
TITLE
RES
EJECT
1 2 3 4
5 6 7 8
9 10 11 12
13 14 15 16
17 18 19 20
21
25 26 27 28
22 23 24

10
Rosen A7 Owner’s Manual
BASICREMOTECONTROLBUTTONS
1 Optional Source Unit Power
This button controls some optional source units.
Note: The A7 automatically turns on and off when the monitor is
opened and closed.
4 Play
Press to begin or resume playback of a DVD.
Note: DVD playback varies from disc to disc. When the disc
is first inserted, you may have to press PLAY or ENTER to
begin playback.
3 Stop
Press once to temporarily stop playback of a DVD. To resume normal
playback from the same point, press PLAY.
Press STOP twice and then press PLAY to begin playback from the
beginning of the disc.
Note: When STOP is pressed twice, the A7 cannot return to
the exact point and resume playback - it can only begin
playing from the beginning of the disc.
16 Eject
Press to eject a DVD or CD.
BASICBUTTONS, CONTINUED
2 Pause/Frame Step
Press once to pause playback or press repeatedly to advance video
frame by frame. To resume normal playback, press PLAY.
5 Previous Chapter/Track
Press to jump to the previous title or chapter, if available on a DVD, or
to the previous track on an audio CD.
8 Next Chapter/Track
Press to jump to the next title or chapter, if available on a DVD, or to
the next track on an audio CD.
6 Reverse
Press to search in reverse. To resume normal playback, press PLAY.
7 Forward/Search
Press during playback to fast forward. Press the RIGHT and LEFT
arrow buttons to adjust search direction and speed. Options include
2x, 4x, 6x, 8x, 12x, 16x, 32x, and 64x. Press PLAY to resume regular
play.
25 Day/Night
This button decreases the brightness of the display, optimizing the
picture brightness for low-light conditions, and making nighttime
viewing more comfortable. Set the Brightness setting on page 8 for
daylight viewing, and then use this button to select Night mode when
viewing at night.
EJECT

11
Rosen Entertainment Systems
USINGMENUANDNAVIGATIONBUTTONS
13 Source
Press to choose between the DVD/CD drive or the Auxiliary input.
This button also is used to access the optional TV Tuner,
VideoCassette Player, or other optional auxiliary sources.
14, 22 Up/Down Arrows
Press to move up or down in a menu or to change channel when
watching TV.
17, 19 Left/Right Arrows
Press to move left or right in a menu.
18 Enter
Press to make a menu selection.
21 Source Menu
Use to personalize operation of your DVD player or VCR. For more
information, see “Changing DVD Player or VCR Setup”.
15 Info
Press to view the status, current title number, track number and the
total playing time of the disc on the monitor.
Note: If the DVD Player is selected and there is no disc
loaded, pressing the INFO button will display the software
version of the A7. This is for the use of factory personnel.
USINGAUDIO BUTTONS
9 Speaker Sound
Press this button to hear A7 audio through the car speakers; Speaker
Sound On appears on the screen. Headphone audio is not affected.
Press again to hear A7 audio only through the headphones; Head-
phone Audio Only appears on the screen. Refer to “Using the
Headphones” and “Listening Over the Car Speakers” for more details.
Note: The Speaker button on the control panel performs the
same function.
10 Rosen Entertainment Sound Processing
This button turns on and off the Rosen Entertainment Sound
Processing. With RES turned on, dialogue is automatically louder and
easier to hear, while loud passages, such as special effects, are
automatically lowered slightly. RES provides the best listening
experience inside a car, with headphones or over the speakers.
11 Rosen Entertainment Surround-sound
This button turns on and off the Rosen Entertainment Surround-
sound. Rosen Surround-sound is optimized for headphone listening.
Note: This button on the front control panel controls both
Surround-sound and Sound Processing.
12 Mute
Press once to mute the audio. As long as the Mute function is active,
“Mute” will appear on the screen. Press again to turn Mute off.
Note: The Mute button on the control panel performs the same
function.
SOURCE
CH
CH
+
ENTER
SOURCE
MENU
INFO
RES

12
Rosen A7 Owner’s Manual
USINGDVD DISCFEATURE BUTTONS
Some DVDs include menu and viewing options. Use the following
buttons to access DVD-only menus and features.
20 Subtitle
Press repeatedly to cycle through the language options available on
the DVD being played.
23 Disc Menu
Press to see the main menu for the DVD being played. To resume
normal playback, press PLAY.
CHANGINGTHE SHAPEAND SIZE OF THE IMAGE
24 Disc Zoom
View the same scene at different magnifications.
1 Press the DISC ZOOM button during playback to select among the
following options: x1.5, x2, and x4.
2 Press the arrow buttons to shift the magnified section of the
screen.
3 To resume normal playback, press DISC ZOOM until “Zoom off” is
displayed.
28 Display Mode
This button selects among various display modes. The A7 has a
“widescreen” display, with a 16:9 aspect ratio (the same aspect ratio
as high-definition televisions).
•To view widescreen DVD’s, press this button until “Wide” is
displayed on the screen.
•To watch “fullscreen” DVD’s or broadcast television (using an
optional TV tuner), press until “Standard” is displayed.
•To stretch the picture to take up more of the screen, select the
“Stretch” mode.
•To zoom the picture, select the “Zoom” mode.
Note: For best results when zooming in on DVD images, use the
Disc Zoom feature instead of the “Zoom” Display Mode.
For more information about display modes and image
shapes, see “Why the Black Bars?” on page 18.
REPLACINGTHEREMOTEBATTERY
Use a single 3V battery, type CR2025. Insert as shown. Observe the
correct orientation of the battery as marked on the battery tray.
Battery life is approximately six months, depending on how often the
remote is used.
SUB
TITLE
DISC
MENU
DISC
ZOOM
DISPLAY
MODE

13
Rosen Entertainment Systems
CDAUDIOAND MP3 PLAYBACK
CD Playback
When an Audio CD is inserted, “CD” will appear on the screen. To
display track information, press INFO. To play the tracks in a random
order, press RANDOM PLAY.
MP3 Playback
When a compact disc with MP3 files is inserted, the SMART NAVI
screen will appear. To conceal the SMART NAVI screen, see the
“DVD Setup Menu” section. Each folder and file will be shown (the
order may be slightly different than that on your PC). Navigate the
files and folders using the navigation arrow keys, and select a file or
folder to be played by using the ENTER button. To move to the next
file or the previous file, use the NEXT and PREVIOUS buttons.
MP3 Disc Recording and File Extensions
When recording a CD with MP3 files to be played on the A7, always
add a file extension “ .MP3” or “.mp3”to MP3 files by using single-
byte letters. If you add a different file extension, or forget to add the
file extension “ .MP3” or “.mp3,” the file cannot be played. In
addition, if you use upper case and lower case letters (capital and
small letters) mixed together for file extensions, the file may not play.
Notes:
·Some CDs recorded in CD-R or CD-RW mode may not play.
·Files saved without MP3 data will not play.
When recording Audio CDs or MP3 files, make sure to check
your CD recorder’s level setting - too high a level will result in
distorted sound.
ROOT 0
MP3 (ARTIST NAME) 1
- - SMART NAVI - -
MP3 (ARTIST NAME) 3
ROOT
MP3 (ARTIST NAME) 2
ARTIST NAME - SONG TITLE
Three repeat modes are available for MP3 use:
· NOREPEAT
· REP – ONE repeats the current file
· FOLDER REP repeats the current folder
Supported MP3 File Formats
·ISO9660, level 1 and level 2 (the most common type of MP3
format)
· Joliet (a version of ISO9660 that supports longer filenames)
· Romeo (a format used by some CD-creating software)

14
Rosen A7 Owner’s Manual
Background noise loor
Dynamic limit o headphones and most car audio systems
DVD movie
sound levels
without RES
DVD movie so nd
levels with RES
Soundtrack dialogue
Sound-e ects
dynamic peaks
ROSENENTERTAINMENTSOUND
What makes the Rosen A7 DVD sound better than any other “in-car
entertainment” system? A collection of unique audio features that we
call Rosen Entertainment Sound. Rosen engineers know that true
entertainment isn’t just visual – you’ve got to have great sound! You
won’t find this collection of sonic improvements anywhere but Rosen.
RES Surround-sound. (DVD audio only).While many of us have
home theatre systems with center-channel speakers and subwoofers,
Rosen knows that most of us don’t have that luxury in our vehicles. So
Rosen’s surround-sound circuitry re-creates surround effects when
watching movies – even when using headphones!
RES Sound Processing. (DVD audio only). Movie soundtracks were
meant to be heard in a quiet theatre using a powerful, multi-channel
sound system – not in a moving car with a four-speaker stereo! The
dialogue can be difficult to hear over road noise, and the most dynamic
portions of the soundtrack often overpower the car’s sound system.
With RES Sound Processing turned on, dialogue is automatically louder
and easier to hear, while loud passages, such as special effects, are
automatically lowered slightly. RES provides the best listening experi-
ence inside a car, whether you are listening through the car speakers
or wearing headphones. RES Sound Processing retains the original
fidelity of the soundtrack, acoustically compensated for your vehicle. It
also makes headphone listening even more enjoyable and comfortable.
RES True Two-Channel Stereo. RES uses stereo audio all the way
through the signal chain – even in the FM modulator, a place where
many manufacturers save money and use only mono components.
Rosen believes that in the age of digital multi-channel cinema sound,
two-channel stereo is the minimum acceptable audio solution for DVD
enjoyment.
RES Audio Overdrive. Most “automotive” DVD players operate on 12
volts, and that’s about all that makes them “automotive”. Their DVD chips
put out very low audio output voltages – maybe enough in a home
system, but not enough for use in the challenging electrical environment
of the automobile. RES A7 systems have what we call Audio Overdrive
– we almost double the audio voltage level from the DVD drive on the
way to the rest of the system. Not only is sound quality improved, but
the chances of picking up electrical noise are greatly reduced.

15
Rosen Entertainment Systems
USINGTHEHEADPHONES
Using the headphones allows rear-seat passengers to listen to their
DVD, CD, video cassette, or video game without disturbing front-seat
passengers. When headphones are in use, front-seat passengers
can use the vehicle’s audio system as usual through the car
speakers by pressing the SPEAKER button until “Headphone Sound
Only” appears on the screen.
The system comes with wireless IR headphones that receive a signal
from an IR transmitter concealed in the frame around the display.
Power LED
Volume Power ON/OFF
To turn the headphones on and off, push the Power ON/OFF button
on the right ear piece. The Power LED on the left ear piece indicates
when headphone power is on. Power turns off automatically after
three minutes of no audio to preserve battery life.
To adjust the headphone volume,rotate the thumb wheel switch on
the headphones.
The wireless IR headphones require two AAA batteries. To replace
the batteries, remove the battery compartment cap on the right
earpiece and insert batteries, as shown.

16
Rosen A7 Owner’s Manual
WATCHING BROADCASTTELEVISION
(ON TV TUNER-EQUIPPED SYSTEMS)
You can watch television or videotapes on the A7 if you have
installed the optional AC3105 TV Tuner or R5000-series VCP, and the
AC3024 TV/VCP harness (not included).
Note: Broadcast television reception varies with location,
terrain, distance from the broadcast tower, and other factors.
Signal quality is likely to vary in a moving vehicle.
1 Press SOURCE to select the “TV Tuner” input. “TV Tuner” and a
channel number (for example, “2”) will appear on the screen.
2 Press the UP CH and DOWN CH arrow buttons on the remote to
change channels. You can also use the UP and DOWN arrows on
the front control panel.
3 To scan all available channels, press SOURCE MENU.
Note: To watch broadcast television or videotapes in their
original format, press the DISPLAY MODE button on the
remote control until “Standard” is displayed on the screen.
This will properly size the image, instead of stretching the
image across the A7 wide screen. In “Standard” mode, you
will see black bars on the sides of the image, like this:
LISTENINGOVER THE CAR SPEAKERS
The A7 uses an FM Modulator to send audio through the vehicle radio
and thus through the speakers. To listen to A7 system audio through
your car speakers:
1 Press SPEAKER. “Speaker Sound Enabled” will appear on the
screen. (If “Headphone Sound Only” appears, press SPEAKER
again.)
2 Turn on the car radio. Make sure A7 MUTE is off. Tune to FM
frequency 87.9. If no A7 audio is heard, try tuning in 88.3.
To turn off A7 system audio over the car speakers, press SPEAKER.
“Headphone Sound Only” appears on the screen. Audio from the A7
system is then heard only over the headphones.
The A7 remembers which mode you have selected, and will return to
that mode each time the system is turned on. You may want to store
the FM Modulator frequency as a preset on your radio for ease of
use. This will be either 87.9 or 88.3 FM.
Note: When the FM Modulator is on, you may notice some
reduced radio reception. When the system is off, the FM
Modulator also turns off. To listen to the radio when the A7 is
not in use, close the A7 monitor, and both the A7 system and
the FM Modulator will turn off.
Note: If there seems to be a strong station on the FM
Modulator frequency, your Rosen authorized dealer can
switch the system to the alternate frequency.

17
Rosen Entertainment Systems
USINGGAMESAND CAMCORDERS
You may use video games, camcorders, and other portable video
units by connecting the unit to the auxiliary RCA input cables of the
A7. Check with your Rosen authorized dealer for the location of
these RCA jacks.
Red—Right channel audio input
White—Left channel audio input
Yellow—Video input
Press SOURCE to select the “Auxiliary Input”.
To use a game system, a 12VDC to 110VAC power inverter, available
at most electronic retail stores, is often required.
Note: If you want to watch non-widescreen, 4:3 images, press
the DISPLAY MODE button on the remote control until
“Standard” is displayed on the screen. This will properly size
the image, instead of stretching the image across the A7 wide
screen. In “Standard” mode, you will see black bars on the
sides of the image, like this:
OPTIONALROSEN ACCESSORIES FOR YOUR A7
The following Rosen acessories are available for your A7. Most of
these require some installation parts and labor - check with your
authorized Rosen dealer for details.
AC3105 TV Tuner
The AC3105 TV Tuner receives VHF and UHF television broadcasts.
It requires a TV antenna (not included). When installed using the A7
TV/VCP Harness (AC3024, not included), the AC3105 is controlled by
the A7 remote control.
R5000-series Videocassette Player
The R5000 series of videocassette players play VHS videotapes.
When connected to the A7 using the AC3024 harness (not included),
the VCP is controlled by the A7 remote control. When using the VCP,
thePLAY,PAUSE, EJECT,FORWARD,REVERSE,SOURCEMENU,
and INFO buttons all operate the VCP. For more information, see the
VCP Owner’s Manual.
CV7200 add-on second display screen for A7
You can add a matching 7” wide screen display to your A7. This
second screen can be used in a third row of seats, or the A7 and the
CV7200 can be installed side-by-side. While almost any monitor can
be used with your A7, only the CV7200 completely integrates
functionally and visually with the A7 system. This makes using your
A7 and CV7200 together truly seamless.
AC3003 Infrared Wireless Headphones
AC3205 Remote Control
Additional headphones and remotes are available from your autho-
rized Rosen dealer.

18
Rosen A7 Owner’s Manual
Motion picture film and cameras, and later
television screens, were originally designed
around a screen size that was almost square - it
was one-third wider than it was high (another
way to say this is that it had a width-to-height
ratio, or aspect ratio, of 4:3. This ratio, 4:3 can
also be expressed as 1.66:1.)
When widescreen movies such as
Cinemascope and Panavision became
popular, new aspect ratios were used
for them - 1.78:1, 2.35:1, and even 2.4:1.
When high-definition television was
developed, a screen shape with an aspect
ratio of 16:9, or 1.85:1, was selected as the
best compromise for viewing widescreen
images.
When you watch widescreen movies on a
standard 4:3 television, there are “black bars”
on the top and bottom of the screen. This is
often called a “letterbox” image.
Your A7 uses a widescreen 16:9, or 1.85:1
display - the same aspect ratio as high-
definition televisions. This means that when
viewing widescreen DVD’s, these black bars
are either non-existent, or greatly minimized.
WHY ARE THE BLACK BARS STILL THERE SOMETIMES?
There are three possible reasons for black bars to appear on the top
and bottom of your A7 display:
1) You are watching a widescreen movie with an aspect ratio
greater than 1.85:1. (For more options on dealing with this, see
below). Check the disc jewel box to determine the DVD’s aspect
ratio.
2) The DVD section of the A7 has been set for a 4:3 display instead
of a 16:9 wide display. See the next page for how to correct this.
3) The “widescreen” DVD movie you are viewing is not “anamorphic”
or “enhanced for widescreen televisions”. These films, often older
DVD conversions, are not recommended for widescreen displays.
You can usually determine if your DVD was produced for optimum
compatibility with widescreen televisions by looking for the word
“anamorphic” or the phrase “enhanced for widescreen televisions”
on the box.
WHAT CAN I DO?
First, Rosen recommends that for best results you use DVD’s that
say “anamorphic” or “enhanced for widescreen televisions” on the
box . However, your A7 can get rid of black bars with just about any
DVD using Rosen’s exclusive image-sizing features, explained below.
Only Rosen gives you so many wide-screen-filling options!
4:3
1.66:1
16:9
1.85:1
WHAT CAN I DO ABOUT BLACK BARS ON THE
SCREEN?
Letterbox
Widescreen

19
Rosen Entertainment Systems
Make sure that the A7 internal DVD player is set to “WIDE”
(see DVD Setup, page 20).
Use the Display Mode button to select “Wide” or “Stretch”.
•To view widescreen DVD’s, use “Wide”.
•To stretch the picture to take up more of the screen, use“Stretch”.
•To zoom the picture, use the “Zoom” mode.
Note: for best results when zooming in on DVD images, use
the Disc Zoom feature below instead of the “Zoom” Display
Mode.
Finally, use the Disc Zoom feature to completely fill the
screen.
1 Press the DISC ZOOM button during playback to select among
the following options: x1.5, x2, and x4.
2 Press the arrow buttons to shift the magnified image left and right.
Note: To watch “fullscreen” DVD’s or broadcast television (using
an optional TV tuner), you can use the DISPLAY MODE button to
select “Standard”. This will properly size the image, instead of
stretching the image across the wide screen. In “Standard” mode,
you will see black bars on the sides of the image, like this:

20
Rosen A7 Owner’s Manual
The Digital Output Setting
There is a setting in the menu for a
Digital Audio output. The A7 does not
have a digital audio output. Leave this
setting in the “Analog” mode.
Note: Enabling the Digital Audio
mode disables the analog audio
output used by the FM Modulator
and the IR headphones, and can
resemble a system audio failure.
AUDIO OUT
MAIN PAGE
ANALOG
SPDIF/RAW
-- AUDIO SETUP --
SPDIF/PCM
DUAL MONO
LPCM OUT
OP MODE
DYNAMIC
PRO LOGIC
Changing the Aspect Ratio Mode
This is under the “GENERAL” tab. The
correct setting for the A7 is “WIDE”.
Changing this setting to “NORMAL/PS”
or “NORMAL/LB” will result in distorted
video.
Changing the Video Output Mode
To change the video output mode,
select GENERAL, and then select TV
TYPE. The default is MULTI. If you
experience problems playing a PAL disc
on your NTSC monitors, select NTSC.
TV DISPLAY
OP MODE
ANGLE MARK
OSD LANG
MAIN PAGE
NORMAL/LB
WIDE
- - GENERAL PAGE - -
NORMAL/PS
CAPTIONS
SCR SAVER
DISC MENU
SUBTITLE
LOCALE
PARENTAL
- - PREFERENCES PAGE - -
TV TYPE
NTSC
PA L
MULTI
AUDIO
SUBTITLE
Note: The default setting “MULTI” will automatically
output NTSC video from NTSC discs, and PAL video
from PAL discs. NTSC is the North American standard.
DVDTYPICALSETUPAND CONFIGURATION
The following section explains how to customize various features of
the A7’s DVD Player, including various language, display, and parental
control features.
Note: Many DVD menu settings do not apply to the A7 system,
since it is specifically engineered for automotive use.
Changing the state of some settings can cause apparent
system failure. If you have questions about the original state
of any DVD setting, please see the list on page 22.
To change the settings for your A7 DVD Player:
1 PressSOURCE SETUP.
2 Use the navigation arrow buttons to highlight a selection.
3 Press the ENTER button to confirm your selection.
AUDIO SETUP
GENERAL SETUP
SPEAKER SETUP
PREFERENCES
EXIT SETUP
SETUP MENU -- MAIN PAGE
If you try to perform an action that is not permitted (such as access-
ing the Preferences menu while a disc is playing), the on-screen
display will use the following symbol:
