Innovative Energies SR100A Series User manual

Specifications are subject to change without notice. No liability accepted for errors or omissions 1
Model Codes: SR100A . Standard version
SR100D . Standard with 2 relay alarm outputs
SR100L . Standard with relay alarm outputs
SR100P. Standard with 2 alarms and internal output diode
AC/DC POWER SUPPLY & FLOAT CHARGER
FOR LEAD ACID BATTERIES
SR100A
User Manual
www.innovative.co.nz
Phone: [phone]
Fax: [phone]
NZ Freephone: 0800 654 668
AU Freephone: 1800 148 4 4
Email: [e-mail]

Specifications are subject to change without notice. No liability accepted for errors or omissions. 2
1. INTRODUCTION
The SR100A range is designed for use as a very accurate AC to DC power supply, or float charger for lead
acid batteries. Note that for float charging the output voltage must be set to approximately 15% above the
nominal battery voltage. This is done as the default voltage for the 12V model but must be specified at
time of order for all higher voltage models.
2. CONNECTIONS
If used as a float charger always connect the positive output of the power supply to the positive terminal of
the battery. The charger may be permanently connected to float charge lead acid batteries but it is essen-
tial to periodically check the electrolyte level of flooded cells as there is always some evaporation.
To minimize the volt drop at the output connections use all the terminals provided ie. connect output wires in
parallel.
CONNECTION LAYOUTS
SR100A
AC INPUT
+ + - -
DC OUTPUT

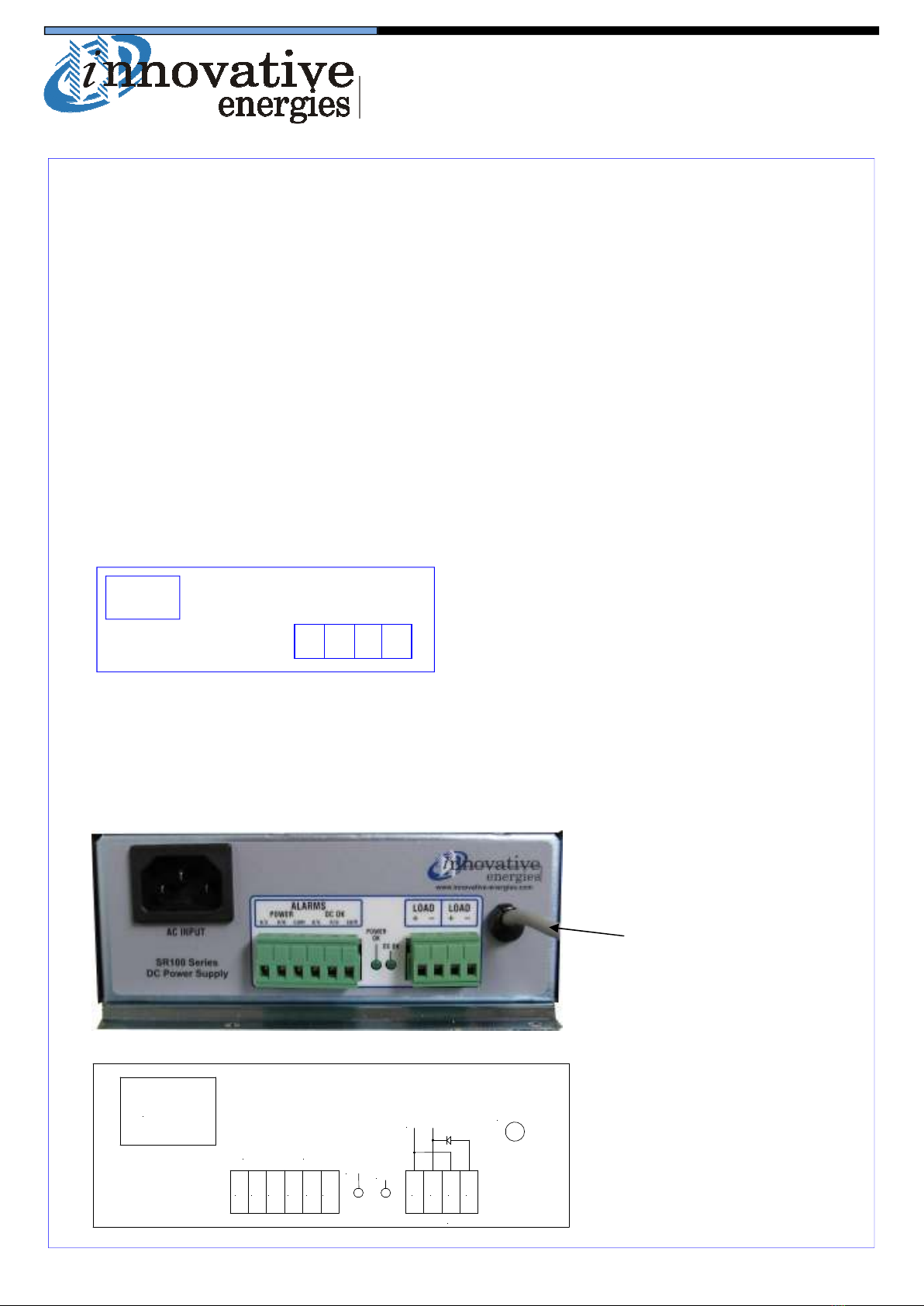

ALARM VERSIONS
Relay contacts shown in de-enegised state (ie when there is a fault condition).
Alarm relays are energised when power supply is operating normally, eg. “Power” alarm relay is energised
when ac input is present.
SR100D
SR100P with output diode.
Note that the diode is in nega-
tive line.
(tempco lead optional)
NC NO COM NC NO
POWER DC OK
+ - + -
AC INPUT
POWER
OK DC OK
TEMPCO
LEAD
COM
PSU
OUTPUT
DIODE
optional temperature
compensation sensor
lead
Global Solutions Personal Focus

Specifications are subject to change without notice. No liability accepted for errors or omissions 3
.0. LED INDICATION CODES
.1 -D version
Power: On = ac input present
Off = no input or short circuit on output
DC OK: Steady on = DC output OK
Slow flash = DC output low or battery low (eg. 11, 22, 33, 44V)
.2 -L Alarm version
Power: On = ac input present
Off = no input or short circuit on output
DC OK : Steady on = DC output OK
Slow flash = DC output low or battery low (eg. 11, 22, 33, 44V)
Fast flash = DC high (1.2xVnom for PSU, 2.5V/cell for charger, unless otherwise
specified)
4.0 FG - Frame Ground
Where provided, this terminal provides a connection to the metal case for an earthing point.

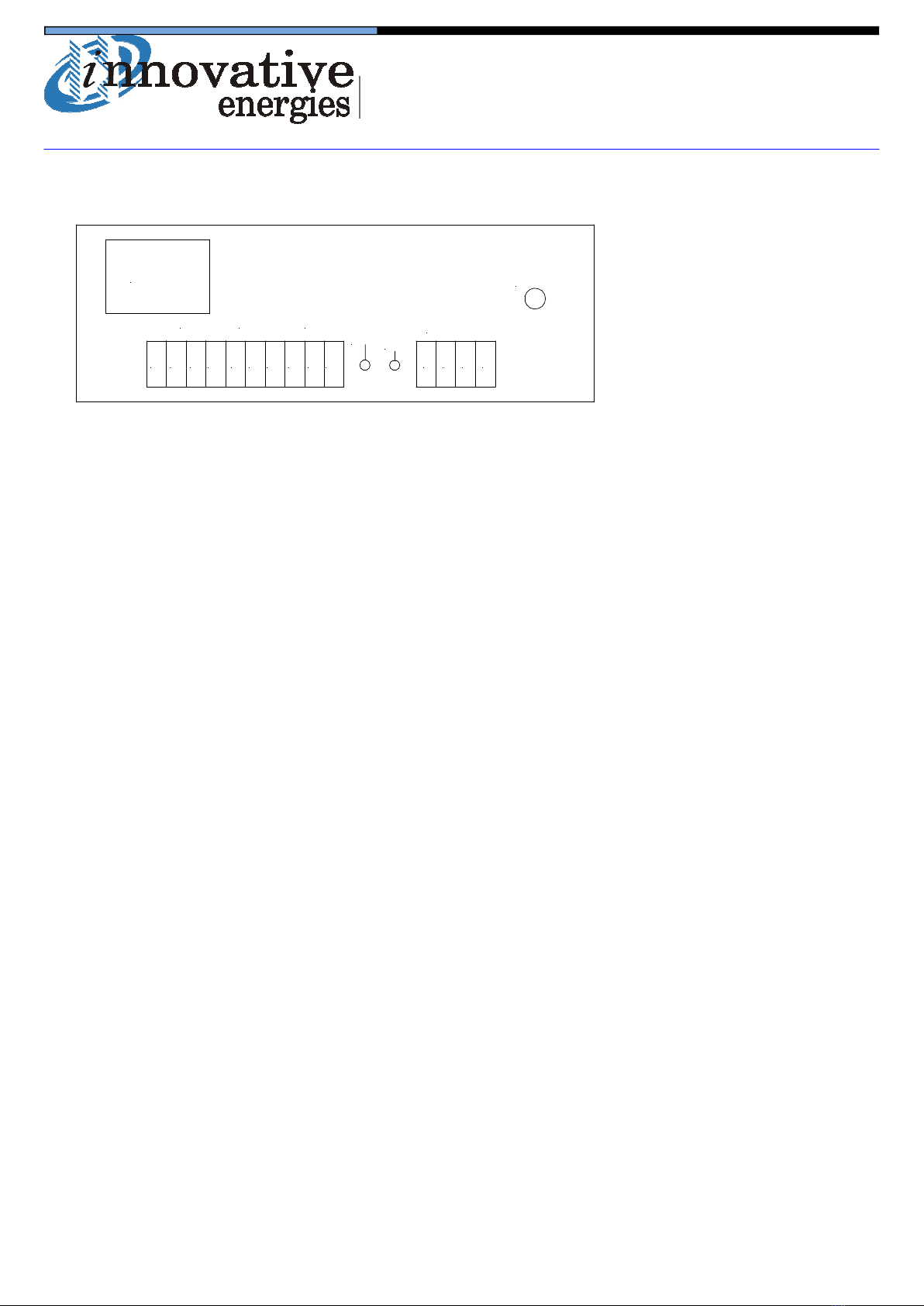

SR100L (tempco op-
tional)
NC NC
POWER DC OK LOAD OUTPUT
+ - + -
AC INPUT
POWER
OK DC OK
TEMPCO
LEAD
DC HIGH
FG NC NO COM NO NO COM COM
Global Solutions Personal Focus

Specifications are subject to change without notice. No liability accepted for errors or omissions. 4
 Industrial quality AC/DC power supply
 Suitable for float charging of lead acid batteries
 Constant current limit
 Precise voltage control
 Efficient modern ‘current-mode’ topology
 Temperature compensation option
 Suitable for parallel operation
 Optional relay alarm outputs - model SR100D,P
 Optional serial communications port, SR100L
 ISO9001 design management system
PHYSICAL
AC Input connector
DC Connections
Enclosure
Indicators
Weight
Dimensions
ENVIRONMENTAL
Operating temperature
Storage temperature
Humidity
Cooling
♦ 24 Month Warranty
STANDARDS
EMI
Safety
incl SR100D, SR100P, SR100L
IEC320 inlet socket (similar to PCs etc.)
Plug-in style socket & mating screw terminal
block: (max. wire 2.5mm² / way)
Zinc plated steel /powder coated lid
Green LED for DC Power OK
0. 4 Kg
146.5 W x 62 H x 177 D mm
Input
Fusing / Protection
Isolation
Efficiency
Inrush current
Output Power
Output Voltages
(nominal)
Voltage adj. range
Temp. Compensation
(option)
Over current Protection
Line Regulation
Load Regulation
Noise
Transient response
Hold-up time
ELECTRICAL
180V - 264VAC 45-65Hz or 200 - 375V DC
(standard)
88V - 132VAC 45-65Hz or 110-180VDC (on
request)
Internal AC input fuse
1KV DC input - output / earth
> 85%
<30A, 1.8ms
100W Continuous (0 - 50°C)
13.8V, 24V, 36V, 48V
Other voltages by request.
85 - 115% of Vout
Temperature sensor on 1.7m lead with
adhesive pad: -4mV / °C / cell ±10%
Constant current limit under overload and
short circuit conditions
<0.04% over input range
<0.5% open circuit to 100% load
<0.3%
200mV over/ undershoot,
load step 20-100%, 400us settling time
15 - 20 ms (nom. - max. Vin) without
battery
0 - 50 °C ambient at full load
De-rate linearly >50 °C to 0 load @ 70 °C
-10 to 85 °C ambient
0 - 5% relative humidity non-condensing
Natural convection
to CISPR 22 / EN55022 class A
to IEC 50 / EN60 50 / AS/NZS3260
ACCESSORIES SUPPLIED
Mounting Feet together with screws
AC power cord Standard 1.5m lead with IEC320 socket / local plug
DC connectors with mating screw-terminal plug
Ideal as a Standby Float Charger
for lead acid batteries
Global Solutions Personal Focus
SPECIFICATIONS All specifications are typical at nominal input, full load and at 20°C unless otherwise stated.

Specifications are subject to change without notice. No liability accepted for errors or omissions 5
100 Watt
AC/DC Stand Alone Power Supply/Float Charger
CABINET OPTIONS
19”Rack mount
Wall Mount Cabinet
2U sub rack option: add SR-RM2U
May be fitted into a cabinet which includes two
MCBs and I/O terminals
Cabinet code: SEC-SR
OPTIONAL COMMUNICATION PORT
ELECTRICAL OPTIONS
Temperature
Compensation
Alarms : SR100D
SR100L
Alarm Relay Contacts
Parallel Redundancy
For accurate battery charging, temperature
compensation adjusts voltages in accordance
with external temperature probe
Order Code: +TEMPCO
 Mains fail
 DC low (Battery low or PSU low)
- Charger: set at 1.83V/cell (80% Vout)
- PSU: set at 83% V out
 As SR100D plus extra DC alarm and
optional comms port
C - NO - NC changeover, rated
30VDC,2A /110VDC,0.3A/125VAC,0.5A
Use output diode for N+1 redundancy
24V & above: SR100P with alarms and
internal diode
12V: use SR100D12.. and +P15 external
diode
MODELS
Power Supply Battery Charger*
Adjustable
range (V)
Output
Volts
(factory default)
Output
Current (A)
(continuous)
Output
Volts*
(Charging)
Output
Current (A)
(Charging)
SR100A12
13.8 7.3 13.8 7.3 11-14
SR100A24
24 4.2 27.6 3.6 22-28
SR100A 0
30 3.3 34.5 2. 27-33
SR100A 6
36 2.8 41.4 2.6 34-43
SR100A48
48 2.1 55.2 1.8 45-57
STANDARD MODEL TABLE
Standard version
does not have
temperature
sensor
Available on SR100L models:
• Three comms. options available: RS485, RS232,
Ethernet
• With three relay alarm outputs
• Optional MODBUS protocol converter
MODEL CODING
230V AC no switch = blank
110V AC no switch = G
Input voltage and front
Panel standby switch
Phoenix combicon (plug in screw terminal block) = X
Output DC connector
Yes = T No = blank
Temperature Compensation
12, 24, 30, 36, 48 DC output: Nominal voltage
A
= Standard
D = A with two alarms
P = D with internal output diode
L = D with extra alarm and optional comms port if required
Function
485 = RS485 2 2 = RS232 LAN = ETHERNET
(for SR100L versions only)
Optional Communications
Interface Port
Power 100W
SR100A12TXG-485
Optional Protocol
Converter
*Please specify on ordering if
unit is to be used for battery
charging duty (except for 12V
version which is set for 13.8V
as standard)
incl SR100D, SR100P, SR100L

Specifications are subject to change without notice. No liability accepted for errors or omissions. 6
Two or more SRxxx A series power supplies may be connected in parallel for increased power (with or without di-
odes). It is essential that the wiring from each unit to the load is kept identical for equal power sharing particularly
when diodes are not used.
Two or more SRxxx D series power supplies (standard PSU with alarms), may be connected in parallel for N+1 redun-
dancy using output diodes shown.
Diodes can be fitted inside some power supplies (see models listed below).
The SRxxx P series identifies when an internal diode is fitted in the power supply.
CONNECTION FOR PARALLEL REDUNDANCY
INTERNAL diodes can be fitted to the following
models only (diode is fitted in negative line):
100W: SR100P24, SR100P36,
SR100P48
250W: SR250P24, SR250P30,
SR250P36, SR250P48, SR250P60
All other models have diodes external to the
power supply, eg fitted into a 2U rack as shown
in the photo to the right. 2U rack with 2 x SR250D12 power
supplies and decoupling diodes on
heatsink plus V/I meter
-
+ +
-
SRxxxP
SRxxxP SRxxxD
SRxxxD
ALARMS
ALARMS ALARMS
ALARMS
Global Solutions Personal Focus

Specifications are subject to change without notice. No liability accepted for errors or omissions 7
Safety
The user is responsible for ensuring that input and output wiring segregation complies with local standards and that in
the use of the equipment, access is confined to operators and service personnel. A low resistance earth connection is
essential to ensure safety and additionally, satisfactory EMI suppression (see below).
HAZARDOUS VOLTAGES EXIST WITHIN A POWER SUPPLY ENCLOSURE AND ANY REPAIRS MUST
BE CARRIED OUT BY A QUALIFIED SERVICEPERSON.
Electrical Strength Tests
Components within the power supply responsible for providing the safety barrier between input and output are con-
structed to provide electrical isolation as required by the relevant standard. However EMI filtering components could be
damaged as result of excessively long high voltage tests between input, output and ground. Please contact our techni-
cians for advice regarding electric strength tests.
Earth Leakage
The EMI suppression circuits causes earth leakage currents which may be to the maximum allowable of 3.5mA.
Ventilation
High operating temperature is a major cause of power supply failures, for example it has been well documented that a
10
o
C rise in the operating temperature of a component will halve its expected life. Therefore always ensure that there is
adequate ventilation for the equipment. Batteries and cooling fans also suffer shortened lifetimes if subjected to high
ambient temperatures - both should be included in a routine maintenance schedule to check for signs of reduced effi-
ciency.
Water / Dust
Every effort must be made in the installation to minimise the risk of ingress of water or dust. Water will almost always
cause instant failure. The effects of dust are slower in causing failure of electronic equipment but all electrical equip-
ment should be cleaned free of any dust accumulation at regular intervals.
Electro agnetic Interference (EMI)
Switching power supplies and converters inherently generate electrical noise. All wiring should be as short as practica-
ble and segregated from all equipment wiring which is sensitive to EMI. Residual noise can be reduced by looping DC
wiring through ferrite cable sleeves. These are most effective as close to the power supply as possible and as many
turns of the wire taken through the core (+ and - in the same direction) as the core will accommodate.
Fuse ratings
Check that the wiring and fuses or MCBs match the rating of the PSU or converter. Note that the Innovative Energies
No-Break
TM
DC chargers are able to deliver up to 2.5 times the rated current when mains power is on.
Connection polarity
It is critical to check the polarity carefully when connecting DC devices. Some Innovative Energies models have re-
verse polarity protection (RPP), for example, the Smartchargers have electronic (non-destructive) RPP, the No-Break
TM
DC range has an internal fuse which needs to be replaced if the battery is connected in reverse. Usually, however, a
reverse polarity connection results in instant destruction of the device, especially if there is a battery involved.
PSU = power supply unit BCT = battery condition test ECB = electronic circuit breaker
ELVD = electronic low voltage disconnect RPP = reverse polarity protection EMI = electromagnetic interference
Glossary of ter s used in our user anuals
SNMP = Simple Network Management
Protocol
LAN = local area network
Global Solutions Personal Focus

Specifications are subject to change without notice. No liability accepted for errors or omissions. 8
Innovative Energies Limited
Phone: [phone]
Freephone: 0800 654 668 (New Zealand)
1800 148 4 4 (Australia)
Fax: [phone]
Email: [email protected]z
Online: www.innovative.co.nz
In Person: 1 Heremai Street, Henderson, Auckland, New Zealand
By Post: PO Box 1 -501, Auckland 1746, New Zealand
Global Solutions Personal Focus
TERMS OF WARRANTY
Innovative Energies Ltd warrants its power supplies for
24 months (two years) from date of shipment against
material and workmanship defects.
Innovative Energies' liability under this warranty is lim-
ited to the replacement or repair of the defective product
as long as the product has not been damaged through
misapplication, negligence, or unauthorized modification
or repair.
Thank you for purchasing from
Innovative Energies.
We trust your power supply will exceed
your expectations and perform for years
to follow.
Sincerely,
The Innovative Energies team.
22/12/11
